Beyond Price: How to Evaluate cells Value by LiFePO4 Datasheet Metrics

LiFePO4 datasheet metrics: When buying LiFePO4 (Lithium Iron Phosphate) battery cells, many people only look at the price. But just going for the cheapest option can lead to problems later — like poor performance, short battery life, or safety risks.

If you want a battery that’s reliable, lasts long, and suits your needs, you must check the datasheet carefully. The datasheet is like a report card — it tells you what the battery can really do.

In this blog, we’ll explain how to read a LiFePO4 battery datasheet in simple words and how to use that information to find the best value — not just the lowest price.

✅ What Is a Battery Datasheet?

A battery datasheet is a technical document provided by the manufacturer. It includes important numbers and details that tell you how the battery works — like how much power it gives, how long it lasts, how hot it can get, and how safe it is.

If you can read these details, you can avoid low-quality or fake cells and choose the right one for your project.

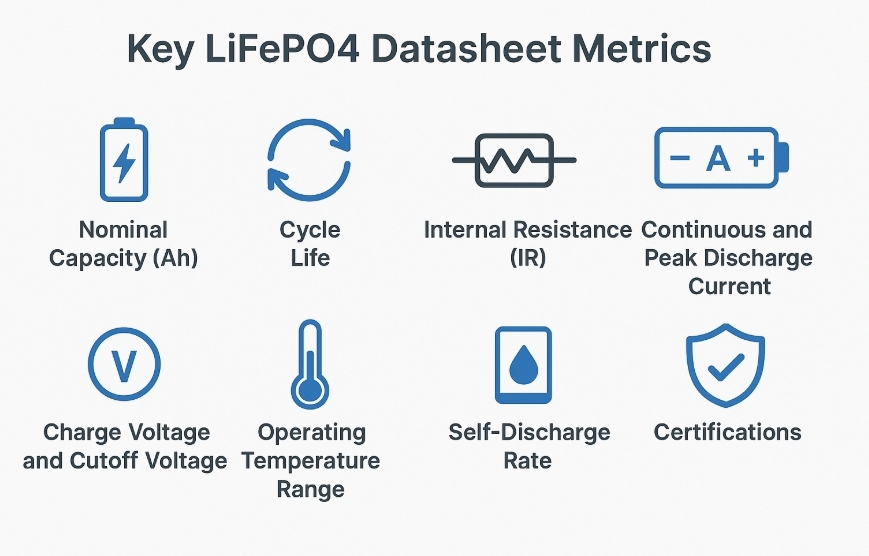

🔍 Important LiFePO4 Datasheet Metrics (Explained in Simple Words)

Here are the main things to look for in a datasheet and what they really mean:

⚡ 1. Nominal Capacity (Ah)

• What It Means: This tells you how much energy the battery can store.
• Measured In: Ampere-hours (Ah)
• Why It Matters: The higher the number, the more energy the cell can provide before it needs charging again.
• Tip: Make sure it matches what you need. For example, a 100Ah battery gives more backup than a 50Ah battery.

🔁 2. Cycle Life

• What It Means: How many times the battery can be charged and discharged before it loses most of its capacity.
• Measured As: Number of full cycles until the battery drops to 80% of its original capacity.
• Why It Matters: More cycles = longer life. A battery with 4,000 cycles will last much longer than one with 1,000 cycles.

📝 Always check the conditions under which the cycle life was tested — at what temperature, at what depth of discharge (DOD), and at what current rate?

🔌 3. Internal Resistance (IR)

• What It Means: How hard it is for electricity to move inside the battery.
• Measured In: Milliohms (mΩ)
• Why It Matters: Lower resistance is better. It means the battery can deliver power more easily and stays cooler.
• Tip: Batteries with high internal resistance waste energy and get hot during use.

🔋 4. Discharge Current (Continuous & Peak)

• What It Means:
  • Continuous discharge is the amount of current the battery can give steadily.
  • Peak discharge is the highest current it can give for a short time.
• Why It Matters: If you need the battery to run high-power devices (like motors or inverters), it must handle high discharge currents without damage.

🔺 Choosing a battery with low discharge ratings for high-load projects can lead to overheating and failure.

🔍 5. Charge Voltage and Cutoff Voltage

• What It Means: These are the highest and lowest voltages at which the battery should operate.
• Why It Matters: If the voltage goes outside this range, the battery can get damaged or unsafe.
• Tip: Make sure your charger and BMS (Battery Management System) follow these limits.

🌡️ 6. Operating Temperature Range

• What It Means: The safe temperature range for charging and discharging the battery.
• Why It Matters: If the battery is used in very hot or cold conditions outside the range, it might stop working or get damaged.
• Typical Range:
  • Charging: 0°C to 45°C
  • Discharging: -20°C to 60°C

❄️ Never charge LiFePO4 cells below 0°C — it can cause lithium plating, which damages the cell permanently.

🔋 7. Self-Discharge Rate

• What It Means: How quickly the battery loses charge when it’s not being used.
• Why It Matters: A good-quality LiFePO4 battery should hold charge for months. If it discharges quickly, it may be old or low quality.

✅ 8. Certifications

• What It Means: These are official approvals showing the battery has passed safety and quality tests.
• Common Certifications:
  • UN38.3 – Safety for transport
  • UL – General safety
  • CE – European safety compliance
  • IEC62619 – Safety for battery systems
• Why It Matters: Certified batteries are safer to use and often required for shipping or installing in regulated systems.

💡 Real-World Example: Why Price Isn’t Everything

Let’s say you are comparing two cells:

📌 Conclusion: Even though Cell B is cheaper at first, Cell A gives twice the energy over its life and ends up costing you much less in the long run.

🚨 Warning Signs in a Bad LiFePO4 datasheet metrics

• ❌ Missing test conditions (e.g., no info on how cycle life was tested)
• ❌ Unrealistic claims like “10,000 cycles” with no proof
• ❌ No certifications or safety reports
• ❌ Different values shown for the same model on different documents

💬 FAQs about LiFePO4 datasheet metrics

🏁 Final Thoughts

When buying LiFePO4 batteries, don’t just ask, “How much does it cost?”

Instead, ask:

• How long will it last?
• Is it safe?
• Will it work well in my system?
• Does the datasheet match the performance I need?

📘 The LiFePO4, battery datasheet, battery safety, battery grading, energy storage, EV batteries, cycle life, internal resistancet gives you the answers. Learn how to read it — and you’ll make better, safer, and more cost-effective decisions.
