AC-Coupled vs DC-Coupled BESS: Which Architecture Is Right for Your Project?
AC-coupled vs DC-coupled BESS is one of the first choices you’ll face in any solar-plus-storage project. This one decision shapes your system’s efficiency, cost, and how easily you can expand it later. Both architectures store solar energy in a battery for later use. But they connect the battery in different places relative to the inverter, and that single design choice ripples through nearly every other spec on the system. This guide walks through the differences so you can pick the right fit.
What Is AC-Coupled BESS?
An AC-coupled BESS connects the battery to the grid through its own dedicated inverter. This component sits separate from the solar PV inverter. Power from PV and power from the battery meet on the AC side of the system rather than sharing a DC bus. This makes AC-coupled storage the more common choice when you’re adding a battery to solar you already have running. For the full breakdown of components and operation, see What is AC Coupled BESS?.
What Is DC-Coupled BESS?
A DC-coupled BESS connects the battery and the solar PV array on the same DC bus, ahead of a single shared inverter. Because both share one conversion path, DC-coupled systems typically post better round-trip efficiency and lower equipment costs, at the expense of retrofit flexibility. For the full architecture and step-by-step operation, see What is DC Coupled BESS?.
AC-Coupled vs DC-Coupled BESS: Side-by-Side Comparison
Here’s the AC-coupled vs. DC-coupled BESS comparison at a glance — the factors that matter most when you design a solar-plus-storage system:
| Factor | AC-Coupled BESS | DC-Coupled BESS |
| Connection point | Battery connects via its own inverter on the AC side | Battery and PV share one DC bus, ahead of a single inverter |
| Inverters required | Two — one for PV, one for battery | One shared hybrid inverter |
| Conversion stages | Multiple DC-AC-DC conversions on some charge paths | Single DC-to-AC conversion for grid/load power |
| Round-trip efficiency | Lower — extra conversion stages add losses | Higher — fewer conversion losses |
| Balance-of-system cost | Lower than standalone, but higher than DC-coupled (separate inverters, switchgear) | Lowest of the three — shared inverter and BOS hardware |
| Best for | Retrofitting storage onto existing solar | New-build, greenfield solar-plus-storage projects |
| Solar charging during outage | Depends on inverter design; may need extra hardware | Typically yes, in most configurations |
| Curtailment / clipping capture | Limited — PV inverter still governs PV output | Can capture otherwise-clipped PV energy behind a higher-ILR array |
| Grid response speed | Slower — control system coordinates multiple inverters | Faster — single inverter, more direct control path |
| Future expansion | Easier — PV and storage can be sized/upgraded independently | Harder — added battery capacity must match existing DC bus voltage |
No single architecture wins on every factor. The right choice depends on your project type and how much you weigh upfront cost against long-term efficiency.
AC-Coupled vs DC-Coupled BESS: Efficiency Compared
Every DC-to-AC conversion wastes some energy as heat. An AC-coupled system can convert PV energy to AC, then back to DC to charge the battery, then to AC again when you use it. That’s up to three conversion stages on some charge paths.
A DC-coupled system skips most of that. It charges the battery straight from the DC bus and converts to AC only once, when you actually need AC power. This is the core reason DC-coupled architectures tend to post higher round-trip efficiency in side-by-side testing.
We break down the exact numbers in AC vs DC Round Trip Efficiency in Battery Energy Storage Systems, and show you how to calculate round-trip efficiency for your own project in our BESS Round Trip Efficiency guide.
AC-Coupled vs DC-Coupled BESS: Cost Compared
Both architectures cost less than siting solar and storage separately. DC-coupled systems generally cost less than AC-coupled ones on new-build projects, too.
The U.S. Department of Energy’s Solar-Plus-Storage 101 resource confirms this pattern: co-locating PV and storage on the same site cuts system cost compared to siting them separately, whether you choose AC-coupled or DC-coupled. Most of the savings come from shared balance-of-plant infrastructure.
DC-coupled designs push those savings further. They eliminate a full second inverter and its switchgear. That said, retrofit constraints can narrow this advantage — if AC-coupling is your only practical option, the smaller cost gap may not matter much.
Retrofit vs. Greenfield: Matching Architecture to Project Stage
Project stage often decides the outcome before cost or efficiency even enter the conversation.
If you already run solar, adding a DC-coupled battery means tying into the existing DC bus and matching its voltage. That’s technically possible, but it usually means replacing or reconfiguring your existing inverter. AC-coupled storage sidesteps that problem entirely — the battery gets its own inverter and connects on the AC side, so your existing solar installation stays untouched.
New-build, greenfield projects don’t face that constraint, since you design PV and storage together from day one. That’s why DC-coupled architectures dominate new utility-scale and C&I builds. In the end, this AC-coupled vs. DC-coupled BESS decision usually comes down to one question: are you retrofitting, or building new?
When to Choose AC-Coupled BESS
- Adding storage to solar you already have running
- Projects where you need to size, optimize, or replace PV and battery independently
- Sites where minimizing changes to existing PV wiring and permits matters
- Phased projects that add storage well after the solar installation
- Systems needing simpler expansion of storage capacity over time
When to Choose DC-Coupled BESS
- New solar-plus-storage builds where you design PV and storage together from the start
- Utility-scale and C&I projects prioritizing round-trip efficiency
- Microgrid and off-grid systems needing solar charging during outages
- High inverter-loading-ratio PV arrays looking to capture otherwise-clipped energy
- Projects where minimizing equipment count and balance-of-system cost is a priority
AC-Coupled vs DC-Coupled BESS: Trade-offs to Weigh
Efficiency and cost aren’t the only variables to weigh.
DC-coupled systems can be harder to expand later. Additional battery capacity generally needs to match the voltage of your existing DC bus. The tighter integration between PV and storage also means a fault on one side can affect the other.
AC-coupled systems avoid that coupling risk and expand more easily. You pay for that flexibility with two inverters, two sets of switchgear, and a somewhat slower response to fast grid commands like frequency regulation, since the control system has to coordinate multiple inverters instead of one.
Weigh these trade-offs against your project’s timeline, budget, and growth plans. That usually beats picking the ‘better’ architecture in the abstract.
Can You Combine AC-Coupled and DC-Coupled BESS?
Some projects don’t have to choose only one. A hybrid architecture can pair DC-coupled storage on a new PV block with an existing AC-coupled asset elsewhere on-site. Or it can phase in DC-coupled storage over multiple project stages. You’ll see this more often on larger utility-scale sites with modular BESS designs. For a broader look at how AC-coupled, DC-coupled, modular, and hybrid designs fit together, see our guide to Understanding Energy Storage System BESS Architectures.
Frequently Asked Questions
Here are quick answers to the AC-coupled vs DC-coupled BESS questions we hear most often:
What is the main difference between AC-coupled and DC-coupled BESS?
AC-coupled systems use two separate inverters — one for solar PV and one for the battery. DC-coupled systems share a single inverter. PV and battery connect to the same DC bus before the system converts power to AC.
Which is more efficient, AC-coupled or DC-coupled BESS?
DC-coupled BESS is generally more efficient because energy converts from DC to AC only once. AC-coupled systems often involve extra conversion stages, especially when charging the battery from solar, and that raises round-trip losses.
Is AC-coupled or DC-coupled BESS cheaper?
DC-coupled systems typically cost less on the balance-of-system side, since they need only one inverter and one set of switchgear. AC-coupled systems cost more upfront, but you can add them incrementally, which sometimes offsets the gap on retrofit projects.
Can I add a DC-coupled battery to an existing solar system?
You can, but it’s more complex than AC-coupling. The battery must connect to the existing DC bus and match its voltage. For most retrofits, AC-coupled storage is the simpler, more common approach.
Does DC-coupled BESS work off-grid?
Yes. DC-coupled architectures generally support off-grid and islanded operation. They can keep charging from solar during a grid outage, which makes them a common choice for microgrid and remote projects.
Why do DC-coupled systems capture more solar energy?
In a DC-coupled system, the battery can charge directly from PV output that would otherwise get clipped when the inverter loading ratio exceeds 1. That’s because the battery sits on the DC side, before the inverter’s AC output limit applies.
Is there a hybrid option that combines AC and DC coupling?
Yes. Some larger projects use a hybrid architecture that pairs DC-coupled storage with an existing AC-coupled asset, or phases DC-coupled storage in over time. You’ll see this more often on utility-scale sites with modular BESS designs.
AC-Coupled vs DC-Coupled BESS: Final Verdict
AC-coupled and DC-coupled BESS both store solar energy for later use, but they get there differently. That difference shows up in efficiency, cost, and how easily the system grows over time.
AC-coupled storage stays the more flexible choice for retrofits and phased projects. DC-coupled architectures tend to win on efficiency and cost for new-build solar-plus-storage systems. The right call comes down to where your project starts, not which architecture is objectively ‘better’.
Whichever direction fits your project, the Sunlith Energy team can help size and specify the right BESS architecture, PCS, and battery configuration for your site.
BESS Oversizing: Pros, Cons & the Right-Sizing Strategy for Your Project
BESS oversizing — deliberately installing more nameplate energy capacity than your immediate load demands — is one of the most debated decisions in battery storage project design. Therefore, getting this decision right has direct consequences for project ROI, battery longevity, and contracted performance guarantees. Furthermore, as storage markets mature and the Section 48E Investment Tax Credit continues to reshape project economics, understanding when BESS oversizing helps and when it hurts has never been more important.
In this guide, we break down the real pros and cons of BESS oversizing across residential, commercial and industrial (C&I), and utility-scale applications. Additionally, we provide a practical sizing framework, a direct comparison with the augmentation alternative, and clear guidance on how much oversizing is appropriate for each use case. For background on key BESS performance metrics, see our BESS specifications guide.
| Key Takeaway BESS oversizing reduces average depth of discharge, extends cycle life, and provides a degradation buffer — but it carries real costs in capex, idle capacity, and calendar aging risk. Consequently, the right answer depends entirely on your use case, load profile, battery chemistry, and project economics. |
What Is BESS Oversizing? Definition and Key Drivers
BESS oversizing means installing more nameplate energy capacity (kWh) or power capacity (kW) than the system is expected to dispatch on a daily basis under normal operating conditions. In other words, it is the deliberate act of selecting a battery system larger than the immediate load or solar coupling requirement.
The Four Main Reasons Projects Choose BESS Oversizing
Project developers and system designers choose BESS oversizing for four primary reasons. First, it provides a built-in degradation buffer — batteries lose capacity over time, so installing extra kWh upfront ensures the system still meets its contractual output at end of life (EOL). Second, it reduces the average depth of discharge (DoD), which significantly reduces electrochemical stress and extends cycle life. Third, it future-proofs the system against load growth — a facility adding EV chargers or expanding solar may outgrow a precisely sized BESS within three to five years. Finally, the ITC captures a larger credit on the full installed capacity at commissioning rather than on augmented modules added later.
Note: Before looking at buffers, make sure you’ve calculated your exact day-one minimum requirements using our Energy Storage Sizing & Calculation Guide.
BESS Oversizing vs Augmentation: Two Different Strategies
It is important to separate two strategies that are frequently conflated: oversizing (installing more capacity upfront) and augmentation (adding capacity later). Both address the degradation problem, but they carry very different economic and technical profiles. Whereas oversizing locks in capex on Day 1, augmentation defers cost — but at the risk of losing ITC eligibility on the additional modules. We explore this comparison in detail in Section 5.
Pros of BESS Oversizing: 7 Technical and Financial Benefits
1. Extended Cycle Life Through Lower Depth of Discharge
The single most significant technical benefit of BESS oversizing is the reduction in average Depth of Discharge (DoD). Battery cycle life is acutely sensitive to DoD: a LiFePO4 (LFP) cell discharged to 80% DoD typically delivers 3,000–6,000 cycles to 80% capacity retention, whereas the same cell cycled at 40% DoD can exceed 10,000 cycles. Moreover, for NMC chemistry, the spread is even wider. Therefore, oversizing directly reduces the daily DoD, keeping cells in the shallow-cycle, high-longevity operating zone. As a result, the total useful life of the system increases substantially — without any hardware change.
A peer-reviewed sizing study published in MDPI Energies confirmed that an oversized BESS consistently operates at approximately 30% DoD, significantly reducing cycling degradation compared to a precisely sized system. See our BESS cycle life comparison guide for detailed 0.5C vs 1C cycling data across liquid-cooled LFP formats.
2. Built-In Degradation Buffer for End-of-Life Performance
All BESS contracts and revenue agreements are written against end-of-life capacity, not nameplate. Consequently, a project designed to deliver 1 MWh at year 10 must either oversize at commissioning to absorb predicted capacity loss, or augment mid-life. BESS oversizing solves this directly: the 15–20% extra capacity at year 0 becomes the system’s normal operating capacity at year 8–10, after degradation has run its course. In addition, oversizing also enables developers to lock in capital expenditures at project outset, mitigating future cost uncertainty. For a deeper understanding of capacity fade mechanics, see our Battery State of Health (SoH) estimation guide.
3. Improved Round-Trip Efficiency at Partial Loads
Battery inverters and Power Conversion Systems (PCS) operate most efficiently when working well below their rated power ceiling. Therefore, an oversized BESS means the power electronics run at partial load more often, reducing switching losses and thermal stress. Across LFP systems, round-trip efficiency (RTE) typically reaches 90–95% in well-managed partial-load conditions versus 85–88% when the system is pushed to rated limits daily. Furthermore, professional system sizing guidelines recommend oversizing by 5–20% specifically to compensate for RTE losses over the project’s lifetime. For a full breakdown of how RTE impacts your PCS selection, visit our BESS PCS functions and features guide.
4. Future-Proofing for Load Growth
Commercial and industrial facilities are rarely static. An EV fleet charging infrastructure build-out, a new production line, additional HVAC loads, or expanded solar capacity can all push a precisely sized BESS into insufficiency within a few years. As a result, BESS oversizing provides headroom to absorb load growth without a full system redesign or costly inverter upgrades. For residential customers, similarly, oversizing by 10–20% accounts for future appliance electrification — heat pumps, EV charging, induction cooking — that increase household energy consumption over time. This is especially relevant given that electricity rates have increased 32% over the past decade and the trend is expected to continue.
5. Greater Resilience During Extended Outages
An oversized BESS provides substantially longer backup durations during grid outages. For instance, where a precisely sized system may sustain critical loads for 4–6 hours, a 25% oversized system of the same power rating extends that window to 5–7.5 hours without additional hardware. Consequently, for hospitals, data centres, manufacturing facilities, and off-grid microgrids, this resilience buffer is a core design requirement rather than an optional feature. In addition, BESS oversizing enables higher solar self-consumption ratios, because the system can absorb more excess PV generation that would otherwise be curtailed — especially in DC-coupled configurations. Our cylindrical vs prismatic LFP cell guide covers how cell format selection interacts with resilience design.
6. Tax Credit Maximisation Under Section 48E
Under the Section 48E Clean Electricity Investment Tax Credit, the ITC applies to the full installed nameplate capacity at commissioning. Projects beginning construction before 2033 can qualify for a base credit of 6% rising to 30% — or up to 50% with domestic content and labour standards — on the entire installed system. Therefore, oversizing at commissioning rather than augmenting later allows developers to capture ITC on the additional capacity now, when the credit is at its most generous. As documented by Energy-Storage.News, Pivot Energy uses optimisation models specifically to find the ‘sweet spot’ where overbuilding by 15–20% captures the full ITC while also reducing DoD and slowing the degradation curve.
7. Higher Solar Self-Consumption and Clipping Capture
In solar-plus-storage configurations, an oversized BESS absorbs more excess PV generation that would otherwise be curtailed — particularly in DC-coupled systems where the battery captures inverter clipping losses. Projects with aggressively sized solar arrays consequently benefit most from an oversized storage buffer, enabling higher self-consumption ratios and better time-of-use (ToU) arbitrage revenue. Additionally, the flat voltage profile of LFP cells means the battery can accept charge across a wider SoC range without significant efficiency loss, making it well-suited to absorbing variable clipping events.
Cons of BESS Oversizing: 7 Real Drawbacks to Weigh
1. Higher Upfront Capital Expenditure
The most obvious downside of BESS oversizing is cost. At current commercial LFP BESS pricing of $220–$320 per kWh (nameplate, installed), adding 15–25% extra capacity translates directly into a 15–25% larger capital outlay. For example, on a 1 MWh C&I project, the oversizing premium reaches $33,000–$80,000. On a 10 MWh utility-scale project, the figure climbs to $330,000–$800,000. As a result, higher capex extends payback periods, dilutes IRR, and increases financing costs. Moreover, the 20/80 rule for battery SoC management — explored in our 20/80 rule for batteries guide — shows that moving from a 90% DoD strategy to a strict 60% DoD strategy for the same usable energy requires installing roughly 33% more nameplate capacity, at a steep capex premium.
2. Idle Capacity — Stranded Capital
An oversized BESS, by definition, contains capacity that is not used every day. In a system with a 30% oversizing factor, approximately 23% of the installed kWh is functionally stranded under normal operating conditions — generating no direct revenue, not contributing to peak shaving, and not offsetting grid draw. Therefore, for merchant revenue projects where every kWh of contracted discharge must justify its hardware cost, idle capacity directly weakens the financial case. Consequently, a detailed financial model comparing oversized vs precisely sized scenarios is essential before committing to an aggressive oversizing strategy.
3. Calendar Aging at High State of Charge
There is a subtle but real risk in BESS oversizing: a battery that is rarely deeply discharged will consequently spend more time at a high state of charge (SoC) between cycles. For LFP, this matters less due to the flat voltage curve, but for NMC and NCA chemistries, sustained high SoC accelerates calendar aging through lithium plating and electrolyte decomposition. The EMS must therefore be configured with SoC upper limits (typically a 90% ceiling) to mitigate this risk, which further reduces the usable window — partially negating the oversizing benefit.
4. Larger Physical Footprint and Permitting Complexity
A larger BESS means more rack space, additional container units, larger electrical rooms, and more complex fire suppression under NFPA 855 setback requirements. For urban C&I projects, rooftop installations, or sites with constrained footprints, BESS oversizing may simply not be feasible without additional civil and structural engineering. As a result, the incremental cost of accommodating a larger system can erode or eliminate the economic benefit of the additional capacity.
5. Risk of Over-Engineering Against Inaccurate Load Projections
BESS oversizing is typically justified by load growth projections that may not materialise. A facility forecasting 30% energy consumption growth over five years but actually growing 10% has paid a significant capex premium for capacity that will never be fully utilised. Furthermore, the further into the future the projections extend, the less reliable they become — and the weaker the economic case for aggressive oversizing. Therefore, right-sizing discipline, grounded in real interval load data, is essential before committing to an oversizing strategy.
6. Interconnection Limit Conflicts
Utility interconnection agreements define the maximum allowable power at the Point of Common Coupling (PCC). An oversized BESS that exceeds the permitted inverter or PCS rating — or that pushes a project over the interconnection ceiling — may require expensive distribution upgrades, transformer replacements, or grid impact studies. As a result, always validate that the oversized system’s power rating remains within interconnection constraints before finalising the design.
7. Diminishing Returns on ROI for Thin-Margin Projects
For projects where the economics are already marginal — low ToU spreads, limited demand charges, or thin merchant power prices — the additional capex of BESS oversizing may not be recoverable within the project’s financial life. Therefore, a right-sizing discipline, rather than aggressive oversizing, often produces better risk-adjusted returns on projects operating in challenging market conditions. Additionally, if battery prices continue to fall, augmentation at year 5–7 may deliver the same EOL capacity guarantee at a lower total lifecycle cost than oversizing today.
BESS Oversizing Pros and Cons: Quick-Reference Comparison Table
| PROS of BESS Oversizing | CONS of BESS Oversizing |
| Extends cycle life by reducing average DoD | Higher upfront capital expenditure |
| Slower capacity degradation over project lifetime | Idle capacity — underutilised asset |
| Buffer for future load growth without re-powering | Larger footprint and space requirements |
| Improves round-trip efficiency at partial loads | Additional BMS / thermal management complexity |
| Strengthens resilience during extended outages | Risk of battery sitting at high SoC, accelerating calendar aging |
| Lock in ITC / 48E tax credits on full capacity now | Diminishing returns if load growth projections are wrong |
| Reduces depth of discharge and thermal stress | Potentially overshoots interconnection limits |
| Supports higher solar self-consumption | Makes ROI harder to justify on thin-margin projects |
BESS Oversizing vs Augmentation: Which Degradation Strategy Wins?
The BESS oversizing debate is inseparable from its primary alternative: augmentation — the strategy of adding battery modules at year 5 or 7 to restore degraded capacity. However, these strategies are not equivalent, and the right choice depends on several project-specific factors.
| Factor | BESS Oversizing (Upfront) | Augmentation (Mid-Life) |
| Capex Timing | Higher Day-1 cost; lower total lifecycle cost | Lower Day-1 cost; uncertain future capex at year 5–7 |
| ITC Eligibility | Full credit on entire capacity at commissioning | Augmented capacity may miss ITC or face FEOC risk |
| Degradation Benefit | Reduces DoD and slows degradation from Day 1 | Addresses degradation after it has occurred |
| Space Planning | Must install full footprint upfront | Must reserve physical and electrical space for future modules |
| Falling Battery Prices | Locks in today’s cost for future capacity | May benefit from lower prices at year 5 |
| Complexity | Lower operational complexity | Requires mid-project procurement and system rebalancing |
| Best For | Utility-scale; ITC-sensitive projects; stable load forecasts | C&I with budget constraints; markets with falling storage prices |
As battery prices continue to fall, augmentation is becoming more attractive for some project types. Nevertheless, as Pivot Energy’s modelling demonstrates, for ITC-sensitive projects, oversizing by 15–20% upfront typically produces better risk-adjusted NPV than augmentation — particularly given the difficulty of qualifying augmented capacity for the same ITC rate under the One Big Beautiful Bill Act.
How Much BESS Oversizing Is Right? A Use-Case Sizing Guide
There is no universal BESS oversizing percentage. Instead, the right buffer depends on your use case, battery chemistry, load profile, and project economics. However, the table below provides a practical reference framework covering the most common project types:
| Use Case | Recommended BESS Oversizing | Rationale | Key Risk if Under-Sized |
| Residential Solar + Storage | 10–20% | Compensate for DoD and RTE losses; buffer seasonal variation | Shortfall on multi-day cloudy periods |
| C&I Peak Shaving | 15–25% | Cover end-of-life (EOL) capacity guarantee; avoid demand charge spikes | Missed peak shaving events at year 8–10 |
| Off-Grid / Microgrid | 20–30% | Autonomy days require deep reserve; no grid backup available | Load shedding during contingency events |
| Utility-Scale / Grid Services | 10–20% (overbuild) | Reduces average DoD; locks in ITC on full nameplate capacity | Degradation causes contract shortfalls |
| Solar Clipping Capture | 5–15% on storage side | Capture otherwise-curtailed DC energy during peak irradiance | Revenue loss from curtailed generation |
The BESS Sizing Formula: Starting Point Before Oversizing
Before applying any BESS oversizing factor, establish your baseline required capacity using the standard sizing formula:
| Battery Sizing Formula Required Capacity (kWh) = (Daily Load × Autonomy Days) ÷ (DoD × Round-Trip Efficiency) Example: 30 kWh/day load × 2 autonomy days = 60 kWh base ÷ 0.85 DoD × 0.92 RTE = 76.6 kWh nameplate minimum + 15% degradation buffer = approximately 88 kWh recommended nameplate capacity Note: For LFP chemistry with a 90% DoD operating window, adjust DoD factor accordingly. |
For LFP chemistry specifically, the degradation benefit of BESS oversizing is more modest than for NMC or NCA, because LFP already exhibits a flatter voltage curve and superior cycle life at high DoD. Therefore, the most rigorous approach — as recommended in NREL’s Energy Storage Modelling guidelines and the IEA’s Batteries and Secure Energy Transitions report — is to use simulation tools such as NREL’s SAM or PVsyst with real 15-minute interval load data to determine the optimal capacity that minimises LCOE while meeting the contracted capacity guarantee at EOL.
Does Battery Chemistry Change the BESS Oversizing Calculus?
Yes — significantly. However, the extent to which BESS oversizing is beneficial varies considerably by chemistry. Here is how the most common BESS chemistries interact with oversizing strategy:
LFP (LiFePO4): The Most Common Choice for Commercial BESS
LFP already offers exceptional cycle life — 6,000–10,000+ cycles at 0.5C to 80% SoH — a flat voltage curve that reduces SoC-related aging, and thermal stability above 270°C. Therefore, the benefit of BESS oversizing for LFP is real but more modest than for NMC. A 10–15% oversizing factor is typically sufficient for residential and C&I LFP projects, unless extended autonomy is a primary requirement. For a detailed comparison of LFP cell formats, see our cylindrical vs prismatic LFP guide.
NMC (Nickel Manganese Cobalt): Greater Benefit from Oversizing
NMC cells are more sensitive to both high SoC and high DoD. The cycle life penalty for deep discharging is steeper, and calendar aging at high SoC is more pronounced. Consequently, for NMC-based systems, BESS oversizing by 20–30% can provide meaningful cycle life extension. However, the EMS must be configured to avoid sustained high-SoC parking, which otherwise accelerates precisely the degradation the oversizing was intended to prevent.
NCA (Nickel Cobalt Aluminium): Strongest Case for Oversizing
NCA is even more sensitive to DoD extremes than NMC. Therefore, BESS oversizing is strongly recommended for NCA systems, alongside strict SoC window management — typically a 20–90% operational band. As a result, NCA-based utility-scale systems frequently carry 20–30% oversizing factors as a standard design requirement.
When to Choose BESS Oversizing — and When to Avoid It
Oversize Your BESS When These Conditions Apply
- Your project carries a 10+ year contract or PPA with capacity guarantee provisions that must be met at end of life
- You are qualifying for ITC / Section 48E and want to maximise the tax credit on the full installed capacity at commissioning
- The site has a clear load growth trajectory — EV charging, electrification roadmap, or solar expansion planned
- You are designing an off-grid or critical backup system where autonomy days are non-negotiable
- NMC or NCA chemistry is specified and DoD reduction delivers a significant cycle life benefit
- Your DC-coupled solar array is oversized relative to the inverter and the battery can capture clipping energy
- The incremental capex of BESS oversizing is recoverable within the project financial model
Avoid BESS Oversizing When These Conditions Apply
- Project economics are already thin and additional capex pushes IRR below the acceptable threshold
- Load forecasts are highly uncertain and growth projections lack solid 15-minute interval data support
- Physical space constraints make a larger system impractical or disproportionately expensive to install
- The interconnection agreement caps power capacity at a level that already constrains daily dispatch
- Battery prices are falling rapidly in your market and augmentation in year 5–6 will be substantially cheaper
- LFP chemistry is specified and daily DoD is already inherently low (below 60%) with proper sizing
The Four-Step BESS Oversizing Decision Framework
Rather than guessing at an oversizing percentage, use this structured four-step framework to determine whether BESS oversizing is appropriate for your project and, if so, by how much. As a result, you will arrive at a defensible, financially grounded nameplate capacity rather than an arbitrary rule of thumb.
Step 1 — Load Analysis: Gather Real Interval Data
First, collect at least 12–24 months of 15-minute interval load data. Identify peak demand events, average daily consumption, and seasonal variation patterns. This step is non-negotiable: BESS oversizing justified by rough annual consumption estimates rather than interval data almost always produces either over-engineered or under-performing systems.
Step 2 — Base Capacity Calculation
Next, apply the standard sizing formula — daily load × autonomy days ÷ (DoD × RTE) — to establish the minimum required nameplate capacity. This gives you the floor, not the target. However, it also reveals exactly how sensitive the result is to your DoD and RTE assumptions.
Step 3 — Apply Chemistry and Use-Case Correction
Subsequently, determine your oversizing factor based on battery chemistry (LFP vs NMC vs NCA), use case (peak shaving vs backup vs grid services), and EOL capacity requirement. Reference the sizing guide table in Section 6 for starting-point percentages, then adjust based on site-specific factors including climate, cycling frequency, and interconnection limits.
Step 4 — Financial Validation: Model Both Scenarios
Finally, model the oversized vs precisely sized scenarios in a full project NPV and IRR analysis, incorporating ITC capture, degradation trajectory, load growth assumptions, and augmentation cost projections. As a result, you will arrive at the scenario that maximises risk-adjusted return while meeting contracted performance obligations. Choose the strategy with the superior risk-adjusted NPV — not the one that simply installs the most battery.
Conclusion: BESS Oversizing Is a Strategy, Not a Default
BESS oversizing is one of the most powerful tools in a storage developer’s arsenal — but only when applied with precision. When the economics support it, oversizing by 10–25% delivers longer cycle life, a built-in degradation buffer, greater resilience, higher solar self-consumption, and maximised ITC capture. Conversely, when applied without a sound load analysis and financial model, it simply commits capital to cells that will never discharge.
The right approach is always project-specific. Therefore, an LFP C&I peak shaving project with a 10-year capacity guarantee may need 15–20% BESS oversizing to meet EOL targets. A residential grid-tied backup system with low daily DoD requirements may need only 10%. An off-grid microgrid with strict autonomy requirements and no grid fallback may need 25–30%. Furthermore, as battery prices continue to fall, the break-even point between oversizing and augmentation will shift — making it essential to rerun the financial model on each new project rather than applying a fixed rule.
At Sunlith Energy, every BESS project we design goes through a rigorous sizing and degradation modelling process — using real interval load data, validated chemistry models, and financial sensitivity analysis. To learn more about how we approach BESS design, explore our BESS specifications guide, our Battery SoH estimation guide, or review the NREL Grid-Scale Battery Storage Technology Basics for independent technical context. The goal is never the largest battery — it is the right battery, sized correctly for your project’s lifetime.
| Ready to size your BESS correctly? Contact the Sunlith Energy team for a technical consultation. We combine 14+ years of LiFePO4 expertise with advanced degradation modelling to design storage systems that perform at end of life, not just on commissioning day. |
Solar Panel Tilt Angle by Location: The Complete World Guide to Maximum Output
Why the Tilt Angle Decision Matters Before You Buy a Single Panel
Most solar buyers spend hours comparing panel brands and inverter models. However, one of the most powerful performance variables costs nothing to optimise. In fact, it is decided before the first bolt is tightened: the solar panel tilt angle. Therefore, setting it correctly for your location means you capture every kilowatt-hour the Sun is offering. If you set it wrong, you permanently leave 20–40% of your system’s lifetime yield on the table — for the entire life of the installation.
This guide is the definitive reference for solar panel tilt angle by location. First, it explains the physics behind the tilt angle rule. Furthermore, it breaks down the optimal values by latitude zone. In addition, it provides a comprehensive 130+ city world database covering every country, all US state capitals, Canadian provinces, and major capitals across every continent. As a result, every value is cross-referenced against NREL and Global Solar Atlas irradiance data so you can act on it with confidence.
Whether you are designing a residential rooftop system, a commercial ground-mount, or a utility-scale solar-plus-storage plant, this guide is therefore your complete reference. Used alongside Sunlith’s Peak Sun Hours by Location guide and the Energy Storage Calculation guide, it gives you the complete input data you need to size a system correctly from the ground up.
Solar panel tilt angle rule: Set your tilt angle equal to your site latitude for maximum annual yield.
• Northern Hemisphere → Face TRUE SOUTH.
• Southern Hemisphere → Face TRUE NORTH.
• Equatorial zone (0°–15°) → Minimum 10–15° tilt for drainage.
• High latitudes → Steepen tilt toward 60–70°.
Single-axis trackers recover 15–25% more energy at any tilt angle setting.
1. The Physics Behind Solar Panel Tilt Angle
1.1 Why Tilt Angle Exists: Solar Declination and the Ecliptic Plane
The Earth orbits the Sun on a tilted axis — 23.5° relative to the ecliptic plane. As a result, the Sun’s path across the sky varies by season and latitude. In summer, the Sun arcs high; in winter, it tracks low and short. Consequently, a fixed solar panel set at the wrong tilt angle misses the bulk of available irradiance for large parts of the year. Setting the correct solar panel tilt angle therefore compensates for this by orienting the panel face as close to perpendicular to the Sun’s average annual path as possible.
Two angles fully define a solar panel’s orientation relative to the Sun. In addition, both must be set correctly for maximum output:
- Azimuth angle: the compass direction the panel face points toward (e.g., 180° = true south in the Northern Hemisphere).
- Tilt angle (inclination angle): how steeply the panel is inclined from horizontal — 0° is perfectly flat, 90° is vertical. This is therefore the primary focus of this guide.
1.2 Azimuth Direction: The Companion Setting to Tilt Angle
Tilt angle and azimuth direction must therefore be set together — each amplifies or undermines the other. The Sun transits across the sky from east to west. In the Northern Hemisphere, the Sun’s arc peaks in the southern sky. In the Southern Hemisphere, it consequently peaks in the northern sky. A panel tilted at the correct solar panel tilt angle but facing the wrong direction consequently captures far less irradiance than its theoretical potential.
- Northern Hemisphere (latitudes > 0°): pair any tilt angle with azimuth 180° — TRUE SOUTH.
- Southern Hemisphere (latitudes < 0°): pair any tilt angle with azimuth 0° — TRUE NORTH.
- Near the Equator (±5°): tilt angle is the dominant variable; azimuth east-west deviation has minimal impact.
Important: compass south and TRUE geographic south can differ by several degrees depending on magnetic declination at your site. Therefore, always calibrate to true south using GPS coordinates or solar simulation tools such as PVGIS or the Global Solar Atlas — do not rely on a standard magnetic compass alone.
1.3 The Latitude Rule: How to Calculate Your Optimal Solar Panel Tilt Angle
Quick Summary: How to Orient Solar Panels by Location
- Northern Hemisphere: Face panels true south (180° azimuth) at a tilt angle equal to the site latitude.
- Southern Hemisphere: Face panels true north (0° azimuth) at a tilt angle equal to the site latitude.
- Equatorial Regions (0°–15°): Set a minimum tilt angle of 10° to 15° to ensure proper rain drainage and self-cleaning.
- High Latitudes (Above 55°): Steepen the tilt angle toward 60°–70° to capture the low-tracking winter sun.
The optimal solar panel tilt angle for a fixed-mount system is generally equal to the geographic latitude of your location. Setting the tilt angle to match your latitude balances seasonal solar changes, positioning the panels perpendicular to the sun’s average annual path to maximize total yearly energy yield.
- London (51.5°N) → solar panel tilt angle ≈ 51°
- New York (40.7°N) → solar panel tilt angle ≈ 41°
- Dubai (25.2°N) → solar panel tilt angle ≈ 25°
- Sydney (33.9°S) → solar panel tilt angle ≈ 34°, facing true north
- Singapore (1.3°N) → solar panel tilt angle ≈ 10–15° (equatorial minimum for drainage)
Seasonal tilt adjustments can furthermore improve output by 5–10% for systems with adjustable racking. For example, increasing the tilt angle by 10–15° in winter compensates for the lower Sun; conversely, decreasing it by 10–15° in summer maximises longer daylight hours. As a result, fixed systems should use the annual average tilt angle equal to latitude as the default. The world city database in Section 4 applies this rule to 130+ locations globally so you have a ready reference for any site.
2. Solar Panel Tilt Angle by Latitude Zone: Five Regional Guides
Zone 1: Equatorial Region — Solar Panel Tilt Angle 10°–15° (0° – 15° Latitude)
Countries: Indonesia, Malaysia, Singapore, Kenya, Ecuador, Colombia, Nigeria, Ghana, Uganda, Sri Lanka
- Optimal solar panel tilt angle: 10–15° minimum. Do not go lower — near-flat panels accumulate dust and water pools, accelerating soiling losses and potential corrosion.
- Optimal direction: Can face either north or south — the Sun’s noon altitude is very high year-round (75°–90°), so azimuth deviation has minimal impact at these latitudes.
- Key consideration: diffuse irradiance from overcast tropical skies contributes significantly to total annual yield. Bifacial panels recover 5–12% additional energy from sky-diffuse and ground-reflected radiation.
- Seasonal variation: minimal — no major adjustment required.
In equatorial climates, the biggest output losses are soiling and high cell temperatures — not tilt angle errors. Once you clear the 10–15° minimum tilt angle required for natural rain self-cleaning, shift your focus to establishing a regular panel washing routine and choosing modules featuring a low temperature coefficient (ideally below –0.35%/°C).
Zone 2: Subtropical Region — Solar Panel Tilt Angle 15°–35° (15° – 35° Latitude)
Countries/regions: India (south), Australia (north), Saudi Arabia, UAE, Mexico, Texas (USA), Egypt, South Africa (north), Morocco
- Optimal solar panel tilt angle: 15°–35° — apply the latitude rule directly.
- Optimal direction: True south (Northern Hemisphere) or true north (Southern Hemisphere) is important here, because the Sun arc is not as overhead as in the equatorial zone.
- Desert sites in this zone carry the world’s highest Direct Normal Irradiance (DNI). However, soiling losses from fine dust can reach 15–25% without monthly panel cleaning — soiling management is therefore as critical as tilt angle optimisation.
- Temperature coefficient loss: At a cell temperature of 70°C — common on black rooftop panels in subtropical summer — a standard monocrystalline panel consequently loses approximately 16% of its STC-rated output. This is separate from, and additive to, any tilt angle loss.
Zone 3: Temperate Region — Solar Panel Tilt Angle 35°–55° (35° – 55° Latitude)
Countries/regions: Most of Europe, northern USA, northern China, Japan, South Korea, New Zealand (South Island), southern Australia
- Optimal solar panel tilt angle: 35°–55° matching latitude. This range consequently sees the greatest absolute yield difference between a correct and incorrect tilt angle — much more so than in tropical zones.
- Optimal direction: True south (Northern Hemisphere) or true north (Southern Hemisphere). At these latitudes, a 45° azimuth deviation (e.g., facing SE instead of S) therefore costs 5–8% of annual yield — far more than in lower latitudes.
- Winter considerations: Increasing the solar panel tilt angle by 10–15° above latitude (e.g., 55° instead of 45° in London) trades a small summer yield reduction for meaningfully better winter output — often the right trade-off where winter heating or storage demand is highest.
- Bifacial panels on snowy ground: Reflected light from snow cover can increase bifacial yield by 10–25% in northern Europe, Canada, and the northern USA — an often-overlooked benefit of a steeper tilt angle in these climates.
Zone 4: Subarctic Region — Solar Panel Tilt Angle 55°–70° (55° – 70° Latitude)
Countries/regions: Scandinavia (Norway, Sweden, Finland), Alaska, Iceland, northern Russia, northern Canada
- Optimal solar panel tilt angle: 55°–70°. At these latitudes the winter Sun barely clears the horizon, so a steep tilt angle is therefore essential to face the panel more directly toward the low solar disc.
- Optimal direction: True south is non-negotiable. Any significant eastward or westward deviation consequently sharply reduces the already-limited winter irradiance.
- System design consideration: Annual yield is dominated by the long summer days. As a result, the BESS must be sized to time-shift summer surplus and bridge the extended winter shortfall. Sizing decisions therefore begin with the correct tilt angle, then apply the minimum winter peak sun hours to determine storage requirements.
- Trackers: dual-axis trackers can boost summer harvest by 30–40%, substantially improving the seasonal energy balance for subarctic sites.
Zone 5: Polar Region — Solar Panel Tilt Angle 70°–90° (70° – 90° Latitude)
Countries/regions: Northern Greenland, Svalbard, Arctic research stations, Antarctica
- Optimal solar panel tilt angle: 70°–90° (near-vertical). The Sun never rises high in polar skies — a near-vertical panel therefore faces the low solar disc most directly during the brief productive hours.
- Optimal direction: True south (Northern Hemisphere). During polar summer, when the Sun circles the sky for 24 hours, east-west orientation splits may consequently be considered to distribute capture around the clock.
- Key consideration: Systems must be massively oversized relative to winter demand, or paired with complementary generation (wind, diesel) to survive multi-month polar night. As a result, the tilt angle decision at these latitudes is secondary to the fundamental seasonal energy gap.
3. Panel Facing Direction vs. Tilt Angle: The Combined Impact Table
3.1 How Direction Deviations Reduce Annual Yield
The solar panel tilt angle and azimuth direction interact closely. Therefore, the table below shows annual yield relative to a perfectly south-facing, latitude-matched tilt angle installation in the Northern Hemisphere. Use it to evaluate what you lose when roof orientation or planning constraints force a compromise on either variable.
| Panel Facing Direction | Azimuth | Yield vs. True South | Best Use Case |
|---|---|---|---|
| True South | 180° | 100% (Reference) | Maximum annual yield |
| South-Southeast | 157° | 98–99% | Negligible loss — acceptable |
| South-Southwest | 202° | 98–99% | Slight afternoon bias — acceptable |
| Southeast | 135° | 92–95% | Morning production emphasis |
| Southwest | 225° | 92–95% | Afternoon / evening bias — better for TOU pricing |
| East | 90° | 78–82% | Morning-heavy; good for morning demand sites |
| West | 270° | 78–82% | Afternoon peak; matches evening demand; grid peak shaving |
| North | 0° | 55–65% | Worst — avoid in Northern Hemisphere |
3.2 When West-Facing Makes Commercial Sense
West-facing panels paired with a steeper tilt angle have gained significant commercial interest under Time-of-Use (TOU) tariff structures—a trend reflecting the shifting grid dynamics noted in the IEA World Energy Outlook 2024. The reason is that they shift generation toward peak afternoon grid pricing periods. As a result, even though west-facing arrays produce 18–22% less annual energy than true-south arrays, the higher value of that afternoon energy can consequently close the revenue gap. Furthermore, a Battery Energy Storage System (BESS) can maximise revenue from any panel orientation by decoupling solar generation time from dispatch time — making optimal tilt angle therefore the most important fixed parameter when the direction is constrained.
4. Solar Panel Tilt Angle Database: 130+ World Cities by Country, State & Capital
4.0 How to Use This Database
The following database provides the recommended solar panel tilt angle and optimal facing direction for 130+ world cities. Values are derived from geographic latitude and, furthermore, cross-referenced against PVGIS and Global Solar Atlas irradiance data. These are therefore authoritative starting values. However, always run a site-specific simulation using PVGIS or PVWatts to account for local shading, horizon obstructions, and microclimate before finalising your installation design.
4.1 USA State Capitals & Major Cities — Southern & Central States (A–N)
All US states in the Northern Hemisphere use true south (180°) as the optimal azimuth. Therefore, the tilt angle is the only variable that changes by location — set it equal to your state capital’s latitude for maximum annual output.
| City / State | Latitude | Optimal Direction | Tilt Angle | Annual PSH (avg) |
|---|---|---|---|---|
| Phoenix, AZ | 33.4°N | True South (180°) | 33° | 5.5–6.5 hrs |
| Los Angeles, CA | 34.1°N | True South (180°) | 34° | 5.0–6.0 hrs |
| Sacramento, CA | 38.6°N | True South (180°) | 39° | 4.8–5.6 hrs |
| Denver, CO | 39.7°N | True South (180°) | 40° | 5.0–5.8 hrs |
| Hartford, CT | 41.8°N | True South (180°) | 42° | 4.2–4.8 hrs |
| Tallahassee, FL | 30.4°N | True South (180°) | 30° | 4.8–5.5 hrs |
| Atlanta, GA | 33.7°N | True South (180°) | 34° | 4.5–5.2 hrs |
| Honolulu, HI | 21.3°N | True South (180°) | 21° | 5.5–6.3 hrs |
| Boise, ID | 43.6°N | True South (180°) | 44° | 4.5–5.3 hrs |
| Springfield, IL | 39.8°N | True South (180°) | 40° | 4.2–5.0 hrs |
| Indianapolis, IN | 39.8°N | True South (180°) | 40° | 4.0–4.8 hrs |
| Des Moines, IA | 41.6°N | True South (180°) | 42° | 4.2–5.0 hrs |
| Topeka, KS | 39.0°N | True South (180°) | 39° | 4.5–5.3 hrs |
| Frankfort, KY | 38.2°N | True South (180°) | 38° | 4.0–4.8 hrs |
| Baton Rouge, LA | 30.5°N | True South (180°) | 31° | 4.5–5.2 hrs |
| Augusta, ME | 44.3°N | True South (180°) | 44° | 3.8–4.5 hrs |
| Annapolis, MD | 38.9°N | True South (180°) | 39° | 4.0–4.8 hrs |
| Boston, MA | 42.4°N | True South (180°) | 42° | 4.0–4.7 hrs |
| Lansing, MI | 42.7°N | True South (180°) | 43° | 3.8–4.5 hrs |
| St. Paul, MN | 44.9°N | True South (180°) | 45° | 3.8–4.5 hrs |
| Jackson, MS | 32.3°N | True South (180°) | 32° | 4.5–5.2 hrs |
| Jefferson City, MO | 38.6°N | True South (180°) | 39° | 4.2–5.0 hrs |
| Helena, MT | 46.6°N | True South (180°) | 47° | 4.0–5.0 hrs |
| Lincoln, NE | 40.8°N | True South (180°) | 41° | 4.5–5.3 hrs |
| Carson City, NV | 39.2°N | True South (180°) | 39° | 5.5–6.5 hrs |
4.1b USA State Capitals — Northern & Western States (N–W) + DC & Territories
As a result of increasing latitude, northern states consistently require steeper tilt angles. For example, Juneau, Alaska (58.3°N) uses a 58° tilt angle — nearly twice that of Honolulu, Hawaii (21°). Furthermore, northern states also see lower peak sun hours, which makes setting the correct tilt angle even more critical to capturing every available hour of irradiance.
| City / State | Latitude | Optimal Direction | Tilt Angle | Annual PSH (avg) |
|---|---|---|---|---|
| Concord, NH | 43.2°N | True South (180°) | 43° | 3.9–4.6 hrs |
| Trenton, NJ | 40.2°N | True South (180°) | 40° | 4.0–4.8 hrs |
| Santa Fe, NM | 35.7°N | True South (180°) | 36° | 5.5–6.5 hrs |
| Albany, NY | 42.7°N | True South (180°) | 43° | 3.9–4.6 hrs |
| New York City, NY | 40.7°N | True South (180°) | 41° | 4.0–4.8 hrs |
| Raleigh, NC | 35.8°N | True South (180°) | 36° | 4.5–5.2 hrs |
| Bismarck, ND | 46.8°N | True South (180°) | 47° | 4.2–5.0 hrs |
| Columbus, OH | 40.0°N | True South (180°) | 40° | 3.9–4.7 hrs |
| Oklahoma City, OK | 35.5°N | True South (180°) | 36° | 4.8–5.5 hrs |
| Salem, OR | 44.9°N | True South (180°) | 45° | 3.5–4.5 hrs |
| Harrisburg, PA | 40.3°N | True South (180°) | 40° | 4.0–4.8 hrs |
| Providence, RI | 41.8°N | True South (180°) | 42° | 4.0–4.7 hrs |
| Columbia, SC | 34.0°N | True South (180°) | 34° | 4.5–5.2 hrs |
| Pierre, SD | 44.4°N | True South (180°) | 44° | 4.5–5.2 hrs |
| Nashville, TN | 36.2°N | True South (180°) | 36° | 4.5–5.0 hrs |
| Austin, TX | 30.3°N | True South (180°) | 30° | 5.0–5.8 hrs |
| Salt Lake City, UT | 40.8°N | True South (180°) | 41° | 5.0–5.8 hrs |
| Montpelier, VT | 44.3°N | True South (180°) | 44° | 3.8–4.5 hrs |
| Richmond, VA | 37.5°N | True South (180°) | 38° | 4.2–5.0 hrs |
| Olympia, WA | 47.0°N | True South (180°) | 47° | 3.2–4.0 hrs |
| Charleston, WV | 38.4°N | True South (180°) | 38° | 3.8–4.5 hrs |
| Madison, WI | 43.1°N | True South (180°) | 43° | 3.8–4.5 hrs |
| Cheyenne, WY | 41.1°N | True South (180°) | 41° | 5.0–5.8 hrs |
| Juneau, AK | 58.3°N | True South (180°) | 58° | 2.5–3.5 hrs |
| Washington, DC | 38.9°N | True South (180°) | 39° | 4.0–4.8 hrs |
4.2 Canada — Provincial & Territorial Capitals
| City / Province | Latitude | Optimal Direction | Tilt Angle | Annual PSH (avg) |
|---|---|---|---|---|
| Victoria, BC | 48.4°N | True South (180°) | 48° | 3.5–4.5 hrs |
| Edmonton, AB | 53.5°N | True South (180°) | 54° | 3.5–4.5 hrs |
| Regina, SK | 50.5°N | True South (180°) | 51° | 4.0–5.0 hrs |
| Winnipeg, MB | 49.9°N | True South (180°) | 50° | 4.0–5.0 hrs |
| Toronto, ON | 43.7°N | True South (180°) | 44° | 3.8–4.5 hrs |
| Quebec City, QC | 46.8°N | True South (180°) | 47° | 3.8–4.5 hrs |
| Fredericton, NB | 45.9°N | True South (180°) | 46° | 3.7–4.4 hrs |
| Halifax, NS | 44.6°N | True South (180°) | 45° | 3.7–4.4 hrs |
| Charlottetown, PEI | 46.2°N | True South (180°) | 46° | 3.6–4.3 hrs |
| St. John’s, NL | 47.6°N | True South (180°) | 48° | 3.5–4.2 hrs |
| Whitehorse, YT | 60.7°N | True South (180°) | 61° | 3.0–4.0 hrs |
| Yellowknife, NT | 62.5°N | True South (180°) | 63° | 3.0–4.0 hrs |
| Iqaluit, NU | 63.7°N | True South (180°) | 64° | 2.5–3.5 hrs |
4.3 Europe — Country Capitals & Major Cities
| City / Country | Latitude | Hemisphere | Optimal Direction | Tilt Angle | PSH (avg) |
|---|---|---|---|---|---|
| Reykjavik, Iceland | 64.1°N | Northern | True South (180°) | 64° | 2.5–3.5 hrs |
| Helsinki, Finland | 60.2°N | Northern | True South (180°) | 60° | 2.8–3.8 hrs |
| Oslo, Norway | 59.9°N | Northern | True South (180°) | 60° | 2.8–3.8 hrs |
| Stockholm, Sweden | 59.3°N | Northern | True South (180°) | 59° | 3.0–4.0 hrs |
| Tallinn, Estonia | 59.4°N | Northern | True South (180°) | 59° | 2.9–3.8 hrs |
| Riga, Latvia | 56.9°N | Northern | True South (180°) | 57° | 3.0–3.9 hrs |
| Vilnius, Lithuania | 54.7°N | Northern | True South (180°) | 55° | 3.1–4.0 hrs |
| Moscow, Russia | 55.8°N | Northern | True South (180°) | 56° | 3.0–4.0 hrs |
| Copenhagen, Denmark | 55.7°N | Northern | True South (180°) | 56° | 3.0–4.0 hrs |
| Edinburgh, Scotland | 55.9°N | Northern | True South (180°) | 56° | 2.8–3.8 hrs |
| Amsterdam, Netherlands | 52.4°N | Northern | True South (180°) | 52° | 3.0–4.0 hrs |
| Brussels, Belgium | 50.9°N | Northern | True South (180°) | 51° | 3.0–4.0 hrs |
| Warsaw, Poland | 52.2°N | Northern | True South (180°) | 52° | 3.2–4.2 hrs |
| Prague, Czech Rep. | 50.1°N | Northern | True South (180°) | 50° | 3.3–4.2 hrs |
| Berlin, Germany | 52.5°N | Northern | True South (180°) | 53° | 3.2–4.2 hrs |
| Vienna, Austria | 48.2°N | Northern | True South (180°) | 48° | 3.5–4.5 hrs |
| Bern, Switzerland | 46.9°N | Northern | True South (180°) | 47° | 3.5–4.8 hrs |
| Paris, France | 48.9°N | Northern | True South (180°) | 49° | 3.2–4.2 hrs |
| London, UK | 51.5°N | Northern | True South (180°) | 52° | 2.7–3.7 hrs |
| Dublin, Ireland | 53.3°N | Northern | True South (180°) | 53° | 2.6–3.5 hrs |
| Lisbon, Portugal | 38.7°N | Northern | True South (180°) | 39° | 4.5–5.5 hrs |
| Madrid, Spain | 40.4°N | Northern | True South (180°) | 40° | 4.5–5.5 hrs |
| Rome, Italy | 41.9°N | Northern | True South (180°) | 42° | 4.2–5.2 hrs |
| Athens, Greece | 37.9°N | Northern | True South (180°) | 38° | 4.5–5.5 hrs |
| Nicosia, Cyprus | 35.2°N | Northern | True South (180°) | 35° | 5.0–6.0 hrs |
| Valletta, Malta | 35.9°N | Northern | True South (180°) | 36° | 5.0–6.0 hrs |
| Zagreb, Croatia | 45.8°N | Northern | True South (180°) | 46° | 3.8–4.8 hrs |
| Sarajevo, Bosnia | 43.9°N | Northern | True South (180°) | 44° | 3.8–4.8 hrs |
| Belgrade, Serbia | 44.8°N | Northern | True South (180°) | 45° | 3.8–4.8 hrs |
| Bucharest, Romania | 44.4°N | Northern | True South (180°) | 44° | 4.0–5.0 hrs |
| Sofia, Bulgaria | 42.7°N | Northern | True South (180°) | 43° | 4.0–5.0 hrs |
| Budapest, Hungary | 47.5°N | Northern | True South (180°) | 48° | 3.7–4.7 hrs |
| Bratislava, Slovakia | 48.2°N | Northern | True South (180°) | 48° | 3.6–4.6 hrs |
| Ljubljana, Slovenia | 46.1°N | Northern | True South (180°) | 46° | 3.7–4.7 hrs |
| Kyiv, Ukraine | 50.5°N | Northern | True South (180°) | 51° | 3.5–4.5 hrs |
| Minsk, Belarus | 53.9°N | Northern | True South (180°) | 54° | 3.2–4.2 hrs |
| Chisinau, Moldova | 47.0°N | Northern | True South (180°) | 47° | 3.8–4.8 hrs |
| Tirana, Albania | 41.3°N | Northern | True South (180°) | 41° | 4.2–5.2 hrs |
| Skopje, N. Macedonia | 42.0°N | Northern | True South (180°) | 42° | 4.2–5.2 hrs |
| Podgorica, Montenegro | 42.4°N | Northern | True South (180°) | 42° | 4.2–5.2 hrs |
| Pristina, Kosovo | 42.7°N | Northern | True South (180°) | 43° | 4.0–5.0 hrs |
| Andorra la Vella | 42.5°N | Northern | True South (180°) | 43° | 4.5–5.5 hrs |
| Luxembourg City | 49.6°N | Northern | True South (180°) | 50° | 3.2–4.2 hrs |
| Valletta, Malta | 35.9°N | Northern | True South (180°) | 36° | 5.0–6.0 hrs |
4.4 Asia — Country Capitals & Major Cities
| City / Country | Latitude | Hemisphere | Optimal Direction | Tilt Angle | PSH (avg) |
|---|---|---|---|---|---|
| Tokyo, Japan | 35.7°N | Northern | True South (180°) | 36° | 3.8–4.8 hrs |
| Beijing, China | 39.9°N | Northern | True South (180°) | 40° | 4.5–5.5 hrs |
| Shanghai, China | 31.2°N | Northern | True South (180°) | 31° | 3.8–4.8 hrs |
| Seoul, South Korea | 37.6°N | Northern | True South (180°) | 38° | 3.8–4.8 hrs |
| Pyongyang, N. Korea | 39.0°N | Northern | True South (180°) | 39° | 4.0–5.0 hrs |
| Ulaanbaatar, Mongolia | 47.9°N | Northern | True South (180°) | 48° | 4.5–5.8 hrs |
| New Delhi, India | 28.6°N | Northern | True South (180°) | 29° | 4.5–5.5 hrs |
| Mumbai, India | 19.1°N | Northern | True South (180°) | 19° | 5.0–6.0 hrs |
| Chennai, India | 13.1°N | Northern | True South (180°) | 13° | 5.0–6.0 hrs |
| Islamabad, Pakistan | 33.7°N | Northern | True South (180°) | 34° | 5.0–6.0 hrs |
| Dhaka, Bangladesh | 23.7°N | Northern | True South (180°) | 24° | 4.5–5.5 hrs |
| Kathmandu, Nepal | 27.7°N | Northern | True South (180°) | 28° | 4.5–5.5 hrs |
| Colombo, Sri Lanka | 6.9°N | Northern | True South/Flat | 10–15° | 5.0–6.0 hrs |
| Male, Maldives | 4.2°N | Equatorial | True South/Flat | 10–15° | 5.5–6.5 hrs |
| Kabul, Afghanistan | 34.5°N | Northern | True South (180°) | 35° | 5.5–6.5 hrs |
| Tehran, Iran | 35.7°N | Northern | True South (180°) | 36° | 5.0–6.0 hrs |
| Baghdad, Iraq | 33.3°N | Northern | True South (180°) | 33° | 5.5–6.5 hrs |
| Riyadh, Saudi Arabia | 24.7°N | Northern | True South (180°) | 25° | 5.5–6.5 hrs |
| Dubai, UAE | 25.2°N | Northern | True South (180°) | 25° | 5.5–6.5 hrs |
| Doha, Qatar | 25.3°N | Northern | True South (180°) | 25° | 5.5–6.5 hrs |
| Kuwait City, Kuwait | 29.4°N | Northern | True South (180°) | 29° | 5.5–6.5 hrs |
| Muscat, Oman | 23.6°N | Northern | True South (180°) | 24° | 5.5–6.5 hrs |
| Sana’a, Yemen | 15.4°N | Northern | True South (180°) | 15° | 5.5–6.5 hrs |
| Amman, Jordan | 31.9°N | Northern | True South (180°) | 32° | 5.0–6.0 hrs |
| Beirut, Lebanon | 33.9°N | Northern | True South (180°) | 34° | 5.0–6.0 hrs |
| Jerusalem, Israel | 31.8°N | Northern | True South (180°) | 32° | 5.0–6.0 hrs |
| Ankara, Turkey | 39.9°N | Northern | True South (180°) | 40° | 4.5–5.5 hrs |
| Tashkent, Uzbekistan | 41.3°N | Northern | True South (180°) | 41° | 4.8–5.8 hrs |
| Almaty, Kazakhstan | 43.3°N | Northern | True South (180°) | 43° | 4.5–5.5 hrs |
| Bishkek, Kyrgyzstan | 42.9°N | Northern | True South (180°) | 43° | 4.5–5.5 hrs |
| Dushanbe, Tajikistan | 38.6°N | Northern | True South (180°) | 39° | 4.8–5.8 hrs |
| Ashgabat, Turkmenistan | 37.9°N | Northern | True South (180°) | 38° | 5.0–6.0 hrs |
| Baku, Azerbaijan | 40.4°N | Northern | True South (180°) | 40° | 4.5–5.5 hrs |
| Tbilisi, Georgia | 41.7°N | Northern | True South (180°) | 42° | 4.3–5.3 hrs |
| Yerevan, Armenia | 40.2°N | Northern | True South (180°) | 40° | 4.5–5.5 hrs |
| Kuala Lumpur, Malaysia | 3.1°N | Equatorial | South/Flat | 10–15° | 4.5–5.5 hrs |
| Singapore | 1.3°N | Equatorial | South/Flat | 10–15° | 4.3–5.3 hrs |
| Bangkok, Thailand | 13.8°N | Northern | True South (180°) | 14° | 4.8–5.8 hrs |
| Hanoi, Vietnam | 21.0°N | Northern | True South (180°) | 21° | 4.5–5.5 hrs |
| Manila, Philippines | 14.6°N | Northern | True South (180°) | 15° | 4.8–5.8 hrs |
| Jakarta, Indonesia | 6.2°S | Southern | True North (0°) | 10–15° | 4.5–5.5 hrs |
| Phnom Penh, Cambodia | 11.6°N | Northern | True South (180°) | 12° | 5.0–6.0 hrs |
| Vientiane, Laos | 17.9°N | Northern | True South (180°) | 18° | 5.0–6.0 hrs |
| Naypyidaw, Myanmar | 19.7°N | Northern | True South (180°) | 20° | 4.8–5.8 hrs |
| Kathmandu, Nepal | 27.7°N | Northern | True South (180°) | 28° | 4.8–5.8 hrs |
| Thimphu, Bhutan | 27.5°N | Northern | True South (180°) | 28° | 4.5–5.5 hrs |
4.5 Africa — Country Capitals & Major Cities
| City / Country | Latitude | Hemisphere | Optimal Direction | Tilt Angle | PSH (avg) |
|---|---|---|---|---|---|
| Cairo, Egypt | 30.1°N | Northern | True South (180°) | 30° | 5.5–6.5 hrs |
| Tunis, Tunisia | 36.8°N | Northern | True South (180°) | 37° | 5.0–6.0 hrs |
| Algiers, Algeria | 36.7°N | Northern | True South (180°) | 37° | 5.0–6.0 hrs |
| Rabat, Morocco | 34.0°N | Northern | True South (180°) | 34° | 5.0–6.0 hrs |
| Tripoli, Libya | 32.9°N | Northern | True South (180°) | 33° | 5.5–6.5 hrs |
| Khartoum, Sudan | 15.6°N | Northern | True South (180°) | 16° | 6.0–7.0 hrs |
| Addis Ababa, Ethiopia | 9.0°N | Northern | True South (180°) | 9° | 5.5–6.5 hrs |
| Nairobi, Kenya | 1.3°S | Southern | True North (0°) | 10–15° | 5.5–6.5 hrs |
| Kampala, Uganda | 0.3°N | Equatorial | South/Flat | 10–15° | 5.0–6.0 hrs |
| Dar es Salaam, Tanzania | 6.8°S | Southern | True North (0°) | 7–15° | 5.5–6.5 hrs |
| Kigali, Rwanda | 1.9°S | Southern | True North (0°) | 10–15° | 5.5–6.5 hrs |
| Bujumbura, Burundi | 3.4°S | Southern | True North (0°) | 10–15° | 5.5–6.5 hrs |
| Lusaka, Zambia | 15.4°S | Southern | True North (0°) | 15° | 5.5–6.5 hrs |
| Harare, Zimbabwe | 17.8°S | Southern | True North (0°) | 18° | 5.5–6.5 hrs |
| Maputo, Mozambique | 25.9°S | Southern | True North (0°) | 26° | 5.5–6.5 hrs |
| Lilongwe, Malawi | 14.0°S | Southern | True North (0°) | 14° | 5.5–6.5 hrs |
| Gaborone, Botswana | 24.7°S | Southern | True North (0°) | 25° | 5.5–6.5 hrs |
| Windhoek, Namibia | 22.6°S | Southern | True North (0°) | 23° | 5.8–6.8 hrs |
| Pretoria, South Africa | 25.7°S | Southern | True North (0°) | 26° | 5.5–6.5 hrs |
| Cape Town, S. Africa | 33.9°S | Southern | True North (0°) | 34° | 5.0–6.0 hrs |
| Johannesburg, S. Africa | 26.2°S | Southern | True North (0°) | 26° | 5.5–6.5 hrs |
| Lagos, Nigeria | 6.5°N | Northern | True South (180°) | 10–15° | 4.5–5.5 hrs |
| Abuja, Nigeria | 9.1°N | Northern | True South (180°) | 9° | 5.0–6.0 hrs |
| Accra, Ghana | 5.6°N | Northern | True South (180°) | 10–15° | 5.0–6.0 hrs |
| Dakar, Senegal | 14.7°N | Northern | True South (180°) | 15° | 5.5–6.5 hrs |
| Bamako, Mali | 12.6°N | Northern | True South (180°) | 13° | 5.5–6.5 hrs |
| Niamey, Niger | 13.5°N | Northern | True South (180°) | 14° | 6.0–7.0 hrs |
| Ouagadougou, Burkina | 12.4°N | Northern | True South (180°) | 12° | 6.0–7.0 hrs |
| Ndjamena, Chad | 12.1°N | Northern | True South (180°) | 12° | 6.0–7.0 hrs |
| Kinshasa, DRC | 4.3°S | Southern | True North (0°) | 10–15° | 4.5–5.5 hrs |
| Brazzaville, Congo | 4.3°S | Southern | True North (0°) | 10–15° | 4.5–5.5 hrs |
| Libreville, Gabon | 0.4°N | Equatorial | South/Flat | 10–15° | 4.5–5.5 hrs |
| Yaounde, Cameroon | 3.8°N | Equatorial | South/Flat | 10–15° | 4.5–5.5 hrs |
| Malabo, Eq. Guinea | 3.8°N | Equatorial | South/Flat | 10–15° | 4.5–5.5 hrs |
| Mogadishu, Somalia | 2.0°N | Equatorial | South/Flat | 10–15° | 5.5–6.5 hrs |
| Djibouti City | 11.6°N | Northern | True South (180°) | 12° | 6.0–7.0 hrs |
| Asmara, Eritrea | 15.3°N | Northern | True South (180°) | 15° | 6.0–7.0 hrs |
| Antananarivo, Madagascar | 18.9°S | Southern | True North (0°) | 19° | 5.0–6.0 hrs |
4.6 South America — Country Capitals & Major Cities
| City / Country | Latitude | Hemisphere | Optimal Direction | Tilt Angle | PSH (avg) |
|---|---|---|---|---|---|
| Bogota, Colombia | 4.7°N | Equatorial | South/Flat | 10–15° | 4.5–5.5 hrs |
| Caracas, Venezuela | 10.5°N | Northern | True South (180°) | 11° | 5.0–6.0 hrs |
| Georgetown, Guyana | 6.8°N | Equatorial | South/Flat | 10–15° | 5.0–6.0 hrs |
| Paramaribo, Suriname | 5.9°N | Equatorial | South/Flat | 10–15° | 4.5–5.5 hrs |
| Cayenne, French Guiana | 5.0°N | Equatorial | South/Flat | 10–15° | 4.5–5.5 hrs |
| Quito, Ecuador | 0.2°S | Equatorial | South/Flat | 10–15° | 4.8–5.8 hrs |
| Lima, Peru | 12.0°S | Southern | True North (0°) | 12° | 4.5–5.5 hrs |
| La Paz, Bolivia | 16.5°S | Southern | True North (0°) | 17° | 5.5–6.5 hrs |
| Brasilia, Brazil | 15.8°S | Southern | True North (0°) | 16° | 5.0–6.0 hrs |
| Sao Paulo, Brazil | 23.5°S | Southern | True North (0°) | 24° | 4.5–5.5 hrs |
| Rio de Janeiro, Brazil | 22.9°S | Southern | True North (0°) | 23° | 4.8–5.8 hrs |
| Asuncion, Paraguay | 25.3°S | Southern | True North (0°) | 25° | 5.0–6.0 hrs |
| Montevideo, Uruguay | 34.9°S | Southern | True North (0°) | 35° | 4.5–5.5 hrs |
| Buenos Aires, Argentina | 34.6°S | Southern | True North (0°) | 35° | 4.5–5.5 hrs |
| Santiago, Chile | 33.5°S | Southern | True North (0°) | 34° | 4.8–5.8 hrs |
| Punta Arenas, Chile | 53.1°S | Southern | True North (0°) | 53° | 3.0–4.0 hrs |
4.7 Oceania — Capitals & Major Cities
| City / Country | Latitude | Hemisphere | Optimal Direction | Tilt Angle | PSH (avg) |
|---|---|---|---|---|---|
| Canberra, Australia | 35.3°S | Southern | True North (0°) | 35° | 4.8–5.8 hrs |
| Sydney, Australia | 33.9°S | Southern | True North (0°) | 34° | 4.8–5.8 hrs |
| Melbourne, Australia | 37.8°S | Southern | True North (0°) | 38° | 4.3–5.3 hrs |
| Brisbane, Australia | 27.5°S | Southern | True North (0°) | 28° | 5.0–6.0 hrs |
| Perth, Australia | 31.9°S | Southern | True North (0°) | 32° | 5.5–6.5 hrs |
| Adelaide, Australia | 34.9°S | Southern | True North (0°) | 35° | 5.0–6.0 hrs |
| Darwin, Australia | 12.5°S | Southern | True North (0°) | 13° | 5.5–6.5 hrs |
| Wellington, New Zealand | 41.3°S | Southern | True North (0°) | 41° | 4.0–5.0 hrs |
| Auckland, New Zealand | 36.9°S | Southern | True North (0°) | 37° | 4.3–5.3 hrs |
| Port Moresby, PNG | 9.4°S | Southern | True North (0°) | 10–15° | 4.8–5.8 hrs |
| Suva, Fiji | 18.1°S | Southern | True North (0°) | 18° | 5.0–6.0 hrs |
| Nuku’alofa, Tonga | 21.1°S | Southern | True North (0°) | 21° | 5.0–6.0 hrs |
| Honiara, Solomon Is. | 9.4°S | Southern | True North (0°) | 10–15° | 4.8–5.8 hrs |
| Apia, Samoa | 13.8°S | Southern | True North (0°) | 14° | 5.0–6.0 hrs |
| Port Vila, Vanuatu | 17.7°S | Southern | True North (0°) | 18° | 5.0–6.0 hrs |
| Tarawa, Kiribati | 1.3°N | Equatorial | South/Flat | 10–15° | 5.5–6.5 hrs |
| Funafuti, Tuvalu | 8.5°S | Southern | True North (0°) | 10–15° | 5.5–6.5 hrs |
| Palikir, Micronesia | 7.0°N | Northern | True South (180°) | 10–15° | 5.5–6.5 hrs |
| Majuro, Marshall Is. | 7.1°N | Northern | True South (180°) | 10–15° | 5.5–6.5 hrs |
| Ngerulmud, Palau | 7.5°N | Northern | True South (180°) | 10–15° | 5.5–6.5 hrs |
5. Fixed Tilt Angle vs. Solar Trackers: Yield Gain vs. Cost Trade-Off
Solar trackers dynamically adjust the solar panel tilt angle and/or azimuth throughout the day to follow the Sun’s path. The yield benefit is consequently well-established. However, trackers add cost, moving parts, and maintenance requirements. Therefore, here is a clear framework for when each approach makes engineering and financial sense:
| System Type | Yield Gain vs. Fixed | Best For | Key Trade-Off |
|---|---|---|---|
| Fixed Tilt Angle (Latitude-Matched) | Reference (0%) | Rooftops, constrained sites, low CAPEX priority | Lowest cost, lowest maintenance |
| Single-Axis Tracker (adjusts azimuth E-W) | +15–25% yield vs. fixed tilt angle | Ground-mount utility & C&I projects, flat terrain | Higher CAPEX, maintenance, moving parts |
| Dual-Axis Tracker (full tilt angle + azimuth follow) | +30–40% yield vs. fixed tilt angle | High-latitude sites, CPV, research stations | Highest cost and complexity — specialist use only |
For residential and commercial rooftop systems, a fixed tilt angle at latitude therefore remains the dominant choice for its simplicity and zero maintenance. For ground-mount projects on flat terrain, single-axis trackers consequently deliver the best LCOE improvement. When paired with a Battery Energy Storage System, even a fixed tilt angle installation can furthermore be optimised for revenue through intelligent charge and dispatch scheduling — the BESS compensates for suboptimal solar timing rather than suboptimal panel geometry.
6. Real-World Constraints: When You Cannot Set the Ideal Tilt Angle
6.1 Fixed Roof Pitch — Working With What You Have
Most residential rooftops have a fixed pitch that may not match the ideal solar panel tilt angle for the site latitude. Therefore, here is a practical decision hierarchy for constrained installations:
- Measure the existing roof pitch angle. A 4/12 pitch = approximately 18°; a 6/12 pitch = approximately 27°. This is consequently your actual tilt angle before any additional racking.
- Compare the existing pitch to your target solar panel tilt angle (= your latitude). Calculate the deficit.
- Evaluate tilt-up racking mounts that can add 5–15° of additional tilt angle without significant structural impact. In addition, check manufacturer wind load ratings for your region.
- Check for shading from chimneys, neighboring buildings, and trees using winter solstice Sun angles — shading loss often exceeds the yield gain from correcting tilt angle on a partially shaded plane.
- If multiple roof planes exist, compare yield across orientations. Sometimes the secondary roof plane at a better tilt angle and azimuth consequently outperforms the primary plane, even at a smaller usable area.
6.2 Flat Roof Installations — Full Tilt Angle Freedom
Flat-roof commercial buildings have complete freedom to set any solar panel tilt angle and azimuth direction. Best practices for flat roof systems:
- Use ballasted racking to achieve the optimal tilt angle (= site latitude) without roof penetrations. Ballasted systems are reversible and avoid waterproofing risk.
- Orient all rows in the true south direction (Northern Hemisphere) or true north (Southern Hemisphere) before setting the tilt angle — direction lock-in is permanent once installed.
- Apply correct inter-row spacing to prevent self-shading. The minimum row gap = panel height × sin(tilt angle) / tan(winter solstice solar altitude angle at the site latitude).
- In very hot climates, a tilt angle of 10–15° rather than the full latitude value reduces wind uplift loads and soiling accumulation at the cost of a 2–5% yield reduction — often acceptable in exchange for lower structural requirements.
7. Tools to Calculate Your Site-Specific Solar Panel Tilt Angle
7.1 Free Online Tilt Angle Calculators
The tilt angle values in this guide are reliable starting points derived from the latitude rule. However, every site has unique shading, horizon obstructions, albedo, and microclimate factors that therefore affect the optimal tilt angle. As a result, always use one of these authoritative free tools to confirm your site-specific solar panel tilt angle before installation:
- PVGIS (European Commission JRC): — The gold standard for tilt angle optimisation in Europe, Africa, and Asia. Enter GPS coordinates; the tool consequently returns the optimal tilt angle, azimuth, and monthly energy yield for any fixed or tracking configuration.
- PVWatts (NREL):— The primary tool for US sites, with global coverage. Input your tilt angle and azimuth to get annual and monthly energy output. In addition, it calculates financial payback estimates.
- Global Solar Atlas (World Bank):— Provides irradiance maps and explicitly states the optimal tilt angle for any location worldwide. Furthermore, it is completely free with no registration required.
7.2 On-Site Verification Tools
After calculating your solar panel tilt angle using the tools above, verify it on-site before committing to a racking layout. The following tools help you confirm true south direction and check shading:
- Solargis:— High-resolution irradiance data with tilt angle optimisation tools. Free prospecting tier available for initial screening.
- Sun Surveyor / SunCalc: mobile and web tools for visualising the Sun’s path and checking horizon shading at your exact tilt angle and azimuth before installation day.
Once you have confirmed your solar panel tilt angle and direction, the next step is full system sizing. Use Sunlith’s Energy Storage Calculation Guide and Peak Sun Hours by Location together — both tools use your tilt-angle-corrected peak sun hours as the key input for battery and solar capacity calculations.
8. Solar Panel Tilt Angle and BESS Integration: How They Interact
The solar panel tilt angle is not an isolated parameter — it directly shapes how your BESS must be sized and controlled. Understanding this interaction prevents the common mistake of under-sizing storage to compensate for a suboptimal panel setup, or over-building solar capacity to make up for an incorrect tilt angle.
8.1 How Tilt Angle Shapes the BESS Charge Profile
A south-facing array at the correct solar panel tilt angle (= site latitude) produces a symmetrical bell-curve output peaking at solar noon. This predictable profile makes BESS scheduling highly efficient: the charge controller begins ramping up in the early irradiance rise, reaches full state of charge before midday peak, and begins discharging as afternoon irradiance declines. The Power Conversion System (PCS) manages this charge-to-discharge transition bidirectionally, responding to real-time irradiance readings and grid price signals. An incorrect tilt angle that flattens or shifts the generation curve forces the PCS to operate across a wider, less predictable range — reducing dispatch efficiency.
8.2 East-West Split Arrays and Tilt Angle with BESS
When a ridge-line roof forces an east-west split, the tilt angle on each plane becomes even more important. A steeper tilt angle on the west plane (closer to site latitude) captures more afternoon irradiance and complements a BESS discharging into the evening peak. East-facing panels at a shallower tilt produce a morning surge ideal for charging the BESS before the midday load period. Matching tilt angles to each plane’s orientation and season is the most cost-effective optimisation step before adding storage.
8.3 Tilt Angle Errors Increase Required BESS Capacity
Every degree of tilt angle error that reduces annual solar yield must be compensated by either more panel capacity or more battery storage — both add cost. A correctly set solar panel tilt angle is the cheapest system optimisation available. For complete sizing methodology using tilt-angle-corrected peak sun hours, see the Sunlith How to Choose Solar Panels and Batteries guide and the kWp vs kWh Solar Guide.
9. Frequently Asked Questions on Solar Panel Tilt Angle
What is the correct solar panel tilt angle for my location?
The correct solar panel tilt angle for a fixed system is equal to your site’s geographic latitude. For example: New York (41°N) → tilt angle 41°; London (51.5°N) → tilt angle 52°; Dubai (25.2°N) → tilt angle 25°; Sydney (33.9°S) → tilt angle 34°. In equatorial regions below 15° latitude, use a minimum tilt angle of 10–15° for panel self-cleaning regardless of latitude. See the full city database in Section 4 for your specific location.
What direction should the solar panel face at the correct tilt angle?
In the Northern Hemisphere, set the tilt angle facing TRUE SOUTH (azimuth 180°). In the Southern Hemisphere, set the tilt angle facing TRUE NORTH (azimuth 0°). At equatorial latitudes (within 5° of the equator), the tilt angle is the primary variable and the facing direction matters far less. Always calibrate to true geographic south, not magnetic compass south, as magnetic declination can introduce several degrees of error.
Does changing the solar panel tilt angle by season improve output?
Yes. Adjusting the tilt angle seasonally can improve annual yield by 5–10% compared to a fixed tilt angle at latitude. In winter, increase the tilt angle by 10–15° above latitude to compensate for the lower Sun. In summer, reduce the tilt angle by 10–15° below latitude. Adjustable racking systems or dual-axis trackers automate this optimization. For fixed systems, the latitude-matched tilt angle remains the best single setting for maximum annual energy.
What solar panel tilt angle should I use on a flat roof?
On a flat roof, you have complete freedom to set any tilt angle. Use your site latitude as the target tilt angle. In very hot or dusty climates, a tilt angle of 10–15° is often used to reduce wind load and racking cost, with only a 2–5% yield reduction. For latitudes above 35°, always use the full latitude-matched tilt angle for maximum winter performance.
Does a wrong solar panel tilt angle really make a significant difference?
Yes — significantly. A tilt angle that is 20° too shallow or too steep can reduce annual yield by 8–15% in temperate climates and by 15–25% at high latitudes above 50°. Over a 25-year system life, that compounds into a very large energy and revenue loss. Correcting the tilt angle at installation costs nothing — correcting it post-installation on a racked rooftop system can require new mounting hardware.
What solar panel tilt angle should I use in Australia?
In Australia, face panels TRUE NORTH and set the tilt angle equal to your site latitude. Sydney (34°S) → tilt angle 34°, Melbourne (38°S) → 38°, Brisbane (27.5°S) → 28°, Perth (32°S) → 32°, Darwin (12.5°S) → 13°, Adelaide (35°S) → 35°, Canberra (35.3°S) → 35°. Use PVGIS or PVWatts for site-specific validation, especially if your roof pitch differs significantly from your latitude value.
Conclusion: Get the Solar Panel Tilt Angle Right First — Everything Else Follows
The Universal Tilt Angle Rules
The solar panel tilt angle is the most underrated variable in solar system design. It costs nothing to set correctly at installation. However, a wrong tilt angle silently drains 10–40% of your system’s lifetime output depending on your latitude. As a result, getting it right before installation is the single highest-ROI decision in solar system design. The rules are simple and consistent everywhere on Earth:
- Set solar panel tilt angle = your site latitude for maximum annual yield.
- Northern Hemisphere: combine that tilt angle with true south facing (azimuth 180°).
- Southern Hemisphere: combine that tilt angle with true north facing (azimuth 0°).
- Equatorial zone: use a minimum tilt angle of 10–15° regardless of latitude — never install flat.
- High latitudes (above 55°): steepen the tilt angle toward 60–70° to capture the low winter Sun.
Your Next Steps
First, use the world city database in Section 4 to find your city’s recommended tilt angle. Then validate it with PVGIS or PVWatts using your exact GPS coordinates and horizon data. As a result, you will have a site-specific confirmed tilt angle rather than a generic approximation. Finally, size your complete system — panels, inverter, and BESS — using tilt-angle-corrected peak sun hours as the foundational input for all capacity calculations.
The solar panel tilt angle is therefore where correct solar design begins. In addition, use Sunlith’s Energy Storage Calculation Guide and Peak Sun Hours by Location to complete your system sizing with the same engineering rigour.
0.5C vs 1C Cycle Life in Liquid-Cooled BESS (LFP Data)
Choosing a charge rate for a battery energy storage system affects more than dispatch speed; it determines how long the asset lasts and what it costs to keep running. This comprehensive engineering guide compares liquid-cooled BESS 0.5C vs 1C cycle life using published LFP cell data, real thermal load calculations, and DCIR degradation analysis to give EPCs, developers, and asset managers the technical foundation they need to write a bankable specification. All cycle figures refer to LFP prismatic cells — the dominant technology in grid-scale and C&I liquid-cooled BESS today.
C-rate is defined here using the standard BESS C-rate definition — the ratio of power to energy capacity expressed as a multiple per hour. A 1C rate on a 1,000 kWh BESS means the system draws or delivers 1,000 kW. A 0.5C rate on the same system means 500 kW over two hours.
What Is C-Rate and Why Does It Matter for Cycle Life?
Why 1C Heat Generation Grows Faster Than 0.5C BESS Expectations
Heat inside a lithium-ion cell scales with the square of current. This is the I²R relationship. Doubling the C-rate from 0.5C to 1C therefore quadruples cell-level heat generation — not doubles it. Moreover, liquid cooling becomes essential above 0.5C because air cooling cannot remove heat fast enough to keep cells below the 35°C threshold needed for rated cycle life.
However, the heat penalty does not stop at the cell level. System efficiency also falls at higher C-rate. Both effects compound simultaneously. The formula below shows how to size the thermal management loop for each rate.
Where:
Pheat = Thermal power the cooling loop must reject (kW)
Pdischarge = Rated discharge power (kW) = C-rate × Capacity (kWh)
ηone-way ≈ √RTE (One-way efficiency, from round-trip efficiency)
At 0.5C:
RTE ≈ 92% → ηone-way ≈ 0.959 → Pheat = Pdischarge × 0.041
At 1C:
RTE ≈ 88% → ηone-way ≈ 0.938 → Pheat = Pdischarge × 0.062
Result: Moving from 0.5C to 1C increases continuous thermal rejection by ~50% per second.
Consider a 1 MWh system. At 0.5C, P_discharge = 500 kW and the cooling loop must reject roughly 20.5 kW. At 1C, P_discharge = 1,000 kW and the cooling load rises to roughly 62 kW — a 3× increase in absolute thermal load, not 2×. Both the power level and the efficiency penalty increase together. Consequently, a cooling system sized for 0.5C is materially undersized when the operator later dispatches the same asset at 1C.
Practical Takeaway: Sizing the Cooling Loop
Cold-plate loops for 0.5C typically need 8–15 litres per minute per module. At 1C, that requirement rises to 15–25 L/min. Furthermore, the heat exchanger, pump, and glycol reservoir must all be upsized accordingly. Under-specifying the cooling loop is one of the most common causes of field degradation exceeding warranted projections.
Therefore, always specify the maximum continuous C-rate in the thermal management scope of work — not the average dispatch rate. For detailed TMS component sizing, see the C&I BESS thermal management guide.
How Liquid Cooling Interacts with C-Rate Stress
0.5C Operation: Steady-State Thermal Comfort
When evaluating liquid-cooled BESS 0.5C vs 1C profiles, the 0.5C operation represents a state of steady thermal comfort where a well-designed cooling loop easily keeps module temperatures in the 20–30°C optimal band. It does this with low coolant flow rates and minimal pump parasitic load. Heat generation is steady. The electrochemical stress on the LFP cathode, graphite anode, and separator stays well within the cell design envelope. Consequently, cycle life aligns closely with manufacturer specification.
1C Operation: Where the Cooling Loop Is Tested
At 1C, heat generation rises substantially. Looking at liquid-cooled BESS 0.5C vs 1C dynamics, the formula shows that moving to a 1C rate increases thermal strain by more than a simple doubling. The coolant loop must run harder. Higher flow rates, lower coolant inlet temperature, and more frequent pump cycling are all necessary. Additionally, any partial blockage of a cold plate channel creates a localised hot spot. The BMS may not detect this fast enough to prevent accelerated cell ageing.
| Key Engineering Specification for 1C Liquid-Cooled BESS The cooling system must reject up to 50% more thermal energy per second than a 0.5C equivalent. All cells must stay below 35°C. Module-level ΔT must remain ≤3°C at peak ambient temperature (typically 40–45°C for outdoor containerised systems). A cooling loop sized only for 0.5C will deliver shorter cycle life when dispatched at 1C. |
Liquid-Cooled BESS 0.5C vs 1C Cycle Life: The Data
The table below draws on manufacturer specifications for 280Ah and 314Ah LFP prismatic cells, including the EVReporter BESS cycle-life dataset. Values marked (*) are interpolated from published trend data. Note that 1C BESS-level specifications are less commonly published because most manufacturers rate their systems at 0.5C.
| Parameter | 0.3C/0.3C | 0.5C/0.5C | 1C/1C | Notes |
| Cell-level cycles to 80% SoH (100% DoD, 25°C) | 10,000 | 8,000 | ~4,000–5,000* | Manufacturer datasheet |
| Cell-level cycles to 70% SoH (100% DoD, 25°C) | 15,000 | 12,000 | ~6,500* | Cell level only |
| BESS-level cycles to 70% SoH (90% DoD, ≤35°C) | 8,000 | 6,000 | ~3,500–4,000* | Includes calendar ageing |
| Calendar life at BESS level | Up to 20 yrs | Up to 15 yrs | ~10–12 yrs* | Liquid-cooled, ≤35°C |
| Heat generated per cycle | Low | Moderate | High | Scales with I²R |
| DCIR rise rate (relative to 0.3C baseline) | Baseline | +15–25% | +30–50%* | SEI-driven resistance growth |
| Cell ΔT in liquid-cooled system | <3°C | <3°C | 3–6°C* | Higher at 1C without adequate flow |
| Round-trip efficiency (liquid-cooled) | ~92–93% | ~91–92% | ~88–90% | Lower at 1C due to I²R |
| Typical grid application | Arbitrage (4-hr) | Frequency reg. / solar | Fast-response / C&I peak shaving |
* 1C BESS-level figures are extrapolated from cell-level trend data and peer-reviewed fast-charging studies. DCIR rise values are relative to 0.3C baseline; absolute values vary by manufacturer and operating temperature.
Three findings stand out. First, moving from 0.5C to 1C cuts cell-level cycle life by roughly 37–50% at the 80% SoH threshold. Second, the BESS-level penalty is proportionally worse. Calendar ageing, thermal gradients, cell imbalance, and DCIR rise all compound the stress at system level. Third, DCIR grows 30–50% faster at 1C than at baseline. This matters because rising DCIR causes voltage sag — an effect that reduces usable capacity well before the cell reaches 80% SoH.
Consider a 10 MWh BESS cycled once per day. At 0.5C, it accumulates 7,300 equivalent full cycles over 20 years. The 6,000-cycle BESS warranty covers most of that period. However, at 1C, the ~3,500–4,000-cycle BESS warranty runs out after roughly 10–11 years. Mid-life augmentation then becomes unavoidable — and expensive.
Four Degradation Mechanisms in 0.5C vs 1C BESS Assets
Understanding why 1C cycling degrades LFP cells faster helps with both cell selection and BMS configuration. According to Energy-Storage.News, higher C-rates drive four distinct degradation pathways.

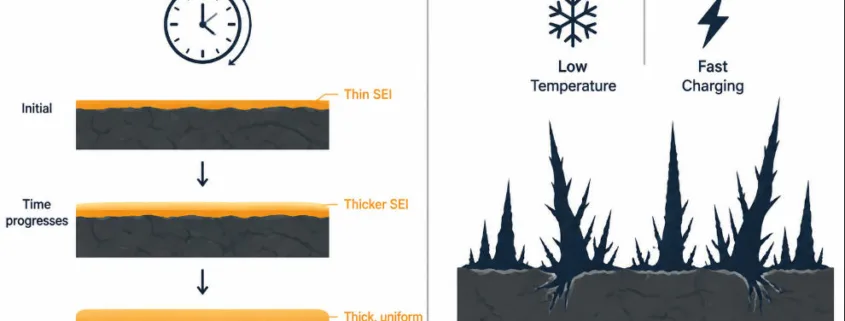

1. SEI Layer Growth
The solid electrolyte interphase (SEI) forms on the graphite anode during the first cycle. It keeps growing throughout cell life. SEI growth consumes lithium irreversibly, reducing usable capacity. Higher C-rates accelerate this in two ways. They raise cell temperature and increase local current density at the anode. Both effects thicken the SEI faster. As a result, liquid cooling’s primary role in 1C BESS is to suppress the temperature component of this growth.
2. DCIR Rise and Voltage Sag — the Hidden Cycle Life Cost
Direct Current Internal Resistance (DCIR) is the most operationally significant metric for a deployed BESS. It combines ohmic resistance, charge-transfer resistance at the electrode-electrolyte interface, and diffusion polarisation. In a new LFP prismatic cell, DCIR typically sits at 0.10–0.25 mΩ per Ah of rated capacity. The Sunlith DCIR technical article covers IEC 61960-standard measurement in detail.

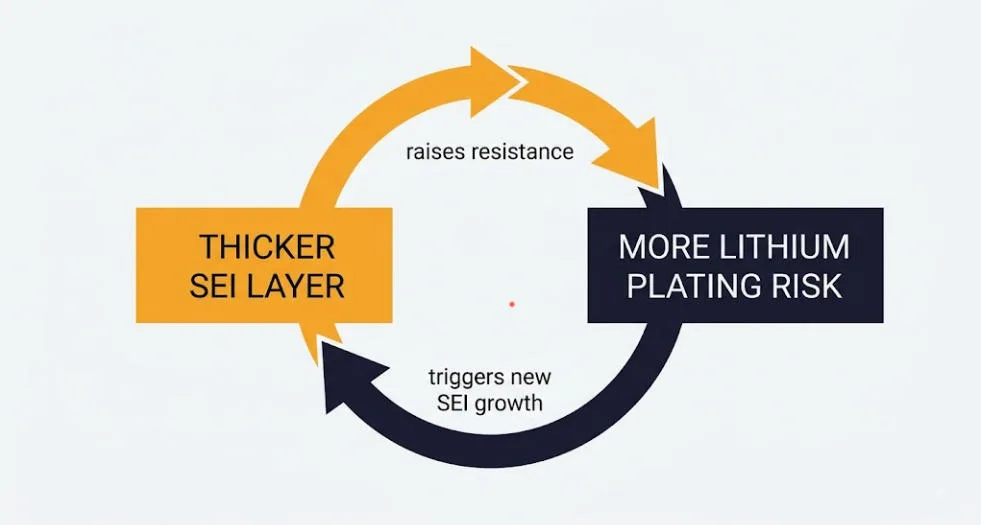

At 1C, SEI growth accelerates — and each nanometre of additional SEI adds ionic transport resistance. DCIR rises faster as a result. Moreover, elevated temperature (harder to suppress at 1C even with liquid cooling) further accelerates this resistance drift.
Rising DCIR causes voltage sag. The voltage drop under load equals V_sag = I × DCIR. At 1C, discharge current is double that of 0.5C. Therefore, the same DCIR increase produces twice the voltage drop. In practice, this triggers the inverter’s low-voltage cutoff — typically 2.5–2.8V per cell — at a higher residual SoC than intended. The discharge cycle ends early. Consequently, the usable SoC window shrinks from, say, 10–90% to roughly 15–85%. That lost throughput compounds over project life, reducing effective revenue by 10–15% before the cell even reaches 80% SoH.
| DCIR → Voltage Sag → Effective SoC Shrinkage A BMS that tracks per-cell DCIR and adjusts the voltage cutoff dynamically can recover a significant portion of this lost SoC window. This DCIR-adaptive cutoff is one of the highest-value firmware configurations for 1C liquid-cooled BESS assets. |
3. Lithium Plating on the Anode
When charge current exceeds the anode’s intercalation rate, metallic lithium plates on the graphite surface instead of inserting into it. This is irreversible. It can also lead to dendritic growth that eventually penetrates the separator — the main path to internal short circuits. At 0.5C, LFP cells stay well within the safe intercalation envelope. At 1C, that margin narrows. Furthermore, if the cooling system is undersized, elevated temperature narrows the margin further, making thermal management the deciding factor in liquid-cooled BESS 0.5C vs 1C longevity.
4. Mechanical Stress and Electrode Cracking
LFP cathode particles expand and contract as lithium ions move in and out. Higher C-rates speed up this mechanical cycling. Cumulative electrode stress rises as a result. Research in ScienceDirect confirms that fast-charging produces macroscopic electrode detachment and microscopic particle cracking alongside SEI growth. LFP’s olivine structure resists this better than NMC. However, the effect is still measurable at sustained 1C operation.
Together, these four mechanisms explain why the cycle-life gap between 0.5C and 1C is not linear. Liquid cooling suppresses the thermal contribution. However, it cannot eliminate the electrochemical stress, DCIR accumulation, or mechanical fatigue that higher current imposes on the cell.
How Liquid Cooling Mitigates 1C BESS Cycle Life Degradation
What the TMS Controls
Liquid cooling does not eliminate the 1C cycle-life penalty, but it cuts it significantly compared to air-cooled 1C operation. Research shows that liquid cooling reduces peak cell temperature by approximately 3°C at moderate C-rates. Additionally, it nearly doubles attainable cycle life versus unmanaged thermal conditions. However, the margin shrinks at 1C, so correct TMS sizing becomes critical.
For a 1C liquid-cooled LFP BESS, four parameters determine how well the TMS performs: inlet coolant temperature (target 20–25°C), coolant flow rate sized to keep ΔT below 3°C, cold plate contact area and thermal resistance, and BMS curtailment of discharge above 38–40°C per cell.
| Industry Benchmark — CATL EnerOne CATL’s EnerOne liquid-cooled system limits cell-to-cell ΔT to 3°C across the module stack. This enables a warranted 10,000-cycle life at 1C for the 280Ah cell. Achieving comparable performance at 1C with a less capable TMS is not supported by published data. |
Immersion vs Cold Plate at 1C
Immersion cooling — direct cell contact with a dielectric fluid — reduces degradation further than cold-plate systems at high C-rates. Data from EticaAG’s immersion cooling research shows a 22% battery life extension versus cold-plate cooling. Moreover, immersion eliminates localised hot spots entirely by surrounding every cell surface with fluid.
Nevertheless, immersion cooling carries higher capital cost. It is therefore used primarily in data centre UPS and research installations rather than grid-scale BESS. For most C&I projects, cold-plate liquid cooling is the appropriate balance of cost and performance. The C&I BESS thermal management guide covers sizing requirements in detail.
Which C-Rate Fits Your Application?
C-rate selection must match the application’s power-to-energy ratio — not simply the lowest purchase price. A system specified at 0.5C and dispatched at 1C will fail to meet its warranted cycle life. Conversely, a 1C system used only for overnight arbitrage at 0.25C wastes capital on oversized power electronics.
| Application | Recommended C-Rate | Expected BESS Cycles | Liquid Cooling Tier |
| Grid arbitrage (4-hour) | 0.25C–0.5C | 8,000–10,000+ cell-level | Cold plate, ΔT <3°C |
| Solar farm smoothing | 0.5C | 8,000 cell / 6,000 BESS | Cold plate, ΔT <3°C |
| Frequency regulation (2-hour) | 0.5C–1C | 5,000–8,000 BESS | Cold plate or enhanced liquid |
| C&I peak shaving (1-hour) | 1C | 4,000–5,000 BESS | Cold plate, higher coolant flow |
| EV fast-charge buffer | 2C–3C | <3,000 BESS | Immersion or high-flow cold plate |
Frequency regulation sits at 0.5C–1C because market requirements vary. UK FFR and Australian FCAS markets need sub-second response, so 1C is justified. US CAISO and MISO markets are often serviceable at 0.5C. Always confirm the specific market’s power-to-energy ratio before finalising the C-rate specification. For a full breakdown, see the BESS C-rate guide.
LCOS and Project Finance: The Cost of Getting C-Rate Wrong
Augmentation Timing
LCOS depends on total energy throughput divided by lifetime cost. That lifetime cost includes capital, augmentation, and O&M. A system that exhausts its warranted cycle count in half the intended project life triggers mid-life augmentation — typically 20–35% of original capital cost. This single event can materially damage project returns.
Consider a 10 MWh system at $250/kWh installed ($2.5M total). At 0.5C with 6,000 BESS-level cycles, augmentation is deferred to roughly year 16–18. At 1C with ~3,500–4,000 BESS-level cycles, augmentation arrives at year 9–10. That earlier event costs approximately $600,000–$850,000. Furthermore, it must be modelled in the financial plan from day one.
RTE and DCIR Revenue Loss
Round-trip efficiency differences also compound over time. A liquid-cooled LFP BESS achieves roughly 91–92% RTE at 0.5C versus 88–90% at 1C. Over 20 years at one cycle per day, a 2-percentage-point gap represents approximately 1,460 MWh of lost throughput on a 10 MWh system.
Additionally, DCIR-driven voltage sag reduces the effective SoC window by 10–15% in mid-to-late project life at 1C. This compounds the revenue shortfall beyond what the RTE difference alone would predict. Consequently, LCOS models that account only for RTE — and not DCIR-driven capacity erosion — will consistently underestimate the true cost of 1C operation. For a project-level cost breakdown, see the C&I BESS thermal management article.
BMS and EMS Settings That Protect Cycle Life
The battery management system (BMS) is the first line of defence for cycle life at any C-rate. At or near 1C, these six settings directly affect degradation rate:
- Temperature de-rating: Automatically derate current when any cell exceeds 35°C. Step down to 0.5C above 38°C. Halt discharge above 45°C. Without this, summer peak events push cells into the accelerated degradation zone.
- DCIR-adaptive voltage cutoff: Adjust the discharge termination voltage in real time based on measured DCIR. As DCIR rises over thousands of cycles, this prevents the inverter from cutting off early due to resistive voltage sag — recovering up to 10% of effective throughput in mid-to-late project life.
- SoC window management: Restrict operation to 10–90% SoC rather than 0–100%. The marginal capacity gained by widening the SoC window at 1C does not offset the electrode stress cost.
- Cell-to-cell voltage balancing: Set balancing thresholds to ±5mV rather than ±10mV. At 1C, voltage polarisation amplifies cell divergence during high-rate events and can mask true SoC.
- Coolant temperature monitoring: Log and alarm on coolant inlet temperature deviations. A 3°C rise in inlet temperature at 1C translates to a 5–7°C rise in peak cell temperature — enough to push the system outside the warranty envelope.
- Cycle and throughput logging: Track both cycle count and energy throughput (MWh) alongside DCIR trend data. Use these to trigger augmentation planning before field performance diverges from the financial model.
For grid-scale projects, the EMS dispatch algorithm should include a C-rate override that blocks 1C dispatch when ambient conditions prevent the TMS from maintaining ΔT below 3°C. This is especially important during summer peaks, when grid dispatch urgency and ambient temperature peak together. For more on how BMS, EMS, and TMS integrate at the system level, see the microgrid BESS technical guide.
Frequently Asked Questions
Does liquid cooling eliminate the 0.5C vs 1C cycle life gap?
No. Liquid cooling reduces the thermal component of degradation at 1C. However, it cannot eliminate the electrochemical stress — SEI growth, DCIR rise, lithium plating risk, and electrode mechanical strain — that increases with current. Published LFP data consistently shows a 37–50% reduction in cell-level cycle count at 80% SoH when moving from 0.5C to 1C, even with best-in-class liquid cooling.
What cycle life does a liquid-cooled LFP BESS achieve at 0.5C?
Published data for 280Ah and 314Ah LFP prismatic cells shows approximately 6,000 BESS-level cycles to 70% SoH at 0.5C/0.5C, 90% DoD, and ambient temperatures up to 35°C — with calendar ageing included. At the 80% SoH threshold, cell-level data shows 8,000 cycles at 25°C.
How does DCIR rise affect a 1C liquid-cooled BESS over time?
As DCIR grows from SEI accumulation, the voltage drop under 1C discharge doubles versus 0.5C for the same resistance increase. The inverter’s low-voltage cutoff triggers at a higher residual SoC. This shrinks the usable SoC window by 10–15% in mid-to-late project life. A DCIR-adaptive voltage cutoff in the BMS firmware can recover a significant portion of this lost throughput.
How do I calculate the cooling load difference between 0.5C and 1C?
Use P_heat = P_discharge × (1 − √RTE). At 0.5C with 92% RTE, a 1 MWh system rejects roughly 20.5 kW. At 1C with 88% RTE, that rises to roughly 62 kW — a 3× increase, not 2×. Always size the cooling loop for the maximum continuous C-rate, not the average dispatch rate.
Which applications justify 1C despite the shorter cycle life?
Applications with revenue tied to peak power — frequency regulation in FFR or FCAS markets, C&I peak demand charge reduction, and high-power grid-stabilisation services — can justify 1C. The key test is whether the revenue uplift from 1C dispatch outweighs the higher LCOS from shorter cycle life, earlier augmentation, and DCIR-driven SoC shrinkage.
Conclusion
The comparison of liquid-cooled BESS 0.5C vs 1C cycle life reveals a clear and consequential difference. Moving from 0.5C to 1C cuts cell-level cycle count by 37–50% at the 80% SoH threshold. The BESS-level penalty is larger still because calendar ageing, thermal gradients, and DCIR accumulation all compound on top of the C-rate stress.
Liquid cooling is essential for any BESS operating above 0.5C. However, it mitigates the degradation penalty — it does not eliminate it. The thermal sizing formula in this guide gives procurement teams a concrete starting point. The DCIR-adaptive BMS setting gives asset managers a practical tool to recover lost throughput in mid-project life.
Sunlith Energy provides technical consultancy for BESS specification, thermal management design, and lifecycle modelling. Contact us to discuss the right C-rate design for your project.
The Cost of 100-Hour Energy Storage: Breaking Down Iron-Air LCOS
Iron Air Battery LCOS: Why This Number Defines Grid Storage Economics
Iron air battery LCOS — the Levelised Cost of Storage — is the single most important number for evaluating 100-hour grid energy storage. Most analysts start with capital cost per kWh. However, capital cost alone tells only part of the story. LCOS captures everything: upfront cost, operating expenses, charging cost, efficiency losses, and project life. Together, these inputs produce one number: the minimum revenue per MWh a storage project must earn to break even.
Iron-air batteries target an LCOS of $20–40/MWh for 100-hour discharge. That figure would place iron-air below natural gas peaker plants, below pumped hydro in most regions, and at roughly one-fifth the LCOS of lithium-ion at equivalent duration. Furthermore, it would do this without relying on lithium, cobalt, or any scarce critical mineral.
This article breaks down the iron air battery LCOS from first principles. Specifically, it covers the formula, each cost component, how iron-air compares to competing technologies, and what real-world project data shows. For a foundation on how iron-air cells work, see our guide on what is an iron-air battery.
Why Iron Air Battery LCOS Matters More Than CapEx
Capital expenditure is easy to compare. Iron-air targets $20/kWh system cost. LFP lithium-ion costs $125–200/kWh fully installed. That gap is real. However, CapEx alone does not drive the right procurement decision.
Four Costs CapEx Misses in Iron-Air Battery LCOS
Consider what CapEx fails to capture:
- Round-trip efficiency (RTE) penalty: Iron-air runs at 50–60% RTE. Consequently, developers must buy roughly twice the charging energy to deliver each MWh.
- Charging cost: A gas generator pays for fuel only when it runs. A battery must purchase or generate the electricity it stores. Therefore, charging cost per MWh delivered rises as RTE falls.
- Cycle count: Lithium-ion cycles 250–365 times per year. Iron-air cycles just 20–50 times. As a result, each dollar of iron-air CapEx spreads across far less energy throughput.
- Project life: A 20-year asset life spreads CapEx further. Nevertheless, O&M costs accumulate and must be discounted. Net present value of all costs determines the true LCOS.
How LCOS Combines All Four Factors
LCOS captures every dynamic in one number. According to PNNL’s LCOS Estimates database, LCOS equals total lifetime costs divided by cumulative delivered energy — both discounted to present value. In other words, it shows the minimum revenue per MWh the system must earn to achieve a net present value of zero.
This makes LCOS the right basis for comparing iron-air to gas peakers. Developers compare the iron air battery LCOS against the LCOE of the asset the battery replaces. For more context on how long-duration energy storage (LDES) technologies compete with firm generation assets, see our full LDES guide.
The Iron Air Battery LCOS Formula: How Costs Break Down
The LCOS formula — as applied by Lazard, NREL, and PNNL — follows this structure:
LCOS ($/MWh) = [CapEx + NPV(O&M) + NPV(Charging Cost) + NPV(Augmentation)] ÷ NPV(Total Energy Discharged)
Each component carries a specific cost for battery energy storage systems (BESS). The table below maps each LCOS input to its iron-air battery value.
| LCOS Component | Description | Iron-Air Battery Value / Note |
| CapEx — Cell Stack | Cost of iron anode, bifunctional air cathode, aqueous KOH electrolyte, and cell housing | ~$7–10/kWh at commercial scale — iron’s material abundance is the primary cost driver |
| CapEx — Balance of System (BOS) | Civil works, cabling, switchgear, structural enclosures, transformers | ~$5–8/kWh — land footprint is larger than lithium-ion, raising civil costs per kWh |
| CapEx — PCS | Power Conversion System: inverters, controls, grid interconnection hardware | ~$3–5/kWh — standard utility PCS; chemistry places no special requirements |
| CapEx — EPC & Soft Costs | Engineering, procurement, construction, permitting, grid studies | ~$2–4/kWh — currently elevated; limited LDES-experienced EPC firms exist in 2026 |
| O&M — Fixed Annual | Scheduled maintenance, airflow management, electrolyte monitoring, insurance | ~$3–6/kW-year — lower than lithium-ion; no thermal runaway risk or flammable electrolyte |
| O&M — Variable | Electrolyte replenishment, electrode inspection, SCADA/EMS licensing | Estimated $1–3/MWh discharged over a 20-year project life |
| Charging Cost | Cost of electricity used to charge the system — critical because 50–60% RTE means 40–50% is lost | Iron-air targets curtailed renewable charging at near-zero marginal cost: $5–15/MWh |
| Cycle Life / Utilisation | Annual full discharge cycles × project life = total energy throughput denominator | 20–50 full cycles per year (event-based, not daily); 20+ year design life |
| Augmentation / Replacement | Mid-life stack or electrode replacement to maintain rated capacity | Currently unvalidated at commercial scale — key uncertainty in early project finance models |
| Discount Rate | Cost of capital applied to future cost streams in NPV calculation | 7–10% for US utility storage; 10–12% for early-commercial technology with limited track record |
Why Charging Cost Dominates Iron-Air LCOS Calculations
💡 Key insight: Iron-air batteries target curtailed renewable energy for charging — solar and wind output that grids would otherwise waste. In high-renewable regions, curtailed energy costs $3–15/MWh. This near-zero charging cost is the assumption behind the $20–40/MWh LCOS target. If iron-air must charge from the wholesale grid at $40–60/MWh instead, LCOS rises to $80/MWh or above.
The BESS PCS functions that manage charge/discharge cycles also affect LCOS. Specifically, PCS efficiency losses add to the effective charging cost per MWh delivered. Modern utility PCS units achieve 97–98.5% efficiency at full load, contributing a small but measurable input to the total LCOS calculation.
Iron-Air Battery CapEx: Where the $20/kWh Target Comes From
Form Energy targets a system cost of approximately $20/kWh. This is a system-level figure — it includes not just cell hardware, but civil, interconnection, and soft costs. Below, the table shows how iron-air’s $20/kWh cost divides across components, and where it differs from lithium-ion.
| CapEx Component | Estimated Share | Iron-Air vs LFP Difference |
| Cell Stack (iron anode + air cathode + electrolyte) | 35–45% | Iron-air cells target ~$7–10/kWh vs LFP’s $55–110/kWh. This cell-level gap is the entire basis of iron-air’s cost case. |
| Balance of System (civil, cabling, enclosures) | 20–28% | Higher for iron-air due to larger land footprint and more enclosures per kWh. This partially offsets the cell cost advantage. |
| Power Conversion System (PCS) | 12–18% | Similar to LFP. Standard utility PCS equipment applies to both chemistries. No meaningful difference exists at this layer. |
| EPC & Engineering (permitting, studies, labour) | 10–15% | Currently elevated for iron-air. The limited pool of LDES-experienced EPC firms drives up soft costs. Costs will normalise as deployments scale. |
| Grid Interconnection | 8–12% | Identical to LFP. ISOs charge the same interconnection fees regardless of storage chemistry or duration. |
| Contingency & Financing Costs | 5–8% | Higher for iron-air. Lenders apply a technology risk premium to early-commercial assets. This premium will fall as operating data accumulates. |
The Cell Stack Is Where Iron-Air Wins
Iron-air’s cost advantage concentrates almost entirely at the cell level. For context, iron metal costs roughly $0.10–0.15/kg. The quantity of iron per kWh of capacity is modest. As a result, cell stack cost targets $7–10/kWh at commercial scale. By contrast, LFP cells alone cost $55–110/kWh — six to fifteen times more.
However, the BOS cost per kWh runs higher for iron-air than for lithium-ion. Lower energy density means more land, more enclosures, and more civil work per kWh of capacity. This partially offsets the cell-level advantage. According to NREL grid storage benchmarks, balance-of-system costs represent 20–28% of total installed cost for utility-scale storage. For iron-air, the larger footprint pushes this toward the upper end of that range.
The full BESS specifications guide covers how system-level specs — including C-rate, DoD, and RTE — shape total project cost at the procurement stage.
Iron Air Battery LCOS vs Lithium-Ion, Flow, and Gas Peakers
The table below compares iron-air battery LCOS against three competing technologies. Importantly, the comparison centres on the 100-hour discharge window — the duration iron-air specifically targets.
| Metric | Iron-Air | LFP Li-ion (4hr) | Vanadium Flow (10hr) | Gas Peaker |
| System CapEx ($/kWh) | ~$20 (target) | $125–200 | $300–500 | $800–1,200/kW |
| Discharge Duration | 100+ hours | 4–8 hours | 8–12 hours | Unlimited (fuel-dependent) |
| Round-Trip Efficiency | 50–60% | 85–95% | 65–75% | N/A (heat rate ~7–10 MMBtu/MWh) |
| Cycles per Year | 20–50 | 250–365 | 200–300 | As dispatched |
| Project Life (years) | 20+ | 15 | 20+ | 30+ |
| Annual O&M | Low — no thermal management cost | $6–10/kW-year | $8–12/kW-year | $15–25/kW-year + fuel |
| LCOS at 4hr / daily ($/MWh) | Not applicable | $78–150 | $110–190 | $120–200 |
| LCOS at 100hr / event-based ($/MWh) | $20–40 (target) | Not viable | Not viable | $150–300+ incl. carbon |
| Carbon Cost Risk | None | None | None | High — stranded asset risk |
| Critical Mineral Risk | None — iron, air, water only | Moderate — lithium supply | Moderate — vanadium supply | High — gas price exposure |
Technology Selection Is Entirely Duration-Dependent
Importantly, no single technology dominates across all discharge durations. LFP lithium-ion, in particular, suits 2–8 hour daily cycling well. Its high RTE and mature supply chain produce an LCOS of $78–150/MWh for 4-hour discharge, according to BloombergNEF’s 2026 LCOE report. However, at 100-hour durations, lithium-ion CapEx is simply too high. The low cycle count of multi-day storage events cannot spread that cost across enough energy throughput.
Iron-air, by contrast, carries low enough CapEx that even 20–50 full cycles per year produce a competitive iron air battery LCOS. This is the same logic that makes pumped hydro economic: low capital cost per kWh and low-cost energy input outweigh moderate efficiency losses. For a broader view of how grid-scale BESS procurement decisions frame technology selection, see our grid-scale BESS guide.
⚖️ The gas peaker comparison: Gas peaker LCOE runs $120–200/MWh for short-duration peak events. Add fuel volatility, carbon pricing, and stranded asset risk over a 20-year horizon and the figure rises to $150–300/MWh. Iron-air’s $20–40/MWh target for 100-hour discharge represents an 80–90% cost reduction against that benchmark. This is the commercial case behind Xcel Energy and Georgia Power’s agreements with Form Energy.
Iron Air Battery LCOS Sensitivity: Bear, Base, and Bull Cases
The $20–40/MWh iron air battery LCOS target is not guaranteed. It depends on specific assumptions — some within developers’ control, others not. The table below shows the full range of outcomes.
| Variable | Bear Case | Base Case | Bull Case |
| Cell Stack CapEx | $30/kWh | $20/kWh | $12/kWh |
| Round-Trip Efficiency | 45% | 55% | 65% |
| Charging Cost (curtailed renewables) | $20/MWh | $10/MWh | $3/MWh |
| Discount Rate (cost of capital) | 12% | 9% | 7% |
| Full Cycles per Year | 15 | 30 | 50 |
| Project Life | 15 years | 20 years | 25 years |
| Resulting LCOS ($/MWh) | $55–80 | $20–40 | $10–20 |
Cell Stack CapEx: The Biggest Lever
Cell stack CapEx and charging cost drive the widest LCOS range of any variable. Essentially, manufacturing scale determines cell cost. As Form Energy’s Weirton, WV facility ramps production, learning-curve effects push costs from $12–18/kWh toward the $7–10/kWh long-run target. LFP manufacturing achieved a 90% cost reduction over 15 years of scaled production. Iron-air follows a similar trajectory, though the timeline remains uncertain.
Charging Cost: A Market Design Question
Charging cost depends on grid design, not just battery technology. Iron-air generates its strongest economics when developers site projects near solar or wind assets that regularly produce curtailed energy. In California, ERCOT, and parts of the Midwest, curtailment already exceeds 10–15% of generation. The near-zero charging cost assumption holds in those regions. Where iron-air must charge from the wholesale market, LCOS rises toward the bear case.
Round-Trip Efficiency: The Medium-Term Opportunity
RTE improvement offers a clear LCOS reduction path. Research at Argonne National Laboratory and MIT targets bifunctional air cathode catalyst improvements. A 10 percentage point RTE gain — from 55% to 65% — reduces LCOS by roughly $5–8/MWh at the base charging cost. Furthermore, the DOE long-duration energy storage programme sets 70%+ RTE by 2030 as an explicit target under the Long Duration Storage Shot initiative.
Real-World Iron Air Battery LCOS: Projects and Commercial Data
As of mid-2026, iron air battery LCOS remains largely a projection. However, the first commercial deployments now generate real operating data. Specifically, these projects will either validate or revise the $20–40/MWh target.
| Project | Capacity | Partner | LCOS Significance |
| Cambridge Energy Storage (MN) | 150 MWh | Great River Energy | First commercial iron-air system; commissioned late 2025. Multi-year performance study generates real cycle efficiency, degradation, and O&M cost data — the bankability foundation for all future projects. |
| Sherco Coal Plant Replacement (MN) | 10 MW / 1,000 MWh | Xcel Energy | Flagship 100-hour GWh-scale deployment replacing retiring coal. Sets the real-world LCOS benchmark for US utility procurement decisions. |
| Darbytown Station (VA) | TBA | Dominion Energy Virginia | PJM market test alongside Eos zinc-hybrid batteries. Generates direct comparative performance data vs alternative LDES technologies. |
| Crusoe AI Data Center Portfolio | 12,000 MWh (12 GWh) | Crusoe Energy Systems | March 2026 — largest single iron-air deal globally. Demonstrates firm power for AI data centers as a new iron-air use case at undisclosed but commercially agreed LCOS. |
Why the Cambridge Project Matters for LCOS Validation
The Cambridge Energy Storage Project with Great River Energy is the most important near-term data source. Great River Energy runs a multi-year performance study. Specifically, this study measures cycle efficiency, degradation rates, and O&M costs under real grid conditions. Additionally, lenders need this data to move from technology-risk financing (10–12% discount rate) to infrastructure-grade terms (7–8%). That shift alone reduces iron air battery LCOS by $4–8/MWh at the base case.
The Crusoe AI data center agreement signals a new application for iron-air. AI data centers need continuous, uninterrupted power — not just grid firming. Notably, iron-air’s 100-hour duration enables it to bridge multi-day grid contingencies for critical infrastructure. According to Form Energy’s battery technology overview, those grid studies show that hitting cost targets unlocks tens of GWh of multi-day storage demand in the US alone.
IRA Incentives: How Tax Credits Reduce Iron Air Battery LCOS
Notably, the US Inflation Reduction Act (IRA) improves iron air battery LCOS through two direct mechanisms. Together, these credits can reduce effective project cost by 30–40%.
Investment Tax Credit (ITC) for Standalone Storage
The IRA provides a 30% ITC for standalone battery storage. Consequently, iron-air projects qualify without needing solar co-location. At $20/kWh system cost, the credit equals $6/kWh. Effective CapEx therefore falls to approximately $14/kWh. In turn, this reduces iron air battery LCOS by $5–8/MWh at the base case.
Advanced Manufacturing Production Credit (45X)
Additionally, the 45X credit provides per-component tax credits for domestically manufactured battery parts. Form Energy’s Weirton, WV facility qualifies for these credits on cell components, electrodes, and modules. As a result, the credit compresses the gap between early-commercial pricing and the long-run $7–10/kWh cell target. Furthermore, it supports factory ramp-up economics during the period when production volumes remain low.
📋 ITC note: The 30% ITC applies to the full installed system cost — including BOS, PCS, and interconnection, not just the battery cells. For a 100 MWh system at $20/kWh ($2M total), the ITC reduces net project cost to $1.4M. Most iron-air projects at this stage will use tax equity partnerships to monetise the credit fully.
Iron Air Battery LCOS: Frequently Asked Questions
What is the LCOS of an iron-air battery?
Iron-air batteries target an LCOS of $20–40/MWh for 100-hour discharge. This estimate comes from Form Energy’s commercial targets and NREL benchmarking. Specifically, it assumes $20/kWh system cost, 50–60% RTE, near-zero-cost curtailed renewable charging, and a 20-year project life with 20–50 full cycles per year.
How does iron-air LCOS compare to lithium-ion?
For 4-hour daily cycling, LFP lithium-ion achieves a lower LCOS of $78–150/MWh. However, at 100-hour discharge, lithium-ion CapEx is too high. Its cost cannot spread across the low cycle count of multi-day storage events. By contrast, iron-air’s low CapEx is specifically optimised for that window. Therefore, the two technologies do not compete — they serve different duration needs.
Why is iron air battery LCOS low despite poor round-trip efficiency?
Cell-level CapEx of $7–10/kWh is the answer. That is 6–15× lower than LFP. Furthermore, iron-air charges from near-zero-cost curtailed renewables. Consequently, the efficiency penalty costs relatively little. The same logic applies to pumped hydro: low capital cost and cheap energy input outweigh moderate efficiency losses.
What are the biggest risks to the $20/MWh LCOS target?
Three risks stand out. First, slower manufacturing scale-up could keep cell CapEx above $25/kWh longer than planned. Second, higher charging costs apply if projects must buy wholesale grid electricity rather than curtailed renewables. Third, lenders may maintain technology-risk discount rates of 10–12% until operating data accumulates — raising iron air battery LCOS by $5–10/MWh versus the base case.
Is iron-air LCOS competitive with gas peaker plants?
Yes, for multi-day firming applications. Gas peakers cost $120–200/MWh for short-duration events. Add fuel volatility, carbon pricing, and stranded asset risk and that figure rises to $150–300/MWh over a 20-year horizon. Iron-air’s $20–40/MWh target therefore represents an 80–90% cost reduction. As a result, Xcel Energy and Georgia Power have both signed commercial agreements with Form Energy.
Conclusion: What the Iron Air Battery LCOS Target Means for Grid Planning
The $20–40/MWh iron air battery LCOS target is the most compelling cost proposition in long-duration storage today. No other commercially advancing technology combines 100-hour discharge, Earth-abundant materials, and a cost structure that undercuts gas peakers. Moreover, iron-air achieves this without geographic constraints — unlike pumped hydro, which needs specific terrain.
However, the target remains a projection. The Cambridge and Sherco projects generate cycle efficiency, degradation, and O&M data. That data transforms iron-air from a technology-risk asset to a bankable one. A move from 10–12% to 7–8% discount rates alone reduces iron air battery LCOS by $6–10/MWh. It therefore determines whether the base case or the bear case prevails.
For grid planners, the right framework is not ‘can iron-air hit $20/MWh?’ Instead, ask: ‘What LCOS does our procurement model require, and does our site provide high-curtailment renewable charging?’ In regions with strong IRA access, high curtailment, and multi-day capacity market products, iron-air economics already work — even at current early-commercial pricing. As Form Energy scales production through 2026–2030, iron air battery LCOS will converge on the low end of the $20–40/MWh range. Consequently, the largest shift in grid storage economics since lithium-ion displaced pumped hydro for short-duration storage may be underway.
BESS PCS: Functions, Features, and Why the Power Conversion System Is the Heart of Every Energy Storage Project
The BESS PCS — Power Conversion System — converts DC battery power to AC for loads or the grid. However, what a PCS must do beyond that basic job changes completely depending on the application. Consequently, choosing the wrong PCS type is one of the most expensive mistakes a project team can make.
Consider four scenarios. A factory running peak shaving needs a PCS that switches to backup mode within 20 ms. By contrast, a 200 MW grid project needs sub-200 ms frequency response and reactive power control. An island microgrid, meanwhile, needs the PCS to synthesise the AC voltage reference — because no utility connection exists at all. Finally, a mobile BESS on a trailer needs ruggedness and fast site commissioning above all else.
Therefore, this guide covers each of the four application types in detail. Furthermore, it includes a master comparison table so you can see exactly which PCS functions are mandatory, optional, or not needed for each system type. By the end, you will have a clear framework for evaluating any BESS PCS proposal.
What Is a BESS PCS?
Inside every battery energy storage system, the Power Conversion System converts DC from the battery cells to AC for loads or the grid. During charging, it reverses direction and converts AC back to DC. Crucially, both functions share a single hardware platform — hence the term bidirectional.
As Sunlith’s PCS vs. Inverter guide explains, a PCS includes far more than just a bidirectional inverter. In addition, it handles reactive power control, protection functions, grid synchronisation, and communication with the BMS and EMS. According to NREL’s Power Electronics research, the PCS is one of the most critical components in grid-connected storage — because its control functions directly determine grid stability and service quality.
Moreover, the Bidirectional Inverter vs PCS comparison on this site highlights PCS-specific capabilities — including multi-port DC support, islanding, and black start. None of these are available in a stand-alone inverter. However, which of these capabilities you actually need depends entirely on your application type.
Four Application Types at a Glance
Before diving into each type, here is a quick overview showing how the four BESS application categories differ in their primary PCS priorities.
| System Type | Typical Power | Grid Connection | Primary PCS Priority |
| C&I (Behind-the-Meter) | 30 kW – 2 MW | Grid-connected, LV/MV | Peak shaving, backup power, solar integration |
| Utility Scale (Front-of-Meter) | 2 MW – 500 MW+ | Grid-connected, MV/HV | FFR, reactive power, grid code compliance |
| Microgrid / Off-Grid | 10 kW – 50 MW | Islanded or weak grid | Grid-forming, black start, load following |
| Mobile BESS | 50 kW – 5 MW | Temporary grid or off-grid | Portability, ruggedness, fast commissioning |
Master Comparison Table: BESS PCS Functions by Application Type
Use this table to compare PCS requirements across all four system types. Functions marked ✔ Mandatory must be specified and tested. Those marked ◉ Optional are recommended in certain site conditions. Those marked ✘ Not Required are not applicable to that system type.
| PCS Function / Feature | C&I BESS | Utility Scale | Microgrid / Off-Grid | Mobile BESS |
| Bidirectional AC-DC Conversion | ✔ Mandatory | ✔ Mandatory | ✔ Mandatory | ✔ Mandatory |
| Peak Shaving / Load Shifting | ✔ Mandatory | ✘ Not Required | ✘ Not Required | ◉ Optional |
| Seamless Transfer / UPS Mode | ✔ Mandatory | ✘ Not Required | ✔ Mandatory | ✔ Mandatory |
| Solar PV Integration (AC/DC) | ✔ Mandatory | ◉ Optional | ✔ Mandatory | ◉ Optional |
| Fast Frequency Response (FFR) | ✘ Not Required | ✔ Mandatory | ✘ Not Required | ✘ Not Required |
| Primary Frequency Response (PFR) | ✘ Not Required | ✔ Mandatory | ◉ Optional | ✘ Not Required |
| Reactive Power (Q) Control | ◉ Optional | ✔ Mandatory | ◉ Optional | ✘ Not Required |
| LVRT / HVRT (Ride-Through) | ◉ Optional | ✔ Mandatory | ✘ Not Required | ◉ Optional |
| Grid-Following Mode (GFL) | ✔ Mandatory | ✔ Mandatory | ◉ Optional | ✔ Mandatory |
| Grid-Forming Mode (GFM) | ✘ Not Required | ◉ Recommended | ✔ Critical | ◉ Optional |
| Black Start Capability | ✘ Not Required | ◉ Optional | ✔ Critical | ◉ Optional |
| Droop Control | ✘ Not Required | ◉ Optional | ✔ Critical | ◉ Optional |
| Load Following | ✘ Not Required | ✘ Not Required | ✔ Critical | ◉ Optional |
| Genset Synchronisation | ✘ Not Required | ✘ Not Required | ✔ Critical | ✔ Mandatory |
| Time-of-Use (TOU) Scheduling | ✔ Mandatory | ✘ Not Required | ✘ Not Required | ◉ Optional |
| Multi-Port DC Input (PV + Battery) | ◉ Optional | ✘ Not Required | ✔ Mandatory | ◉ Optional |
| IEC 61850 / SCADA Integration | ✘ Not Required | ✔ Mandatory | ◉ Optional | ✘ Not Required |
| Modbus TCP / EMS Communication | ✔ Mandatory | ✔ Mandatory | ✔ Mandatory | ✔ Mandatory |
| Wide DC Input Voltage Range | ✘ Not Required | ✘ Not Required | ✔ Mandatory | ✔ Mandatory |
| Overload Capability (150–200%) | ✘ Not Required | ✘ Not Required | ✔ Critical | ✔ Mandatory |
| Compact / Trailer-Mount Design | ✘ Not Required | ✘ Not Required | ✘ Not Required | ✔ Critical |
| Rapid Commissioning (< 4 hrs) | ✘ Not Required | ✘ Not Required | ✘ Not Required | ✔ Critical |
| IP55+ Outdoor Enclosure | ◉ Optional | ✔ Mandatory | ✔ Mandatory | ✔ Critical |
| Noise Level < 65 dB(A) | ✔ Mandatory | ✘ Not Required | ◉ Optional | ◉ Optional |
| NERC CIP / Cybersecurity | ✘ Not Required | ✔ Mandatory | ✘ Not Required | ✘ Not Required |
Legend: ✔ Mandatory = must be specified and verified at FAT | ◉ Optional = recommended for certain conditions | ✘ Not Required = not applicable
C&I BESS PCS Functions and Features
A C&I — Commercial and Industrial — BESS sits behind the utility meter, serving loads inside a building or factory. Unlike utility systems, its PCS does not need to meet grid operator mandates. Instead, it must respond to site-level conditions to deliver financial returns. Specifically, the financial case comes from cutting demand charges, shifting energy to cheap tariff windows, and providing backup power during outages.
Peak Shaving and Time-of-Use Scheduling
Peak shaving is the most financially important C&I BESS PCS function. Demand charges can account for 30–50% of a commercial electricity bill. Therefore, the PCS charges the battery during low-demand periods and then discharges during peak demand to reduce the demand reading at the meter. Furthermore, time-of-use (TOU) scheduling shifts energy consumption into cheaper tariff windows, reducing energy cost on top of the demand saving.
Both functions require the PCS to support scheduled cycles via the EMS. Additionally, the PCS must respond to dynamic tariff signals from the utility in real time. As the IEA’s Grid-Scale Storage report notes, demand-side flexibility is one of the fastest-growing commercial storage applications globally. Consequently, TOU scheduling is now a baseline requirement in most C&I BESS tenders.
Seamless Transfer and Backup Power
When the grid fails, the C&I BESS PCS must switch to island mode fast enough to protect sensitive equipment. This transfer — called a seamless transfer or UPS mode — must complete within 20 ms for most commercial sites, and within 10 ms for data centres or precision manufacturing. Critically, seamless transfer is not a standard feature on all PCS products, so buyers must list the maximum allowed transfer time explicitly in their specification.
Furthermore, the PCS must be able to supply the full site load in island mode — not just a fraction of it. Therefore, both the transfer time and the island-mode power rating must be tested during factory acceptance testing (FAT). Accepting a vendor declaration without live testing is a common and expensive commissioning mistake.
Solar PV Integration
Most C&I BESS projects include rooftop or carport solar PV, so the PCS must integrate with the solar inverter. Two integration methods are available. AC coupling connects the solar inverter and PCS on the same AC bus — straightforward to retrofit, though energy passes through two conversion stages, which adds losses. DC coupling, by contrast, connects solar panels directly to the BESS DC bus via a DC-DC converter inside the PCS. This cuts conversion losses significantly. However, DC coupling requires the PCS to support multi-port DC input, so buyers must specify this feature explicitly at procurement stage.
C&I PCS Key Specifications
- Power Range: 30 kW – 2 MW continuous output
- Seamless Transfer: < 20 ms to island mode (< 10 ms for critical loads)
- TOU Scheduling: Via EMS with dynamic tariff integration
- Solar Integration: AC-coupled or DC-coupled PV input support
- Grid Code: IEEE 1547 / UL 1741-SA for LV interconnection
- Noise: < 65 dB(A) at 1 m for indoor installations
- Communications: Modbus TCP to site EMS or BMS
Utility Scale BESS PCS Functions and Features
A utility-scale BESS connects to the medium or high-voltage grid in front of the meter. Consequently, its PCS must comply with grid operator requirements — legal obligations rather than performance suggestions. These requirements are more precise, more rigorously enforced, and technically more demanding than anything a C&I project faces. Therefore, a utility-scale PCS is a genuinely different machine from a C&I unit, even if the basic conversion function is the same.
Fast Frequency Response (FFR)
FFR is the most commercially valuable utility-scale PCS function. When grid frequency drops — for example, because a large generator trips — the PCS must detect the deviation and ramp power within milliseconds. Most grid operators set the response window at 200 ms. However, some markets require 150 ms, and AEMO in Australia now tenders for sub-100 ms response.
To achieve these targets, the PCS control loop must use a dedicated high-speed frequency measurement algorithm — standard power quality meters are far too slow. Furthermore, the EMS-to-PCS communication link must have a round-trip latency below 50 ms, otherwise the communication delay consumes the available response window before the PCS even starts ramping. According to the US Department of Energy Energy Storage Grand Challenge, fast-responding battery storage is central to grid stability as thermal generation retires. Consequently, FFR is now a baseline commercial requirement for most utility-scale BESS contracts.
Reactive Power Control
Utility-scale BESS must provide reactive power — VAR — support to the grid. Under IEEE 1547-2018 in North America and EN 50549 in Europe, this function is mandatory. Specifically, the PCS must inject or absorb reactive power across all four quadrants of the PQ operating plane.
One critical detail: the PCS must deliver Q control even when the battery is at minimum state of charge — a requirement known as Q-at-night capability. Notably, some PCS products restrict reactive power output when the battery is in standby. Therefore, buyers must test Q-at-zero-kW operation during commissioning rather than rely on a datasheet claim alone.
Voltage Ride-Through: LVRT and HVRT
Grid codes require BESS to stay connected during voltage disturbances. LVRT — Low Voltage Ride-Through — means the PCS holds its grid connection during faults and injects reactive current to support the network voltage. According to ENTSO-E’s Network Code on Requirements for Generators, LVRT capability must extend down to 15% of nominal voltage for up to 625 ms. HVRT works in reverse — the PCS stays connected and absorbs reactive power during grid over-voltages.
Together, LVRT and HVRT define the voltage operating envelope of the PCS. Buyers must obtain the full voltage-time profile from the vendor and then verify it against the grid code at their specific point of interconnection. Requirements vary by country and operator, so this step cannot be skipped.
Grid-Following vs Grid-Forming at Utility Scale
Most utility-scale PCS units operate in grid-following (GFL) mode — synchronising to the grid via a Phase-Locked Loop and injecting current according to EMS setpoints. GFL works well on strong grids. However, as renewable penetration increases, grids are weakening and GFM capability is becoming more important.
Grid-forming (GFM) mode provides better fault current support and voltage stability on weak grids. As Sunlith’s Microgrid BESS technical guide notes, Australia already had over 1,070 MW of grid-forming BESS deployed by mid-2025. Therefore, GFM is mainstream technology, and buyers of utility-scale systems in high-renewable regions should evaluate it seriously.
Utility Scale PCS Key Specifications
- FFR Latency: < 150–200 ms from event to ramp start
- Q Control: Four-quadrant reactive power at all SOC levels including zero kW
- LVRT / HVRT: Must match grid code voltage-time profile at PCC
- DC Voltage: 1,000 V or 1,500 V DC to reduce cabling losses at scale
- Communications: IEC 61850 GOOSE for deterministic low-latency dispatch
- Cybersecurity: NERC CIP (North America) or IEC 62351 encryption
- Certifications: IEEE 1547, EN 50549, AS/NZS 4777, UL 1741-SA — market-dependent
Microgrid and Off-Grid BESS PCS Functions and Features
Among all four application types, an off-grid or islanded microgrid BESS places the most demanding requirements on the PCS. No utility grid exists to act as a voltage and frequency reference. Consequently, the PCS must create that reference entirely from battery power. This changes nearly everything about how the system operates — from the control architecture down to the protection coordination.
Grid-Forming Mode: The Non-Negotiable Requirement
Grid-forming (GFM) mode is the single most important requirement for any off-grid BESS PCS. Without it, the system simply cannot operate in an islanded environment. In GFM mode, the PCS synthesises the local AC voltage and frequency directly from battery DC power. All other devices in the microgrid — solar inverters, gensets, loads — then lock onto the PCS output as their grid reference.
This role is fundamentally different from a grid-connected system, where the PCS follows an existing grid reference. Consequently, GFM requires a completely different control architecture — it is not simply a software switch added to a grid-following PCS. Therefore, buyers must verify GFM certification through independent testing, not just through a vendor’s datasheet claim.
Black Start
Black start is the ability to energise a completely dead AC network from battery power alone, starting from zero volts. This function is essential for off-grid sites and increasingly mandatory for grid-scale microgrid contracts. However, it is also one of the most commonly missing features in PCS datasheets.
Specifically, black start requires the PCS to ramp up the AC bus voltage gradually — from zero — then connect loads in sequence as the voltage stabilises. Furthermore, close coordination with the protection scheme is needed to prevent fault currents during energisation. Therefore, black start must be tested and verified during commissioning. Listing it in a specification without on-site validation is not sufficient.
Droop Control and Load Following
In an islanded system, loads shift constantly and there is no external grid to absorb imbalances. Therefore, the PCS must continuously match its output to the instantaneous load demand — a function called load following. Droop control is closely related: it allows the PCS to share load automatically with a genset or another BESS unit by adjusting output in proportion to frequency or voltage deviations, without waiting for a central EMS command.
Consequently, droop control improves microgrid stability and allows multi-source systems to operate reliably even when the EMS communication link is temporarily lost. For these reasons, droop control and load following are both marked as critical requirements in the master comparison table above.
Genset Synchronisation
Many microgrids include a diesel or gas genset as a backup source. Before the interconnecting breaker closes, the BESS PCS must synchronise its output voltage with the genset — matching frequency, phase, and amplitude. Without proper synchronisation, inrush currents and voltage transients can damage both the PCS and the genset. Moreover, the PCS must manage transitions smoothly in both directions: when the genset starts up and when it shuts down.
Microgrid PCS Key Specifications
- Grid-Forming Mode: Mandatory — PCS must synthesise local AC voltage and frequency
- Black Start: Must be tested and certified on-site, not just listed in a datasheet
- Droop Control: Autonomous load sharing without relying on EMS command
- Load Following: Fast response to sudden load steps — no external grid buffer
- Genset Sync: Smooth breaker closure with diesel or gas generators
- Seamless Transfer: < 10 ms for critical load protection in island mode
- Overload: 150–200% of rated current for 10 s to handle motor start loads
- DC Voltage Range: Wide window to handle SOC swings without derating in island mode
Mobile BESS PCS Functions and Features
Mobile BESS units are trailer-mounted or containerised storage systems that travel between sites. Common applications include event venues, construction sites, disaster relief operations, emergency grid backup, and temporary peak demand support. Unlike fixed installations, however, mobile BESS PCS units must prioritise three things above all else: portability, ruggedness, and speed of deployment.
Compact Design and High Power Density
Above all, a mobile BESS PCS must fit inside a trailer or small container. For this reason, power density is the primary design constraint — and liquid-cooled PCS units are preferred above 200 kW because they deliver more power per cubic metre and generate significantly less noise than air-cooled equivalents. Additionally, the PCS must tolerate vibration and shock loads during road transport, which standard stationary units are simply not designed to handle.
Rapid Site Commissioning
Speed of deployment is what sets mobile BESS apart from every other application type. A mobile BESS must reach full power output within a few hours of arriving on site — not the multi-week integration process typical of a permanent installation. Therefore, the PCS must support plug-and-play commissioning: pre-configured protection settings, automatic detection of local grid frequency (50 Hz or 60 Hz), and simple plug-in connections for power and communications.
Furthermore, the PCS must support multiple connection scenarios out of the box — temporary grid connection, islanded operation with a genset, or fully standalone off-grid mode. Consequently, mobile PCS units must include both grid-following and grid-forming capabilities as standard. Waiting for a firmware upgrade or specialist configuration on-site defeats the purpose of a mobile system.
Genset Integration and Overload Capability
Mobile BESS units frequently operate alongside diesel generators. Therefore, the PCS must synchronise with the genset smoothly and manage load transfers in both directions — when the engine starts and when it shuts down. Additionally, overload capability is a hard requirement for mobile deployments. Motor start loads on construction sites or industrial events can draw 150–200% of steady-state current for several seconds. A PCS that trips under this load makes itself useless.
Rugged Enclosure and Wide Temperature Range
Mobile BESS units deploy in unpredictable environments — muddy construction sites, outdoor festivals, flood-affected areas, and extreme climates. Consequently, the PCS must carry an IP55 or higher enclosure rating to resist dust and water ingress. Furthermore, the operating temperature window must extend well beyond typical stationary limits — many mobile PCS products are rated for operation between -25°C and +55°C and storage down to -40°C.
Mobile BESS PCS Key Specifications
- Design: Compact, high power density; liquid cooling preferred above 200 kW
- Transport Tolerance: Rated for road vibration and shock per IEC 60068-2
- Commissioning Time: < 4 hours from arrival to full power output
- Grid Frequency Auto-Detect: 50 Hz / 60 Hz without manual reconfiguration
- Operating Modes: Grid-following and grid-forming built in as standard
- Genset Sync: Smooth synchronisation and load transfer in both directions
- Overload: 150–200% rated current for 10 s minimum
- Enclosure: IP55 minimum; IP65 for harsh environments
- Temperature Range: -25°C to +55°C operating; -40°C storage
PCS Functions Common to All Four Application Types
While each application type has unique demands, several PCS functions are universal. These baseline capabilities define what a PCS is — regardless of where it is installed or what grid code applies.
Bidirectional DC-AC Power Conversion
Every BESS PCS converts DC to AC during discharge and AC to DC during charging. Modern units reach peak conversion efficiency of 96% to 98.5%. However, round-trip efficiency matters more than peak figures. As Sunlith’s energy storage losses guide explains, power conversion is one of the four main loss categories in any BESS. Even a 1% PCS efficiency improvement compounds significantly across a 15-year project life — so it is worth specifying carefully.
BMS and EMS Communication
Two control layers interface with the PCS. Working from the bottom up: the Battery Management System (BMS) sends real-time charge and discharge limits — maximum current, minimum cell voltage, and thermal boundaries. These limits must always be respected by the PCS, including during high-priority grid response events. Above the BMS sits the Energy Management System (EMS), which sends power setpoints and operating mode commands to the PCS.
As Sunlith’s BESS communication protocols guide explains, the BMS transmits SOC, SOH, cell voltages, temperatures, current, and fault codes to enable safe and optimised dispatch. Consequently, the PCS-BMS-EMS communication stack is not merely a data link — it is a safety-critical control interface that must be validated end-to-end before commissioning.
DC-Side Battery Protection
Regardless of application type, all BESS PCS units must protect the DC bus from electrical faults. Key protection functions include over-current limiting, DC bus voltage regulation, pre-charge control to prevent capacitor inrush, earth fault detection, and short-circuit protection. Together, these functions protect the battery cells and reduce the risk of thermal runaway events. Therefore, buyers should always request the full DC protection relay specification — not just the AC circuit breaker ratings.
Key Technical Features to Specify in Any BESS PCS
Regardless of application type, the parameters below form a baseline specification checklist for any BESS PCS request for proposal (RFP).
| Feature | Typical Range | Notes |
| Rated Power | 30 kW – 10 MW per unit | Confirm continuous rating — not peak or 30-second duty |
| DC Voltage Range | 600 V – 1,500 V DC | Must cover full battery SOC range without derating |
| AC Output Voltage | 400 V / 690 V / 11 kV | MV output reduces transformer count at utility scale |
| Peak Efficiency | 97% – 98.5% | Also request weighted average at your load profile |
| Power Factor Range | 0.8 lead – 0.8 lag | Confirm Q capability at zero kW active output |
| FFR Response Time | < 100 – 200 ms | Verify against grid code at interconnection point |
| Grid-Forming Mode | Mandatory (microgrid) | Optional at utility scale; essential for off-grid |
| Seamless Transfer | < 20 ms C&I; < 10 ms off-grid | Test at FAT — do not accept a datasheet figure only |
| Communications | Modbus TCP / IEC 61850 | IEC 61850 GOOSE for FFR; Modbus TCP for C&I dispatch |
| Certifications | IEEE 1547, UL 1741-SA, EN 50549 | Request current certificates with expiry dates |
| Cooling | Forced air / Liquid-cooled | Liquid cooling preferred above 500 kW |
| Enclosure Rating | IP54 indoor; IP55+ outdoor | IP65 for mobile or harsh-environment sites |
| Warranty | 5 – 10 years | Align with BESS project life of 15–20 years minimum |
Relevant Standards for BESS PCS
Standards differ by region and application type. Always verify that certifications are current, geographically valid, and cover the specific grid code version in force at your interconnection point. Furthermore, check expiry dates — expired certifications are a common and avoidable cause of project delays.
| Standard | Scope | Applies To |
| IEC 62477-1/-2 | Power electronic converter safety | All types — global baseline |
| IEEE 1547-2018 | DER interconnection requirements | C&I and utility — North America |
| UL 1741-SA | Smart inverter functions | C&I — USA (California Rule 21, Hawaii Rule 14H) |
| EN 50549-1/-2 | Grid connection for generators | C&I and utility — European Union |
| IEC 61850 | Substation communication networks | Utility scale — global |
| AS/NZS 4777.2 | Grid connection of inverter energy systems | All types — Australia and New Zealand |
| IEC 62933-4-1 | Electrical energy storage — environmental | All types — global |
| NERC CIP-002–013 | Bulk electric system cybersecurity | Utility scale — North America |
| IEC 60068-2 | Environmental testing — vibration and shock | Mobile BESS — transport durability |
For full regional certification details by country and market, see Sunlith’s Worldwide PCS Certification Guide. In addition, IRENA’s Utility-Scale Battery Storage report provides a useful global overview of how energy storage standards are evolving. Furthermore, Sunlith’s Bidirectional Inverter PCS Applications guide covers application-specific certification pathways in more detail.
BESS PCS Specification Checklist
Use this checklist when writing a BESS PCS request for proposal (RFP). Start with the application type — it determines which items below are mandatory.
- Define application type: C&I, utility, microgrid, or mobile. This single decision shapes every other requirement.
- Rated Power: Specify continuous AC output (kW) and DC input separately — not peak ratings.
- DC Voltage Window: Confirm the PCS operates across the full battery SOC range without derating at either end.
- Efficiency Curve: Request weighted average efficiency at your typical daily load profile, not only the nameplate peak value.
- Grid-Forming Mode: Mandatory for microgrid. Specify if needed for weak-grid or mobile deployments.
- Seamless Transfer Time: < 20 ms for C&I; < 10 ms for off-grid critical loads. Test at FAT without exception.
- FFR Response Time: Define maximum latency from EMS setpoint to output ramp start — applicable to utility scale only.
- Reactive Power: Specify power factor range. Confirm Q control works at zero kW active power output.
- Black Start: Specify explicitly if required — not included in all PCS products. Test on-site.
- Overload Capability: 150–200% rated current for 10 s — mandatory for microgrid and mobile types.
- Commissioning Time: < 4 hours from arrival to full output — applicable to mobile BESS deployments.
- Communications: Specify Modbus TCP, IEC 61850 GOOSE, or CAN Bus as required for your application.
- Certifications: List required standards by jurisdiction. Request current certificates with expiry dates.
- Enclosure Rating: IP54 for indoor; IP55+ for outdoor; IP65 for mobile or harsh-environment sites.
- Warranty: Specify minimum period, firmware update policy, and remote diagnostics capability.
Frequently Asked Questions About BESS PCS
What is a PCS in BESS?
Inside a battery energy storage system, the Power Conversion System converts DC electricity from the battery to AC for loads or the grid. During charging, it reverses and converts AC to DC. Beyond this basic function, it also controls reactive power, responds to grid frequency and voltage events, and protects the battery. In off-grid systems, furthermore, it synthesises the local AC voltage and frequency reference from battery power alone.
Are C&I and utility scale BESS PCS units the same product?
No — they are significantly different. A C&I PCS focuses on peak shaving, load shifting, solar integration, and fast backup transfer. A utility-scale PCS, by contrast, must meet strict grid code requirements for FFR, reactive power control, and voltage ride-through. Consequently, you cannot simply scale up a C&I PCS for a utility project — the control architecture, communications, and certification requirements are fundamentally different.
Does an off-grid microgrid need a different PCS?
Yes, absolutely. A microgrid BESS PCS must operate in grid-forming mode — synthesising the local AC voltage and frequency without any external grid connection. In addition, it must support black start, droop control, load following, and genset synchronisation. None of these are required in most grid-connected applications. Therefore, always specify off-grid requirements explicitly in procurement documents — do not assume they are included.
What makes a mobile BESS PCS different from a fixed installation?
A mobile BESS PCS must be compact, transport-rated, and fast to commission on arrival. It must auto-detect local grid frequency and support both grid-following and grid-forming modes as standard. Furthermore, it must tolerate road vibration, wide temperature ranges, and variable site conditions that a stationary unit would never encounter. Consequently, mobile PCS units are a distinct product category — not simply a stationary PCS mounted on a trailer.
What efficiency should I expect from a BESS PCS?
Modern BESS PCS units reach peak efficiency of 97% to 98.5%. However, weighted average efficiency across a typical daily profile runs 1–2% lower than the peak figure. Therefore, always request the weighted average efficiency for your specific load profile — the nameplate peak value alone is not a reliable basis for energy yield calculations.
Which standards does a BESS PCS need?
Certification requirements depend on your project location and application type. In the US, IEEE 1547-2018 and UL 1741-SA are typically required. Meanwhile, Europe relies on the EN 50549 standard. For projects in Australia, AS/NZS 4777 is mandatory. Additionally, utility-scale projects in North America must meet NERC CIP cybersecurity requirements. See Sunlith’s Worldwide PCS Certification Guide for full details by country.
How Sunlith Energy Approaches BESS PCS Selection
At Sunlith Energy, we treat the PCS as one of the most important decisions in any energy storage project. Every engagement begins with an application analysis that defines the required operating modes, protection settings, and grid code obligations for that specific site. Furthermore, we verify certifications independently — rather than accepting vendor declarations without review.
Our team has evaluated PCS products across C&I, utility, microgrid, and mobile deployments. Importantly, we carry out PCS-EMS-BMS integration testing before any system leaves the factory. This ensures that communication protocols, protection coordination, and control modes are all validated end-to-end. Consequently, our clients avoid the costly commissioning surprises that arise when integration is left to the site team.
Contact the Sunlith Energy team if your project needs a BESS PCS specification review, vendor proposal evaluation, or commissioning support.
Related Sunlith Energy Resources:
- Battery Management System (BMS) Explained — BMS-PCS interface and protection limits
- EMS in BESS — how EMS dispatches power setpoints to the PCS
- BESS Communication Protocols Guide — Modbus, CAN Bus, IEC 61850
- Microgrid BESS Technical Guide — grid-forming PCS in real projects
- Energy Storage Losses in BESS — PCS efficiency and round-trip performance
- Key Components of a C&I BESS — where the PCS fits in the full system
- Worldwide PCS Certification Guide — regional standards by country
Conclusion
Selecting the right BESS PCS comes down to knowing your application. A C&I system needs peak shaving, backup transfer, and solar integration. A utility-scale project demands FFR, reactive power control, and full grid code compliance. An off-grid microgrid requires grid-forming mode, black start, and droop control. A mobile BESS, moreover, needs ruggedness, fast commissioning, and multi-mode operation out of the box. Therefore, there is no single PCS specification that fits all four scenarios — and trying to use one is a recipe for expensive rework.
Consequently, the first and most important step is to define your application type precisely. From there, use the master comparison table and specification checklists in this guide to build your PCS requirements. Furthermore, involve your PCS vendor early, verify certifications independently, and test all critical functions — especially seamless transfer, black start, and FFR — during factory acceptance testing before the system ships.
Sunlith Energy works with EPCs, project developers, and asset owners across all four BESS application types. Contact our team to discuss PCS requirements for your next project.
Other References
- NREL: Power Electronics for Energy Storage Systems
- US DOE Energy Storage Grand Challenge
- IEA: Grid-Scale Storage Report
- IRENA: Utility-Scale Battery Innovation Outlook
- ENTSO-E Network Code on Requirements for Generators (RfG)
- IEEE 1547-2018: Standard for Interconnection of DERs
- IEC 62477-1: Safety for Power Electronic Converter Systems
