BESS PCS: Functions, Features, and Why the Power Conversion System Is the Heart of Every Energy Storage Project
The BESS PCS — Power Conversion System — converts DC battery power to AC for loads or the grid. However, what a PCS must do beyond that basic job changes completely depending on the application. Consequently, choosing the wrong PCS type is one of the most expensive mistakes a project team can make.
Consider four scenarios. A factory running peak shaving needs a PCS that switches to backup mode within 20 ms. By contrast, a 200 MW grid project needs sub-200 ms frequency response and reactive power control. An island microgrid, meanwhile, needs the PCS to synthesise the AC voltage reference — because no utility connection exists at all. Finally, a mobile BESS on a trailer needs ruggedness and fast site commissioning above all else.
Therefore, this guide covers each of the four application types in detail. Furthermore, it includes a master comparison table so you can see exactly which PCS functions are mandatory, optional, or not needed for each system type. By the end, you will have a clear framework for evaluating any BESS PCS proposal.
What Is a BESS PCS?
Inside every battery energy storage system, the Power Conversion System converts DC from the battery cells to AC for loads or the grid. During charging, it reverses direction and converts AC back to DC. Crucially, both functions share a single hardware platform — hence the term bidirectional.
As Sunlith’s PCS vs. Inverter guide explains, a PCS includes far more than just a bidirectional inverter. In addition, it handles reactive power control, protection functions, grid synchronisation, and communication with the BMS and EMS. According to NREL’s Power Electronics research, the PCS is one of the most critical components in grid-connected storage — because its control functions directly determine grid stability and service quality.
Moreover, the Bidirectional Inverter vs PCS comparison on this site highlights PCS-specific capabilities — including multi-port DC support, islanding, and black start. None of these are available in a stand-alone inverter. However, which of these capabilities you actually need depends entirely on your application type.
Four Application Types at a Glance
Before diving into each type, here is a quick overview showing how the four BESS application categories differ in their primary PCS priorities.
| System Type | Typical Power | Grid Connection | Primary PCS Priority |
| C&I (Behind-the-Meter) | 30 kW – 2 MW | Grid-connected, LV/MV | Peak shaving, backup power, solar integration |
| Utility Scale (Front-of-Meter) | 2 MW – 500 MW+ | Grid-connected, MV/HV | FFR, reactive power, grid code compliance |
| Microgrid / Off-Grid | 10 kW – 50 MW | Islanded or weak grid | Grid-forming, black start, load following |
| Mobile BESS | 50 kW – 5 MW | Temporary grid or off-grid | Portability, ruggedness, fast commissioning |
Master Comparison Table: BESS PCS Functions by Application Type
Use this table to compare PCS requirements across all four system types. Functions marked ✔ Mandatory must be specified and tested. Those marked ◉ Optional are recommended in certain site conditions. Those marked ✘ Not Required are not applicable to that system type.
| PCS Function / Feature | C&I BESS | Utility Scale | Microgrid / Off-Grid | Mobile BESS |
| Bidirectional AC-DC Conversion | ✔ Mandatory | ✔ Mandatory | ✔ Mandatory | ✔ Mandatory |
| Peak Shaving / Load Shifting | ✔ Mandatory | ✘ Not Required | ✘ Not Required | ◉ Optional |
| Seamless Transfer / UPS Mode | ✔ Mandatory | ✘ Not Required | ✔ Mandatory | ✔ Mandatory |
| Solar PV Integration (AC/DC) | ✔ Mandatory | ◉ Optional | ✔ Mandatory | ◉ Optional |
| Fast Frequency Response (FFR) | ✘ Not Required | ✔ Mandatory | ✘ Not Required | ✘ Not Required |
| Primary Frequency Response (PFR) | ✘ Not Required | ✔ Mandatory | ◉ Optional | ✘ Not Required |
| Reactive Power (Q) Control | ◉ Optional | ✔ Mandatory | ◉ Optional | ✘ Not Required |
| LVRT / HVRT (Ride-Through) | ◉ Optional | ✔ Mandatory | ✘ Not Required | ◉ Optional |
| Grid-Following Mode (GFL) | ✔ Mandatory | ✔ Mandatory | ◉ Optional | ✔ Mandatory |
| Grid-Forming Mode (GFM) | ✘ Not Required | ◉ Recommended | ✔ Critical | ◉ Optional |
| Black Start Capability | ✘ Not Required | ◉ Optional | ✔ Critical | ◉ Optional |
| Droop Control | ✘ Not Required | ◉ Optional | ✔ Critical | ◉ Optional |
| Load Following | ✘ Not Required | ✘ Not Required | ✔ Critical | ◉ Optional |
| Genset Synchronisation | ✘ Not Required | ✘ Not Required | ✔ Critical | ✔ Mandatory |
| Time-of-Use (TOU) Scheduling | ✔ Mandatory | ✘ Not Required | ✘ Not Required | ◉ Optional |
| Multi-Port DC Input (PV + Battery) | ◉ Optional | ✘ Not Required | ✔ Mandatory | ◉ Optional |
| IEC 61850 / SCADA Integration | ✘ Not Required | ✔ Mandatory | ◉ Optional | ✘ Not Required |
| Modbus TCP / EMS Communication | ✔ Mandatory | ✔ Mandatory | ✔ Mandatory | ✔ Mandatory |
| Wide DC Input Voltage Range | ✘ Not Required | ✘ Not Required | ✔ Mandatory | ✔ Mandatory |
| Overload Capability (150–200%) | ✘ Not Required | ✘ Not Required | ✔ Critical | ✔ Mandatory |
| Compact / Trailer-Mount Design | ✘ Not Required | ✘ Not Required | ✘ Not Required | ✔ Critical |
| Rapid Commissioning (< 4 hrs) | ✘ Not Required | ✘ Not Required | ✘ Not Required | ✔ Critical |
| IP55+ Outdoor Enclosure | ◉ Optional | ✔ Mandatory | ✔ Mandatory | ✔ Critical |
| Noise Level < 65 dB(A) | ✔ Mandatory | ✘ Not Required | ◉ Optional | ◉ Optional |
| NERC CIP / Cybersecurity | ✘ Not Required | ✔ Mandatory | ✘ Not Required | ✘ Not Required |
Legend: ✔ Mandatory = must be specified and verified at FAT | ◉ Optional = recommended for certain conditions | ✘ Not Required = not applicable
C&I BESS PCS Functions and Features
A C&I — Commercial and Industrial — BESS sits behind the utility meter, serving loads inside a building or factory. Unlike utility systems, its PCS does not need to meet grid operator mandates. Instead, it must respond to site-level conditions to deliver financial returns. Specifically, the financial case comes from cutting demand charges, shifting energy to cheap tariff windows, and providing backup power during outages.

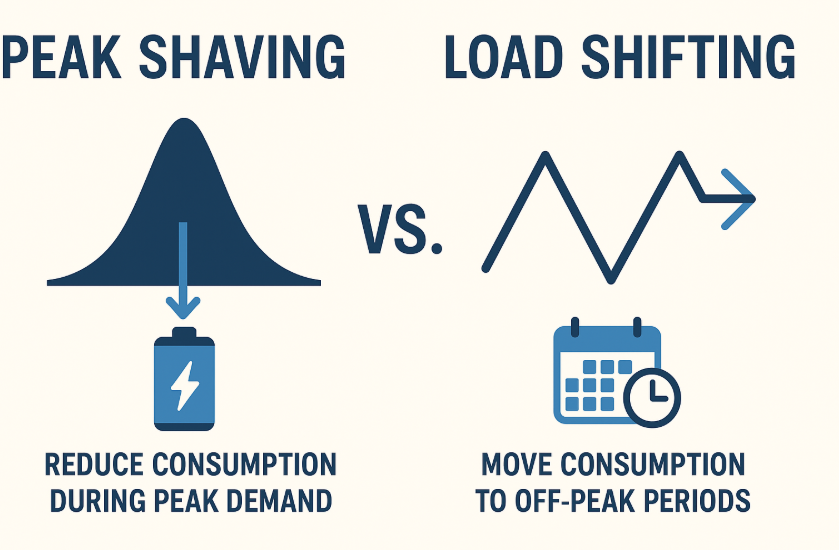

Peak Shaving and Time-of-Use Scheduling
Peak shaving is the most financially important C&I BESS PCS function. Demand charges can account for 30–50% of a commercial electricity bill. Therefore, the PCS charges the battery during low-demand periods and then discharges during peak demand to reduce the demand reading at the meter. Furthermore, time-of-use (TOU) scheduling shifts energy consumption into cheaper tariff windows, reducing energy cost on top of the demand saving.
Both functions require the PCS to support scheduled cycles via the EMS. Additionally, the PCS must respond to dynamic tariff signals from the utility in real time. As the IEA’s Grid-Scale Storage report notes, demand-side flexibility is one of the fastest-growing commercial storage applications globally. Consequently, TOU scheduling is now a baseline requirement in most C&I BESS tenders.
Seamless Transfer and Backup Power
When the grid fails, the C&I BESS PCS must switch to island mode fast enough to protect sensitive equipment. This transfer — called a seamless transfer or UPS mode — must complete within 20 ms for most commercial sites, and within 10 ms for data centres or precision manufacturing. Critically, seamless transfer is not a standard feature on all PCS products, so buyers must list the maximum allowed transfer time explicitly in their specification.
Furthermore, the PCS must be able to supply the full site load in island mode — not just a fraction of it. Therefore, both the transfer time and the island-mode power rating must be tested during factory acceptance testing (FAT). Accepting a vendor declaration without live testing is a common and expensive commissioning mistake.
Solar PV Integration
Most C&I BESS projects include rooftop or carport solar PV, so the PCS must integrate with the solar inverter. Two integration methods are available. AC coupling connects the solar inverter and PCS on the same AC bus — straightforward to retrofit, though energy passes through two conversion stages, which adds losses. DC coupling, by contrast, connects solar panels directly to the BESS DC bus via a DC-DC converter inside the PCS. This cuts conversion losses significantly. However, DC coupling requires the PCS to support multi-port DC input, so buyers must specify this feature explicitly at procurement stage.
C&I PCS Key Specifications
- Power Range: 30 kW – 2 MW continuous output
- Seamless Transfer: < 20 ms to island mode (< 10 ms for critical loads)
- TOU Scheduling: Via EMS with dynamic tariff integration
- Solar Integration: AC-coupled or DC-coupled PV input support
- Grid Code: IEEE 1547 / UL 1741-SA for LV interconnection
- Noise: < 65 dB(A) at 1 m for indoor installations
- Communications: Modbus TCP to site EMS or BMS
Utility Scale BESS PCS Functions and Features
A utility-scale BESS connects to the medium or high-voltage grid in front of the meter. Consequently, its PCS must comply with grid operator requirements — legal obligations rather than performance suggestions. These requirements are more precise, more rigorously enforced, and technically more demanding than anything a C&I project faces. Therefore, a utility-scale PCS is a genuinely different machine from a C&I unit, even if the basic conversion function is the same.
Fast Frequency Response (FFR)
FFR is the most commercially valuable utility-scale PCS function. When grid frequency drops — for example, because a large generator trips — the PCS must detect the deviation and ramp power within milliseconds. Most grid operators set the response window at 200 ms. However, some markets require 150 ms, and AEMO in Australia now tenders for sub-100 ms response.
To achieve these targets, the PCS control loop must use a dedicated high-speed frequency measurement algorithm — standard power quality meters are far too slow. Furthermore, the EMS-to-PCS communication link must have a round-trip latency below 50 ms, otherwise the communication delay consumes the available response window before the PCS even starts ramping. According to the US Department of Energy Energy Storage Grand Challenge, fast-responding battery storage is central to grid stability as thermal generation retires. Consequently, FFR is now a baseline commercial requirement for most utility-scale BESS contracts.
Reactive Power Control
Utility-scale BESS must provide reactive power — VAR — support to the grid. Under IEEE 1547-2018 in North America and EN 50549 in Europe, this function is mandatory. Specifically, the PCS must inject or absorb reactive power across all four quadrants of the PQ operating plane.
One critical detail: the PCS must deliver Q control even when the battery is at minimum state of charge — a requirement known as Q-at-night capability. Notably, some PCS products restrict reactive power output when the battery is in standby. Therefore, buyers must test Q-at-zero-kW operation during commissioning rather than rely on a datasheet claim alone.
Voltage Ride-Through: LVRT and HVRT
Grid codes require BESS to stay connected during voltage disturbances. LVRT — Low Voltage Ride-Through — means the PCS holds its grid connection during faults and injects reactive current to support the network voltage. According to ENTSO-E’s Network Code on Requirements for Generators, LVRT capability must extend down to 15% of nominal voltage for up to 625 ms. HVRT works in reverse — the PCS stays connected and absorbs reactive power during grid over-voltages.
Together, LVRT and HVRT define the voltage operating envelope of the PCS. Buyers must obtain the full voltage-time profile from the vendor and then verify it against the grid code at their specific point of interconnection. Requirements vary by country and operator, so this step cannot be skipped.
Grid-Following vs Grid-Forming at Utility Scale
Most utility-scale PCS units operate in grid-following (GFL) mode — synchronising to the grid via a Phase-Locked Loop and injecting current according to EMS setpoints. GFL works well on strong grids. However, as renewable penetration increases, grids are weakening and GFM capability is becoming more important.
Grid-forming (GFM) mode provides better fault current support and voltage stability on weak grids. As Sunlith’s Microgrid BESS technical guide notes, Australia already had over 1,070 MW of grid-forming BESS deployed by mid-2025. Therefore, GFM is mainstream technology, and buyers of utility-scale systems in high-renewable regions should evaluate it seriously.
Utility Scale PCS Key Specifications
- FFR Latency: < 150–200 ms from event to ramp start
- Q Control: Four-quadrant reactive power at all SOC levels including zero kW
- LVRT / HVRT: Must match grid code voltage-time profile at PCC
- DC Voltage: 1,000 V or 1,500 V DC to reduce cabling losses at scale
- Communications: IEC 61850 GOOSE for deterministic low-latency dispatch
- Cybersecurity: NERC CIP (North America) or IEC 62351 encryption
- Certifications: IEEE 1547, EN 50549, AS/NZS 4777, UL 1741-SA — market-dependent
Microgrid and Off-Grid BESS PCS Functions and Features
Among all four application types, an off-grid or islanded microgrid BESS places the most demanding requirements on the PCS. No utility grid exists to act as a voltage and frequency reference. Consequently, the PCS must create that reference entirely from battery power. This changes nearly everything about how the system operates — from the control architecture down to the protection coordination.
Grid-Forming Mode: The Non-Negotiable Requirement
Grid-forming (GFM) mode is the single most important requirement for any off-grid BESS PCS. Without it, the system simply cannot operate in an islanded environment. In GFM mode, the PCS synthesises the local AC voltage and frequency directly from battery DC power. All other devices in the microgrid — solar inverters, gensets, loads — then lock onto the PCS output as their grid reference.
This role is fundamentally different from a grid-connected system, where the PCS follows an existing grid reference. Consequently, GFM requires a completely different control architecture — it is not simply a software switch added to a grid-following PCS. Therefore, buyers must verify GFM certification through independent testing, not just through a vendor’s datasheet claim.
Black Start
Black start is the ability to energise a completely dead AC network from battery power alone, starting from zero volts. This function is essential for off-grid sites and increasingly mandatory for grid-scale microgrid contracts. However, it is also one of the most commonly missing features in PCS datasheets.
Specifically, black start requires the PCS to ramp up the AC bus voltage gradually — from zero — then connect loads in sequence as the voltage stabilises. Furthermore, close coordination with the protection scheme is needed to prevent fault currents during energisation. Therefore, black start must be tested and verified during commissioning. Listing it in a specification without on-site validation is not sufficient.
Droop Control and Load Following
In an islanded system, loads shift constantly and there is no external grid to absorb imbalances. Therefore, the PCS must continuously match its output to the instantaneous load demand — a function called load following. Droop control is closely related: it allows the PCS to share load automatically with a genset or another BESS unit by adjusting output in proportion to frequency or voltage deviations, without waiting for a central EMS command.
Consequently, droop control improves microgrid stability and allows multi-source systems to operate reliably even when the EMS communication link is temporarily lost. For these reasons, droop control and load following are both marked as critical requirements in the master comparison table above.
Genset Synchronisation
Many microgrids include a diesel or gas genset as a backup source. Before the interconnecting breaker closes, the BESS PCS must synchronise its output voltage with the genset — matching frequency, phase, and amplitude. Without proper synchronisation, inrush currents and voltage transients can damage both the PCS and the genset. Moreover, the PCS must manage transitions smoothly in both directions: when the genset starts up and when it shuts down.
Microgrid PCS Key Specifications
- Grid-Forming Mode: Mandatory — PCS must synthesise local AC voltage and frequency
- Black Start: Must be tested and certified on-site, not just listed in a datasheet
- Droop Control: Autonomous load sharing without relying on EMS command
- Load Following: Fast response to sudden load steps — no external grid buffer
- Genset Sync: Smooth breaker closure with diesel or gas generators
- Seamless Transfer: < 10 ms for critical load protection in island mode
- Overload: 150–200% of rated current for 10 s to handle motor start loads
- DC Voltage Range: Wide window to handle SOC swings without derating in island mode
Mobile BESS PCS Functions and Features
Mobile BESS units are trailer-mounted or containerised storage systems that travel between sites. Common applications include event venues, construction sites, disaster relief operations, emergency grid backup, and temporary peak demand support. Unlike fixed installations, however, mobile BESS PCS units must prioritise three things above all else: portability, ruggedness, and speed of deployment.
Compact Design and High Power Density
Above all, a mobile BESS PCS must fit inside a trailer or small container. For this reason, power density is the primary design constraint — and liquid-cooled PCS units are preferred above 200 kW because they deliver more power per cubic metre and generate significantly less noise than air-cooled equivalents. Additionally, the PCS must tolerate vibration and shock loads during road transport, which standard stationary units are simply not designed to handle.
Rapid Site Commissioning
Speed of deployment is what sets mobile BESS apart from every other application type. A mobile BESS must reach full power output within a few hours of arriving on site — not the multi-week integration process typical of a permanent installation. Therefore, the PCS must support plug-and-play commissioning: pre-configured protection settings, automatic detection of local grid frequency (50 Hz or 60 Hz), and simple plug-in connections for power and communications.
Furthermore, the PCS must support multiple connection scenarios out of the box — temporary grid connection, islanded operation with a genset, or fully standalone off-grid mode. Consequently, mobile PCS units must include both grid-following and grid-forming capabilities as standard. Waiting for a firmware upgrade or specialist configuration on-site defeats the purpose of a mobile system.
Genset Integration and Overload Capability
Mobile BESS units frequently operate alongside diesel generators. Therefore, the PCS must synchronise with the genset smoothly and manage load transfers in both directions — when the engine starts and when it shuts down. Additionally, overload capability is a hard requirement for mobile deployments. Motor start loads on construction sites or industrial events can draw 150–200% of steady-state current for several seconds. A PCS that trips under this load makes itself useless.
Rugged Enclosure and Wide Temperature Range
Mobile BESS units deploy in unpredictable environments — muddy construction sites, outdoor festivals, flood-affected areas, and extreme climates. Consequently, the PCS must carry an IP55 or higher enclosure rating to resist dust and water ingress. Furthermore, the operating temperature window must extend well beyond typical stationary limits — many mobile PCS products are rated for operation between -25°C and +55°C and storage down to -40°C.
Mobile BESS PCS Key Specifications
- Design: Compact, high power density; liquid cooling preferred above 200 kW
- Transport Tolerance: Rated for road vibration and shock per IEC 60068-2
- Commissioning Time: < 4 hours from arrival to full power output
- Grid Frequency Auto-Detect: 50 Hz / 60 Hz without manual reconfiguration
- Operating Modes: Grid-following and grid-forming built in as standard
- Genset Sync: Smooth synchronisation and load transfer in both directions
- Overload: 150–200% rated current for 10 s minimum
- Enclosure: IP55 minimum; IP65 for harsh environments
- Temperature Range: -25°C to +55°C operating; -40°C storage
PCS Functions Common to All Four Application Types
While each application type has unique demands, several PCS functions are universal. These baseline capabilities define what a PCS is — regardless of where it is installed or what grid code applies.
Bidirectional DC-AC Power Conversion
Every BESS PCS converts DC to AC during discharge and AC to DC during charging. Modern units reach peak conversion efficiency of 96% to 98.5%. However, round-trip efficiency matters more than peak figures. As Sunlith’s energy storage losses guide explains, power conversion is one of the four main loss categories in any BESS. Even a 1% PCS efficiency improvement compounds significantly across a 15-year project life — so it is worth specifying carefully.
BMS and EMS Communication
Two control layers interface with the PCS. Working from the bottom up: the Battery Management System (BMS) sends real-time charge and discharge limits — maximum current, minimum cell voltage, and thermal boundaries. These limits must always be respected by the PCS, including during high-priority grid response events. Above the BMS sits the Energy Management System (EMS), which sends power setpoints and operating mode commands to the PCS.
As Sunlith’s BESS communication protocols guide explains, the BMS transmits SOC, SOH, cell voltages, temperatures, current, and fault codes to enable safe and optimised dispatch. Consequently, the PCS-BMS-EMS communication stack is not merely a data link — it is a safety-critical control interface that must be validated end-to-end before commissioning.
DC-Side Battery Protection
Regardless of application type, all BESS PCS units must protect the DC bus from electrical faults. Key protection functions include over-current limiting, DC bus voltage regulation, pre-charge control to prevent capacitor inrush, earth fault detection, and short-circuit protection. Together, these functions protect the battery cells and reduce the risk of thermal runaway events. Therefore, buyers should always request the full DC protection relay specification — not just the AC circuit breaker ratings.
Key Technical Features to Specify in Any BESS PCS
Regardless of application type, the parameters below form a baseline specification checklist for any BESS PCS request for proposal (RFP).
| Feature | Typical Range | Notes |
| Rated Power | 30 kW – 10 MW per unit | Confirm continuous rating — not peak or 30-second duty |
| DC Voltage Range | 600 V – 1,500 V DC | Must cover full battery SOC range without derating |
| AC Output Voltage | 400 V / 690 V / 11 kV | MV output reduces transformer count at utility scale |
| Peak Efficiency | 97% – 98.5% | Also request weighted average at your load profile |
| Power Factor Range | 0.8 lead – 0.8 lag | Confirm Q capability at zero kW active output |
| FFR Response Time | < 100 – 200 ms | Verify against grid code at interconnection point |
| Grid-Forming Mode | Mandatory (microgrid) | Optional at utility scale; essential for off-grid |
| Seamless Transfer | < 20 ms C&I; < 10 ms off-grid | Test at FAT — do not accept a datasheet figure only |
| Communications | Modbus TCP / IEC 61850 | IEC 61850 GOOSE for FFR; Modbus TCP for C&I dispatch |
| Certifications | IEEE 1547, UL 1741-SA, EN 50549 | Request current certificates with expiry dates |
| Cooling | Forced air / Liquid-cooled | Liquid cooling preferred above 500 kW |
| Enclosure Rating | IP54 indoor; IP55+ outdoor | IP65 for mobile or harsh-environment sites |
| Warranty | 5 – 10 years | Align with BESS project life of 15–20 years minimum |
Relevant Standards for BESS PCS
Standards differ by region and application type. Always verify that certifications are current, geographically valid, and cover the specific grid code version in force at your interconnection point. Furthermore, check expiry dates — expired certifications are a common and avoidable cause of project delays.
| Standard | Scope | Applies To |
| IEC 62477-1/-2 | Power electronic converter safety | All types — global baseline |
| IEEE 1547-2018 | DER interconnection requirements | C&I and utility — North America |
| UL 1741-SA | Smart inverter functions | C&I — USA (California Rule 21, Hawaii Rule 14H) |
| EN 50549-1/-2 | Grid connection for generators | C&I and utility — European Union |
| IEC 61850 | Substation communication networks | Utility scale — global |
| AS/NZS 4777.2 | Grid connection of inverter energy systems | All types — Australia and New Zealand |
| IEC 62933-4-1 | Electrical energy storage — environmental | All types — global |
| NERC CIP-002–013 | Bulk electric system cybersecurity | Utility scale — North America |
| IEC 60068-2 | Environmental testing — vibration and shock | Mobile BESS — transport durability |
For full regional certification details by country and market, see Sunlith’s Worldwide PCS Certification Guide. In addition, IRENA’s Utility-Scale Battery Storage report provides a useful global overview of how energy storage standards are evolving. Furthermore, Sunlith’s Bidirectional Inverter PCS Applications guide covers application-specific certification pathways in more detail.
BESS PCS Specification Checklist
Use this checklist when writing a BESS PCS request for proposal (RFP). Start with the application type — it determines which items below are mandatory.
- Define application type: C&I, utility, microgrid, or mobile. This single decision shapes every other requirement.
- Rated Power: Specify continuous AC output (kW) and DC input separately — not peak ratings.
- DC Voltage Window: Confirm the PCS operates across the full battery SOC range without derating at either end.
- Efficiency Curve: Request weighted average efficiency at your typical daily load profile, not only the nameplate peak value.
- Grid-Forming Mode: Mandatory for microgrid. Specify if needed for weak-grid or mobile deployments.
- Seamless Transfer Time: < 20 ms for C&I; < 10 ms for off-grid critical loads. Test at FAT without exception.
- FFR Response Time: Define maximum latency from EMS setpoint to output ramp start — applicable to utility scale only.
- Reactive Power: Specify power factor range. Confirm Q control works at zero kW active power output.
- Black Start: Specify explicitly if required — not included in all PCS products. Test on-site.
- Overload Capability: 150–200% rated current for 10 s — mandatory for microgrid and mobile types.
- Commissioning Time: < 4 hours from arrival to full output — applicable to mobile BESS deployments.
- Communications: Specify Modbus TCP, IEC 61850 GOOSE, or CAN Bus as required for your application.
- Certifications: List required standards by jurisdiction. Request current certificates with expiry dates.
- Enclosure Rating: IP54 for indoor; IP55+ for outdoor; IP65 for mobile or harsh-environment sites.
- Warranty: Specify minimum period, firmware update policy, and remote diagnostics capability.
Frequently Asked Questions About BESS PCS
What is a PCS in BESS?
Inside a battery energy storage system, the Power Conversion System converts DC electricity from the battery to AC for loads or the grid. During charging, it reverses and converts AC to DC. Beyond this basic function, it also controls reactive power, responds to grid frequency and voltage events, and protects the battery. In off-grid systems, furthermore, it synthesises the local AC voltage and frequency reference from battery power alone.
Are C&I and utility scale BESS PCS units the same product?
No — they are significantly different. A C&I PCS focuses on peak shaving, load shifting, solar integration, and fast backup transfer. A utility-scale PCS, by contrast, must meet strict grid code requirements for FFR, reactive power control, and voltage ride-through. Consequently, you cannot simply scale up a C&I PCS for a utility project — the control architecture, communications, and certification requirements are fundamentally different.
Does an off-grid microgrid need a different PCS?
Yes, absolutely. A microgrid BESS PCS must operate in grid-forming mode — synthesising the local AC voltage and frequency without any external grid connection. In addition, it must support black start, droop control, load following, and genset synchronisation. None of these are required in most grid-connected applications. Therefore, always specify off-grid requirements explicitly in procurement documents — do not assume they are included.
What makes a mobile BESS PCS different from a fixed installation?
A mobile BESS PCS must be compact, transport-rated, and fast to commission on arrival. It must auto-detect local grid frequency and support both grid-following and grid-forming modes as standard. Furthermore, it must tolerate road vibration, wide temperature ranges, and variable site conditions that a stationary unit would never encounter. Consequently, mobile PCS units are a distinct product category — not simply a stationary PCS mounted on a trailer.
What efficiency should I expect from a BESS PCS?
Modern BESS PCS units reach peak efficiency of 97% to 98.5%. However, weighted average efficiency across a typical daily profile runs 1–2% lower than the peak figure. Therefore, always request the weighted average efficiency for your specific load profile — the nameplate peak value alone is not a reliable basis for energy yield calculations.
Which standards does a BESS PCS need?
Certification requirements depend on your project location and application type. In the US, IEEE 1547-2018 and UL 1741-SA are typically required. Meanwhile, Europe relies on the EN 50549 standard. For projects in Australia, AS/NZS 4777 is mandatory. Additionally, utility-scale projects in North America must meet NERC CIP cybersecurity requirements. See Sunlith’s Worldwide PCS Certification Guide for full details by country.
How Sunlith Energy Approaches BESS PCS Selection
At Sunlith Energy, we treat the PCS as one of the most important decisions in any energy storage project. Every engagement begins with an application analysis that defines the required operating modes, protection settings, and grid code obligations for that specific site. Furthermore, we verify certifications independently — rather than accepting vendor declarations without review.
Our team has evaluated PCS products across C&I, utility, microgrid, and mobile deployments. Importantly, we carry out PCS-EMS-BMS integration testing before any system leaves the factory. This ensures that communication protocols, protection coordination, and control modes are all validated end-to-end. Consequently, our clients avoid the costly commissioning surprises that arise when integration is left to the site team.
Contact the Sunlith Energy team if your project needs a BESS PCS specification review, vendor proposal evaluation, or commissioning support.
Related Sunlith Energy Resources:
- Battery Management System (BMS) Explained — BMS-PCS interface and protection limits
- EMS in BESS — how EMS dispatches power setpoints to the PCS
- BESS Communication Protocols Guide — Modbus, CAN Bus, IEC 61850
- Microgrid BESS Technical Guide — grid-forming PCS in real projects
- Energy Storage Losses in BESS — PCS efficiency and round-trip performance
- Key Components of a C&I BESS — where the PCS fits in the full system
- Worldwide PCS Certification Guide — regional standards by country
Conclusion
Selecting the right BESS PCS comes down to knowing your application. A C&I system needs peak shaving, backup transfer, and solar integration. A utility-scale project demands FFR, reactive power control, and full grid code compliance. An off-grid microgrid requires grid-forming mode, black start, and droop control. A mobile BESS, moreover, needs ruggedness, fast commissioning, and multi-mode operation out of the box. Therefore, there is no single PCS specification that fits all four scenarios — and trying to use one is a recipe for expensive rework.
Consequently, the first and most important step is to define your application type precisely. From there, use the master comparison table and specification checklists in this guide to build your PCS requirements. Furthermore, involve your PCS vendor early, verify certifications independently, and test all critical functions — especially seamless transfer, black start, and FFR — during factory acceptance testing before the system ships.
Sunlith Energy works with EPCs, project developers, and asset owners across all four BESS application types. Contact our team to discuss PCS requirements for your next project.
Other References
- NREL: Power Electronics for Energy Storage Systems
- US DOE Energy Storage Grand Challenge
- IEA: Grid-Scale Storage Report
- IRENA: Utility-Scale Battery Innovation Outlook
- ENTSO-E Network Code on Requirements for Generators (RfG)
- IEEE 1547-2018: Standard for Interconnection of DERs
- IEC 62477-1: Safety for Power Electronic Converter Systems
Microgrid BESS: The Complete Guide to Battery-Powered Microgrids
Power outages cost businesses billions every year. Aging grid infrastructure, extreme weather, and the variable nature of solar and wind energy make centralized power systems less reliable. As a result, energy-forward organizations are turning to microgrid BESS — a combination of distributed energy resources and battery storage that can supply power independently of the utility grid.
A microgrid BESS is not simply a backup generator. Instead, it is an intelligent energy platform that stores renewable energy, dispatches it on demand, and switches smoothly between grid-connected and islanded operation. To understand the foundation of this technology, read our ultimate guide to battery energy storage systems before diving into the microgrid-specific details covered here.
This guide covers everything EPCs, project developers, and commercial energy buyers need to know. Topics include: how these systems work, core components, sizing methodology, use cases, grid-forming technology, relevant standards, and financial considerations.
What Is a Microgrid BESS?
A microgrid is a local energy network. It integrates distributed energy resources — solar PV, wind turbines, diesel generators, and battery storage — into one controllable system. Crucially, it can run in two modes: grid-connected (exchanging power with the utility) or islanded (supplying loads on its own).
Battery storage is the technology that makes islanded operation practical. Without BESS, a microgrid relying on solar cannot guarantee stable voltage and frequency when it disconnects from the grid. With BESS, however, the system buffers generation gaps, sustains loads overnight, and holds the frequency reference that other devices need. For a broader look at how BESS works across sectors, see our guide on top applications of commercial and industrial BESS.
In short: BESS is the backbone of a modern microgrid. It turns a set of distributed generators into a self-sufficient power system.
Grid-Connected vs. Islanded Microgrid BESS
Microgrid BESS operates in two fundamental modes. Understanding both is essential before sizing or specifying a system.
- Grid-connected mode: The microgrid stays synchronized with the utility. BESS handles peak shaving, load shifting, and frequency regulation. Excess solar generation is stored or exported.
- Islanded (off-grid) mode: The microgrid disconnects at the point of common coupling. BESS then acts as the voltage reference, sustaining all local loads entirely on its own.
Seamless transition between these modes is a critical performance target. Research published in Energies (2026) showed loss-of-mains detection in under 3 milliseconds — well within the 10-millisecond threshold needed for sensitive equipment to ride through without disruption.
Core Components of a Microgrid BESS System
A complete microgrid BESS integrates several interdependent subsystems. Knowing each one helps EPCs design reliable systems and helps project developers evaluate vendor proposals accurately.
1. Battery Modules and Racks — LFP Chemistry
Lithium Iron Phosphate (LFP) chemistry dominates microgrid deployments today. LFP delivers over 6,000 cycles at 80% depth of discharge. It also operates safely across wide temperature ranges and avoids the thermal runaway risk seen in NMC chemistry. Battery modules are assembled into racks and housed in containerized enclosures for rapid site deployment.
2. Battery Management System (BMS)
The BMS monitors cell-level voltage, temperature, and current. It enforces SoC limits (typically 20–80% under the 20/80 cycling rule), calculates State of Health (SoH), and tracks DC Internal Resistance (DCIR). Additionally, the BMS communicates with the EMS via CAN bus or Modbus. For a deeper look at how the EMS works inside a BESS, we have a dedicated technical article on the subject.
3. Power Conversion System (PCS)
The PCS — also called the bidirectional inverter — converts DC energy from batteries into AC power for loads. It also converts AC to DC during charging. In a microgrid, the PCS can operate in grid-following or grid-forming mode. Grid-forming units synthesize voltage and frequency from scratch, which makes islanded operation possible even without a utility reference.
4. Energy Management System (EMS)
The EMS is the intelligence layer. It receives data from the BMS, PCS, solar inverters, load meters, and weather forecasts. Then it dispatches charge/discharge commands to optimize across multiple objectives simultaneously — peak shaving, renewable self-consumption, SoC management, and grid services. Moreover, it governs mode transitions and coordinates load shedding during generation shortfalls. Read our full breakdown of how EMS enables advanced grid services through BESS to see exactly how this works in practice.
5. Solar PV Array
Solar PV is the primary generation source in most microgrid BESS deployments. The PV array charges the BESS during daylight hours. As a result, the BESS can supply loads through the night or during cloud cover. Oversizing the PV-to-BESS ratio — typically 1.2× to 1.5× — ensures adequate charging under real-world irradiance conditions.
6. Point of Common Coupling (PCC) Switch / STS
The PCC switch or Static Transfer Switch (STS) is the electrical boundary between the microgrid and the utility grid. During a grid disturbance, the STS opens within milliseconds to island the microgrid. When grid power returns and stabilizes, the STS synchronizes and re-closes. Consequently, the speed and reliability of this device directly determines the quality of power continuity during transitions.
Microgrid BESS Component Summary Table
| Component | Primary Function | Key Standard | Typical Technology |
| Battery Module | Store DC energy | IEC 62619, UL 1973 | LFP, NMC |
| BMS | Cell monitoring, protection, SoH tracking | IEC 62133-2 | Rack-level + pack-level |
| PCS / Inverter | DC↔AC conversion, grid forming/following | IEEE 1547, UL 1741 | Grid-forming (VSM/droop) |
| EMS | Dispatch, optimization, mode transitions | IEC 62933-5-2 | SCADA + AI forecasting |
| STS / PCC Switch | Grid isolation, mode transition | IEEE 1547.4 | <20 ms transfer |
| Solar PV Array | Primary renewable generation | IEC 61215, IEC 61730 | Monocrystalline TOPCon |
| Thermal Management | Temperature control, fire suppression | NFPA 855, UL 9540A | HVAC + liquid cooling |
Grid-Forming BESS: The Key to True Islanding
The most important technology choice in any microgrid BESS project is the inverter control mode. Specifically, you must decide between grid-following and grid-forming. This single decision determines whether the system can operate independently of the utility at all. Our detailed grid-forming vs. grid-following BESS guide covers the full technical comparison, but the key points are summarized below.
Grid-Following BESS: Its Core Limitation
A grid-following inverter acts as a current source. It detects the voltage and frequency of an active grid and synchronizes its output to that reference. Therefore, if the grid disappears — during a blackout — a grid-following inverter cannot sustain islanded operation. It must shut down immediately per IEEE 1547 anti-islanding requirements to protect utility workers.
This means a grid-following BESS cannot black-start a dead network. Nor can it sustain an islanded microgrid on its own. As a result, it is not a viable standalone solution for resilience-critical sites.
Grid-Forming BESS: How It Creates the Grid
A grid-forming inverter operates as a voltage source instead. Rather than following an external signal, it synthesizes its own voltage waveform and frequency using algorithms such as Virtual Synchronous Machine (VSM) or droop control. Consequently, all devices on the microgrid — other inverters, loads, generators — synchronize to the grid-forming BESS.
This fundamental shift in control architecture unlocks four critical capabilities:
- Black start: The grid-forming BESS energizes a completely dead network from zero.
- Sustained islanding: The microgrid runs indefinitely without any utility connection.
- Synthetic inertia: The inverter emulates the rotational inertia of a synchronous generator, stabilizing frequency during rapid load changes.

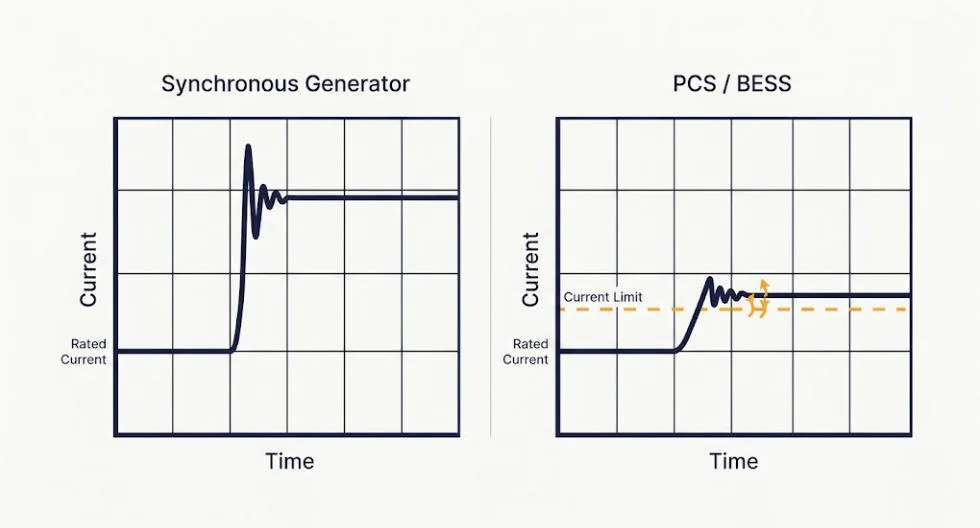

- Fault current contribution: The system provides enough fault current to trip protection relays, enabling conventional protection coordination.
As of mid-2025, Australia had deployed 1,070 MW of grid-forming BESS across ten sites, according to AEMO. Furthermore, a 2025 Nature Scientific Reports study confirmed that integrated grid-forming inverter strategies significantly improve microgrid resilience under fault conditions. This real-world track record proves that grid-forming technology is no longer experimental.
How to Size a Microgrid BESS System
Getting the size right is critical. An undersized system fails to cover loads overnight or during weather events. An oversized system wastes capital. Fortunately, the sizing methodology follows four clear, sequential steps.
Step 1 — Establish the Load Profile
Start with a complete energy audit. Measure peak demand (kW) and daily energy consumption (kWh). Identify critical loads that must run during islanding and non-critical loads that can be shed. Also account for motor start-up inrush currents, which can reach 6× running current and must be covered by the PCS peak power rating.
Step 2 — Define Autonomy Duration
Autonomy duration is the number of hours the microgrid must sustain critical loads without solar generation or grid support. For most commercial microgrids, 4–8 hours covers overnight periods. For resilience-critical facilities such as hospitals or data centers, however, 24–72 hours of autonomy is the standard design target.
Step 3 — Apply the Sizing Formula
Use this baseline formula to calculate required battery capacity:
Required BESS Capacity (kWh) = [Critical Load (kW) × Autonomy (h)] ÷ (DoD × RTE)
Here: DoD = usable depth of discharge (0.80 for LFP); RTE = round-trip efficiency (0.92 for modern LFP BESS). Always add a 10–15% spinning reserve margin on top for frequency stability headroom.
Step 4 — Size the Solar PV Array
The solar PV array must fully recharge the BESS within the available daylight window. For a system that recharges overnight-depleted batteries within 6–8 hours of sunlight, a PV-to-BESS ratio of 1.3× to 1.5× is typically required. NREL’s battery storage FAQs provide reliable guidance on irradiance-based sizing methodology that you can apply directly to project scoping.
Microgrid BESS Sizing Reference Table
The table below assumes LFP chemistry, 80% DoD, 92% RTE, 10% spinning reserve, and 12-hour overnight autonomy:
| Application | Critical Load (kW) | Autonomy (h) | BESS Size (kWh) | Solar PV (kWp) |
| Remote Village | 50 | 12 | 817 | 1,060 |
| Commercial Campus | 250 | 8 | 2,717 | 3,500 |
| Hospital / Critical Site | 500 | 24 | 16,304 | 21,000 |
| Mining / Industrial | 1,000 | 12 | 16,304 | 21,000 |
| Island Community | 2,000 | 12 | 32,609 | 42,000 |
Note: These are scoping figures only. Final sizing must account for site-specific irradiance, load diversity factor, planned expansion, and local grid code requirements.
Microgrid BESS Use Cases: Six Key Applications
Microgrid BESS is no longer a niche solution for remote communities. It is now essential infrastructure across a wide range of sectors. Here are the six leading applications driving global deployment today.
1. Remote and Off-Grid Communities
Approximately 770 million people still lack reliable electricity access. Many live in locations where grid extension is economically unviable. Solar-plus-BESS microgrids offer a proven alternative to diesel generation. According to IRENA’s renewable energy statistics, the levelized cost of energy from a solar-battery islanded microgrid has fallen below $0.18/kWh in high-solar-resource locations — competitive with or cheaper than diesel, even before accounting for fuel logistics costs.
2. Hospitals and Healthcare Facilities
Power interruptions in healthcare settings can have life-threatening consequences. Research published in Energy and Buildings (2025) modelled a solar-BESS microgrid for a hospital on Lombok Island. A correctly sized system supplying 7 MWh per day maintained 100% reliability across a simulated 3-day grid outage with zero diesel required. Therefore, microgrid BESS in healthcare is not just an economic choice — it is a life-safety infrastructure decision.
3. Mining and Industrial Sites
Mining operations in remote locations have historically relied on diesel generators. Diesel logistics add cost and operational risk. A documented case study from our island grid BESS resource collection shows a mining site that replaced three diesel gensets with a solar-plus-BESS microgrid using VSG grid-forming control. In year one, diesel fell by 78%. By year two, after a solar expansion, diesel was phased out entirely.
4. Commercial Campuses and Universities
Large campuses with significant on-site renewable generation are strong microgrid BESS candidates. These systems reduce utility demand charges through peak shaving. They also enable grid services revenue through frequency regulation markets. Moreover, they provide resilience against utility outages. Our overview of grid-scale BESS deployments covers how campus-scale and utility-scale systems create stacked value from a single BESS asset.
5. Data Centers and Digital Infrastructure
AI infrastructure expansion is driving unprecedented data center power demand. Many operators are deploying microgrid BESS as a dual-purpose solution: resilience insurance against grid outages and a cost-optimization tool to reduce peak demand charges. Systems rated 1 MW to 5 MW captured 42.7% of microgrid project activity in 2025, aligning closely with hospital campus, university, and data center scale requirements.
6. Island Nations and Coastal Communities
Island nations face unique energy challenges. They depend entirely on expensive imported diesel, which is vulnerable to supply chain disruption. Pacific Island countries including Fiji, Vanuatu, and Samoa are targeting 100% renewable electricity by 2030. Solar-storage microgrids are the primary technology vehicle for reaching that goal. As a result, microgrid BESS has become a sovereign energy security tool for these nations, not just a technical option.
Microgrid BESS Standards and Certifications
Compliance with the right standards is mandatory for grid interconnection, insurance approval, and project financing. The DOE BESSIE supply chain report (2024) provides a comprehensive overview of applicable standards across all BESS system layers. The core standards governing microgrid BESS are listed below.
- IEEE 1547 / IEEE 1547.4: Interconnection requirements, islanding protection, and re-synchronization for DERs.
- IEEE 2030.2: Interoperability guide for energy storage systems with electric power infrastructure.
- IEC 62933-5-2: Safety requirements for grid-integrated energy storage systems.
- IEC 62619: Safety requirements for lithium cells and batteries in stationary applications.
- UL 1973: Batteries for stationary and light electric rail applications.
- UL 9540: Energy storage systems and equipment.
- UL 9540A: Test method for thermal runaway fire propagation in BESS.
- NFPA 855: Installation standard for stationary energy storage systems (fire safety).
For grid-connected microgrid BESS in North America, IEEE 1547 is the foundational requirement. It governs voltage ride-through, frequency response, anti-islanding, and re-closing behavior. Projects exporting to utility grids also require interconnection studies including short-circuit analysis and protection coordination.
Microgrid BESS Market: Growth and Outlook
The global microgrid market is growing rapidly. According to MarketsandMarkets, the market will reach USD 95.16 billion by 2030, up from USD 43.47 billion in 2025 — a CAGR of 17.0%. This growth reflects a decisive shift toward localized, resilient, and low-carbon energy systems worldwide.
Several structural forces are driving this expansion:
- Falling battery costs: LFP battery pack prices have fallen more than 80% over the past decade. As a result, solar-plus-BESS microgrids now compete economically with grid power in many markets.
- Grid resilience mandates: California’s SGIP program catalyzed more than 1,200 MW of community microgrids by early 2026. Furthermore, the U.S. Department of Defense has mandated microgrid deployments at all major domestic installations by 2030.
- AI and data center demand: The proliferation of AI infrastructure is driving record data center power consumption, which in turn accelerates microgrid BESS adoption in this sector.
- Island and remote electrification: National governments in Pacific Island countries and Sub-Saharan Africa are deploying solar-BESS microgrids as the primary path to 100% renewable electricity targets.
Asia-Pacific is the fastest-growing region, with a projected CAGR of 23.7% — driven by rural electrification programs and industrial decarbonization across Southeast Asia. North America, meanwhile, retains the largest market share at approximately 38.6%.
Financial Considerations: LCOS, CAPEX, and Revenue
Levelized Cost of Storage (LCOS)
LCOS is the primary metric for evaluating a microgrid BESS investment. It represents total ownership cost — capital, installation, operations, and financing — divided by total energy dispatched over the system’s lifetime. For LFP BESS with 6,000+ cycle life, LCOS has fallen dramatically in recent years. In high-solar-resource locations with favorable financing, solar-plus-BESS microgrid LCOS is now below $0.18/kWh, which is competitive with retail grid tariffs in many markets.
Indicative CAPEX Range
All-in CAPEX for a fully commissioned microgrid BESS — including solar PV, BESS, PCS, EMS, STS, civil works, and grid interconnection — typically ranges from $400–$700/kWh for systems above 1 MWh. Smaller systems carry higher per-kWh costs due to fixed engineering and interconnection expenses. Battery storage costs alone have fallen to $120–$180/kWh at the pack level for utility-scale LFP procurement in 2025.
Multiple Revenue Streams
A well-designed microgrid BESS earns value from several streams at once. This stacking of revenue is one of the key reasons project economics have improved so significantly.
- Demand charge reduction: Peak shaving cuts utility demand charges, which can represent 30–50% of commercial electricity bills.
- Energy arbitrage: Charge during low-tariff periods and discharge during high-tariff periods.
- Grid services: Frequency regulation, fast frequency response (FFR), and spinning reserve markets add additional revenue for grid-connected systems.
- Diesel displacement: For off-grid sites, BESS value is measured in fuel savings. At $1.00–$1.50/liter, diesel displacement provides rapid payback on BESS capital.
- Microgrid-as-a-Service (MaaS): Developers bear upfront capital in exchange for long-term PPAs, eliminating CAPEX for end-users. According to Grand View Research, the global MaaS market was valued at USD 2.87 billion in 2024 and is projected to reach USD 6.56 billion by 2030.
EPC and Developer Project Checklist
For EPCs and project developers evaluating a microgrid BESS deployment, the following checklist covers the critical design and procurement decisions in the correct sequence:
- Conduct a full energy audit — peak demand (kW), daily energy (kWh), and critical vs. non-critical load segregation.
- Define autonomy requirements — hours of backup for critical loads, accounting for expected solar generation gaps.
- Select battery chemistry — LFP for longevity, safety, and cycle life; NMC for applications where energy density is the priority.
- Choose inverter control mode — grid-forming PCS is required for islanding, black start, and renewable penetration above 60–70%.
- Design the PCC switch or STS — specify less than 20 ms transfer time and determine protection coordination.
- Size the solar PV array — target 1.3–1.5× PV-to-BESS ratio and use NREL PVWatts for site-specific yield estimation.
- Specify the EMS — ensure multi-objective optimization across peak shaving, SoC management, renewable self-consumption, and grid services.
- Confirm applicable standards — IEEE 1547, UL 9540, UL 1973, NFPA 855, and any local grid codes.
- Conduct an interconnection study — short-circuit analysis, protection coordination, and harmonic assessment.
- Evaluate financing structures — direct CAPEX, green bonds, development finance institutions, or a MaaS PPA arrangement.
Conclusion
Microgrid BESS has crossed from specialized niche technology into mainstream energy infrastructure. Falling battery costs, proven grid-forming inverter technology, mature EMS platforms, and well-established compliance standards have collectively removed the barriers that once limited microgrid deployment.
Today, a microgrid BESS can simultaneously reduce energy costs, generate grid services revenue, provide life-safety resilience, displace diesel, and deliver a platform for 100% renewable operation. Moreover, the market is growing at 17% CAGR globally — with Asia-Pacific exceeding 23%. For EPCs and developers, the question is no longer whether microgrid BESS works. The questions are: what size, what chemistry, what inverter architecture, and what financing model best fits your specific project. Read our broader grid-scale BESS guide to see how microgrid BESS fits into larger utility-scale energy storage strategies.
Sunlith Energy provides technical guidance, BESS system supply, and project development support for microgrid BESS projects at commercial and utility scale. Contact our team to discuss your project requirements.
SunLith EnergykWp vs kWh in Solar Energy: What’s the Difference and Why It Matters
kWp vs kWh — these two units appear on every solar quote and datasheet. Yet they are often confused. Confusing them leads to undersized systems, missed savings, and wrong payback estimates.
This guide explains exactly what kWp and kWh mean in solar. You will learn how they differ, how to convert one to the other, and how both affect your system design.
If you need a quick refresher on kW vs kWh first, see our guide on kWh vs kW explained. Otherwise, read on for the full kWp vs kWh breakdown.
| What You Will Learn Core definitions: Understand what kWp (kilowatt-peak) means and how STC conditions are defined. Energy metrics: Discover what kWh (kilowatt-hour) measures in a solar context. Conversion formula: Learn the mathematical calculation for converting kWp to annual kWh output. Environmental impacts: See how peak sun hours, NOCT, and system losses affect real-world yield. Practical scenarios: Review real kWp vs kWh sizing examples for residential, C&I, and utility solar. Battery storage dynamics: Explore how kWp and kWh relate when solar is paired with a BESS. Buying protection: Avoid common mistakes buyers make when comparing solar quotes. |
kWp vs kWh: What Does kWp (Kilowatt-Peak) Mean?
kWp stands for kilowatt-peak. It is the rated maximum power output of a solar panel or array. This rating is measured under controlled laboratory conditions called Standard Test Conditions (STC). Therefore, kWp tells you the best-case output — not real-world output.
STC are used by every solar module manufacturer. They create a level playing field so buyers can compare panels from different brands on equal terms.
kWp STC Conditions — What the Rating Is Based On
- Solar irradiance: 1,000 W/m² — equivalent to full midday sun at sea level
- Cell temperature: 25 °C — cooler than most real rooftop conditions
- Air mass: AM 1.5 — a standard mid-latitude atmospheric path
Under these conditions, a 400 Wp panel produces exactly 400 W. Ten such panels form a 4 kWp array. However, these conditions rarely exist on a real rooftop.
| Why kWp Overstates Real-World Output On a hot summer day, rooftop cell temperatures reach 45–65 °C. This is well above the 25 °C STC benchmark. As a result, real output drops 10–25% below the kWp rating. This is why kWp alone does not tell you how much electricity you will actually generate. That is where kWh comes in. |
kWp vs kWh: NOCT Gives a More Realistic kWp Figure
NOCT (Normal Operating Cell Temperature) tests panels at 800 W/m² irradiance, 45 °C cell temperature, and 1 m/s wind — conditions much closer to a real rooftop. Consequently, NOCT power ratings run 10–15% lower than STC kWp figures. When comparing panels, always check both ratings on the datasheet.
The IEC 61215 standard governs how manufacturers measure both STC and NOCT performance, making these ratings internationally comparable.
What is the difference between specific yield (kWh/kWp) and panel efficiency?
While both terms appear frequently on datasheets, they measure entirely different variables. Panel efficiency represents how effectively a solar cell converts sunlight into electricity within a fixed square meter of physical space—essentially telling you how compact the technology is.
On the other hand, specific yield (kWh/kWp) measures how much total energy (kWh) your entire system delivers over a year for every kilowatt of capacity (kWp) installed. While panel efficiency is fixed by the manufacturer, specific yield is heavily dependent on your geographic location, tilt angle, and climate.
kWp vs kWh: What Does kWh (Kilowatt-Hour) Mean in Solar?
kWh stands for kilowatt-hour. It measures the actual energy your solar system generates over time. While kWp is the rated capacity, kWh is the real-world output.
Think of it this way: kWp is the engine size of a car. kWh is the distance it actually travels. A powerful engine is useless if it only runs for one hour a day.
How to Calculate kWh Output from a kWp Solar System
The formula below converts kWp into expected annual kWh generation:
| Annual kWh = kWp × Peak Sun Hours/day × 365 × System Efficiency |
How do I calculate how many solar panels I need based on my kWh usage?
If you are trying to size an array to match your electricity bill, you can reverse-engineer our calculation formula. First, look at your annual energy bill to find your total consumption in kWh. Next, divide that number by your local annual specific yield (for instance, 1,500 kWh/kWp).
The resulting number gives you your required system size in kWp. To find the physical number of panels needed, simply divide that total kWp by the individual wattage of your preferred panel (e.g., dividing a 5 kWp requirement by a 400 Wp or 0.4 kWp panel yields exactly 13 panels).
Peak Sun Hours (PSH) measure how many hours per day a location receives the equivalent of 1,000 W/m² irradiance. For example, Dubai averages 6.1 PSH/day. London averages 2.8 PSH/day. Therefore, the same kWp system produces far more kWh in Dubai than in London.
You can look up PSH for any location using NREL’s PVWatts Calculator, which is a free and reliable tool from the US Department of Energy.
System Efficiency accounts for inverter losses, wiring resistance, soiling, and temperature derating. A well-designed system typically runs at 78–85% overall efficiency. However, shading or poor installation can push this below 70%.
kWp vs kWh Worked Example: Same System, Two Locations
| Parameter | Phoenix, Arizona | London, UK |
| System Size | 10 kWp | 10 kWp |
| Peak Sun Hours / Day | 5.8 hours | 2.8 hours |
| System Efficiency | 80% | 80% |
| Annual Output (kWh) | 10 × 5.8 × 365 × 0.80 = 16,936 kWh | 10 × 2.8 × 365 × 0.80 = 8,176 kWh |
| Specific Yield (kWh/kWp) | 1,694 kWh/kWp | 818 kWh/kWp |
The result is striking: the same 10 kWp system generates over twice as many kWh in Phoenix as in London. As a result, quoting kWp without specifying location is meaningless for project economics.
kWp vs kWh: A Direct Side-by-Side Comparison
The table below shows the core differences between kWp and kWh in solar:
| kWp (Kilowatt-Peak) | kWh (Kilowatt-Hour) | |
| What it measures | Power capacity (rate) | Energy output (total) |
| What it tells you | Maximum potential output at STC | Actual electricity generated over time |
| Conditions | Laboratory (STC: 1,000 W/m², 25 °C) | Real-world (varies by location, season, losses) |
| Appears on | Solar panel datasheet, system quote | Energy bill, yield model, project audit |
| Analogy | Engine horsepower | Kilometres driven |
| Location-dependent? | No — fixed at STC | Yes — higher kWh in sunnier locations |
| Used for | Comparing panels, sizing the array | Calculating savings, ROI, payback period |
5 Factors That Affect How Much kWh Your kWp System Delivers
Several real-world factors determine how many kWh a given kWp system produces. Understanding these is essential for accurate yield forecasting.
1. Location and Solar Irradiance Affect kWh Output Most
Solar irradiance varies enormously by region. The Middle East, Australia, and the US Southwest receive 1,800–2,500 kWh/m² annually. Northern Europe receives 900–1,200 kWh/m². Consequently, a solar project in Dubai generates two to three times more kWh per kWp than the same system in Scotland.
For detailed peak sun hours data by country, see our guide on peak sun hours by location. Furthermore, the Global Solar Atlas provides free, downloadable irradiance maps for any location worldwide.
2. Panel Orientation and Tilt Angle Change kWh Yield
South-facing panels at a tilt angle matching the site latitude produce the highest annual kWh. East or west-facing installations lose 15–20% of yield compared to south-facing. In addition, north-facing installations at high latitudes can lose 30–40% of potential kWh output.
3. Shading and Soiling Reduce kWh Production
Partial shading cuts kWh output significantly. In conventional string-wired systems, one shaded panel reduces output across the whole string.
Soiling — dust, pollen, bird droppings — causes a further 2–6% loss in temperate climates. However, in dry desert regions, soiling losses can reach 15–25% without regular panel cleaning.
4. Temperature Coefficient Lowers kWh in Hot Climates
Solar panels lose power as cell temperature rises above 25 °C. A typical monocrystalline silicon panel loses approximately 0.35% of its kWp output for every degree above 25 °C.
At 60 °C cell temperature — common on hot rooftops — that is a 12% reduction from the STC kWp rating. As a result, hot climates produce fewer kWh per kWp than cool climates, despite having more sunlight.
5. Inverter and System Losses Reduce Final kWh
The inverter converts DC solar power to AC. It operates at 94–98% efficiency. Additional losses come from wiring resistance, transformer losses, and module mismatch.
Combined, these losses typically reduce kWh output by 15–25% from the theoretical kWp-based maximum. Therefore, always factor in a realistic loss value — not the best-case figure — when modelling project yield.
| kWp vs kWh Specific Yield by Region (kWh/kWp/year) MENA Region: Expect roughly 1,600–2,000 kWh/kWp/year across the Middle East and North Africa. Asia Territories: Systems in South and Southeast Asia average 1,300–1,700 kWh/kWp/year. Southern Europe & Australia: These sunny climates deliver 1,200–1,600 kWh/kWp/year. USA Sun Belt: Expect an average yield of 1,400–1,800 kWh/kWp/year. Northern Europe & UK: Lower irradiance limits yield to 700–1,100 kWh/kWp/year. These figures assume south-facing, optimally tilted panels with no shading and standard system losses of 15–20%. |
kWp vs kWh in Solar System Sizing: Three Real Examples
These examples show how kWp and kWh interact in real projects at different scales.
Residential kWp vs kWh Example: 5 kWp System in New Delhi
- Location: New Delhi (5.4 peak sun hours/day)
- System size: 5 kWp — approximately 12–13 panels at 400 Wp each
- System efficiency: 80%
- Annual output: 5 × 5.4 × 365 × 0.80 = 7,884 kWh/year
- Monthly average: approximately 657 kWh/month
- Typical household consumption: 300–500 kWh/month — system covers 130–220% of demand
Result: The 5 kWp system comfortably covers an average household’s electricity needs. Furthermore, it generates surplus kWh for export or battery storage on most days.
Why doesn’t my 5 kWp system show 5 kW on my inverter app?
A common point of confusion for homeowners post-installation is opening their monitoring app on a sunny day and seeing an instantaneous output of only 3.5 kW to 4 kW. This is completely normal.
Remember that your 5 kWp rating is calculated under perfect laboratory conditions ($25^\circ\text{C}$). In the real world, rooftop heat (which degrades panel efficiency), inverter conversion losses, and slight angle misalignments naturally reduce your real-time performance. This is precisely why we design systems based on cumulative kWh energy yield over time rather than looking solely at the peak kW capacity.
Commercial kWp vs kWh Example: 200 kWp System in Dubai
- Location: Dubai (6.1 peak sun hours/day)
- System size: 200 kWp
- System efficiency: 78% — lower due to desert soiling losses
- Annual output: 200 × 6.1 × 365 × 0.78 = 347,334 kWh/year (347 MWh/year)
- Specific yield: 1,737 kWh/kWp/year
- Estimated saving: At AED 0.30/kWh — approximately AED 104,200/year (USD 28,300)
Result: The 200 kWp system delivers strong kWh yield. However, soiling management is essential to maintain this specific yield over time.
Utility-Scale kWp vs kWh Example: 50 MWp Farm in Spain
- Location: Spain (5.2 peak sun hours/day)
- System size: 50,000 kWp (50 MWp)
- System efficiency: 82% — bifacial panels with single-axis trackers
- Annual output: 50,000 × 5.2 × 365 × 0.82 = 77.7 GWh/year
- Specific yield: 1,555 kWh/kWp/year — enhanced by tracking
- Equivalent households: approximately 22,000 Spanish homes at 3,500 kWh/year each
Result: Single-axis trackers boost kWh yield by 20–30% over fixed-tilt systems. As a result, they significantly improve the kWh economics of large solar farms.
kWp vs kWh When Solar Is Paired with Battery Storage
When solar is paired with a Battery Energy Storage System (BESS), both kWp and kWh take on new roles. Correctly matching them is the foundation of a good solar-plus-storage design.
kWp Controls How Fast the Battery Charges
The kWp rating sets the maximum power available to charge the battery at any moment. For example, a 100 kWp array with 80% system efficiency delivers roughly 80 kW to the battery in peak conditions.
Consequently, a 200 kWh battery paired with this array takes a minimum of 2.5 hours to charge from empty. This determines whether the battery completes a full cycle before sunset.
kWh Controls How Long the Battery Can Supply Load
The battery’s kWh capacity sets dispatch duration — how many hours it can supply load after solar drops. A 200 kWh BESS at 50 kW discharge sustains load for four hours after sunset. Therefore, matching solar kWp with the right battery kWh is critical. See our guide on BESS C-Rate Explained for more on this relationship.
kWp vs kWh Mismatch: What Happens When Solar Is Oversized
In systems with limited grid export, too much solar kWp relative to battery kWh causes curtailment — wasted solar energy.
For example, a 50 kWp array at 80% efficiency producing 40 kW fills a 50 kWh battery in just 1.25 hours. After that, excess kWh is wasted. Our guide on choosing solar panels and batteries for a 100 kWh load shows how to avoid this in a full worked example.
For a broader view of how storage losses affect kWh throughput, see our article on energy storage losses in BESS.
| kWp vs kWh Solar + Storage Design Rule of Thumb Target battery kWh = 1–2 × average daily solar kWh generation Example: A 10 kWp system in Delhi generating 27 kWh/day pairs well with a 25–50 kWh BESS. This covers one overnight discharge cycle with buffer for low-sun days. Off-grid systems or multi-day low-sun locations need a higher storage ratio. |
4 Common kWp vs kWh Mistakes in Solar Quotes
These are the most frequent errors buyers make when reading and comparing solar proposals.
Mistake 1: Comparing kWp Without Factoring in Location
Two quotes showing ’10 kWp’ are not equal if the systems are in different locations. Always request an annual kWh yield estimate alongside the kWp figure.
Reputable suppliers use tools such as PVWatts or PVGIS from the EU Joint Research Centre to produce site-specific yield reports. Insist on seeing these before signing.
Mistake 2: Accepting kWh Estimates With Unrealistic Losses
Some suppliers inflate kWh projections by assuming only 5–10% system losses instead of the more realistic 15–25%.
Always ask which loss factors are included: temperature derating, soiling, inverter efficiency, wiring resistance, shading, and module mismatch. A credible yield report lists each factor explicitly.
Mistake 3: Sizing Battery Storage from kWp Instead of kWh
Sizing a battery based on peak kWp — rather than actual daily kWh generation — leads to oversized and overpriced storage. The battery must match the actual kWh generated each day, not the theoretical maximum.
Furthermore, use hourly generation profiles rather than peak values when sizing storage. This avoids undersizing the battery for mornings and evenings when kWp output is low.
Mistake 4: Ignoring kWp Degradation and Its Effect on kWh
Solar panels degrade annually — typically 0.5–0.8% per year for monocrystalline silicon. Consequently, a panel with 0.7%/year degradation retains about 82.5% of its kWp rating after 25 years.
This means fewer kWh per year as the system ages. Financial models must incorporate this degradation into their annual kWh projections. Ignoring it overstates long-term savings.
kWp vs kWh Quick Reference Summary
| Question | kWp Answer | kWh Answer |
| What does it measure? | Peak power capacity under STC | Actual energy generated over time |
| Is it location-dependent? | No — STC conditions are fixed | Yes — varies with irradiance, temp, losses |
| Typical residential value | 3–10 kWp rooftop system | 3,000–14,000 kWh/year (location-dependent) |
| How is it calculated? | Number of panels × panel Wp rating | kWp × PSH/day × 365 × system efficiency |
| Does it appear on your bill? | No — it is a system specification | Yes — as kWh consumed or exported per month |
| Why does it matter? | Comparing panels, sizing the array | Calculating savings, ROI, and payback period |
Frequently Asked Questions (FAQs)
Can a solar panel produce more than its kWp rating?
Yes, but only temporarily. This usually happens due to the “edge-of-cloud effect,” where passing clouds magnify sunlight, or in extremely cold, high-altitude environments where cold temperatures boost solar cell efficiency above standard test conditions.
Why doesn’t my solar system ever show its full kWp rating on my inverter app
This is completely normal. Your 5 kWp rating is measured in a perfect laboratory. In the real world, rooftop heat, inverter conversion losses, minor shading, and dirty panels typically reduce your real-time instantaneous output (kW) by 20% to 30% compared to the peak capacity.
Does a higher kWp rating mean better performance in cloudy weather?
Not necessarily. A higher kWp just means a larger system or higher-efficiency panels. For strong performance in overcast conditions, you should look at a panel’s NOCT rating and low-irradiance specs rather than its standard kWp rating.
Conclusion: kWp vs kWh — Use Both for Better Solar Decisions
kWp and kWh answer two completely different questions. kWp tells you what the system is rated to produce under ideal lab conditions. kWh tells you what it actually delivers at your location, accounting for losses, temperature, and seasonal irradiance.
For any solar investment, both metrics are essential. kWp helps you compare panels and size the system. kWh helps you calculate real energy savings and payback period. Therefore, never evaluate a solar quote on kWp alone.
At Sunlith Energy, every solar proposal includes a site-specific kWh yield model using validated irradiance data — so you see what the system will actually deliver. Contact our team to request a free yield assessment for your project.
The 20/80 Rule for Batteries: SOC Charging Limits Explained for BESS
The 20/80 rule for batteries is one of the most repeated tips in battery care. It is also one of the most misunderstood. Open any EV forum or BESS manual, and you will read the same line. Keep the battery between 20% and 80% state of charge.
For lithium-ion batteries, the 20/80 rule sets a charging window. It avoids the two extremes of state of charge (SoC) that speed up wear. Stay above 20% SoC. Stay below 80% SoC. Do that, and the battery lasts longer. This applies to a phone, an EV, or a multi-megawatt BESS alike.
But for BESS buyers, the 20/80 rule raises a hard question. If 60% of capacity is the “safe zone,” what happens to the rest? Is 40% just stranded capital, sitting idle in a container? And does a rule built for phones and EVs even fit a grid-connected LFP system, built for daily cycling over 15 to 20 years?
This guide answers that question from first principles. First, we cover the electrochemistry behind the rule. Next, we compare it with other SoC windows. Then, we look at how chemistry and BMS design change the picture. Most importantly, we ask whether the cycle life gains are worth the lost capacity in real BESS projects.
1. What Is the 20/80 Rule for Batteries?
The Basic Definition
State of charge (SoC) measures how much energy a battery holds right now. It is shown as a percentage of usable capacity. A battery at 100% SoC is full. A battery at 0% SoC has hit its lower cutoff. That cutoff is not zero volts, though. The BMS always keeps a safety margin below it.
In short, the 20/80 rule means one thing. Keep charging and discharging inside the 20% to 80% SoC band. Do not let the battery swing from empty to full on every cycle. As a result, the operating window equals 60% of usable capacity.
Here is the formula, stated plainly:
| Formula — the 20/80 rule for batteries: Effective Depth of Discharge (DoD) = Upper SoC limit − Lower SoC limit 20/80 rule → Effective DoD = 80% − 20% = 60% A battery cycled strictly within 20–80% SoC never exceeds a 60% depth of discharge on any single cycle, regardless of nameplate capacity. |
The 20/80 Rule Is Not a Safety Limit
It helps to separate the 20/80 rule from the absolute safety limits set by the Battery Management System (BMS). The BMS hard cutoffs sit close to 0% and 100%, on the cell’s true voltage range. These exist for one reason: to stop over-charge and over-discharge events that cause safety failures.
Those safety limits are not arbitrary, either. They trace back to formal standards such as IEC 62619, which sets safety requirements for industrial lithium battery systems. The 20/80 rule, by contrast, operates well inside those hard limits. It is simply a usage strategy for longevity, not a safety boundary.
The table below shows how SoC windows map to depth of discharge. This is the same language used on every BESS datasheet.
| SoC Window | Effective DoD | Description | Common Context |
| 0–100% | 100% | Full range cycling, no reserve | Maximum usable capacity, shortest cycle life |
| 10–90% | 80% | Small reserve at both ends | Common LFP grid-scale default |
| 20–80% | 60% | The 20/80 rule for batteries | Popular consumer EV/phone guidance |
| 30–70% | 40% | Conservative storage window | Long-term standby / storage SoC |
For background on how stationary batteries are evaluated more broadly, the NREL battery storage technology overview is a useful starting reference.
2. The Science Behind the 20/80 Rule for Batteries
Why does the 20/80 rule exist at all? The answer sits inside the cell. Specifically, it comes down to what happens physically at the extremes of state of charge.
Why High SoC (Above 80%) Speeds Up Degradation
As a cell nears full charge, the cathode reaches peak lithium depletion. Voltage peaks too. As a result, this high-voltage state strains the cathode’s crystal lattice. Over many cycles, that strain adds up to real structural wear.
At the same time, the electrolyte faces its highest oxidative stress near full charge. This, in turn, speeds up electrolyte breakdown. It also drives further growth of the solid electrolyte interphase (SEI) layer on the anode.
The SEI layer is a thin film that forms naturally on the anode. In small amounts, it is actually useful. It protects the anode from further reaction with the electrolyte. However, SEI growth consumes active lithium over time. It also raises internal resistance. Because SEI growth depends heavily on voltage and temperature, both factors climb when a cell sits near 100% SoC, especially during storage.
Why Low SoC (Below 20%) Also Speeds Up Degradation
At the other extreme, very low SoC pushes the cell close to its minimum voltage cutoff. This raises the risk of copper dissolution from the anode’s current collector. The risk grows further still if the cell drifts below its minimum voltage during storage, through normal self-discharge.
Repeated deep discharges add a different kind of stress, too. On the next charge, lithium ions must fully repopulate the lattice. This places real mechanical strain on the cathode.
This is not just theory. A widely cited 2023 study on Tesla lithium-ion cells tested several SoC windows. The pattern was clear. Cells held at very high or very low SoC degraded faster than cells held at moderate SoC. Notably, the shortest service life showed up in cells cycled below 25% SoC.
The Electrochemical “Sweet Spot” in the Middle
Between these two extremes sits a calmer stretch of the voltage curve. Here, both electrodes face comparatively low stress. This, in fact, is the electrochemical basis for the 20/80 rule. By skipping the top and bottom 20% of the SoC range, a battery spends its life in the zone where SEI growth, electrode strain, and electrolyte oxidation all move slowest.
Separately, research into partial state of charge (PSoC) cycling backs this up further. Cycle life improves when a fixed amount of charge is cycled from a partial state, rather than from full charge. One widely referenced study confirmed this directly. The effect grew stronger still when depth of discharge was also reduced. In effect, this is the scientific backbone of the 20/80 rule, applied right at the cell level.
3. The 20/80 Rule for Batteries vs Other SoC Windows
The 20/80 rule is the most common SoC window in consumer guidance. But it is not the only one in use. BESS specs, EV guidance, and standby power systems each favour slightly different windows. The right choice depends on how usable capacity and cycle life get weighted for that specific application.
How the 20/80 Rule for Batteries Compares to Other SoC Windows
| SoC Window | Effective DoD | Relative Cycle Life Impact | Usable Capacity Retained | Typical Use Case |
| 0–100% | 100% | Baseline (shortest cycle life) | 100% | Maximum-capacity applications; rarely recommended for daily cycling |
| 10–90% | 80% | Moderate improvement over 0–100% | 80% | Grid-scale LFP BESS, EV daily-use presets |
| 20–80% | 60% | Significant improvement; the 20/80 rule for batteries | 60% | Consumer EV/phone guidance, residential storage |
| 30–70% | 40% | Maximum improvement for calendar aging | 40% | Long-term standby SoC, seasonal storage, shipping |
Two Patterns Worth Noting
First, SoC window width and cycle life do not scale in a straight line. The jump from 0–100% to 10–90% brings a meaningful gain. But the next jump, from 10–90% to 20–80%, brings a smaller gain. This holds true even though both moves cut DoD by 20 points.
Second, the 30/70 window rarely gets used for daily cycling. It simply gives up too much usable capacity. Instead, it works best as a storage SoC — the level a battery should sit at when idle for weeks or months. During storage, calendar aging drives degradation, not cycling.
Why BESS Often Defaults to 10–90% Instead
For BESS specifically, the 10–90% window has become the common middle ground for LFP systems. Here is why. LFP’s flat voltage curve, covered in Section 5, makes the gain from 10–90% to 20–80% quite small. Meanwhile, that extra 10% of usable capacity carries real commercial value.
4. How the 20/80 Rule for Batteries Affects BESS Sizing
Every BESS datasheet draws a line between two figures. Nameplate capacity is the total rated energy storage of the system. Usable energy is nameplate capacity multiplied by the operating depth of discharge. The SoC window sets this usable energy figure directly. As a result, it becomes one of the most consequential decisions in BESS sizing.
For more on how DoD interacts with other specs, see our guide to BESS specifications.
A Worked Sizing Example
Consider a 1 MWh nameplate BESS under three SoC strategies:
| SoC Window | Effective DoD | Usable Energy (1 MWh nameplate) | “Lost” Capacity |
| 0–100% | 100% | 1,000 kWh | 0 kWh |
| 10–90% | 80% | 800 kWh | 200 kWh |
| 20–80% (20/80 rule) | 60% | 600 kWh | 400 kWh |
On paper, the 20/80 rule strands 400 kWh out of every cycle. That is 40% of the installed asset. In practice, however, BESS designers handle this two ways.
The first approach is to oversize the nameplate capacity. This way, usable energy under the chosen SoC window still meets the project’s requirement. For example, a project needing 600 kWh of usable energy, under a 20/80 window, must size the nameplate capacity near 1 MWh, not 600 kWh.
The second approach is to accept the narrower usable energy figure instead. From day one, the dispatch strategy, tariff arbitrage, or backup duration gets designed around that smaller number. Both approaches work. The right choice depends on whether capital cost or long-term degradation is the binding constraint for that project.
Sizing Formula and Worked Example
| Sizing rule of thumb: Required nameplate capacity = Required usable energy ÷ Effective DoD Example: a site needs 600 kWh of usable energy and will operate at 20/80 (60% DoD). Required nameplate capacity = 600 kWh ÷ 0.60 = 1,000 kWh (1 MWh) By comparison, the same 600 kWh requirement under a 10/90 window (80% DoD) needs only 750 kWh nameplate — a smaller, lower-cost system. |
Why Warranty Terms Matter Just as Much
Warranty terms matter just as much as the SoC window itself. A BESS warranted for a set cycle count at 90% DoD reaches end-of-life on a different timeline than the same cell warranted at 60% DoD. So, always confirm which DoD figure the warranty’s cycle-life guarantee assumes. Manufacturers calculate end-of-life projections against one specific operating window, not whatever SoC range the system ends up running in practice.
5. The 20/80 Rule for Batteries by Chemistry: LFP vs NMC vs NCA vs LTO
Why NMC and NCA Are More Sensitive to SoC Extremes
The 20/80 rule did not start in the BESS industry. Instead, it became popular through consumer electronics and EV guidance, where NMC and NCA cathode chemistries dominate. These chemistries carry a steep voltage curve across the SoC range. So, small changes in SoC produce larger changes in cell voltage. That, in turn, means larger swings in the electrochemical stress covered in Section 2.
Why LFP Tolerates a Much Wider Window
LFP (Lithium Iron Phosphate) behaves quite differently. It is now the leading chemistry for stationary BESS. LFP has a notably flat voltage curve across most of its range. As a result, the voltage gap between 30% SoC and 70% SoC stays small. Compare that to an NMC cell, where the same gap is much larger. Consequently, LFP cells care less about exactly where the SoC window sits. They also tolerate the top and bottom of the range far better than NMC or NCA.
Chemistry Comparison Table
| Chemistry | Voltage Curve Shape | Sensitivity to SoC Extremes | Typical Recommended Window | Common BESS DoD Spec |
| LFP | Flat across most of range | Low — tolerant of wide windows | 5–95% (or wider) | 90–95% DoD |
| NMC | Steep, especially at high SoC | High — benefits significantly from 20/80 | 20–80% | 50–80% DoD |
| NCA | Steep, similar to NMC | High — most sensitive to high SoC | 20–80% | 50–80% DoD |
| LTO | Very flat, stable anode | Very low — minimal benefit from narrowing | 0–100% viable | 95–100% DoD |
Why This Matters for Buyers
This is exactly why DoD specifications on commercial LFP BESS datasheets sit at 90–95%. Meanwhile, consumer guidance for NMC-based phones and EVs sticks with the much narrower 20/80 window. After all, forcing a strict 20/80 rule onto a grid-scale LFP system would strand a large slice of installed capacity. Given LFP’s flat curve, the degradation benefit simply would not justify it.
Chemistry is not the only factor that shapes how hard a cell can be pushed, though. Charge and discharge rate matters too, which we cover in our guide to BESS C-rate.
That said, the underlying principle still applies to LFP. Avoid long dwell time at very high or very low SoC, especially during idle storage. The difference is one of degree, not of kind. LFP systems can run much closer to the 0% and 100% extremes during active cycling, without the same penalty NMC or NCA cells would face.
6. How the BMS and EMS Enforce the 20/80 Rule for Batteries
In a real BESS, the 20/80 rule — or whichever SoC window applies — is not left to chance. Instead, it gets enforced through two systems working together. The Battery Management System (BMS) handles cell and pack-level protection. The Energy Management System (EMS) handles dispatch planning.
For a deeper look at the first system, see our guide to how a battery management system (BMS) works.
BMS-Level Enforcement: Translating SoC Limits Into Voltage Cutoffs
The BMS does not directly “see” SoC as a clean percentage. Instead, it measures cell voltage and current. From there, it estimates SoC using coulomb counting, which tracks current flow over time. This estimate then gets cross-checked against the cell’s open-circuit voltage (OCV) curve. To enforce a 20/80 window, the BMS applies soft limits. These limits map to the voltage levels tied to 20% and 80% SoC, for that specific chemistry. So, when the pack nears either limit, the BMS signals the EMS to stop charging or discharging in that direction.
Why SoC Estimation Drifts — and Why Occasional Full Cycles Matter
Coulomb counting builds up small errors over time. As a result, the BMS’s SoC estimate slowly drifts from the cell’s true SoC. The fix is simple, though. Periodically, the cell gets allowed to reach a known reference point on its voltage curve, typically near full charge. There, SoC can be recalibrated with high confidence.
This creates a practical tension with the 20/80 rule. A system run permanently within 20–80% SoC may see growing estimation error over months. Without occasional full-range calibration cycles, that drift only gets worse.
Fortunately, most commercial BMS platforms handle this automatically. They schedule a periodic calibration charge to a higher SoC, during a low-demand period. Then, they return to the configured operating window. This is simply a normal part of long-term SoC accuracy. It is not a violation of the SoC window strategy.
EMS-Level Enforcement: Dispatch Planning Within the Window
The BMS protects the cells from exceeding configured SoC limits. The EMS, meanwhile, plans dispatch so the battery rarely needs to hit those limits at all. A well-tuned EMS schedules charge and discharge events carefully. So, the battery’s SoC trajectory stays comfortably inside the operating window throughout a typical day. In this way, the BMS’s hard limits remain a safety backstop, not a routine operating boundary.
7. The 20/80 Rule for Batteries Across Different BESS Applications
The 20/80 rule often gets presented as a universal recommendation. In reality, though, the best SoC strategy varies a lot by application. The table below summarises how SoC strategy typically shifts, depending on use case.
| Application | Typical SoC Strategy | Rationale |
| Residential solar + storage (NMC) | 20–80% to 10–90% | Balances cycle life with daily self-consumption value; NMC benefits most from narrower windows |
| C&I peak shaving (LFP) | 5–95% (90% DoD) | LFP’s flat voltage curve and high cycle life tolerate wide windows; ROI favours maximum usable energy |
| Grid-scale arbitrage (LFP) | 5–95% to 0–100% | Revenue per cycle often outweighs marginal degradation cost at LFP’s cycle-life scale |
| Frequency regulation | Centred near 50% SoC | Symmetrical headroom needed to inject or absorb power in either direction at short notice |
| Backup / UPS standby | Held near 50–60% SoC | Minimises calendar aging during long idle periods between discharge events |
| Second-life EV battery packs (NMC) | 20–80% | Already-degraded cells benefit most from the gentlest possible operating window |
Frequency Regulation: Why the Middle of the Range Matters Most
Frequency regulation systems sit deliberately near the middle of their SoC range, often close to 50%. This is not really about the 20/80 rule. Instead, it is about headroom. The system must absorb or inject power within milliseconds of a frequency deviation, in either direction. A battery at 95% SoC has little room left to absorb more charge. One at 5% SoC has little room left to discharge. So, the middle of the range maximises bidirectional response capability.
Backup and UPS: A Different Kind of SoC Challenge
Backup and UPS systems face the opposite challenge. Long idle periods at a fixed SoC get punctuated only occasionally by discharge events. For these systems, the relevant guidance is less about the 20/80 rule. It is more about storage SoC — holding the battery at a moderate level, commonly 50–60%, during idle periods. This approach limits the calendar aging effects covered in Section 2. Both very high and very low storage SoC accelerate SEI growth, even when the battery just sits unused.
Off-grid and islanded systems face a related challenge, since they cannot fall back on the wider grid during a SoC excursion. For more on how that changes BESS design, see our Island Grid BESS engineering guide.
8. Quantifying the 20/80 Rule for Batteries: Cycle Life vs Capacity
Here is the central question for any BESS operator. Does the cycle life gain from a narrower SoC window actually offset the lost usable energy per cycle? The best way to compare strategies is not cycle count alone. Instead, look at total lifetime energy throughput — the cumulative kWh the system delivers before reaching end-of-life capacity.
Illustrative Throughput Comparison
The table below illustrates this trade-off for an NMC-type cell. The figures are illustrative, but they stay broadly consistent with partial state-of-charge cycling research.
| SoC Window | Effective DoD | Illustrative Cycle Life (to 80% SoH) | Usable Energy per Cycle (1 MWh nameplate) | Approx. Lifetime Throughput |
| 0–100% | 100% | ~2,500 cycles | 1,000 kWh | ~2,500 MWh |
| 10–90% | 80% | ~4,000 cycles | 800 kWh | ~3,200 MWh |
| 20–80% (20/80 rule) | 60% | ~6,000 cycles | 600 kWh | ~3,600 MWh |
| 30–70% | 40% | ~9,000 cycles | 400 kWh | ~3,600 MWh |
Two Things Stand Out
First, narrowing from 0–100% to 20–80% boosts lifetime throughput in a real way. In this example, the gain is roughly 44%. Second, that gain flattens out past a certain point. Moving from 20–80% to 30–70% adds many more cycles. Yet total throughput barely moves, because each extra cycle delivers proportionally less energy.
What This Means in Practice
| The key insight on lifetime throughput: Total energy delivered ≈ Cycle life × Usable energy per cycle Narrowing the SoC window increases the first term and decreases the second. There is a point — often somewhere between 20/80 and 30/70 for NMC chemistries — beyond which the two effects roughly cancel out. Past that point, further narrowing mainly stretches the calendar timeline, not the total energy delivered. |
This carries a direct, practical lesson. The 20/80 rule does not always mean more total energy over the system’s life. What it reliably does, instead, is spread that throughput over a longer calendar period, with lower peak stress per cycle. That matters most when calendar life, warranty terms, or thermal limits are the binding constraint, not total cycle count.
9. Is the 20/80 Rule for Batteries Worth It for BESS Buyers?
From a pure capital-cost view, every point of SoC window removed from the operating range costs something. Either more hardware gets installed to keep the same usable energy, or output gets sacrificed. At typical commercial LFP BESS costs of $220 to $320 per kWh, the math gets concrete fast.
Moving from a 90% DoD strategy to a strict 60% DoD (20/80) strategy, for the same usable energy, means installing roughly 33% more nameplate capacity. That is a substantial capex increase. And it is a steep price for a chemistry whose flat voltage curve already makes the degradation benefit fairly small.
Why LFP Buyers Should Look Beyond 20/80
The calculus changes for NMC and NCA-based systems, where the 20/80 rule’s degradation benefit runs largest. For these chemistries, the extra upfront cost of oversizing is more often worth it. The payoff is a real extension of warranty-covered service life. This matters most where replacement logistics are difficult, such as second-life EV packs or remote and offshore installations.
Tracking that degradation over time matters just as much as the SoC strategy itself. For more on how suppliers estimate remaining battery health, see our guide to DCIR-based State of Health estimation for BESS.
Three Reasons LFP Favours a Wider Window
For most grid-connected commercial and utility-scale LFP BESS, the economically optimal SoC window sits much closer to 5–95% or 10–90% than to 20/80. There are three clear reasons why:
- LFP’s flat voltage curve means the marginal degradation cost of the additional 10–30% of usable energy is small.
- Revenue-generating applications (arbitrage, demand charge reduction, frequency services) are typically valued per kWh cycled, so reduced usable energy directly reduces revenue.
- LFP cycle life figures (3,000–8,000+ cycles to 80% SoH) already provide 10–15+ years of service even at high DoD for most daily-cycling applications.
Overall, the 20/80 rule still earns its place as a default heuristic for NMC/NCA-based systems. It also works well as a long-term storage SoC guideline, across all chemistries. And it remains a sensible starting point for buyers who do not yet have chemistry-specific degradation curves. But it should not be treated as a fixed engineering spec for LFP-dominated stationary storage. Instead, the right SoC window is chemistry-specific and application-specific, not a universal constant.
SoC strategy is just one input into overall project returns. Round-trip losses matter too, and we cover those in our guide to BESS round-trip efficiency (RTE).
10. Best Practices and Common Mistakes With the 20/80 Rule for Batteries
Best Practices
- Request chemistry-specific degradation curves (cycle life vs DoD) from your cell supplier rather than relying on generic 20/80 guidance.
- For LFP systems, evaluate the 5–95% or 10–90% range as the realistic operating window, reserving 20/80-style restrictions for long-term storage SoC rather than daily cycling.
- For NMC/NCA-based systems — including residential storage and second-life EV packs — the 20/80 rule remains a reasonable and well-supported default.
- Confirm which DoD value the manufacturer’s cycle-life warranty is based on, and ensure your operating SoC window matches that assumption.
- If a system will be idle for extended periods (shipping, seasonal storage, commissioning delays), set the storage SoC to a moderate level — commonly 30–60% — regardless of the chemistry.
- Allow the BMS to perform periodic full-range calibration cycles even if the operating SoC window is narrower; this maintains SoC estimation accuracy over the system’s life.
Common Mistakes
- Applying consumer EV/phone-based 20/80 guidance directly to a grid-scale LFP BESS without accounting for the chemistry’s much flatter voltage curve.
- Sizing a system’s nameplate capacity around a 0–100% assumption, then discovering that the operating SoC policy reduces usable energy below the project’s requirement.
- Treating the 20/80 rule as a hard safety limit rather than a usage strategy — and consequently disabling BMS calibration cycles, leading to SoC estimation drift over time.
- Ignoring the interaction between SoC window and temperature: high-SoC storage in hot climates compounds calendar aging far more than the same SoC window in a temperate climate.
- Comparing two BESS quotes on nameplate capacity and price alone, without checking whether each supplier’s cycle-life warranty assumes a different operating DoD.
11. Frequently Asked Questions: The 20/80 Rule for Batteries
What is the 20/80 rule for batteries?
The 20/80 rule for batteries is a usage guideline. It calls for keeping a lithium-ion battery’s SoC between 20% and 80% during normal use, instead of cycling between 0% and 100%. This creates an effective depth of discharge of 60%. The goal is simple: reduce electrochemical stress at very high and very low SoC.
Does the 20/80 rule apply to LFP batteries used in BESS?
The underlying principle applies to all lithium-ion chemistries. However, LFP’s flat voltage curve makes it far less sensitive to SoC extremes than NMC or NCA. As a result, most commercial LFP BESS datasheets specify depth of discharge in the 90–95% range. That is far wider than the 60% implied by a strict 20/80 rule, with no proportional drop in cycle life.
What SoC should a battery be stored at long-term?
For extended idle periods, such as shipping, seasonal storage, or commissioning delays, most manufacturers recommend a storage SoC in the 30–60% range. This applies regardless of chemistry. Both very high and very low storage SoC speed up calendar aging mechanisms, such as SEI layer growth, even when the battery just sits unused.
Is the 20/80 rule the same as an 80% depth of discharge specification?
No, these are different specifications. An 80% DoD spec, for example a 10–90% SoC window, is a wider operating range than the 20/80 rule’s 60% effective DoD. The two get confused often, since both involve the number 80. But they describe different SoC windows, with different usable capacity implications.
Does charging a BESS to 100% damage the battery?
Generally, no. Occasional full charges are not harmful. In fact, they are often necessary for BMS SoC calibration. The real degradation concern is prolonged dwell time at or near 100% SoC, such as leaving a battery fully charged for extended idle periods. Briefly passing through 100% during normal cycling carries a much smaller risk.
How much usable capacity do I lose by following the 20/80 rule?
Following a strict 20/80 rule cuts usable energy to 60% of nameplate capacity. Compare that with 80% under a 10–90% window, or close to 100% under a 5–95% window. For a 1 MWh nameplate BESS, that is the gap between 600 kWh, 800 kWh, and roughly 950 kWh of usable energy per cycle. This is a real factor in system sizing and project economics.
Conclusion: The 20/80 Rule for Batteries Is a Useful Heuristic, Not a Universal Specification
In summary, the 20/80 rule for batteries captures something real. Lithium-ion cells degrade fastest at the extremes of state of charge. Operating within a narrower SoC window reduces that stress. For NMC and NCA-based systems, including most consumer electronics, EVs, and residential storage, the 20/80 rule remains a sound, evidence-backed default.
For commercial and utility-scale BESS built on LFP chemistry, though, the picture shifts. The same flat voltage curve that makes LFP so well-suited to daily cycling also makes a strict 20/80 window economically inefficient. So, the right approach is to treat the SoC window as a chemistry-specific design variable. Size it against the manufacturer’s cycle-life warranty, the application’s revenue model, and the project’s calendar-life needs, rather than importing a rule of thumb from an entirely different product category.
Need help defining the right SoC operating window, DoD specification, and BMS configuration for your next BESS project? Contact the SunLith Energy engineering team to work through the chemistry-specific trade-offs for your application.
BESS Power Factor Explained: Complete Guide
What Is BESS Power Factor?
BESS Power Factor is one of the most important design parameters in a Battery Energy Storage System (BESS). It affects inverter sizing, reactive power capability, voltage regulation, grid compliance, and project economics. As utilities require more grid support from energy storage systems, understanding BESS Power Factor has become essential for developers, EPC contractors, utilities, and industrial energy users.
A modern Battery Energy Storage System does much more than store energy, as it can also provide vital voltage support, reactive power compensation, and grid stabilization. Consequently, managing the BESS Power Factor has become a foundational requirement in utility-scale and commercial energy storage projects worldwide.
To understand how a BESS supports the grid, it is important to understand active power, reactive power, and apparent power.
For a complete overview of how these configurations work, see our comprehensive guide to battery energy storage systems (BESS).
- What Is BESS Power Factor?
- Why BESS Power Factor Matters
- What Is Power Factor?
- Understanding Active Power, Reactive Power, and Apparent Power
- How BESS Power Factor Works
- BESS Power Factor Modes
- BESS Power Factor and PCS Sizing
- BESS Power Factor Calculation Example
- Leading vs Lagging BESS Power Factor
- Utility Requirements for BESS Power Factor
- IEEE 1547 and BESS Power Factor
- Can a BESS Provide Reactive Power Without Discharging?
- BESS Power Factor Correction vs Capacitor Banks
- BESS Power Factor in Commercial and Industrial Projects
- Power Factor Challenges in Renewable Energy Projects
- Future Trends in BESS Power Factor Management
- Frequently Asked Questions About BESS Power Factor
- Conclusion
Why BESS Power Factor Matters
A system’s power factor directly dictates how efficiently an inverter utilizes its total capacity, while simultaneously determining the volume of active and reactive power it can deliver. Because modern utilities increasingly mandate that energy storage installations actively support grid voltage, developers must carefully account for these power factor constraints during the early stages of system design.
Furthermore, a properly designed BESS can successfully achieve the following:
A properly designed BESS can:
- Improve voltage stability
- Reduce transmission losses
- Support renewable energy integration
- Meet utility interconnection requirements
- Provide ancillary services
- Improve power quality
Consequently, BESS Power Factor plays a major role in project performance and profitability.
What Is Power Factor?
Power factor measures how effectively electrical power is converted into useful work.
The formula is:
Power Factor = kW ÷ kVA
A power factor of 1.0 indicates ideal operation. However, most electrical systems operate below unity power factor because they require reactive power.
Generally:
- 1.0 PF = Excellent
- 0.95 PF = Very Good
- 0.90 PF = Acceptable
- Below 0.90 PF = Often penalized by utilities
Understanding Active Power, Reactive Power, and Apparent Power
Before discussing BESS Power Factor in detail, it is important to understand the three types of power found in AC systems.
Active Power (kW)
Active power performs useful work.
Examples include:
- Running motors
- Powering equipment
- Charging batteries
- Operating lighting systems
This is the power customers actually consume.
Reactive Power (kVAR)
Reactive power supports magnetic and electric fields.
For example, motors, transformers, and inductive loads require reactive power to operate correctly.
Although reactive power does not perform useful work directly, it remains essential for grid stability.
Apparent Power (kVA)
Apparent power combines active power and reactive power.
PCS inverters are usually rated in kVA because they must handle both types of power simultaneously.
To learn more about how inverter technology manages these loads, read about the role of the power conversion system (PCS).
How BESS Power Factor Works
Modern Battery Energy Storage Systems utilize advanced PCS platforms to seamlessly manage both active and reactive power. Unlike traditional static capacitor banks, these intelligent inverters respond dynamically to real-time grid fluctuations, allowing them to inject or absorb reactive power within milliseconds. As a result, the PCS automatically modulates its output as grid conditions shift, which ultimately helps maintain long-term voltage stability and superior power quality across the network.
Consequently, the BESS helps maintain voltage stability and power quality.
Reactive Power Injection
When grid voltage falls, the inverter can inject reactive power.
This mode:
- Supports voltage recovery
- Helps weak grids
- Supports inductive loads
Reactive Power Absorption
When grid voltage rises, the inverter can absorb reactive power.
This mode:
- Reduces overvoltage conditions
- Supports solar-rich networks
- Improves voltage regulation
Unity Power Factor Operation
At unity power factor, the inverter delivers only active power.
In this case:
PF = 1.0
No reactive power support is provided.
BESS Power Factor Modes
Modern PCS platforms support several control modes.
Constant BESS Power Factor Mode
In this mode, the inverter maintains a fixed power factor.
Common settings include:
- 1.0 PF
- 0.98 PF
- 0.95 PF
- 0.90 PF
As active power changes across the system, the reactive power automatically adjusts to maintain this target. Therefore, utilities often mandate this specific mode for strict grid compliance purposes.
Volt-VAR Control Mode
Volt-VAR control adjusts reactive power according to voltage levels.
When voltage falls:
- Reactive power increases
When voltage rises:
- Reactive power decreases
As a result, the system dynamically maintains a highly stable voltage profile across the distribution network.
Reactive Power Setpoint Mode
In this mode, operators directly specify reactive power output.
Examples include:
- +500 kVAR
- -1000 kVAR
This approach is common in transmission applications.
Dynamic Grid Support Mode
Advanced systems continuously adjust reactive power based on grid conditions.
These systems support:
- Frequency regulation
- Voltage control
- Black start capability
- Fault ride-through
For advanced inverter operation, explore the differences between BESS grid-forming technology
and standard BESS grid-following (GFL) configurations.
BESS Power Factor and PCS Sizing
PCS sizing is one of the most important considerations in BESS design.
Many developers assume a 1 MW PCS can always deliver 1 MW. However, that is only true at unity power factor.
Consider this example:
PCS Rating = 1 MVA
Required PF = 0.90
Maximum Active Power:
1 MVA × 0.90 = 900 kW
This calculation reveals that 100 kVA of capacity must remain strictly reserved for reactive grid support. Consequently, these stringent utility requirements frequently force engineering teams into oversizing their PCS hardware to avoid bottlenecking active power delivery.
BESS Power Factor Calculation Example
Assume:
- Active Power = 1000 kW
- Reactive Power = 484 kVAR
Apparent Power:
S = √(1000² + 484²)
S = 1111 kVA
Power Factor:
PF = 1000 ÷ 1111
PF = 0.90
Therefore, the Battery Energy Storage System operates at a 0.90 power factor.
Leading vs Lagging BESS Power Factor
Leading BESS Power Factor
A leading power factor occurs when the inverter injects reactive power.
Characteristics include:
- Capacitive behavior
- Voltage support
- Improved weak-grid performance
Lagging BESS Power Factor
A lagging power factor occurs when the inverter absorbs reactive power.
Characteristics include:
- Inductive behavior
- Overvoltage mitigation
- Renewable energy integration support
Because modern electrical grids face highly volatile load profiles, utilizing both of these operating modes dynamically is absolutely essential for stabilizing modern distribution networks.
Utility Requirements for BESS Power Factor
Most utilities require energy storage projects to operate within specific power factor limits.
Common requirements include:
- 0.95 Leading
- 0.95 Lagging
Some transmission operators require:
- 0.90 Leading
- 0.90 Lagging
Therefore, developers must understand local interconnection requirements before selecting PCS equipment.
IEEE 1547 and BESS Power Factor
IEEE 1547 established new requirements for inverter-based resources.
Today, Battery Energy Storage Systems must provide:
- Voltage regulation
- Reactive power support
- Power factor control
- Grid support functions
As renewable penetration grows, these capabilities become increasingly important.You can review the official compliance mandates in the IEEE 1547 standard for interconnection.
Can a BESS Provide Reactive Power Without Discharging?
Yes.
Modern PCS technology can provide reactive power even when the battery is idle.
This is because reactive power primarily uses inverter capacity rather than stored battery energy.
As a result, BESS projects can provide grid services without significant battery cycling.
BESS Power Factor Correction vs Capacitor Banks
Traditional capacitor banks have been used for decades. However, Battery Energy Storage Systems provide greater flexibility.
Benefits of BESS include:
- Fast response times
- Dynamic voltage support
- Energy storage capability
- Frequency regulation
- Multiple revenue streams
Because of these operational advantages, many modern utilities now heavily prefer flexible BESS-based reactive power solutions over static equipment.
To understand how these components integrate into the overall system design, see our breakdown of BESS architecture.
BESS Power Factor in Commercial and Industrial Projects
Commercial facilities often face utility penalties for poor power factor.
A Battery Energy Storage System can help:
- Reduce utility penalties
- Improve power quality
- Support motor starting
- Stabilize voltage
- Reduce demand charges
Consequently, BESS installations often provide value beyond energy storage alone.
Power Factor Challenges in Renewable Energy Projects
Renewable energy projects introduce unique complexities for BESS power factor control, primarily stemming from highly variable generation profiles and weak grid conditions. Because solar and wind plants do not produce static power, local voltage levels frequently fluctuate throughout the day, which can cause the overall power factor to become highly unstable if it is not proactively managed.
Key Challenges in Renewable Energy Systems
1. Voltage Fluctuations
Solar output changes rapidly with moving cloud cover, causing grid voltage to rise and fall frequently throughout the day.
2. Reverse Power Flow
When localized solar generation exceeds immediate demand, power flows backward into the distribution system and creates severe voltage spikes.
3. Weak Grid Conditions
High concentrations of inverter-based resources inherently reduce natural grid inertia, which ultimately degrades overall frequency and voltage stability.
4. Low System Inertia
Inverter-based systems reduce natural grid inertia. As a result, frequency and voltage stability decrease.
Future Trends in BESS Power Factor Management
The future of BESS Power Factor management is moving beyond simple correction.
Emerging technologies include:
- Grid-forming inverters
- Synthetic inertia
- AI-driven optimization
- Dynamic VAR compensation
- Virtual synchronous machines
As grids become more renewable, these technologies will become increasingly important.
Furthermore, future Battery Energy Storage Systems will provide even greater grid support capabilities.
Frequently Asked Questions About BESS Power Factor
What is BESS Power Factor?
BESS Power Factor is the ratio between active power and apparent power delivered by a Battery Energy Storage System.
Why is BESS Power Factor important?
It affects PCS sizing, grid compliance, voltage regulation, and system performance.
Can a BESS improve power factor?
Yes. Modern PCS inverters can inject or absorb reactive power to improve power factor.
Does reactive power consume battery energy?
Reactive power primarily uses inverter capacity. Therefore, it typically causes minimal battery energy consumption.
What power factor is required for utility-scale BESS?
Most utilities require operation between 0.95 leading and 0.95 lagging. However, requirements vary by region.
Conclusion
BESS Power Factor is no longer a secondary design consideration. Instead, it has become a critical requirement for modern Battery Energy Storage Systems.
A properly designed BESS can provide voltage support, reactive power compensation, and grid stabilization. In addition, it can improve renewable energy integration and create new revenue opportunities.
As utility requirements continue to evolve, understanding BESS Power Factor will remain essential for developers, EPC contractors, and energy asset owners.
For this reason, power factor analysis should be included in every Battery Energy Storage System design process.
Understanding BESS Specifications: A Complete Technical Guide for Buyers and Engineers
Introduction to BESS Specifications
Every Battery Energy Storage System (BESS) comes with a datasheet full of numbers. These include kW, kWh, C-rates, efficiency percentages, cycle life figures, and operating temperature ranges. For buyers, developers, and engineers, understanding BESS specifications is essential. In short, it is the difference between choosing a system that performs well for 15 to 20 years and one that underdelivers from day one. If you are new to energy storage, our introductory guide on What Is BESS? Understanding Battery Energy Storage Systems covers the fundamentals first.
This guide walks through every major BESS specification you will find on a datasheet. For each one, we explain what it means, how it is measured, and why it matters for your project. We also show how to compare BESS specifications across suppliers on a like-for-like basis. Whether you are evaluating a containerized utility-scale system or a smaller commercial and industrial (C&I) installation, the same core principles apply throughout this guide.
1. Power Rating vs. Energy Capacity: Core BESS Specifications
The single most important pair of BESS specifications is the distinction between power rating (kW or MW) and energy capacity (kWh or MWh). These two values are independent. Therefore, confusing them is the most common mistake made by first-time buyers. For a deeper look at how these standardized baselines are regulated, you can review the U.S. DOE — Lithium-ion Battery Storage Technical Specifications.
- Power Rating (kW/MW): The maximum rate at which the system can charge or discharge electricity at any instant.
- Energy Capacity (kWh/MWh): The total amount of energy the system can store and deliver over time.
A useful way to think about this is the bathtub analogy. In other words, power rating is the size of the tap (how fast water flows), while energy capacity is the size of the tub (how much water it holds).
The Power-to-Energy Ratio in BESS Specifications
Dividing energy capacity by power rating gives the duration of the system, expressed in hours. For example, a 2 MW / 4 MWh BESS has a 2-hour duration, while a 1 MW / 4 MWh BESS has a 4-hour duration. Both store the same total energy. However, they serve very different applications.
| System Configuration | Duration | Typical Application |
| 1 MW / 1 MWh | 1 hour | Frequency regulation, fast response |
| 1 MW / 2 MWh | 2 hours | Peak shaving, short-duration arbitrage |
| 1 MW / 4 MWh | 4 hours | Solar shifting, demand charge reduction |
| 1 MW / 8 MWh+ | 8+ hours | Overnight backup, island grid applications |
When evaluating a quote, always check both numbers separately. For instance, a supplier advertising a “2 MWh system” without specifying the power rating has not given you a complete set of BESS specifications.
In addition, for a broader overview of how these components fit into a complete system, see our Ultimate Guide to Battery Energy Storage Systems (BESS).
Figure 1: Power rating and energy capacity together determine discharge duration.
2. C-Rate Specifications: Linking Power and Energy Together
Among the key BESS specifications, the C-rate expresses the charge or discharge current relative to the battery’s total capacity. For example, a 1C rate means the battery can be fully charged or discharged in one hour. Similarly, a 0.5C rate means two hours, while a 2C rate means 30 minutes.
C-rate = Power (kW) ÷ Energy Capacity (kWh)
For most stationary BESS applications — such as peak shaving, solar shifting, and frequency regulation — systems are designed in the 0.25C to 1C range. As a result, higher C-rates increase heat generation, accelerate degradation, and typically require more robust thermal management.
- LFP cells: commonly rated for continuous operation up to 1C, with short bursts to 2–3C
- NMC cells: often support slightly higher continuous C-rates but with faster capacity fade at high rates
- High C-rate specifications (>1C) should always be cross-checked against the cell manufacturer’s datasheet and thermal design
Therefore, for a deeper technical breakdown of how C-rate affects performance across battery chemistries, see our guide on Battery C-Rates Explained for BESS Buyers.
3. Round-Trip Efficiency: A Critical BESS Specification
Round-trip efficiency measures how much of the energy used to charge a battery is recovered on discharge. As a result, it is one of the most commercially significant BESS specifications, because it directly affects the revenue and savings a system can generate over its lifetime.
RTE (%) = Energy Discharged ÷ Energy Charged × 100
| Battery Technology | DC Efficiency | AC Efficiency |
| Lithium Iron Phosphate (LFP) | 96–98% | 88–94% |
| Lithium NMC | 95–97% | 87–92% |
| Sodium-ion | 90–94% | 82–90% |
| Flow Batteries | 70–85% | 65–80% |
| Lead-Acid | 80–90% | 70–85% |
Always confirm whether a quoted RTE figure is AC (system-level) or DC (battery-level). AC efficiency includes inverter, transformer, and auxiliary losses. Therefore, it is the figure that matters most for project economics. For the full formula, worked examples, and an interactive calculator, see our dedicated guide on BESS Round Trip Efficiency (RTE).
4. Depth of Discharge and Usable Energy BESS Specifications
Depth of Discharge (DoD) describes how much of the battery’s total (nameplate) capacity is used during normal operation. It is expressed as a percentage. The remaining portion is reserved to protect the battery from degradation. This degradation is caused by very high or very low states of charge. As a result of applying DoD to nameplate capacity, we get Usable Energy — the figure that actually matters for sizing and project economics.
- Nameplate Capacity: The total rated energy storage of the system (e.g., 4,000 kWh)
- Usable Energy: Nameplate capacity × DoD (e.g., 4,000 kWh × 90% = 3,600 kWh usable)
- LFP systems commonly operate at 90–95% DoD due to their flat voltage curve and stable chemistry
- NMC and older lead-acid systems often specify lower DoD limits (50–80%) to preserve cycle life
Usable Energy is also a moving target over the system’s lifetime. Specifically, as the battery degrades, both nameplate capacity and usable energy decline. For this reason, project sizing should be based on usable energy at end-of-life (EOL), not at beginning-of-life (BOL). Otherwise, a system that meets duration requirements in year one may fall short by year ten.
When comparing two quotes with identical nameplate capacity, the system with the higher usable DoD effectively delivers more usable energy. In other words, it delivers more value per dollar, assuming cycle life and warranty terms are comparable.
Figure 2: Nameplate capacity vs. usable capacity under a typical 90% DoD specification.
5. State of Charge and State of Health BESS Specifications
State of Charge (SoC) Specification
SoC is a real-time measurement of how much energy is currently stored in the battery. It is expressed as a percentage of usable capacity. The Battery Management System (BMS) manages SoC continuously. As a result, it sets safe operating windows. For example, cycling may be restricted to a 10–95% SoC band to protect cell longevity.
State of Health (SoH) Specification
SoH indicates how much capacity and performance the battery retains compared to when it was new. It is typically expressed as a percentage. For instance, a battery at 80% SoH can store only 80% of its original rated energy. Most BESS warranties therefore guarantee a minimum SoH — commonly 70–80% — at the end of a stated warranty period, such as 10 years.
SoH is most commonly estimated using DC Internal Resistance (DCIR) measurements. This is because internal resistance increases predictably as cells age. For a detailed explanation of how this works in practice, see our guide on DCIR-Based State of Health Estimation for BESS.
6. Battery Management System (BMS) Specifications
The BMS is the electronic brain of the battery. Therefore, its specifications deserve as much scrutiny as the cells themselves. Key BMS specifications to evaluate include the following:
- Cell-level voltage and temperature monitoring resolution (number of monitored points per module/rack)
- Cell balancing method — passive vs. active balancing, and balancing current capability
- Communication protocol — CAN bus, Modbus TCP/RTU, or proprietary protocols, and compatibility with the EMS
- Protection functions — over-voltage, under-voltage, over-current, over-temperature, and short-circuit protection thresholds
- Insulation resistance monitoring and ground fault detection
- State estimation algorithms for SoC and SoH accuracy (typically ±2–3% for quality systems)
A well-specified BMS should provide granular cell-level data, not just pack-level averages. This granularity is essential for early fault detection. In addition, it ensures accurate SoH tracking over the system’s lifetime.
The BMS is just one subsystem within the overall system design. For a complete picture of how the BMS, PCS, EMS, and thermal systems are arranged together, see our guide on Understanding Energy Storage System BESS Architectures.
7. Power Conversion System (PCS) Specifications
The Power Conversion System (PCS), or inverter, converts DC battery power to AC grid power and back. Therefore, key PCS specifications include the following:
- Rated AC power output (kW/MW) and overload capability (e.g., 110% for 10 minutes)
- Conversion efficiency — typically 96–99% for modern PCS units
- Control mode — grid-following (GFL) or grid-forming (GFM)
- Power factor range and reactive power capability (kVAR)
- Total Harmonic Distortion (THD) — typically below 3% for grid-compliant systems
- Grid code compliance — IEEE 1547, IEC 62116, and relevant regional grid codes
The choice between grid-following and grid-forming PCS specifications has become one of the most consequential decisions in modern BESS procurement. This is especially true for projects with high renewable penetration or islanded operation. For a full comparison, see Grid Forming vs Grid Following BESS: What Is the Difference?, and our complete reference on Power Conversion System (PCS) for BESS.
Figure 3: Major subsystems referenced across a typical BESS specification sheet.
8. Cycle Life and Calendar Life BESS Specifications
Cycle life specifies the number of full charge-discharge cycles a battery can complete. After this number is reached, capacity falls to a defined end-of-life threshold, commonly 80% of original capacity. By contrast, Calendar life specifies the expected service life in years. This is independent of cycling, and is due to chemical aging over time.
Therefore, always request the test conditions behind any cycle life claim. You can also consult the NREL — Grid-Scale Battery Storage FAQs to see how baseline degradation model assumptions impact long-term project planning.
| Battery Chemistry | Typical Cycle Life (to 80% SoH) | Typical Calendar Life |
| LFP (Lithium Iron Phosphate) | 4,000–8,000 cycles | 10–15 years |
| NMC (Lithium Nickel Manganese Cobalt) | 3,000–6,000 cycles | 8–12 years |
| LTO (Lithium Titanate) | 10,000–20,000 cycles | 15–20 years |
Cycle life ratings are always tied to specific test conditions, such as DoD, C-rate, and temperature. For example, a cycle life figure quoted at 100% DoD and 1C will be significantly lower than the same cell’s life at 80% DoD and 0.5C. Therefore, always request the test conditions behind any cycle life claim.
9. Thermal Management BESS Specifications
Thermal management directly affects safety, efficiency, and degradation rate. As a result, specifications to review include the following:
- Cooling method — air cooling, liquid cooling, or hybrid systems
- Operating temperature range — typically -20°C to 55°C for the enclosure, with cell-level targets of 15–35°C
- Temperature uniformity across racks (a key driver of uneven degradation)
- HVAC redundancy (N+1 configurations for utility-scale projects)
- Thermal runaway detection and suppression systems (aerosol, water mist, or other agents)
Liquid cooling has become the default for high-density utility-scale systems, mainly due to better temperature uniformity. Meanwhile, air cooling remains common and cost-effective for smaller C&I systems. For a detailed comparison, see Liquid vs Air Cooling Systems in BESS.
10. Ingress Protection and Operating Condition BESS Specifications
The IP (Ingress Protection) rating describes how well the BESS enclosure resists solid objects, dust, and water. As a result, it is a critical specification for outdoor and harsh-environment installations. The rating is expressed as IP followed by two digits. The first digit indicates protection against solids, such as dust and debris. The second digit indicates protection against liquids, such as moisture, rain, and washdown.
| IP Rating | Solids Protection | Liquids Protection | Typical Application |
| IP54 | Dust-protected (limited ingress) | Splash-protected from any direction | Sheltered or indoor C&I installations |
| IP55 | Dust-protected | Protected against low-pressure water jets | Outdoor C&I, moderate exposure |
| IP65 | Dust-tight | Protected against water jets from any direction | Utility-scale outdoor containers, coastal sites |
| IP67 | Dust-tight | Protected against temporary immersion | Flood-prone or extreme weather sites |
Beyond the enclosure rating, the broader operating conditions specification defines the environmental envelope. Within this envelope, the BESS is warranted to perform. Key items to check include the following:
- Ambient operating temperature range — commonly -20°C to 55°C for the container, narrower (15–35°C) for the cells themselves
- Storage temperature range (for the system when not in active operation)
- Relative humidity range — typically 5–95% non-condensing
- Altitude derating — power output may be derated above 1,000–2,000 m due to reduced cooling performance
- Corrosion protection — coastal or high-salinity sites typically require C3–C5 corrosion class enclosures and coatings
- Wind and snow load ratings for the container or enclosure structure
For projects in tropical, coastal, desert, or high-altitude locations, these BESS specifications should be checked carefully against local climate data. Otherwise, a system rated for temperate climates may require derating, additional cooling capacity, or enhanced corrosion protection to meet its advertised performance and warranty terms.
11. Safety and Compliance BESS Specifications
Safety certifications are non-negotiable BESS specifications. In fact, they should appear on every datasheet:
- UL 9540 / UL 9540A Test Method — fire safety and thermal runaway propagation testing
- IEC 62619 Standard Overview / IEC 63056 — safety requirements for industrial lithium batteries
- UN 38.3 — transportation safety for lithium batteries
- NFPA 855 — installation standards for energy storage systems (US)
- Seismic certification where applicable (e.g., IBC seismic design categories)
Missing certifications are a red flag. This is particularly true for utility interconnection and insurance underwriting, where documentation of UL 9540A test results is increasingly a hard requirement. To streamline your evaluation, you can reference the U.S. DOE — BESS Procurement Checklist to verify required project documentation.
12. BESS Specifications Comparison Checklist
When comparing quotes from multiple suppliers, build a side-by-side table using the BESS specifications below. As a result, this ensures you are comparing systems on equal terms, rather than being swayed by a single headline number.
| Specification | Why It Matters | What to Ask For |
| Power rating (kW/MW) | Determines instantaneous load-serving capability | Continuous and peak (overload) ratings |
| Energy capacity (kWh/MWh) | Determines total stored energy and duration | Nameplate vs. usable capacity, BOL vs. EOL |
| C-rate | Affects degradation and thermal design | Continuous and pulse C-rate limits |
| Round-trip efficiency | Drives lifetime energy losses and revenue | AC vs. DC efficiency, test conditions |
| Depth of Discharge / Usable Energy | Determines real usable energy at BOL and EOL | Recommended cycling band (e.g., 10–95%); usable kWh at year 1 and year 10 |
| Cycle life / Calendar life | Drives augmentation and replacement schedule | Test conditions (DoD, C-rate, temperature) |
| Warranty SoH guarantee | Protects against early degradation | Guaranteed SoH at 10/15/20 years |
| Thermal management | Affects safety and long-term performance | Cooling method, redundancy, operating range |
| IP rating & operating conditions | Determines suitability for site climate and exposure | IP rating, temperature/humidity range, corrosion class, altitude derating |
| PCS efficiency & control mode | Affects conversion losses and grid compatibility | GFL vs. GFM, THD, grid code compliance |
| Safety certifications | Required for permitting, insurance, financing | UL 9540A test reports, IEC 62619 |
Frequently Asked Questions About BESS Specifications
Which BESS specification should a buyer understand first?
Power rating and energy capacity, along with the relationship between them (duration), form the foundation of every other specification. If you get this wrong, the system either cannot meet peak demand or cannot supply energy for long enough. As a result, the other specifications matter much less.
Is a higher round-trip efficiency always better in BESS specifications?
Generally yes, but it should be weighed against cost, chemistry, and application. For example, a 2–3 percentage point difference in AC round-trip efficiency can meaningfully affect lifetime revenue for high-cycling arbitrage projects. However, it matters less for systems used primarily for backup power.
Why do nameplate capacity and usable energy differ in BESS specifications?
The difference comes from the Depth of Discharge (DoD) reserve. This reserve protects the battery from operating at extreme states of charge, which would otherwise accelerate degradation. Therefore, this reserve is intentional and is factored into warranty terms.
How do I verify a supplier’s cycle life specifications?
Request the specific test conditions — DoD, C-rate, and ambient temperature — used to derive the cycle life figure. In addition, ask for third-party cell-level test data where available. Then, compare these conditions to your expected operating profile.
What BESS specifications matter most for island grid or off-grid projects?
For islanded systems, grid-forming PCS capability, black start capability, and energy duration (MWh, not just MW) become critical BESS specifications. By contrast, these may not matter for grid-connected projects. See our Island Grid BESS Engineering Guide for a full sizing methodology.
Conclusion: Why BESS Specifications Matter
BESS specifications are not just numbers on a datasheet. Instead, each one represents a design decision with direct consequences for performance, safety, and lifetime economics. By understanding power rating, energy capacity, C-rate, round-trip efficiency, depth of discharge, State of Health, and the supporting BMS, PCS, thermal, IP rating, and safety specifications, buyers and engineers can compare systems meaningfully. As a result, they can avoid costly mismatches between design intent and real-world performance.
For project-specific guidance on specifying or sizing a BESS for your application, contact the SunLith Energy engineering team.
