What Is Cell Internal Resistance?
Every lithium-ion cell acts like a small resistor. It sits in series with an ideal voltage source. So when current flows, part of the cell’s energy turns into heat. It never reaches the terminals as usable power. This loss is called cell internal resistance, or Cell IR for short.
Cell IR is not one single part. Instead, it is a combined value. It captures several resistive and electrochemical processes happening at once. As a result, Cell IR changes with temperature, state of charge (SOC), and age. In fact, this is also why two test methods, ACIR and DCIR, can report different numbers for the same cell.
Current-collector foils, tabs, weld joints, separator, and electrolyte conductivity — a true, frequency-independent resistance
Instantaneous; measured directly by 1 kHz ACIR
Charge-transfer (activation) polarization
The energy barrier lithium ions must overcome to cross the electrode–electrolyte interface
Milliseconds to seconds into a current pulse
Diffusion (concentration) polarization
Ion movement and concentration gradients inside the solid electrode particles and electrolyte
Seconds to minutes; dominant during sustained load
Ohmic resistance responds right away. Diffusion resistance, by contrast, builds up slowly over time. So the length of the test pulse changes what you actually measure. That, in short, is why a 1 kHz ACIR reading and a multi-second DCIR pulse test rarely agree on the same cell.
Key Takeaways: Cell Internal Resistance at a Glance
Attribute
Summary
Typical unit
Milliohms (mΩ) for large-format cells; the value scales with electrode/tab area, so small cylindrical cells read much higher than large prismatic cells
Large-format LFP prismatic cells (280–314 Ah)
Commonly 0.15–0.5 mΩ ACIR at 1 kHz, 25 °C, ~30% SOC, varying by manufacturer and grade
Primary heat mechanism
Joule heating, P = I²R — heat rises with the square of current
Rises with
Cell aging/cycling, cold temperature, and SOC extremes (very low or very high)
Lowest at
Mid-range SOC (roughly 30–70%) and moderate temperature (roughly 15–35 °C)
Standard measurement methods
ACIR (1 kHz AC), DCIR (DC pulse), EIS (frequency sweep)
Cell IR is the main source of heat inside an operating cell. Heat generation follows Joule’s law: P = I²R. In other words, heat rises with the square of current. So, even a small increase in resistance causes a large rise in thermal load at high C-rates. That is why, in practice, BESS designers usually size cooling systems around worst-case DCIR rather than nameplate ACIR.
2. Cell IR and Round-Trip Efficiency
Every milliohm of resistance turns some charge and discharge energy into waste heat. This happens instead of usable throughput. Consequently, this resistive loss is one of the main contributors to round-trip efficiency. It sits alongside power-conversion and thermal-management losses.
3. Cell IR, Available Power, and Voltage Sag
Under high current draw, resistance causes the terminal voltage to sag below the open-circuit voltage. If resistance is high enough, that sag can push the terminal voltage below an inverter’s cutoff threshold. This can happen even while real charge remains in the cell. In practice, then, it is a nuisance trip that looks like a capacity problem. In fact, it is a resistance problem.
4. Cell IR as a Leading Indicator of Aging
Cell IR, particularly DCIR, tends to rise before rated capacity visibly degrades. As the solid-electrolyte interphase (SEI) layer thickens with cycling, resistance climbs steadily. For this reason, resistance tracking is a standard input to State of Health (SOH) estimation.
What Changes Cell Internal Resistance
Cell IR is not a fixed number on a datasheet. Instead, it is a dynamic value that shifts with operating conditions. So, the factors below explain most of the variation seen in the field.
Factor
Effect on Internal Resistance
Temperature
Resistance falls as temperature rises (faster ion mobility) and climbs sharply below roughly 0 °C; temperature swings of ±10 °C can shift measured resistance by around 20%
State of charge (SOC)
Follows a U-shaped curve — lowest in the mid-SOC range, rising again at very high and especially very low SOC as diffusion polarization increases
Aging / cycle count
Rises steadily over cell life as the SEI layer thickens and active material loses contact; DCIR growth of roughly 50–150% over a cell’s usable life is commonly reported, with LFP tending to show faster proportional resistance growth than NMC
C-rate / pulse duration
Longer, higher-current pulses capture more diffusion polarization, so DCIR measured over several seconds reads higher than a short 1 kHz ACIR snapshot on the same cell
Cell format and design
Large-format prismatic and pouch cells generally report lower resistance per cell than small cylindrical formats, because tab and current-collector area — not just chemistry — governs the ohmic term
Manufacturing quality / grade
Electrode coating uniformity, electrolyte wetting, and weld quality all shift the ohmic term; grading by resistance is a standard incoming-QC step for large-format LFP cells
#image_title
Cell Internal Resistance: LFP vs. Other Chemistries
Lithium iron phosphate (LFP) cells usually start life with low, stable resistance. This is true compared with nickel-based chemistries. In fact, it is one reason LFP has become the default choice for stationary BESS. However, field research on LFP cell aging shows resistance growth speeds up faster, in relative terms, than in NMC cells as cycling progresses. As a result, resistance trending is a more important monitoring parameter for LFP-based systems over a 10–15 year project life. For a full chemistry-level safety comparison, meanwhile, see NMC Battery vs LFP Safety: The Complete BESS Risk Breakdown.
How Cell Internal Resistance Is Measured
Three methods dominate industrial and BESS-integrator practice. Each one, however, answers a slightly different question. So this section compares all three, to help you choose the right one.
Method
Signal Type
What It Captures
Typical Use
ACIR
Small AC current at 1 kHz
Ohmic resistance only — fast, repeatable, standardized
Incoming cell QC, sorting, and grading
DCIR
DC current step or pulse (seconds)
Ohmic + charge-transfer + diffusion polarization together
System-level power modeling, thermal design, real-world performance
EIS
AC sweep from mHz to tens of kHz
Separates all three components individually across frequency
ACIR is fast, taking under a second per cell. It is also highly repeatable. For this reason, it is the standard tool for grading incoming cells at the factory. DCIR, on the other hand, takes longer. But it reflects how a cell actually behaves under a real grid-power pulse. Therefore, it is the preferred input for thermal and power-delivery modeling, as Keysight’s ACIR and DCIR measurement methodology explains. EIS, meanwhile, is the slowest and most instrument-intensive method. So it is reserved for diagnostic work, where engineers need to know exactly which resistance component is degrading.
Cells assembled into a series string should be matched on capacity and open-circuit voltage. However, they should also be matched on Cell IR. A cell with much higher resistance than its neighbors heats faster and sags further under load. It also drifts out of SOC balance faster. This, in turn, speeds up imbalance, even when the BMS works correctly.
Cell IR and Thermal Design Margin
Heat scales with resistance and the square of current. Therefore, thermal designers size cooling capacity around worst-case DCIR at end-of-life, not fresh-cell ACIR. Ignoring resistance growth over the warranty period, unfortunately, is a common cause of undersized thermal margin in early-life system designs.
SOH Estimation and Voltage-Sag Protection
DCIR climbs in a predictable way with age. Because of this, it is one of the standard inputs a BMS uses to estimate State of Health without a full capacity test. Resistance data, in addition, informs voltage-sag-aware cutoff thresholds. In turn, this prevents the BMS from tripping early on a cell that still has usable charge but momentarily high resistance under load.
Frequently Asked Questions
What is a normal cell internal resistance for a LiFePO4 cell?
It depends heavily on cell size. Large-format prismatic LFP cells used in BESS (280–314 Ah) typically measure around 0.15–0.5 mΩ ACIR at 25 °C and roughly 30% SOC. This, of course, varies by manufacturer and grade. Smaller cylindrical LFP cells, by contrast, have much less current-collector and tab area. So they commonly measure in the tens of milliohms.
Does cell internal resistance always increase with age?
In normal operation, yes. Resistance trends upward over a cell’s cycle life as the SEI layer thickens and internal contact degrades. However, the rate varies by chemistry, temperature history, and depth of discharge. Notably, a sudden, sharp resistance spike, rather than a gradual trend, is more likely to signal a fault than normal aging.
Why does Cell IR increase in cold weather?
Low temperature slows lithium-ion movement in the electrolyte. It also slows the electrochemical reactions at the electrode surface. Together, these effects raise both the ohmic and polarization parts of resistance. This is why cold-climate BESS enclosures use insulation and heating elements. As a result, cells stay within their optimal temperature band before drawing high power.
Is lower resistance always better?
Lower resistance generally means less heat, higher efficiency, and more available power. However, resistance is only one design variable among several. Some manufacturers, in fact, accept a modest resistance trade-off for a formulation that prioritizes thermal stability or cycle life. Overall, then, resistance should be evaluated alongside safety margin and cycle-life data, not in isolation.
Is ACIR or DCIR more accurate?
Neither is universally more accurate; they simply answer different questions. ACIR is the more repeatable, standardized snapshot of ohmic resistance. So it works best for comparing cells to each other. DCIR, on the other hand, reflects how the cell behaves under an actual power pulse. This, in turn, makes it the better input for system-level thermal and performance modeling.
The BESS PCS — Power Conversion System — converts DC battery power to AC for loads or the grid. However, what a PCS must do beyond that basic job changes completely depending on the application. Consequently, choosing the wrong PCS type is one of the most expensive mistakes a project team can make.
Consider four scenarios. A factory running peak shaving needs a PCS that switches to backup mode within 20 ms. By contrast, a 200 MW grid project needs sub-200 ms frequency response and reactive power control. An island microgrid, meanwhile, needs the PCS to synthesise the AC voltage reference — because no utility connection exists at all. Finally, a mobile BESS on a trailer needs ruggedness and fast site commissioning above all else.
Therefore, this guide covers each of the four application types in detail. Furthermore, it includes a master comparison table so you can see exactly which PCS functions are mandatory, optional, or not needed for each system type. By the end, you will have a clear framework for evaluating any BESS PCS proposal.
What Is a BESS PCS?
Inside every battery energy storage system, the Power Conversion System converts DC from the battery cells to AC for loads or the grid. During charging, it reverses direction and converts AC back to DC. Crucially, both functions share a single hardware platform — hence the term bidirectional.
As Sunlith’s PCS vs. Inverter guide explains, a PCS includes far more than just a bidirectional inverter. In addition, it handles reactive power control, protection functions, grid synchronisation, and communication with the BMS and EMS. According to NREL’s Power Electronics research, the PCS is one of the most critical components in grid-connected storage — because its control functions directly determine grid stability and service quality.
Moreover, the Bidirectional Inverter vs PCS comparison on this site highlights PCS-specific capabilities — including multi-port DC support, islanding, and black start. None of these are available in a stand-alone inverter. However, which of these capabilities you actually need depends entirely on your application type.
Four Application Types at a Glance
Before diving into each type, here is a quick overview showing how the four BESS application categories differ in their primary PCS priorities.
System Type
Typical Power
Grid Connection
Primary PCS Priority
C&I (Behind-the-Meter)
30 kW – 2 MW
Grid-connected, LV/MV
Peak shaving, backup power, solar integration
Utility Scale (Front-of-Meter)
2 MW – 500 MW+
Grid-connected, MV/HV
FFR, reactive power, grid code compliance
Microgrid / Off-Grid
10 kW – 50 MW
Islanded or weak grid
Grid-forming, black start, load following
Mobile BESS
50 kW – 5 MW
Temporary grid or off-grid
Portability, ruggedness, fast commissioning
Master Comparison Table: BESS PCS Functions by Application Type
Use this table to compare PCS requirements across all four system types. Functions marked ✔ Mandatory must be specified and tested. Those marked ◉ Optional are recommended in certain site conditions. Those marked ✘ Not Required are not applicable to that system type.
PCS Function / Feature
C&I BESS
Utility Scale
Microgrid / Off-Grid
Mobile BESS
Bidirectional AC-DC Conversion
✔ Mandatory
✔ Mandatory
✔ Mandatory
✔ Mandatory
Peak Shaving / Load Shifting
✔ Mandatory
✘ Not Required
✘ Not Required
◉ Optional
Seamless Transfer / UPS Mode
✔ Mandatory
✘ Not Required
✔ Mandatory
✔ Mandatory
Solar PV Integration (AC/DC)
✔ Mandatory
◉ Optional
✔ Mandatory
◉ Optional
Fast Frequency Response (FFR)
✘ Not Required
✔ Mandatory
✘ Not Required
✘ Not Required
Primary Frequency Response (PFR)
✘ Not Required
✔ Mandatory
◉ Optional
✘ Not Required
Reactive Power (Q) Control
◉ Optional
✔ Mandatory
◉ Optional
✘ Not Required
LVRT / HVRT (Ride-Through)
◉ Optional
✔ Mandatory
✘ Not Required
◉ Optional
Grid-Following Mode (GFL)
✔ Mandatory
✔ Mandatory
◉ Optional
✔ Mandatory
Grid-Forming Mode (GFM)
✘ Not Required
◉ Recommended
✔ Critical
◉ Optional
Black Start Capability
✘ Not Required
◉ Optional
✔ Critical
◉ Optional
Droop Control
✘ Not Required
◉ Optional
✔ Critical
◉ Optional
Load Following
✘ Not Required
✘ Not Required
✔ Critical
◉ Optional
Genset Synchronisation
✘ Not Required
✘ Not Required
✔ Critical
✔ Mandatory
Time-of-Use (TOU) Scheduling
✔ Mandatory
✘ Not Required
✘ Not Required
◉ Optional
Multi-Port DC Input (PV + Battery)
◉ Optional
✘ Not Required
✔ Mandatory
◉ Optional
IEC 61850 / SCADA Integration
✘ Not Required
✔ Mandatory
◉ Optional
✘ Not Required
Modbus TCP / EMS Communication
✔ Mandatory
✔ Mandatory
✔ Mandatory
✔ Mandatory
Wide DC Input Voltage Range
✘ Not Required
✘ Not Required
✔ Mandatory
✔ Mandatory
Overload Capability (150–200%)
✘ Not Required
✘ Not Required
✔ Critical
✔ Mandatory
Compact / Trailer-Mount Design
✘ Not Required
✘ Not Required
✘ Not Required
✔ Critical
Rapid Commissioning (< 4 hrs)
✘ Not Required
✘ Not Required
✘ Not Required
✔ Critical
IP55+ Outdoor Enclosure
◉ Optional
✔ Mandatory
✔ Mandatory
✔ Critical
Noise Level < 65 dB(A)
✔ Mandatory
✘ Not Required
◉ Optional
◉ Optional
NERC CIP / Cybersecurity
✘ Not Required
✔ Mandatory
✘ Not Required
✘ Not Required
Legend: ✔ Mandatory = must be specified and verified at FAT | ◉ Optional = recommended for certain conditions | ✘ Not Required = not applicable
Which PCS functions are mandatory, optional, or not needed? This comparison covers all four BESS application types in one quick-reference chart.
C&I BESS PCS Functions and Features
A C&I — Commercial and Industrial — BESS sits behind the utility meter, serving loads inside a building or factory. Unlike utility systems, its PCS does not need to meet grid operator mandates. Instead, it must respond to site-level conditions to deliver financial returns. Specifically, the financial case comes from cutting demand charges, shifting energy to cheap tariff windows, and providing backup power during outages.
In a C&I system, the PCS manages power flow between the utility meter, solar array, and site loads — all simultaneously.
Peak Shaving and Time-of-Use Scheduling
Peak shaving is the most financially important C&I BESS PCS function. Demand charges can account for 30–50% of a commercial electricity bill. Therefore, the PCS charges the battery during low-demand periods and then discharges during peak demand to reduce the demand reading at the meter. Furthermore, time-of-use (TOU) scheduling shifts energy consumption into cheaper tariff windows, reducing energy cost on top of the demand saving.
Both functions require the PCS to support scheduled cycles via the EMS. Additionally, the PCS must respond to dynamic tariff signals from the utility in real time. As the IEA’s Grid-Scale Storage report notes, demand-side flexibility is one of the fastest-growing commercial storage applications globally. Consequently, TOU scheduling is now a baseline requirement in most C&I BESS tenders.
Seamless Transfer and Backup Power
When the grid fails, the C&I BESS PCS must switch to island mode fast enough to protect sensitive equipment. This transfer — called a seamless transfer or UPS mode — must complete within 20 ms for most commercial sites, and within 10 ms for data centres or precision manufacturing. Critically, seamless transfer is not a standard feature on all PCS products, so buyers must list the maximum allowed transfer time explicitly in their specification.
Furthermore, the PCS must be able to supply the full site load in island mode — not just a fraction of it. Therefore, both the transfer time and the island-mode power rating must be tested during factory acceptance testing (FAT). Accepting a vendor declaration without live testing is a common and expensive commissioning mistake.
Solar PV Integration
Most C&I BESS projects include rooftop or carport solar PV, so the PCS must integrate with the solar inverter. Two integration methods are available. AC coupling connects the solar inverter and PCS on the same AC bus — straightforward to retrofit, though energy passes through two conversion stages, which adds losses. DC coupling, by contrast, connects solar panels directly to the BESS DC bus via a DC-DC converter inside the PCS. This cuts conversion losses significantly. However, DC coupling requires the PCS to support multi-port DC input, so buyers must specify this feature explicitly at procurement stage.
C&I PCS Key Specifications
Power Range: 30 kW – 2 MW continuous output
Seamless Transfer: < 20 ms to island mode (< 10 ms for critical loads)
TOU Scheduling: Via EMS with dynamic tariff integration
Solar Integration: AC-coupled or DC-coupled PV input support
Grid Code: IEEE 1547 / UL 1741-SA for LV interconnection
Noise: < 65 dB(A) at 1 m for indoor installations
Communications: Modbus TCP to site EMS or BMS
Utility Scale BESS PCS Functions and Features
A utility-scale BESS connects to the medium or high-voltage grid in front of the meter. Consequently, its PCS must comply with grid operator requirements — legal obligations rather than performance suggestions. These requirements are more precise, more rigorously enforced, and technically more demanding than anything a C&I project faces. Therefore, a utility-scale PCS is a genuinely different machine from a C&I unit, even if the basic conversion function is the same.
At utility scale, multiple PCS units run in parallel, feeding through a step-up transformer to the grid, with full IEC 61850 SCADA integration.
Fast Frequency Response (FFR)
FFR is the most commercially valuable utility-scale PCS function. When grid frequency drops — for example, because a large generator trips — the PCS must detect the deviation and ramp power within milliseconds. Most grid operators set the response window at 200 ms. However, some markets require 150 ms, and AEMO in Australia now tenders for sub-100 ms response.
To achieve these targets, the PCS control loop must use a dedicated high-speed frequency measurement algorithm — standard power quality meters are far too slow. Furthermore, the EMS-to-PCS communication link must have a round-trip latency below 50 ms, otherwise the communication delay consumes the available response window before the PCS even starts ramping. According to the US Department of Energy Energy Storage Grand Challenge, fast-responding battery storage is central to grid stability as thermal generation retires. Consequently, FFR is now a baseline commercial requirement for most utility-scale BESS contracts.
Reactive Power Control
Utility-scale BESS must provide reactive power — VAR — support to the grid. Under IEEE 1547-2018 in North America and EN 50549 in Europe, this function is mandatory. Specifically, the PCS must inject or absorb reactive power across all four quadrants of the PQ operating plane.
One critical detail: the PCS must deliver Q control even when the battery is at minimum state of charge — a requirement known as Q-at-night capability. Notably, some PCS products restrict reactive power output when the battery is in standby. Therefore, buyers must test Q-at-zero-kW operation during commissioning rather than rely on a datasheet claim alone.
Voltage Ride-Through: LVRT and HVRT
Grid codes require BESS to stay connected during voltage disturbances. LVRT — Low Voltage Ride-Through — means the PCS holds its grid connection during faults and injects reactive current to support the network voltage. According to ENTSO-E’s Network Code on Requirements for Generators, LVRT capability must extend down to 15% of nominal voltage for up to 625 ms. HVRT works in reverse — the PCS stays connected and absorbs reactive power during grid over-voltages.
Together, LVRT and HVRT define the voltage operating envelope of the PCS. Buyers must obtain the full voltage-time profile from the vendor and then verify it against the grid code at their specific point of interconnection. Requirements vary by country and operator, so this step cannot be skipped.
Grid-Following vs Grid-Forming at Utility Scale
Most utility-scale PCS units operate in grid-following (GFL) mode — synchronising to the grid via a Phase-Locked Loop and injecting current according to EMS setpoints. GFL works well on strong grids. However, as renewable penetration increases, grids are weakening and GFM capability is becoming more important.
Grid-forming (GFM) mode provides better fault current support and voltage stability on weak grids. As Sunlith’s Microgrid BESS technical guide notes, Australia already had over 1,070 MW of grid-forming BESS deployed by mid-2025. Therefore, GFM is mainstream technology, and buyers of utility-scale systems in high-renewable regions should evaluate it seriously.
Utility Scale PCS Key Specifications
FFR Latency: < 150–200 ms from event to ramp start
Q Control: Four-quadrant reactive power at all SOC levels including zero kW
LVRT / HVRT: Must match grid code voltage-time profile at PCC
DC Voltage: 1,000 V or 1,500 V DC to reduce cabling losses at scale
Communications: IEC 61850 GOOSE for deterministic low-latency dispatch
Cybersecurity: NERC CIP (North America) or IEC 62351 encryption
Certifications: IEEE 1547, EN 50549, AS/NZS 4777, UL 1741-SA — market-dependent
Microgrid and Off-Grid BESS PCS Functions and Features
Among all four application types, an off-grid or islanded microgrid BESS places the most demanding requirements on the PCS. No utility grid exists to act as a voltage and frequency reference. Consequently, the PCS must create that reference entirely from battery power. This changes nearly everything about how the system operates — from the control architecture down to the protection coordination.
In an off-grid microgrid, the BESS PCS synthesises the local AC voltage and frequency from scratch — with no utility connection to lean on.
Grid-Forming Mode: The Non-Negotiable Requirement
Grid-forming (GFM) mode is the single most important requirement for any off-grid BESS PCS. Without it, the system simply cannot operate in an islanded environment. In GFM mode, the PCS synthesises the local AC voltage and frequency directly from battery DC power. All other devices in the microgrid — solar inverters, gensets, loads — then lock onto the PCS output as their grid reference.
This role is fundamentally different from a grid-connected system, where the PCS follows an existing grid reference. Consequently, GFM requires a completely different control architecture — it is not simply a software switch added to a grid-following PCS. Therefore, buyers must verify GFM certification through independent testing, not just through a vendor’s datasheet claim.
Black Start
Black start is the ability to energise a completely dead AC network from battery power alone, starting from zero volts. This function is essential for off-grid sites and increasingly mandatory for grid-scale microgrid contracts. However, it is also one of the most commonly missing features in PCS datasheets.
Specifically, black start requires the PCS to ramp up the AC bus voltage gradually — from zero — then connect loads in sequence as the voltage stabilises. Furthermore, close coordination with the protection scheme is needed to prevent fault currents during energisation. Therefore, black start must be tested and verified during commissioning. Listing it in a specification without on-site validation is not sufficient.
Droop Control and Load Following
In an islanded system, loads shift constantly and there is no external grid to absorb imbalances. Therefore, the PCS must continuously match its output to the instantaneous load demand — a function called load following. Droop control is closely related: it allows the PCS to share load automatically with a genset or another BESS unit by adjusting output in proportion to frequency or voltage deviations, without waiting for a central EMS command.
Consequently, droop control improves microgrid stability and allows multi-source systems to operate reliably even when the EMS communication link is temporarily lost. For these reasons, droop control and load following are both marked as critical requirements in the master comparison table above.
Genset Synchronisation
Many microgrids include a diesel or gas genset as a backup source. Before the interconnecting breaker closes, the BESS PCS must synchronise its output voltage with the genset — matching frequency, phase, and amplitude. Without proper synchronisation, inrush currents and voltage transients can damage both the PCS and the genset. Moreover, the PCS must manage transitions smoothly in both directions: when the genset starts up and when it shuts down.
Microgrid PCS Key Specifications
Grid-Forming Mode: Mandatory — PCS must synthesise local AC voltage and frequency
Black Start: Must be tested and certified on-site, not just listed in a datasheet
Droop Control: Autonomous load sharing without relying on EMS command
Load Following: Fast response to sudden load steps — no external grid buffer
Genset Sync: Smooth breaker closure with diesel or gas generators
Seamless Transfer: < 10 ms for critical load protection in island mode
Overload: 150–200% of rated current for 10 s to handle motor start loads
DC Voltage Range: Wide window to handle SOC swings without derating in island mode
Mobile BESS PCS Functions and Features
Mobile BESS units are trailer-mounted or containerised storage systems that travel between sites. Common applications include event venues, construction sites, disaster relief operations, emergency grid backup, and temporary peak demand support. Unlike fixed installations, however, mobile BESS PCS units must prioritise three things above all else: portability, ruggedness, and speed of deployment.
Mobile BESS units must reach full power output within hours of arriving on site — which demands a compact, rugged PCS with fast commissioning and multi-source compatibility.
Compact Design and High Power Density
Above all, a mobile BESS PCS must fit inside a trailer or small container. For this reason, power density is the primary design constraint — and liquid-cooled PCS units are preferred above 200 kW because they deliver more power per cubic metre and generate significantly less noise than air-cooled equivalents. Additionally, the PCS must tolerate vibration and shock loads during road transport, which standard stationary units are simply not designed to handle.
Rapid Site Commissioning
Speed of deployment is what sets mobile BESS apart from every other application type. A mobile BESS must reach full power output within a few hours of arriving on site — not the multi-week integration process typical of a permanent installation. Therefore, the PCS must support plug-and-play commissioning: pre-configured protection settings, automatic detection of local grid frequency (50 Hz or 60 Hz), and simple plug-in connections for power and communications.
Furthermore, the PCS must support multiple connection scenarios out of the box — temporary grid connection, islanded operation with a genset, or fully standalone off-grid mode. Consequently, mobile PCS units must include both grid-following and grid-forming capabilities as standard. Waiting for a firmware upgrade or specialist configuration on-site defeats the purpose of a mobile system.
Genset Integration and Overload Capability
Mobile BESS units frequently operate alongside diesel generators. Therefore, the PCS must synchronise with the genset smoothly and manage load transfers in both directions — when the engine starts and when it shuts down. Additionally, overload capability is a hard requirement for mobile deployments. Motor start loads on construction sites or industrial events can draw 150–200% of steady-state current for several seconds. A PCS that trips under this load makes itself useless.
Rugged Enclosure and Wide Temperature Range
Mobile BESS units deploy in unpredictable environments — muddy construction sites, outdoor festivals, flood-affected areas, and extreme climates. Consequently, the PCS must carry an IP55 or higher enclosure rating to resist dust and water ingress. Furthermore, the operating temperature window must extend well beyond typical stationary limits — many mobile PCS products are rated for operation between -25°C and +55°C and storage down to -40°C.
Mobile BESS PCS Key Specifications
Design: Compact, high power density; liquid cooling preferred above 200 kW
Transport Tolerance: Rated for road vibration and shock per IEC 60068-2
Commissioning Time: < 4 hours from arrival to full power output
Grid Frequency Auto-Detect: 50 Hz / 60 Hz without manual reconfiguration
Operating Modes: Grid-following and grid-forming built in as standard
Genset Sync: Smooth synchronisation and load transfer in both directions
Overload: 150–200% rated current for 10 s minimum
Enclosure: IP55 minimum; IP65 for harsh environments
Temperature Range: -25°C to +55°C operating; -40°C storage
PCS Functions Common to All Four Application Types
While each application type has unique demands, several PCS functions are universal. These baseline capabilities define what a PCS is — regardless of where it is installed or what grid code applies.
Bidirectional DC-AC Power Conversion
Every BESS PCS converts DC to AC during discharge and AC to DC during charging. Modern units reach peak conversion efficiency of 96% to 98.5%. However, round-trip efficiency matters more than peak figures. As Sunlith’s energy storage losses guide explains, power conversion is one of the four main loss categories in any BESS. Even a 1% PCS efficiency improvement compounds significantly across a 15-year project life — so it is worth specifying carefully.
BMS and EMS Communication
Two control layers interface with the PCS. Working from the bottom up: the Battery Management System (BMS) sends real-time charge and discharge limits — maximum current, minimum cell voltage, and thermal boundaries. These limits must always be respected by the PCS, including during high-priority grid response events. Above the BMS sits the Energy Management System (EMS), which sends power setpoints and operating mode commands to the PCS.
As Sunlith’s BESS communication protocols guide explains, the BMS transmits SOC, SOH, cell voltages, temperatures, current, and fault codes to enable safe and optimised dispatch. Consequently, the PCS-BMS-EMS communication stack is not merely a data link — it is a safety-critical control interface that must be validated end-to-end before commissioning.
DC-Side Battery Protection
Regardless of application type, all BESS PCS units must protect the DC bus from electrical faults. Key protection functions include over-current limiting, DC bus voltage regulation, pre-charge control to prevent capacitor inrush, earth fault detection, and short-circuit protection. Together, these functions protect the battery cells and reduce the risk of thermal runaway events. Therefore, buyers should always request the full DC protection relay specification — not just the AC circuit breaker ratings.
Key Technical Features to Specify in Any BESS PCS
Regardless of application type, the parameters below form a baseline specification checklist for any BESS PCS request for proposal (RFP).
Feature
Typical Range
Notes
Rated Power
30 kW – 10 MW per unit
Confirm continuous rating — not peak or 30-second duty
DC Voltage Range
600 V – 1,500 V DC
Must cover full battery SOC range without derating
AC Output Voltage
400 V / 690 V / 11 kV
MV output reduces transformer count at utility scale
Peak Efficiency
97% – 98.5%
Also request weighted average at your load profile
Power Factor Range
0.8 lead – 0.8 lag
Confirm Q capability at zero kW active output
FFR Response Time
< 100 – 200 ms
Verify against grid code at interconnection point
Grid-Forming Mode
Mandatory (microgrid)
Optional at utility scale; essential for off-grid
Seamless Transfer
< 20 ms C&I; < 10 ms off-grid
Test at FAT — do not accept a datasheet figure only
Communications
Modbus TCP / IEC 61850
IEC 61850 GOOSE for FFR; Modbus TCP for C&I dispatch
Certifications
IEEE 1547, UL 1741-SA, EN 50549
Request current certificates with expiry dates
Cooling
Forced air / Liquid-cooled
Liquid cooling preferred above 500 kW
Enclosure Rating
IP54 indoor; IP55+ outdoor
IP65 for mobile or harsh-environment sites
Warranty
5 – 10 years
Align with BESS project life of 15–20 years minimum
Relevant Standards for BESS PCS
Standards differ by region and application type. Always verify that certifications are current, geographically valid, and cover the specific grid code version in force at your interconnection point. Furthermore, check expiry dates — expired certifications are a common and avoidable cause of project delays.
Use this checklist when writing a BESS PCS request for proposal (RFP). Start with the application type — it determines which items below are mandatory.
Define application type: C&I, utility, microgrid, or mobile. This single decision shapes every other requirement.
Rated Power: Specify continuous AC output (kW) and DC input separately — not peak ratings.
DC Voltage Window: Confirm the PCS operates across the full battery SOC range without derating at either end.
Efficiency Curve: Request weighted average efficiency at your typical daily load profile, not only the nameplate peak value.
Grid-Forming Mode: Mandatory for microgrid. Specify if needed for weak-grid or mobile deployments.
Seamless Transfer Time: < 20 ms for C&I; < 10 ms for off-grid critical loads. Test at FAT without exception.
FFR Response Time: Define maximum latency from EMS setpoint to output ramp start — applicable to utility scale only.
Reactive Power: Specify power factor range. Confirm Q control works at zero kW active power output.
Black Start: Specify explicitly if required — not included in all PCS products. Test on-site.
Overload Capability: 150–200% rated current for 10 s — mandatory for microgrid and mobile types.
Commissioning Time: < 4 hours from arrival to full output — applicable to mobile BESS deployments.
Communications: Specify Modbus TCP, IEC 61850 GOOSE, or CAN Bus as required for your application.
Certifications: List required standards by jurisdiction. Request current certificates with expiry dates.
Enclosure Rating: IP54 for indoor; IP55+ for outdoor; IP65 for mobile or harsh-environment sites.
Inside a battery energy storage system, the Power Conversion System converts DC electricity from the battery to AC for loads or the grid. During charging, it reverses and converts AC to DC. Beyond this basic function, it also controls reactive power, responds to grid frequency and voltage events, and protects the battery. In off-grid systems, furthermore, it synthesises the local AC voltage and frequency reference from battery power alone.
Are C&I and utility scale BESS PCS units the same product?
No — they are significantly different. A C&I PCS focuses on peak shaving, load shifting, solar integration, and fast backup transfer. A utility-scale PCS, by contrast, must meet strict grid code requirements for FFR, reactive power control, and voltage ride-through. Consequently, you cannot simply scale up a C&I PCS for a utility project — the control architecture, communications, and certification requirements are fundamentally different.
Does an off-grid microgrid need a different PCS?
Yes, absolutely. A microgrid BESS PCS must operate in grid-forming mode — synthesising the local AC voltage and frequency without any external grid connection. In addition, it must support black start, droop control, load following, and genset synchronisation. None of these are required in most grid-connected applications. Therefore, always specify off-grid requirements explicitly in procurement documents — do not assume they are included.
What makes a mobile BESS PCS different from a fixed installation?
A mobile BESS PCS must be compact, transport-rated, and fast to commission on arrival. It must auto-detect local grid frequency and support both grid-following and grid-forming modes as standard. Furthermore, it must tolerate road vibration, wide temperature ranges, and variable site conditions that a stationary unit would never encounter. Consequently, mobile PCS units are a distinct product category — not simply a stationary PCS mounted on a trailer.
What efficiency should I expect from a BESS PCS?
Modern BESS PCS units reach peak efficiency of 97% to 98.5%. However, weighted average efficiency across a typical daily profile runs 1–2% lower than the peak figure. Therefore, always request the weighted average efficiency for your specific load profile — the nameplate peak value alone is not a reliable basis for energy yield calculations.
Which standards does a BESS PCS need?
Certification requirements depend on your project location and application type. In the US, IEEE 1547-2018 and UL 1741-SA are typically required. Meanwhile, Europe relies on the EN 50549 standard. For projects in Australia, AS/NZS 4777 is mandatory. Additionally, utility-scale projects in North America must meet NERC CIP cybersecurity requirements. See Sunlith’s Worldwide PCS Certification Guide for full details by country.
How Sunlith Energy Approaches BESS PCS Selection
At Sunlith Energy, we treat the PCS as one of the most important decisions in any energy storage project. Every engagement begins with an application analysis that defines the required operating modes, protection settings, and grid code obligations for that specific site. Furthermore, we verify certifications independently — rather than accepting vendor declarations without review.
Our team has evaluated PCS products across C&I, utility, microgrid, and mobile deployments. Importantly, we carry out PCS-EMS-BMS integration testing before any system leaves the factory. This ensures that communication protocols, protection coordination, and control modes are all validated end-to-end. Consequently, our clients avoid the costly commissioning surprises that arise when integration is left to the site team.
Contact the Sunlith Energy team if your project needs a BESS PCS specification review, vendor proposal evaluation, or commissioning support.
Selecting the right BESS PCS comes down to knowing your application. A C&I system needs peak shaving, backup transfer, and solar integration. A utility-scale project demands FFR, reactive power control, and full grid code compliance. An off-grid microgrid requires grid-forming mode, black start, and droop control. A mobile BESS, moreover, needs ruggedness, fast commissioning, and multi-mode operation out of the box. Therefore, there is no single PCS specification that fits all four scenarios — and trying to use one is a recipe for expensive rework.
Consequently, the first and most important step is to define your application type precisely. From there, use the master comparison table and specification checklists in this guide to build your PCS requirements. Furthermore, involve your PCS vendor early, verify certifications independently, and test all critical functions — especially seamless transfer, black start, and FFR — during factory acceptance testing before the system ships.
Sunlith Energy works with EPCs, project developers, and asset owners across all four BESS application types. Contact our team to discuss PCS requirements for your next project.
Your electricity bill has two main parts. One charges you for how much energy you use. The other — the demand charge — charges you for how fast you use it.
In fact, this fee can make up 30–70% of a commercial electricity bill. However, most business owners have never had it explained clearly.
In this guide, you will learn what a demand charge is, why it is so expensive, and how to reduce it — in India and globally.
What Is a Demand Charge?
A demand charge is a monthly fee based on the highest amount of power your business draws at any single point during the billing period.
Utilities measure your power use every 15 minutes. The single highest reading — in kilowatts (kW) — sets this fee for the whole month.
Think of it this way. Imagine a highway toll based on your fastest speed — not total distance. Even if you hit that speed just once, you pay the premium for the whole trip.
That means cutting total energy use will not lower this cost alone. You need to control your power peaks.
Energy Charge vs Demand Charge
Most electricity bills have two main cost components. It helps to understand both.
Energy Charge
Demand Charge
Measures
Total kWh used over the month
Highest kW in any 15-min window
Analogy
Total distance driven
Fastest speed driven
Bill share
30–60%
30–70%
How to cut
Use less electricity overall
Flatten or avoid power spikes
As a result, these two costs need very different solutions. Switching off lights helps with energy charges. However, to cut the peak-based fee, you need to manage power spikes directly.
A single 15-minute spike sets your demand charge for the entire month.
Why Is a Demand Charge So Expensive?
Utilities apply a demand charge to recover the cost of grid infrastructure. They must build enough capacity to serve your worst-case power need — even if that peak happens just once.
For example, if your factory peaks at 800 kW for 15 minutes, the utility must maintain cables, transformers, and substations capable of delivering 800 kW. That infrastructure is expensive.
Because of this, you pay for that capacity all month — even if you never spike again. One bad moment on one day sets your cost for 30 days.
A Simple Cost Example
Global Example A factory peaks at 600 kW. The utility charges $12/kW per month. Monthly fee = 600 x $12 = $7,200. If the factory had kept its peak to 400 kW, it would save $2,400 every single month.
India Example — Maharashtra (MSEDCL) A factory has a contracted Maximum Demand of 500 kVA. The DISCOM charges Rs 350/kVA/month. Monthly MD charge = 500 x Rs 350 = Rs 1,75,000. If the factory exceeds 500 kVA even once, a penalty of 1.5x to 2x applies on the excess.
How Demand Charges Work in India
In India, this fee appears as a Maximum Demand (MD) charge on bills from state DISCOMs. The rules are similar to global practice. However, the Indian tariff system has some unique features businesses should know.
Contracted MD and the Minimum Billing Rule
When you apply for a commercial or industrial electricity connection, you declare a contracted MD. This is the peak power level you expect to draw.
Importantly, many DISCOMs charge you for the higher of your actual peak or 75–85% of your contracted MD. As a result, businesses often pay for capacity they never use.
Penalties for Exceeding Contracted MD
If your actual peak goes above your contracted MD, a penalty applies. It is typically 1.5x to 2x the standard MD rate for the excess amount.
In addition, many states now have Time of Day (ToD) tariffs. These apply higher rates during peak grid hours — usually 6 PM to 10 PM. So a spike during that window costs even more.
State Rates Vary Across India Maharashtra (MSEDCL) charges in Rs/kVA/month with ToD multipliers. Gujarat (UGVCL/DGVCL) has separate peak and off-peak rates. Tamil Nadu (TANGEDCO) uses seasonal adjustments. Always check your state DISCOM’s latest tariff order for current figures.
Which Industries Are Affected Most?
In fact, this cost affects almost all commercial and industrial users. However, some sectors feel the impact more than others.
Industry
Typical Share of Bill
Main Cause of Peaks
Data Centers
50–70%
Sudden cooling surges and continuous high loads
Manufacturing
40–60%
Heavy machinery startups during shift changes
Hospitals
30–50%
24/7 operations with imaging and HVAC spikes
Cold Storage
35–55%
Compressor cycles causing frequent short peaks
Retail / Malls
25–40%
HVAC and lighting peaks during business hours
Offices
20–35%
Morning startup and afternoon cooling peaks
Therefore, businesses in these sectors have the most to gain from actively managing their peak power use.
How to Reduce Demand Charges for Your Business
There are three proven ways to reduce this cost. Most businesses get the best results by combining two or more of them.
1. Peak Shaving with Battery Storage
Peak shaving is the most effective way to cut a demand charge. A Battery Energy Storage System (BESS) charges during quiet periods. It then discharges automatically during power peaks. As a result, it flattens your load curve and lowers your recorded peak kW.
A well-sized BESS can reduce this fee by 20–40%. Payback periods are typically 4–6 years.
How a BESS system flattens peak demand and reduces your monthly demand charge.
2. Load Shifting to Off-Peak Hours
Load shifting means moving energy-heavy tasks — like production runs or EV charging — to off-peak hours. This avoids creating spikes during the window that sets your monthly peak.
However, load shifting alone is less powerful than battery storage. It works best as a low-cost first step, or combined with BESS.
Solar panels alone have limited impact on this fee. Peaks often occur in early morning or evening — outside solar generation hours.
On the other hand, solar combined with a BESS works very well. The battery stores solar energy during the day. It then discharges during peak windows at any time of day.
Q: Is a demand charge the same as an energy charge?
A: No. An energy charge is based on total kWh consumed. A demand charge is based on your highest kW in any 15-minute window. You could use little energy overall but still face a high fee if you had one large power spike.
Q: Can a small business be affected by this fee?
A: Yes. Many utilities — including Indian DISCOMs — apply it to businesses above a threshold, sometimes as low as 10–20 kW. Check your bill or tariff category to confirm whether MD charges apply to your connection.
Q: How is the demand charge calculated in India?
A: In India, DISCOMs apply MD charges in Rs/kVA or Rs/kW per month. If your actual peak exceeds your contracted MD, a penalty of 1.5x to 2x the MD rate typically applies on the excess. Rates vary by state and tariff category.
Q: What is the fastest way to reduce this cost?
A: The fastest and most effective method is peak shaving using a BESS. It discharges during peak windows, flattening your load curve automatically. Combined with solar and load shifting, most C&I businesses can save 30–50% on this fee.
Q: Do solar panels help reduce a demand charge?
A: Solar panels alone have limited impact because peaks often fall outside solar hours. However, solar combined with a BESS is very effective. The battery stores solar energy and releases it during peaks — at any time of day.
Sources and Further Reading
The data and benchmarks in this article are drawn from:
A demand charge is one of the biggest hidden costs in any commercial electricity bill. One 15-minute spike can set your fee for the entire month — in India and globally.
However, this cost is manageable. With battery storage, load shifting, and solar, most businesses can cut it significantly.
The first step is understanding what drives the spike. The second is acting on it.
Sunlith Energy installs custom C&I battery storage systems across India to help businesses cut demand charges.
Ready to Cut Your Demand Charges? Sunlith Energy designs custom C&I battery storage systems for businesses across India. Get a free demand charge analysis and find out exactly how much your facility could save. Talk to an expert today.
Peak Shaving vs Load Shifting: Electricity demand is becoming increasingly dynamic as renewable energy adoption grows. Because of these changing consumption patterns, businesses and utilities must manage energy profiles efficiently to avoid high electricity costs.
Businesses and utilities must manage demand efficiently to avoid high electricity costs and maintain grid stability.
Two important strategies used in energy management are peak shaving and load shifting.
Understanding the difference between peak shaving vs load shifting helps organizations optimize energy use, reduce electricity costs, and maximize the value of battery energy storage systems.
Peak Shaving vs Load Shifting (Quick Comparison)
Peak shaving and load shifting are energy management strategies used to reduce electricity costs. Peak shaving lowers electricity demand during peak hours by using stored energy or reducing loads. Load shifting moves energy consumption to off-peak periods when electricity prices are lower. Many businesses combine both strategies using battery energy storage systems.
Strategy
Main Goal
Peak Shaving
Reduce demand spikes
Load Shifting
Move demand to cheaper hours
What Is Peak Shaving?
Peak shaving using battery energy storage to reduce electricity demand spikes.
Utilities often charge commercial customers based on their maximum demand (kW) during a billing cycle. These are known as demand charges.
According to the U.S. Department of Energy, demand charges can represent a significant portion of industrial electricity bills.
Peak shaving reduces this maximum demand by supplying energy from alternative sources.
Common Peak Shaving Methods
Organizations use several technologies to perform peak shaving:
Battery Energy Storage Systems
On-site backup generators
Smart energy management systems
Temporary load reduction strategies
For example, a manufacturing facility may use stored battery energy between 4 PM and 8 PM, when electricity demand is highest.
Instead of drawing power from the grid, the battery supplies electricity to the facility.
This reduces peak demand and lowers electricity costs.
What Is Load Shifting?
Load shifting moves electricity consumption to lower-cost off-peak periods.
Load shifting is an energy management strategy that moves electricity consumption from high-price periods to lower-price periods.
Unlike peak shaving, load shifting does not necessarily reduce total energy consumption. Instead, it changes when electricity is used.
Time-of-use electricity pricing encourages this behavior by charging different rates depending on the time of day.
Energy market analysis from the International Energy Agency shows that flexible demand strategies like load shifting play an important role in modern electricity systems.
Examples of Load Shifting
Common load shifting strategies include:
Charging electric vehicles overnight
Running industrial processes during off-peak hours
Pre-cooling commercial buildings early in the day
Scheduling data processing tasks overnight
By shifting energy usage to cheaper periods, businesses can significantly reduce electricity costs.
📊 Peak Shaving vs Load Shifting Calculator
Estimate potential monthly utility tariff savings for both commercial battery applications.
Peak shaving and load shifting are essential tools for modern energy management.
Peak shaving reduces electricity demand during high-load periods to avoid costly demand charges.
Load shifting moves electricity consumption to lower-cost periods.
Together, these strategies help businesses:
Reduce electricity costs
Improve grid stability
Optimize renewable energy usage
Increase energy efficiency
With the growing adoption of battery energy storage systems, organizations can implement both strategies effectively and create more resilient energy systems.
Peak Shaving vs Load Shifting FAQ
What is peak shaving in energy management?
Peak shaving is the process of reducing electricity demand during the highest consumption periods. Businesses typically use battery energy storage systems or on-site generation to supply electricity during peak hours and avoid demand charges.
What is load shifting in electricity systems?
Load shifting is an energy management strategy that moves electricity consumption from high-cost peak periods to lower-cost off-peak hours.
What is the difference between peak shaving and load shifting?
Peak shaving reduces electricity demand during peak hours, while load shifting changes when electricity is consumed to take advantage of lower electricity prices.
Can battery energy storage systems perform both peak shaving and load shifting?
Yes. Battery energy storage systems can charge during off-peak periods and discharge during peak demand, enabling both strategies.
Why do utilities charge demand charges?
Utilities charge demand charges to encourage customers to reduce peak electricity demand and maintain grid stability.
Peak shaving with a battery energy storage system typically cuts demand charges by 20–40%. That range depends on two things: your load profile, and your local utility’s tariff structure. So what does this look like in dollars? For a commercial site paying $15/kW in demand charges with a 500 kW peak, that’s often $1,500–$3,000 in monthly savings. In other words, a mid-size BESS can pay for itself in 4–7 years, even before you add other revenue streams on top.
This guide walks through exactly how those savings are calculated. First, we’ll cover what drives the range up or down. Then, we’ll work through a real example you can adapt to your own utility bill. If you’re new to the concept itself, start with our full peak shaving vs. load shifting guide — this page focuses specifically on the dollars.
How Demand Charges Work
Most commercial and industrial tariffs bill two separate components. First, energy charges (¢/kWh) are based on total consumption. Second, demand charges ($/kW) are based on your single highest usage spike in the billing period, usually measured over a 15- or 30-minute window. As a result, demand charges can account for 30–70% of a commercial electric bill. Unlike energy charges, one short spike sets the rate for the entire month, regardless of how briefly it occurred. For a deeper look at how utilities structure these rates, the EIA’s guide to electricity pricing factors is a useful primer. For the full mechanics of how demand is measured and billed for BESS applications specifically, see our complete peak shaving guide.
How Much Can Peak Shaving Actually Save?
Savings scale with two factors: how “peaky” your load is, and how aggressive your local demand charge rate is. Specifically, sites with a high peak-to-average ratio see the largest percentage reduction. Why? Because a BESS only needs to shave the top of the curve, not carry the full load.
Facility Type
Typical Peak-to-Average Ratio
Typical Demand Charge Reduction
Retail / light commercial
1.3 – 1.6x
15–25%
Manufacturing (batch processes)
1.8 – 2.5x
30–45%
Data center / server room
1.1 – 1.3x
10–15%
EV charging depot
2.5 – 4x+
40–60%
Cold storage / refrigeration
1.6 – 2.2x
25–35%
Manufacturing and EV charging sites tend to see the largest savings. That’s because their load spikes are sharp, short, and predictable — exactly the profile a BESS handles best. Data centers, on the other hand, run a comparatively flat load around the clock. Consequently, there’s simply less peak to shave.
Worked Example: Calculating Your Peak Shaving Savings
Here’s how that plays out for a manufacturing site on a typical tariff. First, the site starts with a 620 kW peak demand and a $14.50/kW demand charge rate. Next, a 200 kW BESS shaves the peak down to 420 kW. As a result, the monthly savings come to 200 kW × $14.50 = $2,900. Over a year, that’s $34,800 in demand charge savings alone.
It’s worth noting this example doesn’t include energy arbitrage — charging during off-peak rates and discharging during on-peak ones. Nor does it include any grid services revenue. Both stack on top of pure demand charge savings; see our energy arbitrage guide for that math.
Payback Period and ROI
Payback period depends on three things: system cost per kWh, financing structure, and how many revenue streams the BESS is stacking. As a rough guide, here’s what demand-charge-only paybacks typically look like:
BESS Size
Typical Installed Cost
Monthly Savings (demand only)
Simple Payback
100 kWh / 50 kW
$35,000 – $50,000
$700 – $1,000
4 – 6 years
400 kWh / 200 kW
$140,000 – $190,000
$2,500 – $3,200
4.5 – 6.5 years
1 MWh / 500 kW
$320,000 – $420,000
$6,000 – $8,500
4 – 5.5 years
Installed cost ranges reflect LFP BESS pricing; see our BESS cost per kWh breakdown for the full cost model.
Layering in energy arbitrage or frequency regulation typically shortens payback by 20–35%, compared to demand-charge-only savings. For the full revenue-stacking model, see our C&I BESS economics guide.
What Affects Your Specific Savings
Utility tariff structure. Flat demand rates and time-of-use (TOU) demand rates produce very different math. As a result, TOU sites often see larger savings, since their peaks align with the highest-priced windows. You can check your own utility’s rate structure using the DOE’s Utility Rate Database.
Load profile predictability. Predictable, repeating peaks — like manufacturing shifts or EV charging schedules — are easier to shave accurately than erratic, one-off spikes.
Battery sizing accuracy. An undersized BESS shaves less of the peak than needed. Conversely, an oversized one adds unnecessary capital cost without proportional savings. For this reason, proper sizing requires 12 months of interval data, not a single bill.
Existing power factor correction. Sites without PF correction sometimes see apparent demand charge inflation that a BESS alone won’t fully resolve.
Ratchet clauses. Some utilities set your demand charge based on the highest peak in the past 11–12 months, not just the current month. Therefore, this changes the payback calculation, and usually favors more aggressive peak shaving.
Frequently Asked Questions
How much does peak shaving save on electricity bills?
Most sites see 20–40% reductions in demand charges, which typically make up 30–70% of the total bill. However, actual savings depend on your peak-to-average load ratio and local demand charge rate.
What size battery do I need for peak shaving?
Size the power rating (kW) to your target peak reduction, and the energy capacity (kWh) to cover your typical peak duration — usually 1–3 hours for commercial sites. That said, a proper sizing study needs 12 months of 15-minute interval data.
Is peak shaving worth it for small commercial sites?
It depends. Sites with demand charges above $10/kW and a peak-to-average ratio over 1.5x generally see paybacks under 6 years. On the other hand, flatter-load sites — like most data centers — see smaller percentage savings.
Does peak shaving pay back faster with revenue stacking?
Yes. Adding energy arbitrage or grid services typically cuts payback by 20–35%, since the same battery capacity earns value in multiple ways across the day.
Next Steps
Ready to model your own savings? Start by pulling 12 months of interval data from your utility bill. Then, use our BESS cost per kWh guide to estimate installed cost, and apply the formula above to project payback. For the broader strategic picture, including how peak shaving compares to load shifting, see our complete peak shaving vs. load shifting guide.
Community Energy Resilience: The world is entering a period of unprecedented energy challenges. From extreme weather events to increasing energy demand and rising grid failures, communities everywhere are asking the same question: How can we secure reliable, affordable, and clean energy for the future?
The answer lies in community energy resilience—the ability of local energy systems to withstand disruptions and bounce back stronger. A key driver of this resilience is the rise of Virtual Power Plants (VPPs), which integrate renewable energy sources, battery energy storage, and smart software into a flexible, resilient network.
In our previous blog on Virtual Power Plants, we explored their role in transforming global energy systems. In this follow-up, we dive deeper into how VPPs are empowering communities and making resilience a reality.
What Is Community Energy Resilience?
Community energy resilience means ensuring that local households, businesses, and critical facilities can maintain power during disruptions—whether caused by natural disasters, cyberattacks, or unexpected grid failures.
Instead of being entirely dependent on centralized power plants, resilient communities build local energy independence using:
Renewable generation such as rooftop solar and wind turbines.
Smart grid technology to manage energy flow intelligently.
This combination ensures essential services like hospitals, schools, and emergency centers remain operational, even when the central grid fails.
💡 In short: Community energy resilience = energy security + sustainability + independence.
Why Energy Resilience Matters Now More Than Ever
The urgency for resilience is being driven by global trends:
Climate Change and Extreme Weather – Hurricanes, heatwaves, and floods cause frequent blackouts.
Aging Infrastructure – Traditional grids, built decades ago, struggle with modern demands.
Cybersecurity Risks – Power grids are increasingly vulnerable to cyberattacks.
Rising Energy Demand – With the growth of EVs, digital devices, and industrial automation, energy systems face unprecedented loads.
Without resilience, communities risk prolonged outages, economic losses, and social disruption.
How Virtual Power Plants Support Community Energy Resilience
A Virtual Power Plant (VPP) is a digital platform that aggregates distributed energy resources (DERs)—like rooftop solar, home batteries, EV chargers, and smart appliances—and orchestrates them as if they were one large power plant.
When applied to communities, VPPs enhance resilience by:
⚡ Balancing supply and demand instantly, even during sudden surges.
🔋 Storing surplus energy in batteries and releasing it when needed.
The Central Role of Battery Energy Storage in Resilience
While renewable generation provides clean energy, it is intermittent—the sun doesn’t always shine, and the wind doesn’t always blow. Battery Energy Storage Systems (BESS) are the game-changer that unlock resilience.
Key Benefits of BESS in Resilience:
Energy Shifting – Store energy when renewable production is high and use it later.
Backup Power – Keep critical systems running during outages.
Frequency Regulation – Stabilize voltage and frequency to protect local equipment.
Decentralized Independence – Reduce reliance on fragile central grids.
Without BESS, communities cannot achieve true energy resilience. With it, they gain energy security, flexibility, and reliability.
Case Example: A Coastal Town Using VPPs for Resilience
Imagine a coastal community that faces frequent storms. Traditionally, each outage would leave residents without power for days.
Revenue Opportunities – Stored energy can be sold back to the grid or shared within the community.
Sustainability – Reduced dependence on fossil fuels lowers emissions.
Attractiveness for Investment – Resilient communities attract businesses and residents.
Peace of Mind – Security knowing that power supply is reliable, even in emergencies.
Linking Resilience to the Energy Transition
Community energy resilience aligns perfectly with the global energy transition. Instead of top-down, centralized systems, the future is:
Decentralized – Local generation and storage reduce stress on central grids.
Digital – Smart software platforms optimize resources in real-time.
Sustainable – Renewable energy replaces carbon-heavy fuels.
Participatory – Communities become active players in energy markets, not just consumers.
By adopting Virtual Power Plants, communities are not only protecting themselves—they’re contributing to the broader goal of a cleaner, smarter, and more resilient energy future.
Conclusion
As climate change and grid challenges intensify, community energy resilience is no longer optional—it’s essential. Virtual Power Plants, powered by battery energy storage and intelligent software, provide the tools communities need to thrive in uncertain times.
Let’s dive into what Energy Management System is and how it transforms the performance of battery storage systems.
What is EMS?
EMS, or Energy Management System, is a software-based control system designed to monitor, manage, and optimize the performance of electrical systems — especially those integrating storage, renewables, and grid power.
It serves as the brain of a BESS, ensuring all energy flows are coordinated, efficient, and responsive to grid demands.
Core Functions of EMS in BESS
The EMS in BESS isn’t just about switching batteries on or off. It handles a wide range of critical tasks that keep energy systems reliable and smart.
1. Energy Flow Optimization
The Energy Management System decides when to:
Charge the batteries (e.g., during excess solar generation)
Discharge stored energy (e.g., during peak grid demand)
This timing is optimized to maximize efficiency and reduce operational costs.
2. Load Forecasting and Scheduling
By analyzing load patterns and predicting future demand, Energy Management System schedules charging and discharging in advance. This minimizes power wastage and ensures power availability.
This real-time data enables precise control, fault detection, and immediate corrective actions.
4. Integration with Renewable Energy
Energy Management System allows seamless integration of solar and wind systems. It balances intermittency by storing excess energy and supplying it when renewable output drops.
Energy Management System in campus-wide energy systems manages building loads, coordinates distributed energy sources, and ensures energy cost savings.
Why EMS is Critical for Future Grids
As energy grids become decentralized and more renewable-driven, EMS becomes indispensable. It allows energy systems to:
Be more responsive
Avoid blackouts
Support carbon-neutral operations
Generate economic value through smart dispatching
Final Thoughts
In the world of Battery Energy Storage Systems, the Energy Management System is the silent orchestrator — optimizing energy flows, reducing costs, and enabling a sustainable grid. As renewable energy grows, so too will the need for intelligent EMS solutions in every BESS deployment.
FAQs
Q1. Can Energy Management System work without an internet connection?
Yes, local EMS systems can operate autonomously, though cloud connectivity enhances remote monitoring and updates.
Q2. Is Energy Management System hardware or software?
EMS is primarily software but runs on dedicated hardware controllers or integrated edge devices.
Q3. How is EMS different from SCADA?
While SCADA focuses on monitoring and supervisory control, Energy Management System optimizes and automates decision-making processes in energy systems.
A hybrid inverter is an advanced device that combines the functions of a solar inverter and a battery inverter in one. It manages power from solar panels, batteries, and the grid.
A hybrid inverter takes DC electricity from solar panels and converts it into AC power for home use. At the same time, it charges batteries using extra solar power or grid electricity.
When solar generation is low—say at night—the inverter automatically switches to battery power. If the battery runs low, it then draws power from the grid.
This seamless transition between sources ensures energy availability, peak-time savings, and stable voltage supply.
Key Features
Hybrid inverters offer several cutting-edge features that make them ideal for modern homes and businesses:
Grid Interaction: Smart control over when to use or sell electricity back to the grid.
Battery Management: Efficient charging and discharging of batteries with real-time monitoring.
Backup Power: Keeps essential appliances running during power cuts.
Remote Monitoring: Most hybrid inverters come with mobile apps for tracking energy usage.
Load Shifting: Shifts electricity use to off-peak hours to reduce costs.
These features allow for dynamic energy use, especially when paired with solar and energy storage systems.
Benefits of Using a Hybrid Inverter
Choosing a hybrid inverter provides several benefits over traditional setups:
Energy Independence: Reduces dependence on the utility grid.
Cost Efficiency: Saves money by using stored or solar energy during peak rates.
Reliable Backup: Ensures continuous power during outages or grid failures.
Eco-Friendly: Maximizes solar usage and minimizes grid energy consumption.
Space-Saving Design: Combines two inverters into one sleek unit.
All these advantages make inverters an excellent choice for homes aiming for sustainability and savings.
Applications
Hybrid inverters are commonly used in residential solar-plus-storage systems. However, they’re also gaining traction in:
As solar adoption grows, so will the role of hybrid inverters in managing clean, stable energy flow.
Certifications to Look for in a Hybrid Inverter
Before purchasing a hybrid inverter, always check for essential certifications. These indicate compliance with safety, quality, and efficiency standards. Key certifications include:
IEC 62109 – Safety of power converters used in photovoltaic systems. Ensures the inverter is safe for residential and commercial use.
UL 1741 / IEEE 1547 – Common in North America, these ensure grid compatibility and operational safety.
CE Marking – Required in the European Union, it indicates conformity with health, safety, and environmental protection standards.
RoHS Compliance – Confirms the product is free from hazardous substances like lead or mercury.
ISO 9001 Certification – Demonstrates the manufacturer’s commitment to quality control and continuous improvement.
VDE-AR-N 4105 / G99 (UK) – Required for connecting inverters to low-voltage grids in specific countries like Germany or the UK.
Always request documentation and verify certification numbers when evaluating products. A certified hybrid inverter ensures safety, better performance, and legal compliance with your local power grid.
Things to Consider Before Buying
Before investing in a Inverter, keep these points in mind:
Battery Compatibility: Ensure it supports lithium, lead-acid, or the battery type you plan to use.
Power Rating: Choose an inverter that matches your load and solar panel capacity.
Efficiency Rating: Look for models with >95% conversion efficiency.
Warranty & Support: A reliable brand should offer at least 5–10 years of warranty.
Taking time to assess these factors ensures long-term satisfaction and performance.
Conclusion
A hybrid inverter is the brain of modern solar energy systems. It integrates solar, storage, and grid power into one smart solution. Whether you’re cutting costs, going green, or building energy independence, a hybrid inverter is a powerful asset.
⚡ Key Takeaways • A 100kW load run continuously (24/7) consumes 2,400 kWh per day. That daily energy figure is what drives solar and battery sizing. • Solar array size must be calculated for your worst realistic Peak Sun Hour (PSH) day, not your annual average — winter and cloudy-day sizing can be 2–2.5x larger than summer sizing. • Battery capacity depends on days of autonomy, Depth of Discharge (DoD), and round-trip efficiency — budget 3,000–10,000 kWh depending on backup duration. • The PCS/inverter is frequently undersized in DIY calculations — it must handle both the continuous 100kW draw and any surge/peak load, plus simultaneous charge and discharge in hybrid topologies. • LFP (LiFePO4) cells are the standard choice for stationary systems at this scale, rated for 3,000–5,000+ cycles at 80% DoD.
Planning solar panels and batteries to run a 100kW load around the clock? Sizing this correctly isn’t as simple as multiplying watts by hours, though.
Weather conditions, seasonal sunlight availability, cloudy-day derating, inverter sizing, and battery efficiency losses all factor in. Because of that, this guide walks through the full sizing process step by step, building toward a properly sized battery energy storage system (BESS) with formulas, worked examples, and a free interactive calculator.
📌 What You’ll Learn About Sizing for a 100kW Load
How to calculate required solar panel capacity for a continuous load
Why yearly weather data and Peak Sun Hours are critical to correct sizing
How to handle cloudy days and winter months without under-building
Battery sizing for different backup durations, DoD, and round-trip efficiency
How to size the PCS/inverter — the step most sizing guides skip
Battery chemistry, cycle life, and thermal management considerations at 100kW scale
Rough cost and payback framing so you can budget before requesting quotes
Example formulas and real-world worked values
🔧 Step 1: Understand Your 100kW Load
Let’s start with a 100kW load running 24 hours a day, every day.
100 kW × 24 hours = 2,400 kWh per day
That 2,400 kWh/day figure is your daily energy demand — it’s what solar and battery capacity are sized against.
If your load isn’t perfectly flat — for example, it dips to 60kW overnight and spikes to 130kW during a production shift — use the peak figure for PCS/inverter sizing. Use the daily kWh total instead (from a load profile or utility bill) for solar and battery sizing.
Averaging a variable load into a flat 100kW figure will, in short, undersize your inverter for the actual peak.
🌍 Step 2: Analyze Your Location’s Solar Irradiance for a 100kW Load
Your geographic location heavily influences how much sunlight you receive. Specifically, this is measured in Peak Sun Hours (PSH), the equivalent number of hours per day at 1,000 W/m² irradiance.

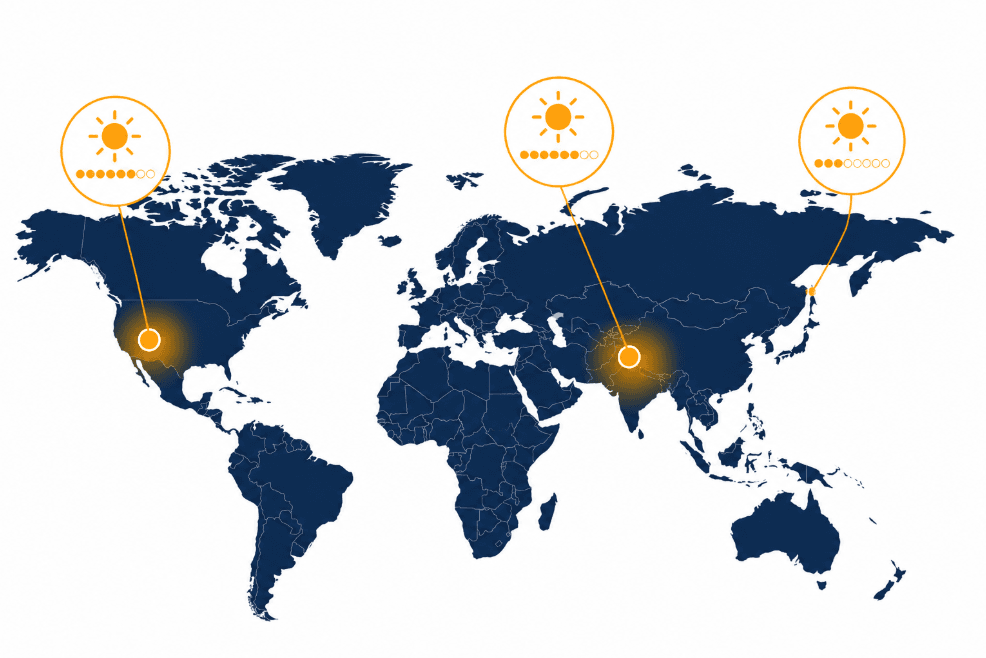

Location
Peak Sun Hours (avg)
Phoenix, USA
6.5 PSH
New Delhi, India
5.5 PSH
London, UK
2.8 PSH
👉 You can pull PSH data for your exact site from PVWatts (operated by the National Laboratory of the Rockies, formerly NREL), the NASA POWER Data Access Viewer, or commercial tools like Solcast. For a full breakdown of PSH by region and how it interacts with panel tilt, see our dedicated guides:
Sizing for the worst realistic case (cloudy-day PSH) rather than the annual average is, in fact, the single most common mistake in DIY sizing. In other words, it’s the difference between a system that works on a sunny July afternoon and one that keeps your load running in December.
🌥️ Why Consider Cloudy Days When Sizing a 100kW Load?
Even in a region with high annual irradiance, you’ll still, in fact, face stretches of poor sun exposure. For mission-critical applications, therefore, your system must:
Be oversized for worst-case scenarios, not average-case.
Include battery backup sized for 1–3 days of autonomy.
Use hybrid systems (generators or grid backup) where continuous uptime is non-negotiable.

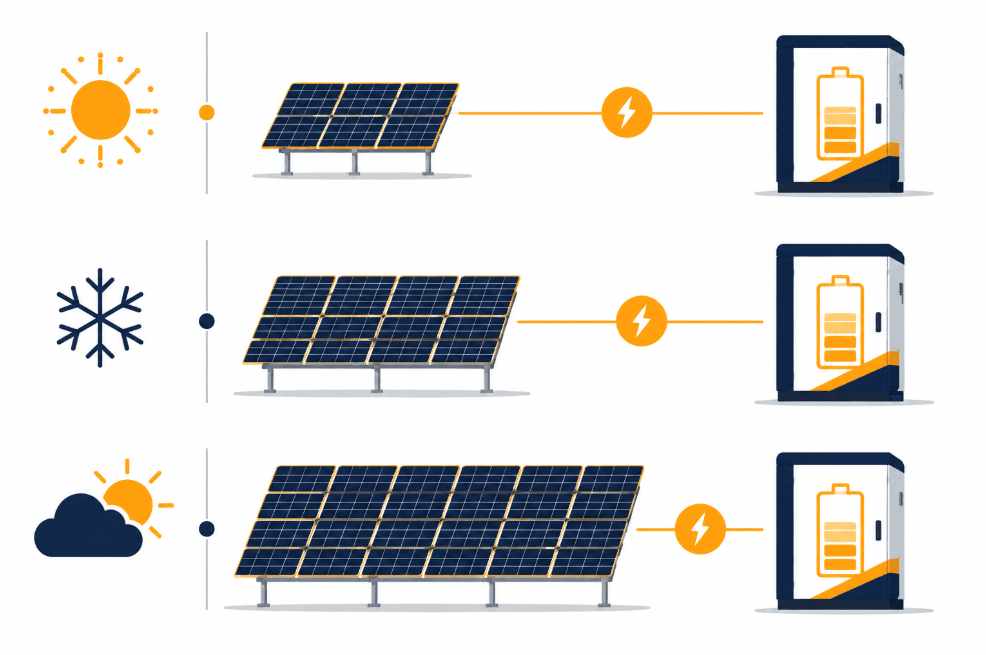

❄️ Considerations for Winter Months
Winter brings three compounding effects:
Lower sun angles, which reduce effective irradiance on fixed-tilt arrays
Shorter daylight hours, which shrinks your PSH window
Snow cover in northern regions, which can fully block production for days
As a result, effective PSH drops and your dependence on stored energy or supplemental power increases. That’s exactly why the winter row in the Step 3 table above requires roughly 1.6x more solar capacity than the summer row.
⚡ Step 4: Size the Battery Energy Storage System for a 100kW Load
Ultimately, your BESS needs to store enough energy to power the load during non-sunny hours or outright weather/grid failures.
Formula:
Battery Capacity (kWh) = (Daily Load × Days of Autonomy) ÷ (DoD × Efficiency)
Daily Load = 2,400 kWh
Depth of Discharge (DoD) = 0.8
Round-trip Efficiency = 0.9

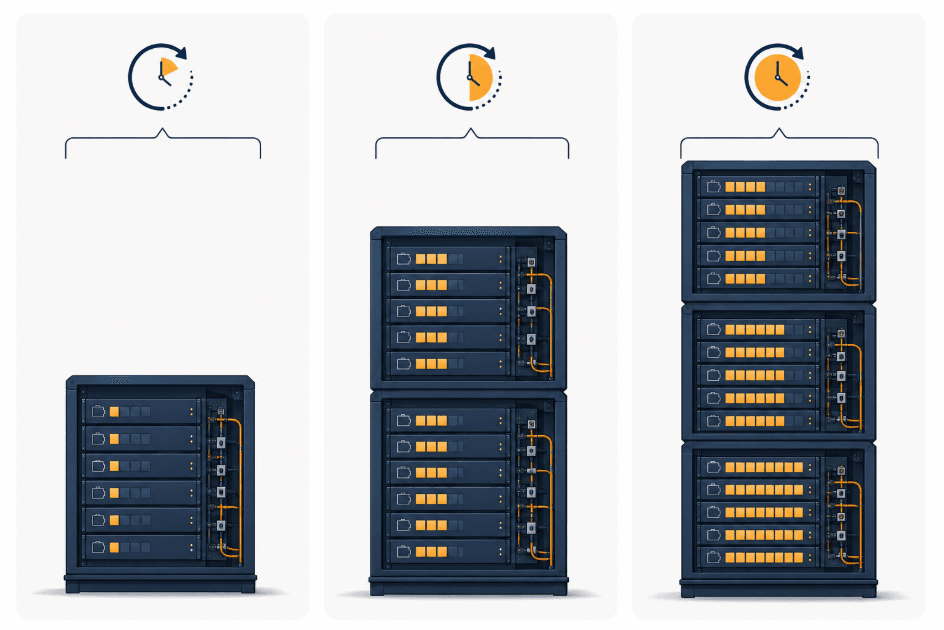

Backup Duration
Required Battery Capacity
1 Day
2,400 ÷ (0.8 × 0.9) ≈ 3,333 kWh
2 Days
4,800 ÷ (0.8 × 0.9) ≈ 6,667 kWh
3 Days
7,200 ÷ (0.8 × 0.9) ≈ 10,000 kWh
Note that these figures are usable energy requirements — rated (nameplate) capacity will need to be slightly higher once you account for BMS reserve margins and end-of-life capacity fade. For the difference between rated and usable capacity units, see Ah vs Wh Battery Capacity Explained, and for the general framework behind these backup calculations, see our Energy Storage Calculation Guide.

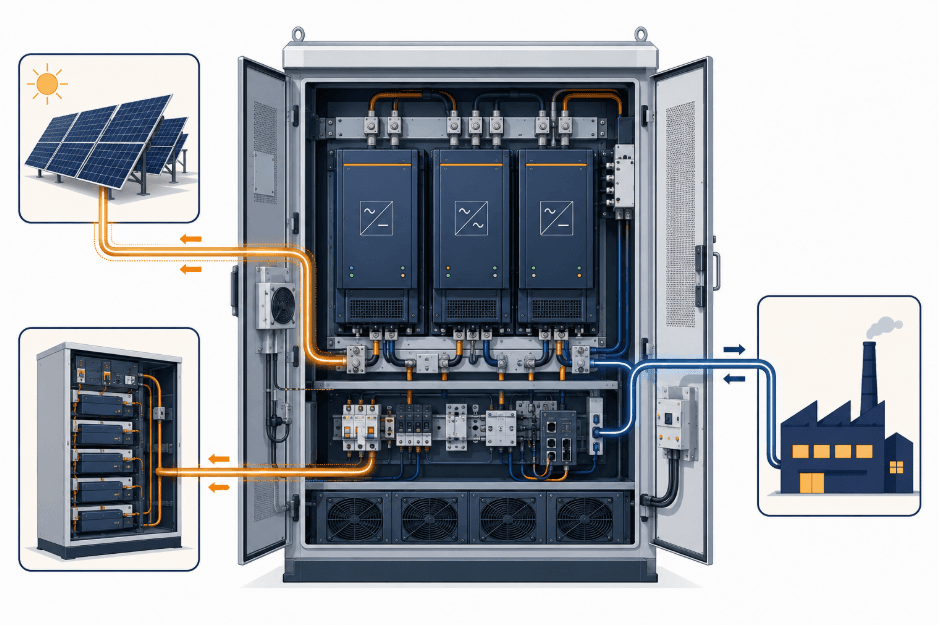

🔌 Step 5: Size the PCS / Inverter for Your 100kW Load (Often the Missing Step)
Solar array and battery capacity get most of the attention in sizing guides. However, the Power Conversion System (PCS) — the bidirectional inverter that moves power between panels, batteries, and load — is just as critical. In fact, it’s the component most DIY calculations undersize.
Specifically, your PCS needs enough continuous rating to handle the load, plus headroom for surge and simultaneous charge/discharge:
Continuous rating: must cover your 100kW continuous draw, not the average of a variable load profile.
Peak/surge rating: motor starts, compressor inrush, and HVAC cycling can spike 20–50% above continuous draw for a few seconds — undersized PCS units trip or clip during these events.
Simultaneous charge + discharge: in a hybrid solar + battery + load topology, the PCS may need to charge the battery from solar while discharging to load at the same time — size for the combined throughput, not just the larger of the two.
As a starting point, a reasonable figure for a 100kW continuous load is a 125–150kW PCS, though the correct number depends on your actual peak load profile and topology. For the functional breakdown of what a PCS does and how to evaluate one, see:
🔋 Battery Chemistry & Cycle Life for a Continuous-Duty 100kW Load
A 100kW load running 24/7 puts a battery through far more charge/discharge cycles per year than a typical backup-only installation. As a result, chemistry and cycle-life ratings matter more here than in a system that only discharges occasionally.
LFP (LiFePO4) is the standard choice for stationary systems at this scale: Tier-1 EV-grade LFP cells are typically rated 3,000–3,500 cycles at 0.5C / 80% DoD, with 120Ah-class prismatic cells often rated 3,500–6,000 cycles.
NMC offers higher energy density but lower cycle life and reduced thermal stability — generally a weaker fit for continuous-duty stationary storage than for space-constrained mobile applications.
Sodium-ion is an emerging alternative worth watching for cost-sensitive, cycle-heavy applications, though it currently trails LFP on energy density.
At 1–2 cycles per day, a 3,500-cycle-rated cell reaches end-of-life capacity (~80% of nameplate) in roughly 5–10 years. Therefore, factor this into both your battery oversizing margin and your long-term budget. For deeper comparisons:
🌡️ Thermal Management: Do You Need Liquid Cooling at This Scale?
A 3,000–10,000 kWh battery bank running near-continuous cycling generates meaningfully more heat than an occasional-backup system of the same size. Consequently, thermal management becomes a real design decision rather than an afterthought.
Air-cooled systems are simpler and cheaper, and remain viable for lower cycle-rate, moderate-climate installations.
Liquid-cooled systems hold tighter cell-to-cell temperature gradients, which matters directly for the cycle-life numbers above — sustained high temperatures accelerate capacity fade regardless of chemistry.
For continuous 0.5C–1C duty cycles in hot climates, liquid cooling is generally the safer long-term choice despite the higher upfront cost.
Install with adjustable tilt for seasonal optimization
TOPCon cells are, in fact, increasingly the default choice for higher-efficiency Tier-1 modules. For more detail, see our TOPCon Solar Cells guide on how they compare to standard PERC panels.
✅ Tips for Choosing Battery Cells for BESS
Use temperature-controlled (or liquid-cooled) enclosures for extreme climates
Choose Lithium Iron Phosphate (LFP) for safety and long cycle life at continuous-duty scale
Look for modular scalability so you can expand storage as load grows
Integrate with a proven BMS and EMS — don’t treat this as an afterthought
🔄 Hybrid Solutions for a Reliable 100kW Load
When powering a 100kW continuous load, therefore, it’s worth considering a hybrid setup:
Go fully off-grid: Solar + Wind + Battery — for redundancy in variable-weather regions
Add diesel backup: Solar + Battery + Diesel — for industrial backup where uptime is non-negotiable
Stay grid-connected: Solar + Grid + Battery — for grid-tied systems using the battery mainly for peak shaving and outage ride-through
💰 Estimating Total System Cost & Payback for a 100kW Load
Before requesting formal quotes, it helps to budget at a rough order of magnitude. Specifically, total installed cost scales with three line items: the solar array (per-watt installed cost), the battery bank (per-kWh installed cost), and the PCS/BOS/engineering package. Typically, the battery bank is the single largest line item at this scale given the 3,000–10,000 kWh range from Step 4.
Get exact per-watt and per-kWh figures from vendor quotes — these vary significantly by region, scale, and financing structure, so we intentionally don’t publish a single blended $/kWh figure here.
Payback period depends heavily on your alternative: offsetting diesel genset fuel and grid demand charges typically pays back faster than pure grid-tied offset in low-electricity-cost regions.
Model your specific numbers rather than relying on rule-of-thumb payback claims.
Battery for 2 days = 2,400 × 2 ÷ (0.8 × 0.9) ≈ 6,667 kWh
PCS sizing (per Step 5): 125–150 kW continuous, sized for the facility’s actual peak/surge profile
While static estimates give you a solid baseline, real-world engineering requires calculating system sizing interactively based on your specific geographical peak sun hours and target safety thresholds.
🧮 Interactive Solar & BESS Capacity Calculator
Use our professional sizing engine below to customize your numbers. Specifically, this tool automatically computes the balance between direct daytime consumption and the excess energy required to charge the battery bank for night or emergency runs.
☀️ Solar & BESS Capacity Calculator
📊 Recommended Sizing Results:
Daily Total Consumption: kWh/day
Required Solar Array Capacity: kWp
Required Battery Storage (BESS): kWh
Minimum Suggested PCS/Inverter: kW
🛠️ Sizing Definitions Explained
Daily Total Consumption (kWh): the total energy your system expends every day.
Required Solar Array Capacity (kWp): the nameplate rating of your panel configuration under Standard Test Conditions (STC), sized high enough to fill your BESS during operating hours.
Required Battery Storage (BESS, kWh): the gross storage capacity needed to survive weather downturns without exceeding safe Depth of Discharge (DoD).
PCS / Inverter Rating (kW): the continuous and surge power-handling capacity of the conversion system linking panels, batteries, and load — see Step 5 above.
📖 Recommended Sizing Resources for a 100kW Load
To fine-tune your inputs for the calculator above, explore our comprehensive technical guides:
Only if your load is flexible or you remain connected to the grid as a backstop. Otherwise, a continuous 100kW load with no grid connection and no battery has zero ride-through the moment the sun sets or a cloud rolls in.
Q: Should I oversize the battery or the solar array?
Both, in proportion to your climate. Specifically, cloudy regions need more solar oversizing to fill the same battery bank in fewer usable hours, while regions with frequent multi-day outages need more battery autonomy regardless of solar oversizing.
Q: What’s better — LFP or NMC batteries?
LFP is generally the safer, longer-cycle-life choice for stationary storage at this scale, while NMC’s higher energy density suits space-constrained mobile applications more than fixed installations.
Q: How big a PCS/inverter do I actually need for a 100kW Load?
Size for your actual peak draw plus surge headroom, rather than the 100kW continuous average. As a starting range, 125–150kW is reasonable, though you should pull your real load profile before finalizing (see Step 5).
Q: Do I need liquid cooling for a battery bank this size?
Not always — it depends on cycling frequency and climate. Continuous 0.5C–1C duty in hot climates benefits meaningfully from liquid cooling’s tighter thermal gradients, while lower cycle-rate systems in moderate climates can often stay air-cooled.
Q: How long will the battery bank last before it needs replacing?
Tier-1 LFP cells at 0.5C/80% DoD are typically rated 3,000–6,000 cycles. At roughly one full cycle per day, that’s a working life in the 8–14-year range before capacity fades to around 80% of nameplate, so budget your replacement schedule accordingly.
Q: Is grid-tied or off-grid better for a 100kW continuous load?
Grid-tied lets you undersize solar and battery relative to a true off-grid design, since the grid covers shortfalls. Off-grid or hybrid designs, on the other hand, are necessary wherever grid reliability can’t be trusted for a continuous critical load.
📌 Conclusion
Designing a solar + battery system for a 100kW load isn’t just about matching numbers. Rather, it’s about planning for the worst realistic day of the year, not the best.
In short, location-specific solar data, battery autonomy, PCS sizing, cell chemistry, thermal management, and cost all need to be part of your sizing strategy from the start, rather than bolted on after the array is already ordered.
A Portable Battery Energy Storage System is a mobile energy unit that stores electricity—often sourced from the grid or renewable sources like solar panels—and delivers it when needed. Unlike fixed installations, these systems are lightweight, easy to transport, and designed for quick deployment in homes, outdoor sites, emergency zones, and small businesses.
Key Features of Portable Battery Energy Storage Systems
• Mobility: Lightweight and compact designs for easy transport
• Plug-and-Play: Simple operation with USB, AC, and DC outputs
• Solar Charging: Many models support solar input for off-grid use
• Smart Management: Equipped with BMS (Battery Management System) for safety and efficiency
• Environmentally Friendly: No emissions, noise, or fuel needed
Why Portable Energy Storage is Gaining Traction
1. Emergency Preparedness: Power outages are becoming more frequent. A portable unit ensures your essentials stay running.
2. Outdoor Adventures: From camping to off-grid travel, PBESS provides energy independence.
3. Worksite Flexibility: Ideal for temporary job sites and mobile operations.
4. Eco-Conscious Living: Reduces reliance on fossil fuels and promotes renewable energy use.
Types of Portable Battery Energy Storage Systems
1. Personal/Consumer-Grade Units (100Wh – 2000Wh): Compact power stations for phones, laptops, drones, and small appliances.
Examples: EcoFlow River, Jackery Explorer, Anker PowerHouse
2. Mid-Capacity Systems (2kWh – 5kWh): Power for refrigerators, medical devices, TVs.
4. Solar Generator Kits: Bundles of battery units and foldable solar panels.
Applications of Portable Energy Storage Systems
• Residential Backup: Keep essentials running during blackouts
• Outdoor Use: Campers, RVs, boaters
• Construction & Industrial Sites: Power tools and devices
• Emergency & Relief Operations: Communication, lights, medical gear
• Events & Exhibitions: AV equipment, lighting
How to Choose the Right PBESS
• Capacity (Wh or kWh): Estimate your daily power need
• Output Ports: Check for AC, USB, DC, inverter types
• Recharge Options: Grid, solar, car, generator
• Cycle Life: 2000+ cycles preferred
• Weight & Portability: Match your mobility needs
• Safety Certifications: UL, CE, UN38.3
Future of Portable Energy Storage
LFP and semi-solid battery technologies are improving safety, lifespan, and efficiency. App-enabled units offer diagnostics and control from mobile devices.
Final Thoughts
Portable Battery Energy Storage Systems are no longer a luxury—they’re fast becoming a necessity in our power-hungry, unpredictable world. Whether you’re braving the outdoors, preparing for emergencies, or reducing your carbon footprint, these systems give you control over your energy needs.
Looking to explore high-quality portable BESS units for personal or business use? Contact us today for expert consultation and sourcing support tailored to your needs.
