Diagram of NFPA 855 requirements for battery energy storage system installation.
Rahul Jalthar

NFPA 855: The Complete Guide to Stationary Energy Storage System Fire Safety

/5 Comments/in /by

NFPA 855, published by the National Fire Protection Association, is the U.S. standard for safe battery energy storage installation. If you’re developing, permitting, or financing a BESS project, compliance is not optional. In fact, your local fire marshal, your insurer, and your interconnecting utility will all check it first. This guide covers what the standard requires. It also covers what changed in the 2026 edition, and how the rules differ for C&I and utility-scale projects.

Quick Answer: What This Standard Covers

In short, this fire-safety standard sets the installation rules for battery storage in the United States. It covers spacing, ventilation, detection, suppression, and hazard analysis. That applies to everything from small residential batteries to utility-scale plants. Local fire codes enforce it. In addition, most insurers and interconnecting utilities require proof of compliance before they approve a project.

At a Glance

  • What it is: a National Fire Protection Association standard for stationary battery energy storage systems, first published in 2020, now in its 2026 (third) edition.
  • Who enforces it: local Authorities Having Jurisdiction (AHJs), typically through NFPA 1 (Fire Code) Chapter 52 or the International Fire Code Section 1207.
  • Who it applies to: residential, commercial, industrial, and utility-scale BESS. Specifically, the scope is set by battery chemistry and stored energy, not by project type alone.
  • What triggers it: aggregate stored energy above chemistry-specific thresholds. For example, that’s 20 kWh for lithium-ion.
  • What’s new in 2026: a default requirement for Hazard Mitigation Analysis, large-scale fire testing, and stricter explosion control provisions.

What Does NFPA 855 Cover?

The standard addresses the full lifecycle of a battery energy storage system. That covers design, installation, commissioning, operation, maintenance, and decommissioning. In practice, most project teams also focus on five specific areas:

  • Separation and spacing — distances between battery units, and between the ESS and exposures like buildings, property lines, and other hazards
  • Fire detection and suppression — smoke and gas detection, plus sprinkler or other suppression systems sized to the installation
  • Ventilation — exhaust systems that keep flammable gas concentrations below dangerous thresholds
  • Explosion control — deflagration venting or prevention systems for enclosed spaces
  • Hazard Mitigation Analysis (HMA) — a documented assessment of thermal runaway, fire propagation, and toxic gas risks for the specific installation

Why Thermal Runaway Is the Core Hazard

Every requirement in this guide exists to control one underlying hazard: thermal runaway. It starts when a single battery cell overheats past a critical point. The cell then generates heat faster than it can dissipate it.

This can trigger a self-sustaining chain reaction, where one failing cell heats its neighbors until they fail too. In the worst case, that cascade spreads across an entire rack or unit.

NFPA 855’s core requirements each target a different stage of this chain. Spacing and separation slow how fast a failure can spread to nearby units. Gas detection catches early off-gassing before it ignites. Ventilation clears flammable gases before they reach dangerous concentrations. Suppression systems, meanwhile, cool cells enough to interrupt the cascade.

The newest layer is Thermal Runaway Propagation Prevention (TRPP). Importantly, this active system goes a step further by detecting early precursors like off-gassing or abnormal temperatures. Consequently, it automatically triggers a targeted response to stop the failure before it ever reaches a neighboring cell.

The Hazard Mitigation Analysis ties all of this together — it’s the engineering process, led by a qualified PE, that sizes each control to your project’s specific chemistry and configuration, instead of applying generic rules.

NFPA 855 Scope and Applicability

Chart showing NFPA 855 energy thresholds for lithium-ion and lead-acid batteries

The first step is confirming the standard applies to your system at all. Applicability depends on battery chemistry and total stored energy, not project size alone. That said, below-threshold systems may fall outside full requirements. Your AHJ makes the final call.

Battery ChemistryBelow ThresholdAt or Above Threshold
Lithium-ion< 20 kWh aggregate (may be exempt)≥ 20 kWh triggers full NFPA 855 requirements
Valve-regulated lead-acid (VRLA)< 70 kWh aggregate (may be exempt)≥ 70 kWh triggers full NFPA 855 requirements
Other battery chemistriesThreshold set per chemistry table (2026 lists chemistries alphabetically)Confirm with your AHJ before assuming exemption

These thresholds still decide whether NFPA 855 applies to your system at all — that part hasn’t changed. What has changed is what happens once it does apply.

Previously, earlier editions let a project exceed the prescriptive threshold and still avoid a full Hazard Mitigation Analysis. It just had to stay under a separate “Maximum Stored Energy” cap in Chapter 9. The 2026 edition removed that cap entirely. As a result, once your system clears the Chapter 1 threshold, an HMA is the default requirement, not a fallback for oversized systems.

For example, a small server-room battery backup might still stay under 20 kWh and fall outside the standard’s full requirements. Almost any commercial, industrial, or utility-scale BESS, however, clears that threshold immediately. It now needs a documented HMA from the design stage, with no quantity-based way around it.

Source: Telgian Engineering & Consulting — NFPA 855 Changes in the 2026 Edition

What’s New in the 2026 Edition

This standard runs on a three-year revision cycle. The 2026 edition, however, brought some of the most significant changes since its 2020 debut. Here’s what stands out for project developers, grouped by area.

Hazard Mitigation Analysis and Professional Oversight

  • Hazard Mitigation Analysis is now the default. Earlier editions required an HMA only in specific circumstances. The 2026 edition makes it the default requirement for most installations, with limited exceptions for well-understood chemistries like lead-acid.
  • A registered design professional must direct the risk assessment. Annex G now specifically names who should lead the Hazard Mitigation Analysis: a registered design professional (a licensed PE) experienced in fire protection engineering and energy storage risk assessment. The 2023 edition only referred to “parties,” with no qualification requirement attached.

New and Expanded Safety Systems

  • Thermal Runaway Propagation Prevention (TRPP) systems are now required. Section 9.7.6.6 introduces TRPP as a new, active fire-safety layer. Unlike passive features such as spacing or barriers, a TRPP system relies on active monitoring. Specifically, it detects early precursors like off-gas or abnormal temperatures. As a result, the system automatically triggers a targeted suppression or cooling response to stop the failure from spreading.
  • Large-scale fire testing (LSFT) plays a bigger role. Previous editions leaned on UL 9540A cell, module, and unit-level testing. The 2026 edition adds large-scale fire testing. In this test, a full unit burns under real-world conditions with suppression disabled. This validates worst-case performance.
  • Explosion-control guidance gets more specific. Annex G.8, which covers NFPA 69 evaluations for lithium-ion ESS, was revised with new engineering design and risk-mitigation considerations. Design teams now have clearer guidance for evaluating the consequences of an explosion event, not just whether one is possible.

Detection, Chemistry, and Emergency Planning

  • Detection methods expand for lithium-ion storage. Section 14.3.2.1.2 now allows smoke detection, thermal imaging, or radiant-energy detection installed per NFPA 72, replacing the older, narrower detection language. A related new section, 14.1.3, also lets batteries staged or stored temporarily at 50% state of charge or below skip full Chapter 14 compliance, under defined conditions.
  • Chemistry and application coverage expands. Additionally, the 2026 edition lists more battery chemistries. Furthermore, it drops the old subdivision between battery technologies and capacitor-based systems. It also adds two new chapters: Chapter 16 for flow batteries and Chapter 17 for energy storage systems on barges, plus expanded coverage of EV charging systems that include integrated energy storage.
  • Emergency planning becomes formal. The 2026 edition adds specific minimum requirements for an Emergency Response Plan and a training program. The plan must address mitigation, preparedness, response, and recovery, with an annual review and a yearly refresher training session that the AHJ is notified of.

Source: Telgian Engineering & Consulting — NFPA 855 Changes in the 2026 Edition

Model fire codes take time to catch up. The 2024 International Fire Code, for example, still references NFPA 855-2023, not the 2026 edition. Many jurisdictions currently enforce that earlier version by default, even though NFPA has already published the newer standard. Because adoption timing varies by state and city, always confirm with your AHJ which edition actually governs your permit today, rather than assuming the newest edition automatically applies.

Source: IndexBox — NFPA 855 2026 Edition Updates

NFPA 855 Emergency Response and Backup Power Requirements

The 2026 edition adds two requirements that project teams commonly miss because they sit outside the usual spacing-and-suppression conversation.

Emergency Response Plan (ERP)

Every covered installation now needs a documented Emergency Response Plan. The plan must address four phases: mitigation, preparedness, response, and recovery. Facility operators must also run a training program for personnel, review the emergency operations plan annually, and hold a refresher training session every year. The AHJ must be notified when that training happens.

Emergency Power Supply Systems (EPSS/SEPSS)

New Section 4.10 requires that critical safety systems have reliable backup power. This applies to Emergency Power Supply Systems (EPSS) or Stored Emergency Power Supply Systems (SEPSS), built to NFPA 110 or NFPA 111. In practice, this means detection, suppression, and ventilation controls can’t silently fail during a grid outage. Per Section 4.10.22, the EPSS or SEPSS design must be available to the Fire Protection Engineer of record and the AHJ for review and approval, so this needs to enter the design package early, not as an afterthought during commissioning.

Source: Telgian Engineering & Consulting — NFPA 855 Changes in the 2026 Edition

NFPA 855 for C&I vs Utility-Scale BESS

The core framework applies the same way across project types. Practical requirements, however, shift with scale.

  • Larger installations trigger stricter spacing and suppression requirements. Our C&I vs utility-scale BESS comparison covers the full picture. Utility-scale plants pack far more energy into open sites, so spacing tables scale up accordingly. C&I systems, meanwhile, sit next to occupied buildings and face tighter fire-marshal review instead.
  • C&I systems usually sit close to occupied structures. As a result, local fire marshal review and building setback rules carry extra weight alongside these requirements.
  • Utility-scale systems sit on purpose-built sites. Because of this, compliance centers more on large-scale fire testing data, explosion control, and emergency response planning coordinated with the local fire department.
  • Both project types need UL 9540A test data. Otherwise, they can’t satisfy the engineering basis for spacing and suppression design.

How NFPA 855 Relates to Other Standards

This standard doesn’t work alone. It references and depends on several other standards. Confusing them is a common, costly mistake.

Fire and Thermal Testing Standards

  • UL 9540 — the product-level safety certification for a complete energy storage system. Compliance also requires UL 9540-listed equipment.
  • UL 9540A — the test method that measures thermal runaway fire propagation. Its results set the engineering basis for spacing and suppression decisions. The 6th edition, published alongside the 2026 NFPA 855 cycle, expands the certification framework to address spacing and fire propagation directly, rather than leaving those as separate design considerations.
  • CSA/ANSI C800:25 — a newly published consensus standard for large-scale fire testing and ESS reliability. NFPA 855’s 2026 edition requires large-scale fire testing, but had no consensus test method to reference when it was finalized. CSA/ANSI C800:25 fills that gap, and NFPA has an open Tentative Interim Amendment (TIA Log No. 1852) proposing to formally reference it in Section 9.7. Worth tracking if you’re specifying test protocols today, since the reference may become official shortly after this guide’s publication.

Related Electrical, Grid, and Emerging Standards

  • IEEE 1547 — governs grid interconnection behavior for distributed energy resources. It sits outside this standard’s fire-safety scope, but it often appears in the same project approval package.
  • NEC Article 706 — the National Electrical Code section covering electrical installation requirements for energy storage systems above 1 kWh.
  • NFPA 800 (forthcoming) — a new Battery Safety Code currently under development, with public input accepted through January 2026. Once adopted, NFPA 800 is intended to address battery hazards across the full lifecycle, not just installation, and to complement NFPA 855. Over time, it may shift or replace some of the storage-specific provisions NFPA 855 currently covers. Worth watching if you’re planning a multi-year project timeline.

For the complete standards landscape, see our guide to ESS codes and standards for utility-scale BESS.

Source: CSA Group — CSA/ANSI C800:25: A New Standard for ESS Reliability and Quality Assurance

Source: NFPA — Proposed TIA Log No. 1852 to NFPA 855-2026

Source: Energy-Storage.News — NFPA 855: 2026 edition updates and what they mean for energy storage projects

NFPA 855 Compliance Checklist

Use this sequence to build compliance into a project. Otherwise, you risk discovering requirements late, during permitting:

  • Confirm applicability — check your chemistry and stored energy against the current threshold table.
  • Then, select UL 9540-listed equipment with UL 9540A test data covering your configuration.
  • Complete a Hazard Mitigation Analysis, led by a registered design professional (PE) with fire-protection and energy-storage risk-assessment experience. The 2026 edition makes the HMA itself the default requirement, and Annex G now specifically calls for that qualification.
  • Also, design spacing, ventilation, detection, and suppression to the applicable chapter for your chemistry and installation type.
  • Add explosion control per NFPA 69, or document a performance-based alternative.
  • Draft an Emergency Response Plan covering mitigation, preparedness, response, and recovery, with an annual review and yearly refresher training built into your operating plan.
  • Confirm backup power for critical safety systems (EPSS/SEPSS per NFPA 110/111) and route the design through your Fire Protection Engineer and the AHJ before finalizing.
  • Finally, engage your AHJ early. Local adoption varies by state and jurisdiction. So, confirm which edition applies before finalizing your design.

Key Takeaways: NFPA 855

In short, this standard sets the fire-safety baseline for every battery energy storage system in the U.S., from a home battery to a utility-scale plant. The 2026 edition raises the bar with mandatory hazard analysis and large-scale fire testing. Compliance depends on chemistry, stored energy, and project scale. Therefore, the earlier you plan for it, the fewer surprises you’ll hit during permitting.

Frequently Asked Questions

Is NFPA 855 a Law or a Standard?

NFPA 855 is a consensus standard, not a law by itself. However, it carries legal weight once a jurisdiction adopts it, typically through NFPA 1 or the International Fire Code. Because adoption varies by state and city, always confirm which edition your local AHJ enforces.

Does It Apply to All Battery Chemistries?

Yes. The standard is technology-neutral and covers lithium-ion, lead-acid, flow batteries, nickel-based systems, and others. Each chemistry gets its own energy threshold. Consequently, the same project might qualify for an exemption under one chemistry and not another.

What’s the Difference Between UL 9540A and NFPA 855?

UL 9540A is a test method. It measures how far a fire propagates inside a battery system. NFPA 855, meanwhile, is the installation standard that uses those test results to set spacing, suppression, and separation requirements. Ultimately, you need UL 9540A data to satisfy it, not the other way around.

Does Compliance Differ for C&I vs Utility-Scale BESS?

The core framework stays the same, but practical requirements scale with the project. Utility-scale plants face larger spacing tables and heavier reliance on large-scale fire test data. C&I systems, meanwhile, face tighter scrutiny from local fire marshals, because they sit closer to occupied buildings.

When Does the 2026 Edition Take Effect?

NFPA publishes new editions on a regular three-year cycle, and 2026 follows that schedule. Model fire codes typically adopt a given edition about a year later. Because of this, check with your local AHJ to confirm which edition governs your permit application today.

Is Large-Scale Fire Testing Fully Standardized Yet?

Not completely. NFPA 855:2026 requires large-scale fire testing, but no consensus test method existed when the edition was finalized. CSA/ANSI C800:25, published shortly after, is expected to fill that role. NFPA has an open Tentative Interim Amendment proposing to formally reference it in Section 9.7. Until that TIA resolves, confirm your test protocol directly with your AHJ and testing lab.

Related Reading

References

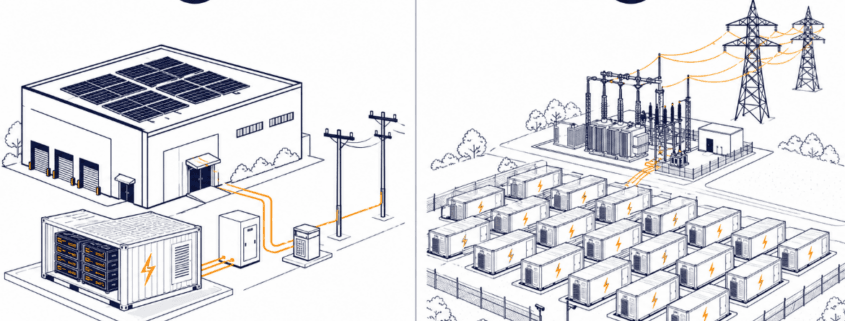

Diagram comparing C&I vs utility-scale BESS by size, voltage, and ownership
Rahul Jalthar

C&I vs Utility-Scale BESS: The Complete Comparison Guide

/3 Comments/in /by

C&I vs utility-scale is the first question every solar or battery storage project must answer. The two terms sound like simple size labels. In reality, they describe two very different businesses. Not only do they serve different customers, but they also connect to the grid differently and rely on entirely unique financing and equipment. This guide walks through the full C&I vs utility-scale comparison, section by section, so you know exactly which one applies to your project.

⚡ Quick Answer: C&I vs Utility-Scale
In short, C&I vs utility-scale comes down to one factor: what sits behind the grid connection. A C&I system serves a single business site and lowers that site’s own electricity bill. A utility-scale system, on the other hand, connects straight to the grid and sells power to the wider market. Everything else — size, financing, interconnection, and equipment — follows from that one distinction.

C&I vs Utility-Scale: Key Differences at a Glance

Before the full breakdown, here’s the short version of the comparison:

  • Size: C&I typically runs 100 kW to 10 MW. Utility-scale typically runs 20 MW to 500+ MW.
  • Connection: C&I sits behind the meter. Utility-scale sits in front of it.
  • Revenue: C&I saves money on one facility’s bill. Utility-scale earns revenue from the wholesale market.
  • Timeline: C&I projects often finish in months. Utility-scale projects often take years.
  • Ownership: hosts or third-party lessors typically own C&I systems. Independent power producers typically own utility-scale plants.

What Does C&I Mean?

C&I stands for Commercial and Industrial. In the BESS world, it describes systems installed at a business’s own site. Picture a factory, a warehouse, a distribution center, or a hospital. These systems serve that facility’s own electricity needs. Specifically, C&I systems typically range from 100 kW to a few megawatts (MW). Large industrial campuses can reach 5–10 MW.

A C&I system sits behind the customer’s meter. Its main job is cutting that facility’s electricity bill, not selling power onto the grid. For that reason, businesses deploy C&I storage for several reasons:

  • Demand charge reduction — the battery discharges during peak demand and shaves the facility’s peak draw. Utilities bill demand separately from energy, often heavily. As a result, peak shaving delivers one of the fastest paybacks in the industry.
  • Time-of-use (TOU) arbitrage — the system charges when electricity is cheap and discharges when it’s expensive.
  • Backup power — stored energy keeps critical loads running through an outage.
  • Solar self-consumption — pairing storage with on-site solar lets the facility use more of its own generation instead of exporting it.
  • Demand response — the facility earns payments for cutting load when asked.
  • In addition, every one of these applications runs on the same core hardware — batteries, inverters, and enclosures — covered in our guide to the key components of a C&I BESS.

What Does Utility-Scale Mean?

Utility-scale storage means large power plants. Some call it grid-scale or front-of-the-meter storage. These plants typically run from tens of megawatts to several hundred megawatts. The largest projects reach the gigawatt range for total energy capacity. Unlike C&I systems, utility-scale plants don’t serve one building. Instead, they connect directly to the transmission grid or a high-voltage line, and they sell power and grid services into the wholesale market.

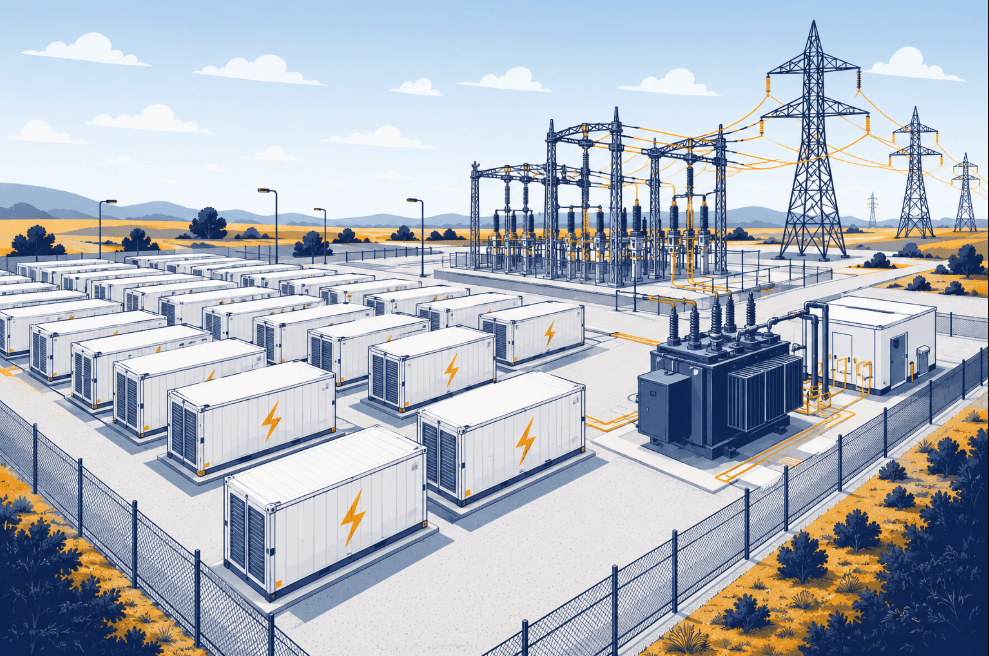

Utility-scale BESS site interconnected to high-voltage transmission grid

Developers build, own, and operate these projects as standalone power plants. Revenue comes from several sources:

  • Power purchase agreements (PPAs) with a utility or corporate offtaker
  • Wholesale energy market sales — buying low and selling high across the day
  • Ancillary services, such as frequency regulation, spinning reserve, and capacity payments
  • Resource adequacy and capacity markets, which pay the plant to stay available during system peaks
  • For the full technical breakdown, see our guide to understanding utility-scale BESS.

The Real Dividing Line: What’s Behind the Meter

Most people reach for size first when they compare C&I vs utility-scale projects. But size is only a side effect, not the real distinction. The true dividing line is simpler: does an existing load sit behind the grid connection?

A C&I plant connects at a site with an existing load — a factory, a data center, a logistics hub — and the battery interacts with that load. A utility-scale plant, by contrast, connects at a site built only for the plant itself. No meaningful load sits behind it. The plant exists purely to generate or store energy for the grid.

This explains an unusual case. A data center with tens of megawatt-hours of storage still counts as C&I, because a load sits behind the meter. A small dedicated battery plant on a remote substation still counts as utility-scale, because no load does. In short, size alone never decides the category.

C&I vs Utility-Scale: Side-by-Side Comparison

The table below summarizes the core C&I vs utility-scale differences at a glance.

AttributeC&IUtility-Scale
Typical size~100 kW – 10 MW~20 MW – 500+ MW
Connection pointBehind the customer’s meter, low/medium voltageFront-of-the-meter, transmission or sub-transmission voltage
Primary customerThe host facility (factory, warehouse, campus)The grid / wholesale market / utility offtaker
Main value streamsDemand charge reduction, TOU arbitrage, backup power, self-consumptionEnergy arbitrage, capacity payments, ancillary services, PPA revenue
Ownership modelFacility owner, third-party PPA/lease, or ESAIndependent power producer (IPP), utility, or institutional investor
Site controlExisting commercial/industrial propertyPurpose-acquired land, often rural
Interconnection processUtility’s commercial/small-generator processRTO/ISO or utility large-generator interconnection queue
Typical BESS duration1–4 hours2–8+ hours, growing interest in long-duration storage
Design driverFacility load profile and tariff structureMarket price signals and grid needs
Permitting complexityLower — usually local/municipalHigher — environmental review, land use, transmission studies
Typical project timelineMonthsMultiple years, often 3–7 years including interconnection queue
Typical payback / horizon3–7 years, driven by demand charges and tariff spreads10–15+ years, underwritten by long-term PPA and market revenue

C&I vs Utility-Scale: Technical Differences

Size and connection point drive real engineering differences between C&I vs utility-scale systems. Here’s how they show up in practice, category by category.

Voltage and Interconnection Equipment

C&I systems usually interconnect at low voltage (400–480V) or medium voltage (4.16–34.5 kV). They tie directly into a building’s electrical service or a nearby feeder. Utility-scale systems, however, interconnect at transmission-class voltages, often 69 kV and above. That higher voltage requires dedicated substations, step-up transformers, and compliance with the utility’s or ISO’s large-generator interconnection agreement.

Control and Dispatch Strategy

A C&I energy management system (EMS) tunes itself around the host facility’s own load curve. Specifically, it tracks peak demand windows and the site’s utility tariff. A utility-scale EMS, in contrast, tunes around market price signals and grid-operator dispatch instructions. Increasingly, it also stacks multiple revenue streams at once — a practice the industry calls value stacking.

Duration, Cycling, and Modularity

C&I batteries commonly run 1–4 hour discharge durations, matched to typical demand-charge windows. Utility-scale batteries, meanwhile, increasingly target longer durations — 4, 8, or more hours — to cover evening peaks as solar output fades. As a result, they also cycle more predictably against known market patterns.

Physical layout differs too. C&I deployments often use a few large enclosures sized to fit an existing footprint, such as a rooftop or a parking area. Utility-scale projects, by comparison, deploy dozens to hundreds of containerized units across open land, in a standardized layout built for construction speed.

Inverter Control Mode

Roughly 80–85% of all BESS installed worldwide today use grid-following (GFL) inverters, which lock onto an existing grid signal. Utility-scale projects, however, increasingly specify grid-forming (GFM) inverters instead. These can lightweight-synthesize their own voltage and frequency reference, support black start, and provide synthetic inertia.

While those capabilities matter far more at grid scale than behind a single facility’s meter, there is a major exception emerging in the C&I space: advanced microgrids. High-reliability C&I applications—such as islanded critical infrastructure, data centers, or remote mining sites—are actively adopting grid-forming inverters. This allows the facility to safely intentional-island from the main grid during an outage and maintain seamless, resilient operations on its own terms.

Codes and Standards

  • Both categories follow UL 9540 for energy storage systems, UL 9540A for thermal runaway fire testing, and NFPA 855, the primary U.S. fire code for stationary energy storage. or a deep dive into the latest safety rules, spacing requirements, and hazard testing under this framework, read our comprehensive NFPA 855 guide.

Utility-scale sites, however, carry extra requirements tied to grid interconnection standards. Examples include IEEE 1547 for distributed resources and FERC/NERC reliability rules for transmission-connected assets. C&I systems, meanwhile, must satisfy local fire marshal and building code review, since they sit next to occupied buildings.

C&I vs Utility-Scale Interconnection Process

Interconnection turns the C&I vs utility-scale comparison into a real scheduling and risk problem, not just an engineering one.

C&I Interconnection

A C&I system typically goes through the utility’s existing commercial or small-generator interconnection process. Because the site already connects to the grid, the project doesn’t need new transmission infrastructure. As a result, timelines usually run from a few weeks to a few months.

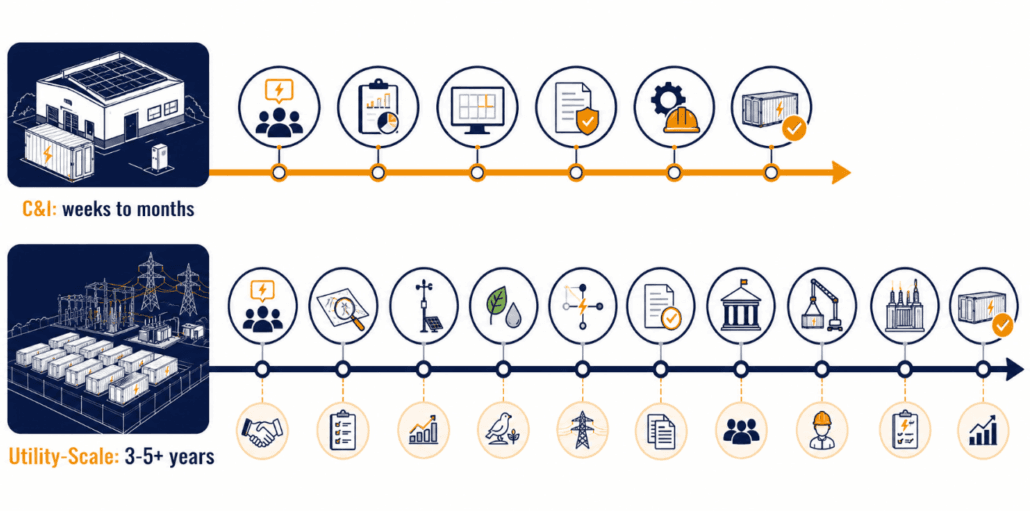

Timeline comparing C&I interconnection speed vs utility-scale interconnection queue

Utility-Scale Interconnection

  • A utility-scale project must apply to the regional transmission organization (RTO) or independent system operator (ISO), or to the relevant utility, through a large-generator interconnection queue. FERC sets the federal rules for this process, which includes system impact studies and facilities studies. It often requires the developer to fund network upgrades the studies identify.

Interconnection queues in many U.S. regions now run 3–5+ years. Some run much longer. Because of this, interconnection timing is one of the biggest risk factors in utility-scale project development.

C&I vs Utility-Scale: Financing and Economics

  • C&I projects usually rely on financing built for a single host customer. A business might pay cash, sign a storage lease, or use a third-party-owned power purchase agreement, where a developer owns the system and the host simply pays for the savings it delivers. Payback typically lands in the 3–7 year range, depending on local demand-charge structure. For the full ROI math, see our guide to C&I BESS economics.
  • Utility-scale projects, by contrast, raise money as standalone infrastructure assets. Developers combine tax equity, debt from infrastructure lenders, and a long-term PPA that underwrites the debt. Because no single host’s bill defines success, the economics depend on wholesale market forecasts and interconnection terms. Investment horizons commonly run 10–15+ years. For the full framework on calculating storage ROI, see our guide to the economics of BESS.

Permitting complexity follows the same pattern. C&I projects mainly clear local and municipal review. Utility-scale projects, however, add environmental review, land-use approval, and formal interconnection studies on top.

C&I vs Utility-Scale: Which One Fits Your Project?

The right category isn’t really a choice. It follows from the problem you’re solving.

  • If the goal is to lower one facility’s bill, add resiliency, or manage demand charges, C&I is the answer — sized and controlled around that facility’s own load and tariff.
  • If the goal is to earn revenue by selling power or grid services into the wholesale market, utility-scale is the answer — sited and interconnected as a standalone power plant.

Some organizations pursue both. For example, a large industrial company might install a C&I system at its own plant while also investing in a utility-scale project as a corporate PPA offtaker. Either way, the two remain distinct engineering and financial exercises, even inside the same company.

Key Takeaways: C&I vs Utility-Scale
The C&I vs utility-scale decision starts with one question: is there a load behind the meter? If yes, the project is C&I. If no, it’s utility-scale. Everything else — voltage, control strategy, financing, and interconnection — follows from that single fact.Sunlith Energy reviews incoming cell test data, matching tolerances, and pack assembly quality control for BESS projects from 50 kWh upward. Contact us before you finalize a cell or pack supplier.

C&I vs Utility-Scale FAQs

Is a community solar project C&I or utility-scale?

Community solar projects behave more like small utility-scale assets. They interconnect to the distribution grid and sell subscriptions, rather than serving one host’s load. That said, they’re usually smaller — 1–5 MW — than a traditional utility-scale plant.

Can a C&I battery ever sell power back to the grid?

Some C&I systems do join demand response or limited export programs. Even so, their main job stays the same: cut the host facility’s own costs. That’s what separates them from front-of-the-meter assets built mainly to sell power.

Does utility-scale mean the utility owns it?

Not necessarily. Independent power producers and investment funds own many utility-scale plants. They simply sell power to a utility or corporate buyer under a PPA. In other words, the term describes the scale and grid connection point, not the owner.

Why do C&I projects move faster than utility-scale projects?

C&I systems interconnect at lower voltage through a simpler utility process. They usually skip new transmission infrastructure entirely. As a result, they avoid the multi-year interconnection queues that utility-scale projects face at the transmission level.

Is project size or the meter connection the real dividing line?

The meter connection decides it. A large facility with tens of megawatt-hours of storage still counts as C&I, because a load sits behind the connection. A small dedicated battery plant on a remote substation still counts as utility-scale, because no load does.

Related Resources

C&I BESS Cluster

Utility-Scale Cluster

Shared Technical & Economic Foundations

Other References

EMS architecture in utility-scale battery energy storage system
Rahul Jalthar

The EMS Architecture & The 3S Framework: The Intelligence Behind Modern BESS

/2 Comments/in /by

EMS architecture is the control backbone of modern battery energy storage systems. It helps batteries operate safely, efficiently, and reliably. In addition, EMS architecture improves grid stability, renewable energy integration, and power management.

Today, battery storage systems support much more than backup power. They also help utilities balance electricity demand and stabilize renewable energy output. Therefore, smart control software is now essential.

At Sunlith Energy, advanced energy storage platforms use intelligent monitoring and automation to improve overall system performance.

What Is EMS Architecture?

EMS architecture refers to the structure that controls and manages a battery energy storage system. It combines software, communication systems, and hardware—such as Power Conversion Systems (PCS)—into one intelligent platform.

The system continuously collects real-time data. Then, it analyzes operating conditions and sends control commands.

For example, the EMS can:

  • Manage charging cycles
  • Prevent battery over-discharge
  • Balance grid demand
  • Improve energy efficiency
  • Monitor system safety

As a result, operators can improve both performance and reliability.

EMS Architecture and the 3S Framework

EMS Architecture and the 3S Framework in SunLith BESS

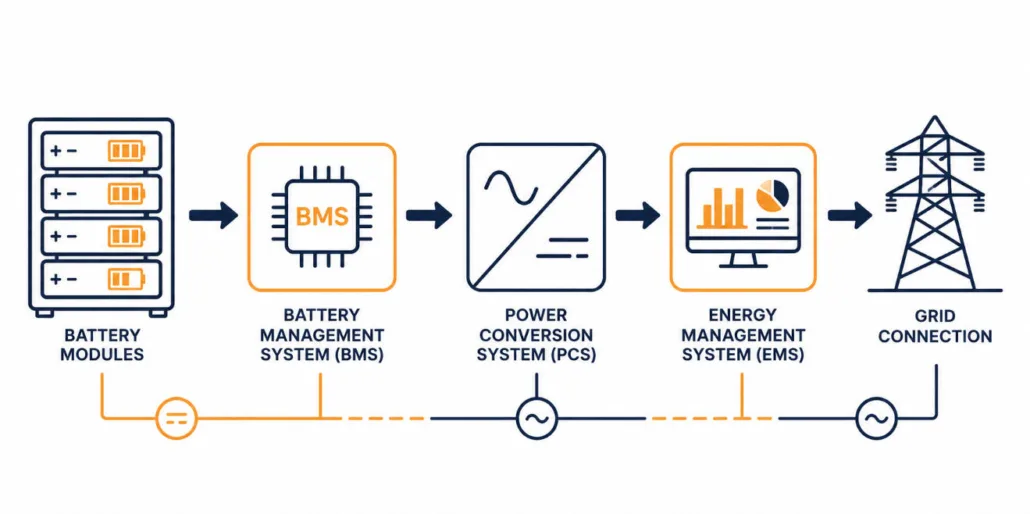

Modern battery systems use the 3S framework. This framework includes:

  1. Battery Management System (BMS)
  2. Power Conversion System (PCS)
  3. Energy Management System (EMS)

Each system has a different role. However, all three systems work together continuously.

Battery Safety and Monitoring

The Battery Management System protects battery cells from unsafe operating conditions.

It monitors:

If the system detects abnormal conditions, it can stop operation immediately. Consequently, battery safety improves significantly.

You can learn more about battery storage safety at U.S. Department of Energy Energy Storage Program.

Power Conversion and Grid Support

The Power Conversion System converts DC battery power into AC electricity for the grid.

In addition, the PCS allows bidirectional power flow. Therefore, batteries can both charge and discharge when needed.

Modern PCS platforms support:

  • Fast response times
  • Voltage regulation
  • Grid synchronization
  • Frequency support

Because renewable energy output changes often, rapid response capability is very important.

EMS Architecture for Intelligent Control

The EMS acts as the intelligence layer of the storage system.

It gathers data from:

  • Battery modules
  • Inverters
  • Sensors
  • Utility dispatch systems

Next, the EMS decides how the battery should operate.

For example, the system may charge batteries during low electricity prices. Later, it may discharge energy during peak demand periods.

As a result, operators can reduce operating costs and improve efficiency.

Main Layers of EMS Architecture

Modern control platforms use several operational layers. This structure improves reliability, flexibility, and system speed.

EMS Architecture Device Layer

The device layer includes physical equipment inside the storage system.

This layer contains:

  • Battery modules
  • PCS inverters
  • HVAC systems
  • Fire suppression systems
  • Smart meters

These devices continuously send operating data to the controller.

EMS Architecture Communication Layer

Common communication protocols used in EMS architecture for BESS

Additionally, the communication layer transfers information between devices and the EMS platform.

Specifically, fast communication is important because delays can reduce system performance.

Additionally, these protocols ensure the system can handle energy storage losses by optimizing the power path in real-time.

Common communication protocols include:

  • IEC 61850
  • IEC 60870-5-104
  • Modbus TCP

In addition, these standards improve coordination between grid equipment and battery systems.

You can explore these industrial standards at International Electrotechnical Commission (IEC).

EMS Architecture Information Layer

The information layer stores operational history and system records.

It tracks:

  • Alarm history
  • Battery performance
  • Operational events
  • Maintenance logs

Because of this, operators can monitor long-term battery behavior more effectively.

Software and Optimization Layer

The application layer contains advanced optimization tools and control software.

This layer supports:

  • Peak shaving
  • Demand response
  • Renewable integration
  • Frequency response
  • Energy optimization

Therefore, operators can improve both technical performance and financial returns.

Why EMS Architecture Matters

Solar and wind energy are variable power sources. Their output changes throughout the day.

Because of this, electrical grids require flexible storage systems.

EMS architecture helps battery systems respond quickly to changing grid conditions.

In addition, it improves:

  • Grid reliability
  • Battery lifespan
  • Energy efficiency
  • Renewable energy usage
  • Power quality

Without intelligent monitoring and automation, battery systems cannot operate efficiently.

Reliability and Cybersecurity

Modern utility-scale systems require strong reliability and cybersecurity protection.

Therefore, advanced platforms include:

  • Backup controllers
  • Encrypted communication
  • Secure access systems
  • Redundant communication networks

These features reduce operational risks and improve system stability.

The National Renewable Energy Laboratory (NREL) also highlights the growing importance of cybersecurity in renewable energy infrastructure.

EMS Architecture for Real-Time Operations

The control platform operates continuously in real time.

First, it monitors grid conditions. Then, it analyzes battery data. Finally, it sends commands to the PCS and BMS systems.

EMS architecture perception to execution control loop in BESS

This process repeats every second.

As a result, the storage system can maintain stable and reliable operation.

Future Trends in EMS Architecture

The global energy market continues to evolve rapidly.

As renewable energy adoption increases, EMS architecture will become even more important.

Future systems may include:

  • AI-based optimization
  • Predictive maintenance
  • Faster communication systems
  • Advanced analytics
  • Smart forecasting tools

Consequently, battery systems will become more efficient and intelligent.

Conclusion

EMS architecture is the operational brain of modern battery energy storage systems. It connects batteries, power electronics, and communication systems into one intelligent platform.

Through advanced monitoring and automation, operators can improve energy efficiency, grid support, and battery reliability.

At Sunlith Energy, integrated storage solutions support modern renewable energy and utility-scale applications.

FAQs

What is EMS architecture?

EMS architecture is the control structure used to manage communication, monitoring, and optimization inside battery energy storage systems.

Why is EMS architecture important?

EMS architecture improves system safety, grid stability, battery performance, and energy efficiency.

What are the three main parts of a battery storage system?

The three main components are:

Battery Management System (BMS)

    Power Conversion System (PCS)

    Energy Management System (EMS)

    Technical Reference Guide

    To better understand the individual components and metrics mentioned in this architecture, explore our deep-dive engineering guides:

    Iron-air battery discharge process converting iron to rust and generating electricity.
    Rahul Jalthar

    What Is Iron-Air Battery? A Complete Guide to Multi-Day Energy Storage

    /1 Comment/in , /by

    Introduction: Why Iron-Air Batteries Are Gaining Attention

    Iron-Air Battery: Renewable energy is growing fast. Solar and wind now supply a large share of electricity in many regions. However, both sources depend on weather conditions.

    As a result, grids need energy storage systems that can deliver power even when the sun is not shining and the wind is not blowing.

    Lithium-ion batteries help solve short-term gaps. Typically, they provide two to four hours of storage. Yet this is not enough during multi-day weather events.

    This makes long-duration energy storage a major focus for grid operators, with iron-air technology standing out as a frontrunner.

    Iron-air battery discharge process converting iron to rust and generating electricity.

    Summary

    What is an iron-air battery?
    An iron-air battery is a long-duration energy storage system that produces electricity through a reversible reaction between iron and oxygen.

    How does it work?
    During discharge, iron reacts with oxygen and forms rust. During charging, electricity converts the rust back into iron.

    How long does it last?
    Commercial systems are designed to deliver 50 to 100+ hours of power.

    Where is it used?
    Iron-air batteries are used in utility-scale grid storage and renewable integration projects.

    How is it different from lithium-ion?
    Iron-air provides much longer duration at lower material cost, but it requires more space and has lower energy density.

    What Is an Iron-Air Battery?

    An iron-air battery is a type of metal-air battery. It uses iron as one electrode and oxygen from the surrounding air as the other reactant.

    Unlike lithium-ion cells, iron-air systems feature an open design to draw oxygen directly from the atmosphere. Instead, they pull oxygen directly from the atmosphere. This approach reduces material costs and simplifies chemistry.

    The technology has gained attention through companies such as Form Energy, which is developing commercial 100-hour battery systems for grid use.

    Because iron is cheap and widely available, this chemistry offers strong cost potential for long-duration storage.

    How Does an Iron-Air Battery Work?

    Iron-air batteries rely on a reversible rusting process. Although the concept sounds simple, the engineering behind it is sophisticated.

    Discharge Phase: Producing Electricity

    During discharge:

    • Iron reacts with oxygen
    • Iron oxide (rust) forms
    • Electrons move through an external circuit
    • Electricity flows to the grid

    In simple terms, the battery “rusts” to generate power.

    Charge Phase: Storing Energy

    When the battery charges:

    • External electricity is applied
    • Iron oxide converts back into iron
    • Oxygen is released

    Consequently, the system resets and becomes ready for the next cycle.

    Even though the reaction is straightforward, system control requires airflow management, moisture balance, and electrolyte stability. Therefore, large-scale engineering plays a critical role in performance.

    Why Iron-Air Batteries Are Important for the Grid

    As renewable penetration rises above 50%, short-duration storage alone cannot stabilize the grid. Multi-day weather patterns can reduce both solar and wind output.

    For example, extended cloudy and low-wind periods create serious reliability challenges. Under these conditions, four-hour batteries are insufficient.

    Iron-air systems address this gap.

    Multi-Day Energy Storage

    Most iron-air designs target 50 to 100 hours of discharge. This duration supports:

    • Renewable smoothing
    • Coal plant retirement
    • Reduced gas peaker dependence
    • Grid resilience during extreme weather

    Because of this capability, utilities are actively evaluating long-duration solutions.

    Lower Material Cost

    Iron is one of the most abundant elements on Earth. In contrast, lithium and nickel markets can experience volatility.

    As a result, iron-air batteries reduce exposure to critical mineral supply risks. Over time, this could lower the levelized cost of storage for long-duration projects.

    Utility Adoption

    Utilities such as Xcel Energy are working with Form Energy to deploy iron-air systems in regions like Minnesota.

    These projects aim to replace retiring coal plants while maintaining grid reliability.

    Iron-Air Battery vs Lithium-Ion: Key Differences

    Comparison between iron-air battery and lithium-ion battery for grid storage.

    Although both technologies store electricity, their applications differ significantly.

    FeatureIron-Air BatteryLithium-Ion Battery
    Duration50–100+ hours2–4 hours
    Energy DensityLowHigh
    FootprintLargeCompact
    Response SpeedModerateFast
    Best UseMulti-day grid storageC&I & peak shaving

    Lithium-ion remains ideal for:

    • Commercial and industrial (C&I) projects
    • Frequency regulation
    • Fast-response services

    For example, advanced lithium-based systems deployed by Sunlith Energy are optimized for space efficiency and rapid response in commercial and utility-scale environments.

    Iron-air, on the other hand, targets bulk energy shifting over extended periods.

    Where Are Iron-Air Batteries Installed?

    Utility-scale iron-air battery system supporting renewable energy grid.

    Manufacturers design iron-air systems specifically for utility-scale deployment, typically installing them near:

    • Substations
    • Renewable generation sites
    • Coal plant retirement locations
    • Dedicated storage facilities

    Because energy density is lower, these systems require more land. However, utilities often have sufficient space for such installations.

    Residential or electric vehicle applications are not suitable for this chemistry.

    Advantages of Iron-Air Batteries

    Iron-air technology offers a distinctive set of advantages that make it compelling specifically for utility-scale, long-duration grid storage. These benefits are not incremental improvements over existing storage — they represent a fundamentally different cost and duration profile that no other commercially available battery chemistry currently matches.

    1. Ultra-Low Raw Material Cost

    Iron is one of the most abundant elements on Earth, making up approximately 5% of the planet’s crust. Unlike lithium, cobalt, or nickel — whose prices can spike due to geopolitical concentration — iron is produced in over 50 countries with stable, diversified supply chains. According to the IEA battery storage report, reducing critical mineral dependency is one of the most important steps toward a resilient, low-cost grid storage industry. Iron-air batteries achieve this by design.

    2. 100-Hour Discharge Duration

    Most iron-air systems, including the commercial Form Energy iron-air battery system, are designed for up to 100 continuous hours of discharge. This makes them uniquely suited to multi-day renewable energy gaps — extended periods of low solar irradiance and low wind — that short-duration lithium-ion batteries cannot economically address. As renewable penetration crosses 50–70% in major grids, multi-day storage transitions from a niche capability to a grid reliability requirement.

    3. No Critical Mineral Supply Chain Risk

    Iron-air batteries contain no lithium, cobalt, nickel, or manganese. This eliminates exposure to the supply concentration risks that affect lithium-ion: approximately 60% of cobalt production comes from the Democratic Republic of Congo, and over 70% of lithium refining occurs in China. Iron-air batteries are therefore better positioned for long-duration energy storage (LDES) deployment in markets prioritizing domestic energy security.

    4. Non-Flammable Cell Chemistry

    The electrochemical reactions in iron-air batteries use iron metal, oxygen from air, and an aqueous potassium hydroxide (KOH) electrolyte. None of these components is inherently flammable. This contrasts with lithium-ion cells, which use organic electrolytes that can enter thermal runaway under fault conditions. As grid storage projects scale to GWh capacities, cell-level fire risk becomes a critical design factor — and iron-air’s chemistry offers a meaningful advantage. For relevant BESS certifications and safety standards applicable to large-scale installations, NFPA 855 and IEC 62933 still apply to the system level regardless of chemistry.

    5. Highly Scalable Capacity

    Iron-air systems use modular cell stacks. Adding capacity means adding modules — there is no fundamental chemistry barrier to scaling from MWh to GWh. This modularity aligns well with phased utility procurement strategies, where developers may initially deploy 100 MWh and expand incrementally as demand grows.

    6. Compelling Levelized Cost of Storage (LCOS)

    At a projected system cost of approximately $20/kWh — compared with $250–400/kWh for lithium-ion grid storage systems — iron-air batteries target a levelised cost of storage (LCOS) of $20–40/MWh for 100-hour discharge applications, according to NREL grid storage cost benchmarks. This figure makes iron-air competitive with new-build gas peaker plants even before accounting for carbon pricing or clean energy incentive structures.

    ✔  Advantages✘  Limitations
    ✔  Low raw material cost — iron is one of Earth’s most abundant and inexpensive metals✘  Lower energy density than lithium-ion — requires significantly more land per MWh
    ✔  100-hour discharge capability fills multi-day renewable energy gaps that lithium-ion cannot address✘  Round-trip efficiency of 50–60% is lower than lithium-ion (85–95%), increasing energy input cost per cycle
    ✔  No lithium, cobalt, or nickel — eliminates critical mineral supply chain risk and price volatility✘  Commercial scale is still early-stage — limited bankability track record for project finance
    ✔  Aqueous KOH electrolyte is non-flammable and low-toxicity — reducing cell-level fire risk✘  Slow charge and discharge response makes it unsuitable for frequency regulation or fast-response grid services
    ✔  Highly scalable — system capacity can reach GWh range using modular iron-air cell stacks✘  Air electrode durability and iron anode corrosion management are active engineering challenges
    ✔  Projected system cost of ~$20/kWh unlocks an LCOS of $20–40/MWh for long-duration grid storage✘  Interconnection queue delays in US ISOs can add 3–5 years to project timelines

    💡 Key insight: The advantages of iron-air batteries are most powerful when evaluated against the correct baseline: not short-duration lithium-ion, but the cost of multi-day grid firming using gas peakers or pumped hydro. Against those benchmarks, iron-air’s cost and duration profile is highly competitive.

    Limitations and Engineering Challenges

    Iron-air batteries carry real constraints that developers, utilities, and investors must understand clearly. However, understanding these limitations in full context — including why they exist and how they compare with alternative technologies — is essential for accurate project evaluation.

    1. Lower Energy Density Requires More Land

    Iron-air batteries have significantly lower volumetric energy density than lithium-ion. A utility-scale iron-air system may require 5–10× more land per MWh than an equivalent LFP lithium-ion installation. For projects near urban centers or in land-constrained regions, this is a genuine site selection constraint. However, utility-scale projects targeting multi-day storage are typically sited on large parcels near substations or generation assets, where land availability is less limiting. For compact commercial and industrial projects, battery energy storage systems (BESS) using LFP or NMC chemistries remain the correct choice.

    2. Round-Trip Efficiency: The 50–60% Trade-Off

    Round-trip efficiency (RTE) measures energy recovered per unit of energy stored. Iron-air systems currently achieve 50–60% RTE, compared with 85–95% for lithium-ion. This means that for every 100 kWh charged, only 50–60 kWh is recovered on discharge. The following comparison shows why this trade-off is accepted for long-duration applications:

    MetricIron-AirLFP Lithium-IonVanadium Flow
    Round-Trip Efficiency50–60%85–95%65–75%
    Max Discharge Duration100+ hours4–8 hours8–12 hours
    System Cost ($/kWh)~$20$250–400$300–500
    LCOS ($/MWh, long-duration)$20–40Not viable >8 hr$80–120
    Best ApplicationMulti-day grid firmingPeak shaving / C&IDaily cycling / medium duration

    As the table shows, iron-air’s lower RTE is offset by its dramatically lower cost per kWh and its ability to discharge for 100+ hours — a duration at which lithium-ion is not economically viable regardless of efficiency. For more on how these specifications are evaluated in project procurement, see BESS specifications.

    3. Early Commercialization Stage

    As of 2026, iron-air battery technology is at the early commercial stage. Form Energy’s Weirton, West Virginia facility is the first high-volume manufacturing site globally. While over 75 GWh of iron-air capacity is under commercial agreement, actual installed operating experience remains limited compared with lithium-ion’s decade-plus of utility-scale deployments. This limits bankability — project finance lenders and insurance underwriters require operating data that is still accumulating. Consequently, early iron-air projects may carry higher financing costs than equivalent lithium-ion installations.

    4. Slow Response Speed

    Iron-air batteries are designed for bulk energy shifting over long periods, not rapid power delivery. Their response time — the speed at which they can ramp from standby to full output — is slower than lithium-ion. This makes them unsuitable for frequency regulation, spinning reserve, or other ancillary grid services that require sub-second response. A grid-scale BESS combining lithium-ion for fast response with iron-air for long-duration firming represents the emerging standard for high-renewable-penetration grids.

    5. Air Electrode and Corrosion Engineering

    The bifunctional air electrode — which must perform both the Oxygen Reduction Reaction (ORR) during discharge and the Oxygen Evolution Reaction (OER) during charging — is the most technically demanding component of an iron-air system. Designing an electrode that can sustain both reactions across thousands of cycles without degradation requires advanced catalyst and materials engineering. In parallel, iron anode corrosion management — specifically preventing parasitic side reactions such as hydrogen evolution — is an active area of development that directly impacts system cycle life.

    6. Interconnection and Permitting Timelines

    In the United States, the interconnection queue managed by ISOs such as CAISO, MISO, PJM, and ERCOT currently imposes multi-year delays on large storage projects. According to the DOE long-duration storage program, queue reform is an active policy priority — but as of 2026, developers should budget 3–5 years from interconnection application to energization for large-scale projects. This timeline constraint applies to all grid storage technologies, not just iron-air, but it is particularly relevant for a technology still accumulating its first commercial operating record.

    ⚖️ Context: None of the limitations above are disqualifying for iron-air’s target application: multi-day, utility-scale grid firming. They are trade-offs that make iron-air unsuitable for short-duration, fast-response, or space-constrained applications — precisely the segments where lithium-ion excels. The two technologies are complementary, not competitive.

    The Future of Long-Duration Energy Storage

    Energy storage markets are evolving rapidly. As renewable penetration increases, grid planners must diversify storage solutions.

    Short-duration lithium-ion systems remain critical for fast response and peak shaving. Meanwhile, long-duration technologies provide backup during multi-day events.

    Iron-air batteries may become part of layered storage strategies:

    • Lithium-ion for 0–4 hours
    • Iron-air for 24–100 hours
    • Hydrogen or other seasonal storage for longer periods

    Such integration improves grid reliability while accelerating decarbonization.

    Companies like Sunlith Energy focus on scalable lithium-based BESS architectures designed for commercial and utility performance. As long-duration technologies mature, hybrid solutions may become standard industry practice.

    Iron-Air Battery FAQ

    What makes an iron-air battery different?

    Iron-air batteries use iron and oxygen instead of lithium-based compounds. They are designed for much longer discharge durations.

    How long can an iron-air battery run?

    Most commercial designs target 50 to 100 hours of continuous discharge.

    Are iron-air batteries safe?

    The chemistry does not rely on flammable lithium electrolytes. However, full system safety depends on engineering and installation design.

    Will iron-air replace lithium-ion?

    No. Iron-air complements lithium-ion by serving long-duration grid storage, while lithium-ion remains optimal for short-duration applications.

    Conclusion

    Iron-air batteries represent an important step in long-duration energy storage.

    By using a reversible rusting process, they enable multi-day power delivery at potentially lower material cost.

    Although they require more space and have lower energy density, their long discharge capability supports renewable-heavy grids.

    As energy systems transition toward deep decarbonization, iron-air batteries may become a key pillar in multi-layer storage strategies.

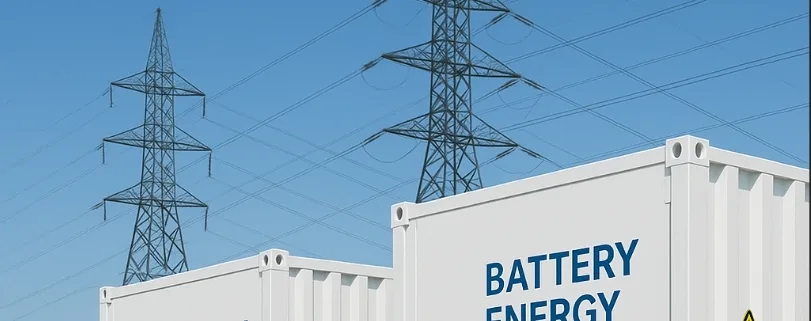

    Utility-Scale BESS
    Rahul Jalthar

    Understanding Utility-Scale BESS: The Backbone of a Resilient Energy Future

    /7 Comments/in /by

    Utility-scale Battery Energy Storage Systems (BESS) are becoming an essential part of today’s power grids. As we use more renewable energy like solar and wind, grid operators have to deal with issues such as fluctuating supply and sudden peaks in demand. Utility-scale BESS solves these problems by storing extra electricity when there’s plenty of it and releasing it when it’s needed most. This makes our power supply more stable, efficient, and reliable for everyone.

    What is Utility-Scale BESS?

    Utility-scale BESS refers to large-scale battery storage installations typically rated in megawatts (MW) or gigawatts (GW). Unlike residential or commercial storage systems, these projects serve the grid directly and can deliver energy for hours or even days, depending on system design.

    Key characteristics:

    • Capacity ranges from tens of MW to several hundred MW.
    • Located near generation sites or substations.
    • Provide grid services like frequency response, voltage control, and peak shaving.

    How Does a Utility-Scale BESS Work?

    A utility-scale battery storage system typically consists of:

    • Battery modules: Usually lithium-ion, but other chemistries like flow batteries or sodium-sulfur are emerging.
    • Battery Management System (BMS): Monitors cell performance, state-of-charge, and safety.
    • Power Conversion System (PCS): Converts DC from batteries to AC for the grid and vice versa.
    • Energy Management System (EMS): Controls dispatch, optimization, and integration with other grid assets.

    When generation exceeds demand (e.g., during midday solar peaks), the BESS stores excess energy. When demand surpasses generation (e.g., evening peak), the BESS discharges to stabilize the grid.

    Key Benefits of Utility-Scale BESS

    1. Grid Stability and Frequency Regulation

    One of the primary benefits of utility-scale BESS is rapid response to frequency deviations. Unlike traditional peaker plants, batteries can react within milliseconds, maintaining grid balance.

    2. Renewable Integration

    Wind and solar are variable by nature. Utility-scale battery storage smooths out fluctuations, stores surplus during high production, and releases energy during lulls — helping achieve higher renewable penetration.

    3. Peak Shaving and Load Shifting

    BESS helps utilities defer costly grid upgrades by managing peak demand. It stores energy when electricity is cheap and abundant, then discharges when prices and demand are high.

    4. Backup Power and Black Start Capabilities

    Large battery storage systems can support critical infrastructure during outages and help restart a power grid after a blackout — known as “black start.”

    Types of Utility-Scale BESS Technologies

    TechnologyFeaturesTypical Use Cases
    Lithium-IonHigh energy density, fast responseFrequency regulation, peak shaving
    Flow BatteriesLong duration, scalable, deep cyclingRenewable firming, load shifting
    Sodium-SulfurHigh temperature, long discharge durationBase-load shifting, remote microgrids
    Advanced Lead-AcidLow cost, moderate performanceShort-term backup, frequency response

    Challenges Facing Utility-Scale BESS

    While utility-scale BESS brings immense benefits, some challenges remain:

    • High upfront capital costs: Though prices are falling, large installations require significant investment.
    • Supply chain constraints: Dependence on critical minerals like lithium and cobalt can affect availability and cost.
    • Degradation and lifespan: Batteries degrade over time, impacting performance and replacement cycles.
    • Regulatory and market barriers: In some regions, market structures don’t fully value storage services yet.

    Recent Trends and Global Outlook

    According to industry reports, global utility-scale BESS installations are expected to grow exponentially. Markets like the US, China, Australia, and Europe lead the way with supportive policies and ambitious renewable energy targets.

    Key trends include:

    • Hybrid projects combining solar, wind, and storage.
    • Longer-duration storage technologies (8+ hours).
    • Second-life batteries and recycling solutions.
    • Grid services monetization through virtual power plants (VPPs).

    Case Study: Notable Utility-Scale BESS Projects

    • Hornsdale Power Reserve (Australia): 150 MW/193.5 MWh — one of the world’s largest lithium-ion storage projects, providing frequency control and grid support.
    • Crimson Energy Storage (California, USA): 350 MW/1,400 MWh — supports California’s push for 100% clean energy.
    • UK National Grid Projects: Multiple installations delivering fast frequency response and capacity market services.

    Future of Utility-Scale BESS: What’s Next?

    As we aim for net-zero goals, the role of utility-scale BESS will only expand. The focus will shift toward:

    • Integrating with renewable mega-projects.
    • Supporting decarbonization of hard-to-abate sectors.
    • Enabling community energy storage and distributed resources.

    Policy support, continued cost reductions, and technological breakthroughs will be crucial to unlocking the full potential of grid-scale energy storage.

    Final Thoughts

    Utility-scale BESS is more than just a technological solution — it’s the backbone of a flexible, reliable, and low-carbon energy future. By bridging the gap between intermittent renewables and constant demand, these systems are paving the way for a resilient grid that works for everyone.

    FAQs about Utility-Scale BESS

    Q1: How long can a utility-scale BESS supply power?

    Depending on the system’s energy capacity, it can range from minutes (for frequency response) to multiple hours (for peak shaving or load shifting).

    Q2: Is lithium-ion the only option for utility-scale BESS?

    No, while lithium-ion dominates the market today, flow batteries, sodium-sulfur, and other chemistries are gaining traction for longer-duration applications.

    Q3: How is utility-scale BESS different from residential storage?

    Utility-scale systems are grid assets providing large-scale services, while residential storage focuses on individual homes’ energy needs.

    Q4: What’s the biggest challenge for utility-scale BESS?

    High upfront costs and market barriers to monetizing all available services remain significant challenges.

    Are you exploring how utility-scale battery storage can transform your energy project? Let’s connect and discuss tailored solutions for your grid needs!
