ACIR LFP battery testing is critical in Battery Energy Storage Systems (BESS). It checks each cell before assembly. As a result, it prevents hidden defects early.
In contrast, DCIR measures performance under load. However, ACIR focuses on physical structure. Therefore, it gives a fast and clear view of cell quality.
At SunLith Energy, every LFP cell is tested at 1kHz. Thus, only stable cells move forward.
The Science of ACIR LFP Battery Testing: Ohmic Resistance
ACIR uses a small alternating current to measure internal resistance. The signal runs at 1kHz.
Z=IV
Because the signal is fast, chemical reactions do not respond. Therefore, the result reflects only ohmic resistance.
What This Method Measures
Current collector resistance
Electrolyte conductivity
Weld integrity
Contact resistance
In short, it shows the physical build quality of the cell.
Why 1kHz is the Industry Standard for ACIR LFP Battery Testing
The 1kHz frequency is widely used. This is because it balances speed and accuracy.
At lower frequencies, chemical effects appear. On the other hand, very high frequencies add noise. Therefore, 1kHz gives stable readings.
As a result, this method provides:
Fast measurement
High repeatability
Clean data
High-Precision ACIR LFP Battery Testing via the Kelvin Method
Measuring milliohm resistance requires precision. Small cable resistance can affect results and lead to inaccurate data.
Therefore, engineers use the 4-pin Kelvin method.
How the Kelvin Method Works
Two probes inject current
Two probes measure voltage
Because of this separation, lead resistance is removed.
Key Benefits
Higher accuracy
Better consistency
True resistance values
Why ACIR Testing Improves BESS Reliability
Incoming Quality Control
First, this test detects defects early. For example, high resistance may indicate poor welds.
As a result, faulty cells are removed before assembly.
Cell Matching for Long Life
Next, uniform cells are critical. Otherwise, imbalance occurs.
If resistance varies:
Heat increases
Aging becomes uneven
Therefore, cells are grouped by similar values. This improves lifespan and stability.
Early Failure Detection
ACIR also helps detect early degradation.
For instance:
Rising resistance may signal internal damage
Sudden change may indicate failure risk
Thus, it supports predictive maintenance.
ACIR LFP Battery Testing vs DCIR
Both methods are important. However, they serve different roles.
ACIR gives us a snapshot of a cell’s physical integrity. However, DC Internal Resistance (DCIR) tells us how that cell performs when the grid calls for power.
Understanding DC Internal Resistance LFP metrics is critical for managing grid-scale BESS . ACIR provides a snapshot of physical integrity. However, DCIR determines performance during immediate power demands
This article breaks down the fundamentals of DCIR. Moreover, it explains why this is the definitive metric for grid-scale storage and how we engineer around it.
Why DC Internal Resistance LFP Metrics Matter
Specifically, DCIR measures the voltage drop during a high-current DC pulse. ACIR uses a 1 kHz frequency to bypass electrochemical reactions. In contrast, DCIR forces the battery to move ions. This provides a “real-world” measurement of the battery’s actual ability to deliver power under load.
Mathematically, it is calculated from the change in voltage (ΔV) over the change in current (ΔI):
DCIR FORMULA R₂ₙ = (Vᵢₙᵢₜᵢₐₗ − Vₗₒₐ₂) / Iₗₒₐ₂ R₂ₙ = DC Internal Resistance Vᵢₙᵢₜᵢₐₗ = Open circuit voltage Vₗₒₐ₂ = Voltage under load Iₗₒₐ₂ = Applied current
This single measurement captures two distinct resistance sources:
DCIR includes:
Ohmic Resistance — The physical resistance of tabs, current collector foils, and the electrolyte itself. Furthermore, this is what ACIR also measures.
Polarization Resistance — The “chemical friction” lithium ions face as they diffuse through the electrolyte and intercalate into electrode particles. Specifically, this is invisible to ACIR, and it’s where the real performance story lives.
Why DC Internal Resistance LFP Is the “Real-World” Metric for BESS
In a Battery Energy Storage System, cells are never sitting idle — they are responding to dynamic, unpredictable grid demands. Here is why DCIR monitoring is non-negotiable for any serious integrator.
1. Predicting Heat Generation
Thermal stress is driven by DCIR, not ACIR Furthermore, according to Joule’s Law (P = I²R), heat generation is directly proportional to resistance. Because DCIR is significantly higher than ACIR, it is the primary driver of thermal stress in a running cell. High DC Internal Resistance LFP leads to hot spots. Therefore, it can trigger BMS shutdowns or accelerate aging This relationship is defined by Joule’s Law, which states that heat increases with the square of the current
2. Eliminating Voltage Sag
In addition, high DC Internal Resistance LFP causes trips even at 20% SOC Have you ever seen a BESS unit trip even though the State of Charge showed 20%? That is often due to high DCIR. For instance, under a heavy load, high resistance causes the voltage to “sag.” This often drops below the inverter’s cutoff threshold even though charge remains. Therefore, lower DCIR ensures a stable power delivery curve that your inverter can trust.
3. State of Health (SOH) Tracking
DC Internal Resistance LFP rises before capacity degrades visibly While ACIR is great for initial cell grading, DCIR is a superior indicator of aging. As LFP cells age and the SEI layer thickens, DCIR increases significantly — long before capacity degrades visibly. In addition, monitoring this trend allows for predictive maintenance and avoids unexpected field failures. Specifically,, monitoring these trends allows for predictive maintenance.
DC Internal Resistance LFP vs. ACIR: A Quick Comparison
Both measurements have a role to play in a rigorous quality program. The key is knowing which question each one actually answers.
Feature
ACIR (1 kHz)
DCIR (Pulse Test)
Method
Small AC sine wave
Large DC current pulse
What it captures
Ohmic / physical resistance only
Ohmic + polarization resistance
Primary focus
Physical & mechanical cell health
Chemical & kinetic performance
Best used for
Cell sorting & incoming QC
System modeling & thermal planning
Aging sensitivity
Low – changes slowly with age
High – rises with SEI layer growth
Measurement speed
Very fast (<1 second)
Seconds to minutes per cell
Real-world accuracy
Indicative only
Directly predictive of field behavior
Engineering for Reliability at SunLith Energy Our integration process goes beyond simple module assembly. Specifically, we implement rigorous testing protocols to ensure every module meets strict DCIR benchmarks. — aligning our practices with global standards including IEC 62619 and UL 1973, as well as BIS and GB/T requirements for grid-scale safety.6,000+ target cycles <20% max resistance growth 0.5C peak C-rate optimized Our DCIR-optimized systems deliver: Thermal stability at high C-rates 6,000+ cycles with minimal resistance growth Full compliance: IEC 62619 · UL 1973 · BIS · GB/T
The Bottom Line: ACIR is the heartbeat — it tells you the cell is physically alive. In contrast, DCIR is the stamina—it tells you whether that cell can perform. when the grid calls. Ultimately, to build a truly bankable BESS, you must master both.
Want to learn more about how we optimize LFP performance?
⚡ Quick Answer: What Does a BMS for LiFePO4 Need? A BMS for LiFePO4 batteries must enforce a cell voltage window of 2.5V–3.65V, use Coulomb counting or Kalman filtering for accurate SOC (not OCV alone), provide at least 80–100 mA balancing current for passive systems, monitor temperature at multiple points, and halt charging below 0°C. These requirements differ significantly from NMC — a BMS designed for NMC will underperform on LFP cells.
LiFePO4 (LFP) is the dominant chemistry for solar storage, commercial BESS, and off-grid systems. Its long cycle life, thermal stability, and safety advantages make it the first choice for most stationary applications. However, LFP also has specific characteristics that place unique demands on the BMS for LiFePO4.
Not every BMS is built with LFP in mind. Many suppliers use a generic platform across multiple chemistries. Consequently, an NMC-designed BMS on LFP cells shows poor SOC accuracy and slow balancing. It also lacks the specific protections LFP needs.
This guide covers the key requirements for a BMS for LiFePO4 — voltage parameters, SOC methods, balancing current, and temperature limits. It also includes the supplier questions that reveal whether a BMS is genuinely built for LFP.
New to battery management systems? Read our complete BMS explainer guide first, then return here for the LFP-specific detail.
1. Why LiFePO4 Places Unique Demands on the BMS
LFP’s chemistry gives it three properties that directly shape what the BMS must do. Understanding these properties is the starting point for evaluating any BMS for LiFePO4.
The Flat Voltage Curve: LiFePO4’s Biggest BMS Challenge
LFP cells operate near 3.2V–3.3V across most of their usable SOC range. Specifically, from 20% to 80% SOC, the voltage barely moves. This is unlike NMC, where voltage drops steadily and predictably as the cell discharges.
Consequently, the BMS cannot rely on voltage alone to estimate SOC. A cell at 50% SOC and a cell at 30% SOC look almost identical on voltage. As a result, any BMS that uses OCV as its primary SOC method will be wildly inaccurate on LFP during operation.
This is the most important LFP-specific BMS requirement. A wrong SOC estimate causes early shutdowns and surprise overcharge events. It also wastes usable energy by setting overly cautious capacity limits.
Chemical Stability: LiFePO4 Still Needs BMS Protection
LFP’s iron-phosphate cathode is chemically very stable. Its thermal runaway threshold is 270°C–300°C — far higher than NMC’s 150°C–210°C. This stability means the BMS has more time to respond to developing faults. However, it does not mean LFP needs less protection.
Over-discharge below 2.5V per cell damages the anode permanently. Overcharge above 3.65V per cell damages the cathode. Both need fast BMS action. The stability advantage of LFP reduces thermal risk — but it does not reduce voltage protection needs.
Wide Operating Temperature Range
LFP handles temperature extremes better than NMC. It operates from -20°C to 60°C on discharge and from 0°C to 45°C on charge. However, charging below 0°C causes lithium plating. This is a permanent form of anode damage that accumulates with each cold-temperature charge cycle.
The BMS must, therefore, actively halt charging when cell temperature drops below 0°C. This is a hard protection requirement, not a soft warning. For more on how temperature affects LFP lifespan, see our guide on temperature impact on LiFePO4 cycle life.
2. LiFePO4 BMS Voltage Parameters: The Exact Numbers
Voltage parameters are the foundation of any BMS for LiFePO4 configuration. These values define the safe operating window for each cell. The BMS enforces them through contactor control and charge/discharge current limiting.
Parameter
LFP Value
What Happens If Breached
Nominal cell voltage
3.2V
Reference point for system design — not a limit
Charge cutoff (max)
3.65V per cell
Permanent cathode damage above this — BMS must disconnect
Discharge cutoff (min)
2.5V per cell
Permanent anode damage below this — BMS must disconnect
Recommended operating range
2.8V–3.4V per cell
Staying within this range extends cycle life significantly
Cell voltage balance tolerance
±20mV typical
Wider spread indicates balancing failure or weak cell
Low voltage pre-warning
2.7V–2.8V
BMS should alert before hard cutoff — allows graceful shutdown
Why Cell-Level Monitoring Is Non-Negotiable
These voltage limits apply to individual cells — not to the overall pack voltage. In a 16S LFP pack (16 cells in series), the nominal pack voltage is 51.2V. However, one weak cell can hit its 2.5V discharge cutoff while the pack voltage still reads 49V — well above the apparent safe threshold.
A BMS that monitors only pack voltage will therefore miss this event entirely. The weak cell gets driven below its safe limit and suffers permanent damage. Consequently, cell-level individual voltage monitoring is the most basic non-negotiable requirement for any BMS for LiFePO4.
Voltage Tolerance in the BMS Hardware
The accuracy of the voltage measurement circuit matters. For LFP, a measurement tolerance of ±5–10mV per cell is acceptable. Some premium BMS platforms achieve ±1–2mV. Tighter tolerances mean the BMS can set closer operating limits and extract more usable capacity from the pack.
Ask your supplier: what is the cell voltage measurement accuracy of the BMS? If they cannot answer, that is a red flag.
3. SOC Estimation for LiFePO4: Why OCV Alone Fails
LFP’s flat voltage curve makes OCV-based SOC estimation unreliable — the BMS must use Coulomb counting or Kalman filtering instead
SOC estimation is where most generic platforms fail. It is, therefore, the most important technical question to ask any BMS for LiFePO4 supplier.
Why OCV Fails for LFP
OCV lookup works by mapping a resting cell voltage to a SOC value. It uses a table built from cell tests. This works well for NMC because NMC voltage drops steadily as the cell discharges.
LFP, however, produces an almost flat voltage curve between 20% and 80% SOC — roughly 3.2V to 3.3V across this entire range. As a result, a cell at 25% SOC and a cell at 75% SOC look nearly identical on OCV. The BMS cannot distinguish between them. Consequently, an OCV-based BMS on LFP shows SOC readings that jump erratically and fail to track the actual charge state.
OCV is only useful for LFP after the battery has rested for at least 30–60 minutes with no current flowing. It is, therefore, a valid method for setting the initial SOC estimate at startup — not for real-time tracking.
Coulomb Counting: The Minimum Standard for LFP
Coulomb counting integrates current over time to track charge entering and leaving the battery. It is the most widely used SOC method in real-time operation. It is also the minimum acceptable standard for any BMS for LiFePO4.
Coulomb counting is accurate over short periods. However, it drifts over time. Sensor errors, temperature effects, and small unmeasured currents all add up. Without regular recalibration, the SOC estimate can drift by 2–5% over several days.
Best practice: The BMS should recalibrate SOC to 100% when the battery reaches full charge voltage (3.65V per cell) and to 0% when it reaches the discharge cutoff (2.5V per cell). These are reliable anchor points that correct accumulated drift automatically.
Extended Kalman Filter: The Gold Standard for LFP
The Extended Kalman Filter (EKF) is the most accurate SOC method for LFP. It combines Coulomb counting with a cell behaviour model. Continuously, it corrects the estimate by comparing the model’s output to the actual measured voltage.
EKF handles LFP’s flat curve far better than OCV. It does not rely on voltage to estimate SOC. Instead, it uses a dynamic model that accounts for temperature, aging, and load history. Furthermore, premium BMS platforms from Texas Instruments, Analog Devices, and Orion BMS use EKF or adaptive Kalman filter variants.
The trade-off is complexity. EKF requires a well-characterised cell model that must be calibrated for the specific LFP cell chemistry in use. A generic EKF implementation calibrated for one cell type will not necessarily be accurate on another. Always ask whether the EKF model was calibrated for the specific cells in your system.
Method
Accuracy on LFP
Key Limitation
Use Case
OCV Lookup
Poor (flat curve)
Useless during operation
Initial SOC at rest only
Coulomb Counting
Good short-term, drifts
Accumulates error over time
Minimum standard — all LFP systems
Coulomb + OCV reset
Good — self-correcting
Needs full charge/discharge cycles
Residential and C&I systems
Extended Kalman Filter
Excellent (±1–2%)
Needs cell-specific calibration
Utility-scale and precision BESS
4. Temperature Requirements for a LiFePO4 BMS
LFP handles temperature better than NMC. However, this does not mean temperature management matters less — it means the safety margins are wider. The BMS must still enforce hard temperature limits and respond to thermal events.
LFP Temperature Operating Limits
Condition
Safe Range
BMS Action Required
Charging temperature
0°C to 45°C
Halt charging below 0°C — lithium plating risk
Discharging temperature
-20°C to 60°C
Reduce current below -10°C; cut off below -20°C
Optimal operating range
15°C to 35°C
No restriction — full rated performance
High temp warning
45°C–55°C
Reduce charge/discharge current; trigger cooling
High temp cutoff
Above 55°C–60°C
Disconnect pack — risk of accelerated degradation
Thermal runaway threshold
~270°C–300°C
Emergency disconnect and alarm — well above normal ops
Temperature Sensor Placement for LFP
The number and placement of temperature sensors directly affects BMS accuracy. For LFP packs, the minimum is one sensor per module. However, in larger systems, multiple sensors per module are standard — at the cell surface, the busbar, and inside the enclosure.
Temperature gradients across a large LFP pack can be significant. A poorly ventilated corner of a battery rack can run 10°C–15°C hotter than the rest. Without adequate sensor coverage, the BMS misses this. Consequently, the hottest cells degrade faster, creating imbalance that shortens the entire pack’s life.
Cold Weather and LFP: The Lithium Plating Risk
Charging LFP below 0°C is one of the most common field mistakes in cold-climate installations. When lithium ions cannot intercalate into the anode at low temperatures, they deposit as metallic lithium on the anode surface instead. This lithium plating is permanent and cumulative.
Specifically, repeated cold-temperature charging causes capacity loss and increases internal resistance. In severe cases, it creates dendrites that cause internal short circuits. The BMS must therefore monitor cell temperature before and during charging. It must halt charge current if any cell falls below 0°C.
5. Cell Balancing Requirements for LiFePO4 BMS
LFP’s flat voltage curve makes cell imbalance harder to detect — the BMS needs adequate balancing current to keep cells in sync
Cell balancing is especially important for LFP. The flat voltage curve makes imbalance harder to spot by voltage alone. Two cells can differ significantly in SOC while showing nearly the same voltage. As a result, the BMS must use current tracking — not just voltage — to detect and correct imbalance.
Minimum Balancing Current for LFP
Passive balancing current determines how quickly the BMS can correct cell imbalance. For LFP systems, the minimum acceptable balancing current depends on system size and cycle frequency.
System Size
Minimum Balancing Current
Why
Residential (under 30 kWh)
50–100 mA
Low cycle frequency — slow balancing keeps up
Small C&I (30–200 kWh)
100–200 mA
Daily cycling creates drift — needs more current to correct
Large C&I (200–500 kWh)
200–500 mA or active
Passive may not keep up — active balancing preferred
Utility-scale (500 kWh+)
Active balancing (1–5A)
Passive is inadequate — active required for long-term performance
When to Specify Active Balancing for LFP
In residential systems with one cycle per day and high-grade A-cell packs, passive balancing at 100 mA is typically sufficient. The cells are well-matched from the factory and, consequently, drift slowly at moderate cycle rates.
Active balancing becomes worthwhile for LFP systems in three situations. First, systems above 500 kWh that cycle daily — imbalance builds faster than passive balancing can fix. Second, systems in variable temperature environments where thermal gradients cause uneven aging. Third, long-duration systems designed for 15+ years where small capacity gains have significant ROI impact.
For a detailed comparison of passive vs active balancing methods, see our complete BMS guide which covers both approaches in depth.
6. Protection Functions: What a LiFePO4 BMS Must Detect
Beyond voltage and temperature, a BMS for LiFePO4 must handle several protection scenarios. Each one has LFP-specific parameters that differ from other chemistries.
Overcharge Protection in a BMS for LiFePO4
The hard overcharge cutoff for LFP is 3.65V per cell. Above this, the cathode undergoes irreversible structural changes. The BMS must therefore disconnect the charge current before any cell reaches this limit. It must do so at the cell level — not the pack level.
Response time should be under 100ms from detection to contactor opening. Additionally, the BMS should implement a pre-warning at around 3.55V–3.60V that reduces charge current (CC-CV charging taper) before the hard cutoff is needed. This protects cells and reduces stress on the contactor.
Over-Discharge Protection for LiFePO4 Cells
The discharge cutoff for LFP is 2.5V per cell. However, the recommended operating minimum is 2.8V — keeping cells above 2.8V significantly extends cycle life. The BMS should therefore implement a two-stage approach: a soft limit at 2.8V that issues a warning and reduces available power, and a hard cutoff at 2.5V that disconnects the pack entirely.
In grid-connected systems, the EMS typically enforces the operational SOC limit well above the hard BMS cutoff. However, the BMS hard limit acts as the last line of defence. It activates if the EMS dispatch fails or if the system enters an unexpected deep discharge scenario.
Short Circuit and Overcurrent Protection
Short circuit response must be in microseconds. The BMS uses a hardware protection circuit — a MOSFET or contactor — that operates independently of the main processor. Software-based response is simply too slow for a hard short circuit event.
Overcurrent protection covers sustained high-current events that are not a hard short. It typically uses a time-delay threshold — for example, 2C discharge for more than 10 seconds triggers a disconnect. The exact settings depend on the cell’s C-rate rating and the load profile.
Cell Voltage Imbalance: A Key LiFePO4 BMS Alert
This is an LFP-specific protection function that many generic BMS platforms handle poorly. LFP cells look similar on voltage even when SOC values differ significantly. As a result, the BMS must monitor cell voltage spread continuously and alert when cells diverge beyond the tolerance threshold.
A spread greater than 50–100 mV across cells indicates a problem. It is typically a sign of a weak cell, a failing balancing circuit, or early degradation. The BMS should log this event and alert the monitoring platform — not simply trigger a hard cutoff.
7. BMS for LiFePO4: Communication and Data Requirements
A BMS for LiFePO4 in a modern BESS must communicate reliably with the inverter, EMS, and monitoring platform. Furthermore, from 2027, EU Battery Passport compliance adds data logging requirements. As a result, communication capability becomes a regulatory issue — not just a technical one.
Communication Protocols: What a BMS for LiFePO4 Must Support
CAN bus 2.0A/B — standard for high-performance and EV-derived BMS platforms; fastest and most reliable
RS485 / Modbus RTU — most common in C&I and utility BESS; compatible with most commercial inverters
CANopen — used in some European industrial applications
MQTT / TCP-IP — required for cloud monitoring and Battery Passport data export
Before specifying a BMS, confirm it works with your inverter’s protocol. A mismatch needs a gateway converter — adding cost, a failure point, and communication lag.
Data Logging Requirements for LiFePO4 BMS Systems
For residential and small commercial LFP systems, minimum data logging should cover SOC, cell voltages, temperatures, cycle count, and fault history. This supports warranty claims and helps diagnose degradation over time.
For systems selling into the EU market after February 2027, the BMS must also log SOH history, energy throughput, and temperature exposure. This data must be in a format compatible with the EU Digital Battery Passport. For full details, see our EU 2023/1542 compliance guide.
8. BMS for LiFePO4 Certifications: What to Check
A BMS for LiFePO4 in a commercial or grid-connected system must hold safety certifications. These confirm the BMS has been tested under fault conditions and meets minimum protection standards.
Standard
Scope
LFP BMS Relevance
UL 1973
Stationary lithium battery systems
Required for US market — covers BMS protection functions
IEC 62619
Li-ion battery safety
International standard — covers voltage, temp, and BMS protection
IEC 62933-5
ESS safety framework
Covers BMS communication, monitoring, and fault response
UN 38.3
Transport safety
BMS must survive vibration and thermal tests for shipping
CE Marking
EU market access
Required for EU sales — covers electrical safety
Always request the full test reports — not just the certificate. A reputable BMS supplier will provide complete documentation without hesitation. If they provide only a certificate image with no underlying test data, treat that as a red flag.
9. How to Evaluate a LiFePO4 BMS: 7 Specific Questions
Generic BMS evaluation questions apply to all lithium chemistries. These seven questions, however, are specifically designed to reveal whether a BMS has been properly configured for LFP cells.
Questions 1–4: Technical Parameters
What SOC algorithm does this BMS use for LFP — and can you show me the accuracy data?
If the answer is OCV lookup, walk away. Ask specifically for SOC accuracy under dynamic load conditions — not just at rest. A good answer is Coulomb counting with OCV reset, or EKF with LFP-calibrated cell model. Ask for the SOC error percentage from their test data.
What is the cell voltage measurement accuracy, and how often does the BMS sample each cell?
For LFP, ±10mV or better is the minimum. Sampling frequency should be at least once per second under normal operation, with faster sampling during charge/discharge transitions. Slower sampling misses brief voltage spikes near the cutoff limits.
Does the BMS halt charging below 0°C at the cell level — not just the ambient temperature?
This is a critical LFP protection requirement. Ambient temperature sensors can give false readings. A cell inside an enclosure can be warmer or colder than the ambient sensor shows. The BMS must therefore use cell-level temperature sensors for this protection. If the supplier uses only one ambient sensor, that is inadequate for LFP.
What is the balancing current, and is it sufficient for the system’s daily cycle rate?
Use the table in Section 5 as your reference. A 50 kWh residential system cycling once daily needs at least 100 mA. A 500 kWh C&I system cycling twice daily needs at minimum 500 mA passive or active balancing. If the supplier cannot tell you the balancing current, that is a red flag.
Questions 5–7: Data and Support
Was the BMS calibrated specifically for the LFP cells in this system — or is it a generic configuration?
SOC accuracy depends on the BMS being calibrated for the specific cell chemistry and capacity. A BMS set up for a 100 Ah CATL cell will not be accurate on a 200 Ah EVE cell. Always ask whether the cell model was calibrated for your specific cells.
What LFP-specific fault codes does the BMS log, and how are they accessible?
Look for: cell voltage imbalance alerts, low-temperature charge inhibit events, SOC drift correction logs, and balancing records. These are essential for diagnosing field problems and supporting warranty claims. A BMS that only logs hard faults — not pre-fault warnings — will miss early signs of cell trouble.
Does the BMS support OTA firmware updates — and is the LFP cell model updatable in the field?
LFP cells change as they age. A BMS with OTA firmware updates can recalibrate its cell model over time. This keeps SOC accuracy high as the cells degrade. It is a premium feature — but it matters a lot for systems designed to last 15+ years.
Conclusion: Match the BMS to the Chemistry
A BMS for LiFePO4 is not the same as a generic lithium BMS. LFP’s flat voltage curve needs a purpose-built SOC method. Its sensitivity to cold charging needs cell-level temperature sensors. Its long cycle life needs strong balancing to keep cells aligned over thousands of cycles.
The seven questions in Section 9 will reveal whether a supplier has genuinely designed their BMS for LiFePO4 — or simply relabelled an NMC platform. The difference matters. Over a 15-year lifespan, a purpose-built BMS for LiFePO4 delivers more usable energy, better SOC accuracy, and fewer field failures.
☀️ Need an LFP BMS Review for Your BESS Project? Sunlith Energy reviews BMS specifications for LFP projects from 50 kWh upward. We check SOC algorithm suitability, voltage parameter configuration, balancing current adequacy, and certification compliance — before you commit to a supplier. Contact us
Frequently Asked Questions
What voltage should a LiFePO4 BMS cut off at?
The hard charge cutoff is 3.65V per cell and the hard discharge cutoff is 2.5V per cell. However, for longer cycle life, the recommended operating range is 2.8V to 3.4V. Operating consistently within this narrower range can significantly extend total cycle count over the system’s lifetime.
Can I use an NMC BMS on LiFePO4 cells?
Technically you can, but the SOC accuracy will be poor. NMC BMS platforms typically use OCV-based SOC, which fails on LFP’s flat voltage curve. The voltage window settings will also be wrong — NMC cells have higher charge cutoffs and different discharge profiles. In practice, an NMC BMS on LFP leads to inaccurate SOC readings, early shutdowns, and reduced usable capacity.
What is the minimum balancing current for a LiFePO4 BMS?
Residential systems under 30 kWh cycling once daily need 50–100 mA passive balancing. Commercial systems above 100 kWh cycling daily need 200 mA or more. Active balancing is preferred for systems above 500 kWh. Low balancing current in a large pack allows imbalance to accumulate — leading to progressive capacity loss.
Does a LiFePO4 BMS need to stop charging in cold weather?
Yes — this is a hard requirement. Charging LFP below 0°C causes lithium plating, which is permanent and cumulative. The BMS must use cell-level temperature sensors to enforce this protection. Ambient sensors alone are not sufficient — cells inside an enclosure can be warmer or colder than the surrounding air suggests.
How accurate should SOC be on a LiFePO4 BMS?
A Coulomb counting BMS with regular OCV resets should achieve ±3–5% SOC accuracy in steady-state operation. An EKF-based BMS with a properly calibrated LFP cell model should achieve ±1–2%. Poor SOC accuracy above ±10% typically indicates OCV-only estimation — or a cell model not calibrated for the specific LFP chemistry.
The Ah vs Wh debate comes up every time you shop for a battery. You see both numbers on every spec sheet. However, most buyers ignore one of them. That is a costly mistake. Ah and Wh measure different things. Confusing them leads to choosing the wrong battery size.
In this guide, Sunlith Energy breaks down both measurements. You will learn the formula that links them. Additionally, you will see real conversion examples. Furthermore, we share a step-by-step method to size your own battery system correctly.
According to the International Energy Agency, battery storage is central to the global clean energy transition. Therefore, understanding how battery capacity is measured matters more than ever. Every buyer deserves to get this right.
⚡ Quick Answer: Ah vs Wh Ah measures electric charge — how much current a battery delivers over time. Wh measures actual energy — charge multiplied by voltage. The formula: Wh = Ah × Voltage. For example, 100 Ah at 48V = 4,800 Wh. In contrast, 100 Ah at 12V = only 1,200 Wh. As a result, Wh is always the better metric for comparing batteries across different systems.
What Does Ah Mean? The Charge Side of Ah vs Wh
Ah stands for Amp-hours. It measures electric charge. Specifically, it tells you how many Amps a battery delivers and for how long.
The rule is simple. One Ah means 1 Amp delivered for exactly 1 hour. However, it could also mean 2 Amps for 30 minutes. Alternatively, it could be 10 Amps for 6 minutes. The total charge is always the same — only the rate changes.

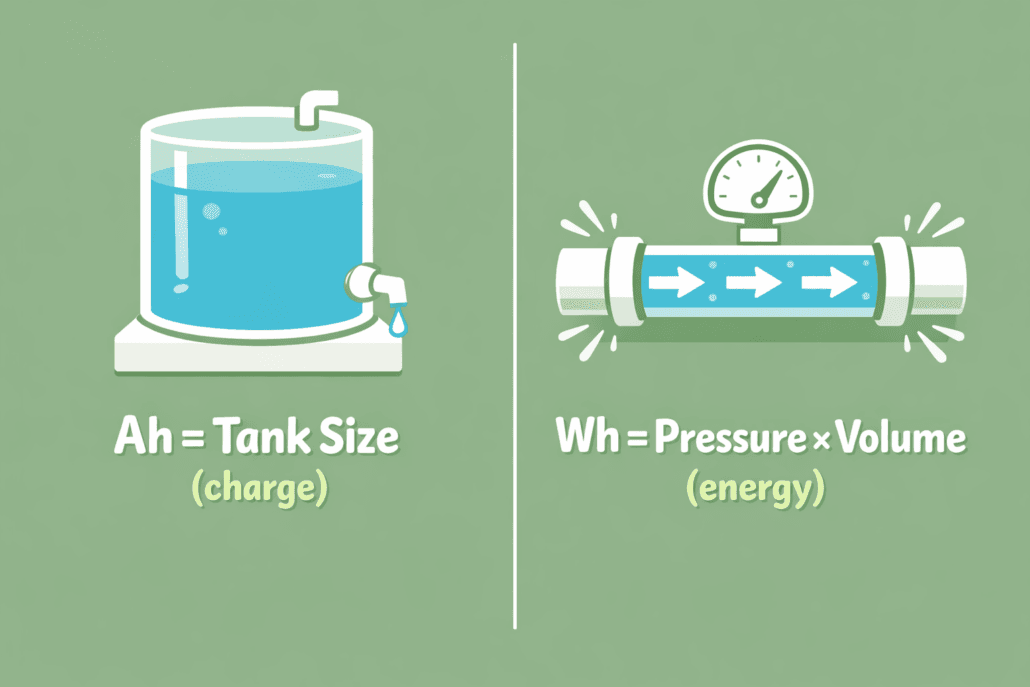

🚿 Think of Ah Like a Garden Hose Ah is the tank size. A 100 Ah battery holds enough charge for 100 Amps over 1 hour. Turn the tap up — it drains faster. Turn it down — it lasts longer. However, the total water in the tank stays the same.
When to Use Ah in the Ah vs Wh Decision
Calculating runtime — how long a battery powers a fixed-current device
Setting charge rates — C-rate is always expressed relative to Ah
Designing battery banks — when all batteries share the same voltage
Comparing batteries of identical voltage side by side
There is one important limitation. Ah is voltage-independent. Therefore, a 100 Ah battery at 12V and a 100 Ah battery at 48V have the same Ah rating. Even so, they store very different amounts of energy. That is the most common battery-buying mistake.
Wh stands for Watt-hours. It measures actual energy. Because it accounts for voltage, Wh is the more complete measurement.
Furthermore, battery energy density is expressed in Wh/kg. So understanding Wh also helps you compare weight-to-energy ratios across different chemistries.
💧 Wh = Pressure × Volume If Ah is the tank size, Wh is the total force the water delivers. That force depends on volume AND pressure (voltage). In contrast to Ah, Wh gives you the full energy picture. More voltage means more energy for the same Ah.
When to Use Wh in the Ah vs Wh Decision
Comparing batteries at different voltages — for example, 12V vs 48V
Good news: only one formula connects Ah and Wh. Voltage is the bridge between them.
Wh = Ah × Voltage (V) Reversed: Ah = Wh ÷ Voltage For mAh: Wh = (mAh ÷ 1000) × Voltage
This explains why two batteries with the same Ah can store very different energy. Higher voltage multiplies charge into more usable Wh. As a result, 48V systems deliver far more energy per Ah than 12V setups. That is why 48V has become the standard for modern residential solar.
Ah vs Wh Conversion Examples — Real Numbers
Below are three practical examples. Each one shows how to apply the Ah vs Wh formula step by step.
Example 1 — Home Solar Battery (LiFePO4, 48V) → Battery rated: 100 Ah at 48V nominal → Formula: Wh = 100 × 48 ✅ 4,800 Wh (4.8 kWh) — runs a full-size fridge for about 2 full days
Example 2 — Portable Power Station (12V) → Battery rated: 50 Ah at 12V nominal → Formula: Wh = 50 × 12 ✅ 600 Wh — charges a laptop approximately 10 times
Example 3 — Smartphone Battery (mAh to Wh) → Battery rated: 5,000 mAh at 3.7V → Step 1: 5,000 ÷ 1,000 = 5 Ah → Step 2: Wh = 5 × 3.7 ✅ 18.5 Wh — a typical mid-range smartphone battery
⚡ Quick mAh Shortcut For 3.7V lithium cells: Wh ≈ mAh × 0.0037. Therefore, a 10,000 mAh power bank ≈ 37 Wh. Never compare mAh values from batteries with different voltages. Because voltage differs, the mAh number alone tells you nothing about energy.
Ah vs Wh — Which Metric Should You Use?
Both measurements are useful. However, the right choice depends on your question. Use this table as a quick reference:
Your Question
Use
Why
How long will my device run?
Ah
Runtime = Ah ÷ current draw
Which battery stores more energy?
Wh
Wh compares across voltages
Can I run a 100 W device for 3 hrs?
Wh
300 Wh needed — easy math
How fast can I charge this battery?
Ah
C-rate is always Ah-based
LiFePO4 vs NMC — which has more?
Wh
Different voltages make Ah wrong
Sizing solar panels and controller?
Ah
Fixed-voltage design uses Ah
Airline carry-on battery limits?
Wh
IATA rules: 100 Wh / 160 Wh
In summary: use Ah for current and time calculations within a fixed-voltage system. For everything else, use Wh. Comparing batteries across voltages or chemistries? Wh is always the right choice.

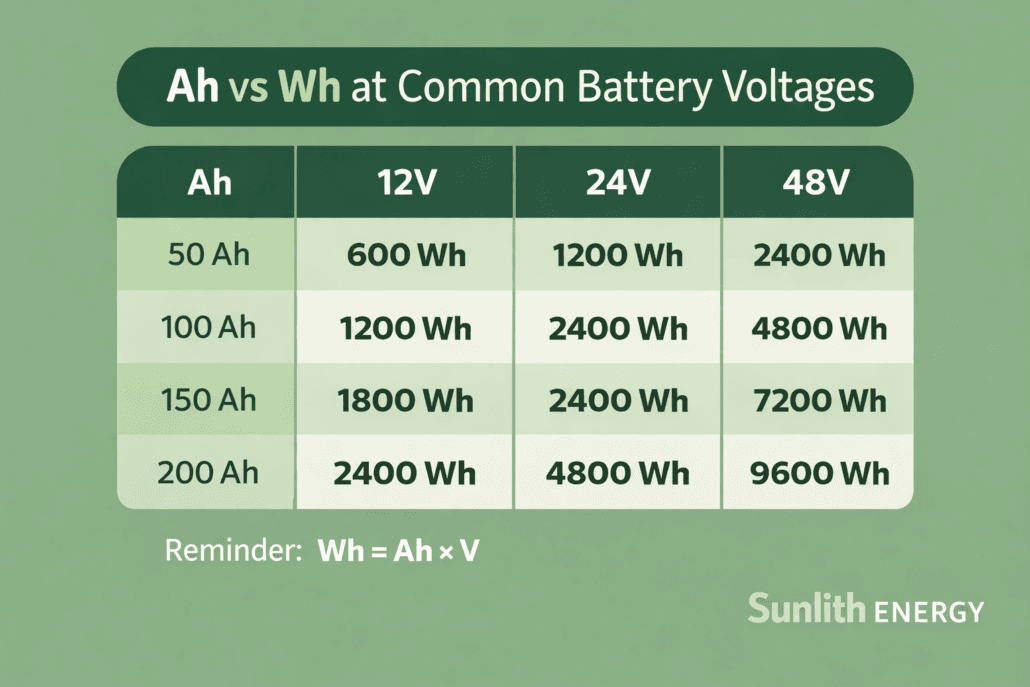

Same Ah, Very Different Energy — Why Voltage Changes Everything
Many buyers compare batteries on Ah alone. This is a common and expensive mistake. Voltage changes everything. Below is a clear example:
Battery
Ah
Voltage
Energy (Wh)
Powers…
Van / camping pack
50 Ah
12V
600 Wh
Laptop ~10×
Home 12V bank
100 Ah
12V
1,200 Wh
Fridge ~12 hrs
Home 24V bank
100 Ah
24V
2,400 Wh
Fridge ~24 hrs
Solar 48V system
100 Ah
48V
4,800 Wh
Fridge ~2 days
C&I 48V system
200 Ah
48V
9,600 Wh
Office ~1 day
As the table shows, identical Ah ratings hide very different energy levels. Consequently, always convert to Wh before comparing. For more on how chemistry affects this, see our LiFePO4 vs NMC battery guide.

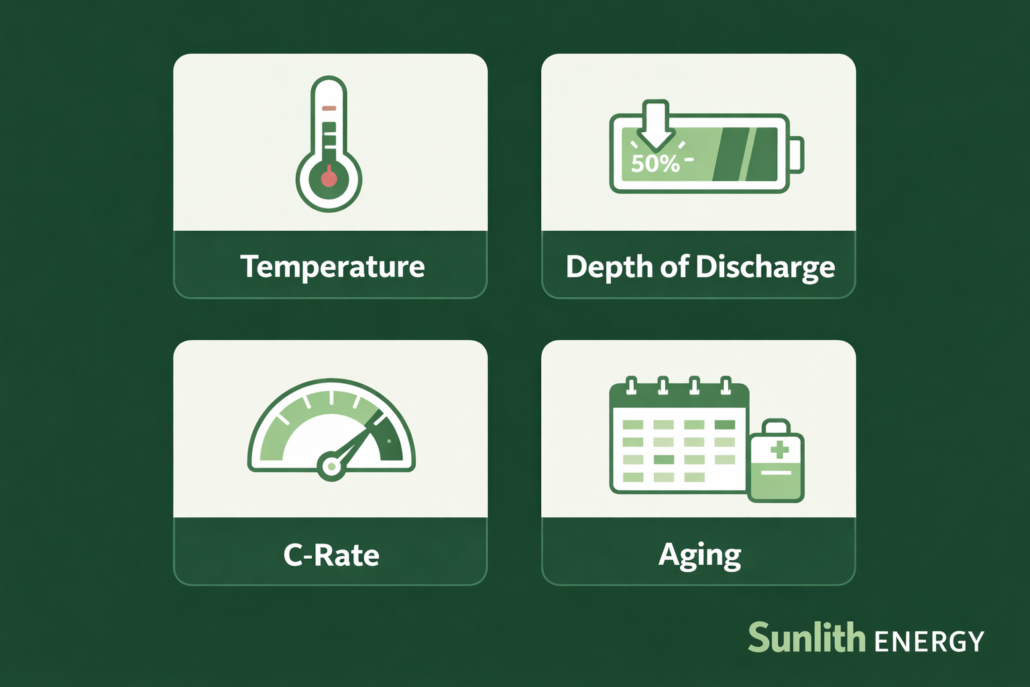

What Reduces Your Real-World Ah vs Wh Capacity?
Battery labels show the theoretical maximum. In practice, usable capacity is always lower. Several factors reduce what you actually get. Understanding them is essential for accurate sizing.
1. Depth of Discharge (DoD)
Most batteries should not be fully drained. Doing so permanently damages cells. The safe depth of discharge varies by chemistry:
LiFePO4: 80–90% DoD — consequently, usable Wh = 80–90% of rated Wh
Lead-acid: only 50% DoD — therefore, you lose half your rated capacity
NMC: typically 80–85% for a long cycle life
2. Temperature
Cold weather hurts batteries significantly. Below 10°C, deliverable Ah drops by 20–30%. Temperature directly impacts LiFePO4 cycle life — a rise of 10°C above 25°C can halve total cycle life. Heat, on the other hand, temporarily boosts apparent capacity. However, it accelerates permanent degradation at the same time.
3. Discharge Rate (C-Rate)
Drawing current too fast reduces total Wh delivered. For example, a battery discharged at 2C gives fewer Wh than the same battery at 0.5C. Always check the C-rate used during the manufacturer’s Ah test. Because a 0.2C rating looks far better than real-world 1C performance.
4. Battery Aging
Every cycle causes a small, permanent capacity loss. At 500 cycles, most batteries retain about 90%. At 1,000+ cycles, the best LiFePO4 cells still retain 70–80%. Consequently, factor aging into your long-term Wh budget when sizing.
5. System Efficiency Losses
Inverters, charge controllers, wiring, and BMS all consume energy. Modern lithium systems typically achieve 85–95% round-trip efficiency. Therefore, add a 10–15% buffer on top of your calculated Wh need. This protects you from real-world losses.
This efficiency depends heavily on how well the battery management system manages charge and discharge cycles — learn how a BMS works
How to Size Your Battery System Using Ah vs Wh

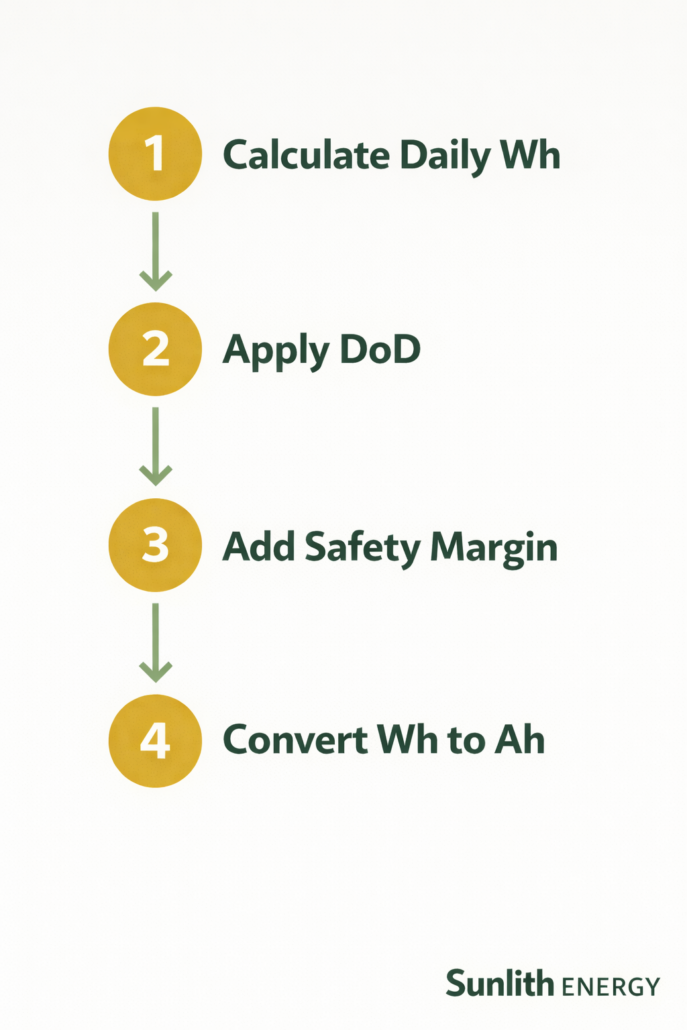

Now let’s put it all together. Below is a simple four-step sizing method. It is the same approach used in our solar battery sizing guide.
Step 1 — Calculate Your Daily Wh Requirement
List every appliance you want to power. Write down its wattage and daily run hours. Multiply watts by hours for each device. Then add them all together. For example: a 50W fridge runs 24 hours = 1,200 Wh. Four 25W LED lights run 5 hours = 500 Wh. Total: 1,700 Wh per day. Additionally, add 10% for hidden standby loads — bringing the total to about 1,870 Wh.
Step 2 — Apply the Depth of Discharge
Divide your daily Wh by the safe DoD. For LiFePO4 at 80% DoD: 1,870 ÷ 0.80 = 2,338 Wh of rated capacity needed. This step is essential. It ensures you never drain the battery below its safe limit. As a result, both lifespan and warranty are protected.
Step 3 — Add a Safety Margin
Multiply your result by 1.15 to 1.20. This covers system losses, aging, and seasonal variation. In our example: 2,338 × 1.20 = 2,806 Wh minimum rated capacity. Therefore, look for a battery bank rated at or above 2,800 Wh.
Step 4 — Convert Wh Back to Ah
Use Ah = Wh ÷ Voltage. At 48V: 2,806 ÷ 48 ≈ 58 Ah. At 24V: 2,806 ÷ 24 ≈ 117 Ah. At 12V: 2,806 ÷ 12 ≈ 234 Ah. As a result, higher-voltage systems need far fewer Ah. That is why 48V has become the industry standard for residential solar.
☀️ Sunlith Off-Grid Tip For solar or off-grid systems, size for at least 2 days without sun. Multiply your daily Wh by 2 before applying DoD and the safety margin. This protects against cloudy days and seasonal dips. → Read more: Ultimate Guide to Battery Energy Storage Systems (BESS)
Ah vs Wh — Frequently Asked Questions
Q: Is a higher Ah battery always better?
No — not always. A higher Ah means more charge, not more energy. Voltage is the missing piece. For example, 200 Ah at 12V = 2,400 Wh. However, 100 Ah at 48V = 4,800 Wh. Therefore, always compare Wh — not Ah alone.
Q: Can I compare a 12V 100 Ah battery with a 24V 100 Ah battery?
No — not on Ah alone. Convert both to Wh first. 100 × 12 = 1,200 Wh. In contrast, 100 × 24 = 2,400 Wh. The 24V battery stores twice the energy. For a full chemistry breakdown, see our LiFePO4 vs NMC battery guide.
Q: What does 100 Ah mean in practical terms?
A 100 Ah battery delivers 100 Amps for 1 hour. Alternatively, it delivers 10 Amps for 10 hours. Furthermore, it delivers 1 Amp for about 100 hours. In a 12V system, 100 Ah = 1,200 Wh. In a 48V system, 100 Ah = 4,800 Wh. Additionally, apply the DoD to find the safe, usable portion.
Q: How many Wh do I need for an off-grid solar system?
A small cabin typically needs 1–3 kWh per day. A home averages 10–30 kWh per day. Furthermore, size for 2 days of autonomy for cloudy periods. Our detailed solar sizing guide walks through the full calculation with examples.
Q: Does temperature affect Ah vs Wh?
Yes — it affects both. Cold temperatures reduce deliverable Ah. Consequently, usable Wh also drops. High heat temporarily boosts apparent capacity. However, it causes permanent degradation over time. LiFePO4 handles temperature extremes better than NMC. For the full data, see our post on temperature impact on LiFePO4 cycle life.
Q: What is the difference between mAh and Ah?
mAh means milliamp-hours. There are 1,000 mAh in 1 Ah. Consumer devices use mAh because the numbers are easier to read. To convert: divide mAh by 1,000 to get Ah. Then multiply by voltage to get Wh. For example: 5,000 mAh ÷ 1,000 × 3.7V = 18.5 Wh.
Q: What Wh limits apply to lithium batteries on aeroplanes?
According to IATA’s Lithium Battery Guidance, passengers may carry batteries up to 100 Wh without airline approval. Batteries between 100 Wh and 160 Wh require specific approval. Batteries above 160 Wh are generally not allowed in carry-on. Because rules vary by carrier, always confirm with your airline before travelling.
Q: Is LiFePO4 better than NMC for solar storage?
In most cases, yes. LiFePO4 offers better thermal safety and a longer cycle life. Its thermal runaway threshold is ~270–300°C, versus ~150°C for NMC. Furthermore, LiFePO4 performs more consistently in extreme temperatures. In contrast, NMC offers higher energy density — so it suits weight-constrained applications better. Compare both in our NMC vs LFP safety guide.
Q: Do BESS systems need certifications?
Yes — especially for commercial or grid-connected installations. Key certifications include UL 9540, IEC 62619, and CE Marking. Our BESS certifications guide covers every major standard required in 2026, what each tests, and the cost of skipping them.
Q
Conclusion — Ah vs Wh Made Simple
Knowing the Ah vs Wh difference saves you from bad battery decisions. Ah measures charge. Wh measures energy. The formula Wh = Ah × Voltage connects them. Use Ah for runtime and charge rate calculations. For everything else — especially cross-voltage comparisons — use Wh.
Additionally, always apply DoD, temperature effects, C-rate, and aging when estimating real-world usable capacity. The number on the label is a theoretical maximum. Your actual usable capacity will always be lower.
Whether you are planning a home solar install or a commercial BESS project, the Ah vs Wh distinction is the right place to start. Get it right — and every other sizing decision becomes easier.
Need Help Choosing the Right Battery? Our Sunlith Energy experts size your system — solar, BESS, off-grid, or C&I. No jargon. No pressure. Contact us: sunlithenergy.com/contact Browse our solutions: sunlithenergy.com
Reading a LiFePO4 battery spec sheet correctly is one of the most valuable skills a buyer can have.
However, most spec sheets are written for engineers — not procurement teams.
This guide covers every field of a LiFePO4 battery spec sheet in plain language.
Furthermore, you will learn what each number means and which red flags to watch for.
In addition, understanding your LiFePO4 battery spec sheet is the first step before using our Battery Cycle Life Calculator.
📌 Key rule: Two batteries with identical spec sheet headlines can perform very differently.The difference is always in the test conditions — not the headline number.Therefore, always read the conditions first.
⚠️ Why a LiFePO4 Battery Spec Sheet Can Be Misleading
Spec sheets are marketing documents as much as technical ones.
However, that does not mean the numbers are wrong. As a result, you need to read the conditions — not just the headline.
Three issues cause the most confusion for buyers:
Issue
What it looks like
Why it matters
Optimistic test conditions
Cycle life tested at 25°C and shallow DOD
Your real project runs hotter and deeper — so lifespan is lower
Inconsistent EOL threshold
One supplier uses 80% SOH, another uses 70% EOL
In other words, the numbers are not comparable
Missing test parameters
C-rate, temperature, DOD not stated
Consequently, you cannot verify or compare the number
Therefore, always apply a conservative adjustment to any headline number.
📋 Section 1 of Your LiFePO4 Battery Spec Sheet: Cell Chemistry
First, always check the nominal voltage. For LiFePO4, this is 3.2V per cell.
In contrast, NMC cells show 3.6–3.7V. As a result, a wrong voltage means a wrong chemistry.
What the LiFePO4 Battery Spec Sheet Shows for Cell Grade
Grade A cells are new and have passed full quality screening.
Moreover, Grade B cells are factory seconds. Consequently, the grade directly determines system reliability.
Always insist on Grade A for any commercial project.
Field
What to look for
Nominal Voltage
3.2V per cell for LiFePO4. However, if it shows 3.6–3.7V, the chemistry is NMC — not LFP.
Nominal Capacity
Rated in Ah at 0.2C. For example, 100Ah at 3.2V = 320Wh per cell.
Cell Format
Prismatic, cylindrical, or pouch. Furthermore, format affects thermal design and replacement logistics.
Cell Grade
Grade A = new and full-spec. Grade B = factory second. Therefore, always confirm grade before ordering.
🚨 Red flag: A spec sheet that does not state the cell grade is hiding something.Ask directly — and request a grade certificate from the cell manufacturer.
⚡ Section 2 of Your LiFePO4 Battery Spec Sheet: Electrical Specs
Capacity, Energy, and Internal Resistance
Furthermore, the electrical section contains the numbers most often misread by buyers.
Capacity is stated at 0.2C in the lab. However, your system likely runs at 0.5C or 1C.
In addition, internal resistance is a key quality signal. Consequently, a high value often means an older or lower-grade cell.
Field
What to look for
Capacity (Ah)
Stated at 0.2C. In practice, expect 90–95% of this at 1C. Therefore, ask what C-rate was used.
Energy (Wh)
Capacity × Voltage. For example, 100Ah × 3.2V = 320Wh. However, usable energy depends on your cutoff voltage.
Internal Resistance
0.15–0.35mΩ for Grade A 100Ah prismatic. Higher values indicate age or lower cell quality.
Voltage Range and Self-Discharge
Voltage limits define the safe operating range for each cell.
Moreover, operating outside these limits permanently damages the cell. Consequently, your BMS must enforce both cutoffs at all times.
Self-discharge for LiFePO4 is typically 1–3% per month. In contrast, anything above 5% signals a quality issue.
Field
What to look for
Charge Cutoff Voltage
3.65V per cell. Overcharging even slightly above this causes permanent capacity loss.
Discharge Cutoff Voltage
2.5V per cell. Over-discharging below this causes irreversible damage. Therefore, BMS protection is mandatory.
Self-Discharge Rate
1–3% per month is normal. However, above 5% per month suggests a cell quality issue.
💡 Pro tip: Ask for the discharge curve chart at multiple C-rates.A supplier confident in their cells will share this without hesitation.In other words, transparency is the strongest quality signal.
🔋 Section 3 of Your LiFePO4 Battery Spec Sheet: Cycle Life
Cycle life is the most important section of any LiFePO4 battery spec sheet.
However, it is also the most abused. As a result, the headline number alone tells you very little.
In other words, 6,000 cycles tested at 50% DOD is very different from 6,000 cycles at 80% DOD.
How Cycle Life Is Measured on a LiFePO4 Battery Spec Sheet
Manufacturers test cycle life under the best possible lab conditions.
Consequently, four variables determine whether the number applies to your project.
For example, a 25°C test result does not apply to a 38°C deployment. Furthermore, the C-rate and DOD used in testing must match your real use.
Condition
What to check
Test DOD
The discharge depth used in the test. 80% is standard. However, some suppliers test at 50% DOD to inflate cycle counts.
Test Temperature
Always 25°C in the lab. However, every 10°C above that reduces effective lifespan by 15–25%.
Test C-Rate
0.5C is standard for both charge and discharge. As a result, tests at 0.2C will show better results than real use.
EOL Definition
80% SOH or 70% EOL? Furthermore, a 70% EOL battery has 10–15% more usable cycles than an 80% SOH one.
The 4 Questions to Ask About Cycle Life
Before accepting any cycle life number, ask all four questions below.
Moreover, a supplier who hesitates on any of them is a supplier to be cautious about.
1. What DOD was used in the cycle life test? 2. What temperature was the test run at? 3. What C-rate was used for charge and discharge? 4. Is the cycle count to 80% SOH or 70% EOL?
Converting Cycle Life Numbers on a LiFePO4 Battery Spec Sheet
Different suppliers use different EOL thresholds. Therefore, direct comparison is often misleading.
For instance, 6,000 cycles at 80% SOH and 6,000 cycles at 70% EOL are not the same number.
First, check the standard charge rate. For LiFePO4, this is typically 0.5C.
Consequently, charging faster than 0.5C every day accelerates degradation.
Sustained fast charging at 2C+ can cause lithium plating. Therefore, this permanently reduces capacity over time.
Field
What to look for
Standard Charge Rate
Typically 0.5C. This is the recommended daily charge rate for maximum cycle life.
Max Charge Rate
Often 1C or 2C. However, sustained 2C+ causes lithium plating and permanent capacity loss.
Charge Cutoff Voltage
3.65V per cell. Furthermore, overcharging even slightly above this causes irreversible damage.
Discharge Rate and Protection Limits
Standard discharge for BESS is 0.5–1C. Moreover, this is within safe limits for most applications.
Above 3C continuous discharge, significant heat is generated. Consequently, always confirm your BMS has current limiting.
Discharge cutoff is 2.5V per cell. Going below this causes copper dissolution — irreversible damage.
Field
What to look for
Standard Discharge Rate
Typically 1C. Real-world BESS applications discharge at 0.5–1C — therefore, within safe limits.
Max Continuous Discharge
Often 2C or 3C. As a result, confirm your BMS has current limiting for grid events.
Discharge Cutoff Voltage
2.5V per cell. Consequently, BMS low-voltage protection must always be active.
Peak Discharge Rate
Short-duration maximum — typically 5C for 10 seconds. In particular, important for frequency response.
🚨Discharge Cutoff Voltage: 2.5V per cell. Over-discharging below this causes irreversible damage. Therefore, BMS protection is mandatory.
🚨 Red flag: Any spec sheet showing 3C+ continuous discharge with no temperature derating chart is overstating capability.Furthermore, sustained 3C+ discharge causes heat that accelerates degradation well beyond the spec sheet cycle count.
🌡️ Section 5 of Your LiFePO4 Battery Spec Sheet: Thermal Specs
Furthermore, the thermal section is the most commonly skimmed. However, for hot climate deployments it is the most critical.
In particular, charging below 0°C causes lithium plating — permanent damage that cannot be reversed.
Above 45°C, electrolyte breakdown accelerates. Therefore, always confirm your BMS has temperature-gated charging.
Field
What to look for
Operating Temp (charge)
0°C to 45°C is typical. Charging outside this range causes permanent damage. Therefore, BMS temperature protection is mandatory.
Operating Temp (discharge)
-20°C to 60°C. However, capacity at -10°C drops to 70–80% of rated. As a result, account for this in cold climates.
Storage Temperature
-20°C to 35°C at 50% SOC. Furthermore, storing at 100% SOC above 35°C significantly accelerates calendar aging.
Thermal Runaway
Above 270°C for LiFePO4 — compared to 170–210°C for NMC. Consequently, LFP is safer in enclosed environments.
IP Rating
IP65 is standard for outdoor BESS. In contrast, anything below IP54 should not be used outdoors.
💡 For hot climates: the temperature range on a LiFePO4 battery spec sheet is a survival range — not a performance guarantee.As a result, apply a 15–25% cycle life reduction for average ambient temperatures above 30°C.
🏅 Section 6: Safety Standards and Certifications
Finally, certifications confirm the battery has been independently tested for safety.
However, logos on a spec sheet are not the same as valid certificates. Therefore, always request original test reports.
For example, UL 1973 is required for US grid-tied projects. In addition, CE marking is required for all EU market products.
Certification
What it covers
Why it matters
UN 38.3
Transport safety for lithium batteries
Required for any shipped battery — if absent, insurance may be void
IEC 62133
Cell-level safety standard
Covers overcharge, short circuit, crush, and thermal abuse tests
IEC 62619
System-level safety for stationary storage
Required for most commercial BESS projects
UL 1973
US stationary battery standard
Required for US and Canadian grid-tied projects
UL 9540 / 9540A
System-level thermal runaway standard
Required by many US and EU jurisdictions for large BESS
CE Marking
European conformity
Required for all products sold into the EU market
GB/T Standards
Chinese national standards
Present on most Chinese cells — verify equivalence to IEC
🚨 Red flag: A supplier who cannot provide original certification documents should not be trusted for any commercial project.Moreover, always request the actual test report — not a certificate copy or a logo on a brochure.
🚩 Complete LiFePO4 Battery Spec Sheet Red Flag Checklist
Use this before approving any LiFePO4 battery spec sheet for procurement.
In addition, if any of these are present, ask for clarification before placing an order.
Red Flag
Risk
What to request
Cell grade not stated
Grade B or C sold at Grade A price
Ask for grade certificate from cell manufacturer
Cycle life — no test conditions
Cannot verify or plan from the number
Ask for DOD, temperature, C-rate, and EOL threshold
DOD 50% or less for cycle test
Inflated cycle count for shallow cycling
Request 80% DOD test data instead
No discharge curve chart
Cannot assess real-load performance
Request multi-C-rate discharge curves
Certifications as logos only
May be expired or fabricated
Request original test reports from the certification body
Calendar life not stated
Unknown degradation for low-cycle use
Ask for calendar aging data at 25°C and 35°C
Thermal derating not provided
Performance at high temperature unknown
Ask for capacity vs temperature chart
Internal resistance not stated
Cannot assess cell quality
Request DC internal resistance at 50% SOC
Warranty threshold not stated
Warranty may cover fewer cycles than spec claims
Confirm warranty EOL matches the spec sheet
📋 Transparent vs Misleading: Two Real Examples
Here are two examples of how the same LiFePO4 battery spec sheet data can be presented.
Furthermore, the difference in transparency directly affects how accurately you can plan costs.
Example A — A Transparent LiFePO4 Battery Spec Sheet
In this example, all test conditions are clearly stated. As a result, the numbers are fully comparable.
Field
What it shows
Capacity
100Ah @ 0.2C, 25°C
Cycle Life
6,000 cycles @ 80% DOD, 25°C, 0.5C/0.5C, to 80% SOH
Internal Resistance
0.25mΩ @ 50% SOC, 25°C
Certifications
IEC 62133, UL 1973 — original test reports available
Calendar Life
10+ years @ 25°C, 50% SOC storage
Assessment
✅ All conditions stated. Safe to use for planning and comparison.
Example B — A Misleading LiFePO4 Battery Spec Sheet
In contrast, this example hides all test conditions. Consequently, none of the headline numbers can be trusted.
Field
What it shows
Capacity
100Ah
Cycle Life
10,000 cycles
Internal Resistance
Not stated
Certifications
CE, UL (logos only — no reports)
Calendar Life
Not stated
Assessment
🚨 10,000 cycles likely tested at 50% DOD. Cannot verify certifications. Do not use for planning.
✅ 10 Questions to Ask Before Accepting Any Spec Sheet
Send these questions to every supplier before requesting a quote.
Furthermore, a trustworthy supplier will answer all ten within 24 hours. In other words, their speed and completeness is itself a quality signal.
1.
What cell grade is this — A, B, or C? Can you provide the manufacturer’s grade certificate?
2.
What DOD, temperature, and C-rate were used for the cycle life test?
3.
Is cycle life measured to 80% SOH or 70% EOL?
4.
Can you provide the full discharge curve chart at 0.2C, 0.5C, 1C, and 2C?
5.
What is the DC internal resistance at 50% SOC and 25°C?
6.
Can you provide original certification test reports — not just certificate copies?
7.
What is the calendar aging rate at 25°C and at 35°C?
8.
Does the cell have a thermal derating chart showing capacity at different temperatures?
9.
What is the minimum and maximum operating temperature for charging?
10.
Does your warranty cycle count use the same DOD and EOL threshold as the spec sheet?
🔍 Want a second opinion on your supplier’s LiFePO4 battery spec sheet? SunLith’s engineering team reviews spec sheets and flags misleading claims.Furthermore, this service is free for qualified BESS projects above 50kWh.As a result, you go into procurement with full clarity and confidence.→ Request a free spec sheet review: Contact us
❓ Frequently Asked Questions
What is a LiFePO4 battery spec sheet?
A LiFePO4 battery spec sheet is a technical document from the manufacturer. However, it is written under optimal lab conditions. Therefore, real-world performance is typically 10–20% lower than stated. In other words, always check the test conditions behind every headline number.
What is the most important section of a LiFePO4 battery spec sheet?
Cycle life is the most critical section. However, it is only useful with all four test conditions stated. For example, the DOD, temperature, C-rate, and EOL threshold must all be present. As a result, a cycle count without these conditions cannot be used for planning.
How do I verify a LiFePO4 battery spec sheet is accurate?
First, ask for original certification test reports — not just certificate copies. Furthermore, request the full discharge curve chart at multiple C-rates. In other words, transparency is the strongest quality signal from a supplier.
What does Grade A mean?
Grade A cells are new and have passed full quality screening. In contrast, Grade B cells are factory seconds that failed one or more checks. Therefore, always insist on Grade A for any commercial BESS project.
Why do two batteries with the same Ah rating perform differently?
Several factors cause this difference. For example, internal resistance, cell grade, and test C-rate all vary between manufacturers. Moreover, two 100Ah batteries tested at different C-rates produce incomparable results. Consequently, always compare capacity figures tested at the same C-rate.
The NMC battery vs LFP safety gap starts with one number: LFP triggers thermal runaway at 270–300°C — NMC reaches it at just 150–210°C. That 150°C difference determines fire risk, toxic gas exposure, BMS complexity, and real installation cost for any BESS project.
This guide covers the full NMC battery vs LFP safety comparison. Specifically, we look at thermal runaway, fire risk, gas emissions, BMS needs, and real-world installation differences. By the end, you will know which chemistry is safer — and why.
Lithium-ion batteries store a lot of energy in a small space. So when something goes wrong, the results can be severe. However, not all chemistries fail the same way.
The cathode material is the key factor. It determines how much heat is released during failure. Fire spread speed also depends on the cathode. Therefore, picking the right chemistry is a safety decision — not just a performance one.
NMC Battery vs LFP Safety: Thermal Runaway Risk
#image_title
Thermal runaway is the main safety hazard in lithium-ion batteries. Specifically, it happens when a cell overheats and starts a chain reaction. As a result, the cell releases heat, gas, and possibly fire — faster than any cooling system can stop.
What causes thermal runaway?
Common causes include:
Overcharging — voltage pushed above the safe limit
External heat — high ambient temperature or nearby fire
Internal short circuit — from a defect or physical damage
Deep over-discharge — damages the anode structure
Mechanical abuse — crushing, puncture, or impact
Both LFP and NMC can suffer thermal runaway. However, the temperature at which it starts — and what happens next — is very different.
NMC battery vs LFP safety: thermal runaway temperature
LFP cells begin thermal runaway at around 270°C–300°C. This is a high threshold. Because of this, LFP handles heat, poor ventilation, and temperature spikes much better.
NMC cells, on the other hand, begin thermal runaway at around 150°C–210°C. At up to 150°C lower than LFP, NMC reaches the danger zone much faster under the same conditions.
This gap matters a lot in practice. For example, a BESS in a warm climate or a poorly ventilated enclosure can easily reach 40°C–50°C. LFP handles that temperature comfortably. NMC, however, has a much smaller safety margin at that point.
✅ For outdoor BESS, rooftop solar, or any site without active cooling — LFP’s higher thermal runaway threshold is a critical safety advantage.
NMC Battery vs LFP Safety: Fire Risk and Propagation
#image_title
Even if one cell enters thermal runaway, a good system should stop it from spreading. However, chemistry determines how hard that containment is.
LFP fire risk
When an LFP cell fails, the reaction is relatively slow. In addition, the iron-phosphate cathode releases very little oxygen. As a result, fire spreading to nearby cells is much less likely — especially with proper spacing and thermal management.
LFP fires can still happen. Nevertheless, they are generally manageable with standard fire suppression systems. This includes systems required under NFPA 855 and UL 9540A.
NMC battery fire risk
NMC thermal runaway is more energetic. Notably, the cathode releases oxygen as it breaks down. That oxygen feeds the fire directly. As a result, NMC fires can spread to adjacent cells very fast. Experts call this thermal runaway cascade or cell-to-cell propagation.
NMC fires also burn hotter and produce more toxic smoke. Therefore, they need stronger fire suppression, more cell spacing, and better containment in module design.
This is exactly why UL 9540A testing exists. In short, it measures how far a fire can spread in a battery system. For more on certifications, see our guide to UL certifications for battery systems.
NMC Battery vs LFP Safety: Toxic Gas Emissions
#image_title
Battery failures produce dangerous gases. Importantly, the type and amount of gas depend on the chemistry.
LFP gas emissions
LFP cells mainly release carbon dioxide (CO₂) and small amounts of carbon monoxide (CO) during failure. Both are hazardous in enclosed spaces. However, LFP produces much lower volumes of toxic or flammable gas than NMC.
NMC battery gas emissions
NMC cells release a more dangerous mix of gases, including:
Hydrogen fluoride (HF) — highly toxic even at low levels
Carbon monoxide (CO) — toxic and flammable
Methane and hydrogen — highly flammable
Nickel and cobalt compounds — toxic metal vapours
Because of this, NMC failures in enclosed spaces carry a much higher toxic exposure risk. Container BESS, basement installs, and indoor commercial storage all fall into this category. Therefore, NMC systems need better ventilation and gas detection than LFP.
NMC Battery vs LFP Safety: BMS Requirements
A Battery Management System (BMS) is the main electronic protection against battery failure. However, NMC and LFP place very different demands on the BMS. For a full overview, see our BMS monitoring and protection guide.
LFP BMS needs
LFP has a flat charge-discharge voltage curve. Consequently, this makes State of Charge (SOC) harder to measure. However, the chemistry is stable. So the BMS has more time to catch a developing fault before it becomes dangerous.
Key BMS functions for LFP:
Cell balancing — important due to the flat voltage curve
Temperature monitoring — less critical than NMC, but still needed
Overcharge and over-discharge protection
NMC battery BMS needs
NMC is far more sensitive to voltage and temperature changes. Speed and precision matter more. As a result, the BMS must react faster and with tighter tolerances. In particular, NMC requires:
Tighter voltage windows — NMC is damaged more easily by overcharge or deep discharge
Continuous temperature monitoring — the low thermal runaway threshold means any heat spike is a risk
Faster fault response — the BMS must disconnect the system quickly
Cell-level monitoring — NMC cells age unevenly, so individual cell data matters
Therefore, NMC-based BESS systems need a more advanced BMS than LFP. Consequently, this adds cost, complexity, and more potential points of failure in the safety chain. The BMS is just one piece — but it is the one that ties all the others together.
NMC Battery vs LFP Safety: Certification Standards
Safety certifications test how battery systems behave under fault conditions. Because NMC and LFP behave so differently, the effort required to pass differs too.
Key standards for NMC battery vs LFP safety
Standard
What it covers
Key note
UL 9540
Complete BESS system safety
Both chemistries must comply for US market
UL 9540A
Fire propagation testing
Harder to pass for NMC
UL 1973
Stationary battery safety
Cell and module level
IEC 62619
Lithium-ion battery safety
International standard for both
NFPA 855
Fire code for energy storage
Stricter spacing often needed for NMC
IEC 62933-5
ESS safety framework
Applies to both
Why NMC faces a harder certification path
UL 9540A tests fire propagation. Specifically, it checks whether a thermal runaway event in one cell can spread to the rest of the system. Oxygen is released by NMC during failure. Because of this, fire propagation is more likely. As a result, systems using NMC often need more cell spacing, stronger thermal barriers, and better fire suppression to pass.
NFPA 855 also applies stricter spacing rules to higher-hazard systems. In practice, this means NMC BESS may need more floor area and more separation from occupied spaces. For a full overview, see our guide to IEC 62933-5 safety standards.
NMC Battery vs LFP Safety: Real-World Installation Differences
The NMC battery vs LFP safety difference is not just theory. It shows up in real project decisions every day.
Outdoor and warm-climate BESS
LFP is strongly preferred for outdoor BESS and warm-climate deployments. In particular, its high thermal runaway threshold means it handles heat without the active cooling NMC needs.
NMC in warm or outdoor settings, on the other hand, needs robust thermal management. Active liquid cooling or high-capacity HVAC is usually required. Therefore, the safety system becomes more complex and more expensive.
Indoor and occupied-building storage
NMC’s higher gas toxicity and fire spread risk make it harder to use near occupied spaces. In contrast, LFP’s lower emissions and slower failure mode make it a better fit for behind-the-meter C&I storage in commercial buildings.
Moreover, insurers and building inspectors are increasingly aware of the chemistry difference. As a result, LFP installations often get through planning and permitting faster than NMC.
Container-based utility-scale BESS
For large container BESS, both chemistries are used. However, NMC containers need more fire suppression, more cell spacing, and more thermal management. As a result, LFP containers can be packed more efficiently and at lower cost — while still meeting the same safety standards.
NMC Battery vs LFP Safety: Head-to-Head Summary
Safety factor
LFP
NMC
Thermal runaway threshold
~270–300°C
~150–210°C
Oxygen release during failure
Very low
High
Fire propagation risk
Low
High
Toxic gas emissions
Low (CO, CO₂)
High (HF, CO, metal vapour)
BMS complexity needed
Standard
High
UL 9540A difficulty
Lower
Higher
NFPA 855 spacing
Standard
Often stricter
Outdoor BESS suitability
Excellent
Moderate — needs active cooling
Indoor / occupied-space use
Good
Needs extra mitigation
Overall BESS safety risk
Lower
Higher
Which Is Safer? The NMC Battery vs LFP Safety Verdict
For stationary energy storage — BESS, solar storage, C&I, utility-scale — LFP is the safer choice. Its higher thermal runaway threshold makes it more tolerant of heat. Lower fire spread risk and reduced toxic emissions add to that advantage. Overall, every key safety dimension favours LFP.
NMC is not unsafe when it is designed and installed correctly. However, it needs more thermal management, a more advanced BMS, stronger fire suppression, and stricter installation controls to reach the same safety level as LFP. As a result, the cost of making NMC safe for stationary storage is higher.
Most utility-scale and C&I BESS projects globally now specify LFP for exactly this reason. Indeed, the safety profile — combined with longer cycle life and lower lifetime cost — makes LFP the dominant choice for stationary storage.
Frequently Asked Questions
Is NMC battery vs LFP safety a big difference in practice?
Yes. The gap is significant. A thermal runaway threshold up to 150°C lower than LFP is a major difference. More oxygen, more toxic gas, and faster fire spread come with it. Therefore, NMC needs more safety infrastructure to reach the same risk level as LFP.
Is NMC dangerous for BESS?
Not inherently — when properly designed, certified, and installed, NMC is manageable. However, the lower thermal runaway threshold and higher fire risk compared to LFP mean more work is required. As a result, more sophisticated thermal management and fire suppression are needed.
Why does LFP have a higher thermal runaway threshold than NMC?
The iron-phosphate bond in LFP is chemically more stable than the nickel-cobalt-manganese structure in NMC. Consequently, LFP needs much more heat to trigger decomposition and thermal runaway.
Can NMC pass UL 9540A?
Yes. Many NMC systems have passed UL 9540A. However, passing often requires more cell spacing, thermal barriers, and fire suppression than LFP needs. As a result, NMC certification takes more effort and cost.
Is LFP safe for indoor BESS installations?
Absolutely. LFP’s lower fire spread risk and reduced toxic gas profile make it more suitable than NMC for indoor and occupied-building installs. However, all BESS installations must still comply with local fire codes and applicable standards.
What happens if a single NMC cell fails in a large BESS?
In a well-designed NMC system, a single cell failure should be contained by the BMS, thermal management, and module-level barriers. However, because NMC releases oxygen during thermal runaway, fire can spread to adjacent cells if containment is not strong enough. Specifically, this is what UL 9540A testing is designed to evaluate.
Final Thoughts
The NMC battery vs LFP safety comparison has a clear result for stationary storage. Overall, LFP wins on thermal runaway threshold, fire propagation, toxic gas emissions, and BMS simplicity. As a result, it is the safer and more practical choice for BESS, solar storage, and C&I projects.
NMC works well where energy density is the top priority and where the extra safety infrastructure can be justified. However, for most stationary storage projects, LFP is the lower-risk option — in safety terms and in cost terms.
One final rule: always evaluate safety at the system level. Chemistry is just one piece. The BMS, thermal management, fire suppression, and installation conditions all matter equally. Therefore, always check that your supplier’s certification covers the full installed system — not just individual cells.
LiFePO4 vs NMC battery cycle life tells the real story: LFP delivers 3,000–10,000+ cycles, NMC typically 1,000–3,000 under the same conditions. That gap determines your total cost of ownership, replacement schedule, and real-world BESS performance over a 10–20 year project life.
In this guide, we compare LiFePO4 vs NMC battery performance across cycle life, State of Health (SOH), Depth of Discharge (DOD), temperature sensitivity, and End of Life (EOL). As a result, you’ll be able to compare options accurately — and avoid expensive mistakes.
Already familiar with SOH, DOD, and EOL? Jump straight to the comparison table below. New to these terms? Start with our Battery Cycle Standards Explained guide.
What Are LiFePO4 and NMC Batteries?
LiFePO4 (Lithium Iron Phosphate — LFP)
LiFePO4 uses an iron-phosphate cathode. It has a lower energy density than NMC. However, it is chemically far more stable. This stability gives LFP its well-known safety and longevity advantages.
Common applications: Solar energy storage, BESS, backup power, C&I storage, off-grid systems.
NMC (Nickel Manganese Cobalt)
NMC uses a combination of nickel, manganese, and cobalt in the cathode. Therefore, it delivers higher energy density per kilogram. This makes it popular in applications where space and weight matter most.
Common applications: Electric vehicles, portable electronics, space-constrained C&I BESS.
LiFePO4 vs NMC Battery: Cycle Life
LiFePO4 vs NMC Battery cycle life comparison
This is where most buyers start — and where most buyers get misled.
LiFePO4 Cycle Life
LFP cells tested under standard conditions (25°C, 80–100% DOD, EOL at 80% SOH) typically deliver:
3,000–6,000 cycles for standard-grade cells
6,000–10,000+ cycles for premium-grade cells (e.g., CATL, BYD, EVE)
The reason LFP lasts longer is its chemistry. The iron-phosphate bond is extremely stable. As a result, it does not break down as quickly during repeated charge-discharge cycles.
NMC Cycle Life
NMC cells tested under comparable conditions typically deliver:
1,000–3,000 cycles for standard-grade cells
2,000–4,000 cycles for premium-grade cells
The cobalt and nickel cathode structure is less stable than iron-phosphate. Therefore, each cycle causes slightly more lattice degradation. Over time, this accumulates faster.
The Spec Sheet Trap
Both chemistries suffer from the same problem. Manufacturers test at favourable conditions to inflate the published cycle number. For example, a common tactic is to test NMC at shallow DOD (e.g., 50%) to produce an impressive cycle count. They then compare that figure against LFP tested at full DOD. The result is a misleading comparison.
✅ Always compare cycle life tested under the same DOD, temperature, and EOL threshold. If these three conditions don’t match, the comparison is meaningless.
✅ The battery management system is also tested under these conditions — understanding what it monitors helps you read those numbers more critically.
LiFePO4 vs NMC Battery: State of Health (SOH)
SOH tells you how much capacity a battery retains compared to when it was new. A battery starts at 100% SOH. It then degrades with each cycle.
How LFP Ages
LFP degrades slowly and predictably. The capacity fade curve is relatively flat. In other words, most degradation happens gradually across the full lifespan. It does not drop sharply at a certain point.
A typical LFP cell looks like this over its life:
Cycles
SOH
0
100%
1,000
96–97%
3,000
90–92%
6,000
80% (EOL)
This predictability makes LFP ideal for long-term performance planning. For example, it works well for BESS ROI models, warranty structuring, and grid contracts.
How NMC Ages
NMC degrades faster. In addition, its degradation curve is less linear. In particular, NMC experiences accelerated degradation when operated at high temperature, high SOC (above 90%), or deep DOD. These conditions are all common in energy storage applications.
A typical NMC cell under similar conditions:
Cycles
SOH
0
100%
500
94–95%
1,500
85–87%
2,500
78–80% (approaching EOL)
For storage applications that cycle daily — such as solar self-consumption or peak shaving — NMC will therefore reach EOL significantly faster than LFP.
LiFePO4 vs NMC Battery: Depth of Discharge (DOD)
DOD directly affects how long your battery lasts. The deeper you discharge, the fewer total cycles you get.
LFP and DOD
LFP handles deep discharge well. Most LFP systems are designed for 80–100% DOD in daily operation. As a result, there are no dramatic cycle life penalties.
Practical guidance for LFP:
100% DOD: Full rated cycle life (e.g., 6,000 cycles)
NMC is much more sensitive to deep discharge. Operating NMC at 100% DOD regularly will substantially shorten its life. Because of this, many NMC-based storage systems are deliberately limited to 80–90% usable capacity to protect the cells.
Practical guidance for NMC:
100% DOD: Significantly accelerates degradation — not recommended for daily cycling
80% DOD: Standard operating range; spec sheet cycle figures often assume this
50% DOD: Can double the effective cycle count vs. 100% DOD
⚠️ If your application requires deep daily discharge — solar storage, overnight backup, peak shaving — LFP’s tolerance for high DOD is therefore a major practical advantage.
LiFePO4 vs NMC Battery: Temperature Sensitivity
Temperature impact on LiFePO4 vs NMC battery lifespan
Temperature is one of the biggest hidden variables in battery lifespan. Furthermore, it is where the LiFePO4 vs NMC battery gap widens most dramatically.
LFP and Temperature
LFP is thermally stable. The iron-phosphate chemistry has a higher thermal runaway threshold. As a result, it degrades less when exposed to elevated temperatures.
Optimal range: 15°C–35°C
Performance at 45°C: Cycle life reduces by roughly 20–30% vs. 25°C test conditions
Safety: LFP does not combust easily, even under abuse conditions
For outdoor BESS installations, rooftop solar storage, or warm-climate deployments, LFP’s thermal resilience is therefore a critical advantage.
NMC and Temperature
NMC is more sensitive to heat. At elevated temperatures, the cobalt-rich cathode degrades faster. In addition, the risk of thermal runaway — while still manageable with a proper BMS — is higher than with LFP.
Optimal range: 15°C–30°C
Performance at 45°C: Cycle life can reduce by 40–50% vs. 25°C test conditions
High-temperature risk: Accelerated electrolyte decomposition and faster capacity fade
Most NMC spec sheets are tested at 25°C in a controlled lab. However, if your installation is in a warm climate or poorly ventilated enclosure, the actual lifespan will be considerably shorter than the published figure. A properly configured battery management system with active thermal monitoring is what catches these conditions before they damage cells.
EOL is typically defined as the point when a battery’s capacity drops to 70% or 80% of its original rated capacity. However, the practical implications differ between LFP and NMC.
LFP at EOL
When LFP reaches 80% SOH, it still behaves predictably. The capacity has declined. Nevertheless, the battery remains safe, functional, and usable for second-life applications — such as backup power or stationary storage with reduced capacity requirements.
LFP cells at EOL often still have 10+ years of second-life ahead of them.
NMC at EOL
NMC reaching EOL is a different situation. Some NMC cells experience non-linear degradation after 80% SOH. As a result, capacity can drop faster than expected and internal resistance increases more sharply. This reduces power delivery and makes the battery less predictable in operation.
Second-life applications for NMC are possible. However, they require more careful vetting and BMS management.
LiFePO4 vs NMC Battery: Head-to-Head Comparison
Factor
LiFePO4 (LFP)
NMC
Typical cycle life (EOL 80%, 100% DOD, 25°C)
3,000–6,000+
1,000–2,500
Premium cell cycle life
6,000–10,000+
2,000–4,000
SOH degradation curve
Slow and linear
Faster, less predictable
Deep DOD tolerance
Excellent (handles 100% DOD well)
Moderate (80% DOD recommended)
Temperature sensitivity
Low — handles heat well
High — significant life reduction at >35°C
Thermal safety
Very high — low runaway risk
Moderate — requires robust BMS
Energy density
Lower (~120–180 Wh/kg)
Higher (~180–280 Wh/kg)
Cost per kWh (upfront)
Slightly lower to comparable
Slightly higher
Cost per kWh over lifetime
Significantly lower
Higher
Best for
Solar storage, BESS, C&I, long-duration use
EVs, space-constrained apps
Second-life potential
Excellent
Moderate
Which Chemistry Should You Choose?
Choose LFP if:
You’re building a solar storage, C&I BESS, or utility-scale project
Your system will cycle daily (peak shaving, self-consumption, backup)
Your installation is in a warm climate or non-climate-controlled environment
You need predictable, long-term performance for ROI modelling and warranties
You’re comparing total cost of ownership over 10+ years, not just upfront price
Safety and reduced maintenance are priorities
Consider NMC if:
Space and weight are the primary constraints (e.g., mobile applications, small footprint)
The system will cycle infrequently and at shallow DOD
Temperature is well-controlled throughout the system’s life
You need maximum energy density in a fixed physical volume
The Bottom Line
For the vast majority of stationary energy storage applications, LFP wins on total cost of ownership. The higher cycle life, better temperature resilience, and predictable degradation mean you get more energy throughput per dollar over the system’s life.
NMC’s energy density advantage is real. However, it matters most where weight and volume are the primary constraints. That is why NMC dominates electric vehicles and consumer electronics — not grid storage.
A Word on Spec Sheet Claims
Everything in this article assumes you’re comparing batteries tested under the same conditions. In practice, manufacturers don’t always make this easy.
Before trusting any cycle life claim — LFP or NMC — always verify:
✅ Test temperature (25°C is standard; higher = fewer cycles)
✅ DOD used in testing (80% DOD inflates cycle count vs. 100% DOD)
✅ EOL threshold (80% SOH vs. 70% SOH gives very different numbers)
For stationary storage with daily cycling, LFP typically offers better total cost of ownership. This is because LFP has longer cycle life, better DOD tolerance, and lower temperature sensitivity. However, NMC remains competitive where energy density is the primary constraint.
Can I compare LFP and NMC cycle life directly from spec sheets?
Only if both are tested at the same DOD, temperature, and EOL threshold. A common mistake is comparing LFP at 100% DOD vs. NMC at 80% DOD. As a result, the NMC figure looks artificially strong.
Why does NMC have higher energy density than LFP?
NMC’s cathode chemistry allows more lithium ions to be stored per unit of weight and volume. However, the tradeoff is lower stability and shorter cycle life under equivalent conditions.
What happens to NMC batteries in hot climates?
Elevated temperatures above 35°C significantly accelerate NMC degradation. At 45°C, NMC cycle life can be 40–50% lower than the spec sheet figure. LFP is therefore considerably more resilient to heat.
Is LFP safer than NMC?
Yes. LFP has a higher thermal runaway threshold. In addition, it is less prone to fire under abuse conditions such as overcharging, physical damage, or extreme heat. As a result, LFP is preferred for large-scale BESS where safety certifications and insurance requirements are strict.
What is the real-world lifespan difference between LFP and NMC?
For a system cycling once daily, a quality LFP system can last 15–20+ years before reaching EOL. A comparable NMC system in the same application might reach EOL in 6–10 years. Therefore, over a 20-year project life, that could mean one LFP system vs. two or more NMC replacements.
Final Thoughts
When comparing a LiFePO4 vs NMC battery for stationary storage, LFP is the stronger choice in most scenarios. It offers longer cycle life, superior temperature tolerance, better deep discharge handling, and lower lifetime cost. As a result, it is the dominant chemistry for solar storage, BESS, and C&I applications.
NMC earns its place where energy density is non-negotiable — primarily EVs and space-constrained installations. However, for stationary storage where the battery will cycle hard, in variable temperatures, over a decade or more, LFP is the more bankable choice.
The rule is simple: compare under the same conditions, ask for the full test report, and plan for real operating conditions — not lab results.
The sodium ion battery is becoming a key solution in energy storage. Today, industries need safer and cheaper systems. Because of this, many experts are exploring new battery technologies.
Unlike lithium systems, sodium-based batteries use common materials. As a result, costs are lower. In addition, supply risks are reduced. Therefore, this technology is gaining global attention.
At the same time, energy demand is rising. So, better storage solutions are required. Because of these factors, sodium batteries are now seen as a strong alternative.
What Is a Sodium Ion Battery?
A sodium ion battery is a rechargeable system. It stores and releases energy using sodium ions.
It works in a similar way to lithium batteries. However, it replaces lithium with sodium. Because sodium is abundant, production becomes easier.
In simple terms, the battery moves ions between two electrodes. During this process, energy is stored and released. Therefore, it can power devices and systems efficiently.
Are sodium batteries better than lithium batteries?
Sodium batteries are better in some areas. For example, they are cheaper and safer. However, lithium batteries store more energy. Therefore, each technology serves a different purpose.
Why are sodium-based batteries cheaper?
They are cheaper because sodium is widely available. In addition, it does not require rare metals. As a result, material costs are lower.
Can sodium batteries be used for solar storage?
Yes, they are suitable for solar storage. They provide stable performance. In addition, they are safe for long-term use. Therefore, they are ideal for renewable energy systems.
Do sodium batteries last long?
Yes, they offer good cycle life. However, performance depends on design and usage. In general, they are reliable for stationary storage.
Are sodium batteries safe?
Yes, they are considered very safe. They are less prone to overheating. As a result, fire risk is lower compared to many other battery types.
What is the biggest disadvantage of sodium batteries?
The main limitation is lower energy density. Therefore, they store less energy per weight. However, this is less important for grid storage.
Who is developing sodium battery technology?
Many companies are working on it, including CATL and BYD. As a result, development is moving quickly.
Can sodium batteries replace lithium batteries?
They will not fully replace lithium batteries. However, they will complement them. For example, they are ideal for large storage systems.
Are sodium batteries good for electric vehicles?
They are suitable for small vehicles. However, lithium batteries are still better for long-range EVs. Therefore, usage depends on application.
What is the future of sodium battery technology?
The future is promising. Production is increasing. As a result, costs will decrease. In addition, performance will improve over time.
Conclusion
The sodium ion battery is becoming a strong option for energy storage. It offers safety, low cost, and reliable performance.
Although it has some limitations, improvements are happening fast. Therefore, Sodium Ion Battery will play an important role in future energy systems.
Introduction: Why Iron-Air Batteries Are Gaining Attention
Iron-Air Battery: Renewable energy is growing fast. Solar and wind now supply a large share of electricity in many regions. However, both sources depend on weather conditions.
As a result, grids need energy storage systems that can deliver power even when the sun is not shining and the wind is not blowing.
Lithium-ion batteries help solve short-term gaps. Typically, they provide two to four hours of storage. Yet this is not enough during multi-day weather events.
Therefore, long-duration energy storage has become a major focus. Among the emerging technologies, the iron-air battery stands out.
Summary
What is an iron-air battery? An iron-air battery is a long-duration energy storage system that produces electricity through a reversible reaction between iron and oxygen.
How does it work? During discharge, iron reacts with oxygen and forms rust. During charging, electricity converts the rust back into iron.
How long does it last? Commercial systems are designed to deliver 50 to 100+ hours of power.
Where is it used? Iron-air batteries are used in utility-scale grid storage and renewable integration projects.
How is it different from lithium-ion? Iron-air provides much longer duration at lower material cost, but it requires more space and has lower energy density.
What Is an Iron-Air Battery?
An iron-air battery is a type of metal-air battery. It uses iron as one electrode and oxygen from the surrounding air as the other reactant.
Unlike lithium-ion cells, iron-air systems are not sealed in the same way. Instead, they pull oxygen directly from the atmosphere. This approach reduces material costs and simplifies chemistry.
The technology has gained attention through companies such as Form Energy, which is developing commercial 100-hour battery systems for grid use.
Because iron is cheap and widely available, this chemistry offers strong cost potential for long-duration storage.
How Does an Iron-Air Battery Work?
Iron-air batteries rely on a reversible rusting process. Although the concept sounds simple, the engineering behind it is sophisticated.
Discharge Phase: Producing Electricity
During discharge:
Iron reacts with oxygen
Iron oxide (rust) forms
Electrons move through an external circuit
Electricity flows to the grid
In simple terms, the battery “rusts” to generate power.
Charge Phase: Storing Energy
When the battery charges:
External electricity is applied
Iron oxide converts back into iron
Oxygen is released
Consequently, the system resets and becomes ready for the next cycle.
Even though the reaction is straightforward, system control requires airflow management, moisture balance, and electrolyte stability. Therefore, large-scale engineering plays a critical role in performance.
Why Iron-Air Batteries Are Important for the Grid
As renewable penetration rises above 50%, short-duration storage alone cannot stabilize the grid. Multi-day weather patterns can reduce both solar and wind output.
For example, extended cloudy and low-wind periods create serious reliability challenges. Under these conditions, four-hour batteries are insufficient.
Iron-air systems address this gap.
Multi-Day Energy Storage
Most iron-air designs target 50 to 100 hours of discharge. This duration supports:
Renewable smoothing
Coal plant retirement
Reduced gas peaker dependence
Grid resilience during extreme weather
Because of this capability, utilities are actively evaluating long-duration solutions.
Lower Material Cost
Iron is one of the most abundant elements on Earth. In contrast, lithium and nickel markets can experience volatility.
As a result, iron-air batteries reduce exposure to critical mineral supply risks. Over time, this could lower the levelized cost of storage for long-duration projects.
What is UL 1642 Certification?: Lithium-ion batteries power nearly every aspect of our modern lives—electric vehicles, energy storage systems (ESS), consumer electronics, and medical devices. With this widespread adoption comes a heightened need for safety.
UL 1642 Certification is one of the most widely recognized safety standards for lithium-ion cells. It provides rigorous testing criteria to ensure that these cells perform reliably and minimize risks of fire, explosion, or leakage. For companies like Sunlith Energy, aligning products with UL 1642 builds trust and demonstrates commitment to global safety standards.
Understanding UL 1642: The Scope of Certification
UL 1642 specifically applies to lithium-ion and lithium-metal cells, not complete battery packs or energy storage systems.
Scope: Evaluates individual battery cells.
Objective: Ensures cells resist hazardous conditions such as overcharging, short circuits, and high temperatures.
Coverage: Tests for mechanical, electrical, and environmental stress conditions.
By certifying cells under UL 1642, manufacturers establish a solid foundation for further certifications like UL 1973 (batteries for stationary use) and UL 9540 (energy storage systems).
To achieve UL 1642 compliance, lithium-ion cells undergo rigorous testing protocols designed to simulate real-world hazards. These include:
1. Electrical Abuse Testing
Overcharge tests
Forced discharge conditions
Short-circuit simulation
2. Mechanical Stress Testing
Crush resistance
Impact/shock exposure
Vibration endurance
3. Environmental Testing
High and low temperature cycles
Humidity and pressure variations
Altitude simulations
4. Fire and Safety Checks
Flammability and explosion risk assessment
Venting and leakage monitoring
These tests ensure that cells can handle extreme operating environments without catastrophic failure.
Why UL 1642 Certification Matters
Lithium-ion batteries are known for their high energy density, but that also makes them prone to thermal runaway if not properly managed. UL 1642 provides manufacturers, regulators, and end-users with confidence in battery safety.
Benefits of UL 1642:
✅ Safety Assurance: Demonstrates resistance to overheating and fire risks.
✅ Regulatory Compliance: Required for global exports and OEM partnerships.
✅ Market Trust: Strengthens brand reputation and product acceptance.
✅ Foundation for System Certification: A stepping stone for UL 1973 and UL 9540.
For Sunlith Energy, integrating UL 1642-certified cells into solutions ensures maximum reliability in battery energy storage systems (BESS) and beyond.
UL 1642 vs. Other UL Standards
Many people confuse UL 1642 with other UL certifications. Here’s how they differ:
By ensuring compliance, companies reduce liability and improve adoption across global markets.
Sunlith Energy and UL Compliance
At Sunlith Energy, we prioritize safety and compliance in every solution. Our expertise in battery energy storage systems (BESS) integrates UL-certified components, ensuring our clients meet international safety standards without compromise.
Whether you’re developing grid-scale energy projects or industrial ESS solutions, choosing UL 1642-certified cells is the first step in building a safe, reliable, and future-ready system.
Conclusion: Building Trust with UL 1642 Certification
As the global demand for lithium-ion batteries accelerates, UL 1642 certification remains the gold standard for cell-level safety assurance. It reduces risks, improves market acceptance, and lays the groundwork for advanced certifications like UL 1973 and UL 9540.
For energy storage innovators and partners working with Sunlith Energy, compliance isn’t just a checkbox—it’s a commitment to safety, reliability, and global leadership.
✅ Key Takeaway: UL 1642 Certification ensures lithium-ion cells meet the highest safety standards, making it a cornerstone for trusted energy storage solutions.
1. What is UL 1642 Certification?
UL 1642 is a safety standard that applies to lithium-ion and lithium-metal cells. It ensures cells can withstand electrical, mechanical, and environmental stress without causing fire, explosion, or leakage.
Frequently Asked Questions (FAQ) about UL 1642 Certification
2. Does UL 1642 cover battery packs or just cells?
UL 1642 applies only to individual cells. Battery packs and modules require additional certifications such as UL 1973 for stationary applications and UL 9540 for full energy storage systems.
3. Why is UL 1642 Certification important for lithium-ion batteries?
Because lithium-ion cells have high energy density, they can pose fire or explosion risks if not properly designed. UL 1642 testing validates that cells meet the highest safety standards, reducing liability and building market trust.
4. How does UL 1642 Certification differ from UL 1973 and UL 9540?
UL 1642: Tests individual lithium-ion cells.
UL 1973: Covers full battery modules and packs for stationary storage and EVs.
UL 9540: Ensures complete energy storage systems (ESS) meet fire and safety requirements.
While not legally required in every country, UL 1642 is considered a global benchmark for lithium-ion cell safety. Most manufacturers and system integrators require it for compliance and international trade.
6. Which industries rely on UL 1642-certified cells?
UL 1642 is critical in:
Aerospace & Defense
Energy Storage Systems (ESS)
Electric Vehicles (EVs)
Medical Devices
Consumer Electronics
7. How does Sunlith Energy use UL 1642-certified cells?
At Sunlith Energy, we integrate UL 1642-certified cells into our battery energy storage systems (BESS) to ensure maximum safety, reliability, and compliance for our global partners.
