⚡ Quick Answer: What Is BMS Functional Safety? BMS functional safety is the structured process used to find and control failure risks before a battery management system reaches the field. It centers on two core methods: HARA (Hazard Analysis and Risk Assessment), which identifies hazards and ranks their risk, and FMEA (Failure Modes and Effects Analysis), which traces specific failure modes to their effects. In automotive BMS design under ISO 26262, this risk ranking is called ASIL. For stationary BESS, the equivalent rating is SIL under IEC 61508, since ASIL itself is an automotive-only term. A supplier who can show you their HARA and FMEA documentation, not just a certificate, has done the real engineering work.
1. Why the Process Matters More Than the Certificate
Most BMS buyers ask suppliers for certifications: UL 1973, IEC 62619, sometimes UL 9540A. Those certificates matter. However, they mostly confirm the outcome, not the process behind it. BMS functional safety is that process. It is the structured method engineers use to find failure risks early. In other words, it catches problems before they become field failures or safety incidents.
For the certifications a BMS itself typically carries, see our complete battery management system guide. This article goes behind those certificates, into the HARA and FMEA process that safety engineers use to earn them in the first place.
2. HARA: How Hazards Get Identified and Ranked
HARA stands for Hazard Analysis and Risk Assessment. It is the starting point of any BMS functional safety process. First, engineers define the “item” under review — for example, the high-voltage battery pack and its BMS. Then they ask a simple question: what could go wrong, and how bad would it be?
A typical HARA example for a BMS looks at overvoltage detection during charging. If that detection fails, the battery can overcharge. In the worst case, this leads to thermal runaway. As a result, HARA ranks this kind of hazard using three factors: how severe the harm could be, how often the situation is likely to occur, and how controllable it is once it starts. Together, these three factors produce a risk classification for that specific hazard.
3. From HARA to ASIL or SIL: Why the Terms Differ Between EV and BESS
Here is where a lot of BMS content gets confusing. In automotive functional safety, ISO 26262 assigns each hazard an ASIL rating. ASIL stands for Automotive Safety Integrity Level, and it ranges from ASIL A at the low end to ASIL D at the high end. Notably, ASIL is an automotive-only term. It only applies under ISO 26262.
Stationary BESS does not use ISO 26262 or ASIL at all. Instead, industrial and stationary battery systems typically reference IEC 61508, the foundational functional safety standard for industrial equipment. Under this standard, the equivalent risk rating is called SIL, or Safety Integrity Level. It ranges from SIL 1 at the low end to SIL 4 at the high end. IEC 62619, the safety standard most directly relevant to stationary lithium battery systems, builds on this same risk-based approach.
In short: if a supplier quotes an ASIL rating for a stationary BESS product, ask why. That term belongs to automotive design. For BESS, the correct reference point is SIL under IEC 61508, or the specific requirements in IEC 62619.
4. FMEA: Finding Failure Modes Before They Find You
Once HARA has ranked the hazards, FMEA takes over next. FMEA stands for Failure Modes and Effects Analysis. It works from the bottom up. First, engineers list every plausible way a component can fail. Then, they trace each failure forward to its effect on the system.
For a BMS, a typical FMEA entry might look like this: a voltage sensing connector goes loose. That failure causes a false voltage reading. In turn, the false reading could let the BMS miss a real overvoltage condition. For each entry, engineers also note a detection or mitigation mechanism. For example, this might be a redundant voltage check, or a plausibility test that catches an implausible reading before it reaches a safety-critical decision.
A properly documented FMEA does not just list failures. It also proves how each one gets prevented or caught. That proof is what an auditor or a certification body actually reviews.
5. FMEDA: When Hardware Diagnostics Get Quantified
FMEDA extends FMEA with numbers. It stands for Failure Modes, Effects, and Diagnostics Analysis. Rather than only describing failure modes in words, FMEDA calculates a diagnostic coverage percentage for each one. In other words, it shows what fraction of that failure mode’s occurrences the system’s safety mechanisms will actually catch.
This matters for BMS functional safety because a hardware design is only as safe as its worst-covered failure mode. A BMS might claim excellent overall diagnostic coverage. Even so, it could still leave one connector or one sensor path poorly monitored. FMEDA is what surfaces that gap before a customer, not an incident, does.
6. What a Real BMS Functional Safety Process Actually Produces
A supplier who has genuinely run this process should, therefore, be able to produce specific documents, not just a summary slide. Look for these deliverables:
A HARA report, listing each identified hazard with its severity, exposure, and controllability ratings, plus the resulting SIL (for BESS) or ASIL (for automotive) classification.
Safety goals derived from the HARA. These are stated as top-level requirements, for instance: “prevent cell overvoltage during charging under single-point failure conditions.”
A functional safety concept. This translates each safety goal into requirements — first functional, then technical, down to the hardware and software level.
An FMEA or FMEDA report, listing failure modes, their effects, and the safety mechanism that detects or prevents each one.
A safety case or validation report. This shows how testing confirmed the safety mechanisms actually work as designed.
These safety mechanisms must map seamlessly across the entire battery topology. For a closer look at how these safety-critical diagnostic lines and communication protocols are distributed across physical hardware layers, see our guide to centralised, modular, and wireless BMS architecture.
For the specific BMS algorithms — SOH, SoP, isolation monitoring, safety diagnostics — that these safety mechanisms often rely on, see our BMS algorithms guide. In short, functional safety analysis is the process that justifies why those algorithms exist and how thoroughly they were tested.
7. Questions to Ask Your Supplier About BMS Functional Safety
Before finalizing your procurement, it helps to have a structured framework for vetting a vendor’s safety claims. For a comprehensive breakdown of what to look for beyond documentation, review our BMS supplier evaluation checklist.
Can you show me the HARA report for this BMS, including the hazards identified and their risk ratings?
Is your safety rating expressed as SIL under IEC 61508, or ASIL under ISO 26262? Does that match whether this is a stationary or automotive product?
Can you provide the FMEA or FMEDA report showing diagnostic coverage for each major failure mode, not just one overall percentage?
What safety goals came out of your HARA? How do they map to the BMS features you actually ship?
Has an independent third party reviewed this functional safety process, or is it entirely self-assessed?
Conclusion: Ask for the Process, Not Just the Certificate
A certification number tells you a BMS passed a test. BMS functional safety documentation tells you why it should pass. It also shows what specific hazards the engineering team found and controlled along the way. For BESS projects, insist on SIL ratings under IEC 61508 or IEC 62619 evidence. Do not accept an automotive ASIL number instead, since it simply does not apply. Ask to see the HARA and FMEA reports directly. After all, a supplier with nothing to show beyond a certificate has likely skipped the part of the work that actually keeps a battery pack safe.
☀️ Need a BMS Functional Safety Review for Your BESS Project? Sunlith Energy reviews BMS functional safety documentation — HARA reports, FMEA coverage, and SIL classification — for BESS projects from 50 kWh upward. Contact us before you finalize a supplier.
Frequently Asked Questions About BMS Functional Safety
What is the difference between HARA and FMEA in BMS functional safety?
HARA identifies hazards at the system level and ranks their risk using severity, exposure, and controllability. FMEA, on the other hand, works at the component level. It traces specific failure modes up to their effects on the system. Typically, HARA comes first and sets the risk target. FMEA then verifies the design meets that target.
Why doesn’t ASIL apply to stationary BESS?
ASIL, or Automotive Safety Integrity Level, is defined specifically within ISO 26262, an automotive functional safety standard. Stationary BESS does not fall under that standard. Instead, it typically references IEC 61508, whose equivalent risk rating is called SIL, or Safety Integrity Level.
What is FMEDA and how is it different from FMEA?
FMEDA, or Failure Modes, Effects, and Diagnostics Analysis, extends FMEA by adding a quantified diagnostic coverage percentage for each failure mode. Standard FMEA describes failure modes and their effects in words. FMEDA, by contrast, calculates how much of each failure mode the system’s diagnostics will actually catch.
What documents should a BMS supplier provide as proof of functional safety work?
At minimum, ask for the HARA report and the safety goals derived from it. Also request the FMEA or FMEDA report, plus a safety validation document showing that testing confirmed the safety mechanisms work as intended. If a supplier can only provide a certificate, with none of these underlying documents, they have likely not completed a full functional safety process.
Does IEC 62619 replace the need for a HARA and FMEA process?
No. IEC 62619 sets safety requirements specifically for stationary lithium battery cells and systems. However, it does not replace the underlying HARA and FMEA process used to design and verify BMS safety mechanisms. Instead, the two work together: IEC 62619 sets the target, and the functional safety process is how a supplier gets there and proves it.
⚡ Quick Answer: Which BMS Architecture Is Right for a BESS? BMS architecture comes in three main types: centralised (one controller handles all cells directly), modular master-slave (each module has its own slave BMS reporting to a master), and wireless BMS (modules communicate without a physical data harness). Centralised suits small residential systems. Modular master-slave is the standard for commercial and utility-scale BESS. Wireless BMS is maturing fast in EVs but remains early-stage for grid-scale BESS, mainly due to EMI risk in high-power environments and a 25-40% cost premium.
1. Why BMS Architecture Matters Beyond Just System Size
Most guides treat BMS architecture as a simple size question: small systems get one BMS, big systems get many. That is true as a starting point. But the choice also decides how a fault in one module affects the rest of the pack, how much wiring a technician has to run and maintain, and how easily the system scales later without a redesign.
For the basics of what a BMS does — monitoring, protection, balancing, and communication — see our complete battery management system guide. This article goes one level deeper: the wiring topology inside modular designs, and the wireless BMS option now entering the market.
2. Centralised BMS: How a Single Controller Works
In a centralised design, one controller connects directly to every cell in the pack. It handles voltage monitoring, balancing, and protection for all cells from a single board. There is no master-slave hierarchy here, simply because there is only one controller.
This setup keeps cost and complexity low. As a result, it works well for residential systems under roughly 100 kWh. Cell counts here typically stay in the range of a few dozen to a few hundred. Beyond that range, though, the wiring harness needed to connect every single cell to one board becomes heavy, expensive, and hard to service.
A centralised design also has a single point of failure built in. If the central controller fails, the entire pack loses monitoring and protection at once. For small systems, this risk is usually acceptable, given the lower stakes and lower cost. For larger systems, however, it is not.
3. Modular (Master-Slave) BMS Architecture: How It Works
A modular design, often called master-slave, splits the job across many controllers instead of one. Each battery module gets its own slave BMS board. That slave handles local cell monitoring and balancing for its own module only. In turn, all slave boards report up to a central master BMS, which coordinates the full pack and talks to the inverter and EMS.
This setup scales far better than a centralised design. For instance, adding another module usually means adding another slave board to the daisy chain, not redesigning the whole harness. As a result, it is the standard choice for commercial and utility-scale BESS today.
The real engineering decision here, though, is not whether to use master-slave. Most large systems already do. Instead, it comes down to which wiring protocol connects the slaves to the master. It also depends on how much independence each slave keeps if it loses contact with the master.
4. Wiring Protocols in Modular Designs: isoSPI vs CAN vs LIN
Three communication protocols dominate the physical link between slave boards and the master. Each one makes a different tradeoff between speed, noise immunity, and cost. For a deeper look at how these networks manage data across the entire system, read our guide on BESS communication protocols.
isoSPI — an isolated version of SPI (Serial Peripheral Interface), built specifically for daisy-chaining BMS slave boards. It runs over a simple twisted pair. It tolerates the electrical noise inside a battery pack well, and it supports fast data rates. As a result, many premium BMS platforms use isoSPI for the slave-to-slave and slave-to-master link inside one rack.
CAN bus — the same protocol widely used in automotive and industrial systems. CAN is robust, well standardized, and easy to integrate with third-party inverters and EMS platforms. Because of this, it is common for the master-to-inverter and master-to-EMS link, and sometimes for slave-to-master links in simpler designs.
LIN bus — a lower-cost, lower-speed protocol used for less time-critical links, such as temperature sensor networks within a module. In short, it trades speed for lower wiring and component cost.
In practice, many BESS platforms combine protocols. isoSPI handles fast, noise-resistant slave communication within a rack. CAN bus then takes over at the master level for system-wide integration. Ask your supplier which protocol handles which link. Otherwise, a design built entirely on one lower-speed protocol may struggle to keep up with fast balancing or protection response at scale.
5. Wireless BMS Architecture: How It Works and Where It Stands Today
Wireless BMS removes the physical data harness between modules entirely. Instead of isoSPI or CAN wiring, slave boards communicate with the master using Bluetooth Low Energy, Zigbee, or a proprietary 2.4GHz radio protocol. Cell voltage, temperature, and balancing commands all travel wirelessly instead of over copper.
Why Wireless BMS Is Appealing
The appeal is real. Going wireless removes the weight, cost, and failure points of a physical wiring harness. It also simplifies manufacturing, since there are fewer connectors to install and fewer wiring faults to test for. This matters most where running a wired harness is expensive or awkward. Second-life BESS built from repurposed EV modules, for example, often have mismatched connector layouts that make wiring harder than usual.
Why Utility-Scale BESS Isn’t There Yet
That said, wireless BMS is not yet the default choice for grid-scale BESS, and current research explains why. A peer-reviewed review of wireless BMS technology, published in MDPI Energies, notes that wireless systems remain at an early stage of maturity. This is especially true for high-power settings, where electromagnetic interference from PCS switching can disrupt the link.
Three practical concerns keep wireless BMS out of most utility-scale BESS today. First, EMI susceptibility: high-power switching from inverters and PCS equipment can interfere with the wireless signal. That kind of interference in a safety-critical monitoring link is a serious risk, not a minor inconvenience. Second, cost: wireless hardware currently runs 25-40% more than equivalent wired systems, which matters a great deal at grid scale. Third, standardization: there is no universal wireless protocol yet. As a result, mixing components from different makers is harder than it is with wired isoSPI or CAN systems.
For now, wireless BMS is furthest along in electric vehicles, where weight savings translate directly into range. It is also gaining ground in residential solar-plus-storage products, where simple assembly and remote installation flexibility matter more than they do at utility scale. For grid-scale BESS specifically, expect wired modular designs to stay the standard for the next several years. Wireless will likely enter first through pilot projects and second-life storage deployments.
6. Comparing Centralised, Modular, and Wireless BMS Architecture Options
Factor
Centralised
Modular (Master-Slave)
Wireless
Typical system size
Under 100 kWh
100 kWh to multi-MWh
EVs, residential ESS today; utility-scale still early
Wiring complexity
High at scale — every cell wired to one board
Moderate — daisy-chained per module
Minimal — no data harness
Failure isolation
Poor — single point of failure
Good — slave boards can protect locally
Depends on link redundancy design
Cost
Low
Moderate, scales predictably
25-40% premium over wired today
Maturity for BESS
Proven, residential standard
Proven, commercial/utility standard
Early-stage for grid-scale
7. Failure Isolation: The Real Safety Question Behind the Design
The most important question about any BMS design is not which protocol it uses. Instead, it is what happens when one part of the system fails. In a well-designed modular setup, each slave board keeps protecting its own module even if it loses contact with the master. This relies heavily on the local execution of core BMS algorithms to calculate state-of-charge (SOC) and state-of-health (SOH) independently. In a poorly designed system, however, the whole pack’s protection depends entirely on the master controller.
Evaluating these single points of failure is a core part of rigorous risk assessment. For a deeper look at how engineers map out these risks and establish safety goals, see our guide on BMS functional safety, HARA, and FMEA.
So ask your supplier directly: if the master BMS fails or loses communication, does each module still enforce its own voltage and temperature limits? If the answer is no, that design has a hidden single point of failure, no matter how many slave boards it has.
8. Choosing the Right BMS Architecture for Your BESS Project
For residential and small commercial systems under 100 kWh, a centralised design is usually the right call, since it is simpler, cheaper, and proven. For commercial and utility-scale BESS, on the other hand, modular master-slave is the standard. Here, the real decision is choosing a supplier whose wiring protocol and failure-isolation design hold up under real-world conditions. Wireless BMS, meanwhile, is worth watching, and worth specifying for second-life or hard-to-wire retrofit projects today. Still, it is not yet the safe default for new utility-scale BESS.
9. Questions to Ask Your Supplier About BMS Architecture
Is the design centralised or modular master-slave, and does that match our system size?
What wiring protocol connects slave boards to the master — isoSPI, CAN, or a mix?
If the master fails or loses communication, does each slave module still enforce its own protection limits independently?
If any wireless components are proposed, what EMI testing has been done in a real high-power switching environment, not just a lab bench test?
How does the system scale if we add modules later — does it require a wiring redesign, or just an extension of the existing daisy chain?
Conclusion: BMS Architecture Shapes Reliability as Much as Chemistry Does
Cell chemistry gets most of the attention in a BESS purchase decision. However, the design behind the cells deserves the same scrutiny. A centralised setup suits small systems. Modular master-slave is the proven standard for commercial and utility-scale BESS. Wireless BMS is real, growing, and worth watching, but for grid-scale projects today, it remains an early-stage option, not a default choice.
Whatever design a supplier proposes, ask the failure-isolation question directly. After all, a pack with excellent cells and a poorly isolated BMS is still a fragile system.
☀️ Need a BMS Architecture Review for Your BESS Project? Sunlith Energy reviews BMS architecture proposals — wiring topology, failure isolation, and protocol choice — for BESS projects from 50 kWh upward. Contact us before you finalize a supplier.
Frequently Asked Questions About BMS Architecture
What is the difference between centralised and modular BMS architecture?
A centralised design uses one controller connected directly to every cell in the pack. A modular design, also called master-slave, works differently. It splits monitoring across multiple slave boards — one per module — that report to a central master controller. As a result, modular designs scale better for larger systems.
Is wireless BMS ready for utility-scale BESS?
Not yet, as a default choice. Wireless BMS works well in electric vehicles and is gaining ground in residential storage. However, electromagnetic interference from high-power switching, a 25-40% cost premium, and a lack of standard protocols keep it early-stage for grid-scale BESS today.
What is isoSPI and why does it matter for battery pack wiring?
isoSPI is an isolated communication protocol built for daisy-chaining BMS slave boards. It runs over a simple twisted pair, resists the electrical noise inside a battery pack, and supports fast data rates. For this reason, it is common in modular designs for grid-scale BESS.
Why does failure isolation matter more than the design type?
A modular design only delivers its safety benefit under one condition: slave boards must keep protecting their own modules when they lose contact with the master. Otherwise, that modular design still depends entirely on the master controller. In that case, it has the same single point of failure as a centralised system, just with extra hardware.
Can I mix wired and wireless BMS in one BESS?
In principle, yes, and this is already happening in some second-life storage projects that use repurposed EV modules with mismatched wiring. In practice, though, mixing protocols adds integration complexity. So confirm with your supplier how a hybrid design handles failure isolation and data sync between the wired and wireless segments.
⚡ Quick Answer: What Are BMS Algorithms? BMS algorithms go far beyond SOC estimation. A production BMS runs several algorithms at once: SOH estimation, SoP, SoE, cell balancing logic, contactor sequencing, isolation monitoring, safety diagnostics, and RUL prediction. For BESS, the quality of these BMS algorithms decides dispatch reliability, warranty defensibility, and second-life value — not just SOC accuracy.
1. Beyond SOC: The Full BMS Algorithm Stack
Most talk about BMS algorithms stops at State of Charge. SOC matters. But it is only one output from a stack of six or more BMS algorithms running at once.
For a deeper dive into OCV lookup, Coulomb counting, and Extended Kalman Filter SOC methods, see our dedicated guide: BMS SOC Estimation Methods Explained. This article picks up where those leave off, covering the advanced firmware algorithms that drive aging, dispatch limits, safety, and long-term asset value.
A BESS operator or EPC should understand what each BMS algorithm actually calculates. Marketing language often overstates what firmware really runs. The sections below walk through each algorithm layer in build order: health first, then power and energy limits, then balancing, then safety, then long-term prediction.
2. SOH Algorithms: How BMS Algorithms Track Battery Aging
State of Health (SOH) is the second most important number a BMS produces after SOC. It is also far harder to calculate correctly. SOH shows how much usable capacity and performance remain compared to a new cell. A cell rated at 100 Ah that now delivers 92 Ah has an SOH of roughly 92%.
Unlike SOC, SOH cannot reset with one charge cycle. The BMS must infer it from long-term trends. This makes SOH-focused BMS algorithms fundamentally different from SOC algorithms.
Capacity Fade Tracking Algorithm
The simplest SOH algorithm compares measured full-charge capacity against rated nameplate capacity. The BMS records the Ah delivered between two known SOC points, typically 100% to 0%. It then compares that figure against the original rated capacity.
This method is accurate but slow. It produces one new SOH data point per full cycle. Many BESS installations rarely complete a true 100–0% cycle. Partial-cycle capacity fade algorithms estimate the fade rate from partial cycles instead, using coulomb-counted throughput and known depth-of-discharge. These partial-cycle BMS algorithms carry more uncertainty than full-cycle measurements.
Incremental Capacity Analysis (ICA) Algorithm
Incremental capacity analysis is a more advanced SOH algorithm. It examines the shape of the voltage curve, not just its endpoints. As a cell ages, specific peaks in its incremental capacity curve (dQ/dV) shift and shrink. Each shift pattern correlates with a specific degradation mechanism: lithium plating, active material loss, or electrolyte decomposition.
ICA-based BMS algorithms can tell different aging causes apart, not just report one percentage. This matters for warranty claims and second-life valuation. A cell degrading from normal calendar aging is a very different asset than one degrading from a manufacturing defect or thermal abuse event.
The tradeoff is cost. ICA needs high-resolution voltage sampling during specific charge segments. Not every BMS platform captures this data by default.
DCIR-Based SOH Algorithm
DC internal resistance (DCIR) rises as a cell ages, mostly independent of capacity fade. A DCIR-based SOH algorithm applies a known current pulse and measures the resulting voltage drop. It then calculates internal resistance using Ohm’s law, and compares that value against a baseline resistance-versus-age curve for the specific cell model.
DCIR-based SOH algorithms run faster than capacity-fade methods, since a short current pulse is enough — no full cycle required. This makes them useful for spotting outlier cells early, often before capacity fade becomes visible.
The limitation is temperature sensitivity. DCIR shifts a lot with cell temperature. An accurate DCIR-based BMS algorithm must correct every reading against a resistance-versus-temperature-versus-age model calibrated for the exact cell in use.
SOH Algorithm Comparison
Method
What It Measures
Update Frequency
Best For
Capacity fade tracking
Ah delivered vs. rated capacity
Once per full cycle
Systems with regular full cycles
Incremental capacity analysis (ICA)
dQ/dV curve shape and peak shift
Per qualifying charge segment
Distinguishing aging mechanisms, warranty claims
DCIR-based SOH
Internal resistance rise vs. baseline
Per current pulse (fast)
Early outlier-cell detection, partial-cycle systems
Most premium BMS platforms combine all three algorithms: DCIR for fast, frequent checks; capacity fade tracking as the long-term anchor; and ICA for diagnostic deep-dives when a cell shows early warning signs.
3. SoP Algorithm: What BMS Algorithms Tell the Inverter
State of Power answers a different question than SOC or SOH. It asks not “how much energy is stored,” but “how much power can this pack safely deliver or accept right now.” The SoP algorithm calculates the maximum charge and discharge power available for a set time window, typically 1, 10, or 30 seconds. It weighs current SOC, temperature, cell voltage limits, and internal resistance.
This number goes straight to the inverter or PCS and to the energy management system (EMS). Without an accurate SoP algorithm, the EMS either under-dispatches or over-dispatches. Under-dispatching leaves revenue on the table during a frequency regulation or peak-shaving event. Over-dispatching triggers a protection cutoff mid-event, which is worse for grid-service contract compliance.
SoP gets harder to calculate at temperature and SOC extremes. A pack at 10% SOC or −5°C has much lower discharge SoP than the same pack at 50% SOC and 25°C, even with similar energy content. A well-designed SoP algorithm accounts for voltage sag under load. It does not rely on static cell voltage limits alone, and it uses the same internal resistance data the SOH algorithm tracks.
4. SoE Algorithm: Usable kWh, Not Just Percentage
SOC gives you a percentage. The SoE algorithm gives you the actual usable kilowatt-hours remaining. It factors in current SOH, temperature derating, and the depth-of-discharge limits set for the system. Two BESS units showing 60% SOC can have very different SoE if one has degraded to 85% SOH and the other sits near 98% SOH.
For asset owners running dispatch contracts or virtual power plant participation, SoE is the number that actually sets revenue capacity. A BMS that only reports SOC forces the EMS to apply a separate correction factor for aging, and that workaround adds error. A BMS with a proper SoE algorithm reports usable energy directly, already corrected for real-world capacity.
5. SoR and SoF Algorithms: Diagnostic and Dispatch-Readiness Checks
Two less-discussed BMS algorithms round out the state-estimation stack.
State of Resistance (SoR) tracks internal resistance as its own diagnostic metric, separate from its role as a SOH input. Rising resistance in a single string or module is often the earliest sign of an emerging fault. It can flag a loose busbar connection or accelerated local aging before it shows up in the pack-level SOH number.
State of Function (SoF) is a composite go/no-go algorithm. It combines SOC, SOH, SoP, temperature, and active fault flags into one dispatch-readiness signal. The EMS checks this signal before committing the BESS to a grid-service event. A pack can have fine SOC and SOH individually and still fail SoF — for example, if a temperature sensor reads near its fault threshold. SoF exists to stop the EMS from dispatching a unit that has energy on paper but should not be trusted for that event.
6. Cell Balancing Algorithms: Passive vs Active Control Logic
Cell balancing keeps every cell in a series string at a matched voltage and SOC. The control logic behind it is itself a BMS algorithm worth understanding, not just a hardware feature.
This balancing logic is especially vital—and complex—when dealing with the flat voltage plateaus of LFP chemistry; for a deeper look at hardware and balancing nuances there, read our specific guide on BMS for LiFePO4 batteries.
Passive Balancing Algorithm Logic
A passive balancing algorithm finds the highest-voltage cell in a string during charge. It then switches a bleed resistor across that cell, burning off excess energy as heat until the cell matches the pack average. The control logic usually triggers balancing only above a voltage or SOC threshold, commonly near the top of charge, where cell mismatch matters most for safety and full-charge capacity.
Design choices matter more than the hardware here. A poorly tuned threshold balances too aggressively, wasting energy and building unnecessary heat. Too conservative a threshold lets mismatch build up for many cycles.
Active Balancing Algorithm Logic
An active balancing algorithm moves charge from higher-voltage cells to lower-voltage cells, using inductors, capacitors, or switched-capacitor networks. It does not just burn off the difference as heat. The control logic is more complex: it must sequence several transfer paths at once, avoid oscillation between cells close in voltage, and decide when further balancing no longer justifies the switching losses.
For grid-scale BESS with thousands of series-parallel cells, the balancing algorithm’s efficiency affects round-trip efficiency and effective cycle life directly. A well-balanced pack ages its weakest cells more slowly, since those cells spend less time at voltage extremes.
7. Contactor and Isolation BMS Algorithms
Two safety-critical BMS algorithms operate below the level most BMS content ever discusses. They matter a great deal for BESS commissioning and daily operation.
Pre-Charge Sequencing Algorithm
When a BESS connects to its inverter or DC bus, a large voltage gap between the battery and a discharged bus can spike current high enough to weld contactor contacts or blow fuses. The pre-charge sequencing algorithm closes a smaller pre-charge contactor through a current-limiting resistor first. It watches the bus voltage rise toward battery voltage, and only closes the main contactor once the gap falls within a safe threshold, typically a few percent.
The algorithm must also set a timeout and a fault response. If bus voltage fails to rise as expected in time, that signals a downstream fault. A well-designed sequence aborts the connection instead of forcing the main contactor closed anyway.
Isolation Monitoring Algorithm
High-voltage BESS strings must stay electrically isolated from chassis ground. The isolation monitoring algorithm injects a small test signal, or measures leakage current, between the HV bus and chassis ground. It then calculates an isolation resistance value. A common safety threshold is 500 ohms per volt of system voltage — a 750V BESS string needs at least 375,000 ohms of isolation resistance under this rule.
A slowly degrading isolation reading, even one still above the fault threshold, is an early warning worth flagging. It usually points to moisture ingress, insulation wear, or a developing ground fault well before it trips a hard fault.
8. Safety Diagnostic Algorithms: MAVD, RdV, and Early Fault Detection
Beyond voltage, current, and temperature thresholds, advanced BMS platforms run pattern-based diagnostic algorithms. These catch failure modes before they reach a hard safety limit.
Maximum Allowable Voltage Deviation (MAVD) algorithms compare each cell’s voltage against the pack average in real time. A cell drifting outside its expected deviation band can signal an internal short, a connection fault, or local degradation — even while it stays within absolute safe voltage limits. Because MAVD looks at relative deviation, not absolute thresholds, it often catches faults earlier than simple over-voltage or under-voltage protection.
Resistance-derivative or rate-of-change (RdV) algorithms track how fast a cell’s voltage or resistance is changing, not just its current value. A cell with rapidly climbing resistance is a different risk than one with stable but elevated resistance, even if both report the same SOH today. RdV algorithms flag the rate of change itself as its own alarm condition.
These diagnostic layers matter most for large-format BESS, where a single degrading cell among thousands can go unnoticed until it causes a string-level fault. Standards bodies such as the IEC publish safety requirements for stationary lithium battery systems that reference exactly this kind of deviation monitoring.
Furthermore, if you are deploying assets in the European market, these algorithmic diagnostics are critical for compliance; see our EU batteries regulation EU 2023 1542 complete guide for a full breakdown of the data and safety mandates.
Ask suppliers whether their BMS runs deviation and rate-of-change diagnostics on top of standard threshold protections — this is a real differentiator between a basic BMS and a genuinely safety-engineered one.
9. RUL Prediction Algorithms and Second-Life Value
Remaining Useful Life algorithms take SOH trend data and project forward. They estimate how many more cycles or years remain before the pack falls below an end-of-life threshold, commonly 70–80% of original capacity.
Three RUL Algorithm Approaches
Empirical RUL algorithms fit a degradation curve — often exponential, or a two-stage linear-then-accelerating shape — to historical SOH data for the specific chemistry and use profile. They then extrapolate forward. These are cheap to run and reasonably accurate for well-studied LiFePO4 chemistries with large datasets for a quick way to model these degradation curves yourself based on cycle depth and temperature, you can check out our interactive battery cycle life calculator. But they assume future use resembles the past.
Physics-based (electrochemical) RUL algorithms simulate the degradation mechanisms directly: lithium plating, SEI growth, active material loss. They predict RUL from first principles. These are more accurate under changing use conditions, but they need detailed cell-level parameters that cell suppliers do not always share.
Machine-learning RUL algorithms train on large fleets of historical degradation data. They predict RUL from current sensor patterns without an explicit physical or empirical formula. These can beat both other approaches when trained on a large enough fleet of the same cell type and use case. But they need a lot of historical data, and they can behave unpredictably outside the conditions they trained on.
Why RUL Algorithm Accuracy Matters for BESS Economics
RUL accuracy affects two commercial decisions directly: warranty reserve calculations for suppliers, and second-life asset valuation for owners. A BESS pack projected to hold 80% capacity for ten more years is worth much more on the second-life market than one with an uncertain or steeply declining RUL curve. Lower-demand second-life uses, like residential backup or slow-cycling grid support, depend on that projection being credible.
For utility-scale BESS operators planning eventual asset disposition, ask your BMS or EMS supplier which RUL modeling approach they use, and what fleet data backs it. Battery aging research from national labs such as NLR (National Laboratory of the Rockies) increasingly informs these models. Ask whether RUL confidence intervals are reported alongside the point estimate — a single RUL number with no range is hard to use for financial planning.
10. Questions to Ask Your BMS Supplier About Algorithms
Marketing language often claims “advanced algorithms” without saying which ones actually run in firmware. For a structured framework on auditing these capabilities during procurement, see our guide on BESS supplier BMS evaluation.
The following targeted questions will help you separate real algorithmic depth from a basic protection-only BMS with technical-sounding labels:
Which SOH algorithm does the BMS use — capacity fade tracking, ICA, DCIR-based, or a combination? A BMS that only runs capacity fade tracking will be slow to catch outlier cells in systems that rarely complete full cycles.
Does the BMS calculate SoP and SoE algorithms, or only SOC and SOH? Without SoP output, the EMS must apply conservative blanket power limits, which lowers dispatch revenue.
What isolation resistance threshold does the algorithm enforce, and how is it temperature- and time-compensated? A static threshold with no trend monitoring misses slow isolation decay.
Does the balancing algorithm run passive, active, or both, and what triggers a balancing cycle? Ask for the specific voltage or SOC threshold, not just “the BMS balances cells.”
What RUL algorithm approach is used, and is a confidence interval reported? A point-estimate RUL number with no uncertainty bounds has limited use for financial and warranty planning.
Conclusion: Algorithm Depth Is the Real BMS Differentiator
SOC estimation gets most of the attention in BMS marketing. But the BMS algorithms that actually protect a BESS investment over its 10–20 year life sit one layer deeper. SOH tracking catches aging mechanisms early. SoP and SoE outputs maximize safe dispatch revenue. Balancing logic gets tuned for the specific pack architecture. Safety diagnostics catch deviation before it becomes a fault. RUL models come with defensible confidence intervals.
When you evaluate a BMS or a BESS supplier, ask specifically which of these BMS algorithms are implemented, and how they were validated. Do not settle for “the BMS monitors SOC and SOH.” The answer reveals whether you are buying genuine algorithmic engineering or a basic protection circuit with confident marketing copy.
☀️ Need a BMS Algorithm Review for Your BESS Project? Sunlith Energy reviews BMS algorithm implementations — SOH methodology, SoP/SoE accuracy, balancing logic, and RUL modeling — for BESS projects from 50 kWh upward. Contact us before you commit to a supplier.
Frequently Asked Questions About BMS Algorithms
What algorithms does a BMS run besides SOC estimation?
A production BMS runs several algorithms beyond SOC: SOH estimation (capacity fade tracking, incremental capacity analysis, or DCIR-based methods), SoP and SoE calculations, cell balancing control logic, contactor pre-charge sequencing, isolation monitoring, safety diagnostics such as voltage-deviation and resistance-rate-of-change monitoring, and often RUL prediction models.
What is the difference between the SOH and SoP algorithms in a BMS?
The SOH algorithm measures how much capacity and performance a battery has lost compared to new, shown as a percentage. The SoP algorithm measures how much power the battery can safely deliver or accept right now, based on current SOC, temperature, and internal resistance. SOH looks backward at cumulative aging. SoP looks at the immediate power ceiling for dispatch decisions.
Why does the SoP algorithm matter for BESS dispatch even if SOC looks fine?
A pack can show good SOC while still having a low SoP at cold temperatures or high internal resistance. That means it cannot deliver the power a grid-service event needs without tripping a voltage protection limit. An EMS that only checks SOC before dispatch risks committing to an event the pack cannot actually support.
How does the DCIR-based SOH algorithm work?
The BMS applies a known current pulse and measures the resulting voltage drop. It calculates internal resistance using Ohm’s law, then compares that resistance against a temperature-compensated baseline curve for the specific cell model. This algorithm runs faster than capacity-fade tracking, since it needs no full charge-discharge cycle.
What is a good RUL algorithm confidence level for a utility-scale BESS?
There is no single universal number — it depends on the modeling approach and available fleet data. What matters more is whether the supplier reports a confidence interval at all, rather than a single point estimate, and whether the model has been checked against real fleet degradation data for the same cell chemistry and use profile.
Do I need an active balancing algorithm for a grid-scale BESS, or is passive enough?
Passive balancing works fine for many commercial and lower-cycling systems. For utility-scale BESS with high cycling frequency and large series strings, an active balancing algorithm usually improves round-trip efficiency and cuts accelerated aging in weaker cells. That can justify its added cost over the system’s lifetime.
The 20/80 rule for batteries is one of the most repeated tips in battery care. It is also one of the most misunderstood. Open any EV forum or BESS manual, and you will read the same line. Keep the battery between 20% and 80% state of charge.
For lithium-ion batteries, the 20/80 rule sets a charging window. It avoids the two extremes of state of charge (SoC) that speed up wear. Stay above 20% SoC. Stay below 80% SoC. Do that, and the battery lasts longer. This applies to a phone, an EV, or a multi-megawatt BESS alike.
But for BESS buyers, the 20/80 rule raises a hard question. If 60% of capacity is the “safe zone,” what happens to the rest? Is 40% just stranded capital, sitting idle in a container? And does a rule built for phones and EVs even fit a grid-connected LFP system, built for daily cycling over 15 to 20 years?
This guide answers that question from first principles. First, we cover the electrochemistry behind the rule. Next, we compare it with other SoC windows. Then, we look at how chemistry and BMS design change the picture. Most importantly, we ask whether the cycle life gains are worth the lost capacity in real BESS projects.
1. What Is the 20/80 Rule for Batteries?
The Basic Definition
State of charge (SoC) measures how much energy a battery holds right now. It is shown as a percentage of usable capacity. A battery at 100% SoC is full. A battery at 0% SoC has hit its lower cutoff. That cutoff is not zero volts, though. The BMS always keeps a safety margin below it.
In short, the 20/80 rule means one thing. Keep charging and discharging inside the 20% to 80% SoC band. Do not let the battery swing from empty to full on every cycle. As a result, the operating window equals 60% of usable capacity.
Here is the formula, stated plainly:
Formula — the 20/80 rule for batteries: Effective Depth of Discharge (DoD) = Upper SoC limit − Lower SoC limit 20/80 rule → Effective DoD = 80% − 20% = 60% A battery cycled strictly within 20–80% SoC never exceeds a 60% depth of discharge on any single cycle, regardless of nameplate capacity.
The 20/80 Rule Is Not a Safety Limit
It helps to separate the 20/80 rule from the absolute safety limits set by the Battery Management System (BMS). The BMS hard cutoffs sit close to 0% and 100%, on the cell’s true voltage range. These exist for one reason: to stop over-charge and over-discharge events that cause safety failures.
Those safety limits are not arbitrary, either. They trace back to formal standards such as IEC 62619, which sets safety requirements for industrial lithium battery systems. The 20/80 rule, by contrast, operates well inside those hard limits. It is simply a usage strategy for longevity, not a safety boundary.
The table below shows how SoC windows map to depth of discharge. This is the same language used on every BESS datasheet.
2. The Science Behind the 20/80 Rule for Batteries
Why does the 20/80 rule exist at all? The answer sits inside the cell. Specifically, it comes down to what happens physically at the extremes of state of charge.
Why High SoC (Above 80%) Speeds Up Degradation
As a cell nears full charge, the cathode reaches peak lithium depletion. Voltage peaks too. As a result, this high-voltage state strains the cathode’s crystal lattice. Over many cycles, that strain adds up to real structural wear.
At the same time, the electrolyte faces its highest oxidative stress near full charge. This, in turn, speeds up electrolyte breakdown. It also drives further growth of the solid electrolyte interphase (SEI) layer on the anode.
The SEI layer is a thin film that forms naturally on the anode. In small amounts, it is actually useful. It protects the anode from further reaction with the electrolyte. However, SEI growth consumes active lithium over time. It also raises internal resistance. Because SEI growth depends heavily on voltage and temperature, both factors climb when a cell sits near 100% SoC, especially during storage.
Why Low SoC (Below 20%) Also Speeds Up Degradation
At the other extreme, very low SoC pushes the cell close to its minimum voltage cutoff. This raises the risk of copper dissolution from the anode’s current collector. The risk grows further still if the cell drifts below its minimum voltage during storage, through normal self-discharge.
Repeated deep discharges add a different kind of stress, too. On the next charge, lithium ions must fully repopulate the lattice. This places real mechanical strain on the cathode.
This is not just theory. A widely cited 2023 study on Tesla lithium-ion cells tested several SoC windows. The pattern was clear. Cells held at very high or very low SoC degraded faster than cells held at moderate SoC. Notably, the shortest service life showed up in cells cycled below 25% SoC.
The Electrochemical “Sweet Spot” in the Middle
Between these two extremes sits a calmer stretch of the voltage curve. Here, both electrodes face comparatively low stress. This, in fact, is the electrochemical basis for the 20/80 rule. By skipping the top and bottom 20% of the SoC range, a battery spends its life in the zone where SEI growth, electrode strain, and electrolyte oxidation all move slowest.
Separately, research into partial state of charge (PSoC) cycling backs this up further. Cycle life improves when a fixed amount of charge is cycled from a partial state, rather than from full charge. One widely referenced study confirmed this directly. The effect grew stronger still when depth of discharge was also reduced. In effect, this is the scientific backbone of the 20/80 rule, applied right at the cell level.
3. The 20/80 Rule for Batteries vs Other SoC Windows
The 20/80 rule is the most common SoC window in consumer guidance. But it is not the only one in use. BESS specs, EV guidance, and standby power systems each favour slightly different windows. The right choice depends on how usable capacity and cycle life get weighted for that specific application.
How the 20/80 Rule for Batteries Compares to Other SoC Windows
SoC Window
Effective DoD
Relative Cycle Life Impact
Usable Capacity Retained
Typical Use Case
0–100%
100%
Baseline (shortest cycle life)
100%
Maximum-capacity applications; rarely recommended for daily cycling
10–90%
80%
Moderate improvement over 0–100%
80%
Grid-scale LFP BESS, EV daily-use presets
20–80%
60%
Significant improvement; the 20/80 rule for batteries
60%
Consumer EV/phone guidance, residential storage
30–70%
40%
Maximum improvement for calendar aging
40%
Long-term standby SoC, seasonal storage, shipping
Two Patterns Worth Noting
First, SoC window width and cycle life do not scale in a straight line. The jump from 0–100% to 10–90% brings a meaningful gain. But the next jump, from 10–90% to 20–80%, brings a smaller gain. This holds true even though both moves cut DoD by 20 points.
Second, the 30/70 window rarely gets used for daily cycling. It simply gives up too much usable capacity. Instead, it works best as a storage SoC — the level a battery should sit at when idle for weeks or months. During storage, calendar aging drives degradation, not cycling.
Why BESS Often Defaults to 10–90% Instead
For BESS specifically, the 10–90% window has become the common middle ground for LFP systems. Here is why. LFP’s flat voltage curve, covered in Section 5, makes the gain from 10–90% to 20–80% quite small. Meanwhile, that extra 10% of usable capacity carries real commercial value.
4. How the 20/80 Rule for Batteries Affects BESS Sizing
Every BESS datasheet draws a line between two figures. Nameplate capacity is the total rated energy storage of the system. Usable energy is nameplate capacity multiplied by the operating depth of discharge. The SoC window sets this usable energy figure directly. As a result, it becomes one of the most consequential decisions in BESS sizing.
For more on how DoD interacts with other specs, see our guide to BESS specifications.
A Worked Sizing Example
Consider a 1 MWh nameplate BESS under three SoC strategies:
SoC Window
Effective DoD
Usable Energy (1 MWh nameplate)
“Lost” Capacity
0–100%
100%
1,000 kWh
0 kWh
10–90%
80%
800 kWh
200 kWh
20–80% (20/80 rule)
60%
600 kWh
400 kWh
On paper, the 20/80 rule strands 400 kWh out of every cycle. That is 40% of the installed asset. In practice, however, BESS designers handle this two ways.
The first approach is to oversize the nameplate capacity. This way, usable energy under the chosen SoC window still meets the project’s requirement. For example, a project needing 600 kWh of usable energy, under a 20/80 window, must size the nameplate capacity near 1 MWh, not 600 kWh.
The second approach is to accept the narrower usable energy figure instead. From day one, the dispatch strategy, tariff arbitrage, or backup duration gets designed around that smaller number. Both approaches work. The right choice depends on whether capital cost or long-term degradation is the binding constraint for that project.
Sizing Formula and Worked Example
Sizing rule of thumb: Required nameplate capacity = Required usable energy ÷ Effective DoD Example: a site needs 600 kWh of usable energy and will operate at 20/80 (60% DoD). Required nameplate capacity = 600 kWh ÷ 0.60 = 1,000 kWh (1 MWh) By comparison, the same 600 kWh requirement under a 10/90 window (80% DoD) needs only 750 kWh nameplate — a smaller, lower-cost system.
Why Warranty Terms Matter Just as Much
Warranty terms matter just as much as the SoC window itself. A BESS warranted for a set cycle count at 90% DoD reaches end-of-life on a different timeline than the same cell warranted at 60% DoD. So, always confirm which DoD figure the warranty’s cycle-life guarantee assumes. Manufacturers calculate end-of-life projections against one specific operating window, not whatever SoC range the system ends up running in practice.
5. The 20/80 Rule for Batteries by Chemistry: LFP vs NMC vs NCA vs LTO
Why NMC and NCA Are More Sensitive to SoC Extremes
The 20/80 rule did not start in the BESS industry. Instead, it became popular through consumer electronics and EV guidance, where NMC and NCA cathode chemistries dominate. These chemistries carry a steep voltage curve across the SoC range. So, small changes in SoC produce larger changes in cell voltage. That, in turn, means larger swings in the electrochemical stress covered in Section 2.
Why LFP Tolerates a Much Wider Window
LFP (Lithium Iron Phosphate) behaves quite differently. It is now the leading chemistry for stationary BESS. LFP has a notably flat voltage curve across most of its range. As a result, the voltage gap between 30% SoC and 70% SoC stays small. Compare that to an NMC cell, where the same gap is much larger. Consequently, LFP cells care less about exactly where the SoC window sits. They also tolerate the top and bottom of the range far better than NMC or NCA.
Chemistry Comparison Table
Chemistry
Voltage Curve Shape
Sensitivity to SoC Extremes
Typical Recommended Window
Common BESS DoD Spec
LFP
Flat across most of range
Low — tolerant of wide windows
5–95% (or wider)
90–95% DoD
NMC
Steep, especially at high SoC
High — benefits significantly from 20/80
20–80%
50–80% DoD
NCA
Steep, similar to NMC
High — most sensitive to high SoC
20–80%
50–80% DoD
LTO
Very flat, stable anode
Very low — minimal benefit from narrowing
0–100% viable
95–100% DoD
Why This Matters for Buyers
This is exactly why DoD specifications on commercial LFP BESS datasheets sit at 90–95%. Meanwhile, consumer guidance for NMC-based phones and EVs sticks with the much narrower 20/80 window. After all, forcing a strict 20/80 rule onto a grid-scale LFP system would strand a large slice of installed capacity. Given LFP’s flat curve, the degradation benefit simply would not justify it.
Chemistry is not the only factor that shapes how hard a cell can be pushed, though. Charge and discharge rate matters too, which we cover in our guide to BESS C-rate.
That said, the underlying principle still applies to LFP. Avoid long dwell time at very high or very low SoC, especially during idle storage. The difference is one of degree, not of kind. LFP systems can run much closer to the 0% and 100% extremes during active cycling, without the same penalty NMC or NCA cells would face.
6. How the BMS and EMS Enforce the 20/80 Rule for Batteries
In a real BESS, the 20/80 rule — or whichever SoC window applies — is not left to chance. Instead, it gets enforced through two systems working together. The Battery Management System (BMS) handles cell and pack-level protection. The Energy Management System (EMS) handles dispatch planning.
BMS-Level Enforcement: Translating SoC Limits Into Voltage Cutoffs
The BMS does not directly “see” SoC as a clean percentage. Instead, it measures cell voltage and current. From there, it estimates SoC using coulomb counting, which tracks current flow over time. This estimate then gets cross-checked against the cell’s open-circuit voltage (OCV) curve. To enforce a 20/80 window, the BMS applies soft limits. These limits map to the voltage levels tied to 20% and 80% SoC, for that specific chemistry. So, when the pack nears either limit, the BMS signals the EMS to stop charging or discharging in that direction.
Why SoC Estimation Drifts — and Why Occasional Full Cycles Matter
Coulomb counting builds up small errors over time. As a result, the BMS’s SoC estimate slowly drifts from the cell’s true SoC. The fix is simple, though. Periodically, the cell gets allowed to reach a known reference point on its voltage curve, typically near full charge. There, SoC can be recalibrated with high confidence.
This creates a practical tension with the 20/80 rule. A system run permanently within 20–80% SoC may see growing estimation error over months. Without occasional full-range calibration cycles, that drift only gets worse.
Fortunately, most commercial BMS platforms handle this automatically. They schedule a periodic calibration charge to a higher SoC, during a low-demand period. Then, they return to the configured operating window. This is simply a normal part of long-term SoC accuracy. It is not a violation of the SoC window strategy.
EMS-Level Enforcement: Dispatch Planning Within the Window
The BMS protects the cells from exceeding configured SoC limits. The EMS, meanwhile, plans dispatch so the battery rarely needs to hit those limits at all. A well-tuned EMS schedules charge and discharge events carefully. So, the battery’s SoC trajectory stays comfortably inside the operating window throughout a typical day. In this way, the BMS’s hard limits remain a safety backstop, not a routine operating boundary.
7. The 20/80 Rule for Batteries Across Different BESS Applications
The 20/80 rule often gets presented as a universal recommendation. In reality, though, the best SoC strategy varies a lot by application. The table below summarises how SoC strategy typically shifts, depending on use case.
Application
Typical SoC Strategy
Rationale
Residential solar + storage (NMC)
20–80% to 10–90%
Balances cycle life with daily self-consumption value; NMC benefits most from narrower windows
C&I peak shaving (LFP)
5–95% (90% DoD)
LFP’s flat voltage curve and high cycle life tolerate wide windows; ROI favours maximum usable energy
Grid-scale arbitrage (LFP)
5–95% to 0–100%
Revenue per cycle often outweighs marginal degradation cost at LFP’s cycle-life scale
Frequency regulation
Centred near 50% SoC
Symmetrical headroom needed to inject or absorb power in either direction at short notice
Backup / UPS standby
Held near 50–60% SoC
Minimises calendar aging during long idle periods between discharge events
Second-life EV battery packs (NMC)
20–80%
Already-degraded cells benefit most from the gentlest possible operating window
Frequency Regulation: Why the Middle of the Range Matters Most
Frequency regulation systems sit deliberately near the middle of their SoC range, often close to 50%. This is not really about the 20/80 rule. Instead, it is about headroom. The system must absorb or inject power within milliseconds of a frequency deviation, in either direction. A battery at 95% SoC has little room left to absorb more charge. One at 5% SoC has little room left to discharge. So, the middle of the range maximises bidirectional response capability.
Backup and UPS: A Different Kind of SoC Challenge
Backup and UPS systems face the opposite challenge. Long idle periods at a fixed SoC get punctuated only occasionally by discharge events. For these systems, the relevant guidance is less about the 20/80 rule. It is more about storage SoC — holding the battery at a moderate level, commonly 50–60%, during idle periods. This approach limits the calendar aging effects covered in Section 2. Both very high and very low storage SoC accelerate SEI growth, even when the battery just sits unused.
Off-grid and islanded systems face a related challenge, since they cannot fall back on the wider grid during a SoC excursion. For more on how that changes BESS design, see our Island Grid BESS engineering guide.
8. Quantifying the 20/80 Rule for Batteries: Cycle Life vs Capacity
Here is the central question for any BESS operator. Does the cycle life gain from a narrower SoC window actually offset the lost usable energy per cycle? The best way to compare strategies is not cycle count alone. Instead, look at total lifetime energy throughput — the cumulative kWh the system delivers before reaching end-of-life capacity.
Illustrative Throughput Comparison
The table below illustrates this trade-off for an NMC-type cell. The figures are illustrative, but they stay broadly consistent with partial state-of-charge cycling research.
SoC Window
Effective DoD
Illustrative Cycle Life (to 80% SoH)
Usable Energy per Cycle (1 MWh nameplate)
Approx. Lifetime Throughput
0–100%
100%
~2,500 cycles
1,000 kWh
~2,500 MWh
10–90%
80%
~4,000 cycles
800 kWh
~3,200 MWh
20–80% (20/80 rule)
60%
~6,000 cycles
600 kWh
~3,600 MWh
30–70%
40%
~9,000 cycles
400 kWh
~3,600 MWh
Two Things Stand Out
First, narrowing from 0–100% to 20–80% boosts lifetime throughput in a real way. In this example, the gain is roughly 44%. Second, that gain flattens out past a certain point. Moving from 20–80% to 30–70% adds many more cycles. Yet total throughput barely moves, because each extra cycle delivers proportionally less energy.
What This Means in Practice
The key insight on lifetime throughput: Total energy delivered ≈ Cycle life × Usable energy per cycle Narrowing the SoC window increases the first term and decreases the second. There is a point — often somewhere between 20/80 and 30/70 for NMC chemistries — beyond which the two effects roughly cancel out. Past that point, further narrowing mainly stretches the calendar timeline, not the total energy delivered.
This carries a direct, practical lesson. The 20/80 rule does not always mean more total energy over the system’s life. What it reliably does, instead, is spread that throughput over a longer calendar period, with lower peak stress per cycle. That matters most when calendar life, warranty terms, or thermal limits are the binding constraint, not total cycle count.
9. Is the 20/80 Rule for Batteries Worth It for BESS Buyers?
From a pure capital-cost view, every point of SoC window removed from the operating range costs something. Either more hardware gets installed to keep the same usable energy, or output gets sacrificed. At typical commercial LFP BESS costs of $220 to $320 per kWh, the math gets concrete fast.
Moving from a 90% DoD strategy to a strict 60% DoD (20/80) strategy, for the same usable energy, means installing roughly 33% more nameplate capacity. That is a substantial capex increase. And it is a steep price for a chemistry whose flat voltage curve already makes the degradation benefit fairly small.
Why LFP Buyers Should Look Beyond 20/80
The calculus changes for NMC and NCA-based systems, where the 20/80 rule’s degradation benefit runs largest. For these chemistries, the extra upfront cost of oversizing is more often worth it. The payoff is a real extension of warranty-covered service life. This matters most where replacement logistics are difficult, such as second-life EV packs or remote and offshore installations.
Tracking that degradation over time matters just as much as the SoC strategy itself. For more on how suppliers estimate remaining battery health, see our guide to DCIR-based State of Health estimation for BESS.
Three Reasons LFP Favours a Wider Window
For most grid-connected commercial and utility-scale LFP BESS, the economically optimal SoC window sits much closer to 5–95% or 10–90% than to 20/80. There are three clear reasons why:
LFP’s flat voltage curve means the marginal degradation cost of the additional 10–30% of usable energy is small.
Revenue-generating applications (arbitrage, demand charge reduction, frequency services) are typically valued per kWh cycled, so reduced usable energy directly reduces revenue.
LFP cycle life figures (3,000–8,000+ cycles to 80% SoH) already provide 10–15+ years of service even at high DoD for most daily-cycling applications.
Overall, the 20/80 rule still earns its place as a default heuristic for NMC/NCA-based systems. It also works well as a long-term storage SoC guideline, across all chemistries. And it remains a sensible starting point for buyers who do not yet have chemistry-specific degradation curves. But it should not be treated as a fixed engineering spec for LFP-dominated stationary storage. Instead, the right SoC window is chemistry-specific and application-specific, not a universal constant.
SoC strategy is just one input into overall project returns. Round-trip losses matter too, and we cover those in our guide to BESS round-trip efficiency (RTE).
10. Best Practices and Common Mistakes With the 20/80 Rule for Batteries
Best Practices
Request chemistry-specific degradation curves (cycle life vs DoD) from your cell supplier rather than relying on generic 20/80 guidance.
For LFP systems, evaluate the 5–95% or 10–90% range as the realistic operating window, reserving 20/80-style restrictions for long-term storage SoC rather than daily cycling.
For NMC/NCA-based systems — including residential storage and second-life EV packs — the 20/80 rule remains a reasonable and well-supported default.
Confirm which DoD value the manufacturer’s cycle-life warranty is based on, and ensure your operating SoC window matches that assumption.
If a system will be idle for extended periods (shipping, seasonal storage, commissioning delays), set the storage SoC to a moderate level — commonly 30–60% — regardless of the chemistry.
Allow the BMS to perform periodic full-range calibration cycles even if the operating SoC window is narrower; this maintains SoC estimation accuracy over the system’s life.
Common Mistakes
Applying consumer EV/phone-based 20/80 guidance directly to a grid-scale LFP BESS without accounting for the chemistry’s much flatter voltage curve.
Sizing a system’s nameplate capacity around a 0–100% assumption, then discovering that the operating SoC policy reduces usable energy below the project’s requirement.
Treating the 20/80 rule as a hard safety limit rather than a usage strategy — and consequently disabling BMS calibration cycles, leading to SoC estimation drift over time.
Ignoring the interaction between SoC window and temperature: high-SoC storage in hot climates compounds calendar aging far more than the same SoC window in a temperate climate.
Comparing two BESS quotes on nameplate capacity and price alone, without checking whether each supplier’s cycle-life warranty assumes a different operating DoD.
11. Frequently Asked Questions: The 20/80 Rule for Batteries
What is the 20/80 rule for batteries?
The 20/80 rule for batteries is a usage guideline. It calls for keeping a lithium-ion battery’s SoC between 20% and 80% during normal use, instead of cycling between 0% and 100%. This creates an effective depth of discharge of 60%. The goal is simple: reduce electrochemical stress at very high and very low SoC.
Does the 20/80 rule apply to LFP batteries used in BESS?
The underlying principle applies to all lithium-ion chemistries. However, LFP’s flat voltage curve makes it far less sensitive to SoC extremes than NMC or NCA. As a result, most commercial LFP BESS datasheets specify depth of discharge in the 90–95% range. That is far wider than the 60% implied by a strict 20/80 rule, with no proportional drop in cycle life.
What SoC should a battery be stored at long-term?
For extended idle periods, such as shipping, seasonal storage, or commissioning delays, most manufacturers recommend a storage SoC in the 30–60% range. This applies regardless of chemistry. Both very high and very low storage SoC speed up calendar aging mechanisms, such as SEI layer growth, even when the battery just sits unused.
Is the 20/80 rule the same as an 80% depth of discharge specification?
No, these are different specifications. An 80% DoD spec, for example a 10–90% SoC window, is a wider operating range than the 20/80 rule’s 60% effective DoD. The two get confused often, since both involve the number 80. But they describe different SoC windows, with different usable capacity implications.
Does charging a BESS to 100% damage the battery?
Generally, no. Occasional full charges are not harmful. In fact, they are often necessary for BMS SoC calibration. The real degradation concern is prolonged dwell time at or near 100% SoC, such as leaving a battery fully charged for extended idle periods. Briefly passing through 100% during normal cycling carries a much smaller risk.
How much usable capacity do I lose by following the 20/80 rule?
Following a strict 20/80 rule cuts usable energy to 60% of nameplate capacity. Compare that with 80% under a 10–90% window, or close to 100% under a 5–95% window. For a 1 MWh nameplate BESS, that is the gap between 600 kWh, 800 kWh, and roughly 950 kWh of usable energy per cycle. This is a real factor in system sizing and project economics.
Conclusion: The 20/80 Rule for Batteries Is a Useful Heuristic, Not a Universal Specification
In summary, the 20/80 rule for batteries captures something real. Lithium-ion cells degrade fastest at the extremes of state of charge. Operating within a narrower SoC window reduces that stress. For NMC and NCA-based systems, including most consumer electronics, EVs, and residential storage, the 20/80 rule remains a sound, evidence-backed default.
For commercial and utility-scale BESS built on LFP chemistry, though, the picture shifts. The same flat voltage curve that makes LFP so well-suited to daily cycling also makes a strict 20/80 window economically inefficient. So, the right approach is to treat the SoC window as a chemistry-specific design variable. Size it against the manufacturer’s cycle-life warranty, the application’s revenue model, and the project’s calendar-life needs, rather than importing a rule of thumb from an entirely different product category.
Need help defining the right SoC operating window, DoD specification, and BMS configuration for your next BESS project? Contact the SunLith Energy engineering team to work through the chemistry-specific trade-offs for your application.
⚡ Quick Answer: BESS Supplier BMS Evaluation in Brief In any BESS supplier BMS evaluation, ask for cell-level monitoring, SOC algorithm type, balancing current, fault response speed, SOH logging, certifications, and full test reports. A quality supplier answers all seven without hesitation. Vague answers, missing test data, or refusal to name the SOC algorithm are the clearest red flags.
A thorough BESS supplier BMS evaluation is one of the most important steps in any energy storage procurement. Most buyers spend hours comparing cell chemistry, capacity, and cycle life. Then they spend five minutes on the BMS. That gap is where expensive mistakes happen.
The battery management system determines whether a BESS is safe and whether its cells reach their rated life. Yet BMS quality is hard to verify from a spec sheet. Many suppliers use the same headline numbers — regardless of whether the implementation delivers those claims.
This guide gives you a practical BESS supplier BMS evaluation framework. Specifically, it covers the questions to ask, the documentation to request, and the red flags that reveal when a BMS falls short.
1. Why BESS Supplier BMS Evaluation Matters More Than Most Buyers Realise

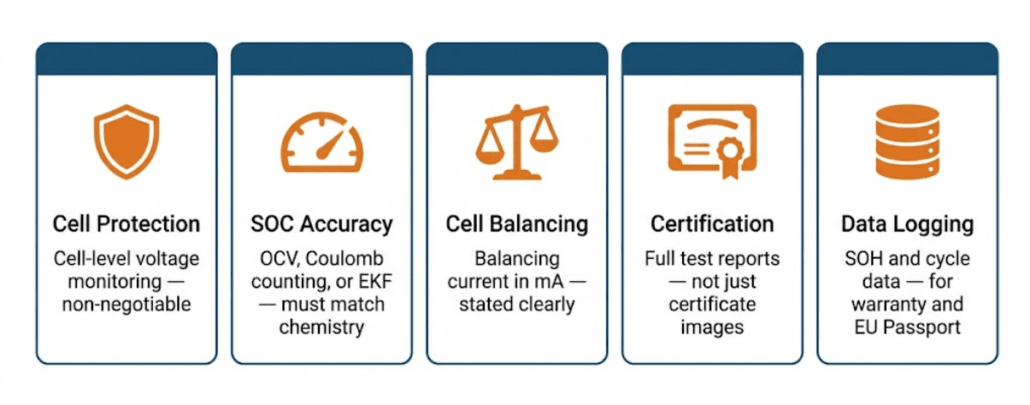

A thorough BESS supplier BMS evaluation covers five areas: SOC accuracy, protection, balancing, certification, and data logging
The BMS is the hardest BESS component to evaluate from a spec sheet. Cells have measurable characteristics — capacity, internal resistance, cycle life. A BMS spec sheet, in contrast, often contains claims that are hard to verify without test data.
Consider two BMS platforms with identical spec sheets. Both claim 6,000-cycle compatibility, active balancing, and EKF SOC. One uses a properly calibrated EKF with cell-level monitoring. The other uses Coulomb counting relabelled as EKF and pack-level monitoring relabelled as cell-level.
In the field, the first system protects cells correctly and reaches its rated cycle life. The second degrades faster, shows erratic SOC readings, and fails early. Both had identical spec sheets.
Consequently, a structured BESS supplier BMS evaluation is the only way to tell them apart. Asking the right questions and requesting the right documentation must happen before you sign.
2. The Seven Questions Every BESS Supplier BMS Evaluation Must Include
These seven questions form the core of any BESS supplier BMS evaluation. Specifically, a credible supplier answers all of them without hesitation. Vague or evasive answers are red flags.
Question 1: Is Monitoring at Cell Level or Pack Level?
Cell-level monitoring tracks every individual cell voltage. Pack-level monitoring, however, tracks only the total pack voltage. These are fundamentally different levels of protection.
In a 16-cell LFP pack, one weak cell can hit its 2.5V limit while the pack reads 49V. A BMS monitoring only pack voltage misses this. As a result, the weak cell gets damaged and the pack degrades faster.
Cell-level monitoring is non-negotiable. Ask specifically: does the BMS monitor each individual cell voltage — or only the total pack? Pack-level only is an immediate disqualifier. For more on why, see our BMS guide.
Question 2: Which SOC Algorithm Is Used — and Is It Calibrated for This Chemistry?
SOC estimation is where most generic BMS platforms fall short on LFP. OCV-based SOC on LFP is unreliable during operation. Coulomb counting is the minimum standard. EKF is the most accurate option for systems above 200 kWh.
Ask two sub-questions. First: which method — OCV, Coulomb counting, EKF, or hybrid? Second: was the cell model calibrated for the specific cells in this system? An EKF with a mismatched model is often less accurate than well-implemented Coulomb counting.
Question 3: What Is the Balancing Current and Method?
Ask whether balancing is passive or active, and what the current is in milliamps. Residential systems under 30 kWh need 100 mA passive balancing. Commercial systems above 200 kWh need 200 mA or more. Active balancing is preferred above 500 kWh.
Indeed, a supplier who cannot state the balancing current either uses a low-quality BMS or does not know their product. Both are red flags.
Question 4: How Fast Does the BMS Respond to Faults?
Short circuit protection must activate in microseconds. This uses hardware circuits, not software. Thermal runaway protection must disconnect in under 100ms. Ask specifically for fault response times in the spec document.
A vague answer such as “the BMS has overcharge protection” is not enough. Response time is what matters. Slow fault response on NMC especially can mean the difference between a contained event and a fire.
Question 5: What Communication Protocols Does the BMS Support?
Confirm the BMS works with your specific inverter and EMS before signing. CAN bus and Modbus RTU are the most common protocols. Ask for a compatibility list showing which inverter models have been tested.
A protocol mismatch needs a gateway converter — adding cost, a failure point, and communication lag. Discovering this after delivery is also expensive and causes project delays.
Question 6: Does the BMS Log SOH and Cycle Data — and for How Long?
SOH logging is essential for warranty claims. Most BESS warranties guarantee a minimum SOH at a set cycle count. Without accurate SOH records, therefore, any warranty dispute becomes very hard to resolve in your favour.
Furthermore, from February 2027, EU Battery Passport compliance requires SOH history, cycle count, and energy throughput data. A BMS without adequate logging creates regulatory risk. For more on these requirements, see our EU 2023/1542 compliance guide.
Question 7: Which Certifications Does the BMS Hold — and Can You Provide Full Test Reports?
UL 1973, IEC 62619, and IEC 62933-5 are the key certifications for a BESS BMS. Always ask for full test reports — not just a certificate image. A certificate shows testing was done. A test report, however, shows what was tested, under what conditions, and what the results were.
If a supplier provides only a certificate image and cannot produce the full report, that is a serious red flag. Reputable suppliers keep test reports on hand.
3. BESS Supplier BMS Evaluation: Red Flags and Green Flags

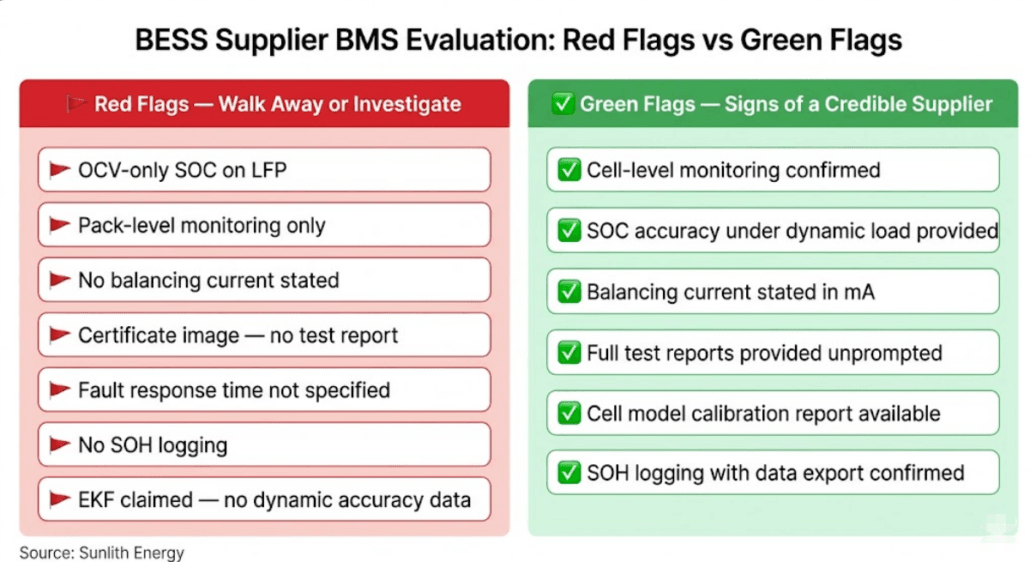

Red flags and green flags in a BESS supplier BMS evaluation — what credible suppliers provide versus what evasive suppliers avoid
Red Flags: Signs a BMS Falls Short
Red Flag
What It Means
What to Do
🚩 OCV-only SOC on LFP
SOC will be inaccurate — erratic readings, wrong shutdowns
Require Coulomb counting or EKF with LFP-calibrated model
🚩 Pack-level voltage monitoring only
Cannot detect weak cell — will miss over-discharge events
Require cell-level individual voltage monitoring as standard
🚩 Cannot state balancing current
Low-quality BMS or supplier unfamiliar with their product
Request balancing current in mA from the spec sheet
🚩 No test report — certificate image only
Cannot verify what was actually tested or under what conditions
Require full test report from the certification body
🚩 Fault response time not specified
Cannot confirm short circuit or thermal protection speed
Require fault response time in ms in the spec document
🚩 No SOH logging capability
Cannot support warranty claims or EU Battery Passport compliance
Require SOH logging with timestamped cycle data
🚩 EKF claimed but no dynamic SOC accuracy data
May be Coulomb counting relabelled — not genuine EKF
Require SOC accuracy spec under dynamic load, not just at rest
Green Flags: Signs of a Credible Supplier
Green Flag
What It Means
What to Do
✅ Cell-level voltage monitoring confirmed
Weak cells will be detected and protected before damage occurs
Verify in test report
✅ SOC accuracy data under dynamic load provided
Genuine EKF or well-calibrated Coulomb counting
Cross-check against your application’s cycle profile
✅ Balancing current stated in spec sheet
Supplier understands their product and is transparent
Verify adequacy for your system size
✅ Full certification test reports provided
BMS has been genuinely tested under fault conditions
Check test temperature and conditions match your application
✅ Cell model calibration confirmed for specific cells
SOC estimation is tuned for actual cells in the system
Request calibration test report as evidence
✅ SOH logging with data export capability
Warranty claims and EU Battery Passport compliance are supported
Confirm export format and data retention period
4. Documentation to Request in a BESS Supplier BMS Evaluation
Questions reveal what a supplier claims. Documentation, however, reveals what they can prove. Request these six documents during any BESS supplier BMS evaluation — before signing.
BMS Technical Specification Sheet
Specifically, the spec sheet should state: cell voltage monitoring level, voltage accuracy in mV, SOC algorithm type, balancing current in mA, fault response times in ms, and communication protocols.
If any parameter is missing, ask for it in writing. A supplier who cannot provide this data does not have it — and that reveals something important about BMS quality.
Certification Test Reports
Request full test reports for UL 1973, IEC 62619, and IEC 62933-5. These reports specify the test conditions — temperature, voltage range, C-rate, and fault scenarios. They also show pass/fail results for each test item.
Pay attention to the test temperature. A BMS certified at 25°C may behave differently at 45°C in an outdoor enclosure. Ask whether certification was done at your actual operating temperature.
SOC Accuracy Test Data
Ask for SOC accuracy data under dynamic load — not resting accuracy. Specifically, the test should show SOC error during charge and discharge at varying C-rates and temperatures. Genuine EKF achieves ±1–2% under these conditions. If the supplier only has resting data, the SOC method is likely OCV-based.
Cell Model Calibration Report
If the supplier claims EKF, ask for the cell model calibration report. This confirms the EKF model was built and validated for the specific cells in the system. A generic EKF model, calibrated for different cells, will underperform.
Firmware Version and Update Policy
Ask for the current BMS firmware version and update policy. Ask whether OTA updates are supported and whether cell model updates can be deployed remotely. For 10–15 year systems, OTA capability is valuable — it keeps SOC accuracy high as cells age.
Field Reference List
Also ask for a reference list of installed systems using the same BMS platform. A few direct conversations with reference customers reveals real-world BMS performance that no spec sheet captures.
5. BESS Supplier BMS Evaluation by System Size
The depth of BESS supplier BMS evaluation needed scales with system size. Specifically, a 10 kWh residential install carries different risk than a 5 MWh commercial project. This section provides a tiered evaluation framework.
Residential BESS — Under 30 kWh
Residential systems have simpler BMS requirements. Key items to verify are cell-level voltage monitoring, a 0°C charge inhibit, and IEC 62619 certification. Coulomb counting SOC with OCV resets is the minimum SOC standard.
Passive balancing at 50–100 mA is adequate at this scale. SOH logging is also good practice — however, it is less critical for warranty purposes. The main risk is a BMS that allows over-discharge or cold-temperature charging. Both cause permanent cell damage.
Commercial BESS — 30 kWh to 1 MWh
Commercial systems need all seven questions from Section 2 addressed. SOC accuracy matters more at this scale. Dispatch contracts and self-consumption both depend on knowing available energy. EKF is therefore preferred above 200 kWh.
SOH logging becomes important at this scale for warranty compliance. Communication protocol compatibility with the site’s EMS is also critical — confirm this before delivery, not after.
Utility-Scale BESS — 1 MWh and Above
At utility scale, every aspect of the BESS supplier BMS evaluation matters. EKF is strongly recommended. A 5% SOC error on a 10 MWh system means 500 kWh of uncertainty. That directly affects revenue from grid services contracts.
Additionally, require master-slave architecture documentation, slave module independence verification, and a data logging spec that meets EU Battery Passport requirements for EU market systems.
6. How to Interpret Supplier Answers in a BESS Supplier BMS Evaluation
Knowing how to interpret supplier answers is as important as knowing which questions to ask. These, therefore, are the most common responses in a BESS supplier BMS evaluation — and what they actually mean.
Supplier Answer
What It Likely Means
Follow-up Required
“Our BMS has cell-level monitoring”
Could be cell-level or pack-level — the term is used loosely
Ask: how many voltage sensors are in a 16-cell module?
“We use advanced SOC algorithms”
Could mean anything — likely Coulomb counting marketed as advanced
Ask: specifically OCV, Coulomb counting, or EKF?
“Our BMS is EKF-based”
May be genuine EKF or may be lookup table relabelled
Ask: what is the SOC accuracy under dynamic load?
“We have all the certifications”
Certifications may be for cells only, not the full BMS system
Ask: UL 1973 or IEC 62619 specifically for the BMS?
“Our BMS has active balancing”
Active balancing design varies widely in quality and current
Ask: what is the balancing current in mA or A?
Provides full test report without being asked
Supplier is confident in their product and transparent
Green flag — review test conditions carefully
7. The BESS Supplier BMS Evaluation Checklist

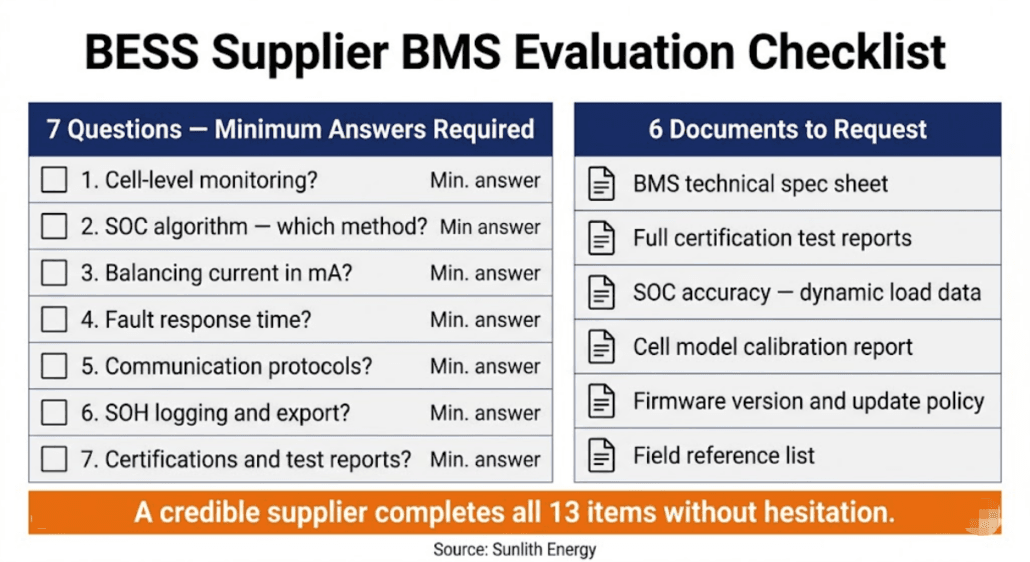

BESS supplier BMS evaluation checklist — seven questions and six documents to request before signing a purchase order
Use this checklist when evaluating any BESS supplier’s BMS. A credible supplier completes all items. Any item left blank or answered vaguely is a prompt for further investigation.
Seven Questions — Minimum Answers Required
Q1: Cell-level or pack-level voltage monitoring?
Required answer: cell-level individual voltage monitoring, confirmed in the spec sheet.
Q2: SOC algorithm — OCV, Coulomb counting, EKF, or hybrid?
Required answer: Coulomb counting minimum. EKF preferred above 200 kWh. Cell model calibration confirmed for specific cells.
Q3: Balancing method and current in mA?
Required answer: specific mA value stated. 100 mA+ for residential. 200 mA+ for commercial. Active balancing for 500 kWh+.
Q4: Fault response time for short circuit and thermal events?
Required answer: short circuit response in microseconds. Thermal disconnect under 100ms confirmed.
Q5: Communication protocols and inverter compatibility?
Required answer: specific protocols stated. Compatibility with your inverter confirmed.
Q6: SOH logging — what data, how long, and what export format?
Required answer: SOH, cycle count, energy throughput logged. Retention period stated. Export format confirmed.
Q7: Certifications held and full test reports available?
Required answer: UL 1973 and/or IEC 62619 confirmed. Full test reports available on request.
Six Documents to Request
BMS technical specification sheet — with all parameters listed above
Full certification test reports — UL 1973, IEC 62619, IEC 62933-5
SOC accuracy test data — under dynamic load at relevant temperatures
Cell model calibration report — confirming EKF is tuned for specific cells
Firmware version and update policy — including OTA capability if applicable
Field reference list — installed systems at comparable scale using the same BMS platform
8. What a Strong BESS Supplier BMS Evaluation Response Looks Like
To give context to the checklist, here is what a strong, credible supplier response looks like for each key question. Use this as a benchmark when comparing suppliers side by side.
✅ Example 1. Strong Response — Cell Monitoring “Our BMS monitors each individual cell voltage using dedicated ADC channels — one per cell. In a 16-cell module, there are 16 independent voltage measurements sampled every 500ms. Cell-level monitoring is confirmed in our IEC 62619 test report, which we can provide.”
✅ Example 2. Strong Response — SOC Algorithm “We use an Extended Kalman Filter combined with Coulomb counting. The EKF cell model was calibrated for the EVE LF280K cells used in this system, at 15°C, 25°C, and 45°C. SOC accuracy is ±1.8% under 0.5C dynamic load. We can provide the calibration test report and the dynamic load accuracy data.”
🚩 Example 3. Red Flag Response — SOC Algorithm “Our BMS uses advanced intelligent SOC estimation technology that provides highly accurate state of charge monitoring in real time.” — No algorithm type named. No accuracy figure given. No test data offered. This is marketing language, not a technical answer. Follow up with the specific sub-questions from Section 2 immediately.
Conclusion: Make BESS Supplier BMS Evaluation a Standard Step
A BESS supplier BMS evaluation is not a technical exercise reserved for engineers. It is a procurement discipline that any buyer can apply with the right questions and the right checklist.
The seven questions and six documents in Section 7 take less than an hour to work through. That hour protects against BMS failures that cost far more to fix in the field.
The clearest signal of a credible supplier is transparency. Credible suppliers answer the seven questions clearly and provide full test reports without hesitation. Evasive or vague answers, in contrast, are the most reliable red flag in any BESS supplier BMS evaluation.
☀️ Need Help with Your BESS Supplier BMS Evaluation? Sunlith Energy reviews BMS specifications and supplier documentation for BESS projects from 50 kWh upward. We apply this checklist on your behalf — identifying gaps in protection architecture, SOC accuracy, and certification compliance before you commit. Contact us
Frequently Asked Questions About BESS Supplier BMS Evaluation
What is the most important question in a BESS supplier BMS evaluation?
Cell-level voltage monitoring is the most important single question. A BMS that monitors only pack voltage cannot protect individual cells from over-discharge or overcharge. This failure mode causes faster degradation across the entire pack. Every other BMS feature is secondary to getting this protection right.
How do I know if a supplier is using genuine EKF or just claiming it?
Ask for SOC accuracy data under dynamic load — not resting accuracy. Genuine EKF achieves ±1–2% during active charge and discharge. If the supplier gives only resting data, the SOC method is likely Coulomb counting or OCV. Also ask for the cell model calibration report.
What certifications should a BESS BMS hold?
For most commercial BESS, UL 1973 and IEC 62619 are the primary certifications to require. IEC 62933-5 covers the ESS safety framework and is relevant for grid-connected systems. For EU market access after 2027, the BMS must also support the EU Digital Battery Passport data requirements. Always ask for full test reports.
Can I evaluate a BESS supplier’s BMS without technical expertise?
Yes. These questions require no engineering background. The answers either contain the information required — algorithm type, balancing current, fault response time — or they do not. A credible supplier gives specific answers. An evasive supplier gives vague, non-specific ones. That distinction is clear without technical expertise.
What happens if I skip the BESS supplier BMS evaluation?
The risks are real and specific. A BMS without cell-level monitoring allows weak cells to be over-discharged, accelerating degradation. Poor SOC estimation causes unnecessary shutdowns and wasted capacity. Missing SOH logging makes warranty disputes nearly impossible to win. For a 10-year BESS project, these failures compound significantly over time.
⚡ Quick Answer: Which BMS SOC Estimation Method Is Best? For LiFePO4 systems, Coulomb counting with OCV resets is the minimum standard. The Extended Kalman Filter (EKF) is the most accurate option — particularly for LFP’s flat voltage curve. OCV lookup alone is unreliable for LFP during operation. For NMC, OCV lookup is more viable but still benefits from Coulomb counting in real-time use. EKF suits any system where SOC accuracy directly affects revenue, safety, or EU Battery Passport compliance.
BMS SOC Estimation: State of Charge (SOC) is the most important number a battery management system produces. It is the fuel gauge of your BESS. Every dispatch decision, every protection threshold, and every warranty calculation depends on it being accurate.
Yet SOC cannot be measured directly. It must be estimated from voltage, current, and temperature data. The method used for BMS SOC estimation determines how accurate the reading is, how quickly it drifts, and how well it handles different conditions.
There are three main BMS SOC estimation methods: OCV lookup, Coulomb counting, and the Extended Kalman Filter (EKF). Each works differently and suits different chemistries. Choosing the wrong method is one of the most common and costly BMS mistakes in BESS procurement.
This guide explains how each BMS SOC estimation method works, where it succeeds, and where it fails. For the full context on how SOC fits into everything the BMS does, read our complete battery management system guide first.
1. Why BMS SOC Estimation Is Harder Than It Looks
The three main BMS SOC estimation methods each work differently and suit different battery chemistries and applications
SOC tells you what percentage of a battery’s full capacity is currently stored. A battery at 100% SOC is fully charged. At 0% SOC it is empty. In theory this sounds simple. In practice it is one of the hardest measurements in battery engineering.
The difficulty comes from two factors. First, SOC is an internal state — there is no sensor that reads it directly. Second, the relationship between measurable quantities and SOC changes with temperature, aging, load rate, and cell chemistry. As a result, every BMS SOC estimation method is an approximation.
The consequences of poor SOC accuracy are serious. An overestimate means the battery appears fuller than it is — causing unexpected shutdowns. An underestimate wastes usable capacity through early cutoff. In grid-connected systems, inaccurate SOC directly affects dispatch revenue and contract compliance.
Furthermore, from February 2027, the EU Battery Passport requires accurate SOC and SOH history logging. A BMS with poor SOC estimation will produce unreliable passport data. For more on the passport requirements, see our EU 2023/1542 compliance guide.
2. Method 1: Open Circuit Voltage (OCV) BMS SOC Estimation
OCV SOC estimation works well for NMC but fails for LFP because of the flat voltage curve between 20% and 80% SOC
OCV lookup is the simplest BMS SOC estimation method. When a battery has rested with no current flowing, its terminal voltage settles to its Open Circuit Voltage. This OCV value maps to a specific SOC via a pre-built lookup table derived from cell tests.
The method is straightforward and requires no current sensor. It is also highly accurate — but only under the right conditions.
When OCV SOC Estimation Works
OCV is reliable when the battery has truly rested. A 30–60 minute rest lets the voltage fully settle after any charge or discharge event. During this rest, the BMS reads the terminal voltage and looks up the corresponding SOC value.
This makes OCV most useful for setting the initial SOC at startup. After a BESS has been idle overnight, an OCV reading at power-on gives an accurate starting point. Furthermore, OCV works well as a periodic recalibration anchor — resetting Coulomb counting drift when the battery reaches a known full or empty state.
Why OCV SOC Estimation Fails for LiFePO4
LFP is the dominant chemistry for solar storage and BESS. Unfortunately, it is also the worst candidate for real-time OCV SOC estimation. The reason is LFP’s flat voltage curve.
LFP cells sit near 3.2V–3.3V across roughly 80% of their usable SOC range — from about 10% to 90% SOC. A cell at 30% SOC and a cell at 70% SOC look almost identical on OCV. The BMS cannot distinguish between them during operation.
Consequently, an OCV-based BMS on LFP shows SOC readings that jump erratically. The estimates are only accurate near the very top and bottom of the charge range. In the flat middle region — where the battery operates most of the time — OCV is essentially useless for real-time SOC tracking.
OCV SOC Estimation for NMC
NMC has a more sloped voltage curve. Its voltage drops more steadily and predictably from around 4.2V fully charged to 3.0V at empty. This makes OCV-based SOC estimation more viable for NMC than for LFP.
However, even for NMC, OCV alone is not sufficient for real-time SOC tracking during active charge and discharge. The cell voltage under load differs from OCV due to internal resistance effects. As a result, most NMC BMS platforms combine OCV with Coulomb counting rather than relying on OCV alone.
3. Method 2: Coulomb Counting in BMS SOC Estimation
Coulomb counting is the most widely used BMS SOC estimation method in real-time operation. It tracks the net charge flowing in and out of the battery and uses that to update the SOC estimate continuously.
The name comes from the coulomb — the unit of electric charge. Counting coulombs in and out gives a running tally of how full the battery is.
How Coulomb Counting BMS SOC Estimation Works
The BMS measures current using a shunt resistor or Hall-effect sensor. It samples current at regular intervals — typically every 100ms to 1 second. It calculates the charge added or removed in each interval, then updates the SOC accordingly.
If the battery starts at 80% SOC and 10 Ah of charge is removed from a 100 Ah pack, the BMS calculates the new SOC as 70%. The arithmetic is simple. The challenge is keeping it accurate over time.
Coulomb Counting Accuracy and Drift
Coulomb counting is accurate over short periods. Over longer periods, however, it drifts. Several factors cause this drift:
Current sensor error — a small measurement offset accumulates with each sample. A 1% sensor error builds up steadily over hundreds of cycles
Temperature effects — battery capacity changes with temperature. A cell at 0°C holds less charge than at 25°C. The same Coulomb count means different SOC at different temperatures
Self-discharge — batteries lose a small amount of charge over time even with no load. The BMS current sensor does not measure this internal loss
Coulombic efficiency — not all charge put into a battery comes back out. The BMS must account for this charge efficiency factor to avoid overestimating SOC on each cycle
Over several days without recalibration, Coulomb counting drift typically reaches 2–5%. In some systems it reaches 10% or more — particularly if the sensor quality is low or the efficiency model is poorly set up.
Resetting Coulomb Counting Drift in BMS SOC Estimation
The fix for Coulomb counting drift is periodic recalibration using known anchor points. When the battery reaches full charge, the BMS resets SOC to 100%. When it reaches the discharge cutoff, the BMS resets SOC to 0%.
These anchor points are highly reliable. Any accumulated error is corrected at each full cycle. Systems that rarely reach full charge or full discharge — such as those staying in a partial SOC band — need additional recalibration strategies.
The Extended Kalman Filter combines a mathematical cell model with real-time voltage feedback to produce the most accurate BMS SOC estimation
The Extended Kalman Filter (EKF) is the most accurate BMS SOC estimation method available. It is also the most complex. Understanding how it works helps you spot genuine EKF from marketing language.
How EKF BMS SOC Estimation Works
EKF combines two things: a mathematical model of the battery’s behaviour and real-time measurements from the BMS sensors. It works in a continuous loop of prediction and correction.
First, the model predicts the current SOC and expected terminal voltage. It uses the last known state, the measured current, and the cell model to do this. Second, the BMS measures the actual terminal voltage. Third, the EKF compares predicted to measured voltage. Any gap triggers an SOC adjustment. This cycle repeats every few hundred milliseconds.
The result is an SOC estimate that self-corrects in real time. Unlike Coulomb counting, EKF does not accumulate drift — it continuously anchors its estimate to the measured voltage. Unlike OCV lookup, it does not need the battery to be at rest.
Why EKF BMS SOC Estimation Handles LFP So Well
The flat voltage curve that makes OCV unreliable for LFP does not stop EKF from working. The EKF does not try to read SOC directly from voltage. Instead, it uses the voltage measurement as a correction signal for the cell model.
Even a small voltage deviation from the model prediction provides useful information. The EKF extracts SOC data from tiny voltage changes that OCV lookup would treat as noise. Furthermore, as the cell ages, adaptive EKF variants update the cell model parameters in real time to maintain accuracy throughout the battery’s life.
EKF Limitations and What to Ask Suppliers
EKF is powerful but has real requirements. First, it needs a cell model specifically calibrated for the cell chemistry, capacity, and temperature range of the actual cells in the system. A generic EKF with a poorly matched model is often less accurate than good Coulomb counting.
Second, EKF requires more processing power than OCV or Coulomb counting. This is manageable on modern BMS hardware but is a cost factor in low-end systems.
Third, EKF accuracy degrades as cells age if the model is not updated. The best EKF implementations use adaptive Kalman filtering — continuously refining the cell model as the battery ages. This is the gold standard for long-life BESS applications.
When evaluating a supplier, ask specifically: is the EKF model calibrated for the exact cells in this system? Can you show me the SOC accuracy data under dynamic load conditions? These two questions separate genuine EKF implementations from marketing claims.
5. BMS SOC Estimation Methods Compared: Full Head-to-Head
Factor
OCV Lookup
Coulomb Counting
Extended Kalman Filter
How it works
Maps resting voltage to SOC via lookup table
Integrates current over time to track charge change
Combines cell model + real-time voltage correction
Accuracy on LFP
Poor — flat curve makes lookup unreliable
Good short-term — drifts without recalibration
Excellent — handles flat curve, self-correcting
Accuracy on NMC
Good at rest — unreliable under load
Good short-term — drifts without recalibration
Excellent — most accurate under all conditions
Real-time use
No — needs 30–60 min rest period
Yes — works continuously during operation
Yes — works continuously, self-corrects
Drift over time
None — but only valid at rest
2–5% per day without recalibration
Minimal — self-correcting via voltage feedback
Hardware needed
Voltage sensor only
Needs voltage + current sensor
Voltage + current + temperature sensor
Processing demand
Very low
Low
Medium to high
Cost
Lowest
Low to medium
Medium to high
Best application
Initial SOC at startup / recalibration anchor
Residential and C&I BESS — minimum standard
Utility-scale BESS, high-accuracy and EU Passport systems
⚠️ The Supplier Red Flag to Watch For Some BMS suppliers claim EKF but implement only Coulomb counting with a lookup table correction. Ask for the SOC accuracy specification under dynamic load — not just at rest. Genuine EKF achieves ±1–2% accuracy under active charge and discharge. If a supplier cannot provide dynamic load SOC accuracy data, the EKF claim should be treated with scepticism.
6. Combining BMS SOC Estimation Methods: The Hybrid Approach
In practice, most well-designed BMS platforms combine more than one method. Each method has complementary strengths. Using them together produces better SOC accuracy than any single method alone.
Coulomb Counting with OCV Resets — The Standard Hybrid
The most common combination is Coulomb counting for real-time tracking, with OCV resets at known charge endpoints. This is the minimum acceptable standard for any serious BESS application.
During operation, Coulomb counting tracks every charge and discharge event. When the battery reaches full charge or full discharge, the BMS resets the Coulomb count to 100% or 0%. This corrects drift and keeps the long-term SOC estimate accurate.
The weakness of this hybrid is that it only corrects drift at the endpoints. Systems within a narrow SOC band — staying between 20% and 80% — may go many days without hitting a reset point. Drift can therefore accumulate. However, for most solar storage applications, a full charge event happens every few days, keeping drift within acceptable limits.
EKF with Coulomb Counting — The Premium Hybrid
The best BMS SOC estimation systems use EKF as the primary method with Coulomb counting as a supporting input. Coulomb counting data feeds the EKF’s prediction step, providing a continuous current-based SOC estimate. EKF then corrects this estimate in real time using the actual measured voltage.
This hybrid gets the best of both worlds. Coulomb counting provides a stable, low-noise baseline. EKF then provides continuous self-correction and adapts to temperature changes, aging, and varying load profiles. As a result, this combination achieves ±1–2% SOC accuracy under most real-world conditions.
Premium BMS platforms from Texas Instruments, Analog Devices, Orion BMS, and leading Chinese BMS manufacturers use this EKF-plus-Coulomb-counting design. It is the right choice for utility-scale systems, high-frequency cycling, and any BESS needing SOC accuracy for grid services or EU Battery Passport compliance.
7. BMS SOC Estimation Accuracy: What the Numbers Mean in Practice
SOC accuracy is stated as a percentage error. Understanding what these numbers mean for your system helps you decide how much BMS SOC estimation quality you actually need.
SOC Accuracy
Method Typical Range
Impact on 100 kWh System
Impact on 1 MWh System
±1–2%
EKF (premium)
±1–2 kWh uncertainty
±10–20 kWh uncertainty
±3–5%
Coulomb + OCV reset
±3–5 kWh uncertainty
±30–50 kWh uncertainty
±5–10%
Coulomb (no reset)
±5–10 kWh uncertainty
±50–100 kWh uncertainty
±10%+
OCV only (LFP)
±10+ kWh uncertainty
±100+ kWh uncertainty — unacceptable
For a residential solar storage system, ±5% SOC accuracy is generally acceptable. The system rarely needs precise SOC accounting. The cost premium of EKF over Coulomb counting is hard to justify at this scale.
For a commercial BESS providing grid services, ±3–5% may be the minimum. Dispatch contracts require specific energy delivery. Poor SOC accuracy means the system either under-delivers — breaching the contract — or over-reserves buffer, leaving revenue on the table.
For a utility-scale BESS above 1 MWh, ±1–2% from EKF is strongly preferred. At this scale, a 5% SOC error represents 50 kWh of uncertainty. Over a year of daily cycling, that uncertainty compounds into meaningful commercial and compliance risk.
8. BMS SOC Estimation and LFP: Special Considerations
LFP’s flat voltage curve makes it the hardest chemistry for BMS SOC estimation. This is covered in depth in our BMS for LiFePO4 guide. Here is a summary of the key points for context.
Why OCV SOC Estimation Fails on LFP
LFP cells show almost no voltage change between 20% and 80% SOC. This flat region covers most of the battery’s working range. An OCV lookup here produces a highly uncertain SOC estimate — the voltage gap between 30% and 70% SOC is smaller than most sensor noise floors.
The practical consequence is large SOC jumps. A BMS relying on OCV for LFP may show the SOC drop from 60% to 20% almost instantly as the battery moves off the plateau. This causes unnecessary alarms, early shutdowns, and confused dispatch logic.
The Correct BMS SOC Estimation Approach for LFP
For LFP, the minimum acceptable approach is Coulomb counting with OCV resets at the charge and discharge endpoints. This gives accurate real-time tracking with periodic recalibration at known states.
For LFP systems above 200 kWh or cycling more than once daily, EKF is strongly recommended. Its self-correcting design keeps SOC accurate even when the system stays within a narrow SOC band and rarely reaches the reset endpoints.
9. Questions to Ask Your BMS Supplier About SOC Estimation
Most BMS suppliers will claim accurate SOC estimation. Asking specific questions separates genuine capability from marketing language. These five questions reveal what is actually under the hood.
Questions on Method and Accuracy
Which SOC estimation method does the BMS use — OCV, Coulomb counting, EKF, or a hybrid?
This is the foundational question. OCV-only on LFP cells is a dealbreaker — walk away. For Coulomb counting, ask about the drift rate and recalibration strategy. For an EKF answer, proceed to question 2.
What is the SOC accuracy under dynamic load — not just at rest?
Many suppliers quote SOC accuracy measured at rest, where OCV is reliable. Genuine EKF accuracy should be ±1–2% under active charge and discharge. Ask specifically for dynamic load accuracy data. If they can only provide resting accuracy, the EKF implementation is likely superficial.
Was the cell model calibrated for the specific LFP or NMC cells in this system?
A generic EKF with a poorly matched cell model is often less accurate than good Coulomb counting. The cell model must be calibrated for the specific cell chemistry, capacity, and temperature range. Ask for a test report showing SOC accuracy on the actual cells being supplied.
Questions on Long-Term Performance
How does the BMS SOC estimation handle cell aging?
Cell capacity decreases as the battery ages. A BMS using a fixed capacity value will overestimate SOC as the cells degrade. The best systems use adaptive EKF or periodic capacity recalibration to track fade. Ask whether the BMS updates its capacity estimate over time.
How is the SOC estimate logged and exported for EU Battery Passport compliance?
From February 2027, BESS sold into the EU must provide SOC history, energy throughput, and SOH data as part of the Digital Battery Passport. The BMS is the primary data source. Ask how the SOC log is stored, how long it is kept, and what format it exports in. A BMS without adequate data logging creates EU compliance risk from 2027.
Conclusion: Choosing the Right BMS SOC Estimation Method
BMS SOC estimation is not a detail — it is the foundation of everything your BESS does. A poor SOC estimate causes early shutdowns, wasted capacity, bad dispatch decisions, and EU compliance problems.
The right BMS SOC estimation method depends on your system:
Residential and small C&I (under 100 kWh): Coulomb counting with OCV resets is the minimum standard. It is reliable, cost-effective, and accurate enough for most solar storage applications
Commercial BESS (100 kWh–1 MWh): Coulomb counting with OCV resets is acceptable. However, EKF is preferred for systems providing grid services or operating within a narrow SOC band
Utility-scale BESS (1 MWh+): EKF is strongly recommended. At this scale, a 5% SOC error is too large for safe and profitable operation
LFP systems at any scale: OCV-only is never acceptable. Coulomb counting with resets is the minimum. EKF is best for daily-cycling systems above 200 kWh
The five questions in Section 9 will reveal whether a supplier uses genuine BMS SOC estimation or a basic method relabelled with technical language. Ask them before you sign.
☀️ Need a BMS SOC Estimation Review for Your BESS Project? Sunlith Energy reviews BMS SOC estimation methods and accuracy data for BESS projects from 50 kWh upward. We check whether the method suits your chemistry, cycling profile, and EU compliance needs — before you commit to a supplier. Contact us
Frequently Asked Questions About BMS SOC Estimation
What is SOC in a battery management system?
SOC stands for State of Charge. It is the BMS’s estimate of how much energy is currently stored in the battery, expressed as a percentage of full capacity. A battery at 100% SOC is fully charged. At 0% SOC it is empty. The BMS uses voltage, current, and temperature data to calculate this estimate continuously during operation.
Why is Coulomb counting the most common BMS SOC estimation method?
Coulomb counting is widely used because it works in real time and requires only a current sensor. It is accurate over short periods and does not need the battery to rest — unlike OCV lookup. It is also computationally simple, making it cost-effective for residential and commercial BMS platforms. Its main weakness is drift, which is corrected by OCV resets at known charge endpoints.
Is Kalman filter SOC estimation worth the cost for a small BESS?
For residential systems under 30 kWh, EKF is generally not worth the cost premium. Coulomb counting with OCV resets delivers adequate accuracy at lower cost. However, for systems above 100 kWh that cycle daily or use LFP in a narrow SOC band, EKF’s self-correcting accuracy pays for itself quickly in reduced dispatch errors and avoided shutdowns.
How does SOC estimation affect EU Battery Passport compliance?
The EU Digital Battery Passport, mandatory from February 2027, requires historical SOC data, energy throughput, and State of Health records. The BMS is the primary data source for all of these. A BMS with poor SOC accuracy produces unreliable passport data — and creates regulatory risk. For EU market access after 2027, accurate SOC logging is not optional.
What SOC accuracy should I expect from my BMS?
A Coulomb counting BMS with regular OCV resets should achieve ±3–5% in normal operation. An EKF-based BMS with a well-calibrated cell model should achieve ±1–2% under dynamic load conditions. SOC accuracy worse than ±10% typically indicates OCV-only estimation on LFP — or a poorly calibrated system that needs attention.
Can the BMS SOC estimation method be changed after installation?
In most systems, the SOC estimation method is set in the BMS firmware. It cannot be changed in the field without a firmware update. Some premium BMS platforms support OTA updates, allowing the SOC algorithm to be improved remotely. For long-life BESS projects, OTA capability is worthwhile — it lets the cell model be refined as the battery ages.
⚡ Quick Answer: What Does a BMS for LiFePO4 Need? A BMS for LiFePO4 batteries must enforce a cell voltage window of 2.5V–3.65V, use Coulomb counting or Kalman filtering for accurate SOC (not OCV alone), provide at least 80–100 mA balancing current for passive systems, monitor temperature at multiple points, and halt charging below 0°C. These requirements differ significantly from NMC — a BMS designed for NMC will underperform on LFP cells.
LiFePO4 (LFP) is the dominant chemistry for solar storage, commercial BESS, and off-grid systems. Its long cycle life, thermal stability, and safety advantages make it the first choice for most stationary applications. However, LFP also has specific characteristics that place unique demands on the BMS for LiFePO4.
Not every BMS is built with LFP in mind. Many suppliers use a generic platform across multiple chemistries. Consequently, an NMC-designed BMS on LFP cells shows poor SOC accuracy and slow balancing. It also lacks the specific protections LFP needs.
This guide covers the key requirements for a BMS for LiFePO4 — voltage parameters, SOC methods, balancing current, and temperature limits. It also includes the supplier questions that reveal whether a BMS is genuinely built for LFP.
New to battery management systems? Read our complete BMS explainer guide first, then return here for the LFP-specific detail.
1. Why LiFePO4 Places Unique Demands on the BMS
LFP’s chemistry gives it three properties that directly shape what the BMS must do. Understanding these properties is the starting point for evaluating any BMS for LiFePO4.
The Flat Voltage Curve: LiFePO4’s Biggest BMS Challenge
LFP cells operate near 3.2V–3.3V across most of their usable SOC range. Specifically, from 20% to 80% SOC, the voltage barely moves. This is unlike NMC, where voltage drops steadily and predictably as the cell discharges.
Consequently, the BMS cannot rely on voltage alone to estimate SOC. A cell at 50% SOC and a cell at 30% SOC look almost identical on voltage. As a result, any BMS that uses OCV as its primary SOC method will be wildly inaccurate on LFP during operation.
This is the most important LFP-specific BMS requirement. A wrong SOC estimate causes early shutdowns and surprise overcharge events. It also wastes usable energy by setting overly cautious capacity limits.
Chemical Stability: LiFePO4 Still Needs BMS Protection
LFP’s iron-phosphate cathode is chemically very stable. Its thermal runaway threshold is 270°C–300°C — far higher than NMC’s 150°C–210°C. This stability means the BMS has more time to respond to developing faults. However, it does not mean LFP needs less protection.
Over-discharge below 2.5V per cell damages the anode permanently. Overcharge above 3.65V per cell damages the cathode. Both need fast BMS action. The stability advantage of LFP reduces thermal risk — but it does not reduce voltage protection needs.
Wide Operating Temperature Range
LFP handles temperature extremes better than NMC. It operates from -20°C to 60°C on discharge and from 0°C to 45°C on charge. However, charging below 0°C causes lithium plating. This is a permanent form of anode damage that accumulates with each cold-temperature charge cycle.
The BMS must, therefore, actively halt charging when cell temperature drops below 0°C. This is a hard protection requirement, not a soft warning. For more on how temperature affects LFP lifespan, see our guide on temperature impact on LiFePO4 cycle life.
2. LiFePO4 BMS Voltage Parameters: The Exact Numbers
Voltage parameters are the foundation of any BMS for LiFePO4 configuration. These values define the safe operating window for each cell. The BMS enforces them through contactor control and charge/discharge current limiting.
Parameter
LFP Value
What Happens If Breached
Nominal cell voltage
3.2V
Reference point for system design — not a limit
Charge cutoff (max)
3.65V per cell
Permanent cathode damage above this — BMS must disconnect
Discharge cutoff (min)
2.5V per cell
Permanent anode damage below this — BMS must disconnect
Recommended operating range
2.8V–3.4V per cell
Staying within this range extends cycle life significantly
Cell voltage balance tolerance
±20mV typical
Wider spread indicates balancing failure or weak cell
Low voltage pre-warning
2.7V–2.8V
BMS should alert before hard cutoff — allows graceful shutdown
Why Cell-Level Monitoring Is Non-Negotiable
These voltage limits apply to individual cells — not to the overall pack voltage. In a 16S LFP pack (16 cells in series), the nominal pack voltage is 51.2V. However, one weak cell can hit its 2.5V discharge cutoff while the pack voltage still reads 49V — well above the apparent safe threshold.
A BMS that monitors only pack voltage will therefore miss this event entirely. The weak cell gets driven below its safe limit and suffers permanent damage. Consequently, cell-level individual voltage monitoring is the most basic non-negotiable requirement for any BMS for LiFePO4.
Voltage Tolerance in the BMS Hardware
The accuracy of the voltage measurement circuit matters. For LFP, a measurement tolerance of ±5–10mV per cell is acceptable. Some premium BMS platforms achieve ±1–2mV. Tighter tolerances mean the BMS can set closer operating limits and extract more usable capacity from the pack.
Ask your supplier: what is the cell voltage measurement accuracy of the BMS? If they cannot answer, that is a red flag.
3. SOC Estimation for LiFePO4: Why OCV Alone Fails
LFP’s flat voltage curve makes OCV-based SOC estimation unreliable — the BMS must use Coulomb counting or Kalman filtering instead
SOC estimation is where most generic platforms fail. It is, therefore, the most important technical question to ask any BMS for LiFePO4 supplier.
Why OCV Fails for LFP
OCV lookup works by mapping a resting cell voltage to a SOC value. It uses a table built from cell tests. This works well for NMC because NMC voltage drops steadily as the cell discharges.
LFP, however, produces an almost flat voltage curve between 20% and 80% SOC — roughly 3.2V to 3.3V across this entire range. As a result, a cell at 25% SOC and a cell at 75% SOC look nearly identical on OCV. The BMS cannot distinguish between them. Consequently, an OCV-based BMS on LFP shows SOC readings that jump erratically and fail to track the actual charge state.
OCV is only useful for LFP after the battery has rested for at least 30–60 minutes with no current flowing. It is, therefore, a valid method for setting the initial SOC estimate at startup — not for real-time tracking.
Coulomb Counting: The Minimum Standard for LFP
Coulomb counting integrates current over time to track charge entering and leaving the battery. It is the most widely used SOC method in real-time operation. It is also the minimum acceptable standard for any BMS for LiFePO4.
Coulomb counting is accurate over short periods. However, it drifts over time. Sensor errors, temperature effects, and small unmeasured currents all add up. Without regular recalibration, the SOC estimate can drift by 2–5% over several days.
Best practice: The BMS should recalibrate SOC to 100% when the battery reaches full charge voltage (3.65V per cell) and to 0% when it reaches the discharge cutoff (2.5V per cell). These are reliable anchor points that correct accumulated drift automatically.
Extended Kalman Filter: The Gold Standard for LFP
The Extended Kalman Filter (EKF) is the most accurate SOC method for LFP. It combines Coulomb counting with a cell behaviour model. Continuously, it corrects the estimate by comparing the model’s output to the actual measured voltage.
EKF handles LFP’s flat curve far better than OCV. It does not rely on voltage to estimate SOC. Instead, it uses a dynamic model that accounts for temperature, aging, and load history. Furthermore, premium BMS platforms from Texas Instruments, Analog Devices, and Orion BMS use EKF or adaptive Kalman filter variants.
The trade-off is complexity. EKF requires a well-characterised cell model that must be calibrated for the specific LFP cell chemistry in use. A generic EKF implementation calibrated for one cell type will not necessarily be accurate on another. Always ask whether the EKF model was calibrated for the specific cells in your system.
Method
Accuracy on LFP
Key Limitation
Use Case
OCV Lookup
Poor (flat curve)
Useless during operation
Initial SOC at rest only
Coulomb Counting
Good short-term, drifts
Accumulates error over time
Minimum standard — all LFP systems
Coulomb + OCV reset
Good — self-correcting
Needs full charge/discharge cycles
Residential and C&I systems
Extended Kalman Filter
Excellent (±1–2%)
Needs cell-specific calibration
Utility-scale and precision BESS
4. Temperature Requirements for a LiFePO4 BMS
LFP handles temperature better than NMC. However, this does not mean temperature management matters less — it means the safety margins are wider. The BMS must still enforce hard temperature limits and respond to thermal events.
LFP Temperature Operating Limits
Condition
Safe Range
BMS Action Required
Charging temperature
0°C to 45°C
Halt charging below 0°C — lithium plating risk
Discharging temperature
-20°C to 60°C
Reduce current below -10°C; cut off below -20°C
Optimal operating range
15°C to 35°C
No restriction — full rated performance
High temp warning
45°C–55°C
Reduce charge/discharge current; trigger cooling
High temp cutoff
Above 55°C–60°C
Disconnect pack — risk of accelerated degradation
Thermal runaway threshold
~270°C–300°C
Emergency disconnect and alarm — well above normal ops
Temperature Sensor Placement for LFP
The number and placement of temperature sensors directly affects BMS accuracy. For LFP packs, the minimum is one sensor per module. However, in larger systems, multiple sensors per module are standard — at the cell surface, the busbar, and inside the enclosure.
Temperature gradients across a large LFP pack can be significant. A poorly ventilated corner of a battery rack can run 10°C–15°C hotter than the rest. Without adequate sensor coverage, the BMS misses this. Consequently, the hottest cells degrade faster, creating imbalance that shortens the entire pack’s life.
Cold Weather and LFP: The Lithium Plating Risk
Charging LFP below 0°C is one of the most common field mistakes in cold-climate installations. When lithium ions cannot intercalate into the anode at low temperatures, they deposit as metallic lithium on the anode surface instead. This lithium plating is permanent and cumulative.
Specifically, repeated cold-temperature charging causes capacity loss and increases internal resistance. In severe cases, it creates dendrites that cause internal short circuits. The BMS must therefore monitor cell temperature before and during charging. It must halt charge current if any cell falls below 0°C.
5. Cell Balancing Requirements for LiFePO4 BMS
LFP’s flat voltage curve makes cell imbalance harder to detect — the BMS needs adequate balancing current to keep cells in sync
Cell balancing is especially important for LFP. The flat voltage curve makes imbalance harder to spot by voltage alone. Two cells can differ significantly in SOC while showing nearly the same voltage. As a result, the BMS must use current tracking — not just voltage — to detect and correct imbalance.
Minimum Balancing Current for LFP
Passive balancing current determines how quickly the BMS can correct cell imbalance. For LFP systems, the minimum acceptable balancing current depends on system size and cycle frequency.
System Size
Minimum Balancing Current
Why
Residential (under 30 kWh)
50–100 mA
Low cycle frequency — slow balancing keeps up
Small C&I (30–200 kWh)
100–200 mA
Daily cycling creates drift — needs more current to correct
Large C&I (200–500 kWh)
200–500 mA or active
Passive may not keep up — active balancing preferred
Utility-scale (500 kWh+)
Active balancing (1–5A)
Passive is inadequate — active required for long-term performance
When to Specify Active Balancing for LFP
In residential systems with one cycle per day and high-grade A-cell packs, passive balancing at 100 mA is typically sufficient. The cells are well-matched from the factory and, consequently, drift slowly at moderate cycle rates.
Active balancing becomes worthwhile for LFP systems in three situations. First, systems above 500 kWh that cycle daily — imbalance builds faster than passive balancing can fix. Second, systems in variable temperature environments where thermal gradients cause uneven aging. Third, long-duration systems designed for 15+ years where small capacity gains have significant ROI impact.
For a detailed comparison of passive vs active balancing methods, see our complete BMS guide which covers both approaches in depth.
6. Protection Functions: What a LiFePO4 BMS Must Detect
Beyond voltage and temperature, a BMS for LiFePO4 must handle several protection scenarios. Each one has LFP-specific parameters that differ from other chemistries.
Overcharge Protection in a BMS for LiFePO4
The hard overcharge cutoff for LFP is 3.65V per cell. Above this, the cathode undergoes irreversible structural changes. The BMS must therefore disconnect the charge current before any cell reaches this limit. It must do so at the cell level — not the pack level.
Response time should be under 100ms from detection to contactor opening. Additionally, the BMS should implement a pre-warning at around 3.55V–3.60V that reduces charge current (CC-CV charging taper) before the hard cutoff is needed. This protects cells and reduces stress on the contactor.
Over-Discharge Protection for LiFePO4 Cells
The discharge cutoff for LFP is 2.5V per cell. However, the recommended operating minimum is 2.8V — keeping cells above 2.8V significantly extends cycle life. The BMS should therefore implement a two-stage approach: a soft limit at 2.8V that issues a warning and reduces available power, and a hard cutoff at 2.5V that disconnects the pack entirely.
In grid-connected systems, the EMS typically enforces the operational SOC limit well above the hard BMS cutoff. However, the BMS hard limit acts as the last line of defence. It activates if the EMS dispatch fails or if the system enters an unexpected deep discharge scenario.
Short Circuit and Overcurrent Protection
Short circuit response must be in microseconds. The BMS uses a hardware protection circuit — a MOSFET or contactor — that operates independently of the main processor. Software-based response is simply too slow for a hard short circuit event.
Overcurrent protection covers sustained high-current events that are not a hard short. It typically uses a time-delay threshold — for example, 2C discharge for more than 10 seconds triggers a disconnect. The exact settings depend on the cell’s C-rate rating and the load profile.
Cell Voltage Imbalance: A Key LiFePO4 BMS Alert
This is an LFP-specific protection function that many generic BMS platforms handle poorly. LFP cells look similar on voltage even when SOC values differ significantly. As a result, the BMS must monitor cell voltage spread continuously and alert when cells diverge beyond the tolerance threshold.
A spread greater than 50–100 mV across cells indicates a problem. It is typically a sign of a weak cell, a failing balancing circuit, or early degradation. The BMS should log this event and alert the monitoring platform — not simply trigger a hard cutoff.
7. BMS for LiFePO4: Communication and Data Requirements
A BMS for LiFePO4 in a modern BESS must communicate reliably with the inverter, EMS, and monitoring platform. Furthermore, from 2027, EU Battery Passport compliance adds data logging requirements. As a result, communication capability becomes a regulatory issue — not just a technical one.
Communication Protocols: What a BMS for LiFePO4 Must Support
CAN bus 2.0A/B — standard for high-performance and EV-derived BMS platforms; fastest and most reliable
RS485 / Modbus RTU — most common in C&I and utility BESS; compatible with most commercial inverters
CANopen — used in some European industrial applications
MQTT / TCP-IP — required for cloud monitoring and Battery Passport data export
Before specifying a BMS, confirm it works with your inverter’s protocol. A mismatch needs a gateway converter — adding cost, a failure point, and communication lag.
Data Logging Requirements for LiFePO4 BMS Systems
For residential and small commercial LFP systems, minimum data logging should cover SOC, cell voltages, temperatures, cycle count, and fault history. This supports warranty claims and helps diagnose degradation over time.
For systems selling into the EU market after February 2027, the BMS must also log SOH history, energy throughput, and temperature exposure. This data must be in a format compatible with the EU Digital Battery Passport. For full details, see our EU 2023/1542 compliance guide.
8. BMS for LiFePO4 Certifications: What to Check
A BMS for LiFePO4 in a commercial or grid-connected system must hold safety certifications. These confirm the BMS has been tested under fault conditions and meets minimum protection standards.
Standard
Scope
LFP BMS Relevance
UL 1973
Stationary lithium battery systems
Required for US market — covers BMS protection functions
IEC 62619
Li-ion battery safety
International standard — covers voltage, temp, and BMS protection
IEC 62933-5
ESS safety framework
Covers BMS communication, monitoring, and fault response
UN 38.3
Transport safety
BMS must survive vibration and thermal tests for shipping
CE Marking
EU market access
Required for EU sales — covers electrical safety
Always request the full test reports — not just the certificate. A reputable BMS supplier will provide complete documentation without hesitation. If they provide only a certificate image with no underlying test data, treat that as a red flag.
9. How to Evaluate a LiFePO4 BMS: 7 Specific Questions
Generic BMS evaluation questions apply to all lithium chemistries. These seven questions, however, are specifically designed to reveal whether a BMS has been properly configured for LFP cells.
Questions 1–4: Technical Parameters
What SOC algorithm does this BMS use for LFP — and can you show me the accuracy data?
If the answer is OCV lookup, walk away. Ask specifically for SOC accuracy under dynamic load conditions — not just at rest. A good answer is Coulomb counting with OCV reset, or EKF with LFP-calibrated cell model. Ask for the SOC error percentage from their test data.
What is the cell voltage measurement accuracy, and how often does the BMS sample each cell?
For LFP, ±10mV or better is the minimum. Sampling frequency should be at least once per second under normal operation, with faster sampling during charge/discharge transitions. Slower sampling misses brief voltage spikes near the cutoff limits.
Does the BMS halt charging below 0°C at the cell level — not just the ambient temperature?
This is a critical LFP protection requirement. Ambient temperature sensors can give false readings. A cell inside an enclosure can be warmer or colder than the ambient sensor shows. The BMS must therefore use cell-level temperature sensors for this protection. If the supplier uses only one ambient sensor, that is inadequate for LFP.
What is the balancing current, and is it sufficient for the system’s daily cycle rate?
Use the table in Section 5 as your reference. A 50 kWh residential system cycling once daily needs at least 100 mA. A 500 kWh C&I system cycling twice daily needs at minimum 500 mA passive or active balancing. If the supplier cannot tell you the balancing current, that is a red flag.
Questions 5–7: Data and Support
Was the BMS calibrated specifically for the LFP cells in this system — or is it a generic configuration?
SOC accuracy depends on the BMS being calibrated for the specific cell chemistry and capacity. A BMS set up for a 100 Ah CATL cell will not be accurate on a 200 Ah EVE cell. Always ask whether the cell model was calibrated for your specific cells.
What LFP-specific fault codes does the BMS log, and how are they accessible?
Look for: cell voltage imbalance alerts, low-temperature charge inhibit events, SOC drift correction logs, and balancing records. These are essential for diagnosing field problems and supporting warranty claims. A BMS that only logs hard faults — not pre-fault warnings — will miss early signs of cell trouble.
Does the BMS support OTA firmware updates — and is the LFP cell model updatable in the field?
LFP cells change as they age. A BMS with OTA firmware updates can recalibrate its cell model over time. This keeps SOC accuracy high as the cells degrade. It is a premium feature — but it matters a lot for systems designed to last 15+ years.
Conclusion: Match the BMS to the Chemistry
A BMS for LiFePO4 is not the same as a generic lithium BMS. LFP’s flat voltage curve needs a purpose-built SOC method. Its sensitivity to cold charging needs cell-level temperature sensors. Its long cycle life needs strong balancing to keep cells aligned over thousands of cycles.
The seven questions in Section 9 will reveal whether a supplier has genuinely designed their BMS for LiFePO4 — or simply relabelled an NMC platform. The difference matters. Over a 15-year lifespan, a purpose-built BMS for LiFePO4 delivers more usable energy, better SOC accuracy, and fewer field failures.
☀️ Need an LFP BMS Review for Your BESS Project? Sunlith Energy reviews BMS specifications for LFP projects from 50 kWh upward. We check SOC algorithm suitability, voltage parameter configuration, balancing current adequacy, and certification compliance — before you commit to a supplier. Contact us
Frequently Asked Questions
What voltage should a LiFePO4 BMS cut off at?
The hard charge cutoff is 3.65V per cell and the hard discharge cutoff is 2.5V per cell. However, for longer cycle life, the recommended operating range is 2.8V to 3.4V. Operating consistently within this narrower range can significantly extend total cycle count over the system’s lifetime.
Can I use an NMC BMS on LiFePO4 cells?
Technically you can, but the SOC accuracy will be poor. NMC BMS platforms typically use OCV-based SOC, which fails on LFP’s flat voltage curve. The voltage window settings will also be wrong — NMC cells have higher charge cutoffs and different discharge profiles. In practice, an NMC BMS on LFP leads to inaccurate SOC readings, early shutdowns, and reduced usable capacity.
What is the minimum balancing current for a LiFePO4 BMS?
Residential systems under 30 kWh cycling once daily need 50–100 mA passive balancing. Commercial systems above 100 kWh cycling daily need 200 mA or more. Active balancing is preferred for systems above 500 kWh. Low balancing current in a large pack allows imbalance to accumulate — leading to progressive capacity loss.
Does a LiFePO4 BMS need to stop charging in cold weather?
Yes — this is a hard requirement. Charging LFP below 0°C causes lithium plating, which is permanent and cumulative. The BMS must use cell-level temperature sensors to enforce this protection. Ambient sensors alone are not sufficient — cells inside an enclosure can be warmer or colder than the surrounding air suggests.
How accurate should SOC be on a LiFePO4 BMS?
A Coulomb counting BMS with regular OCV resets should achieve ±3–5% SOC accuracy in steady-state operation. An EKF-based BMS with a properly calibrated LFP cell model should achieve ±1–2%. Poor SOC accuracy above ±10% typically indicates OCV-only estimation — or a cell model not calibrated for the specific LFP chemistry.
⚡ Quick Answer: What Is a Battery Management System? A battery management system (BMS) is the electronic brain inside every lithium battery pack. It monitors cell voltage, current, and temperature in real time. It also protects cells from overcharge, over-discharge, short circuit, and thermal runaway. Furthermore, it estimates State of Charge (SOC) and State of Health (SOH). Without a BMS, a lithium battery is both unsafe and short-lived.
Every lithium BESS relies on a battery management system to run safely. This is true for a 10 kWh home install and a 10 MWh grid system alike. In both cases, therefore, the BMS is not optional — it sits between your cells and everything that can destroy them.
Yet the BMS is one of the most overlooked parts of any BESS purchase. Buyers focus on cell chemistry, capacity, and cycle life. Then they treat the battery management system as a given. That is a costly mistake.
A poor BMS, therefore, degrades good cells. A great battery management system, in contrast, extends the life of average cells. It is a lifespan management tool — not just a safety device.
This guide explains how a battery management system works, what it monitors, and how it balances cells. We also cover SOC and SOH calculation and show you how to evaluate a supplier’s BMS before you sign. For context on how the BMS interacts with cell chemistry, first read our LiFePO4 vs NMC battery comparison guide.
1. What Is a Battery Management System?
How a battery management system connects cells, inverter, EMS, and monitoring platform
A battery management system (BMS) is an electronic control unit built into a battery pack. Specifically, its job is to protect cells, measure their state, and report data to the rest of the system.
Think of the BMS as doing three jobs at once. First, it acts as a protection circuit — preventing electrical and thermal damage to the cells. Second, it is a measurement system — tracking voltage, current, temperature, SOC, and SOH. Third, it is a communication hub — sending live data to the inverter, EMS, and monitoring platform.
In a simple 12V residential pack, the BMS is a small PCB inside the module. In a commercial BESS, however, it manages hundreds of cells at once. The scale changes — but the core functions stay the same.
🔋 Why the Battery Management System Determines Lifespan Two identical cell packs with different BMS implementations deliver very different lifespans. Specifically, a BMS that allows cells to hit voltage limits, run hot, or drift out of balance will shorten cell life — regardless of the chemistry’s rated cycle count. The battery management system is, therefore, as important as the cells themselves.
2. Battery Management System Functions: The Seven Core Jobs
A well-designed battery management system performs seven distinct functions. Each one protects the battery in a different way. Together, furthermore, they determine whether your BESS is safe, efficient, and long-lived.
2.1 Cell Voltage Monitoring
The BMS monitors every individual cell voltage — not just overall pack voltage. This matters because cells in a multi-cell pack drift apart over time. Specifically, one weak cell can hit its limit before the others do.
For LiFePO4 cells, the safe range is 2.5V to 3.65V per cell. Going outside this range — even briefly — causes permanent capacity loss. So the BMS must, therefore, detect and respond to violations in milliseconds.
Voltage monitoring also underpins SOC estimation, which we cover in Section 5. Without accurate cell-level data, furthermore, everything else the BMS does becomes unreliable.
2.2 Current Monitoring and Overcurrent Protection
The BMS measures charge and discharge current using a shunt resistor or Hall-effect sensor. Specifically, this data serves four purposes:
Coulomb counting — integrating current over time to estimate SOC
Overcurrent protection — detecting short circuits and excessive discharge rates
C-rate enforcement — ensuring cells never charge or discharge faster than their rated speed
Power limiting — reducing available power as SOC drops or temperature rises
2.3 Temperature Monitoring
Temperature is one of the biggest drivers of battery degradation. Consequently, the BMS places sensors at multiple points — cell surfaces, busbars, and the enclosure. It uses this data to trigger cooling and reduce current.
It also halts charging below 0°C. Charging below freezing causes lithium plating. This is permanent anode damage that cannot be reversed.
For LiFePO4, the safe charging range is 0°C to 45°C. Discharge, however, runs across a wider range of -20°C to 60°C. The BMS enforces both limits automatically.
2.4 Overcharge and Over-Discharge Protection
These are the two most critical BMS protection functions. Overcharging a lithium cell causes irreversible changes in the cathode. Similarly, over-discharging collapses the anode. Both permanently reduce capacity.
The BMS prevents both by triggering a contactor disconnect when any cell breaches its voltage limit. This happens even if the pack’s overall voltage looks normal. One weak cell can hit its limit while others still have headroom. That is why cell-level monitoring is non-negotiable.
2.5 Short Circuit Detection and Response
A short circuit sends a massive current spike through the pack in milliseconds. Without protection, the heat this creates can trigger thermal runaway. As a result, the BMS detects the spike and opens the contactor in microseconds — before damage occurs. Learn more about how these critical failure paths are analyzed and mitigated in our engineering deep-dive on BMS Functional Safety, HARA, and FMEA.
Furthermore, sustained overcurrent protection prevents operation at damaging C-rates. This applies even without a sudden short circuit event.
2.6 Cell Balancing
Cell balancing is one of the most important long-term BMS functions. It keeps all cells at the same State of Charge. Without it, the weakest cell limits the entire pack — even though the others still have energy to give.
We cover passive vs. active balancing in detail in Section 4. The key point, however, is this: balancing quality directly affects how much rated capacity you can use over time. In other words, poor balancing means lost energy.
2.7 Communication and Data Reporting
A modern battery management system communicates with the inverter, EMS, SCADA, and remote monitoring platforms. In particular, the most common protocols include:
CAN bus — standard in high-performance BESS and automotive applications
RS485 / Modbus RTU — common in commercial and industrial storage
MQTT / TCP-IP — used for cloud monitoring and Battery Passport data exports
For a comprehensive look at how these networks function and talk to one another, read our complete guide on BESS Communication Protocols.
The BMS transmits SOC, SOH, cell voltages, temperatures, current, cycle count, and fault codes. Specifically, this data feeds dispatch decisions in the EMS and enables remote health tracking.
3. Battery Management System Architecture Options
BMS architecture scales with system size. Specifically, there are three implementation levels. Each one adds capability and complexity.
BMS Tier
Also Called
Scope
Typical Application
Cell-level BMS
CBMS
Monitors individual cells in one module
Residential storage under 30 kWh
Module BMS
Slave BMS / MBMS
Manages one group of cells in a module
C&I systems, EV battery packs
System / Master BMS
SBMS / Master BMS
Coordinates all modules in the full pack
Utility-scale BESS, multi-rack systems
Single-Level BMS (Residential)
In smaller systems — typically under 100 kWh — a single BMS manages all cells directly. This is a simple, low-cost architecture. Consequently, the BMS PCB sits inside the battery module and handles monitoring, protection, and balancing on its own.
However, as cell count grows, wiring becomes complex and processing load increases. Beyond a certain size, single-level BMS becomes impractical.
Master-Slave BMS (Commercial and Utility Scale)
In larger systems — typically above 100 kWh — a master-slave design is used. Each battery module has its own Slave BMS. It handles local cell monitoring and balancing. All Slave units then report to a central Master BMS, which coordinates the full system.
The Master BMS aggregates data from all modules and manages system-level protection. Furthermore, it communicates with the inverter and EMS. As a result, this architecture scales well to multi-megawatt-hour systems.
⚠️ Key Evaluation Point: Master-Slave Independence In a quality master-slave battery management system, each slave module should protect its own cells independently — even if communication with the master is lost. A BMS where cell protection depends entirely on the master, however, creates a single point of failure. Therefore, always ask: what happens to cell-level protection if the master controller fails?
🔗Read Also:For a deeper comparison including wiring protocols and wireless BMS, see ourfull BMS architecture guide
4. Cell Balancing in a Battery Management System: Passive vs. Active
Passive balancing dissipates excess charge as heat. Active balancing transfers charge between cells electronically.
Why Cells Need Balancing
No two lithium cells are identical. Manufacturing tolerances mean cells leave the factory with slightly different capacities. Moreover, temperature gradients within a pack cause some cells to age faster. Self-discharge rates also vary slightly between cells.
[!NOTE] For the manufacturing step that happens before balancing even starts, see our cell matching guide.
Over time, cells drift apart in State of Charge. The cell with the lowest SOC determines when discharge must stop. Similarly, the cell with the highest SOC determines when charging must stop. If cells are out of balance, the weakest cell constrains the entire pack — even though the others still have capacity.
The BMS corrects this drift through balancing. As a result, all cells stay at the same SOC and the full rated capacity remains usable.
Passive Balancing: Simpler and More Common
Passive balancing is, specifically, the most common approach. The BMS bleeds off excess charge from higher-SOC cells as heat through a resistor. It keeps doing this until, eventually, all cells match the lowest cell.
Advantages: Low cost, simple, reliable, and well-proven across millions of systems.
Disadvantages: Energy is wasted as heat. Balancing current is typically low (20–200 mA), so it is slow. In large packs with heavy imbalance, furthermore, passive balancing cannot keep up.
Passive balancing is, therefore, best suited to residential and small commercial systems. It works particularly well where cell quality is high and cycle frequency is moderate.
Active Balancing: Better for High-Cycle Systems
Unlike passive balancing, active balancing transfers energy from higher-SOC cells to lower-SOC cells using inductive or capacitive circuits. Energy is not wasted — instead, it is redistributed within the pack.
Advantages: No energy waste. Higher balancing currents (0.5–5A) mean faster correction. Better long-term capacity retention in high-cycle applications.
Disadvantages: Higher cost and more complexity. There are, therefore, more potential failure points in the balancing circuitry.
Active balancing is, therefore, best specified for utility-scale BESS, frequency regulation, and systems designed for 15+ year lifespans where long-term capacity retention is critical to ROI.
Factor
Passive Balancing
Active Balancing
How it works
Burns excess charge as heat via resistor
Transfers charge between cells electronically
Energy efficiency
Low — energy wasted as heat
High — energy redistributed within pack
Balancing speed
Slow: 20–200 mA typical
Fast: 0.5–5A typical
System complexity
Simple and reliable
More complex, more failure points
Cost
Low
Higher (2–5x passive)
Best for
Residential and small C&I (under 500 kWh)
Utility-scale and high-cycle BESS (over 500 kWh)
🧠 Interactive BMS Balancing Simulator
Simulate how a BMS manages individual cell drift and balances a 4-cell LFP pack.
🔋 Current Cell Status (Target: 3.40V)
Cell 1 (Balanced):3.40V
Cell 2 (High Spike / Overcharge Risk):3.55V
Cell 3 (Balanced):3.40V
Cell 4 (Weak / Low Capacity):3.25V
⚡ Step 2: Trigger BMS Balancing Strategy
BMS Operational Status
Status: Standby (Imbalance Detected)
Pack efficiency is restricted by Cell 4. Select a balancing method above to view the electronic correction process.
*Visualized example based on a standard 4S LiFePO4 configuration operating near upper knee voltage thresholds.*
5. How the Battery Management System Estimates SOC (State of Charge)
Essentially, SOC is the fuel gauge of your battery. It shows how much energy is stored, expressed as a percentage of full capacity. Accurate SOC is essential for safe operation and efficient dispatch.
Importantly, SOC cannot be measured directly. Instead, it must be estimated from measurable quantities — voltage, current, and temperature. The BMS uses one or more algorithms to do this. Each method has distinct strengths and trade-offs.
Method 1: Open Circuit Voltage (OCV) Lookup
Specifically, this is the simplest SOC estimation method. When a battery has rested for 30–60 minutes, its Open Circuit Voltage maps to SOC via a lookup table. The table is built from cell characterisation tests.
However, OCV works poorly for LiFePO4. LFP has a very flat voltage curve between 20% and 80% SOC. Small voltage changes correspond to large SOC swings in this region. As a result, OCV-based SOC is inaccurate during normal operation. It is mainly useful for setting the initial estimate after a long rest period.
Method 2: Coulomb Counting
Coulomb counting integrates current over time. It tracks how much charge has entered or left the battery. As a result, it is the most widely used SOC method in real-time operation.
Coulomb counting is accurate over short periods. However, it accumulates error over time due to sensor tolerances, temperature effects, and small unmeasured currents. Without periodic recalibration, the estimate drifts.
Best practice: In practice, reset SOC to 0% or 100% when the battery hits its cutoff voltage. These anchor points correct accumulated drift effectively.
Method 3: Extended Kalman Filter (EKF)
The Extended Kalman Filter is the most accurate SOC method available. It combines Coulomb counting with a mathematical model of the battery’s electrochemical behaviour. Consequently, it corrects the estimate continuously based on the gap between model prediction and actual voltage.
EKF handles LFP’s flat voltage curve far better than OCV. It adapts in real time to temperature changes, aging effects, and varying loads. Furthermore, premium BMS platforms from Texas Instruments, Analog Devices, and Orion BMS use EKF or adaptive Kalman variants.
The trade-off: EKF requires significant processing power and a well-characterised cell model. It is, consequently, computationally demanding and needs careful tuning for each chemistry.
SOC Method
Accuracy
LFP Suitability
Typical Use
Open Circuit Voltage
±5–10% in flat region
Poor — flat curve limits accuracy
Initial SOC after rest period only
Coulomb Counting
±3–5% short term, drifts over time
Good for real-time tracking
Residential and most C&I systems
Extended Kalman Filter
±1–2% with good cell model
Excellent — handles flat curve well
Utility-scale BESS and precision apps
6. How the Battery Management System Tracks SOH (State of Health)
State of Health (SOH) measures how much of a battery’s original capacity remains. A new battery starts at 100% SOH. Each cycle causes a small, permanent capacity loss. Consequently, the BMS tracks this degradation over the system’s lifetime.
Specifically, SOH is defined as: SOH (%) = (Current Capacity ÷ Original Rated Capacity) × 100.
Notably, End of Life (EOL) is declared when SOH drops to 80% — or 70% in some industrial applications. For more on how EOL thresholds work in practice, see our Battery Cycle Standards guide.
How SOH Is Estimated Over Time
SOH cannot be measured with a single reading. Instead, the BMS builds up estimates using several data sources accumulated over time:
Capacity fade tracking — comparing measured full-charge capacity against original rated capacity
Internal resistance measurement — resistance increases as cells age; higher resistance correlates with lower SOH
Cycle counting — simple but imprecise; does not account for partial cycles or varying depth of discharge
Incremental Capacity Analysis (ICA) — an advanced technique that analyses the dV/dQ curve to detect electrochemical aging signatures
SOH Logging and Warranty Compliance
Accurate SOH logging matters for two reasons. First, it supports warranty claims. Most BESS warranties guarantee a minimum SOH at a set cycle count — for example, 80% SOH at 6,000 cycles. The BMS is the primary evidence source for any claim.
Second, SOH logging is becoming a regulatory requirement. The EU Digital Battery Passport, mandatory from February 2027 under EU Batteries Regulation 2023/1542, requires SOH history, cycle count, and energy throughput data. The battery management system is the primary source for all of it.
📊 Battery Management System SOH and Warranty Compliance A BMS that accurately logs SOH over time — with timestamped cycle data — makes warranty claims straightforward. A BMS without proper SOH logging, however, creates disputes. Always ask what SOH data is recorded, how long it is stored, and in what format it can be exported.
7. Battery Management System Requirements: LiFePO4 vs. NMC
LFP and NMC place very different demands on the battery management system — especially for SOC estimation and thermal monitoring speed
LiFePO4 (LFP) and NMC place very different demands on the battery management system. Understanding these differences, therefore, helps you confirm that a supplier’s BMS is genuinely designed for their stated chemistry. A BMS reused from a different application, for instance, will often perform poorly on LFP.
SOC Accuracy: Why LFP and NMC Differ
LFP’s flat voltage curve — discussed in Section 5 — makes SOC measurement significantly harder than NMC. An NMC cell’s voltage, in contrast, changes continuously and predictably with SOC. LFP, however, sits near 3.2V–3.3V across 80% of its SOC range. As a result, OCV lookup is unreliable for LFP in real-time operation.
Consequently, a BMS designed for NMC but deployed on LFP cells will show poor SOC accuracy. This leads to premature shutdowns or unexpected overcharge events. Always, therefore, confirm the BMS SOC algorithm is specifically calibrated for LFP chemistry.
Thermal Monitoring: NMC Is More Demanding
NMC cells are more temperature-sensitive than LFP. Specifically, they degrade significantly above 35°C and have a lower thermal runaway threshold — 150°C to 210°C versus 270°C to 300°C for LFP.
As a result, an NMC battery management system requires:
Temperature monitoring intervals of every 100–500ms — versus every 1–2 seconds for LFP
Faster thermal runaway response — disconnection in milliseconds when temperature spikes
More temperature sensors per module — to catch hot spots before they spread
Integration with active liquid cooling systems — which are common in NMC BESS
NMC cells are damaged more easily by small voltage excursions above the charge cutoff. As a result, a BMS protecting NMC must enforce tighter tolerances — typically ±5mV per cell versus ±10–20mV for LFP. It must also respond faster when a cell approaches its limit.
BMS Function
LiFePO4 (LFP)
NMC
SOC algorithm required
Coulomb counting or Kalman filter essential (flat curve)
OCV lookup or Coulomb counting (clearer voltage slope)
Voltage tolerance per cell
±10–20mV
±5mV — much tighter
Temperature monitoring interval
Every 1–2 seconds typical
Every 100–500ms — faster response needed
Thermal runaway response
Standard — higher threshold
Fast — lower runaway threshold (150–210°C)
Active cooling integration
Optional in most deployments
Often required
Overall BMS complexity
Standard
Higher on all parameters
8. Battery Management System Certifications: Which Standards Apply
As a safety-critical component, the battery management system must, therefore, comply with the relevant standards for each market where the BESS will be installed. Certification covers both the BMS hardware itself and the complete battery system.
Standard
Scope
BMS Relevance
UL 1973
Stationary lithium battery systems
Cell, module, and BMS safety — required for US market access
UL 9540
Complete BESS system safety
BMS must demonstrate system-level protection functions
IEC 62619
Safety for lithium-ion batteries
International standard covering BMS protection requirements
IEC 62933-5
ESS safety framework
Covers BMS communication, monitoring, and fault response
UN 38.3
Transport safety for lithium batteries
BMS must survive vibration, altitude, and thermal tests
EU 2023/1542
EU Batteries Regulation
BMS data required for Digital Battery Passport from 2027
The EU Digital Battery Passport and BMS Data
Specifically, the EU Digital Battery Passport becomes mandatory in February 2027 for industrial and EV batteries above 2 kWh. It is a QR-code record containing a battery’s full lifecycle data — SOH history, cycle count, energy throughput, and temperature exposure.
The battery management system is the primary data source for this passport. Consequently, any BESS sold into the EU after 2027 must have a BMS that records and exports this data in a compliant format. BMS data logging is, therefore, no longer just a technical feature. It is a regulatory requirement. For a full breakdown, see our EU 2023/1542 compliance guide.
9. How to Evaluate a Commercial Battery Management System
Most buyers evaluate batteries on capacity, cycle life, and price. The BMS is then treated as a given. That is a mistake. These eight questions, therefore, separate a robust battery management system from one that will cause problems in the field.
Questions 1–4: Protection and Accuracy
Question 1: Is cell-level voltage monitoring standard — or only pack-level?
Cell-level monitoring is non-negotiable. A BMS that only monitors overall pack voltage cannot prevent localised overcharge or over-discharge. Always, therefore, confirm cell-level monitoring is standard — not an add-on.
Question 2: What SOC algorithm is used — and is it calibrated for the cell chemistry?
If a supplier cannot answer this clearly, that is a red flag. OCV-based SOC on LFP is inaccurate. Ask whether Coulomb counting, Kalman filtering, or a hybrid method is used. Furthermore, confirm it is tuned for the specific cell chemistry in your system.
Question 3: Is balancing passive or active — and what is the balancing current?
For high-cycle applications or systems above 500 kWh, active balancing is preferable. For smaller residential systems, passive balancing at 100 mA or above is adequate. In contrast, a balancing current under 50 mA in a large pack is a warning sign.
Question 4: How fast does the BMS respond to overcurrent and thermal events?
Short circuit response must be in microseconds. Thermal runaway disconnection must happen in under 100ms. Specifically, ask for the fault response time in the specification — not just a general claim that protection exists.
Questions 5–8: Communication, Data, and Certification
Question 5: What communication protocols are supported?
Confirm the BMS communicates with your inverter and EMS. CAN bus and Modbus RTU are the most common protocols. Additionally, cloud connectivity via MQTT or TCP-IP is increasingly important for monitoring and Battery Passport data exports.
Question 6: Does the BMS log SOH and cycle data — and for how long?
SOH logging is essential for warranty claims and EU Battery Passport compliance. Ask how many years of data is stored, which parameters are logged, and how the data is exported. Consequently, a BMS with no data export capability is a liability for EU market sales after 2027.
Question 7: What happens to cell protection if the master controller fails?
In a master-slave BMS, slave modules must maintain cell-level protection independently — even without master communication. A system where protection depends entirely on the master creates a single point of failure. Therefore, always ask this question before signing.
Question 8: Which certifications does the BMS hold — and can you provide test reports?
UL 1973, IEC 62619, and IEC 62933-5 are the key standards. A reputable supplier provides full test documentation — not just a certificate summary. If they hesitate, that is therefore a red flag.
10. Common Battery Management System Failure Modes
Common battery management system failure modes and how to prevent each one in a BESS installation
Understanding how a battery management system can fail helps you design systems with the right redundancy. It also helps you evaluate suppliers whose BMS architecture accounts for these risks.
Failure Mode
Consequence
Prevention
Voltage sensor drift
Incorrect SOC — risk of overcharge or over-discharge
Dual redundant sensors; periodic recalibration against known references
Temperature sensor failure
Missed thermal event — possible thermal runaway
Multiple sensors per module; cross-validation between sensors
Balancing circuit failure
Cell imbalance grows; usable capacity shrinks
Active monitoring of balancing currents; SOC spread alerts
Master-slave communication loss
Master loses visibility of module status
Slaves maintain local protection; heartbeat watchdog triggers alarm
Contactor weld failure
BMS cannot disconnect pack during a fault
Pre-charge circuits; contactor health monitoring; dual contactors on large systems
OTA firmware updates; staged rollouts; version logging with rollback capability
11. The Battery Management System in a Complete BESS: System Integration
Importantly, the battery management system does not operate in isolation. In a complete BESS, it sits at the centre of a data and control network — connecting cells to the inverter, the EMS, the monitoring platform, and the thermal management system.
Connecting to the Inverter
The BMS sends SOC, available power, voltage, and fault status to the inverter in real time. The inverter uses this data to manage charge and discharge rates and respect SOC limits. It also triggers a soft shutdown when the battery approaches empty.
Without reliable BMS-to-inverter communication, the inverter operates blind. As a result, overcharge or deep discharge events become possible.
Connecting to the Energy Management System (EMS)
The EMS sits above the BMS in the control hierarchy. It uses BMS data to decide when to charge, when to discharge, and how much power to commit to a grid services contract. Consequently, a BMS that cannot communicate reliably with the EMS limits the system’s ability to optimise for economics.
To understand how BESS economics work in practice, see our guide on calculating BESS ROI.
Connecting to Remote Monitoring Platforms
Cloud-connected monitoring platforms use BMS data to track performance and flag early warnings. Typical parameters include SOC, SOH, cell voltage spread, temperatures, energy throughput, and fault logs. Moreover, this data is increasingly required for EU Battery Passport compliance after 2027.
Connecting to Thermal Management Systems
In systems with active cooling — fans or liquid cooling — the BMS directly controls the thermal hardware. It turns cooling on and off based on real-time cell temperature readings. In liquid-cooled NMC systems, this link is especially critical. In LFP systems, thermal management is simpler — but still important in warm climates or poorly ventilated enclosures.
Conclusion: The Battery Management System Is Not a Commodity
The battery management system determines whether a BESS is safe. It also determines whether cells reach their rated cycle life — and whether capacity is fully used. It is, therefore, not a component to be cut from the bill of materials.
Here are the key takeaways from this guide:
Cell-level voltage and temperature monitoring are non-negotiable in any lithium system
SOC algorithm choice matters enormously — especially for LFP’s flat voltage curve
Balancing method should match your cycle frequency and system size
SOH logging is now a regulatory requirement under the EU Battery Passport — not just a technical feature
BMS architecture must scale with system size: single-level for residential, master-slave for commercial and utility
Use the eight evaluation questions above before accepting any supplier’s BMS specification
Overall, whether you are designing a 10 kWh home system or a 10 MWh grid-scale BESS, the battery management system deserves the same scrutiny as the cells. A good BMS extends the life of average cells. A poor BMS, in contrast, shortens the life of great ones.
☀️ Need a Battery Management System Review for Your BESS Project? Sunlith Energy reviews BMS specifications and supplier documentation for BESS projects from 50 kWh upward. Specifically, we identify gaps in protection architecture, SOC algorithm suitability, and certification compliance — before you sign a purchase order. Contact us
Frequently Asked Questions About the Battery Management System
Does a LiFePO4 battery need a BMS?
Yes — without exception. LiFePO4 is chemically stable, but it still needs a battery management system. Specifically, the BMS prevents overcharge, over-discharge, short circuit, and thermal damage. No reputable BESS supplier ships lithium cells without one.
What is the difference between a BMS and a battery controller?
The battery management system monitors and protects individual cells and modules. A battery controller — or Master BMS — manages the full system and coordinates with the inverter and EMS. In simple residential systems, one device does both. In large commercial systems, however, they are typically separate hardware.
Can a BMS extend battery life?
Yes — significantly. A BMS keeps cells within safe voltage and temperature limits. It also maintains good cell balance and enforces appropriate C-rate limits. As a result, it extends cell life considerably compared to unprotected operation.
This depends on your inverter and EMS. CAN bus is most common in high-performance systems. Modbus RTU over RS485, however, is standard in commercial and industrial storage. Check your inverter’s compatibility list first — mismatched protocols require additional gateway hardware and add cost and complexity.
How do I know if my BMS is failing?
Watch for these warning signs: SOC readings that jump unexpectedly; growing cell voltage spread, which indicates poor balancing; shutdowns not caused by actual low SOC; temperature readings that are static or incorrect; and fault codes that repeat in the log without a clear cause. In particular, growing cell voltage spread is often the earliest signal of BMS trouble.
Remote monitoring platforms are, therefore, the most reliable early detection tool. They flag SOC spread and temperature anomalies before they become failures.
In the age of electric vehicles, solar energy storage, and portable power, batteries are everywhere. However, they don’t work efficiently—or safely—on their own. That’s where the Battery Management System (BMS) steps in.
A BMS monitors, protects, and optimizes battery operation. In this guide, we’ll break down how a BMS works, what makes it essential, and how it improves battery safety and performance.
Let’s begin with the basics.
🔍 What Is a BMS (Battery Management System)?
A Battery Management System (BMS) is an electronic controller found in nearly every advanced battery pack. Whether in electric scooters or solar home systems, the BMS performs several important tasks:
It monitors battery health and performance.
It protects the battery from unsafe conditions.
It balances cells to maintain consistency.
It calculates key values like State of Charge (SOC) and State of Health (SOH).
It communicates with other devices and controllers.
In short, it acts as the brain behind the battery.
Each battery cell has a safe voltage range. The BMS monitors individual cell voltages and the total pack voltage. Even a small voltage imbalance can reduce performance or cause damage.
➡️ Why it matters: It helps avoid overcharging or over-discharging, which can permanently damage cells.
⚡ Current Monitoring
By measuring the charging and discharging current, the BMS keeps track of how much energy is moving in or out of the battery.
➡️ Why it matters: It prevents dangerous current spikes and helps calculate the battery’s remaining energy.
🌡️ Temperature Monitoring
Battery temperature is closely watched using thermal sensors. Too much heat or cold can cause big problems.
➡️ Why it matters: If a battery gets too hot, it can overheat or even catch fire. Monitoring temperature helps avoid this.
🛡️ BMS Protection Features: Preventing Damage Before It Happens
Real-time monitoring is helpful, but monitoring alone isn’t enough. The BMS also responds when things go wrong. It includes four core protection mechanisms, each with a specific safety role.
1. ✅ Over Voltage Protection (OVP)
If a battery is charged beyond its safe limit, chemical reactions inside the cells can become unstable.
➡️ Why it matters: OVP prevents this by stopping charging when voltage gets too high. This protects the cells and keeps them from overheating.
2. ❌ Under Voltage Protection (UVP)
If voltage drops too low during discharge, cells can be permanently damaged.
➡️ Why it matters: UVP shuts down the battery before damage occurs. It helps protect capacity and extends battery life.
3. 🌡️ Over Temperature Protection (OTP)
Charging or discharging at extreme temperatures can harm the battery.
➡️ Why it matters: OTP stops activity when the battery is too hot or cold. This ensures safe operation in every condition.
4. ⚠️ Short Circuit Protection (SCP)
If a short circuit occurs, current can spike instantly. This can lead to fire or explosion.
➡️ Why it matters: SCP reacts in microseconds to cut off power, preventing serious accidents.
⛽️ State of Charge (SOC): How Much Energy Is Left?
Think of SOC as the battery’s fuel gauge. It tells you how much usable energy remains, usually shown as a percentage (like 75% or 50%).
How SOC is calculated:
Coulomb counting: Tracks how much current flows in and out.
Voltage-based estimation: Uses resting voltage as an indicator.
Temperature-corrected models: Account for heat effects on performance.
➡️ Why it matters: Knowing SOC helps you avoid running out of battery unexpectedly. It also prevents overcharging, which protects the battery.
➡️ Why it matters: A battery may charge fully but still not perform like new. SOH lets users know when a battery is aging or needs replacement. It’s also useful for warranties and service checks.
⚖️ Cell Balancing: Keeping Every Cell in Sync
While monitoring and protection are essential, a truly effective Battery Management System also performs cell balancing. This function ensures that all individual cells within the battery pack maintain equal voltage levels.
Over time, slight differences in cell chemistry, resistance, or temperature cause some cells to charge faster or slower than others. Left unchecked, this leads to performance drops and early aging.
📌 What Is Cell Balancing?
Cell balancing equalizes the voltage of each cell, improving pack efficiency and lifespan.
There are two main types:
1. 🔋 Passive Balancing
In passive balancing, extra energy from higher-voltage cells is burned off as heat using resistors.
✅ Simple and low-cost
✅ Common in consumer electronics
❌ Less efficient due to energy loss
2. ⚡ Active Balancing
Active balancing redistributes charge from more charged cells to less charged ones, using inductors, capacitors, or switch networks.
✅ Higher efficiency
✅ Extends battery life
✅ Suitable for EVs, BESS, drones
❌ More complex and expensive
🧠 Why Balancing Matters
Balancing is critical because even small voltage mismatches between cells can lead to:
Uneven charging
Reduced usable capacity
Early triggering of safety cutoffs
Accelerated aging in weaker cells
By balancing cells, the BMS ensures every cell contributes equally—maximizing safety, performance, and battery lifespan.
⚙️ Where BMS Is Used
You’ll find BMS systems in many places, including:
…a BMS ensures that the battery stays safe, efficient, and long-lasting.
If you’re using or building battery-powered systems, never ignore the importance of a well-designed BMS. It’s the hidden engine behind every reliable energy solution.
🤛 BMS Frequently Asked Questions
Q1: Can I use batteries without a BMS?
➡️ Technically yes, but it’s risky. A BMS prevents overheating, damage, and accidents.
Q2: What type of batteries use a BMS?
➡️ Mostly lithium-based batteries (like Li-ion or LiFePO4), but other chemistries can also benefit.
Q3: Can a BMS extend battery life?
➡️ Absolutely. By balancing cells, protecting from damage, and avoiding extreme conditions, a BMS helps batteries last longer.
Q4: How accurate is the SOC reading?
➡️ Accuracy depends on the BMS algorithm, temperature conditions, and battery type. Premium systems can be highly precise.
Battery Energy Storage System Safety is more important than ever. As energy storage becomes critical for renewable energy, businesses must put safety first. This guide will show you how to ensure your battery energy storage system operates securely, efficiently, and without risk to people or property.
Why Battery Energy Storage System Safety Matters
Battery energy storage system safety is the backbone of any reliable storage project. When you install large energy storage units, they hold massive energy. If the system is poorly designed or operated, it can lead to fires, explosions, or system failures. By making safety a priority, you protect people, equipment, and your investment.
Understand the Risks: Thermal Runaway and Fire Hazards
One major safety concern is thermal runaway. This happens when a cell overheats, triggering a chain reaction that leads to fire or explosion. Battery energy storage system safety means you must know what causes thermal runaway. Common causes include overcharging, poor cooling, and internal cell faults.
To prevent this, choose batteries with built-in protections. Good battery management systems (BMS) monitor each cell’s temperature, voltage, and state of charge. Always use reputable manufacturers who provide test reports for the complete battery system — not just individual cells.
Install Certified and Tested Systems
Never compromise on certifications. Certified battery systems comply with strict standards for performance and safety. Look for certifications like UL 9540 (for system safety) and UL 1973 (for stationary batteries). Battery energy storage system safety depends on verifying these certifications with every purchase.
Work with suppliers who can share test data for thermal performance, electrical protection, and fire suppression. Some buyers skip this, assuming a cell-level report is enough. It’s not! The entire battery system must be tested under real-world conditions.
Design for Safe Operation and Monitoring
Design is key for battery energy storage system safety. Plan the installation with these factors:
Adequate spacing: Batteries must have enough room for air flow.
Proper ventilation: Good air circulation keeps temperatures stable.
Fire suppression: Install automatic fire detection and suppression systems.
Emergency shutoff: Use clear disconnect switches and accessible emergency controls.
A well-designed system includes real-time monitoring. Smart BMS and EMS (Energy Management Systems) help track every parameter, sending alerts if something goes wrong.
Use Safe Installation Practices
A safe battery energy storage system starts with proper installation. Only hire qualified professionals to install and commission your system. Ensure the following:
Connect all terminals securely.
Use cables rated for the correct voltage and current.
Keep high-voltage areas clearly marked.
Ground the system properly.
Never allow untrained personnel to handle installation or maintenance. Mistakes can cause short circuits, fires, or electric shocks.
Train Your Team on Battery Energy Storage System Safety
People often overlook this step, but training is vital. Your team should understand how the system works, what to monitor, and what to do in an emergency. Create clear safety procedures for:
Routine inspections
Emergency response
System shutdown and isolation
Fire drills
Regular drills keep everyone ready to respond fast and safely.
Routine Maintenance Keeps Your System Safe
Battery energy storage system safety is not a one-time effort. You must perform routine checks to keep the system secure.
Inspect connections for corrosion or loose fittings.
Check temperature readings for unusual spikes.
Test alarms, shutoffs, and fire systems.
Update software for BMS and EMS.
Keep a log of all inspections and maintenance activities. This record helps spot trends before they become problems.
Industry Standards to Follow
Follow international standards to strengthen your battery energy storage system safety plan. Here are a few to know:
Stay updated as standards evolve. Regulations change to keep up with new battery technologies.
Best Practices for Fire Safety
Fire safety is the biggest fear in energy storage. Good design and maintenance lower the risk, but you still need an action plan.
Place fire extinguishers and automatic suppression near battery banks.
Use fire-resistant enclosures.
Keep flammable materials away from battery storage areas.
Develop an evacuation plan for staff and nearby buildings.
Choose Reliable Partners
Battery energy storage system safety starts long before installation. Choose reliable partners who supply quality products and stand by their work. Reputable suppliers will provide complete test reports, certifications, and system guarantees. Buying cheaper, uncertified products can be a big risk. Never cut corners on safety!
Keep Learning and Improving
Energy storage technologies evolve every year. Stay updated with new safety standards, new battery chemistries, and best practices. Attend training sessions, read industry reports, and join local energy associations. The more you know, the safer your system will be.
Final Thoughts: Safety First, Always
Putting battery energy storage system safety first protects your people, your business, and your bottom line. Plan carefully, choose quality equipment, follow standards, and train your team well. By doing this, you will build a system that performs reliably and safely for years to come.
✅ FAQ: Battery Energy Storage System Safety
Q1. Why is battery energy storage system safety so important?
Battery energy storage system safety is critical because these systems store large amounts of energy. Poor safety can lead to thermal runaway, fires, or explosions, putting people and property at risk.
Q2. What causes thermal runaway in battery energy storage systems?
Thermal runaway happens when a battery cell overheats and triggers a chain reaction. Common causes include overcharging, poor cooling, manufacturing defects, or damage to the cells.
Q3. How can I prevent fires in my battery energy storage system?
Use certified batteries, install fire suppression systems, ensure proper ventilation, and monitor your system with a smart BMS. Routine inspections help catch problems early.
Q4. What industry standards should I follow for battery energy storage system safety?
Key standards include UL 9540, NFPA 855, IEEE 1547, and IEC 62619. These guidelines help ensure that your battery energy storage system operates safely and reliably.
Q5. How often should I maintain my battery energy storage system?
Routine checks should happen monthly, with a thorough inspection at least once a year. Always inspect connections, test fire systems, and update your BMS software regularly.
