⚡ Quick Answer: BESS Supplier BMS Evaluation in Brief In any BESS supplier BMS evaluation, ask for cell-level monitoring, SOC algorithm type, balancing current, fault response speed, SOH logging, certifications, and full test reports. A quality supplier answers all seven without hesitation. Vague answers, missing test data, or refusal to name the SOC algorithm are the clearest red flags.
A thorough BESS supplier BMS evaluation is one of the most important steps in any energy storage procurement. Most buyers spend hours comparing cell chemistry, capacity, and cycle life. Then they spend five minutes on the BMS. That gap is where expensive mistakes happen.
The battery management system determines whether a BESS is safe and whether its cells reach their rated life. Yet BMS quality is hard to verify from a spec sheet. Many suppliers use the same headline numbers — regardless of whether the implementation delivers those claims.
This guide gives you a practical BESS supplier BMS evaluation framework. Specifically, it covers the questions to ask, the documentation to request, and the red flags that reveal when a BMS falls short.
1. Why BESS Supplier BMS Evaluation Matters More Than Most Buyers Realise

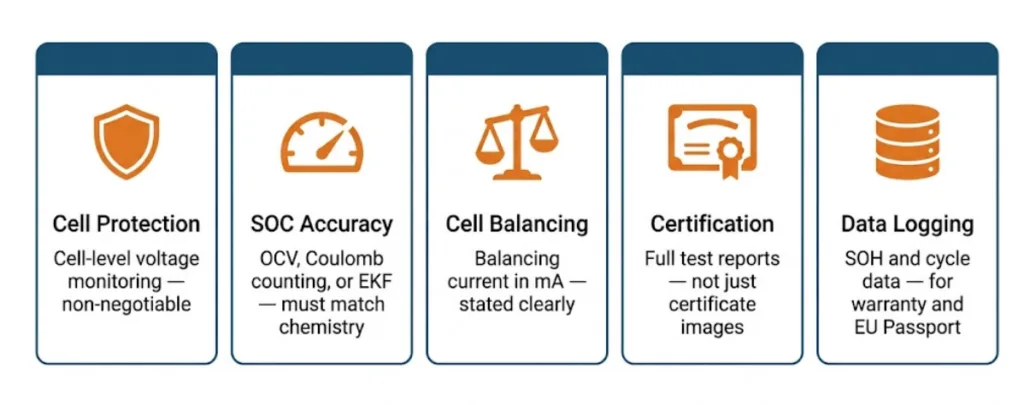

A thorough BESS supplier BMS evaluation covers five areas: SOC accuracy, protection, balancing, certification, and data logging
The BMS is the hardest BESS component to evaluate from a spec sheet. Cells have measurable characteristics — capacity, internal resistance, cycle life. A BMS spec sheet, in contrast, often contains claims that are hard to verify without test data.
Consider two BMS platforms with identical spec sheets. Both claim 6,000-cycle compatibility, active balancing, and EKF SOC. One uses a properly calibrated EKF with cell-level monitoring. The other uses Coulomb counting relabelled as EKF and pack-level monitoring relabelled as cell-level.
In the field, the first system protects cells correctly and reaches its rated cycle life. The second degrades faster, shows erratic SOC readings, and fails early. Both had identical spec sheets.
Consequently, a structured BESS supplier BMS evaluation is the only way to tell them apart. Asking the right questions and requesting the right documentation must happen before you sign.
2. The Seven Questions Every BESS Supplier BMS Evaluation Must Include
These seven questions form the core of any BESS supplier BMS evaluation. Specifically, a credible supplier answers all of them without hesitation. Vague or evasive answers are red flags.
Question 1: Is Monitoring at Cell Level or Pack Level?
Cell-level monitoring tracks every individual cell voltage. Pack-level monitoring, however, tracks only the total pack voltage. These are fundamentally different levels of protection.
In a 16-cell LFP pack, one weak cell can hit its 2.5V limit while the pack reads 49V. A BMS monitoring only pack voltage misses this. As a result, the weak cell gets damaged and the pack degrades faster.
Cell-level monitoring is non-negotiable. Ask specifically: does the BMS monitor each individual cell voltage — or only the total pack? Pack-level only is an immediate disqualifier. For more on why, see our BMS guide.
Question 2: Which SOC Algorithm Is Used — and Is It Calibrated for This Chemistry?
SOC estimation is where most generic BMS platforms fall short on LFP. OCV-based SOC on LFP is unreliable during operation. Coulomb counting is the minimum standard. EKF is the most accurate option for systems above 200 kWh.
Ask two sub-questions. First: which method — OCV, Coulomb counting, EKF, or hybrid? Second: was the cell model calibrated for the specific cells in this system? An EKF with a mismatched model is often less accurate than well-implemented Coulomb counting.
Question 3: What Is the Balancing Current and Method?
Ask whether balancing is passive or active, and what the current is in milliamps. Residential systems under 30 kWh need 100 mA passive balancing. Commercial systems above 200 kWh need 200 mA or more. Active balancing is preferred above 500 kWh.
Indeed, a supplier who cannot state the balancing current either uses a low-quality BMS or does not know their product. Both are red flags.
Question 4: How Fast Does the BMS Respond to Faults?
Short circuit protection must activate in microseconds. This uses hardware circuits, not software. Thermal runaway protection must disconnect in under 100ms. Ask specifically for fault response times in the spec document.
A vague answer such as “the BMS has overcharge protection” is not enough. Response time is what matters. Slow fault response on NMC especially can mean the difference between a contained event and a fire.
Question 5: What Communication Protocols Does the BMS Support?
Confirm the BMS works with your specific inverter and EMS before signing. CAN bus and Modbus RTU are the most common protocols. Ask for a compatibility list showing which inverter models have been tested.
A protocol mismatch needs a gateway converter — adding cost, a failure point, and communication lag. Discovering this after delivery is also expensive and causes project delays.
Question 6: Does the BMS Log SOH and Cycle Data — and for How Long?
SOH logging is essential for warranty claims. Most BESS warranties guarantee a minimum SOH at a set cycle count. Without accurate SOH records, therefore, any warranty dispute becomes very hard to resolve in your favour.
Furthermore, from February 2027, EU Battery Passport compliance requires SOH history, cycle count, and energy throughput data. A BMS without adequate logging creates regulatory risk. For more on these requirements, see our EU 2023/1542 compliance guide.
Question 7: Which Certifications Does the BMS Hold — and Can You Provide Full Test Reports?
UL 1973, IEC 62619, and IEC 62933-5 are the key certifications for a BESS BMS. Always ask for full test reports — not just a certificate image. A certificate shows testing was done. A test report, however, shows what was tested, under what conditions, and what the results were.
If a supplier provides only a certificate image and cannot produce the full report, that is a serious red flag. Reputable suppliers keep test reports on hand.
3. BESS Supplier BMS Evaluation: Red Flags and Green Flags

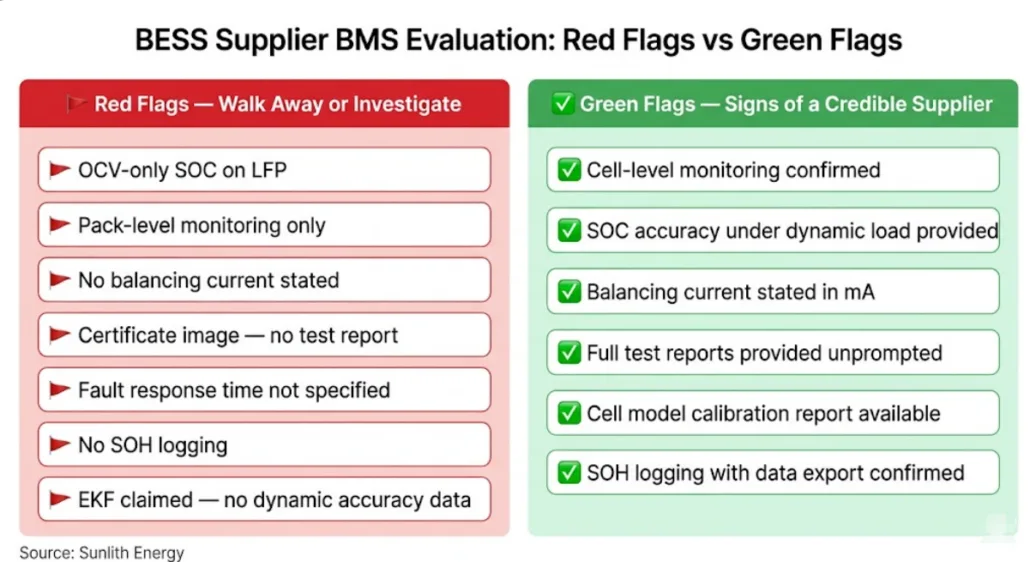

Red flags and green flags in a BESS supplier BMS evaluation — what credible suppliers provide versus what evasive suppliers avoid
Red Flags: Signs a BMS Falls Short
Red Flag
What It Means
What to Do
🚩 OCV-only SOC on LFP
SOC will be inaccurate — erratic readings, wrong shutdowns
Require Coulomb counting or EKF with LFP-calibrated model
🚩 Pack-level voltage monitoring only
Cannot detect weak cell — will miss over-discharge events
Require cell-level individual voltage monitoring as standard
🚩 Cannot state balancing current
Low-quality BMS or supplier unfamiliar with their product
Request balancing current in mA from the spec sheet
🚩 No test report — certificate image only
Cannot verify what was actually tested or under what conditions
Require full test report from the certification body
🚩 Fault response time not specified
Cannot confirm short circuit or thermal protection speed
Require fault response time in ms in the spec document
🚩 No SOH logging capability
Cannot support warranty claims or EU Battery Passport compliance
Require SOH logging with timestamped cycle data
🚩 EKF claimed but no dynamic SOC accuracy data
May be Coulomb counting relabelled — not genuine EKF
Require SOC accuracy spec under dynamic load, not just at rest
Green Flags: Signs of a Credible Supplier
Green Flag
What It Means
What to Do
✅ Cell-level voltage monitoring confirmed
Weak cells will be detected and protected before damage occurs
Verify in test report
✅ SOC accuracy data under dynamic load provided
Genuine EKF or well-calibrated Coulomb counting
Cross-check against your application’s cycle profile
✅ Balancing current stated in spec sheet
Supplier understands their product and is transparent
Verify adequacy for your system size
✅ Full certification test reports provided
BMS has been genuinely tested under fault conditions
Check test temperature and conditions match your application
✅ Cell model calibration confirmed for specific cells
SOC estimation is tuned for actual cells in the system
Request calibration test report as evidence
✅ SOH logging with data export capability
Warranty claims and EU Battery Passport compliance are supported
Confirm export format and data retention period
4. Documentation to Request in a BESS Supplier BMS Evaluation
Questions reveal what a supplier claims. Documentation, however, reveals what they can prove. Request these six documents during any BESS supplier BMS evaluation — before signing.
BMS Technical Specification Sheet
Specifically, the spec sheet should state: cell voltage monitoring level, voltage accuracy in mV, SOC algorithm type, balancing current in mA, fault response times in ms, and communication protocols.
If any parameter is missing, ask for it in writing. A supplier who cannot provide this data does not have it — and that reveals something important about BMS quality.
Certification Test Reports
Request full test reports for UL 1973, IEC 62619, and IEC 62933-5. These reports specify the test conditions — temperature, voltage range, C-rate, and fault scenarios. They also show pass/fail results for each test item.
Pay attention to the test temperature. A BMS certified at 25°C may behave differently at 45°C in an outdoor enclosure. Ask whether certification was done at your actual operating temperature.
SOC Accuracy Test Data
Ask for SOC accuracy data under dynamic load — not resting accuracy. Specifically, the test should show SOC error during charge and discharge at varying C-rates and temperatures. Genuine EKF achieves ±1–2% under these conditions. If the supplier only has resting data, the SOC method is likely OCV-based.
Cell Model Calibration Report
If the supplier claims EKF, ask for the cell model calibration report. This confirms the EKF model was built and validated for the specific cells in the system. A generic EKF model, calibrated for different cells, will underperform.
Firmware Version and Update Policy
Ask for the current BMS firmware version and update policy. Ask whether OTA updates are supported and whether cell model updates can be deployed remotely. For 10–15 year systems, OTA capability is valuable — it keeps SOC accuracy high as cells age.
Field Reference List
Also ask for a reference list of installed systems using the same BMS platform. A few direct conversations with reference customers reveals real-world BMS performance that no spec sheet captures.
5. BESS Supplier BMS Evaluation by System Size
The depth of BESS supplier BMS evaluation needed scales with system size. Specifically, a 10 kWh residential install carries different risk than a 5 MWh commercial project. This section provides a tiered evaluation framework.
Residential BESS — Under 30 kWh
Residential systems have simpler BMS requirements. Key items to verify are cell-level voltage monitoring, a 0°C charge inhibit, and IEC 62619 certification. Coulomb counting SOC with OCV resets is the minimum SOC standard.
Passive balancing at 50–100 mA is adequate at this scale. SOH logging is also good practice — however, it is less critical for warranty purposes. The main risk is a BMS that allows over-discharge or cold-temperature charging. Both cause permanent cell damage.
Commercial BESS — 30 kWh to 1 MWh
Commercial systems need all seven questions from Section 2 addressed. SOC accuracy matters more at this scale. Dispatch contracts and self-consumption both depend on knowing available energy. EKF is therefore preferred above 200 kWh.
SOH logging becomes important at this scale for warranty compliance. Communication protocol compatibility with the site’s EMS is also critical — confirm this before delivery, not after.
Utility-Scale BESS — 1 MWh and Above
At utility scale, every aspect of the BESS supplier BMS evaluation matters. EKF is strongly recommended. A 5% SOC error on a 10 MWh system means 500 kWh of uncertainty. That directly affects revenue from grid services contracts.
Additionally, require master-slave architecture documentation, slave module independence verification, and a data logging spec that meets EU Battery Passport requirements for EU market systems.
6. How to Interpret Supplier Answers in a BESS Supplier BMS Evaluation
Knowing how to interpret supplier answers is as important as knowing which questions to ask. These, therefore, are the most common responses in a BESS supplier BMS evaluation — and what they actually mean.
Supplier Answer
What It Likely Means
Follow-up Required
“Our BMS has cell-level monitoring”
Could be cell-level or pack-level — the term is used loosely
Ask: how many voltage sensors are in a 16-cell module?
“We use advanced SOC algorithms”
Could mean anything — likely Coulomb counting marketed as advanced
Ask: specifically OCV, Coulomb counting, or EKF?
“Our BMS is EKF-based”
May be genuine EKF or may be lookup table relabelled
Ask: what is the SOC accuracy under dynamic load?
“We have all the certifications”
Certifications may be for cells only, not the full BMS system
Ask: UL 1973 or IEC 62619 specifically for the BMS?
“Our BMS has active balancing”
Active balancing design varies widely in quality and current
Ask: what is the balancing current in mA or A?
Provides full test report without being asked
Supplier is confident in their product and transparent
Green flag — review test conditions carefully
7. The BESS Supplier BMS Evaluation Checklist

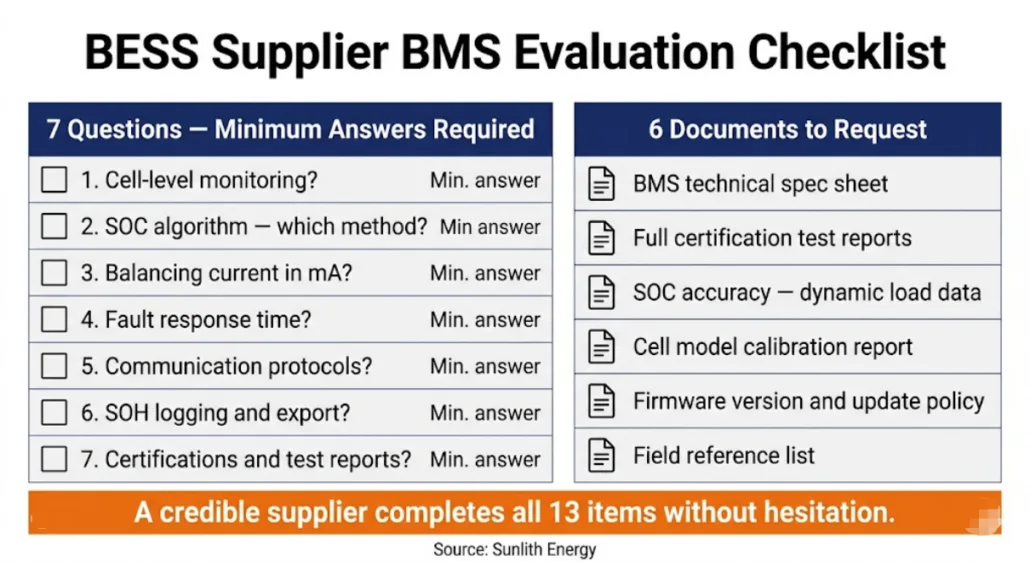

BESS supplier BMS evaluation checklist — seven questions and six documents to request before signing a purchase order
Use this checklist when evaluating any BESS supplier’s BMS. A credible supplier completes all items. Any item left blank or answered vaguely is a prompt for further investigation.
Seven Questions — Minimum Answers Required
Q1: Cell-level or pack-level voltage monitoring?
Required answer: cell-level individual voltage monitoring, confirmed in the spec sheet.
Q2: SOC algorithm — OCV, Coulomb counting, EKF, or hybrid?
Required answer: Coulomb counting minimum. EKF preferred above 200 kWh. Cell model calibration confirmed for specific cells.
Q3: Balancing method and current in mA?
Required answer: specific mA value stated. 100 mA+ for residential. 200 mA+ for commercial. Active balancing for 500 kWh+.
Q4: Fault response time for short circuit and thermal events?
Required answer: short circuit response in microseconds. Thermal disconnect under 100ms confirmed.
Q5: Communication protocols and inverter compatibility?
Required answer: specific protocols stated. Compatibility with your inverter confirmed.
Q6: SOH logging — what data, how long, and what export format?
Required answer: SOH, cycle count, energy throughput logged. Retention period stated. Export format confirmed.
Q7: Certifications held and full test reports available?
Required answer: UL 1973 and/or IEC 62619 confirmed. Full test reports available on request.
Six Documents to Request
BMS technical specification sheet — with all parameters listed above
Full certification test reports — UL 1973, IEC 62619, IEC 62933-5
SOC accuracy test data — under dynamic load at relevant temperatures
Cell model calibration report — confirming EKF is tuned for specific cells
Firmware version and update policy — including OTA capability if applicable
Field reference list — installed systems at comparable scale using the same BMS platform
8. What a Strong BESS Supplier BMS Evaluation Response Looks Like
To give context to the checklist, here is what a strong, credible supplier response looks like for each key question. Use this as a benchmark when comparing suppliers side by side.
✅ Example 1. Strong Response — Cell Monitoring “Our BMS monitors each individual cell voltage using dedicated ADC channels — one per cell. In a 16-cell module, there are 16 independent voltage measurements sampled every 500ms. Cell-level monitoring is confirmed in our IEC 62619 test report, which we can provide.”
✅ Example 2. Strong Response — SOC Algorithm “We use an Extended Kalman Filter combined with Coulomb counting. The EKF cell model was calibrated for the EVE LF280K cells used in this system, at 15°C, 25°C, and 45°C. SOC accuracy is ±1.8% under 0.5C dynamic load. We can provide the calibration test report and the dynamic load accuracy data.”
🚩 Example 3. Red Flag Response — SOC Algorithm “Our BMS uses advanced intelligent SOC estimation technology that provides highly accurate state of charge monitoring in real time.” — No algorithm type named. No accuracy figure given. No test data offered. This is marketing language, not a technical answer. Follow up with the specific sub-questions from Section 2 immediately.
Conclusion: Make BESS Supplier BMS Evaluation a Standard Step
A BESS supplier BMS evaluation is not a technical exercise reserved for engineers. It is a procurement discipline that any buyer can apply with the right questions and the right checklist.
The seven questions and six documents in Section 7 take less than an hour to work through. That hour protects against BMS failures that cost far more to fix in the field.
The clearest signal of a credible supplier is transparency. Credible suppliers answer the seven questions clearly and provide full test reports without hesitation. Evasive or vague answers, in contrast, are the most reliable red flag in any BESS supplier BMS evaluation.
☀️ Need Help with Your BESS Supplier BMS Evaluation? Sunlith Energy reviews BMS specifications and supplier documentation for BESS projects from 50 kWh upward. We apply this checklist on your behalf — identifying gaps in protection architecture, SOC accuracy, and certification compliance before you commit. Contact us
Frequently Asked Questions About BESS Supplier BMS Evaluation
What is the most important question in a BESS supplier BMS evaluation?
Cell-level voltage monitoring is the most important single question. A BMS that monitors only pack voltage cannot protect individual cells from over-discharge or overcharge. This failure mode causes faster degradation across the entire pack. Every other BMS feature is secondary to getting this protection right.
How do I know if a supplier is using genuine EKF or just claiming it?
Ask for SOC accuracy data under dynamic load — not resting accuracy. Genuine EKF achieves ±1–2% during active charge and discharge. If the supplier gives only resting data, the SOC method is likely Coulomb counting or OCV. Also ask for the cell model calibration report.
What certifications should a BESS BMS hold?
For most commercial BESS, UL 1973 and IEC 62619 are the primary certifications to require. IEC 62933-5 covers the ESS safety framework and is relevant for grid-connected systems. For EU market access after 2027, the BMS must also support the EU Digital Battery Passport data requirements. Always ask for full test reports.
Can I evaluate a BESS supplier’s BMS without technical expertise?
Yes. These questions require no engineering background. The answers either contain the information required — algorithm type, balancing current, fault response time — or they do not. A credible supplier gives specific answers. An evasive supplier gives vague, non-specific ones. That distinction is clear without technical expertise.
What happens if I skip the BESS supplier BMS evaluation?
The risks are real and specific. A BMS without cell-level monitoring allows weak cells to be over-discharged, accelerating degradation. Poor SOC estimation causes unnecessary shutdowns and wasted capacity. Missing SOH logging makes warranty disputes nearly impossible to win. For a 10-year BESS project, these failures compound significantly over time.
Battery Energy Storage Systems (BESS) are becoming essential in today’s energy landscape. Whether for renewable integration, grid stability, or backup power, ensuring the safety and reliability of these systems is critical. This is where UL certifications for battery systems play a crucial role.
UL (Underwriters Laboratories) is one of the most trusted global safety certification organizations. Its standards verify that battery energy storage systems meet strict safety, fire prevention, and performance requirements. For project developers, manufacturers, and operators, understanding these certifications is not optional—it’s necessary.
In this guide, we’ll explore key UL standards such as UL 9540, UL 9540A, UL 1973, and others. You’ll also learn how these certifications impact compliance, insurance, and deployment.
At Sunlith Energy, we help businesses navigate energy storage safety and compliance while building reliable battery solutions.
Why UL Certifications Matter for Battery Energy Storage
1. Safety and Risk Mitigation
Battery systems, if not designed properly, can pose fire hazards or thermal runaway risks. UL standards ensure that systems undergo rigorous testing to minimize these risks.
2. Regulatory Approval
Most jurisdictions require UL-certified equipment for permitting. Without it, projects can face delays, redesigns, or rejection.
3. Market Trust and Bankability
Investors, insurers, and end-users trust certified systems. A BESS with UL certifications demonstrates credibility and long-term reliability.
UL 9540 – Standard for Energy Storage Systems and Equipment
UL 9540 is the primary certification for energy storage systems. It evaluates the safety, performance, and construction of complete systems, not just individual components.
Covers batteries, Power Conversion Systems (PCS), control systems, and enclosures.
Required for grid-scale, commercial, and residential BESS installations.
Ensures systems meet fire safety and electrical safety standards.
Why it matters: Without UL 9540, your BESS may not receive local authority approval.
👉 Learn more about Energy Storage PCS and how it integrates into certified systems.
UL 9540A – Test Method for Evaluating Thermal Runaway Fire Propagation
UL 9540A is not a certification itself but a test method. It assesses how thermal runaway in one cell can propagate through modules, units, and installations.
Provides data on fire propagation and suppression.
Often required by fire marshals and building authorities.
Supports UL 9540 certification by demonstrating safe design.
Regulatory Compliance – Smooth project approvals and grid interconnection.
Enhanced Safety – Reduced risk of fire, explosion, and system failure.
Market Acceptance – Easier financing and insurance.
Long-Term Reliability – Certified systems undergo rigorous life-cycle testing.
Future-Proofing – UL standards evolve with technology, ensuring systems stay relevant.
Challenges in Achieving UL Certification
Cost and Time: Certification requires extensive testing, which can delay projects.
Design Changes: If a component fails testing, redesign may be necessary.
Complex Standards: Navigating multiple UL standards can overwhelm new manufacturers.
This is where industry partners like Sunlith Energy provide support—helping companies design systems aligned with certification requirements from day one.
How Sunlith Energy Helps with UL-Compliant Solutions
At Sunlith Energy, we ensure that every battery system we design aligns with UL safety and certification standards. Our approach includes:
Design Consulting: Guiding OEMs and EPCs on compliance from the design phase.
Testing Support: Preparing systems for UL 9540, UL 9540A, and UL 1973 evaluations.
End-to-End Solutions: Delivering certified-ready BESS with integrated PCS, battery modules, and fire safety systems.
Whether you’re deploying grid-scale storage, C&I projects, or hybrid solar + storage, our certified solutions meet the highest safety benchmarks.
It is a safety and performance evaluation that ensures battery energy storage systems meet global standards for fire safety, electrical reliability, and environmental resilience.
2. Do all BESS need UL 9540 certification?
Yes. For commercial and residential deployment in most regions, UL 9540 is mandatory.
Depending on system complexity, UL certification can take 6–12 months.
5. Can second-life batteries be certified?
Yes, through UL 1974, which evaluates repurposed batteries for safe use in stationary storage.
Conclusion
UL certifications for battery systems are the foundation of safe, compliant, and bankable energy storage projects. From UL 9540 system-level approvals to UL 9540A fire safety testing and UL 1973 battery-level compliance, these standards ensure that energy storage systems perform reliably under real-world conditions.
As energy storage adoption accelerates, ensuring compliance with UL standards will not just be a regulatory requirement—it will be a competitive advantage.
At Sunlith Energy, we’re committed to helping businesses deploy safe, certified, and future-ready energy storage systems.
Battery Cycle Standards explain how battery life is measured; however, many datasheets are not clear. As a result, users often misunderstand real-world performance.
In reality, battery life is not a fixed number. Instead, it fluctuates based on usage and environmental conditions. Therefore, Understanding how DOD, SOH, and EOL work together is vital. Therefore, knowing these basics helps you pick the right battery for your needs
💡 Quick Summary: DOD vs SOH vs EOL
For those comparing battery specs, here is the essential relationship:
DOD (Depth of Discharge): How much energy you take out per cycle (e.g., 80%).
SOH (State of Health): How much total capacity the battery has left compared to when it was new.
EOL (End of Life): The “failure point” (usually 80% SOH) where the battery should be replaced.
The Standard: A battery rated for 6,000 cycles at 80% DOD means it can be used 6,000 times before its SOH hits the EOL limit.
What Are Battery Cycle Standards in Batteries?
Battery Cycle Standards measure how many charge and discharge cycles a battery can complete before its capacity drops to 70%–80%.
A battery cycle is formally defined as one full charge and discharge; nevertheless, real-world results depend on several critical factors. Specifically, variables such as temperature, charge rate, and Depth of Discharge (DOD) determine the actual longevity. Consequently, two batteries with identical ratings can perform very differently in different environments
For example:
Temperature
Charge rate
Depth of Discharge
What Is DOD in Battery Cycle Standards?
Depth of Discharge (DOD) indicates how much energy is cycled out of the battery; for instance, a 100% DOD means a full discharge, whereas a 50% DOD represents a half discharge.
For example:
100% DOD = full discharge
50% DOD = half discharge
While a higher DOD significantly increases internal stress and causes battery life to drop, utilizing a lower DOD conversely reduces wear on the cells and extends their longevity.
State of Health (SOH) shows remaining battery capacity.
For example:
100% SOH = new battery
80% SOH = reduced capacity
Over time, the SOH naturally decreases as the internal chemistry of the cells degrades. In addition to tracking wear, SOH serves as a vital indicator for warranty claims, since most manufacturers guarantee a specific capacity percentage over a set number of years.
When SOH drops to 80% or 70%, that’s usually considered End of Life (EOL).
What Is EOL in Battery Cycle Standards?
End of Life (EOL) identifies the point when a battery is no longer considered reliable for its primary application.
In most cases, EOL is reached when the SOH drops to 70%–80%. Although the battery still works, its power is much lower. Consequently, you should replace it to keep your system safe and steady.
EOL = 70%–80% SOH
The battery still works. However, performance is lower. Therefore, it must be replaced.
Each metric is different. Therefore, you must use all three.
Why Battery Cycle Standards Are Different
Battery cycle standards differ because testing conditions and methods are not the same.
Different Testing Goals in Battery Cycle Standards
ome companies prioritize showing higher cycle numbers for marketing purposes, whereas others focus on providing realistic life expectations for heavy-duty use. Because of this variation in goals, the results across different brands can vary wildly. Therefore, it is crucial to verify if the cycles are rated at high or low temperatures.
Battery Cycle Life Depends on Conditions
Battery life depends on real conditions.
For example:
High temperature increases wear
High load adds stress
Fast charging speeds degradation
Therefore, results change.
Marketing vs Engineering in Cycle Standards
Some data is for marketing. Other data is for engineers.
Marketing materials often highlight the highest possible cycle numbers achieved under perfect lab conditions. In contrast, engineers focus on ‘usable’ life under heavy loads. Because of this discrepancy, it is important to look past the headline numbers and examine the testing parameters instead.”
Because of this, numbers may differ.
Same Battery, Different Ratings
It is common for a single battery to show multiple cycle values depending on the criteria used. Specifically, a manufacturer might list 6,000 cycles at 80% DOD while simultaneously claiming 8,000 cycles if the EOL is set to 70% SOH. Because both ratings are technically correct, you must compare the testing methods instead of just the final numbers.
Application-Based Battery Cycle Standards
Different industries use different metrics.
For example:
Solar uses EOL
EV uses SOH
Backup uses DOD
Therefore, standards change by use case.
Which Battery Cycle Standard Should You Trust?
EOL-based cycle life is the most reliable when tested under real conditions.
However, you must check:
DOD
Temperature
Charge rate
Without this, numbers can mislead.
Simple Rule for Battery Cycle Standards
Always check:
EOL at your real DOD
This gives the most accurate result.
How DOD Affects Battery Cycle Life
Higher DOD reduces battery life. Lower DOD increases it.
DOD
Cycle Life
100%
2,000–3,000
80%
3,000–5,000
50%
5,000–7,000
Therefore, lower DOD improves life.
Lab vs Real Battery Cycle Performance
Lab tests typically use ideal conditions to establish a baseline; however, real-life performance is often quite different. For instance, ambient temperature fluctuations and varying discharge loads can add significant stress to the cells. As a result, the actual performance is usually lower than the theoretical ratings found on the datasheet. Consequently, users should plan for a margin of error when sizing their systems
Always compare DOD, SOH, EOL, and test conditions.
Start with your use case. Then check DOD. Next, review degradation.
Therefore, do not trust cycle numbers alone.
Battery Cycle Standards and Certifications
Battery standards are guided by:
International Electrotechnical Commission
Underwriters Laboratories
These groups define safety and testing rules.
Role of BMS in Battery Life
A Battery Management System (BMS) acts as the brain of the energy storage unit by controlling critical environmental and electrical factors.
Specifically, it manages the Depth of Discharge (DOD) and monitors internal temperatures to prevent thermal runaway. Furthermore, by regulating the charging current, the BMS ensures that the cells do not undergo excessive stress.
As a result, the overall battery life improves significantly, allowing the system to reach its full rated cycle potential.
Common Mistakes in Battery Cycle Standards
Many users make mistakes.
Many users make the mistake of trusting cycle numbers without investigating the underlying test conditions. For example, ignoring the DOD or missing the effects of high ambient temperatures can lead to premature system failure. Because of this lack of context, many buyers end up with the wrong battery for their specific climate or load requirements. Therefore, it is essential to review the full datasheet before making a final purchase
How to Improve Battery Life
While battery degradation is inevitable, you can extend your system’s lifespan easily by following a few best practices.
For instance, limiting your daily usage to a 70–80% DOD reduces the chemical strain on the Lithium-ion cells. In addition to managing discharge levels, keeping the ambient temperature stable and avoiding frequent fast charging will further preserve the SOH. Consequently, the battery will last much longer than a system that is constantly pushed to its operational limits
A battery cycle is one complete discharge and recharge of a battery’s rated capacity. It does not have to happen in a single sitting; for example, using 50% of your battery today and 50% tomorrow counts as exactly one full cycle.
How does DOD affect total battery life?
DOD (Depth of Discharge) has an inverse relationship with lifespan. Lowering your daily DOD significantly increases the total number of cycles a battery can perform. For instance, a Lithium (LFP) battery might achieve 3,000 cycles at 100% DOD but over 6,000 cycles if limited to 80% DOD.
What is the difference between SOH and SOC?
SOC (State of Charge): Tells you how much “fuel” is in the tank right now (0% to 100%).
SOH (State of Health): Tells you how much the “tank” has shrunk over time due to aging (e.g., 90% SOH means the battery can now only hold 90% of its original design capacity).
When should I replace my battery (EOL)?
The industry standard for End of Life (EOL) is 80% SOH. While the battery will still function below this point, it will drain faster and may struggle to power high-surge appliances. In solar storage, 80% is the typical threshold for warranty claims and reliable performance.
Final Takeaway
Battery Cycle Standards are not simple numbers. Instead, they depend on use and conditions.
Therefore, always check:
DOD
SOH
EOL
Always review full test conditions before comparing batteries.
