Energy Storage Calculation is essential for designing reliable solar and battery systems. In simple terms, it helps you determine how much energy you need to store and how large your solar system should be.

In this guide, you will learn step-by-step formulas, real examples, and practical sizing methods. As a result, you can design a system that is both efficient and cost-effective.

How do you calculate energy storage requirements?

Energy storage requirements are calculated by multiplying daily energy consumption by backup duration. Then, divide by battery depth of discharge (DoD). Similarly, solar size is calculated by dividing daily energy consumption by peak sun hours.

What is energy storage calculation?

Energy Storage Calculation is the process of determining battery capacity based on energy usage and backup time. In other words, it ensures your system can handle real demand.

Moreover, accurate calculation prevents system failure and overspending. Therefore, it is a critical step in system design.

How do you calculate your daily load?

First, list all appliances. Then, multiply power by usage hours.

Formula:

Energy (Wh) = Power (W) × Time (hours)

Example:

Total daily load = 2800 Wh (2.8 kWh)

As you can see, even small loads add up quickly. Therefore, accurate listing is important.

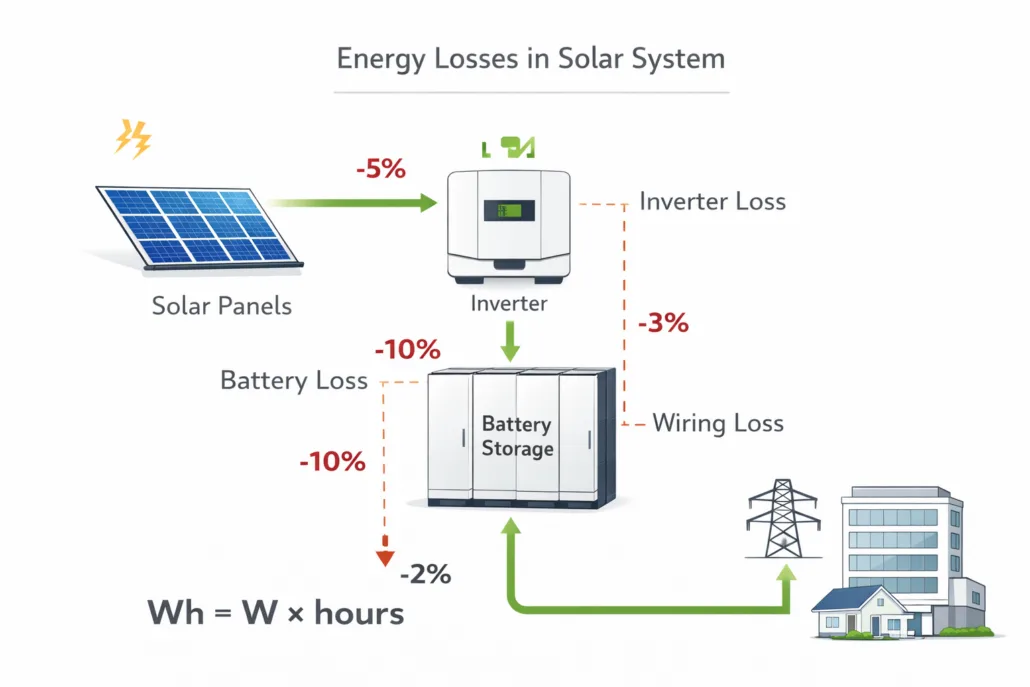

How do you account for system losses?

In real systems, energy losses always occur. For example, losses come from inverters, wiring, and battery conversion.

Formula:

Adjusted Load = Total Load ÷ Efficiency

Typically, efficiency ranges from 80% to 90%.

Example:
2800 ÷ 0.85 = 3294 Wh

As a result, your system must be slightly larger than the raw load.

A major mistake is underestimating system losses — read more about real-world loss factors in our Energy Storage Losses BESS guide

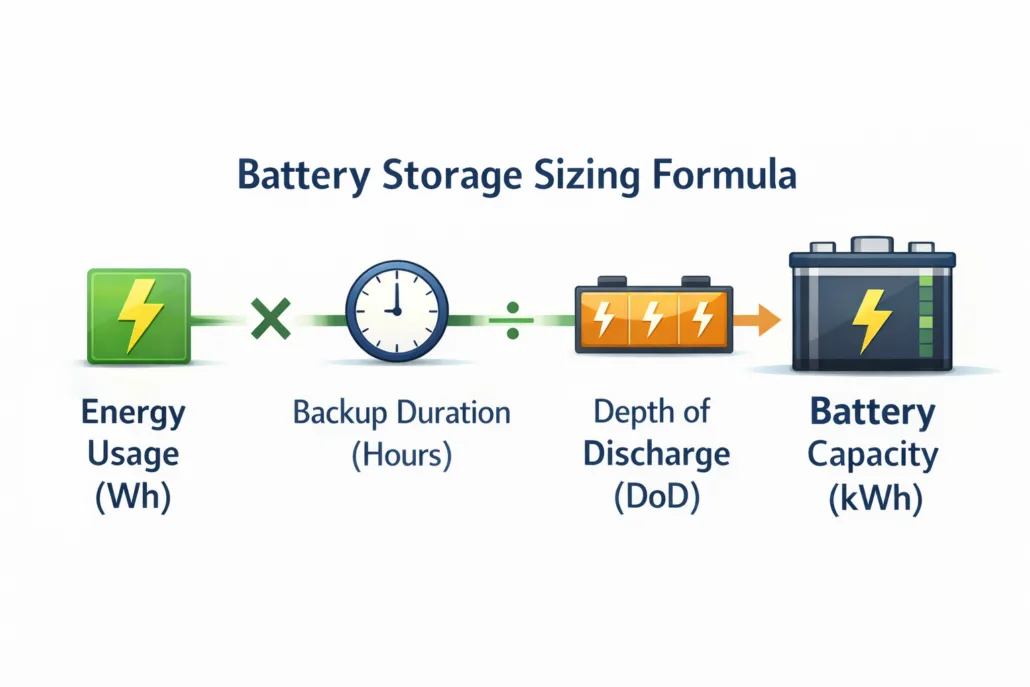

How do you calculate battery storage requirements?

Next, calculate battery size based on backup duration.

For hours:

Battery = Load × (Hours ÷ 24)

For days:

Battery = Load × Days

For instance:

• 8-hour backup → 933 Wh
• 2-day backup → 5600 Wh

Thus, longer backup significantly increases storage size.

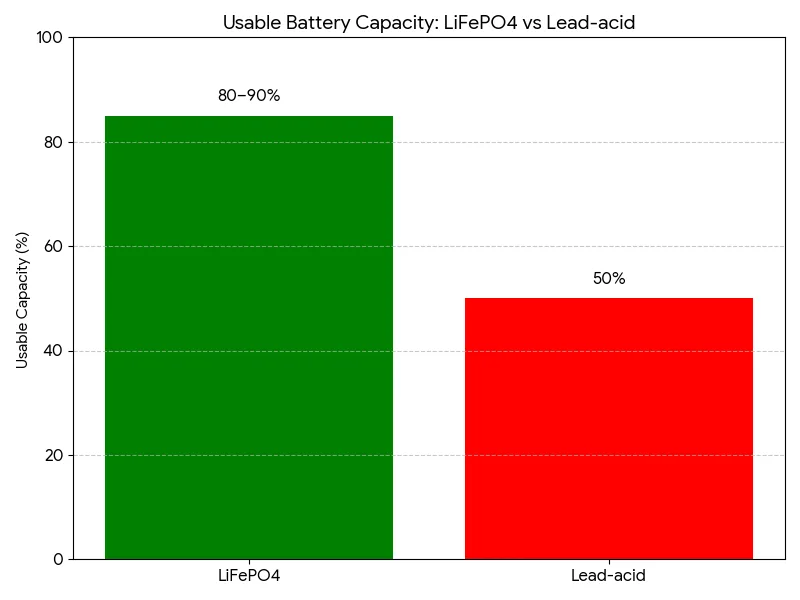

What is depth of discharge (DoD)?

Depth of Discharge defines how much battery capacity can be used safely.

For example:

• LiFePO4: 80–90%
• Lead-acid: ~50%

Formula:

Battery Required = Energy ÷ DoD

Example:
5600 ÷ 0.8 = 7000 Wh

Therefore, DoD directly impacts total battery size.

How do you calculate solar panel requirements?

After battery sizing, calculate solar requirements.

Formula:

Solar Power = Daily Energy ÷ Peak Sun Hours

Example:
3294 ÷ 5 = 659 W

However, always add a safety margin of 20–30%.

Final ≈ 850 W

How many solar panels do you need?

Now, convert solar power into panel count.

Formula:

Panels = Total Solar ÷ Panel Wattage

Example:
850 ÷ 400 = 3 panels

In practice, rounding up ensures reliability.

How do you size battery for backup duration?

Battery sizing depends on how long backup is required. For short outages, smaller batteries work. However, for multi-day backup, large systems are needed.

Therefore, always define backup duration clearly before design.

Residential system example

Let’s consider a typical home.

• Daily load: 5 kWh
• Backup: 1 day
• DoD: 80%

Battery:
5 ÷ 0.8 = 6.25 kWh

Solar:
5000 ÷ 5 = 1 kW

So, the system requires:

• ~6.5 kWh battery
• ~1 kW solar

Commercial system example

Now consider a commercial case.

• Load: 50 kWh
• Backup: 2 days

Battery:
50 × 2 ÷ 0.8 = 125 kWh

Solar:
50000 ÷ 5 = 10 kW

Clearly, commercial systems scale quickly. Therefore, precise calculation is critical.

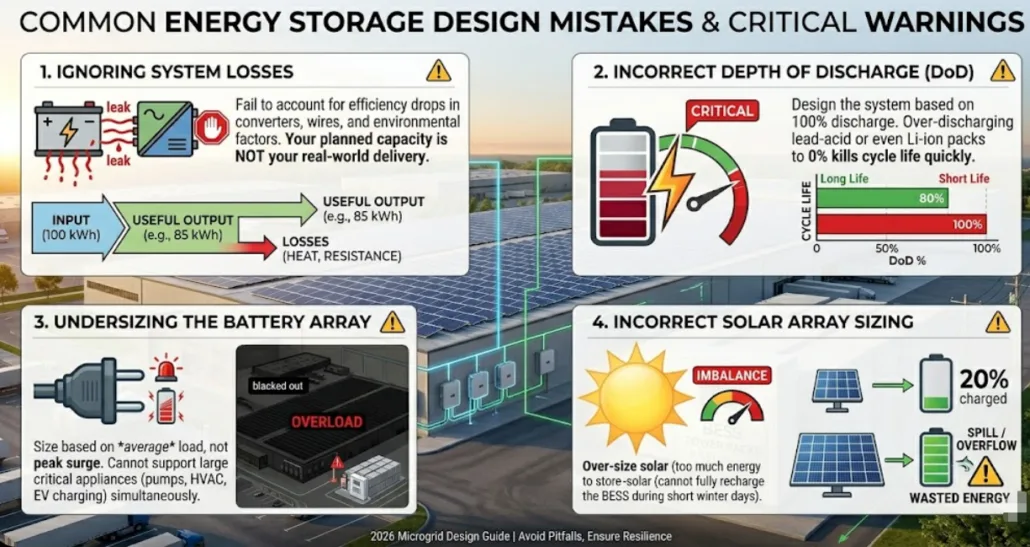

What are common mistakes in energy storage calculation?

Many systems fail due to simple errors. For example:

• Ignoring efficiency losses
• Underestimating backup time
• Using incorrect sun hours
• Not applying DoD
• Skipping safety margin

As a result, systems may underperform or fail early.

To build a more efficient energy storage system, factor in real losses. Our energy storage loss guide breaks this down with practical examples and tips.

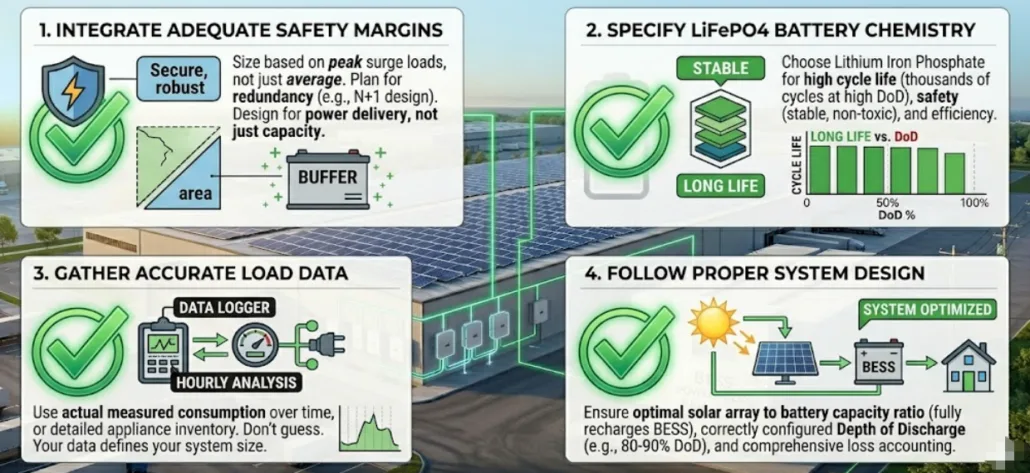

Best practices for accurate system design

To improve system performance, follow these best practices:

• Always add 20% safety margin
• Use LiFePO4 batteries
• Design using real load data
• Plan for worst-case conditions

Additionally, separating peak load from energy load improves design accuracy.

To build a more efficient energy storage system, factor in real losses. Our energy storage loss guide breaks this down with practical examples and tips.

Resources

For deeper understanding and system design support:

• Learn more about battery energy storage systems
• Explore energy efficiency concepts from U.S. Department of Energy

These resources help validate calculations and improve system design accuracy.

Frequently Asked Questions (FAQ)

Conclusion

Energy Storage Calculation is the backbone of any solar and battery system. By following the correct steps, you can design a system that is reliable, efficient, and cost-effective.

Moreover, accurate sizing improves performance and extends battery life. Therefore, always use proper formulas and real data.
