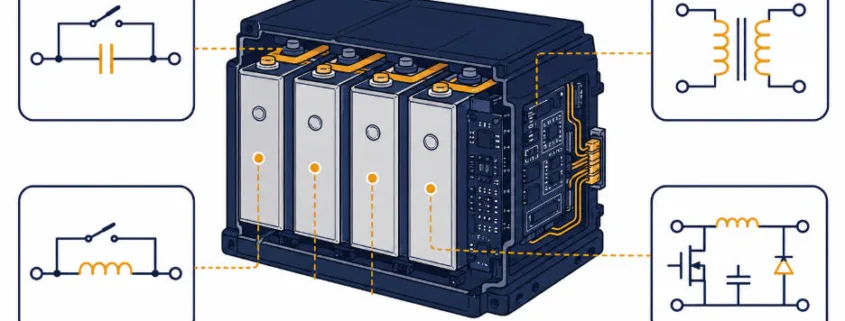

Every BMS spec sheet lists “active balancing” as a feature, but few explain which circuit is doing the work. Active balancing topologies vary widely in cost, speed, and design.
Active balancing topologies compared side by side reveal real trade-offs. Cost, speed, and how the pack gets built all differ by circuit.
Switched-capacitor, switched-inductor, transformer-based, and DC-DC converter circuits all move charge between cells. They are not interchangeable.
Each one changes the balancing current you get and the board space it needs. Each one also scales differently as your string grows.
Quick Answer Active balancing topologies compared: switched-capacitor and switched-inductor circuits are cheapest but only balance adjacent cells. Transformer-based (flyback) circuits balance any cell directly but cost more and add magnetic complexity. Bidirectional DC-DC converter circuits offer the best flexibility and efficiency at the highest component count. Most BESS packs use switched-inductor or converter-based designs.
Key Takeaways

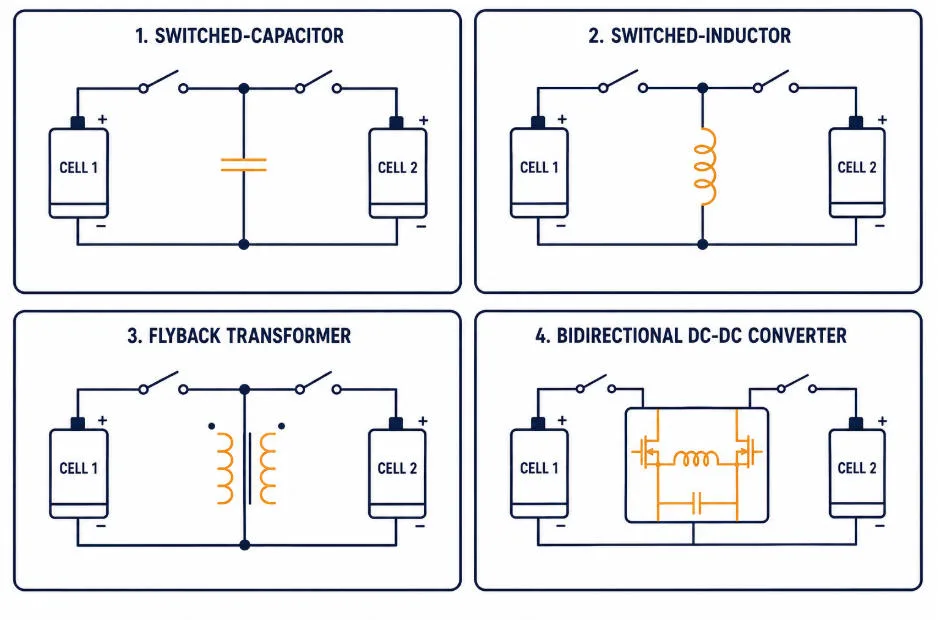

Active balancing topologies fall into four hardware families: capacitor-based, inductor-based, transformer-based, and DC-DC converter-based. Each is defined by the element that temporarily stores energy during transfer.
Switched-capacitor and switched-inductor circuits are the cheapest and simplest. Both are generally limited to adjacent-cell balancing, which slows equalization across a long string.
Transformer-based (flyback) circuits can move charge between any two cells directly, improving equalization speed. They need bulky isolation transformers and usually aren’t bidirectional.
A 2025 peer-reviewed prototype of a switched-inductor BMS balanced 22 series cells. It measured 84% energy transfer efficiency and a 908 mA balancing current, cutting a 1.18V pack imbalance to 0.47V in under 2.5 hours.
For LFP BESS strings, the practical choice is usually switched-inductor circuits for cost-sensitive designs, or bidirectional DC-DC converter circuits where balancing speed matters more than component cost.
Why Active Balancing Topologies Matter for BESS Design
Passive balancing burns off excess charge as heat through a resistor. It’s cheap and simple, but it wastes energy and only ever removes charge — it can’t move it anywhere.
Active balancing takes a different approach. It transfers energy from higher-charge cells to lower-charge ones instead of dissipating it. Ideally, almost none of the pack’s total energy is lost in the process.
That difference matters more in a BESS than in a phone or laptop pack. A BESS string has hundreds of cells cycling daily for a decade or more. Manufacturing tolerances, thermal gradients across a rack, and uneven aging all pull cells apart in state of charge over time.
Active balancing topologies compared on paper all claim to solve this. In practice, the circuit topology decides more than the “active” label alone.
It sets how fast a pack re-balances, what it costs per cell, and whether the design scales to a 200+ cell string.
Switched-Capacitor Balancing: How It Works and Where It Fits
A switched-capacitor circuit places a capacitor between two adjacent cells, along with a set of switches. The switches alternately connect the capacitor across the higher-voltage cell, then the lower-voltage cell.
Each switching cycle moves a small packet of charge between the two.
This is the simplest active topology to build. It needs no inductor or transformer, uses relatively few components, and keeps voltage stress on the switches and capacitor low.
Among active balancing topologies, this is the simplest to build. The tradeoff is scope: a basic clocked switched-capacitor circuit only transfers energy between neighboring cells.
To move charge from one end of a long string to the other, it has to hop cell-by-cell. That’s slow, and it compounds switching losses at every hop.
Research on this topology also notes it works best when the voltage gap between cells is meaningful.
LFP’s voltage curve stays unusually flat across most of the state-of-charge range. A small SOC gap barely shows up as a voltage difference there, which limits how well a capacitor-based circuit can detect real imbalance.
Switched-Inductor Balancing: How It Works and Where It Fits
A switched-inductor circuit works similarly to a switched-capacitor one. It stores energy in an inductor’s magnetic field instead of a capacitor’s electric field.
Two switches alternate. One path pulls current from the higher-voltage cell into the inductor; the other pushes that stored energy into the lower-voltage cell.
A 2025 peer-reviewed study built and tested a switched-inductor BMS designed to balance 22 series-connected cells per submodule. The full-scale prototype measured an 84% energy transfer efficiency between adjacent cells and a 908 mA average balancing current.
On a real pack, the same prototype cut an initial 1.18V voltage difference down to 0.47V in about 2 hours and 30 minutes. The equivalent SOC gap fell from 91.2% to 49.4% over that window.
Switched-inductor is one of the more common active balancing topologies in EV and BESS designs. It shares the same adjacent-cell limitation as switched-capacitor designs, but inductors tolerate higher currents and voltage differentials better.
That’s part of why this topology shows up often in EV and stationary BMS designs needing faster balancing than a capacitor-only circuit delivers.
One caution applies here: a generic multi-chemistry BMS platform often runs conservative balancing current and thresholds that don’t suit LFP’s flat voltage curve well.
The circuit topology only pays off if the balancing algorithm triggers it at the right SOC threshold.
Transformer-Based Balancing: Flyback and Multi-Winding Topologies
Transformer-based circuits are the active balancing topologies best suited to non-adjacent cell balancing. They use a transformer, rather than a single capacitor or inductor, as the energy-storage element.
In the common flyback arrangement, energy from a higher-voltage cell is stored in the transformer core. It’s then released to a specific lower-voltage cell chosen by the control circuit.
The real advantage here is reach. The transformer can route energy to any winding, so these circuits can balance non-adjacent cells directly — cell 1 to cell 20, for example — without hopping through every cell in between.
That comes at a real cost. Isolation transformers are physically bulky compared to a capacitor or inductor, which matters in a dense BESS rack.
Multi-winding designs, where one primary winding serves many secondary cell taps, also demand tight parameter matching across every winding. That gets harder as cell count grows.
Flyback-based circuits also typically aren’t bidirectional the way DC-DC converter designs are. Energy generally flows one direction per switching cycle — source cell into the transformer, out to the target cell.
Despite the added cost, transformer-based balancing remains attractive where balancing speed across a long string matters more than per-cell hardware cost. Grid-scale BESS racks with hundreds of series cells are a plausible fit.
Bidirectional DC-DC Converter Balancing: The Newer Approach
Bidirectional DC-DC converters are the newest of the four active balancing topologies covered here. They use a full converter — often a buck-boost or bidirectional design — as the balancing circuit itself.
These circuits generally offer the best mix of efficiency, control precision, and bidirectional flexibility. Energy can flow either direction between any two points in the pack, under closed-loop control.
Recent research on bidirectional DC-DC converter balancing, including designs that route excess pack energy to an auxiliary battery, points to this family as the direction most new active-balancing research is heading.
The cost is component count and control complexity. A full converter needs more semiconductors, more sophisticated switching control, and more careful thermal design than a passive switched circuit.
For most BESS integrators, that cost is justified only when balancing speed or precision genuinely limits pack performance — not as a default upgrade.
Active Balancing Topologies Compared: Efficiency, Cost, and Scalability
Put side by side, the four hardware families trade off in predictable ways. No single topology wins on every axis.
Topology
Balancing scope
Relative cost
Relative complexity
Typical fit
Switched-capacitor
Adjacent cells only
Lowest
Low
Small strings, cost-sensitive designs
Switched-inductor
Adjacent cells (higher current than capacitor)
Low–moderate
Moderate
EV packs, LFP BESS submodules
Transformer-based (flyback)
Any cell, non-adjacent
High
High (magnetic design, matching)
Long strings needing fast cross-pack balancing
DC-DC converter (bidirectional)
Any cell, bidirectional
Highest
Highest (control + semiconductors)
Precision-critical or research-grade designs

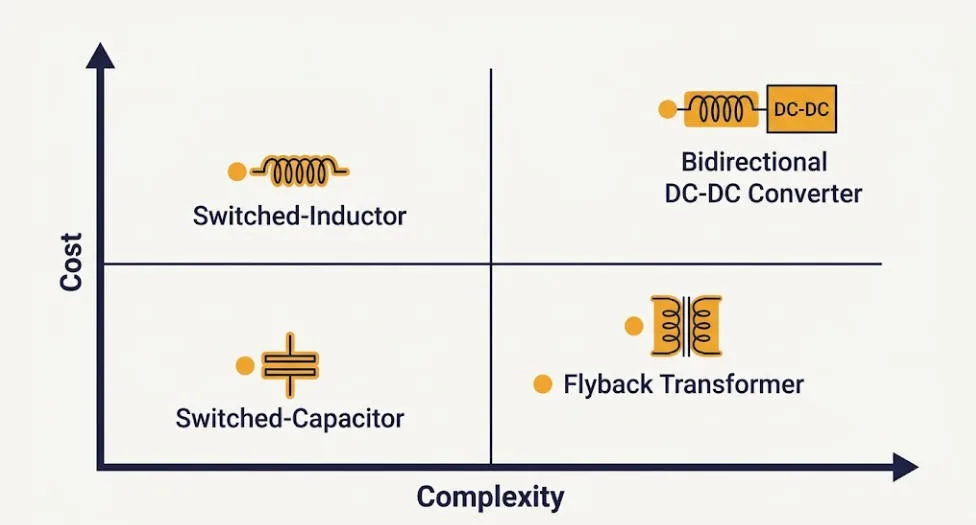

Cost and complexity climb together for a reason. Reaching non-adjacent cells, or making energy flow bidirectionally, both need more active control over the switching network — not just a bigger version of the same simple circuit.
Choosing Among Active Balancing Topologies for BESS
Weighing active balancing topologies for most utility-scale and C&I LFP BESS designs, switched-inductor circuits remain the practical default. They deliver meaningfully higher balancing current than a capacitor-based design, at a cost most BMS suppliers can integrate at scale.
Transformer-based or DC-DC converter circuits earn their added cost in two situations: very long strings where adjacent-cell hopping slows equalization, or applications where balancing current itself needs to be large enough to matter for pack-level performance.
Whichever topology a supplier uses, the hardware only matters if the control logic triggers it correctly. See our guide on BMS algorithms for how balancing decisions actually get made.
And see our BMS for LiFePO4 batteries guide for the balancing-current and threshold questions worth asking a supplier directly.
Frequently Asked Questions
Is active balancing always better than passive balancing for BESS?
Not always. Active balancing avoids wasting energy as heat and corrects larger imbalances faster, which matters for high-cycle BESS applications.
But it adds cost and complexity that isn’t justified for small residential systems with high cell quality and low cycle frequency. Passive balancing is often the more practical choice there.
Which active balancing topologies are most common in BESS packs today?
Switched-inductor circuits are common in current EV and BESS BMS designs. They offer meaningfully higher balancing current than switched-capacitor circuits at a moderate cost increase.
Transformer-based and DC-DC converter circuits appear more often in research prototypes and higher-end designs, where balancing speed matters more than component cost.
Why don’t switched-capacitor circuits work well with LFP cells?
LFP’s voltage curve stays nearly flat across most of the state-of-charge range. A capacitor-based circuit senses and acts on voltage differences.
So a real SOC gap between LFP cells can show up as only a tiny voltage difference. That limits how much genuine imbalance the circuit can detect and correct.
Can a BMS combine more than one balancing topology?
Yes. Some designs pair two active balancing topologies — a fast adjacent-cell method like switched-inductor with a slower non-adjacent method for periodic full-pack equalization. This hybrid trades added control complexity for better overall balancing coverage.
How fast should active balancing correct a real imbalance?
There’s no universal target — it depends on balancing current and pack size.
As a reference point, a peer-reviewed 22-cell switched-inductor prototype reduced a 1.18V imbalance to 0.47V in about 2.5 hours, at a measured 908 mA balancing current. Slower or faster designs are both normal, depending on the topology and current rating chosen.
