SCADA vs EMS in BESS – Key Differences and Applications in Battery Energy Storage
Rahul Jalthar

SCADA vs EMS in BESS: Understanding the Brain and Nerve System of Energy Storage

/0 Comments/in /by

SCADA vs EMS in BESS: Battery Energy Storage Systems (BESS) are more than just batteries—they are intelligent ecosystems. At the heart of this intelligence lie two key control systems: SCADA (Supervisory Control and Data Acquisition) and EMS (Energy Management System).

But what’s the difference between them? Why do you need both in your energy storage infrastructure? Let’s break it down.

🔍 What is SCADA in BESS?

SCADA is like the central nervous system of your energy infrastructure. It allows operators to monitor and control equipment remotely and in real-time.

✅ Key Functions of SCADA:

  • Real-time Monitoring: Tracks voltage, temperature, SOC (State of Charge), power output, and more.
  • Data Acquisition: Collects data from sensors, meters, and other field devices.
  • Alarm Management: Triggers alerts in case of system faults, safety issues, or performance anomalies.
  • Remote Control: Lets operators switch systems ON/OFF or change parameters remotely.
  • Visualization: SCADA HMIs (Human-Machine Interfaces) display data visually for easy interpretation.

SCADA systems in BESS typically interact with Battery Management Systems (BMS), Power Conversion Systems (PCS), Inverters, and environmental sensors.

⚙️ What is EMS in BESS?

EMS (Energy Management System) is a higher-level optimization system that manages how, when, and where energy is stored or dispatched, often based on grid requirements, market conditions, and renewable energy forecasts.

EMS is the strategic brain of the energy storage system. While SCADA controls how things operate, EMS decides what should be done to maximize efficiency, economics, and reliability.

✅ Key Functions of EMS:

  • Energy Flow Optimization: Determines how and when to charge/discharge the battery.
  • Peak Shaving & Load Shifting: Reduces grid demand during peak hours.
  • Forecasting: Uses weather and load predictions for solar/wind integration.
  • Grid Compliance: Ensures system follows utility rules and demand response signals.
  • Cost Management: Optimizes energy usage based on real-time prices or tariffs.

EMS works above the SCADA layer, making strategic decisions based on data collected by SCADA and other sources.

🔁 Key Differences: SCADA vs EMS in BESS

FeatureSCADAEMS
Primary RoleOperational monitoring & controlStrategic energy optimization
ScopeDevice & hardware levelSystem-wide & market interaction
Real-time ControlYesNo (uses planning-based control)
ForecastingNoYes
Alarm & Event HandlingYesLimited (depends on integration)
Grid InteractionMinimalFull (based on market, grid, or DSO signals)
VisualizationSCADA HMI/GUIDashboards/Reports

🧠 Real-World Comparison: How SCADA & EMS Work Together

Imagine a utility-scale solar-plus-storage project:

➤ SCADA’s Role:

  • Monitors PV inverter voltage, battery temperature, current flows.
  • Flags errors in PCS (Power Conversion System) and triggers shutdowns if needed.
  • Logs all sensor data every second.

➤ EMS’s Role:

  • Analyzes day-ahead pricing forecasts and predicts solar production.
  • Decides to charge batteries at noon and discharge at 6 PM to maximize ROI.
  • Communicates with SCADA to execute commands.

Together, EMS and SCADA form a closed-loop intelligence system—SCADA watches, EMS decides.

🌐 Different Use Cases (EMS vs SCADA in BESS)

🔋 Residential ESS

  • SCADA is usually embedded at low levels.
  • EMS often comes pre-configured or in cloud-based form for load shifting and solar self-use.

🏭 Commercial & Industrial ESS

  • SCADA monitors multiple assets: batteries, PV, diesel gensets.
  • EMS optimizes cost-saving strategies across multiple sites.

⚡ Utility-Scale BESS

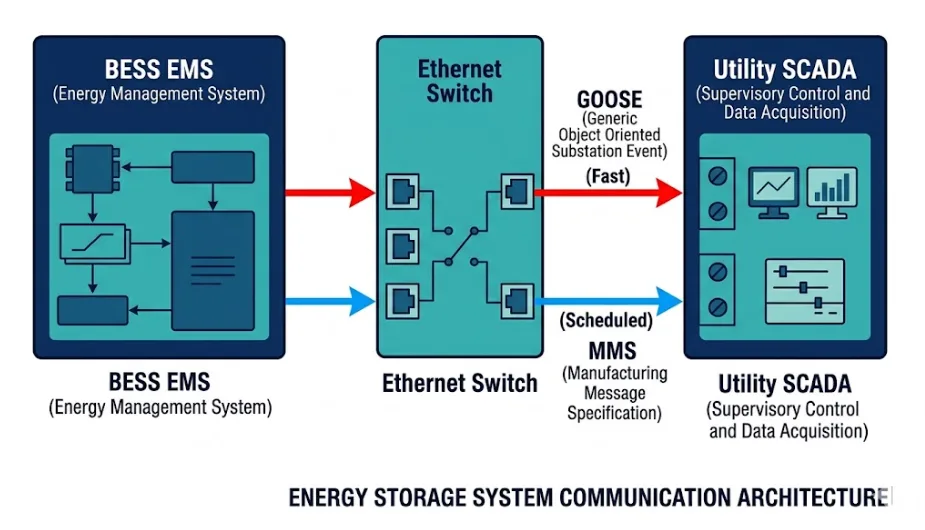

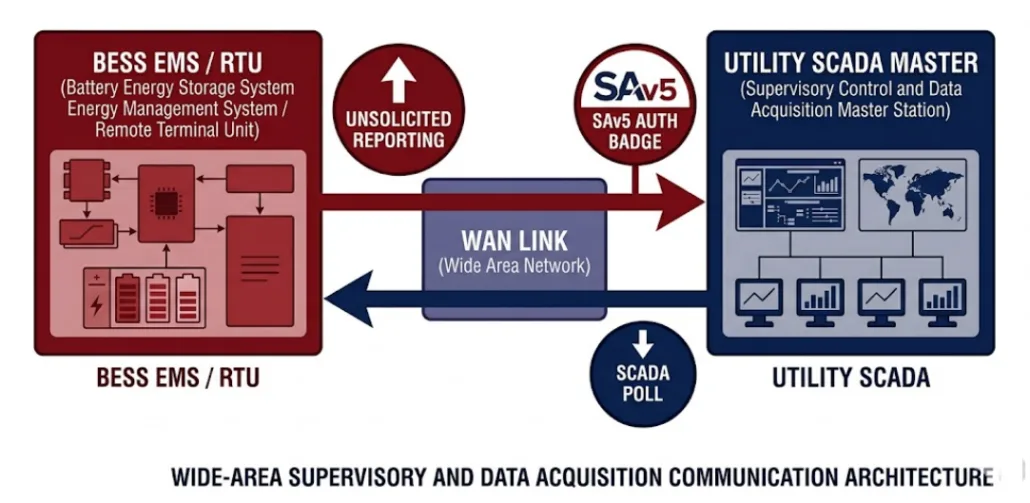

  • SCADA integrates with substation automation and DNP3/IEC 61850 protocols.
  • EMS participates in energy markets, frequency response, and ancillary services.

📈 Why You Need Both

Some may think EMS alone is enough, but it’s not. Without SCADA, the EMS is blind. Without EMS, the SCADA is mute.

✅ SCADA ensures the system runs safely.
✅ EMS ensures it runs profitably.

You need both for your BESS to be intelligent, safe, and profitable.

❓ FAQ: SCADA vs EMS in BESS

Q1. Can SCADA and EMS be integrated into one platform?
Yes. Many vendors offer combined platforms or modular systems where EMS sits on top of SCADA.

Q2. Is EMS cloud-based and SCADA local?
Generally, yes. SCADA operates locally for fast response, while EMS can be local or cloud-based for broader optimization.

Q3. Which one is more expensive?
EMS often costs more due to its software intelligence, licensing, and integration needs.

Q4. Which is more important for safety?
SCADA is crucial for safety and reliability. EMS focuses more on economic performance.

📌 Final Thoughts: Build a Smarter BESS with SCADA and EMS

Understanding the SCADA vs EMS in BESS distinction is not just academic—it has real business and technical consequences. If you want your Battery Energy Storage System to be both safe and smart, you need both systems.

Understanding their roles and differences is crucial for:

  • System integrators
  • Project developers
  • Energy consultants
  • Facility managers
  • And anyone involved in the deployment of BESS

Whether you’re building a microgrid or managing utility-scale storage, make sure your BESS includes both a robust SCADA and an intelligent EMS.

Looking for help integrating SCADA and EMS in your energy project? Reach out to a qualified consultant who understands both layers of the stack and can optimize your BESS from the ground up.

SCADA Features
Rahul Jalthar

Top SCADA Features for Battery Energy Storage Systems (BESS)

/3 Comments/in /by

As Battery Energy Storage Systems (BESS) continue to evolve, the need for intelligent monitoring and control becomes essential. One system that stands out in delivering this capability is SCADA. In this post, we explore the most powerful SCADA features that make energy storage smarter, safer, and more efficient.

What Are SCADA Features?

SCADA features refer to the capabilities within a SCADA (Supervisory Control and Data Acquisition) system that allow for effective management of industrial assets. In the context of BESS, these features enable:

  • Real-time monitoring
  • Remote control
  • Alarm and safety functions
  • Historical data logging
  • Predictive analytics

Each of these SCADA features enhances the operational efficiency and safety of battery energy storage systems.

1. Real-Time Data Acquisition

One of the most fundamental SCADA features is real-time data collection from all system components. This includes:

  • Battery voltage and current
  • State of Charge (SOC)
  • System temperature and humidity
  • Inverter status
  • Grid connection health

Why it matters:

Operators can make immediate decisions based on live system insights, improving uptime and reliability.

2. Remote Access and Control

Modern SCADA features include web and mobile dashboards, which allow system operators to:

Why it matters:

Remote capabilities reduce the need for onsite personnel and enable faster response to unexpected events.

3. Alarm Management and Safety Protocols

Among the most critical SCADA features is intelligent alarm handling. SCADA can detect and alert operators to:

  • Overvoltage or undervoltage
  • Temperature anomalies
  • Fire or smoke detection
  • Communication failures

Why it matters:

These alerts help prevent damage, enhance safety, and minimize downtime through quick intervention.

4. Historical Data Logging

SCADA systems continuously log all operational data. This SCADA feature provides:

  • Long-term performance tracking
  • Reporting for regulatory compliance
  • Analytics for system tuning
  • Data for warranty validation

Why it matters:

You can understand battery degradation, compare efficiency trends, and improve future deployments.

5. Predictive Maintenance and Asset Health

Advanced SCADA features now include predictive analytics. This involves using data patterns to:

  • Detect battery aging
  • Identify inverter stress points
  • Schedule HVAC maintenance
  • Forecast potential failures

Why it matters:

Rather than reacting to failures, SCADA allows operators to take preventive action, saving cost and avoiding downtime.

6. Integration with EMS and Renewables

Another top SCADA feature is seamless integration with:

Why it matters:

This ensures balanced energy dispatch and helps optimize cost savings across renewable and storage assets.

Final Thoughts: SCADA Features Drive Smarter Energy Storage

In today’s fast-moving energy landscape, SCADA features are the digital foundation of effective BESS management. From remote control to predictive insights, each feature plays a critical role in keeping storage systems smart, responsive, and secure.

As energy demands grow and decentralized systems become the norm, investing in advanced SCADA features isn’t just a good idea—it’s a necessity.

SCADA and Its Use in Battery Energy Storage Systems (BESS)
Rahul Jalthar

SCADA and Its Use in Battery Energy Storage Systems (BESS)

/4 Comments/in /by

In today’s rapidly evolving energy sector, Battery Energy Storage Systems (BESS) play a vital role in grid stability, renewable energy integration, and peak load management. But what ensures their efficient, safe, and reliable operation? The answer lies in a powerful control system known as SCADA.

What is SCADA?

SCADA stands for Supervisory Control and Data Acquisition. It is a software-based control system that allows for real-time monitoring, data collection, and automation across industrial operations. Originally used in manufacturing and utilities, Supervisory Control and Data Acquisition has become a critical component in energy systems, particularly in BESS applications.

Core Components of SCADA

  • Human-Machine Interface (HMI): Visual dashboards for system operators
  • Supervisory System: Central software for data processing and visualization
  • Remote Terminal Units (RTUs): Interface devices to collect field data
  • Programmable Logic Controllers (PLCs): Execute control actions locally
  • Communication Infrastructure: Ensures reliable data flow between components

How SCADA Supports BESS Operations

The use of SCADA in BESS enhances safety, performance, and lifecycle optimization. Here’s how:

1. Real-Time Monitoring

Supervisory Control and Data Acquisition continuously tracks key BESS parameters like:

  • State of Charge (SOC)
  • State of Health (SOH)
  • Battery voltage and current
  • Temperature and humidity
  • Power inflow/outflow

Operators receive instant alerts on anomalies, enabling quick responses.

2. Remote Control and Automation

With SCADA, operators can control charging/discharging remotely. Automatic triggers can be set based on:

  • Load demand
  • Time-of-use pricing
  • Renewable generation availability

This ensures optimized energy dispatch and cost savings.

Enhancing Safety and Reliability

Safety is a top concern in BESS installations. Supervisory Control and Data Acquisition plays a proactive role through:

3. Fault Detection and Alarm Systems

SCADA immediately flags:

  • Overvoltage or undervoltage
  • Overtemperature
  • Communication failures
  • Smoke or fire detection

By generating alarms, it helps prevent damage and ensures operator safety.

4. Data Logging and Predictive Maintenance

Supervisory Control and Data Acquisition stores historical data for:

  • Performance analytics
  • Trend forecasting
  • Predictive maintenance

Analyzing long-term patterns helps in scheduling maintenance before failure occurs.

SCADA in Grid-Tied and Off-Grid BESS

Supervisory Control and Data Acquisition is essential whether the BESS is part of:

  • Grid-connected systems (for peak shaving, frequency regulation)
  • Off-grid systems (microgrids in remote areas)

In both cases, Supervisory Control and Data Acquisition enhances coordination with solar, wind, diesel generators, and load centers.

Integration with EMS and IoT

Modern Supervisory Control and Data Acquisition systems integrate seamlessly with:

This enables smart decision-making across the energy ecosystem.

Conclusion: SCADA Enables Smart, Safe, and Scalable BESS

The use of SCADA in BESS is not just a technical convenience—it is a necessity for scaling clean energy systems. With advanced monitoring, remote control, data analytics, and real-time fault detection, SCADA ensures that battery storage systems operate at peak efficiency, safely and reliably.

As the world moves toward decentralized, renewable energy, Supervisory Control and Data Acquisition is the silent powerhouse keeping storage systems smart and resilient.
