SCADA vs EMS in BESS – Key Differences and Applications in Battery Energy Storage
Rahul Jalthar

SCADA vs EMS in BESS: Understanding the Brain and Nerve System of Energy Storage

/0 Comments/in /by

SCADA vs EMS in BESS: Battery Energy Storage Systems (BESS) are more than just batteries—they are intelligent ecosystems. At the heart of this intelligence lie two key control systems: SCADA (Supervisory Control and Data Acquisition) and EMS (Energy Management System).

But what’s the difference between them? Why do you need both in your energy storage infrastructure? Let’s break it down.

🔍 What is SCADA in BESS?

SCADA is like the central nervous system of your energy infrastructure. It allows operators to monitor and control equipment remotely and in real-time.

✅ Key Functions of SCADA:

  • Real-time Monitoring: Tracks voltage, temperature, SOC (State of Charge), power output, and more.
  • Data Acquisition: Collects data from sensors, meters, and other field devices.
  • Alarm Management: Triggers alerts in case of system faults, safety issues, or performance anomalies.
  • Remote Control: Lets operators switch systems ON/OFF or change parameters remotely.
  • Visualization: SCADA HMIs (Human-Machine Interfaces) display data visually for easy interpretation.

SCADA systems in BESS typically interact with Battery Management Systems (BMS), Power Conversion Systems (PCS), Inverters, and environmental sensors.

⚙️ What is EMS in BESS?

EMS (Energy Management System) is a higher-level optimization system that manages how, when, and where energy is stored or dispatched, often based on grid requirements, market conditions, and renewable energy forecasts.

EMS is the strategic brain of the energy storage system. While SCADA controls how things operate, EMS decides what should be done to maximize efficiency, economics, and reliability.

✅ Key Functions of EMS:

  • Energy Flow Optimization: Determines how and when to charge/discharge the battery.
  • Peak Shaving & Load Shifting: Reduces grid demand during peak hours.
  • Forecasting: Uses weather and load predictions for solar/wind integration.
  • Grid Compliance: Ensures system follows utility rules and demand response signals.
  • Cost Management: Optimizes energy usage based on real-time prices or tariffs.

EMS works above the SCADA layer, making strategic decisions based on data collected by SCADA and other sources.

🔁 Key Differences: SCADA vs EMS in BESS

FeatureSCADAEMS
Primary RoleOperational monitoring & controlStrategic energy optimization
ScopeDevice & hardware levelSystem-wide & market interaction
Real-time ControlYesNo (uses planning-based control)
ForecastingNoYes
Alarm & Event HandlingYesLimited (depends on integration)
Grid InteractionMinimalFull (based on market, grid, or DSO signals)
VisualizationSCADA HMI/GUIDashboards/Reports

🧠 Real-World Comparison: How SCADA & EMS Work Together

Imagine a utility-scale solar-plus-storage project:

➤ SCADA’s Role:

  • Monitors PV inverter voltage, battery temperature, current flows.
  • Flags errors in PCS (Power Conversion System) and triggers shutdowns if needed.
  • Logs all sensor data every second.

➤ EMS’s Role:

  • Analyzes day-ahead pricing forecasts and predicts solar production.
  • Decides to charge batteries at noon and discharge at 6 PM to maximize ROI.
  • Communicates with SCADA to execute commands.

Together, EMS and SCADA form a closed-loop intelligence system—SCADA watches, EMS decides.

🌐 Different Use Cases (EMS vs SCADA in BESS)

🔋 Residential ESS

  • SCADA is usually embedded at low levels.
  • EMS often comes pre-configured or in cloud-based form for load shifting and solar self-use.

🏭 Commercial & Industrial ESS

  • SCADA monitors multiple assets: batteries, PV, diesel gensets.
  • EMS optimizes cost-saving strategies across multiple sites.

⚡ Utility-Scale BESS

  • SCADA integrates with substation automation and DNP3/IEC 61850 protocols.
  • EMS participates in energy markets, frequency response, and ancillary services.

📈 Why You Need Both

Some may think EMS alone is enough, but it’s not. Without SCADA, the EMS is blind. Without EMS, the SCADA is mute.

✅ SCADA ensures the system runs safely.
✅ EMS ensures it runs profitably.

You need both for your BESS to be intelligent, safe, and profitable.

❓ FAQ: SCADA vs EMS in BESS

Q1. Can SCADA and EMS be integrated into one platform?
Yes. Many vendors offer combined platforms or modular systems where EMS sits on top of SCADA.

Q2. Is EMS cloud-based and SCADA local?
Generally, yes. SCADA operates locally for fast response, while EMS can be local or cloud-based for broader optimization.

Q3. Which one is more expensive?
EMS often costs more due to its software intelligence, licensing, and integration needs.

Q4. Which is more important for safety?
SCADA is crucial for safety and reliability. EMS focuses more on economic performance.

📌 Final Thoughts: Build a Smarter BESS with SCADA and EMS

Understanding the SCADA vs EMS in BESS distinction is not just academic—it has real business and technical consequences. If you want your Battery Energy Storage System to be both safe and smart, you need both systems.

Understanding their roles and differences is crucial for:

  • System integrators
  • Project developers
  • Energy consultants
  • Facility managers
  • And anyone involved in the deployment of BESS

Whether you’re building a microgrid or managing utility-scale storage, make sure your BESS includes both a robust SCADA and an intelligent EMS.

Looking for help integrating SCADA and EMS in your energy project? Reach out to a qualified consultant who understands both layers of the stack and can optimize your BESS from the ground up.

How EMS Enables Advanced Grid Services Through BESS
Rahul Jalthar

How EMS Enables Advanced Grid Services Through BESS

/1 Comment/in /by

Battery Energy Storage Systems (BESS) are evolving beyond just storing energy. With the intelligence of Energy Management Systems (EMS), they’re becoming powerful grid assets. From frequency regulation to voltage control, EMS unlocks a suite of advanced grid services that were once limited to traditional power plants.

Let’s explore how EMS empowers BESS to support modern energy grids.

What Are Advanced Grid Services?

Advanced grid services are functions that maintain grid reliability and quality. They include:

  • Frequency regulation
  • Voltage support
  • Black start capability
  • Spinning reserve
  • Demand response

These services ensure the grid remains stable, especially with the rising penetration of renewable energy.

EMS as the Enabler of Grid Services

The EMS is the brain that enables BESS to respond quickly, accurately, and automatically to grid signals. Here’s how:

1. Frequency Regulation

Grids must maintain a constant frequency (like 50 Hz in India or 60 Hz in the US). Sudden load or generation changes cause frequency deviations.

  • EMS monitors grid frequency in real time
  • If the frequency drops, it triggers the BESS to discharge power
  • If the frequency rises, BESS absorbs excess power

This dynamic response stabilizes the grid within milliseconds.

2. Voltage Support

EMS can:

  • Inject reactive power through the BESS inverter
  • Stabilize voltage at critical points in the distribution network
  • Prevent brownouts or overvoltage conditions

This is especially valuable in weak grids or renewable-heavy zones.

3. Black Start Capability

If the grid experiences a complete blackout, EMS-controlled BESS can:

  • Provide the initial jolt of energy to restart power plants
  • Synchronize with the grid once it’s back online
  • Act as a virtual power plant in microgrid scenarios

This minimizes downtime and enhances resilience.

4. Spinning Reserve

Instead of running gas turbines idle as spinning reserve, EMS can:

5. Demand Response Participation

EMS communicates with grid operators to:

  • Reduce load during peak hours
  • Shift energy consumption schedules
  • Respond to market pricing signals

This not only earns revenue but also relieves grid congestion.

Real-World Example: EMS in Utility-Scale BESS

In regions like California, Australia, and Germany:

Why This Matters for the Future

With the global shift toward decentralized, carbon-free energy, the grid needs flexible, intelligent support. EMS in BESS enables:

✅ Fast, automated grid response
✅ Lower operational costs
✅ Greater grid reliability
✅ Deeper integration of renewables

Final Thoughts

The integration of EMS with Battery Energy Storage Systems transforms them from passive storage units into smart, responsive grid assets. As the power grid continues to modernize, EMS will play a pivotal role in delivering the advanced services that ensure stability, flexibility, and sustainability.

FAQs

Q1. Can BESS replace traditional power plants for grid services?

Not entirely, but EMS-managed BESS can supplement or even outperform them in specific services like frequency regulation and black start.

Q2. Do EMS systems need to be certified for grid services?

Yes. Compliance with grid codes, communication protocols (like IEEE 2030.5), and interoperability standards is essential.

Q3. How fast can EMS react to frequency deviations?

EMS can trigger BESS responses in milliseconds, making them ideal for fast frequency response (FFR) services.

Q

Q

Energy Management System(EMS) Usage in BESS
Rahul Jalthar

EMS and Its Uses in Battery Energy Storage Systems (BESS)

/3 Comments/in /by

In today’s rapidly evolving energy landscape, Battery Energy Storage Systems (BESS) play a crucial role in grid stability and renewable energy integration. But behind every efficient BESS lies a powerful control layer — the Energy Management System (EMS).

Let’s dive into what Energy Management System is and how it transforms the performance of battery storage systems.

What is EMS?

EMS, or Energy Management System, is a software-based control system designed to monitor, manage, and optimize the performance of electrical systems — especially those integrating storage, renewables, and grid power.

It serves as the brain of a BESS, ensuring all energy flows are coordinated, efficient, and responsive to grid demands.

Core Functions of EMS in BESS

The EMS in BESS isn’t just about switching batteries on or off. It handles a wide range of critical tasks that keep energy systems reliable and smart.

1. Energy Flow Optimization

The Energy Management System decides when to:

  • Charge the batteries (e.g., during excess solar generation)
  • Discharge stored energy (e.g., during peak grid demand)

This timing is optimized to maximize efficiency and reduce operational costs.

2. Load Forecasting and Scheduling

By analyzing load patterns and predicting future demand, Energy Management System schedules charging and discharging in advance. This minimizes power wastage and ensures power availability.

3. Real-time Monitoring and Control

Energy Management System monitors:

This real-time data enables precise control, fault detection, and immediate corrective actions.

4. Integration with Renewable Energy

Energy Management System allows seamless integration of solar and wind systems. It balances intermittency by storing excess energy and supplying it when renewable output drops.

5. Grid Services and Ancillary Support

BESS with EMS can provide:

These services are valuable for utilities and grid operators.

Use Cases of EMS in BESS

Here are a few practical applications where Energy Management System driven BESS systems shine:

⚡ Commercial and Industrial (C&I) Facilities

Energy Management System helps manage peak demand charges, optimize solar self-consumption, and ensure backup during outages.

🌞 Solar + Storage Microgrids

In rural or islanded areas, EMS balances solar input with storage, ensuring 24/7 power without relying on diesel.

🏙️ Utility-Scale BESS Projects

For grid operators, EMS enables large BESS systems to stabilize frequency, support black start capability, and defer costly grid upgrades.

🏢 Smart Buildings and Campuses

Energy Management System in campus-wide energy systems manages building loads, coordinates distributed energy sources, and ensures energy cost savings.

Why EMS is Critical for Future Grids

As energy grids become decentralized and more renewable-driven, EMS becomes indispensable. It allows energy systems to:

  • Be more responsive
  • Avoid blackouts
  • Support carbon-neutral operations
  • Generate economic value through smart dispatching

Final Thoughts

In the world of Battery Energy Storage Systems, the Energy Management System is the silent orchestrator — optimizing energy flows, reducing costs, and enabling a sustainable grid. As renewable energy grows, so too will the need for intelligent EMS solutions in every BESS deployment.

FAQs

Q1. Can Energy Management System work without an internet connection?

Yes, local EMS systems can operate autonomously, though cloud connectivity enhances remote monitoring and updates.

Q2. Is Energy Management System hardware or software?

EMS is primarily software but runs on dedicated hardware controllers or integrated edge devices.

Q3. How is EMS different from SCADA?

While SCADA focuses on monitoring and supervisory control, Energy Management System optimizes and automates decision-making processes in energy systems.

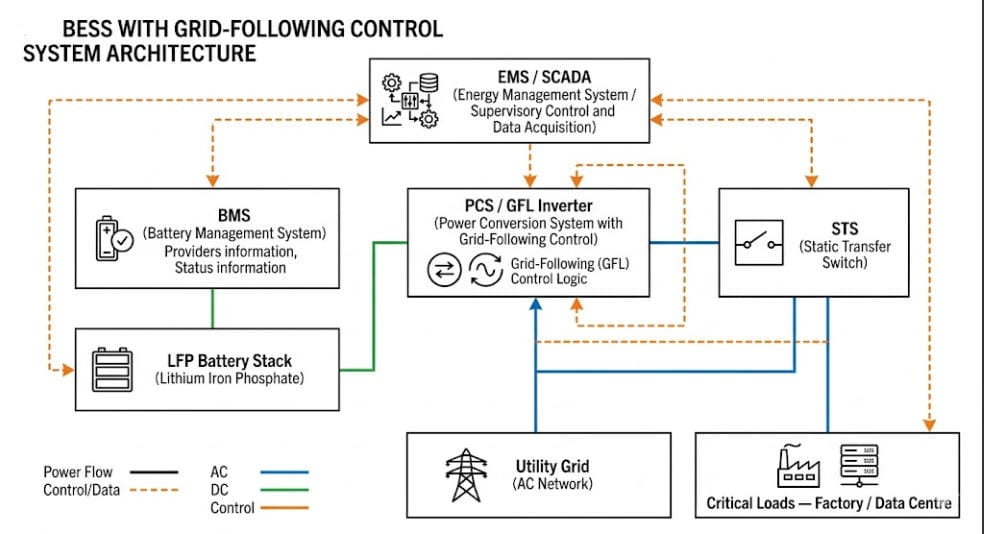

Key Components in a BESS Architecture
Rahul Jalthar

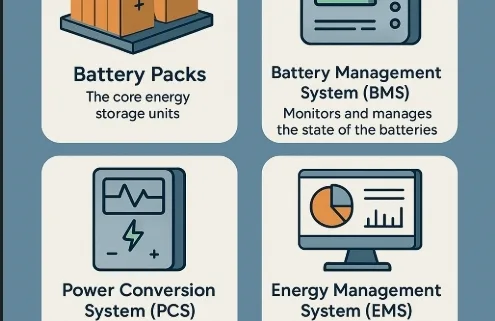

Key Components in a BESS Architecture

/2 Comments/in /by

In today’s world of renewable energy and smart grids, understanding the key components in a BESS architecture is very important. A Battery Energy Storage System (BESS) is made up of several parts that work together to store, manage, and deliver electricity safely and efficiently. In this blog post, we’ll break down each major component — what it does and why it matters — so you can see how a BESS works as a whole.

What Is a BESS?

Before we dive into the key components in a BESS architecture, let’s quickly explain what a BESS is. A Battery Energy Storage System is a setup that stores electricity in batteries so it can be used later. It helps balance energy supply and demand, provides backup power, and supports the use of renewable energy like solar and wind.

1. Battery Packs: The Core Energy Storage Units

The battery packs are the heart of any BESS. These packs are made up of many individual battery cells grouped together. They store the electrical energy until it’s needed.

  • Function: Store electrical energy in chemical form and release it as needed.
  • Why It Matters: The quality and type of battery pack (like Lithium-ion, LFP, or others) decide how much energy you can store, how long it lasts, and how safe the system is.
  • Tip: Always choose battery packs from reputable manufacturers with proper certifications.

2. Battery Management System (BMS): Monitors and Protects

The Battery Management System (BMS) is like the brain for the battery packs. It constantly checks the status of each cell to make sure everything works safely.

  • Function: Monitors voltage, temperature, and charge level. Balances cells and protects against overcharging or deep discharge.
  • Why It Matters: Without a good BMS, batteries can get damaged, lose efficiency, or even pose safety risks.
  • Tip: A well-designed BMS extends battery life and helps you get the most from your investment.

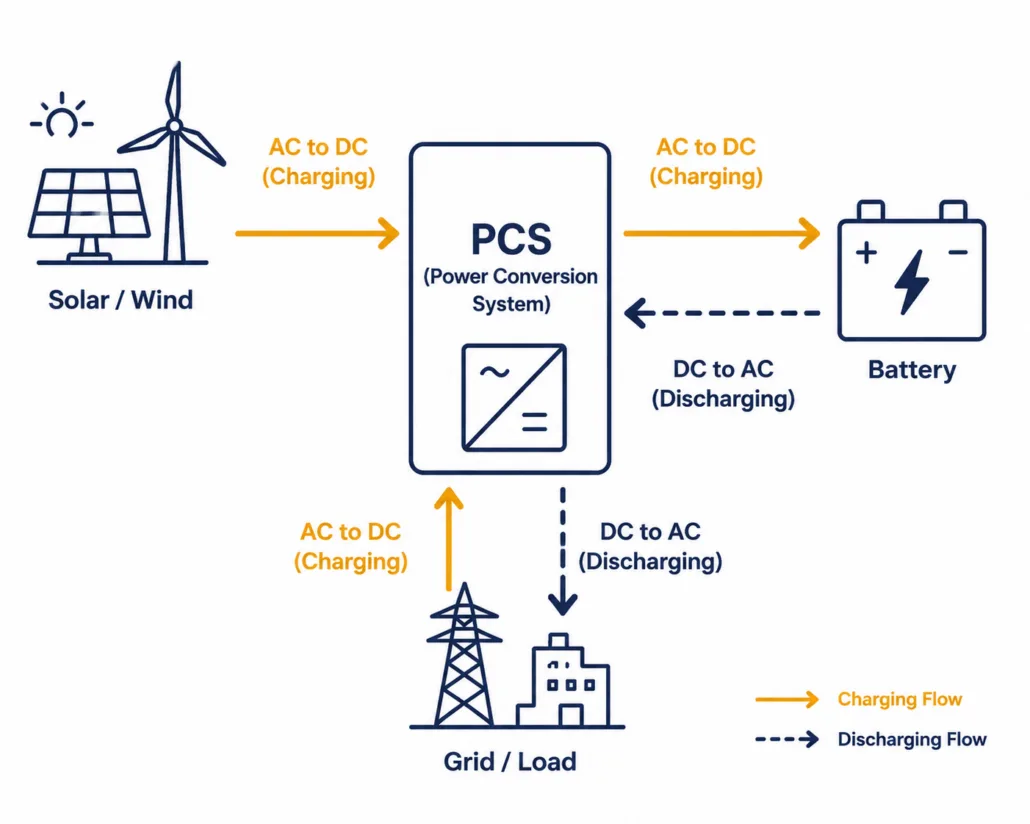

3. Power Conversion System (PCS): Converts Power

The Power Conversion System (PCS) is what makes your stored energy usable. Batteries store electricity as Direct Current (DC), but most homes and businesses use Alternating Current (AC).

4. Energy Management System (EMS): Controls Energy Flow

The Energy Management System (EMS) decides when to charge, when to discharge, and how to manage energy flows smartly.

  • Function: Monitors energy demand, renewable production, and market conditions to optimize usage.
  • Why It Matters: An EMS helps reduce electricity bills, maximize renewable energy use, and maintain grid stability.
  • Tip: Modern EMS can be cloud-based, allowing remote monitoring and control for better energy savings.

5. Cooling and Safety Systems: Keep It Safe and Efficient

Batteries generate heat during charging and discharging. That’s why Cooling and Safety Systems are vital parts of any BESS architecture.

  • Function: Maintain safe operating temperatures, prevent overheating, and manage emergencies like fires.
  • Why It Matters: Proper thermal management improves battery life and reduces safety risks.
  • Tip: Systems can use air cooling, liquid cooling, or a mix. Always ensure your system meets local safety standards.

Why Knowing These Key Components in a BESS Architecture Matters

Understanding the key components in a BESS architecture helps you make better decisions when planning or buying a system. Each part plays a role in safety, efficiency, and cost-effectiveness.

When all these components work together, you get reliable energy storage that supports your home, business, or grid.

Frequently Asked Questions (FAQ)

Q1: Which component is the most important in a BESS?

A: All components are important, but the battery packs and BMS are the core for safety and performance.

Q2: Can I upgrade one part of my BESS later?

A: It depends. Some parts like EMS software can be upgraded, but battery packs or PCS upgrades need expert checks for compatibility.

Q3: How do I maintain a BESS?

A: Regular checks on the BMS, PCS, cooling system, and software updates are recommended to keep your BESS in top shape.

Final Thoughts

Knowing the key components in a BESS architecture is the first step to using battery storage wisely. Whether you’re planning a home energy system or a big grid-scale project, make sure you work with trusted suppliers and ask about certifications, maintenance, and upgrades.

Do you have questions about building a safe and efficient BESS? Feel free to share your thoughts or ask in the comments below!

E9rV4NiF7LNH0ydS
Rahul Jalthar

Unlocking the Power of Energy Storage PCS: The Brain Behind Battery Energy Storage Systems

/10 Comments/in /by

Ever wondered what Energy Storage PCS actually does? In this post, we’ll break down how it works and where it’s used in real-world energy storage systems.

What is PCS in Energy Storage?

PCS stands for Power Conversion System. It is an essential device in energy storage systems that converts electricity between alternating current (AC) and direct current (DC). It allows batteries to store energy from the grid or renewable sources and then release it back as usable AC power when needed.

In short, PCS is the bridge between your batteries and the electrical grid—managing energy flow, ensuring safety, and improving overall efficiency.

What is Energy Storage PCS and Why It Matters?

Energy storage PCS (Power Conversion System) is the heart of any Battery Energy Storage System (BESS). It is responsible for managing the conversion between AC and DC power, enabling batteries to store energy and deliver it back to the grid when needed. Without a PCS, your energy storage solution is like a car without an engine.

The PCS helps to regulate the flow of electricity, balance energy loads, and ensure maximum efficiency and safety of your battery system. Whether for solar, wind, or hybrid power systems, energy storage PCS plays a vital role in stabilizing renewable energy.

How Energy Storage PCS Works

The PCS acts as a two-way converter. When the energy is generated by solar panels or wind turbines (AC power), the PCS converts it into DC to charge the batteries. When the energy is needed (like during peak hours), it converts the stored DC power back into AC to feed into the grid or power your home or facility.

In simpler terms:

  • AC to DC conversion for charging the battery.
  • DC to AC conversion for discharging to the grid or loads.

It also works with smart controllers and EMS (Energy Management Systems) to provide grid-support functions, frequency regulation, peak shaving, and energy arbitrage.

Types of Energy Storage PCS

There are several types of PCS based on the application and voltage level:

1. Low-Voltage PCS (LV PCS)
Used in small-scale or residential BESS. Operates below 1,000V.

2. Medium-Voltage PCS (MV PCS)
Used in commercial and industrial systems. Operates between 1,000V to 35kV.

3. High-Voltage PCS (HV PCS)
Used in utility-scale and grid-level projects. Supports large containers and centralized ESS plants.

4. Bi-directional PCS
This is the most advanced type. It can both charge and discharge efficiently, supporting dynamic grid functions.

Each type serves a unique purpose, and selecting the right PCS depends on your project size, energy goals, and budget.

Why PCS is Crucial in Battery Energy Storage Systems

Still wondering why energy storage PCS is important?

Here are a few key reasons:

Without a reliable PCS, your BESS will struggle to perform efficiently or safely.

Common Applications of Energy Storage PCS

PCS isn’t just for big power plants. You can find them in:

  • Home and C&I energy storage systems
  • Solar plus storage solutions
  • Microgrids and off-grid systems
  • EV charging stations
  • Grid stabilization and frequency regulation projects
  • Peak shaving and demand charge reduction

Whether you’re a homeowner trying to store solar energy or a utility trying to manage grid fluctuations, energy storage PCS is the backbone of your system.

Choosing the Right PCS for Your BESS

Here are a few questions to ask before choosing a PCS:

Q: What voltage and power level does my application need?

A: Match the PCS to your battery bank’s voltage and your energy load.

Q: Is it compatible with my battery chemistry (LFP, NMC, etc.)?

A: Yes. Always confirm with your supplier or integrator.

Q: Does it offer bidirectional operation?

A: For advanced systems, bidirectional PCS is a must.

Q: What kind of grid functions does it support?

A: Look for reactive power control, frequency response, black start, and islanding support.

Q: How efficient is the PCS?

A: A good PCS will offer 96%–98% round-trip efficiency.

Top Features to Look for in Energy Storage PCS

If you’re sourcing or integrating a PCS, here are some must-have features:

  • Modular design for easy expansion
  • IP54 or higher protection level for outdoor installations
  • Liquid or forced air cooling for heat management
  • LCD/Touchscreen display for monitoring
  • Remote control and IoT connectivity
  • CE, UL, IEC, and grid code certifications

Future Trends in Energy Storage PCS

The role of energy storage PCS is evolving with technology. Some exciting trends include:

These innovations make energy storage more accessible, efficient, and intelligent.

Conclusion: Energy Storage PCS Is the Unsung Hero of Clean Energy

In today’s energy transition journey, energy storage PCS is more important than ever. It acts as a bridge between renewable power and the grid, ensuring smooth, efficient, and safe operations. Whether you are building a small home system or a 100MW utility project, choosing the right PCS will make or break your success.

So, next time you think about a battery storage system, remember—your energy is only as smart as your PCS.
