UL 9540 certification

UL 9540 Certification for Energy Storage Systems: Complete Guide

As the demand for clean energy grows, energy storage systems (ESS) are playing a crucial role in stabilizing the grid and enabling renewable integration. With safety and compliance at the forefront, UL 9540 certification has become the global benchmark for energy storage systems.

In this guide, we’ll explain what UL 9540 is, why it matters, and how it ensures the safety of battery energy storage systems (BESS).


What is UL 9540?

UL 9540 is the Standard for Safety of Energy Storage Systems and Equipment, developed by Underwriters Laboratories (UL). It sets the requirements for the safe design, construction, installation, and performance of energy storage systems.

UL 9540 Certification

This standard covers:

  • Battery systems (lithium-ion, lead-acid, flow batteries, etc.)
  • Power conversion systems (PCS)
  • Control and protection systems
  • Thermal management
  • Fire safety measures

By meeting UL 9540 certification, an ESS demonstrates that it can operate safely under normal and fault conditions.


Why UL 9540 Certification is Important

Energy storage systems involve high energy densities, complex electronics, and thermal risks. UL 9540 provides a structured safety framework that:

  • Prevents fire hazards through strict testing protocols.
  • Protects end-users by ensuring reliable and safe operation.
  • Simplifies compliance with local building and fire codes.
  • Supports market acceptance by meeting utility, AHJ (Authorities Having Jurisdiction), and global standards.

Without UL 9540, energy storage projects may face delays, higher insurance costs, or rejection from local authorities.


Key Components of UL 9540

UL 9540 Certification

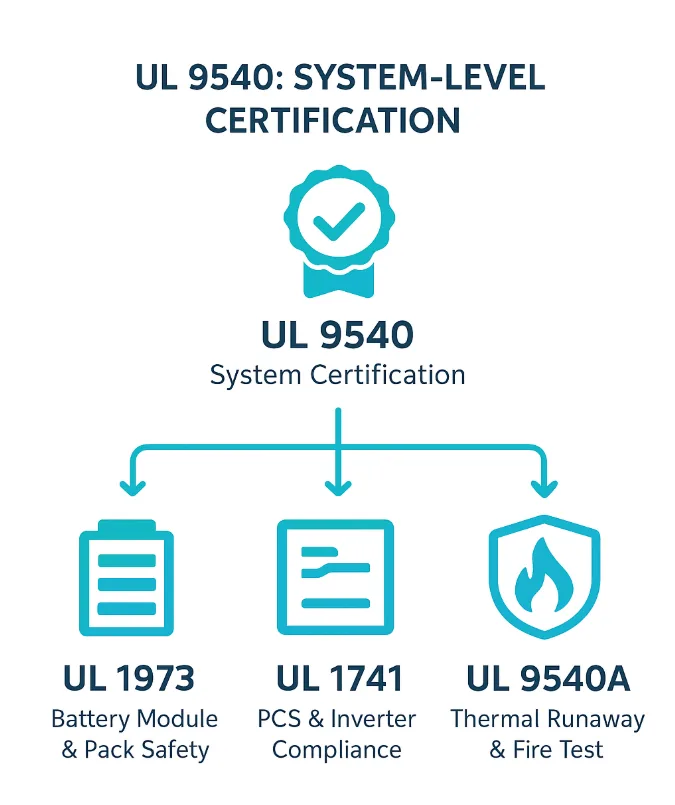

UL 9540 certification is not just a single test. It integrates results from multiple safety standards, including:

Together, these ensure the system-level safety of the ESS.


The UL 9540 Certification Process

The certification involves a step-by-step process:

  1. Application & Documentation
    Manufacturers submit system specifications, schematics, and safety features.
  2. Component Verification
    Sub-systems like batteries, PCS, and BMS must comply with relevant UL standards.
  3. System-Level Testing
    The complete ESS is evaluated for electrical, mechanical, and thermal safety.
  4. UL 9540A Fire Test (if required)
    Evaluates thermal runaway risks and fire propagation between cells/modules.
  5. Factory Audits & Quality Checks
    Ensures consistent production safety.

Benefits of UL 9540 Certification

For manufacturers, developers, and customers, UL 9540 offers clear benefits:

  • Market access – Approved by U.S. and international authorities.
  • Insurance acceptance – Reduces risk premiums.
  • Customer trust – Proof of safe and reliable operation.
  • Regulatory compliance – Helps meet building codes like NFPA 855.

UL 9540 vs. UL 9540A

UL 9540 vs UL 9540A

It’s common to confuse UL 9540 with UL 9540A.

  • UL 9540 → System-level safety certification.
  • UL 9540A → Fire safety test method to evaluate thermal runaway and propagation.

In practice, many jurisdictions require both UL 9540 certification and UL 9540A test reports before granting project approval.

👉 You can read our in-depth article on UL 9540A Test Method to understand how fire safety testing complements UL 9540 certification.


Applications of UL 9540 Certified Systems

UL 9540 certified systems are used across various industries:

  • Commercial & Industrial facilities – backup power and peak shaving.
  • Residential ESS – safe home battery storage.
  • Utility-scale projects – grid balancing and renewable integration.
  • Microgrids – reliable off-grid power supply.

Challenges in Achieving UL 9540 Certification

While critical, certification is not always easy. Common challenges include:

  • Cost and testing timelines – Full certification can take months.
  • System design complexity – Integrating batteries, PCS, and controls safely.
  • Evolving standards – New revisions often add requirements.

Manufacturers must work with experienced certification partners to streamline the process.


Future of UL 9540

As energy storage technology evolves, UL continues to update its standards. Upcoming editions are expected to address:

UL-9540A-2025
  • Hydrogen detection systems
  • Enhanced rooftop installation guidelines
  • New battery chemistries (like sodium-ion and solid-state)

Staying aligned with these updates will be key for manufacturers and developers.


Conclusion

UL 9540 certification is the cornerstone of safety for energy storage systems. It combines multiple safety evaluations, ensures compliance with fire codes, and builds confidence among regulators, insurers, and end-users.

For anyone developing or deploying ESS solutions, UL 9540 is not optional—it’s essential.

👉 Learn more about how we support certification-ready solutions at Sunlith Energy.


FAQ: UL 9540 Certification

Q1. What does UL 9540 cover?

UL 9540 covers the safety of energy storage systems, including batteries, power conversion systems, and fire safety measures.

Q2. Is UL 9540 mandatory?

While not always legally required, many local codes and utilities demand UL 9540 certification for permitting and grid connection.

Q4. How long does certification take?

Depending on system complexity, UL 9540 certification can take 3–12 months.

Q5. Can older ESS be retrofitted for UL 9540?

Yes, but it may require re-testing and upgrades to meet safety standards.

Why CE for BESS Matters

CE for BESS: Complete Guide to Battery Energy Storage Certification

Battery Energy Storage Systems (BESS) are critical to the clean energy transition, but ensuring their safety and compliance requires more than just good engineering. Certifications like CE for BESS is one of the most recognized marks in Europe, confirming that a product meets essential health, safety, and environmental standards. However, while CE is necessary for entering the EU market, it does not always guarantee complete system-level safety. To build global trust, manufacturers often combine CE with other certifications such as UL and IEC, ensuring stronger compliance, reliability, and market acceptance.


What Does CE Certification Mean for BESS?

The CE mark (Conformité Européenne) is a mandatory certification for products entering the European Economic Area (EEA). For BESS, CE shows compliance with EU directives and harmonized standards.

When a BESS carries the CE mark, it declares conformity with the following directives:

  • Low Voltage Directive (LVD) – Protects against electrical hazards.
  • Electromagnetic Compatibility (EMC) Directive – Prevents electrical interference.
  • Restriction of Hazardous Substances (RoHS) – Limits toxic chemicals in batteries and components.
  • General Safety Directives – Cover risks related to machinery and consumer use.

In essence, CE for BESS confirms that the system has met basic EU safety and environmental requirements, allowing it to be legally marketed and installed in Europe.


What Does CE for BESS Cover?

CE certification for BESS evaluates multiple aspects of product safety. These include:

  1. Electrical Safety – Preventing risks of electric shock, short circuits, and overheating.
  2. Thermal Safety – Assessing insulation, cooling design, and fire prevention.
  3. Electromagnetic Compatibility (EMC) – Ensuring the BESS does not emit disruptive signals.
  4. Environmental Safety – Controlling hazardous substances and ensuring recyclability.

However, CE certification for BESS is primarily based on a self-declaration of conformity. Manufacturers test the product internally or through a notified body, then issue a Declaration of Conformity (DoC).

This process makes CE less complex compared to third-party certifications like UL or IEC, which require independent validation and rigorous lab testing.


Why Do Most Companies Choose Only CE Certification for BESS?

Many BESS companies stop at CE certification instead of pursuing more demanding approvals. The main reasons include:

  • Lower Costs: CE testing is more affordable than UL or full IEC certification, which involve expensive third-party audits.
  • Faster Market Entry: CE certification is quicker, often taking weeks instead of months.
  • Simpler Process: CE allows self-declaration, reducing reliance on external labs.
  • Minimum Requirement: Since CE is mandatory in the EU, many companies view it as the lowest barrier to entry.

In other words, CE is often seen as the easiest, fastest, and cheapest way to access the European market. But relying on CE alone raises important safety concerns.


Is CE Alone Enough for BESS Safety?

The answer is no. While CE for BESS ensures legal entry into the EU market, it does not fully address the complex safety risks of modern energy storage systems.

BESS involves large-scale lithium-ion batteries, which can pose hazards like:

  • Thermal Runaway – Fire and explosion risk if cells fail.
  • High Voltage Risk – Danger of electric shock during installation or maintenance.
  • System-Level Failure – Risks from inverters, converters, or control systems.

To mitigate these risks, global safety standards go far beyond CE. Manufacturers often need UL, IEC, or national certifications depending on their target markets.


Key International Standards Beyond CE for BESS

Here are the most important certifications that complement CE for BESS:

1. IEC Standards (International)

2. UL Standards (North America)

3. National Certifications

Together, these standards ensure that a BESS is safe, grid-compatible, and globally marketable.


CE vs UL vs IEC: Key Differences

CertificationRegionScopeTesting RequirementMarket Perception
CEEuropeBasic health, safety, EMCSelf-declaration or notified bodyEntry-level compliance
UL 9540USA/CanadaFull system safetyThird-party lab requiredHigh credibility
IEC 62619 / 62933GlobalBattery + system safetyThird-party testingWidely respected
BIS / KC / PSENationalCountry-specific safety lawsMandatory local testsLegal requirement

This table shows why CE is the easiest to achieve but IEC and UL carry higher safety credibility.


Why BESS Needs Multiple Certifications

Unlike small electronics, BESS operates at industrial-scale energy levels, which makes multi-layer certification essential.

Why CE for BESS Matters
  • CE ensures compliance in Europe, but it does not evaluate system-level fire safety.
  • UL validates complete system safety and is trusted in North America.
  • IEC sets a global benchmark, especially for grid integration.
  • National standards guarantee local approval, allowing sales in markets like India, Japan, or Korea.

Therefore, CE should be seen as the foundation, while UL, IEC, and national approvals are the reinforcements. Together, they create a safe and credible BESS product.


Why Companies Should Go Beyond CE for BESS

Although CE is attractive for cost and speed, relying on it alone can lead to challenges:

  • Limited Market Reach: CE only works in Europe, not globally.
  • Lower Buyer Confidence: Utilities and large clients often demand UL or IEC reports.
  • Safety Risks: CE’s self-declaration model may overlook thermal runaway or fire propagation risks.
  • Regulatory Pressure: More countries are adopting stricter BESS safety laws.

Companies that invest in full certification portfolios gain stronger market access, brand reputation, and customer trust.


Conclusion: CE is Essential but Not the Final Step

CE for BESS is a mandatory starting point for European market access. It ensures compliance with basic safety, EMC, and environmental standards. However, CE is not enough to prove the full safety of complex battery energy storage systems.

Most companies choose CE because it is fast, affordable, and easy, but long-term success requires additional certifications like UL 9540, IEC 62619, and BIS. These provide independent validation, global acceptance, and higher safety assurance.

In the evolving energy landscape, BESS manufacturers and project developers must go beyond CE certification to build trust, reliability, and international growth opportunities.


❓ Frequently Asked Questions About CE for BESS

1. What is CE certification for BESS?

CE certification for Battery Energy Storage Systems (BESS) is a European conformity mark that shows the product meets essential EU safety, health, and environmental requirements. It’s a legal requirement for selling BESS in the European Economic Area (EEA).

2. Does CE certification cover fire safety in BESS?

No. CE certification ensures compliance with core directives but does not specifically address thermal runaway or fire safety risks. For complete system safety, manufacturers often pursue additional certifications like UL 9540A (fire safety) or IEC 62619 (battery cell safety).

3. How is CE different from UL or IEC certification?

CE Certification: Mandatory for the EU market, focuses on regulatory compliance.

UL Certification: Recognized mainly in North America, emphasizes product safety and fire prevention.

IEC Standards: Internationally accepted, providing detailed technical guidelines for testing and performance.

Using CE alone may open EU markets, but UL and IEC certifications build global trust and credibility.

4. Can I sell CE-certified BESS outside Europe?

Not necessarily. While CE certification allows access to EU markets, other regions like the US, Middle East, and Asia-Pacific often require local standards such as UL, BIS, or GB/T. Companies targeting global markets usually combine CE with additional certifications.

5. How long does CE for BESS take?

The timeline depends on the complexity of the BESS and the scope of testing. In general:

Large, complex systems: 3–6 months
Working with an accredited testing lab or certification body can speed up the process.

Simple systems: 4–8 weeks

6. Why is CE certification alone not enough for BESS safety?

Because BESS safety risks go beyond basic compliance. Issues like thermal runaway, grid stability, and fire containment need deeper testing. That’s why CE is often just the starting point, with UL, IEC, and country-specific certifications adding the necessary system-level validation.
