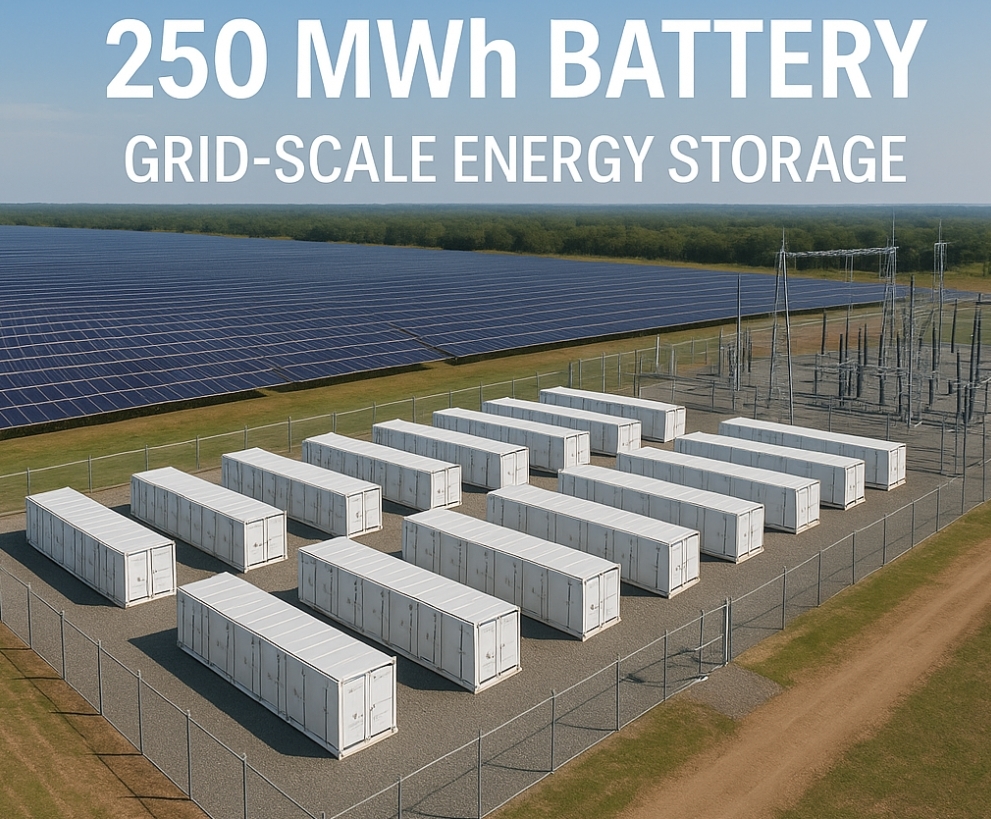

Comprehensive Guide to Setting Up a 100MW/250MWh Battery Energy Storage System (BESS) with Solar Energy Integration and Grid Connection

The global transition toward renewable energy hinges on the ability to store and manage intermittent power sources like solar. One of the most promising solutions is deploying utility-scale Battery Energy Storage Systems (BESS) in combination with large solar PV installations. In this blog, we dive deep into the components, engineering, design, and financial planning required to establish a 100MW / 250MWh BESS connected with a solar PV plant and integrated into the electrical grid.

🔋 1. Understanding the 100MW / 250MWh BESS

💡What Does 100MW / 250MWh BESS Mean?

• 100 MW is the maximum power output (or input) the battery can deliver (or accept) at a given time.
• 250 MWh is the energy capacity—meaning the battery can supply 100 MW continuously for 2.5 hours.

⚙️System Design Breakdown:

• Power Conversion System (PCS): Converts DC (battery) to AC (grid) and vice versa.
• Battery Cells & Racks: Store energy chemically, usually in lithium-ion (LiFePO4 or NMC).
• Battery Management System (BMS): Monitors cell health, temperature, and charging cycles.
• Thermal Management: Prevents overheating, typically using liquid or air cooling.
• Fire Suppression: NFPA 855 compliant fire safety systems.
• Enclosures: Often 20 or 40 ft containers with integrated HVAC and safety systems.

☀️ 2. Sizing the Solar Power Plant for 100MW / 250MWh BESS

To effectively charge the battery and export surplus power to the grid, we need a well-sized solar plant.

⚖️Solar System Sizing for 100MW / 250MWh BESS

Let’s assume we want the solar plant to:

• Fully charge the 250 MWh BESS during the day (approx. 5 sunlight hours)
• Supply power to the grid during peak hours

🧮 Calculation: 100MW / 250MWh BESS

To charge a 250 MWh BESS in 5 hours:

Required Solar Energy = 250 MWh ÷ 5 hours = 50 MW net power
Accounting for inverter & battery charging losses (~15%):
Required DC Power = 50 MW / 0.85 ≈ 58.8 MW

Also, considering extra power for grid export and cloudy conditions, oversizing is common:

Recommended Solar Plant Size = 120 MWp – 150 MWp

🔧Key Components of the Solar Plant:

• PV Panels: Monocrystalline preferred for high efficiency; each ~550W.
• Inverters: Central inverters (1–5 MW) or string inverters (~100 kW).
• Mounting Structures: Fixed tilt (low cost) or single-axis trackers (higher yield).
• Combiner Boxes & Cabling: Safely aggregate string outputs.
• Monitoring System (SCADA): Tracks performance in real-time.

⚡ 3. Grid Interconnection Infrastructure

Grid integration is crucial for exporting surplus energy and enabling load shifting. This involves multiple electrical and regulatory components.

🏗️ Major Components:

• Step-Up Transformer: Converts low voltage from PCS (~800V) to grid voltage (33–132 kV).
• Switchgear & Protection Relays: Ensure safe grid disconnection during faults.
• Substation: Includes transformers, busbars, circuit breakers, and metering.
• High Voltage Transmission Line: Transmits power to grid access point.
• Harmonic Filters & Voltage Support: Ensure power quality and grid compliance.

🧾 4. Permits, Regulations, and Approvals

Grid-connected BESS and solar projects are heavily regulated.

📜 Required Permits:

• Generation License
• Interconnection Agreement with the utility or ISO
• Power System Impact Study (PSIS)
• Environmental Impact Assessment (EIA)
• Fire and Safety Compliance (NFPA 855, IEC 62933)

🧱 5. Land and Civil Infrastructure Requirements for 100MW / 250MWh BESS

Large-scale solar and BESS facilities need extensive land and robust civil infrastructure.

🌍 Land Requirements:

• Solar Plant: ~5 acres per MW → 120 MWp ≈ 600 acres
• BESS Facility: ~2–5 acres depending on layout and containerization

🛠️ Other Infrastructure:

• Internal Roads & Drainage
• Security Systems & Fencing
• Control Room / O&M Buildings
• Water Supply (for cleaning panels)
• Telecom Lines for Remote Monitoring

🔄 6. Energy Management and SCADA System

🔌Energy Management System (EMS):

Manages:

• Battery charging/discharging
• Solar curtailment during grid constraints
• Frequency and voltage support
• Demand-response and peak shaving

📡 SCADA:

• Real-time monitoring
• Alerts and diagnostics
• Performance analytics
• Grid and weather forecasting integration

🔍 7. System Studies & Engineering Design

To ensure safe and optimized operation, various simulations are essential.

🧮 Required Engineering Studies:

• Load Flow Analysis
• Short-Circuit Study
• Power Quality (Harmonics)
• Transient Stability Study
• Protection Coordination
• PVsyst Simulation for solar yield
• Battery Degradation Modeling (cycling profile)

💰 8. Detailed Cost Breakdown (Estimates) for 100MW / 250MWh BESS

These numbers vary by region, labor costs, and market conditions.

📈 9. Operational Use Cases of Solar + BESS

• Time-Shifted Solar: Store midday solar to discharge in the evening.
• Frequency Regulation: Respond to short-term grid imbalances.
• Capacity Firming: Ensure stable solar output despite weather.
• Peak Shaving: Reduce peak load charges.
• Black Start Support: Restart the grid after an outage.

🧑‍🔧 10. Operation & Maintenance (O&M)

BESS O&M:

• 24/7 remote monitoring
• Monthly inspections
• Battery health checks
• Air filters, coolant, fan servicing

Solar O&M:

• Module cleaning (weekly/monthly)
• Inverter maintenance
• Vegetation control
• Performance ratio monitoring

⚠️ 11. Safety and Compliance

Safety Measures:

• Fire Suppression System inside containers
• HVAC/thermal management for temperature control
• Emergency Shutdown Systems
• Remote isolation and fault management
• NFPA 855 and UL9540A Testing compliance

🌐 12. Conclusion

Establishing a 100MW / 250MWh BESS integrated with a solar plant and connected to the grid is a technically complex yet financially and environmentally rewarding initiative. This setup not only enhances grid reliability and renewable penetration but also allows investors and utilities to participate in lucrative services like frequency regulation, capacity markets, and arbitrage.

With global emphasis on decarbonization, the synergy of solar and battery storage represents a powerful step toward a sustainable energy future.
