Long Duration Energy Storage (LDES)
Rahul jalthar

What is Long Duration Energy Storage (LDES) and Why It’s Crucial for a Sustainable Future

/1 Comment/in /by

🌍 What is Long Duration Energy Storage (LDES)?

Long Duration Energy Storage (LDES) refers to energy storage systems that can discharge energy continuously for more than 10 hours, unlike traditional short-term batteries. LDES solutions are designed to store excess electricity—often from renewable sources like solar or wind—and release it during periods of high demand, outages, or when generation drops.

These systems are not just battery backups—they’re enablers of round-the-clock clean power, grid stability, and energy transition. With longer durations, they serve both daily and seasonal energy balancing needs.

⚡ Why is Long Duration Energy Storage Important?

Long Duration Energy Storage plays a critical role in modern energy systems. Its importance can be broken down into the following key points:

🌞 Enabling Renewable Energy Integration

One of the biggest challenges with renewable energy is its intermittent nature. Solar panels don’t generate power at night, and wind turbines are at the mercy of wind patterns.

How LDES Helps:

  • Stores excess daytime solar energy for nighttime use.
  • Balances supply and demand mismatches caused by variable renewables.
  • Helps reach 100% renewable energy targets.

Without LDES, we are limited in how much solar and wind energy we can effectively use.

🔌 Grid Reliability and Resilience

The grid must constantly balance generation and consumption. Outages, sudden surges, and extreme weather events challenge this balance.

LDES Improves Reliability By:

  • Providing backup power during outages and blackouts.
  • Acting as a buffer during grid instability or peak demand.
  • Supporting islanded microgrids and off-grid applications.

A resilient grid supported by LDES can bounce back quickly during disasters.

🛢️ Reducing Reliance on Fossil Fuels

Fossil fuel plants have traditionally handled peak loads and filled the gaps left by renewables. But this comes at an environmental and economic cost.

LDES Enables Clean Alternatives:

  • Replaces peaker plants with zero-emission storage systems.
  • Reduces carbon emissions and air pollution.
  • Cuts fuel dependency for countries aiming at energy independence.

💡 Why We Need Long Duration Energy Storage Now

Here’s a quick list of why LDES is no longer optional:

  • Renewables are growing fast, but they need storage to be reliable.
  • Climate change requires urgent reduction in emissions.
  • Blackouts and energy crises are increasing globally.
  • Energy equity—delivering clean power to remote regions—is now a priority.
  • Policy mandates and carbon neutrality goals demand storage integration.

🔬 LDES Technologies: Explained in Detail

Let’s explore the major Long Duration Energy Storage technologies powering the future:

1. 💧 Pumped Hydro Storage

How it works: Water is pumped to a higher elevation during low demand periods and released through turbines during high demand to generate electricity.

Key Benefits:

  • Proven, mature technology
  • Can deliver GW-scale storage
  • Low operating cost over decades

Limitations:

  • Requires specific geography (elevation and water availability)
  • High initial capital cost

2. 🌬️ Compressed Air Energy Storage (CAES)

How it works: Air is compressed using electricity and stored in underground caverns. When needed, the air is heated and expanded through turbines to generate power.

Key Benefits:

  • Long operational lifespan
  • Can be scaled up easily
  • Low cost per kWh at scale

Limitations:

  • Requires underground storage space
  • Efficiency is lower than some alternatives (~50-70%)

3. 🔥 Thermal Energy Storage (TES)

How it works: Excess energy is stored as heat (or cold), often in molten salts or phase change materials, and later used for power generation or industrial heating/cooling.

Key Benefits:

  • Excellent for concentrated solar power (CSP)
  • Useful for both electric and thermal applications
  • Scalable and cost-effective

Limitations:

  • Energy-to-electricity conversion can involve losses
  • Best suited for hybrid systems

4. ⚗️ Flow Batteries

How it works: Electrolytes are stored in external tanks and pumped through a cell stack where chemical energy is converted into electrical energy.

Flow Battery Long Duration Energy Storage (LDES)

Key Benefits:

  • Long cycle life (10,000+ cycles)
  • Independent scaling of power and energy
  • Fast response time and low degradation

Limitations:

  • Lower energy density compared to lithium-ion
  • Higher upfront costs

5. 🌀 Flywheel Energy Storage

How it works: Rotating flywheels store kinetic energy, which can be converted back into electricity using generators.

Key Benefits:

  • Extremely fast charge/discharge
  • Very high efficiency (>90%)
  • Long operational life with low maintenance

Limitations:

  • Not ideal for multi-hour storage
  • Higher cost per kWh for long durations

6. 🔋 Hydrogen Energy Storage

How it works: Excess electricity powers electrolyzers to produce hydrogen, which is stored and later used in fuel cells or turbines to generate power.

green hydrogen storage Long Duration Energy Storage (LDES)

Key Benefits:

  • Stores energy for days to seasons
  • Can be used for transport, industry, and electricity
  • Enables green hydrogen economy

Limitations:

  • Efficiency losses (round-trip efficiency ~30-40%)
  • High CAPEX and need for infrastructure

7. 🏗️ Gravity Storage

How it works: Excess energy is used to lift heavy weights. When energy is needed, the mass is lowered, turning generators.

Key Benefits:

  • Low degradation
  • Scalable and site-flexible
  • Uses simple mechanical principles

Limitations:

  • High space requirement
  • Currently emerging, less proven

💰 Cost-Effectiveness of LDES

While upfront capital cost is often higher than short-duration solutions, LDES proves to be more economically viable over time due to:

  • Lower operating costs
  • Higher asset utilization
  • Longer lifespans
  • Avoided costs of grid upgrades, peaker plants, and outages

Cost parity with conventional generation is improving rapidly as technologies mature and investment grows.

🧩 Long Duration Energy Storage Use Cases

LDES is already being deployed in real-world scenarios. Some of the top use cases include:

  • Utility-Scale Renewable Integration: Grid-scale batteries helping solar and wind contribute 24/7.
  • Off-Grid and Remote Electrification: Reliable clean power in villages and islands.
  • Industrial Energy Shifting: Storing cheap power at night for day-time manufacturing.
  • Disaster Resilience: Backup for hospitals, military bases, and critical infrastructure.
  • Grid Congestion Relief: Smoothing peak demand spikes in dense urban areas.
  • Seasonal Storage: Especially in northern climates where solar dips in winter.

❓ FAQ: Long Duration Energy Storage

Q1: What is the difference between short and long duration energy storage?

A1: Short duration systems (e.g., lithium-ion) store energy for 1–4 hours. Long duration systems store energy for 10 hours or more, addressing broader grid needs.

Q2: Is LDES only for renewable energy?

A2: While LDES is crucial for integrating renewables, it can also support fossil-free baseload power, emergency backup, and industrial loads.

Q3: Is LDES commercially viable today?

A3: Yes, many LDES technologies are already in pilot or commercial use, especially in Europe, China, and the U.S., with rapid cost reductions underway.

Q4: Which LDES technology is best?

A4: It depends on the application:

Hydrogen for seasonal shifts

Hydro and CAES for bulk storage

Flow batteries for daily cycling

Thermal for hybrid systems

F

✅ Final Thoughts

The future of clean energy doesn’t stop at installing solar panels or wind turbines—it lies in our ability to store energy affordably, reliably, and sustainably. That’s where Long Duration Energy Storage (LDES) becomes indispensable.

LDES isn’t just an energy solution; it’s an economic enabler, an environmental protector, and a key pillar of global decarbonization.

As technologies evolve and scale, investing in LDES today ensures we build resilient energy systems for generations to come.

100MW / 250MWh BESS
Rahul jalthar

Comprehensive Guide to Setting Up a 100MW/250MWh Battery Energy Storage System (BESS) with Solar Energy Integration and Grid Connection

/0 Comments/in /by

The global transition toward renewable energy hinges on the ability to store and manage intermittent power sources like solar. One of the most promising solutions is deploying utility-scale Battery Energy Storage Systems (BESS) in combination with large solar PV installations. In this blog, we dive deep into the components, engineering, design, and financial planning required to establish a 100MW / 250MWh BESS connected with a solar PV plant and integrated into the electrical grid.

🔋 1. Understanding the 100MW / 250MWh BESS

💡What Does 100MW / 250MWh BESS Mean?

  • 100 MW is the maximum power output (or input) the battery can deliver (or accept) at a given time.
  • 250 MWh is the energy capacity—meaning the battery can supply 100 MW continuously for 2.5 hours.

⚙️System Design Breakdown:

  • Power Conversion System (PCS): Converts DC (battery) to AC (grid) and vice versa.
  • Battery Cells & Racks: Store energy chemically, usually in lithium-ion (LiFePO4 or NMC).
  • Battery Management System (BMS): Monitors cell health, temperature, and charging cycles.
  • Thermal Management: Prevents overheating, typically using liquid or air cooling.
  • Fire Suppression: NFPA 855 compliant fire safety systems.
  • Enclosures: Often 20 or 40 ft containers with integrated HVAC and safety systems.

☀️ 2. Sizing the Solar Power Plant for 100MW / 250MWh BESS

To effectively charge the battery and export surplus power to the grid, we need a well-sized solar plant.

⚖️Solar System Sizing for 100MW / 250MWh BESS

Let’s assume we want the solar plant to:

  • Fully charge the 250 MWh BESS during the day (approx. 5 sunlight hours)
  • Supply power to the grid during peak hours

🧮 Calculation: 100MW / 250MWh BESS

To charge a 250 MWh BESS in 5 hours:

Required Solar Energy = 250 MWh ÷ 5 hours = 50 MW net power
Accounting for inverter & battery charging losses (~15%):
Required DC Power = 50 MW / 0.85 ≈ 58.8 MW

Also, considering extra power for grid export and cloudy conditions, oversizing is common:

Recommended Solar Plant Size = 120 MWp – 150 MWp

🔧Key Components of the Solar Plant:

  • PV Panels: Monocrystalline preferred for high efficiency; each ~550W.
  • Inverters: Central inverters (1–5 MW) or string inverters (~100 kW).
  • Mounting Structures: Fixed tilt (low cost) or single-axis trackers (higher yield).
  • Combiner Boxes & Cabling: Safely aggregate string outputs.
  • Monitoring System (SCADA): Tracks performance in real-time.

⚡ 3. Grid Interconnection Infrastructure

Grid integration is crucial for exporting surplus energy and enabling load shifting. This involves multiple electrical and regulatory components.

🏗️ Major Components:

  • Step-Up Transformer: Converts low voltage from PCS (~800V) to grid voltage (33–132 kV).
  • Switchgear & Protection Relays: Ensure safe grid disconnection during faults.
  • Substation: Includes transformers, busbars, circuit breakers, and metering.
  • High Voltage Transmission Line: Transmits power to grid access point.
  • Harmonic Filters & Voltage Support: Ensure power quality and grid compliance.

🧾 4. Permits, Regulations, and Approvals

Grid-connected BESS and solar projects are heavily regulated.

📜 Required Permits:

  • Generation License
  • Interconnection Agreement with the utility or ISO
  • Power System Impact Study (PSIS)
  • Environmental Impact Assessment (EIA)
  • Fire and Safety Compliance (NFPA 855, IEC 62933)

🧱 5. Land and Civil Infrastructure Requirements for 100MW / 250MWh BESS

Large-scale solar and BESS facilities need extensive land and robust civil infrastructure.

🌍 Land Requirements:

  • Solar Plant: ~5 acres per MW → 120 MWp ≈ 600 acres
  • BESS Facility: ~2–5 acres depending on layout and containerization

🛠️ Other Infrastructure:

  • Internal Roads & Drainage
  • Security Systems & Fencing
  • Control Room / O&M Buildings
  • Water Supply (for cleaning panels)
  • Telecom Lines for Remote Monitoring

🔄 6. Energy Management and SCADA System

🔌Energy Management System (EMS):

Manages:

  • Battery charging/discharging
  • Solar curtailment during grid constraints
  • Frequency and voltage support
  • Demand-response and peak shaving

📡 SCADA:

  • Real-time monitoring
  • Alerts and diagnostics
  • Performance analytics
  • Grid and weather forecasting integration

🔍 7. System Studies & Engineering Design

To ensure safe and optimized operation, various simulations are essential.

🧮 Required Engineering Studies:

  • Load Flow Analysis
  • Short-Circuit Study
  • Power Quality (Harmonics)
  • Transient Stability Study
  • Protection Coordination
  • PVsyst Simulation for solar yield
  • Battery Degradation Modeling (cycling profile)

💰 8. Detailed Cost Breakdown (Estimates) for 100MW / 250MWh BESS

ComponentCost Range (USD)
250 MWh BESS (Li-ion)$125M – $180M
120–150 MWp Solar Plant$90M – $130M
Substation & Interconnection$10M – $25M
Civil Works & Land Prep$5M – $15M
EMS/SCADA Systems$3M – $5M
Permits, Consultants, Legal$1M – $3M
Total Project Estimate$240M – $360M

These numbers vary by region, labor costs, and market conditions.

📈 9. Operational Use Cases of Solar + BESS

  • Time-Shifted Solar: Store midday solar to discharge in the evening.
  • Frequency Regulation: Respond to short-term grid imbalances.
  • Capacity Firming: Ensure stable solar output despite weather.
  • Peak Shaving: Reduce peak load charges.
  • Black Start Support: Restart the grid after an outage.

🧑‍🔧 10. Operation & Maintenance (O&M)

BESS O&M:

  • 24/7 remote monitoring
  • Monthly inspections
  • Battery health checks
  • Air filters, coolant, fan servicing

Solar O&M:

  • Module cleaning (weekly/monthly)
  • Inverter maintenance
  • Vegetation control
  • Performance ratio monitoring

⚠️ 11. Safety and Compliance

Safety Measures:

  • Fire Suppression System inside containers
  • HVAC/thermal management for temperature control
  • Emergency Shutdown Systems
  • Remote isolation and fault management
  • NFPA 855 and UL9540A Testing compliance

🌐 12. Conclusion

Establishing a 100MW / 250MWh BESS integrated with a solar plant and connected to the grid is a technically complex yet financially and environmentally rewarding initiative. This setup not only enhances grid reliability and renewable penetration but also allows investors and utilities to participate in lucrative services like frequency regulation, capacity markets, and arbitrage.

With global emphasis on decarbonization, the synergy of solar and battery storage represents a powerful step toward a sustainable energy future.

Bidirectional Inverter vs PCS
Rahul jalthar

Bidirectional Inverter vs PCS: Understanding the Differences, Functions & Usage

/0 Comments/in , /by

Bidirectional Inverter vs PCS: In the evolving world of energy systems, both Bidirectional Inverters and Power Conversion Systems (PCS) play a critical role—especially in energy storage systems (ESS), microgrids, and renewable power integration. While they appear similar in functionality, they are not interchangeable. In this blog, we break down every point of comparison, explain how each works, and where they are best used.

🔌 What Is a Bidirectional Inverter?

A bidirectional inverter is a device that can convert DC (Direct Current) to AC (Alternating Current) and vice versa. This two-way operation enables both charging and discharging of batteries or energy storage units.

✅ Functions of Bidirectional Inverter:

  • AC to DC Conversion: Converts grid AC to DC to charge batteries.
  • DC to AC Conversion: Converts stored DC back to AC to supply the load or feed the grid.
  • Grid Synchronization: Ensures power output is matched in voltage, frequency, and phase with the grid.
  • Battery Management Communication: Works with BMS to control charging/discharging safely.

⚙️ Usage Areas:

  • Home and commercial solar + battery systems
  • Microgrids
  • EV charging stations with V2G (Vehicle to Grid)
  • UPS systems with grid-tie capability

⚡ What Is a PCS (Power Conversion System)?

A PCS, or Power Conversion System, is a more comprehensive solution. It usually includes bidirectional inverter functionality, plus additional components such as:

  • Grid-interfacing controller
  • Communication interfaces
  • Safety protections
  • Advanced energy management algorithms

✅ Functions of PCS:

  • Bidirectional Power Flow: Handles charging and discharging like a bidirectional inverter.
  • Energy Management: Integrates with EMS (Energy Management System) for dynamic power flow.
  • Power Quality Control: Manages frequency, reactive power, and voltage.
  • Multi-port Control: Can connect multiple DC sources (PV, battery, etc.).
  • Islanding and Black Start: Supports off-grid operation and black start capability.

⚙️ Usage Areas:

🆚 Key Differences Between Bidirectional Inverter and PCS

Bidirectional Inverter vs PCS
FeatureBidirectional InverterPCS (Power Conversion System)
Basic FunctionConverts power between AC and DC both waysIncludes bidirectional inverter + smart control
Control FeaturesBasic grid sync and charge controlAdvanced control with EMS, grid support, PQ
Application LevelResidential / Small CommercialUtility / Industrial / Large BESS
Grid Services SupportLimitedYes – can provide FFR, voltage regulation
Communication ProtocolsBasic – BMS, inverterAdvanced – EMS, SCADA, Modbus, CAN, etc.
ExpandabilityLimitedScalable for multi-MW systems
CostLowerHigher due to additional features

🎯 Which One Should You Use?

Choose Bidirectional Inverter if:

  • You’re setting up a home or small commercial ESS.
  • You need basic backup power and solar integration.
  • Budget is limited and advanced control isn’t a priority.

Choose PCS if:

  • You’re deploying a grid-scale battery system.
  • You need integration with grid operations or islanding capabilities.
  • You require smart control, power quality management, or multiple energy inputs.

📌 Bidirectional Inverter vs PCS: Real-World Example

Home System with Bidirectional Inverter:
A solar home with a 10 kWh lithium battery uses a bidirectional inverter to charge the battery during the day and power the home at night. It synchronizes with the grid and works with a BMS.

Utility-Scale PCS Example:
A 2 MW/4 MWh battery system at a wind farm uses PCS to manage energy injection into the grid during peak demand, support frequency regulation, and provide backup during outages.

🧠 Bidirectional Inverter vs PCS: Final Thoughts

Both Bidirectional Inverters and PCS are essential in the shift toward smarter, more resilient power systems. However, understanding their differences in function, scale, and intelligence is crucial before choosing the right solution.

In summary:

  • Use Bidirectional Inverter for basic energy conversion and storage in smaller systems.
  • Use PCS for smart, scalable, and grid-integrated power management in large or complex setups.

Bidirectional Inverter vs PCS FAQ

Q1: Is PCS the same as a bidirectional inverter?

A: Not exactly. PCS includes a bidirectional inverter but also adds advanced control, grid services, and communication features.

Q2: Can I use PCS for residential use?

A: Technically yes, but it’s usually overkill in terms of cost and capability. A bidirectional inverter is more suitable.

Q3: What is the advantage of PCS in utility-scale projects?

A: PCS enables grid-forming functions, power quality control, and integrates with SCADA/EMS systems, which are essential for large energy operations.

Fuel Cells
Rahul jalthar

Fuel Cells: The Complete Guide — Types, Working Principles, Applications & Comparisons

/3 Comments/in /by

In the quest for a sustainable and decarbonized world, fuel cells have emerged as one of the most promising clean energy solutions. Unlike traditional combustion engines or fossil-fuel power plants, fuel cells generate electricity through an electrochemical reaction — producing only water and heat as by-products. This means zero local emissions and higher efficiency.

But did you know there are multiple types of fuel cells? Each type has unique working principles, temperature ranges, fuel requirements, and real-world applications — from powering laptops to buses, buildings, and even large-scale power plants.

In this comprehensive guide, we’ll explain how fuel cells work, break down the different types, show where they’re used, and compare them so you can see which is best for what purpose.

How Does a Fuel Cell Work?

At its core, a fuel cell converts chemical energy directly into electrical energy through an electrochemical reaction — similar to a battery, but it doesn’t run down or need recharging as long as fuel is supplied.

Basic working principle:

  • Fuel (like hydrogen, methanol, or natural gas) is supplied to the anode side.
  • Oxygen (from air) is supplied to the cathode side.
  • At the anode, the fuel splits into electrons and protons.
  • The electrolyte allows only the protons to pass through; the electrons flow through an external circuit, generating electricity.
  • At the cathode, the protons, electrons, and oxygen combine to form water and release heat.

Each fuel cell type uses different fuels, electrolytes, and operating temperatures, which impact performance, cost, and application.

Types of Fuel Cells Explained in Detail

1. Proton Exchange Membrane Fuel Cell (PEMFC)

✅ How it Works:
Uses a solid polymer membrane as the electrolyte. Hydrogen fuel splits at the anode into protons and electrons; the membrane allows only protons through while electrons generate electricity via an external circuit. Operates at relatively low temperatures (~60–80°C).

✅ Typical Uses:

  • Automobiles: hydrogen fuel cell cars (like Toyota Mirai, Hyundai NEXO)
  • Buses & trucks
  • Backup power for data centers and telecom towers
  • Portable power packs

✅ Advantages:

  • Fast start-up and shut-down
  • Lightweight and compact
  • Ideal for transportation

✅ Challenges:

  • Requires pure hydrogen (sensitive to impurities)
  • Expensive platinum catalyst needed

2. Solid Oxide Fuel Cell (SOFC)

✅ How it Works:
Uses a solid ceramic electrolyte that conducts oxygen ions. Operates at very high temperatures (600–1,000°C). Oxygen ions travel through the electrolyte to react with fuel (hydrogen or hydrocarbons) at the anode.

✅ Typical Uses:

  • Large-scale stationary power generation
  • Industrial combined heat and power (CHP)
  • Distributed generation for commercial buildings
  • Auxiliary power units for heavy-duty vehicles

✅ Advantages:

  • High electrical efficiency (up to 60%)
  • Can use various fuels: hydrogen, natural gas, biogas, syngas
  • Waste heat can be used for CHP, increasing total system efficiency to ~80–90%

✅ Challenges:

  • High operating temperature means long start-up times
  • Expensive ceramic materials and sealing technologies needed

3. Phosphoric Acid Fuel Cell (PAFC)

✅ How it Works:
Uses liquid phosphoric acid as the electrolyte. Operates at moderate temperatures (~150–220°C). Oxygen is supplied to the cathode, while hydrogen-rich fuel reacts at the anode.

✅ Typical Uses:

  • Commercial & industrial CHP
  • Hospitals, hotels, and office buildings
  • Distributed power generation where heat recovery is needed

✅ Advantages:

  • Proven technology with commercial installations worldwide
  • Good tolerance for fuel impurities
  • Efficient cogeneration of heat and power (overall efficiency ~70–80%)

✅ Challenges:

  • Lower electrical efficiency (~40–50%) than SOFC or PEMFC
  • Bulky and heavy compared to newer fuel cell technologies

4. Molten Carbonate Fuel Cell (MCFC)

✅ How it Works:
Uses a molten carbonate salt mixture as the electrolyte, operating at around 600–700°C. Carbon dioxide and oxygen are fed to the cathode where carbonate ions are formed, migrating through the electrolyte to react with hydrogen at the anode.

✅ Typical Uses:

  • Utility-scale power generation
  • Large industrial facilities
  • Industrial CHP systems

✅ Advantages:

  • Can use carbon-based fuels like natural gas or biogas directly
  • High electrical efficiency (~45–55%)
  • Waste heat usable for industrial processes

✅ Challenges:

  • High temperature requires durable materials and corrosion control
  • Complex CO₂ management and system design

5. Alkaline Fuel Cell (AFC)

✅ How it Works:
Uses an alkaline electrolyte (potassium hydroxide solution) and operates at low to medium temperatures (~60–90°C). Very efficient at splitting hydrogen and oxygen.

✅ Typical Uses:

  • Space missions (NASA’s Apollo and Space Shuttle used AFCs)
  • Military applications
  • Some portable or backup power solutions

✅ Advantages:

  • High efficiency (up to 70% in some cases)
  • Well-suited to pure hydrogen and oxygen environments

✅ Challenges:

  • Sensitive to CO₂ contamination — needs purified hydrogen and air
  • Limited commercial use outside niche applications

6. Direct Methanol Fuel Cell (DMFC)

✅ How it Works:
Uses a polymer electrolyte but runs directly on liquid methanol, eliminating the need for a fuel reformer. Methanol is oxidized at the anode to produce protons, electrons, and CO₂.

✅ Typical Uses:

  • Small portable electronics (laptops, military field equipment)
  • Backup power for telecoms
  • Remote monitoring stations

✅ Advantages:

  • Easy fuel storage and handling (liquid methanol)
  • Simpler system design compared to hydrogen-based fuel cells

✅ Challenges:

  • Lower efficiency than hydrogen fuel cells
  • Methanol is toxic and flammable — needs careful handling

7. Reversible Fuel Cell (RFC)

✅ How it Works:
Also known as regenerative fuel cells, these operate as both electrolyzers and fuel cells. In electrolyzer mode, they use surplus renewable electricity to split water into hydrogen and oxygen for storage. When electricity is needed, they operate as a fuel cell to convert stored hydrogen back into power.

✅ Typical Uses:

  • Renewable energy storage in microgrids
  • Off-grid or remote systems with variable energy supply
  • Long-duration storage solutions for excess solar/wind energy

✅ Advantages:

  • Combines hydrogen production and power generation in one unit
  • Ideal for integrating intermittent renewables

✅ Challenges:

  • Still emerging — efficiencies, cost, and durability need improvement
  • Complex system management to switch between modes

Comparison of Fuel Cell Types

Fuel Cell TypeOperating TempElectrolyteTypical FuelBest ForElectrical Efficiency
PEMFC60–80°CPolymer membranePure hydrogenCars, buses, backup power40–60%
SOFC600–1,000°CSolid ceramicHydrogen, natural gasLarge CHP, industrial50–60%
PAFC150–220°CPhosphoric acidHydrogen-richBuildings, CHP40–50%
MCFC600–700°CMolten carbonate saltNatural gas, biogasUtility power, CHP45–55%
AFC60–90°CAlkaline solutionPure hydrogenSpace, niche portable50–70%
DMFC20–90°CPolymer membraneLiquid methanolPortable power20–30%
RFCVariesVariousWater & hydrogenRenewable storage~40–50% (emerging)

Benefits and Challenges: A Quick Recap

✅ Benefits:

  • Zero local emissions (only water, heat, and some CO₂ for carbon-based fuels)
  • High fuel-to-electricity efficiency
  • Quiet operation
  • Scalable from milliwatts to megawatts
  • Compatible with renewable hydrogen production

⚡ Challenges:

  • Hydrogen infrastructure gaps (production, transport, storage)
  • Catalyst costs (especially platinum for PEMFC)
  • Durability and materials for high-temp systems
  • System complexity for reversible and hybrid applications

Final Thoughts

From zero-emission vehicles to backup power for hospitals and large industrial plants, fuel cells offer versatile, reliable, and scalable clean energy solutions. As green hydrogen production and fuel cell technologies advance, we can expect to see these systems powering more of our daily lives.

🌍 Fuel cells aren’t just the future — they’re here now, transforming transportation, industry, and our energy grids.

BIS certification
Rahul jalthar

Navigating the BIS Certification Process for Lithium-Ion Batteries in India

/1 Comment/in /by

When it comes to lithium-ion batteries, safety and quality are non-negotiable. In India, the Bureau of Indian Standards , BIS certification is mandatory for lithium-ion battery cells and packs under the Compulsory Registration Scheme (CRS). If you’re an importer, manufacturer, or startup in the battery space, understanding the BIS process can make or break your market entry.

In this post, we’ll break down:

  • The step-by-step process to get BIS certification for lithium-ion batteries,
  • The key documents and testing procedures you’ll need,
  • Expected timelines, and
  • The benefits of getting certified.

What is BIS Certification and Why Does It Matter?

BIS certification ensures that products meet Indian safety and quality standards. For lithium-ion batteries, this means compliance with IS 16046 (Part 1 & 2): 2018, which aligns with IEC 62133 standards for rechargeable battery cells and packs.

Without BIS certification:

  • Your products can’t be legally sold in India.
  • Non-compliance can result in heavy penalties, confiscation, or legal action.
  • Retailers and end-users won’t trust your brand.

In short, Bureau of Indian Standards certification is your license to operate and compete legally and credibly in the Indian market.

Step-By-Step Process for Obtaining BIS Certification

Let’s break down the process into actionable steps:

✅ Step 1: Understand Applicable Standards — The Foundation for BIS Success

Before you even think about testing or submitting paperwork, you must understand which BIS standard applies to your lithium-ion battery product. This is the most crucial first step — and surprisingly, it’s where many manufacturers and importers trip up.

Why Standards Matter

The BIS (Bureau of Indian Standards) doesn’t just issue random approvals. It certifies that your product conforms to a specific Indian Standard (IS), which defines the safety, performance, and reliability criteria it must meet.

For lithium-ion batteries, the key standard is:

  • IS 16046: Part 1 & Part 2 (2018), which is harmonized with IEC 62133, the international benchmark for secondary cells and batteries containing alkaline or other non-acid electrolytes.

What Exactly Does IS 16046 Cover?

Here’s the breakdown:

  • IS 16046 (Part 1): 2018 — Secondary cells and batteries containing alkaline or other non-acid electrolytes – Safety requirements for portable sealed secondary cells, and for batteries made from them, for use in portable applications.
    ✅ Use this for certifying lithium-ion cells.
  • IS 16046 (Part 2): 2018 — Safety requirements for lithium-ion battery packs assembled using certified cells.
    ✅ Use this for certifying battery packs or modules.

Real-World Example

✅ If you import or make 18650 or 21700 cylindrical cells, you certify the cells under IS 16046 Part 1.
✅ If you assemble these cells into a battery pack (say, for an electric scooter or energy storage system), you must certify the battery pack under IS 16046 Part 2, even if the cells are already BIS-certified.

Key Point:
👉 Certifying cells doesn’t automatically cover the pack — each level needs separate testing and registration.

Don’t Confuse Battery Types

Not all lithium-ion chemistries are covered under the same scope. The standard generally covers:

However, lithium metal primary batteries (like button cells) or unusual chemistries may have different or additional requirements.

Why This Step is Crucial

📌 If you choose the wrong standard, your testing lab may run incorrect tests, leading to test failures, wasted costs, and application rejections.

📌 Customs clearance can also be a nightmare if your product’s Standard Mark doesn’t align with the correct standard.

📌 You’ll be better prepared to explain your product in detail to BIS inspectors and labs — and avoid embarrassing or costly missteps.

✅ Quick Checklist for Step 1

✔️ Identify your product: Is it a cell, module, or pack?
✔️ Match it to the right standard (IS 16046 Part 1 or Part 2).
✔️ Read the standard (or get expert help) to know the tests and safety requirements.
✔️ Make sure your product design, materials, and manufacturing processes align with the standard BEFORE sending samples for testing.

🔍 Pro Tip

If you’re unsure, consult a BIS-approved testing laboratory or an experienced local certification consultant. A small upfront investment here can save you months of delays and thousands in retesting costs.

✅ Step 2: Appoint an Authorized Indian Representative (AIR)

If you’re an overseas manufacturer, you must appoint an Authorized Indian Representative to liaise with BIS on your behalf.

Why it’s important: Without an AIR, foreign brands can’t apply for registration. The AIR is your local bridge for communication, document submission, and compliance.

✅ Step 3: Prepare Required Documents

The BIS process is documentation-heavy. Typical documents include:

📌 Application form (Form VI under CRS)
📌 Manufacturing license and factory registration proof
📌 Authorized Indian Representative (AIR) nomination letter
📌 Product datasheets and circuit diagrams
📌 Factory layout and process flow chart
📌 Quality control plan and test reports (if any prior)
📌 Trademark registration certificate (if using a brand name)
📌 Undertaking and declaration forms

Why it’s important: Missing or inaccurate documents are the #1 reason for application rejections.

✅ Step 4: Product Sample Testing

Products must be tested at BIS-recognized labs in India. Here’s what happens:

1️⃣ Send your samples to the BIS-approved lab.
2️⃣ The lab conducts safety, performance, and quality tests as per IS 16046 standards.
3️⃣ The lab issues a test report valid for 90 days.

Common tests include:

  • Electrical tests (overcharge, over-discharge, short circuit)
  • Mechanical tests (vibration, impact)
  • Thermal tests
  • External short circuit and forced discharge tests

Why it’s important: Tests validate that your batteries won’t fail in real-life conditions. This is crucial for EVs, consumer electronics, and energy storage.

✅ Step 5: File the Online Application

Once you have the test reports, file your online application through the BIS portal. Attach all documents, including the test report.

Pay the application and registration fee online.

Why it’s important: Delays at this stage add weeks to your timeline if the submission is incomplete or incorrect.

✅ Step 6: BIS Assessment & Grant of License

BIS officers review your application. If they find gaps, they may request clarifications or additional documents.

If everything is in order:
✅ The BIS issues a Registration Certificate (RC).
✅ The RC is valid for 2 years and must be renewed before expiry.

Why it’s important: Only after you get the RC can you legally affix the BIS Standard Mark on your battery cells or packs.

Typical Timelines for BIS Certification

Here’s a rough timeline:

  • Document Preparation: 1–2 weeks
  • Sample Testing: 3–5 weeks
  • Application Review: 2–3 weeks
  • Total Time: 6–10 weeks (if all goes well!)

Delays often happen due to:

  • Missing documents
  • Test failures
  • Non-compliance with IS standards
  • High lab workloads

Benefits of BIS Certification for Lithium-Ion Batteries

Let’s not forget why this process is worth it:

✅ Ensures Product Safety: Prevents overheating, fires, or explosions—protects end-users and your brand.

✅ Builds Consumer Confidence: BIS-marked products are trusted by distributors and buyers. It shows your batteries meet India’s strictest standards.

✅ Legal Compliance: Avoids penalties, seizures, or customs rejections.

✅ Market Competitiveness: BIS certification is a market differentiator. Buyers prefer certified suppliers.

✅ Unlocks Partnerships: Many B2B clients and government tenders mandate BIS-certified products.

Pro Tips for a Smooth BIS Process

✔️ Partner with an experienced local consultant or lab.
✔️ Plan extra samples—tests can damage units.
✔️ Keep your documents updated.
✔️ Stay on top of BIS amendments. Standards may change!
✔️ Never skip quality control. BIS can conduct factory audits.

Final Thoughts

Navigating the BIS certification process for lithium-ion batteries in India may feel daunting, but the payoff is clear: safer products, legal compliance, and a competitive edge in one of the world’s fastest-growing battery markets.

If you’re ready to get Bureau of Indian Standards certified, don’t cut corners. Prepare thoroughly, test diligently, and partner with trusted experts who understand the local regulatory landscape.

BMS (Battery Management System)
Rahul jalthar

🛠️ BMS Explained: Real-Time Monitoring, Key Protections, and SOC/SOH Algorithms

/in , /by

In the age of electric vehicles, solar energy storage, and portable power, batteries are everywhere. However, they don’t work efficiently—or safely—on their own. That’s where the Battery Management System (BMS) steps in.

A BMS monitors, protects, and optimizes battery operation. In this guide, we’ll break down how a BMS works, what makes it essential, and how it improves battery safety and performance.

Let’s begin with the basics.

🔍 What Is a BMS (Battery Management System)?

A Battery Management System (BMS) is an electronic controller found in nearly every advanced battery pack. Whether in electric scooters or solar home systems, the BMS performs several important tasks:

  • It monitors battery health and performance.
  • It protects the battery from unsafe conditions.
  • It balances cells to maintain consistency.
  • It calculates key values like State of Charge (SOC) and State of Health (SOH).
  • It communicates with other devices and controllers.

In short, it acts as the brain behind the battery.

📈 BMS Real-Time Monitoring: Constant Awareness, Constant Safety

At the heart of every BMS is real-time monitoring. This feature continuously checks the condition of the battery, ensuring it remains within safe and efficient operating limits.

Here’s what it tracks:

🔋 Voltage Monitoring

Each battery cell has a safe voltage range. The BMS monitors individual cell voltages and the total pack voltage. Even a small voltage imbalance can reduce performance or cause damage.

➡️ Why it matters: It helps avoid overcharging or over-discharging, which can permanently damage cells.

⚡ Current Monitoring

By measuring the charging and discharging current, the BMS keeps track of how much energy is moving in or out of the battery.

➡️ Why it matters: It prevents dangerous current spikes and helps calculate the battery’s remaining energy.

🌡️ Temperature Monitoring

Battery temperature is closely watched using thermal sensors. Too much heat or cold can cause big problems.

➡️ Why it matters: If a battery gets too hot, it can overheat or even catch fire. Monitoring temperature helps avoid this.

🛡️ BMS Protection Features: Preventing Damage Before It Happens

Real-time monitoring is helpful, but monitoring alone isn’t enough. The BMS also responds when things go wrong. It includes four core protection mechanisms, each with a specific safety role.

1. ✅ Over Voltage Protection (OVP)

If a battery is charged beyond its safe limit, chemical reactions inside the cells can become unstable.

➡️ Why it matters: OVP prevents this by stopping charging when voltage gets too high. This protects the cells and keeps them from overheating.

2. ❌ Under Voltage Protection (UVP)

If voltage drops too low during discharge, cells can be permanently damaged.

➡️ Why it matters: UVP shuts down the battery before damage occurs. It helps protect capacity and extends battery life.

3. 🌡️ Over Temperature Protection (OTP)

Charging or discharging at extreme temperatures can harm the battery.

➡️ Why it matters: OTP stops activity when the battery is too hot or cold. This ensures safe operation in every condition.

4. ⚠️ Short Circuit Protection (SCP)

If a short circuit occurs, current can spike instantly. This can lead to fire or explosion.

➡️ Why it matters: SCP reacts in microseconds to cut off power, preventing serious accidents.

⛽️ State of Charge (SOC): How Much Energy Is Left?

Think of SOC as the battery’s fuel gauge. It tells you how much usable energy remains, usually shown as a percentage (like 75% or 50%).

How SOC is calculated:

  • Coulomb counting: Tracks how much current flows in and out.
  • Voltage-based estimation: Uses resting voltage as an indicator.
  • Temperature-corrected models: Account for heat effects on performance.

➡️ Why it matters: Knowing SOC helps you avoid running out of battery unexpectedly. It also prevents overcharging, which protects the battery.

🧬 State of Health (SOH): Is the Battery Aging?

While SOC tells you the current charge, SOH tells you how healthy the battery is overall. It measures how much the battery has degraded over time.

SOH is based on:

  • Charge capacity fade
  • Internal resistance increase
  • Temperature behavior over time
  • Number of charging cycles

➡️ Why it matters: A battery may charge fully but still not perform like new. SOH lets users know when a battery is aging or needs replacement. It’s also useful for warranties and service checks.

⚖️ Cell Balancing: Keeping Every Cell in Sync

While monitoring and protection are essential, a truly effective Battery Management System also performs cell balancing. This function ensures that all individual cells within the battery pack maintain equal voltage levels.

Over time, slight differences in cell chemistry, resistance, or temperature cause some cells to charge faster or slower than others. Left unchecked, this leads to performance drops and early aging.

📌 What Is Cell Balancing?

Cell balancing equalizes the voltage of each cell, improving pack efficiency and lifespan.

There are two main types:

1. 🔋 Passive Balancing

In passive balancing, extra energy from higher-voltage cells is burned off as heat using resistors.

  • ✅ Simple and low-cost
  • ✅ Common in consumer electronics
  • ❌ Less efficient due to energy loss

2. ⚡ Active Balancing

Active balancing redistributes charge from more charged cells to less charged ones, using inductors, capacitors, or switch networks.

  • ✅ Higher efficiency
  • ✅ Extends battery life
  • ✅ Suitable for EVs, BESS, drones
  • ❌ More complex and expensive

🧠 Why Balancing Matters

Balancing is critical because even small voltage mismatches between cells can lead to:

  • Uneven charging
  • Reduced usable capacity
  • Early triggering of safety cutoffs
  • Accelerated aging in weaker cells

By balancing cells, the BMS ensures every cell contributes equally—maximizing safety, performance, and battery lifespan.

⚙️ Where BMS Is Used

You’ll find BMS systems in many places, including:

🚗 Electric Vehicles

☀️ Solar Energy Storage

  • Regulates battery banks for homes and businesses
  • Prevents overcharging from solar input
  • Ensures reliable power at night or during outages

📱 Portable Devices

  • Protects battery in phones and laptops
  • Extends device life and charge cycles
  • Ensures safety during fast charging

🧠 Final Thoughts: Why Every Battery Needs a BMS

Batteries are powerful, but they are also sensitive. Without a Battery Management System, they would fail faster—and sometimes dangerously. With features like:

  • Real-time monitoring
  • Over-voltage, under-voltage, temperature, and short-circuit protections
  • SOC and SOH calculations
  • Cell balancing for efficiency and safety

…a BMS ensures that the battery stays safe, efficient, and long-lasting.

If you’re using or building battery-powered systems, never ignore the importance of a well-designed BMS. It’s the hidden engine behind every reliable energy solution.

🤛 BMS Frequently Asked Questions

Q1: Can I use batteries without a BMS?

➡️ Technically yes, but it’s risky. A BMS prevents overheating, damage, and accidents.

Q2: What type of batteries use a BMS?

➡️ Mostly lithium-based batteries (like Li-ion or LiFePO4), but other chemistries can also benefit.

Q3: Can a BMS extend battery life?

➡️ Absolutely. By balancing cells, protecting from damage, and avoiding extreme conditions, a BMS helps batteries last longer.

Q4: How accurate is the SOC reading?

➡️ Accuracy depends on the BMS algorithm, temperature conditions, and battery type. Premium systems can be highly precise.

iFePO4 datasheet metrics
Rahul jalthar

Beyond Price: How to Evaluate cells Value by LiFePO4 Datasheet Metrics

/1 Comment/in /by

LiFePO4 datasheet metrics: When buying LiFePO4 (Lithium Iron Phosphate) battery cells, many people only look at the price. But just going for the cheapest option can lead to problems later — like poor performance, short battery life, or safety risks.

If you want a battery that’s reliable, lasts long, and suits your needs, you must check the datasheet carefully. The datasheet is like a report card — it tells you what the battery can really do.

In this blog, we’ll explain how to read a LiFePO4 battery datasheet in simple words and how to use that information to find the best value — not just the lowest price.

✅ What Is a Battery Datasheet?

A battery datasheet is a technical document provided by the manufacturer. It includes important numbers and details that tell you how the battery works — like how much power it gives, how long it lasts, how hot it can get, and how safe it is.

If you can read these details, you can avoid low-quality or fake cells and choose the right one for your project.

🔍 Important LiFePO4 Datasheet Metrics (Explained in Simple Words)

Here are the main things to look for in a datasheet and what they really mean:

⚡ 1. Nominal Capacity (Ah)

  • What It Means: This tells you how much energy the battery can store.
  • Measured In: Ampere-hours (Ah)
  • Why It Matters: The higher the number, the more energy the cell can provide before it needs charging again.
  • Tip: Make sure it matches what you need. For example, a 100Ah battery gives more backup than a 50Ah battery.

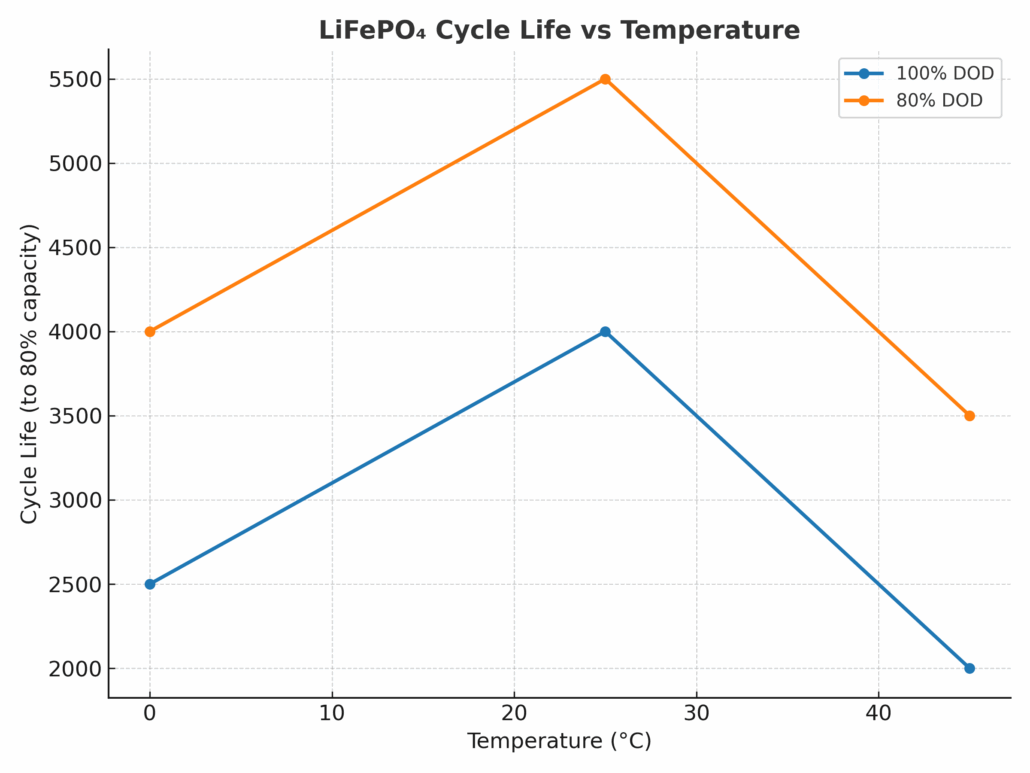

🔁 2. Cycle Life

  • What It Means: How many times the battery can be charged and discharged before it loses most of its capacity.
  • Measured As: Number of full cycles until the battery drops to 80% of its original capacity.
  • Why It Matters: More cycles = longer life. A battery with 4,000 cycles will last much longer than one with 1,000 cycles.

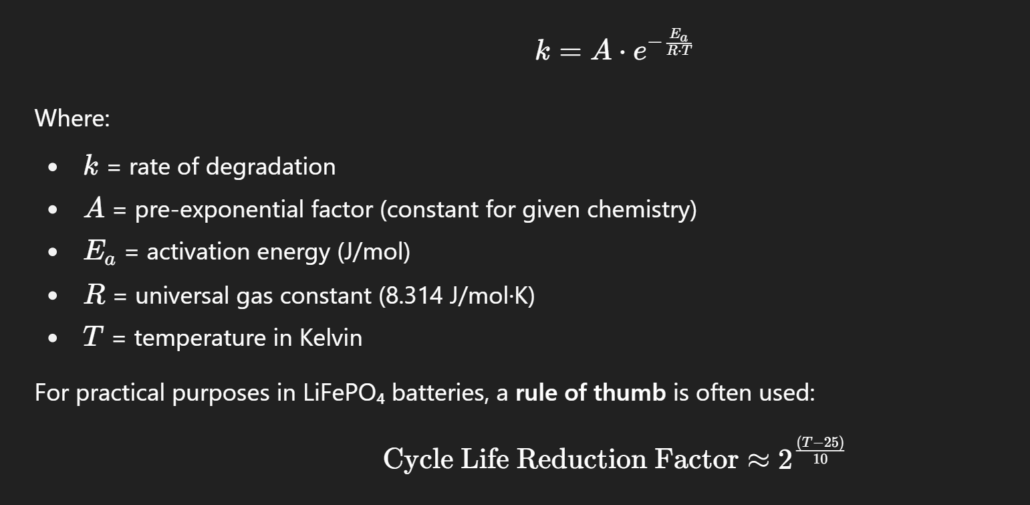

📝 Always check the conditions under which the cycle life was tested — at what temperature, at what depth of discharge (DOD), and at what current rate?

🔌 3. Internal Resistance (IR)

  • What It Means: How hard it is for electricity to move inside the battery.
  • Measured In: Milliohms (mΩ)
  • Why It Matters: Lower resistance is better. It means the battery can deliver power more easily and stays cooler.
  • Tip: Batteries with high internal resistance waste energy and get hot during use.

🔋 4. Discharge Current (Continuous & Peak)

  • What It Means:
    • Continuous discharge is the amount of current the battery can give steadily.
    • Peak discharge is the highest current it can give for a short time.
  • Why It Matters: If you need the battery to run high-power devices (like motors or inverters), it must handle high discharge currents without damage.

🔺 Choosing a battery with low discharge ratings for high-load projects can lead to overheating and failure.

🔍 5. Charge Voltage and Cutoff Voltage

  • What It Means: These are the highest and lowest voltages at which the battery should operate.
  • Why It Matters: If the voltage goes outside this range, the battery can get damaged or unsafe.
  • Tip: Make sure your charger and BMS (Battery Management System) follow these limits.

🌡️ 6. Operating Temperature Range

  • What It Means: The safe temperature range for charging and discharging the battery.
  • Why It Matters: If the battery is used in very hot or cold conditions outside the range, it might stop working or get damaged.
  • Typical Range:
    • Charging: 0°C to 45°C
    • Discharging: -20°C to 60°C

❄️ Never charge LiFePO4 cells below 0°C — it can cause lithium plating, which damages the cell permanently.

🔋 7. Self-Discharge Rate

  • What It Means: How quickly the battery loses charge when it’s not being used.
  • Why It Matters: A good-quality LiFePO4 battery should hold charge for months. If it discharges quickly, it may be old or low quality.

✅ 8. Certifications

💡 Real-World Example: Why Price Isn’t Everything

Let’s say you are comparing two cells:

FeatureCell ACell B
Price per Cell$85$65
Capacity100Ah100Ah
Cycle Life4,000 cycles2,000 cycles
Usable Energy100Ah × 3.2V × 80% × 4,000 = 1,024 kWh512 kWh
Cost per kWh$0.083$0.127

📌 Conclusion: Even though Cell B is cheaper at first, Cell A gives twice the energy over its life and ends up costing you much less in the long run.

🚨 Warning Signs in a Bad LiFePO4 datasheet metrics

  • ❌ Missing test conditions (e.g., no info on how cycle life was tested)
  • ❌ Unrealistic claims like “10,000 cycles” with no proof
  • ❌ No certifications or safety reports
  • ❌ Different values shown for the same model on different documents

💬 FAQs about LiFePO4 datasheet metrics

Q1: What if the LiFePO4 datasheet has no cycle life info?

A: That’s a red flag. Reliable suppliers always share cycle life test results.

Q2: Can I test internal resistance myself?

A: Yes. Use a battery IR tester. You can compare it with the datasheet to check if it matches.

Q3: Why does the same capacity battery have different prices?

A: Because of quality, grade (A or B), certifications, and performance specs. Price doesn’t tell the full story.

🏁 Final Thoughts

When buying LiFePO4 batteries, don’t just ask, “How much does it cost?”

Instead, ask:

  • How long will it last?
  • Is it safe?
  • Will it work well in my system?
  • Does the datasheet match the performance I need?

📘 The LiFePO4, battery datasheet, battery safety, battery grading, energy storage, EV batteries, cycle life, internal resistancet gives you the answers. Learn how to read it — and you’ll make better, safer, and more cost-effective decisions.

LiFePO4 battery testing
Rahul jalthar

Demystifying LiFePO4 Battery Testing: How Manufacturers Grade Their Cells

/1 Comment/in /by

LiFePO4 battery testing: LiFePO4 batteries have become the backbone of energy storage systems, from solar power banks to electric vehicles. But did you know that behind every “Grade A” label is an extensive, complex process of testing, sorting, and grading? This blog post takes you inside the factory to reveal how manufacturers test LiFePO4 cells, what parameters matter most, and why standardized grading remains a challenge.

LiFePO4 battery testing-process

Introduction to Battery Manufacturing QC for LiFePO4 Battery Testing

In any reputable LiFePO4 cell factory, Quality Control (QC) is the beating heart of the operation. The manufacturing process includes multiple checkpoints — from raw material inspection to final cell testing. Even the best production lines produce cells with slight variations. These variations affect performance, safety, and lifespan, which is why proper grading is essential.

Grading helps ensure that cells with similar performance characteristics are grouped together. This is vital for applications like energy storage systems (ESS), where mismatched cells can cause premature failure or reduced efficiency.

LiFePO4 Battery Testing Parameters: What Gets Checked?

Let’s break down the most critical parameters manufacturers measure when grading LiFePO4 cells.

1. Capacity (Ah)

Capacity is the total amount of charge a cell can store, typically measured in ampere-hours (Ah). Manufacturers run charge-discharge cycles to verify that the cell meets or exceeds its rated capacity — usually within ±2% for Grade A cells. Cells that fall slightly below the spec can get downgraded to Grade B or C.

2. Internal Resistance (IR)

Internal resistance affects how well a battery can deliver current. High IR means greater energy losses and more heat during use. Cells with lower IR are preferred for applications requiring high power output. Manufacturers test IR at different temperatures to ensure stability.

3. Voltage Matching

Cells are sorted based on their open-circuit voltage (OCV) to ensure that packs built from multiple cells stay balanced. Cells with mismatched voltages can lead to uneven charge/discharge cycles and reduce overall pack life.

4. Self-Discharge Rate

A cell’s self-discharge rate determines how quickly it loses charge when not in use. Excessive self-discharge indicates internal defects or impurities, which can compromise performance and safety.

LiFePO4 battery testing-process

Cycle Life Testing Protocols: How Long Will It Last?

One of the biggest selling points of LiFePO4 is its long cycle life — often 2,000–6,000 cycles. But how is this tested?

Manufacturers perform accelerated cycle life tests. Cells are charged and discharged repeatedly at defined C-rates (charge/discharge rates) and ambient temperatures. They measure capacity fade over time. A high-quality Grade A cell should retain at least 80% of its original capacity after the specified number of cycles.

Due to time constraints, manufacturers often rely on statistical sampling and predictive modeling rather than testing every cell for thousands of cycles.

Safety Tests: Beyond Performance

LiFePO4 is one of the safest lithium-ion chemistries, but that doesn’t mean safety tests are skipped.

Common safety tests include:

Cells that fail safety tests are immediately rejected or downgraded for less demanding applications.

The “Defect Rate” and How Grade B/C Cells Are Created

No production line is perfect. Even leading manufacturers have a defect rate — usually 3–5% — where cells fall outside the ideal performance window.

Grade B cells: Slightly lower capacity or higher IR than Grade A, but still usable for less critical applications like budget power banks or backup systems.

Grade C cells: Significant deviations or borderline defects. Often sold at a deep discount for non-critical uses or recycling. These should never be used in high-demand or mission-critical projects.

Some unscrupulous sellers remarket Grade B or C cells as Grade A, so it’s crucial to buy from trusted suppliers with traceable testing data.

LiFePO4 Battery Testing: Why Standardized Grading is a Challenge

One frustrating reality in the LiFePO4 market is the lack of a global standard for grading. Different factories may use slightly different thresholds for what they call Grade A, B, or C.

Factors like:

  • Local production tolerances
  • Variations in test equipment
  • Sampling size
  • Batch-specific conditions

…all mean that “Grade A” from one supplier might be closer to “Grade B” by another’s standards.

For buyers, this makes third-party testing and working with reputable suppliers essential. A cell’s data sheet should always come with original test reports showing capacity, IR, and other key parameters.

Final Thoughts: Stay Informed, Source Smart

Demystifying LiFePO4 cell grading is about understanding the science behind your battery pack. When you know what goes into the tests — capacity, IR, voltage, cycle life, and safety — you can better evaluate what you’re buying.

✅ Always ask for factory test reports.
✅ Buy from suppliers who are transparent about their QC processes.
✅ Match your project’s needs with the right cell grade.

A few extra dollars spent on verified Grade A cells can save you massive headaches, costly replacements, or even safety risks down the line.

LiFePO4 Battery Testing FAQs

Q: How do I know if a LiFePO4 cell is really Grade A?

A: Always request factory test reports showing capacity, internal resistance, voltage, and cycle life data.

Q: Are Grade B cells safe to use?

A: They can be safe for low-demand applications but avoid using them in critical systems like off-grid solar storage or EVs.

Q: Why do some sellers mislabel cells?

A: To maximize profit. Unscrupulous sellers can mix Grade B/C cells into Grade A batches to cut costs.

Low-Grade LiFePO4 Cells
Rahul jalthar

The Hidden Dangers of Low-Grade LiFePO4 Cells: Don’t Get Scammed!

/1 Comment/in /by

The growing popularity of LiFePO4 (Lithium Iron Phosphate) batteries in solar energy storage, RVs, and off-grid setups has brought a flood of suppliers into the market. It’s tempting, especially for DIYers and budget-conscious buyers, to grab the cheapest deal. But beware — that bargain pack of cells labeled “Grade A” at suspiciously low prices might actually be low-grade or even rejected cells. The short-term savings could cost you big in the long run. how to protect from Battery Scam?

The Trap: Why Cheap Batteries Can Cost You More

There’s a reason reputable suppliers and certified manufacturers charge more for Grade A LiFePO4 cells. High-quality cells are rigorously tested for consistency in capacity, internal resistance, cycle life, and safety. Low-grade or Grade C cells often fail these tests — they’re the factory rejects, excess stock, or even refurbished cells passed off as new.

Unscrupulous sellers know that most buyers can’t test cells themselves. They slap a “Grade A” sticker on low-quality cells and move inventory fast. Once the battery pack fails or causes problems, it’s too late.

Performance Issues: The Hidden Cost of Low-Grade Cells

1. Unexpected Capacity Drops:
Low-grade cells often have inconsistent capacity ratings. You might think you’re getting 100Ah, but in real-world use, you may only get 70–80% of the advertised capacity — if that.

2. Inconsistent Power Output:
Cells with mismatched internal resistance or degraded chemistry can’t deliver stable power. You’ll notice fluctuations, poor performance under load, or even sudden shutoffs — not ideal if you rely on your batteries for critical energy needs.

Safety Hazards: A Risk You Shouldn’t Ignore

LiFePO4 batteries are known for their thermal stability — they’re among the safest lithium chemistries out there. But when cells are low-grade, damaged, or have internal defects, safety goes out the window.

Overheating & Swelling: Poor-quality cells are more prone to swelling due to gas buildup. They can overheat during charging or discharging, increasing the risk of thermal runaway.

Fire Risks: While rare for good LiFePO4, there have been documented incidents where cheap, poorly made cells caught fire because of internal short circuits.

Shortened Lifespan and Financial Losses

Imagine spending hundreds or thousands of dollars to build or buy a battery bank, only to have cells fail after a few months. Low-grade cells can lose capacity rapidly, dropping below usable levels in a fraction of the cycles you’d get from genuine Grade A cells.

What’s worse, a single bad cell can drag down an entire battery pack — meaning you may have to replace the whole thing. So, that “cheap” deal can turn into double or triple the cost over time.

How to Protect Yourself: Smart Buying Steps

Don’t get scammed — here’s how to safeguard your project and your wallet:

✅ Do Your Due Diligence: Research suppliers thoroughly. Check reviews, forums, and independent test reports.

✅ Verify Supplier Claims: Reputable sellers will share the factory test reports, including capacity, internal resistance, and cycle life data. Don’t hesitate to ask.

✅ Look for Certifications: Ensure the cells meet international safety standards like UN38.3, IEC, or UL certifications.

✅ Inspect on Arrival: Check the physical condition of cells. Look for dents, swelling, corrosion, or mismatched labels.

✅ Run Your Own Tests: If you have the tools, test cells for capacity and internal resistance before building your pack.

✅ Work with Trusted Partners: Sometimes it’s worth paying a local representative or battery expert to vet suppliers and inspect shipments, especially for bulk orders.

Real-World Examples: When Cheap Batteries Go Bad

🔍 Case in Point:
A small off-grid community bought a pallet of “Grade A” LiFePO4 cells from an unknown online supplier. Within six months, over 40% of the cells were swollen and underperforming. When they tried to claim a warranty, the seller disappeared. They ended up paying twice — once for the junk cells, and again for new, certified replacements.

🔍 Another Example:
A DIYer on a popular solar forum shared photos of cells they’d bought at a discount. They discovered old weld marks under the heat shrink — the cells were clearly recycled from old packs. This can pose both performance and safety issues.

Final Thoughts: Spend Smart, Not Cheap

LiFePO4 batteries are a great investment — but only if you buy quality. When it comes to energy storage, you truly get what you pay for. A cheap battery today can become a costly, even dangerous headache tomorrow.

So, be cautious. Ask questions. Demand data. And when in doubt, remember: a trusted supplier might cost more upfront, but they’ll save you thousands in headaches down the road.

Frequently Asked Questions

Q: Are all Chinese LiFePO4 cells low-grade?

A: No! China is the world’s leading manufacturer of high-quality LiFePO4 cells. The key is buying from reputable factories and verified suppliers.

Q: How can I tell if a cell is Grade A or C?

A: Without testing, it’s hard. That’s why factory test reports, supplier transparency, and independent verification matter so much.

Q: Is buying refurbished or used cells ever worth it?

A: For non-critical applications, maybe. But always expect lower performance and a shorter lifespan — and never use them for applications where reliability is crucial.

Charging temperature for batteries
Rahul jalthar

Charging Temperature: The Overlooked Factor in Battery Datasheets

/2 Comments/in /by

Charging temperature for batteries: When you read a lithium-ion cell datasheet, you’ll usually find a line that states:

“Operating Temperature: -20°C to 60°C.”

Most people take this to mean they can safely charge and discharge the battery anywhere within this range. But here’s the catch — this ‘operating temperature’ often applies only to discharge. In reality, charging temperature limits are much narrower, and charging a battery at too low a temperature can lead to permanent damage, poor performance, or even safety hazards.

Let’s unpack why charging temperature is so critical — and why most cell datasheets don’t clearly show the minimum or maximum charging current at low temperatures.

Why Temperature Matters More for Charging than Discharging

Chemical Reactions Are Temperature Sensitive

Batteries store and release energy through electrochemical reactions. When discharging, the battery’s internal resistance and chemical kinetics can handle lower temperatures reasonably well — albeit with reduced capacity.

But charging is different: at low temperatures, the lithium ions move more slowly and can deposit as metallic lithium on the anode surface instead of intercalating into the graphite layers. This is called lithium plating, and it’s a big problem.

What Is Lithium Plating — and Why Should You Care?

  • Safety Risk: Plated lithium can form dendrites that pierce the separator, leading to internal short circuits.
  • Capacity Loss: Once lithium plates, it often cannot be recovered, permanently reducing battery capacity.
  • Performance Issues: Cells with lithium plating can show increased impedance and reduced power output.

In short, charging at temperatures below the manufacturer’s recommended minimum can destroy your battery, even if it works fine during discharge.

What Datasheets Usually Show (and What They Don’t)

Typical ‘Working Temperature Range’

Most cell datasheets provide a simple table:

ParameterRange
Operating Temperature-20°C to 60°C
Storage Temperature-20°C to 45°C

Here’s the issue:

  • The ‘Operating Temperature’ mostly reflects the discharge range, since discharging is more forgiving.
  • The recommended charging temperature range is narrower, often 0°C to 45°C for typical lithium-ion cells.
  • Many datasheets don’t list charging current limits at specific low temperatures, which can mislead inexperienced designers or end-users.

Why Charging Current Specs Are Missing

There are a few reasons:
✅ Simplicity: Datasheets are general-purpose and aim to cover a wide range of use cases.
✅ System-Level Responsibility: It’s expected that system integrators will design a Battery Management System (BMS) to enforce proper charging limits.
✅ Testing Constraints: It’s impractical for cell makers to test and specify safe charge currents for every temperature point.

However, high-quality battery packs, EVs, or energy storage systems will always have a BMS with temperature sensors that adjust or cut off charging below safe levels.

How to Interpret the Datasheet Correctly

When you see:

“Operating Temperature: -20°C to 60°C”

Remember:
✅ Discharge: -20°C to 60°C is possible.
✅ Charge: Typically 0°C to 45°C.

Always check if the datasheet has a line like:

“Charging Temperature: 0°C to 45°C”
or a separate graph showing charging current vs. temperature. If it doesn’t, follow standard battery chemistry best practices — and build your BMS to protect the cells.

Charging temperature for batteries

Best Practices for Safe Charging at Low Temperatures

  • Use a Good BMS: It must prevent charging below the minimum safe temperature (often 0°C).
  • Pre-Heat When Necessary: In cold climates, electric vehicles and energy storage systems use heaters to bring battery packs up to a safe charging temperature.
  • Reduce Charge Current: If you must charge slightly below the recommended temperature, reduce current to mitigate lithium plating risk — but always follow manufacturer guidance.
  • Monitor and Test: In critical applications, add redundant sensors and logs to track battery health.

Final Thoughts

Charging temperature is often overlooked — until it’s too late. Understanding that the ‘working temperature’ range in a cell datasheet is usually for discharge, not charge, is key to protecting battery performance and lifespan.

Always design your system to account for real-world conditions, and never assume that what works for discharge is safe for charge. After all, a healthy battery is a happy battery — and it all starts with respecting temperature limits.

FAQ: Charging Temperature for Batteries

Q1: Why do manufacturers focus more on discharge temperature?

Discharging is generally safer across wider temperatures, while charging at low temperatures can cause irreversible damage. So the ‘headline’ working range is more about discharge capability.

Q2: Can I charge a lithium-ion battery at -10°C if I use a very low current?

In theory, slower charging reduces plating risk, but it’s still not recommended without manufacturer approval. Always stick to the specified minimum charging temperature.

Q3: How do electric vehicles handle low-temperature charging?

Most EVs have battery heaters that pre-warm the cells to reach a safe temperature range before fast charging begins.

Q4: Does fast charging make the problem worse?

Absolutely. Higher currents increase the risk of lithium plating at lower temperatures. Smart BMS systems reduce charge rates or stop charging altogether if it’s too cold.
