Types of Energy Storage Systems

What is Energy Storage Systems? Types of Energy Storage Systems

Introduction: The Growing Importance of Energy Storage Systems

Renewable energy is transforming the way we generate power, but sources like solar and wind are variable by nature. To make them reliable, we need Energy Storage Systems (ESS) that capture energy when it’s abundant and release it when demand is high.

At Sunlith Energy, we focus on Battery Energy Storage Systems (BESS) and advanced technologies that ensure stability, cost efficiency, and resilience across commercial, industrial, and utility sectors.


What is an Energy Storage System?

An Energy Storage System (ESS) stores energy for later use, bridging the gap between production and consumption. ESS plays a vital role in:

  • Balancing supply and demand
  • Reducing grid instability
  • Enhancing renewable energy integration
  • Lowering energy costs for businesses and communities
  • Providing emergency backup power

👉 If you’re considering storage solutions for your business, explore our C&I BESS applications to see how energy storage delivers long-term value.

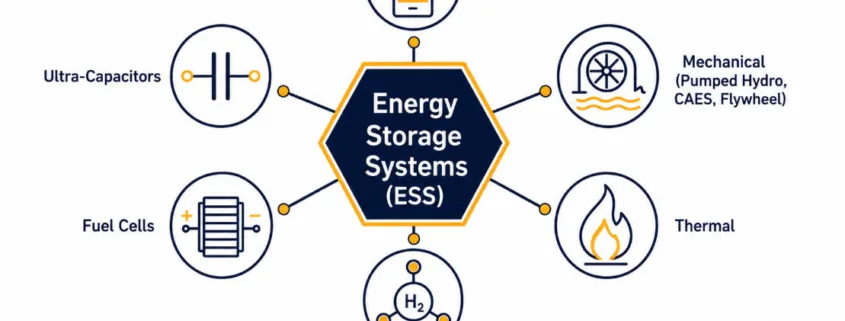

Types of Energy Storage Systems

Types of Energy Storage Systems

There are several types of ESS, each with unique strengths, technologies, and applications. Let’s look at them in detail:


1. Battery Energy Storage Systems (BESS)

Battery Energy Storage Systems are the most common type of ESS, offering high efficiency and scalability.

  • Lithium-ion batteries – Industry standard; compact, efficient, and widely used in renewable energy storage and electric vehicles.
  • Lead-acid batteries – Affordable but lower cycle life, used in smaller-scale applications.
  • Flow batteries – Store energy in liquid electrolytes, ideal for long-duration storage.

👉 Learn the difference between BESS and ESS to understand their unique roles.


2. Mechanical Energy Storage

Mechanical systems store energy using physical movement or potential energy.

  • Pumped Hydro Storage (PHS) – Uses water pumped uphill and released to generate electricity; highly mature technology.
  • Compressed Air Energy Storage (CAES) – Stores compressed air in underground caverns and releases it to drive turbines.
  • Flywheels – Store kinetic energy in a spinning rotor, providing instant power and rapid response.

3. Thermal Energy Storage Systems

Thermal ESS captures and stores energy in the form of heat or cold.

  • Molten Salt – Stores solar heat for electricity generation even after sunset.
  • Ice Storage – Produces and stores ice during off-peak hours for cooling buildings.
  • Phase Change Materials (PCMs) – Absorb or release heat during phase transitions, providing stable temperature control.

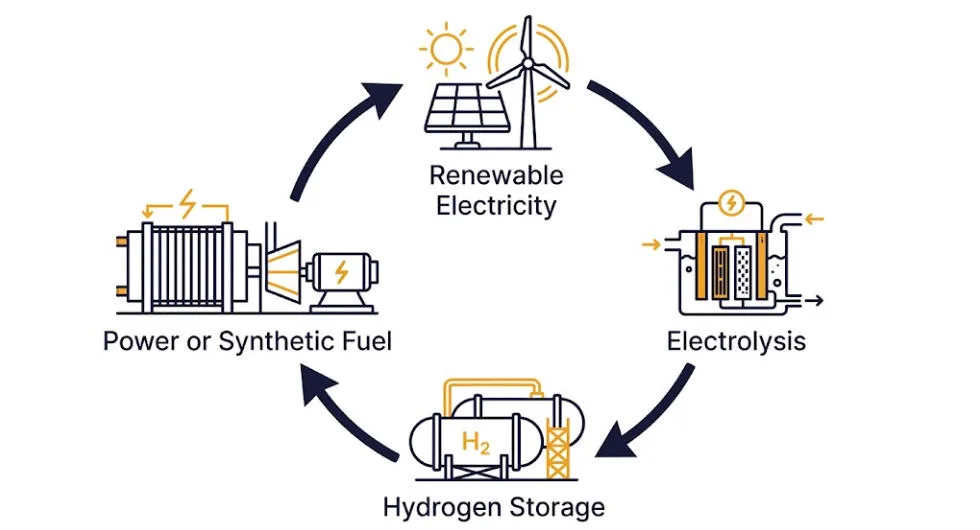

4. Hydrogen and Power-to-X Storage

Hydrogen is a promising long-duration storage solution.

  • Electrolysis converts renewable electricity into hydrogen.
  • Hydrogen can be stored and later used in fuel cells, combustion turbines, or converted into synthetic fuels.
  • Enables sector coupling (electricity, heating, mobility).

5. Fuel Cells

Fuel cells are not traditional storage devices, but they play a key role in energy conversion.

  • They use hydrogen or other fuels to produce electricity through electrochemical reactions.
  • Highly efficient and scalable for backup, mobility, and grid support.
  • When paired with hydrogen storage, they form a clean and reliable energy cycle.

6. Ultra-Capacitors (Supercapacitors)

Ultra-capacitors store energy electrostatically rather than chemically, unlike batteries.

  • Provide fast charging and discharging cycles.
  • Best for short bursts of high power (e.g., voltage stabilization, regenerative braking).
  • Typically used as a complement to batteries, not a replacement.

7. Emerging & Hybrid Energy Storage Systems

Modern ESS solutions are increasingly hybrid, combining different technologies to optimize performance. For example:

  • Battery + Ultra-capacitor systems for both long-duration storage and fast response.
  • Thermal + hydrogen storage for flexible renewable integration.

👉 At Sunlith Energy, we design storage systems that meet diverse needs while complying with UL Certifications and global safety standards.

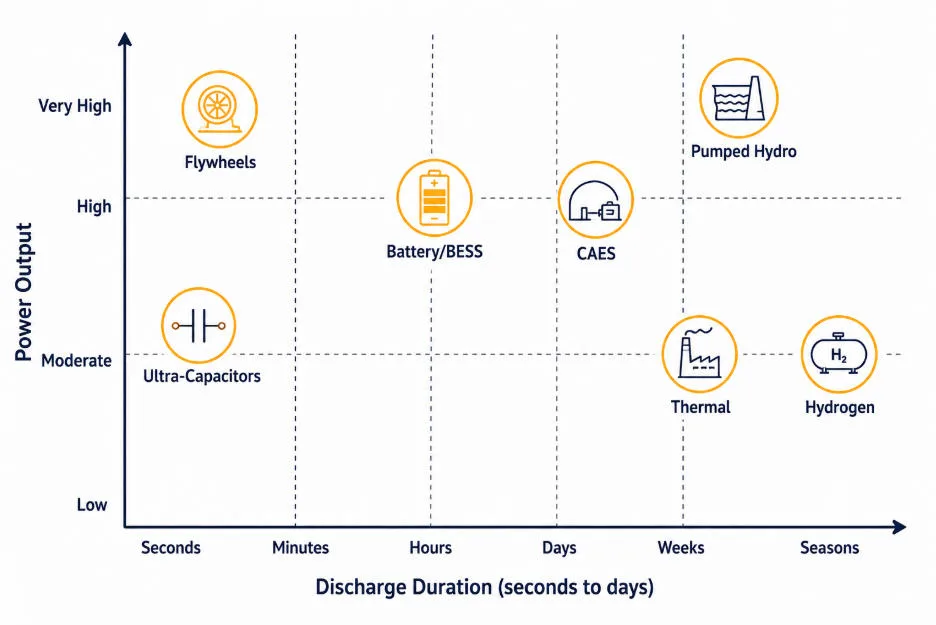

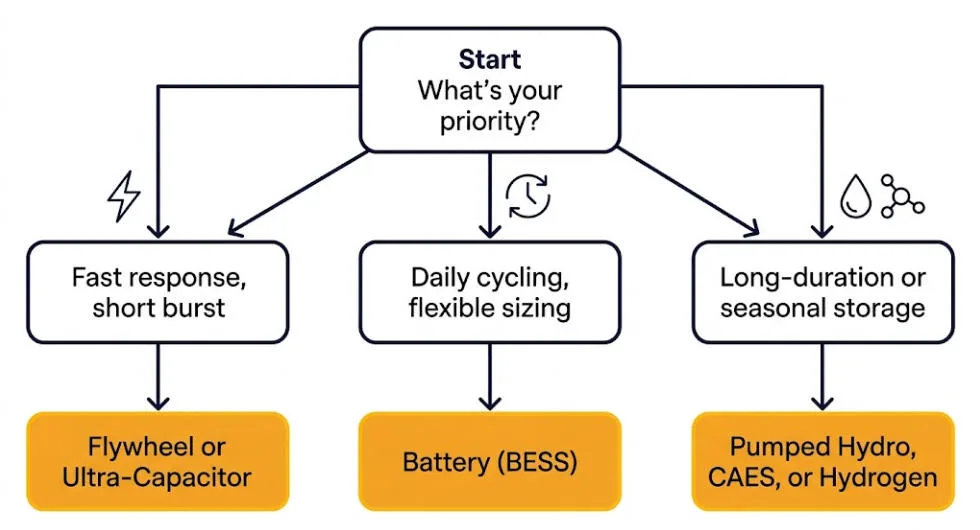

Choosing the Right Energy Storage Systems

When selecting an ESS, key factors include:

  • Application (backup, renewable integration, grid stability)
  • Storage duration (short vs. long)
  • Technology maturity & cost
  • Safety and compliance standards

For commercial and industrial BESS, safety is critical. That’s why standards like UL 9540, CE and IEC certifications are vital benchmarks.


Conclusion

Energy Storage Systems are the foundation of a reliable, renewable-powered future. From batteries and mechanical systems to hydrogen, fuel cells, and ultra-capacitors, each technology has unique strengths.

At Sunlith Energy, we help industries, businesses, and utilities choose the right storage solution to maximize efficiency, lower costs, and ensure sustainability.

👉 Learn more about our Battery Energy Storage Systems and discover how we are powering the clean energy revolution.


Frequently Asked Questions (FAQ) on Energy Storage Systems

1. What is an Energy Storage System (ESS)?

An Energy Storage System (ESS) stores energy produced at one time and makes it available later when needed. It helps balance supply and demand, improves renewable energy reliability, and supports grid stability.

2. What are the main types of Energy Storage Systems?

The main types of ESS include:

Ultra-capacitors – Provide rapid charging and discharging for short-term power needs

Battery Energy Storage Systems (BESS) – Lithium-ion, lead-acid, and flow batteries

Mechanical Storage – Pumped hydro, flywheels, and compressed air

Thermal Storage – Molten salt, ice, and phase change materials

Hydrogen Storage – Converts renewable energy into hydrogen for later use

Fuel Cells – Convert hydrogen into electricity through electrochemical reactions

3. What is the difference between ESS and BESS?

ESS (Energy Storage System) is a broad term covering all types of energy storage technologies.

BESS (Battery Energy Storage System) is a specific type of ESS that uses batteries to store and release electricity.

👉 Read more: BESS vs ESS.

4. Why are Energy Storage Systems important for renewable energy?

Renewables like solar and wind are intermittent. ESS ensures that energy is stored when generation is high (e.g., sunny or windy periods) and released when demand increases, making renewable power more reliable.

5. What is the best energy storage system for commercial and industrial (C&I) use?

For most C&I applications, Battery Energy Storage Systems (BESS) are the best choice due to:

  • High efficiency
  • Fast response time
  • Flexible scalability
  • Proven reliability

👉 Learn more about C&I BESS solutions.

6. Are Energy Storage Systems safe?

Yes, modern ESS are designed with strict safety measures. Compliance with standards like CE, UL 9540 and IEC certifications ensures that systems meet global safety and performance requirements.

7. What is the future of Energy Storage Systems?

The future of ESS includes advanced solid-state batteries, wider adoption of hydrogen storage, and hybrid systems combining batteries, fuel cells, and ultra-capacitors to deliver long-duration, cost-efficient, and safe energy storage.

Fuel Cells

Fuel Cells: The Complete Guide — Types, Working Principles, Applications & Comparisons

In the quest for a sustainable and decarbonized world, fuel cells have emerged as one of the most promising clean energy solutions. Unlike traditional combustion engines or fossil-fuel power plants, fuel cells generate electricity through an electrochemical reaction — producing only water and heat as by-products. This means zero local emissions and higher efficiency.

But did you know there are multiple types of fuel cells? Each type has unique working principles, temperature ranges, fuel requirements, and real-world applications — from powering laptops to buses, buildings, and even large-scale power plants.

In this comprehensive guide, we’ll explain how fuel cells work, break down the different types, show where they’re used, and compare them so you can see which is best for what purpose.


How Does a Fuel Cell Work?

At its core, a fuel cell converts chemical energy directly into electrical energy through an electrochemical reaction — similar to a battery, but it doesn’t run down or need recharging as long as fuel is supplied.

Basic working principle:

  • Fuel (like hydrogen, methanol, or natural gas) is supplied to the anode side.
  • Oxygen (from air) is supplied to the cathode side.
  • At the anode, the fuel splits into electrons and protons.
  • The electrolyte allows only the protons to pass through; the electrons flow through an external circuit, generating electricity.
  • At the cathode, the protons, electrons, and oxygen combine to form water and release heat.

Each fuel cell type uses different fuels, electrolytes, and operating temperatures, which impact performance, cost, and application.


Types of Fuel Cells Explained in Detail

1. Proton Exchange Membrane Fuel Cell (PEMFC)

How it Works:
Uses a solid polymer membrane as the electrolyte. Hydrogen fuel splits at the anode into protons and electrons; the membrane allows only protons through while electrons generate electricity via an external circuit. Operates at relatively low temperatures (~60–80°C).

Typical Uses:

  • Automobiles: hydrogen fuel cell cars (like Toyota Mirai, Hyundai NEXO)
  • Buses & trucks
  • Backup power for data centers and telecom towers
  • Portable power packs

Advantages:

  • Fast start-up and shut-down
  • Lightweight and compact
  • Ideal for transportation

Challenges:

  • Requires pure hydrogen (sensitive to impurities)
  • Expensive platinum catalyst needed

2. Solid Oxide Fuel Cell (SOFC)

How it Works:
Uses a solid ceramic electrolyte that conducts oxygen ions. Operates at very high temperatures (600–1,000°C). Oxygen ions travel through the electrolyte to react with fuel (hydrogen or hydrocarbons) at the anode.

Typical Uses:

  • Large-scale stationary power generation
  • Industrial combined heat and power (CHP)
  • Distributed generation for commercial buildings
  • Auxiliary power units for heavy-duty vehicles

Advantages:

  • High electrical efficiency (up to 60%)
  • Can use various fuels: hydrogen, natural gas, biogas, syngas
  • Waste heat can be used for CHP, increasing total system efficiency to ~80–90%

Challenges:

  • High operating temperature means long start-up times
  • Expensive ceramic materials and sealing technologies needed

3. Phosphoric Acid Fuel Cell (PAFC)

How it Works:
Uses liquid phosphoric acid as the electrolyte. Operates at moderate temperatures (~150–220°C). Oxygen is supplied to the cathode, while hydrogen-rich fuel reacts at the anode.

Typical Uses:

  • Commercial & industrial CHP
  • Hospitals, hotels, and office buildings
  • Distributed power generation where heat recovery is needed

Advantages:

  • Proven technology with commercial installations worldwide
  • Good tolerance for fuel impurities
  • Efficient cogeneration of heat and power (overall efficiency ~70–80%)

Challenges:

  • Lower electrical efficiency (~40–50%) than SOFC or PEMFC
  • Bulky and heavy compared to newer fuel cell technologies

4. Molten Carbonate Fuel Cell (MCFC)

How it Works:
Uses a molten carbonate salt mixture as the electrolyte, operating at around 600–700°C. Carbon dioxide and oxygen are fed to the cathode where carbonate ions are formed, migrating through the electrolyte to react with hydrogen at the anode.

Typical Uses:

  • Utility-scale power generation
  • Large industrial facilities
  • Industrial CHP systems

Advantages:

  • Can use carbon-based fuels like natural gas or biogas directly
  • High electrical efficiency (~45–55%)
  • Waste heat usable for industrial processes

Challenges:

  • High temperature requires durable materials and corrosion control
  • Complex CO₂ management and system design

5. Alkaline Fuel Cell (AFC)

How it Works:
Uses an alkaline electrolyte (potassium hydroxide solution) and operates at low to medium temperatures (~60–90°C). Very efficient at splitting hydrogen and oxygen.

Typical Uses:

  • Space missions (NASA’s Apollo and Space Shuttle used AFCs)
  • Military applications
  • Some portable or backup power solutions

Advantages:

  • High efficiency (up to 70% in some cases)
  • Well-suited to pure hydrogen and oxygen environments

Challenges:

  • Sensitive to CO₂ contamination — needs purified hydrogen and air
  • Limited commercial use outside niche applications

6. Direct Methanol Fuel Cell (DMFC)

How it Works:
Uses a polymer electrolyte but runs directly on liquid methanol, eliminating the need for a fuel reformer. Methanol is oxidized at the anode to produce protons, electrons, and CO₂.

Typical Uses:

  • Small portable electronics (laptops, military field equipment)
  • Backup power for telecoms
  • Remote monitoring stations

Advantages:

  • Easy fuel storage and handling (liquid methanol)
  • Simpler system design compared to hydrogen-based fuel cells

Challenges:

  • Lower efficiency than hydrogen fuel cells
  • Methanol is toxic and flammable — needs careful handling

7. Reversible Fuel Cell (RFC)

How it Works:
Also known as regenerative fuel cells, these operate as both electrolyzers and fuel cells. In electrolyzer mode, they use surplus renewable electricity to split water into hydrogen and oxygen for storage. When electricity is needed, they operate as a fuel cell to convert stored hydrogen back into power.

Typical Uses:

  • Renewable energy storage in microgrids
  • Off-grid or remote systems with variable energy supply
  • Long-duration storage solutions for excess solar/wind energy

Advantages:

  • Combines hydrogen production and power generation in one unit
  • Ideal for integrating intermittent renewables

Challenges:

  • Still emerging — efficiencies, cost, and durability need improvement
  • Complex system management to switch between modes

Comparison of Fuel Cell Types

Fuel Cell TypeOperating TempElectrolyteTypical FuelBest ForElectrical Efficiency
PEMFC60–80°CPolymer membranePure hydrogenCars, buses, backup power40–60%
SOFC600–1,000°CSolid ceramicHydrogen, natural gasLarge CHP, industrial50–60%
PAFC150–220°CPhosphoric acidHydrogen-richBuildings, CHP40–50%
MCFC600–700°CMolten carbonate saltNatural gas, biogasUtility power, CHP45–55%
AFC60–90°CAlkaline solutionPure hydrogenSpace, niche portable50–70%
DMFC20–90°CPolymer membraneLiquid methanolPortable power20–30%
RFCVariesVariousWater & hydrogenRenewable storage~40–50% (emerging)

Benefits and Challenges: A Quick Recap

Benefits:

  • Zero local emissions (only water, heat, and some CO₂ for carbon-based fuels)
  • High fuel-to-electricity efficiency
  • Quiet operation
  • Scalable from milliwatts to megawatts
  • Compatible with renewable hydrogen production

Challenges:

  • Hydrogen infrastructure gaps (production, transport, storage)
  • Catalyst costs (especially platinum for PEMFC)
  • Durability and materials for high-temp systems
  • System complexity for reversible and hybrid applications

Final Thoughts

From zero-emission vehicles to backup power for hospitals and large industrial plants, fuel cells offer versatile, reliable, and scalable clean energy solutions. As green hydrogen production and fuel cell technologies advance, we can expect to see these systems powering more of our daily lives.

🌍 Fuel cells aren’t just the future — they’re here now, transforming transportation, industry, and our energy grids.

Bess Certifications Guide

BESS Certifications Explained: What You Need to Know Before You Buy or Sell

BESS Certifications: Battery Energy Storage Systems (BESS) are becoming a critical part of our renewable energy future. Whether you’re buying, selling, installing, or manufacturing BESS units, understanding the required certifications is crucial. Without proper certifications, your product may not be legally sold, safely operated, or even insured in many regions.

In this blog, we’ll break down the most important certifications for BESS and explain what they mean, why they matter, and how to ensure your system is compliant.


1. Why Are BESS Certifications Important?

Certifications are like a stamp of approval from trusted organizations. They prove that a BESS unit has passed safety, performance, and environmental tests. Without them:

  • You risk safety issues like fires or system failure.
  • Your product might be blocked from certain markets.
  • Insurance claims can be denied after accidents.
  • You might face legal problems or product recalls.

2. BESS Certifications Common Global Standards

Different countries and regions have different certification requirements. Here are some of the most common ones globally:


A. UL Standards (Mainly for North America)for BESS Certifications


UL (Underwriters Laboratories) is a leading safety organization in the U.S. These are some key UL standards for BESS:

Why it matters: UL certifications are essential for selling in the U.S. and Canada. Without these, your product won’t be accepted in most residential or commercial projects.


B. IEC Standards (International) for BESS


The International Electrotechnical Commission (IEC) sets safety and performance standards recognized worldwide.

  • IEC 62619 – Safety for Secondary Lithium Cells and Batteries
  • IEC 62933 – Series of standards for energy storage systems
  • IEC 62133 – Safety for portable sealed secondary cells
  • IEC 61427 – Performance of batteries used in renewable energy systems

Why it matters: Many countries outside North America refer to IEC standards for regulatory compliance, especially in Europe, Asia, and the Middle East.


C. CE Marking (Europe)


Products sold in the European Union must meet CE requirements. For BESS, this includes:

  • EMC (Electromagnetic Compatibility)
  • LVD (Low Voltage Directive)
  • RoHS (Restriction of Hazardous Substances)
  • Safety & Fire Protection

Why it matters: Without CE marking, you can’t legally sell your BESS product in the European Economic Area (EEA).


D. BIS (India)


In India, the Bureau of Indian Standards (BIS) regulates battery and BESS imports and production.

Why it matters: India is a growing BESS market, and local certifications are mandatory for government tenders and utility-scale projects.


E. CEC (Australia)


The Clean Energy Council (CEC) governs renewable energy products in Australia.

  • Products must be on the CEC approved list
  • Certifications must include both product testing and installer compliance

Why it matters: BESS products not listed with the CEC are ineligible for rebates or connection to the grid.


3. Certification for the Entire System, Not Just the Cell

One major mistake people make is assuming that a certified cell means the entire battery system is certified. That’s not true.

A complete BESS includes:

  • Battery cells or packs
  • Battery Management System (BMS)
  • Power Conversion System (PCS)
  • Cooling systems, enclosures, cables, and connectors

Each component AND the fully assembled system must meet certification standards.


4. Factory-Level Certifications

Besides product certifications, the factory that makes your BESS should also be certified:

  • ISO 9001 – Quality Management
  • ISO 14001 – Environmental Management
  • ISO 45001 – Occupational Health & Safety
  • IATF 16949 – (If automotive-related BESS)

Why it matters: Certified factories reduce the risk of defects, improve traceability, and meet import regulations more smoothly.


5. Who Issues These Certifications?

  • UL – Underwriters Laboratories (USA)
  • TÜV – Germany-based, issues CE and IEC certifications
  • Intertek – Testing and certification services globally
  • SGS – Certification body with international presence
  • CSA – Canadian Standards Association

Always work with internationally recognized certification bodies for credibility and global market acceptance.


6. Red Flags to Watch Out For

  • Only cell report is shown – This is not enough! Ask for system-level reports.
  • No thermal runaway test (UL 9540A) – Risk of fire is very high without this.
  • Non-recognized lab – Some factories use fake or local-only reports.
  • Outdated reports – Certification validity matters. Check the dates.
  • No factory audit certificates – Poor factory management = higher product risk.

7. Tips for Buyers & Project Developers

  • Always request full certification reports, not just summaries.
  • Ask for the name of the lab and the full system test, not just component tests.
  • Make sure the certification is valid for the target market (UL for USA, CE for Europe, etc.)
  • Work with verified sourcing or consulting agents who understand the compliance rules.

Conclusion


BESS certifications are not just paperwork—they’re your protection against risk, rejection, and regulatory trouble. Whether you’re importing, installing, or investing in energy storage systems, certification is your first line of defense.

Make sure your BESS is properly tested, certified, and factory-audited to avoid future headaches. If you’re not sure, work with local experts who can help verify everything before the deal is done.


Need Help?

If you’re buying BESS from China or anywhere else, and you want to make sure the product is safe and certified, I can help. I do:

  • Factory checks
  • Certification report verification
  • BESS system inspections
  • Compliance guidance for your target market

Let’s make your BESS project safer, faster, and fully compliant.
