Introduction: The Growing Importance of Energy Storage Systems

Renewable energy is transforming the way we generate power, but sources like solar and wind are variable by nature. To make them reliable, we need Energy Storage Systems (ESS) that capture energy when it’s abundant and release it when demand is high.

At Sunlith Energy, we focus on Battery Energy Storage Systems (BESS) and advanced technologies that ensure stability, cost efficiency, and resilience across commercial, industrial, and utility sectors.

What is an Energy Storage System?

An Energy Storage System (ESS) stores energy for later use, bridging the gap between production and consumption. ESS plays a vital role in:

Balancing supply and demand
Reducing grid instability
Enhancing renewable energy integration
Lowering energy costs for businesses and communities
Providing emergency backup power

👉 If you’re considering storage solutions for your business, explore our C&I BESS applications to see how energy storage delivers long-term value.

Types of Energy Storage Systems

There are several types of ESS, each with unique strengths, technologies, and applications. Let’s look at them in detail:

1. Battery Energy Storage Systems (BESS)

Battery Energy Storage Systems are the most common type of ESS, offering high efficiency and scalability.

Lithium-ion batteries – Industry standard; compact, efficient, and widely used in renewable energy storage and electric vehicles.
Lead-acid batteries – Affordable but lower cycle life, used in smaller-scale applications.
Flow batteries – Store energy in liquid electrolytes, ideal for long-duration storage.

👉 Learn the difference between BESS and ESS to understand their unique roles.

2. Mechanical Energy Storage

Mechanical systems store energy using physical movement or potential energy.

Pumped Hydro Storage (PHS) – Uses water pumped uphill and released to generate electricity; highly mature technology.
Compressed Air Energy Storage (CAES) – Stores compressed air in underground caverns and releases it to drive turbines.
Flywheels – Store kinetic energy in a spinning rotor, providing instant power and rapid response.

3. Thermal Energy Storage Systems

Thermal ESS captures and stores energy in the form of heat or cold.

Molten Salt – Stores solar heat for electricity generation even after sunset.
Ice Storage – Produces and stores ice during off-peak hours for cooling buildings.
Phase Change Materials (PCMs) – Absorb or release heat during phase transitions, providing stable temperature control.

4. Hydrogen and Power-to-X Storage

Hydrogen is a promising long-duration storage solution.

Electrolysis converts renewable electricity into hydrogen.
Hydrogen can be stored and later used in fuel cells, combustion turbines, or converted into synthetic fuels.
Enables sector coupling (electricity, heating, mobility).

5. Fuel Cells

Fuel cells are not traditional storage devices, but they play a key role in energy conversion.

They use hydrogen or other fuels to produce electricity through electrochemical reactions.
Highly efficient and scalable for backup, mobility, and grid support.
When paired with hydrogen storage, they form a clean and reliable energy cycle.

6. Ultra-Capacitors (Supercapacitors)

Ultra-capacitors store energy electrostatically rather than chemically, unlike batteries.

Provide fast charging and discharging cycles.
Best for short bursts of high power (e.g., voltage stabilization, regenerative braking).
Typically used as a complement to batteries, not a replacement.

7. Emerging & Hybrid Energy Storage Systems

Modern ESS solutions are increasingly hybrid, combining different technologies to optimize performance. For example:

Battery + Ultra-capacitor systems for both long-duration storage and fast response.
Thermal + hydrogen storage for flexible renewable integration.

👉 At Sunlith Energy, we design storage systems that meet diverse needs while complying with UL Certifications and global safety standards.

Choosing the Right Energy Storage Systems

When selecting an ESS, key factors include:

Application (backup, renewable integration, grid stability)
Storage duration (short vs. long)
Technology maturity & cost
Safety and compliance standards

For commercial and industrial BESS, safety is critical. That’s why standards like UL 9540, CE and IEC certifications are vital benchmarks.

Conclusion

Energy Storage Systems are the foundation of a reliable, renewable-powered future. From batteries and mechanical systems to hydrogen, fuel cells, and ultra-capacitors, each technology has unique strengths.

At Sunlith Energy, we help industries, businesses, and utilities choose the right storage solution to maximize efficiency, lower costs, and ensure sustainability.

👉 Learn more about our Battery Energy Storage Systems and discover how we are powering the clean energy revolution.

Frequently Asked Questions (FAQ) on Energy Storage Systems

1. What is an Energy Storage System (ESS)?

An Energy Storage System (ESS) stores energy produced at one time and makes it available later when needed. It helps balance supply and demand, improves renewable energy reliability, and supports grid stability.

2. What are the main types of Energy Storage Systems?

The main types of ESS include:

Ultra-capacitors – Provide rapid charging and discharging for short-term power needs

Battery Energy Storage Systems (BESS) – Lithium-ion, lead-acid, and flow batteries

Mechanical Storage – Pumped hydro, flywheels, and compressed air

Thermal Storage – Molten salt, ice, and phase change materials

Hydrogen Storage – Converts renewable energy into hydrogen for later use

Fuel Cells – Convert hydrogen into electricity through electrochemical reactions

3. What is the difference between ESS and BESS?

ESS (Energy Storage System) is a broad term covering all types of energy storage technologies.

BESS (Battery Energy Storage System) is a specific type of ESS that uses batteries to store and release electricity.

👉 Read more: BESS vs ESS.

4. Why are Energy Storage Systems important for renewable energy?

Renewables like solar and wind are intermittent. ESS ensures that energy is stored when generation is high (e.g., sunny or windy periods) and released when demand increases, making renewable power more reliable.

5. What is the best energy storage system for commercial and industrial (C&I) use?

For most C&I applications, Battery Energy Storage Systems (BESS) are the best choice due to:

High efficiency
Fast response time
Flexible scalability
Proven reliability

👉 Learn more about C&I BESS solutions.

6. Are Energy Storage Systems safe?

Yes, modern ESS are designed with strict safety measures. Compliance with standards like CE, UL 9540 and IEC certifications ensures that systems meet global safety and performance requirements.

7. What is the future of Energy Storage Systems?

The future of ESS includes advanced solid-state batteries, wider adoption of hydrogen storage, and hybrid systems combining batteries, fuel cells, and ultra-capacitors to deliver long-duration, cost-efficient, and safe energy storage.

UL 9540 Certification for Energy Storage Systems: Complete Guide

September 17, 2025/0 Comments/in Certification, Energy Storage Sysytem, Renewable Energy/by Rahul Jalthar

As the demand for clean energy grows, energy storage systems (ESS) are playing a crucial role in stabilizing the grid and enabling renewable integration. With safety and compliance at the forefront, UL 9540 certification has become the global benchmark for energy storage systems.

In this guide, we’ll explain what UL 9540 is, why it matters, and how it ensures the safety of battery energy storage systems (BESS).

What is UL 9540?

UL 9540 is the Standard for Safety of Energy Storage Systems and Equipment, developed by Underwriters Laboratories (UL). It sets the requirements for the safe design, construction, installation, and performance of energy storage systems.

This standard covers:

Battery systems (lithium-ion, lead-acid, flow batteries, etc.)
Power conversion systems (PCS)
Control and protection systems
Thermal management
Fire safety measures

By meeting UL 9540 certification, an ESS demonstrates that it can operate safely under normal and fault conditions.

Why UL 9540 Certification is Important

Energy storage systems involve high energy densities, complex electronics, and thermal risks. UL 9540 provides a structured safety framework that:

Prevents fire hazards through strict testing protocols.
Protects end-users by ensuring reliable and safe operation.
Simplifies compliance with local building and fire codes.
Supports market acceptance by meeting utility, AHJ (Authorities Having Jurisdiction), and global standards.

Without UL 9540, energy storage projects may face delays, higher insurance costs, or rejection from local authorities.

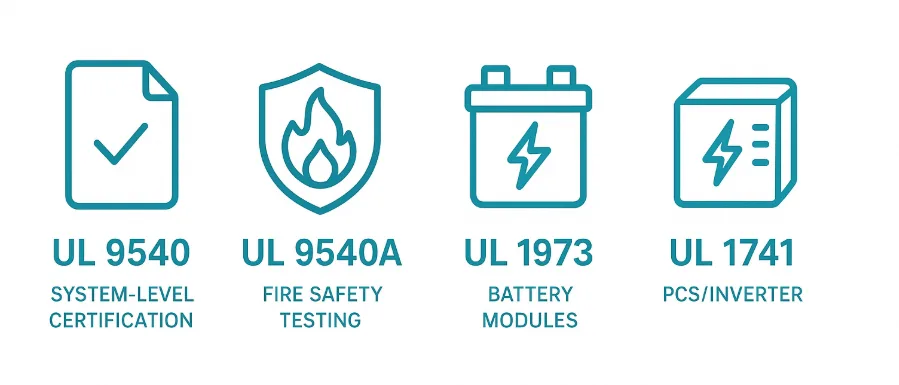

Key Components of UL 9540

UL 9540 certification is not just a single test. It integrates results from multiple safety standards, including:

UL 1973 – for battery modules and packs.
UL 1741 – for inverters and power conversion systems.
UL 9540A – for thermal runaway fire propagation testing.

Together, these ensure the system-level safety of the ESS.

The UL 9540 Certification Process

The certification involves a step-by-step process:

Application & Documentation
Manufacturers submit system specifications, schematics, and safety features.
Component Verification
Sub-systems like batteries, PCS, and BMS must comply with relevant UL standards.
System-Level Testing
The complete ESS is evaluated for electrical, mechanical, and thermal safety.
UL 9540A Fire Test (if required)
Evaluates thermal runaway risks and fire propagation between cells/modules.
Factory Audits & Quality Checks
Ensures consistent production safety.

Benefits of UL 9540 Certification

For manufacturers, developers, and customers, UL 9540 offers clear benefits:

Market access – Approved by U.S. and international authorities.
Insurance acceptance – Reduces risk premiums.
Customer trust – Proof of safe and reliable operation.
Regulatory compliance – Helps meet building codes like NFPA 855.

UL 9540 vs. UL 9540A

It’s common to confuse UL 9540 with UL 9540A.

UL 9540 → System-level safety certification.
UL 9540A → Fire safety test method to evaluate thermal runaway and propagation.

In practice, many jurisdictions require both UL 9540 certification and UL 9540A test reports before granting project approval.

👉 You can read our in-depth article on UL 9540A Test Method to understand how fire safety testing complements UL 9540 certification.

Applications of UL 9540 Certified Systems

UL 9540 certified systems are used across various industries:

Commercial & Industrial facilities – backup power and peak shaving.
Residential ESS – safe home battery storage.
Utility-scale projects – grid balancing and renewable integration.
Microgrids – reliable off-grid power supply.

Challenges in Achieving UL 9540 Certification

While critical, certification is not always easy. Common challenges include:

Cost and testing timelines – Full certification can take months.
System design complexity – Integrating batteries, PCS, and controls safely.
Evolving standards – New revisions often add requirements.

Manufacturers must work with experienced certification partners to streamline the process.

Future of UL 9540

As energy storage technology evolves, UL continues to update its standards. Upcoming editions are expected to address:

Hydrogen detection systems
Enhanced rooftop installation guidelines
New battery chemistries (like sodium-ion and solid-state)

Staying aligned with these updates will be key for manufacturers and developers.

Conclusion

UL 9540 certification is the cornerstone of safety for energy storage systems. It combines multiple safety evaluations, ensures compliance with fire codes, and builds confidence among regulators, insurers, and end-users.

For anyone developing or deploying ESS solutions, UL 9540 is not optional—it’s essential.

👉 Learn more about how we support certification-ready solutions at Sunlith Energy.

FAQ: UL 9540 Certification

Q1. What does UL 9540 cover?

UL 9540 covers the safety of energy storage systems, including batteries, power conversion systems, and fire safety measures.

Q2. Is UL 9540 mandatory?

While not always legally required, many local codes and utilities demand UL 9540 certification for permitting and grid connection.

Q3. How is UL 9540 different from UL 9540A?

UL 9540 certifies system-level safety, while UL 9540A tests fire propagation and thermal runaway risks.

Q4. How long does certification take?

Depending on system complexity, UL 9540 certification can take 3–12 months.

Q5. Can older ESS be retrofitted for UL 9540?

Yes, but it may require re-testing and upgrades to meet safety standards.

UL 9540 vs UL 9540A: Understanding the Key Differences in Energy Storage Certification

September 17, 2025/0 Comments/in Certification, Energy Storage Sysytem, Renewable Energy/by Rahul Jalthar

UL 9540 vs UL 9540A: As the adoption of battery energy storage systems (BESS) grows, safety and compliance remain top priorities for regulators, manufacturers, and end-users. Two of the most recognized standards in this space are UL 9540 and UL 9540A.

Although these terms are often used together, they play very different roles in certification and safety testing. UL 9540 is a system-level certification that validates the overall safety of an energy storage system. In contrast, UL 9540A is a test method that evaluates fire risks, specifically thermal runaway and fire propagation.

At Sunlith Energy, we help manufacturers and developers navigate these certifications to ensure safe and compliant energy storage deployments.

What is UL 9540?

UL 9540 is the Standard for Safety of Energy Storage Systems and Equipment. It ensures that an entire ESS—from batteries and power conversion systems (PCS) to cooling, controls, and housing—meets strict safety requirements.

Key Features of UL 9540:

Scope: Applies to the entire system, not just components.
Integration: Requires batteries certified to UL 1973 and inverters certified to UL 1741.
Safety Focus: Covers electrical, mechanical, thermal, and fire safety aspects.
Market Approval: Often mandatory for utility-scale and commercial projects.

👉 If you’re exploring how PCS technology integrates into storage systems, check our detailed guide on Energy Storage PCS.

What is UL 9540A?

UL 9540A is the Test Method for Evaluating Thermal Runaway Fire Propagation in Battery Energy Storage Systems. Unlike UL 9540, it is not a certification but a test procedure.

This method provides critical data on how batteries behave under extreme conditions. It identifies risks such as fire spread, explosion potential, and gas emissions.

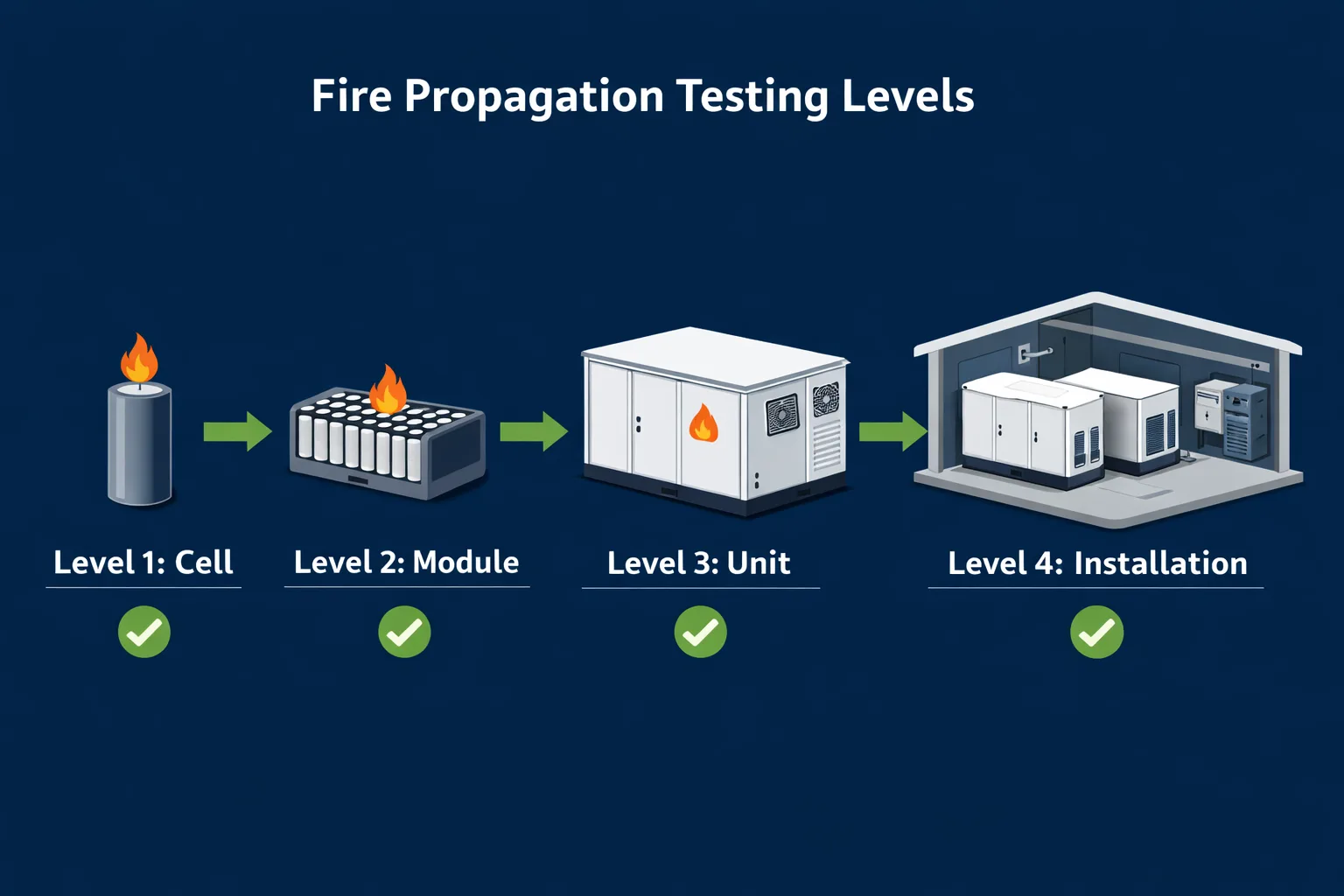

Testing Levels in UL 9540A:

Cell Level – Individual cell behavior under failure.
Module Level – How cells interact inside a battery module.
Unit Level – Fire propagation within a system enclosure.
Installation Level – Real-world system performance in buildings or outdoor setups.

👉 To understand why thermal management matters in these tests, see our post on Cooling Solutions for BESS.

UL 9540 vs UL 9540A: The Core Differences

Feature	UL 9540	UL 9540A
Type	Certification	Test Method
Scope	Full ESS (system-level)	Fire & thermal runaway evaluation
Focus	Electrical, mechanical, and fire safety	Fire propagation, gas hazards
Application	Required for deployment	Supports certification & AHJ approval
Output	Certification mark	Test report (not a certification)

In simple terms:

UL 9540 = Certification for market approval
UL 9540A = Fire safety test to support certification

Why Both UL 9540 and UL 9540A Matter

The two standards work hand-in-hand:

Authorities Having Jurisdiction (AHJs) frequently demand UL 9540A reports before granting installation permits. Manufacturers, meanwhile, use test results to design safer enclosures, improve fire suppression systems, and integrate better thermal management.

👉 For more insights, see our guide on Fire Safety in BESS.

UL 9540 vs UL 9540A: Benefits of Compliance

Meeting both UL 9540 and UL 9540A requirements provides multiple advantages:

Regulatory Compliance: Smooth permitting with AHJs and fire authorities.
Improved Safety: Minimizes risks of fire, explosion, or hazardous gas emissions.
Customer Confidence: Certified systems are more trusted in commercial and utility projects.
Faster Market Access: Certification accelerates deployment timelines.

👉 Explore our complete overview of UL Certifications for Battery Systems for a deeper dive into related standards.

The Future of UL Certifications

UL standards are continuously evolving to address new technologies and risks. For example, the UL 9540A Fifth Edition (March 2025) introduced updates covering:

Hydrogen gas detection requirements
Fire safety for rooftop ESS installations
Stronger casing and housing evaluations

At Sunlith Energy, we monitor these regulatory changes to help our partners stay ahead in compliance and safety.

Conclusion

When comparing UL 9540 vs UL 9540A, the key takeaway is that they are complementary, not alternatives:

UL 9540 is the system-level certification needed for deployment.
UL 9540A is the fire safety test method that enables certification and satisfies regulators.

Together, they provide the foundation for safe, compliant, and market-ready energy storage systems.

👉 Need guidance on achieving compliance? Connect with Sunlith Energy for expert support in certification, testing, and deployment.

UL Certifications for Battery Systems: A Complete Guide

September 14, 2025/2 Comments/in Certification, Energy Storage Sysytem, Renewable Energy/by Rahul Jalthar

Battery Energy Storage Systems (BESS) are becoming essential in today’s energy landscape. Whether for renewable integration, grid stability, or backup power, ensuring the safety and reliability of these systems is critical. This is where UL certifications for battery systems play a crucial role.

UL (Underwriters Laboratories) is one of the most trusted global safety certification organizations. Its standards verify that battery energy storage systems meet strict safety, fire prevention, and performance requirements. For project developers, manufacturers, and operators, understanding these certifications is not optional—it’s necessary.

In this guide, we’ll explore key UL standards such as UL 9540, UL 9540A, UL 1973, and others. You’ll also learn how these certifications impact compliance, insurance, and deployment.

At Sunlith Energy, we help businesses navigate energy storage safety and compliance while building reliable battery solutions.

Why UL Certifications Matter for Battery Energy Storage

1. Safety and Risk Mitigation

Battery systems, if not designed properly, can pose fire hazards or thermal runaway risks. UL standards ensure that systems undergo rigorous testing to minimize these risks.

2. Regulatory Approval

Most jurisdictions require UL-certified equipment for permitting. Without it, projects can face delays, redesigns, or rejection.

3. Market Trust and Bankability

Investors, insurers, and end-users trust certified systems. A BESS with UL certifications demonstrates credibility and long-term reliability.

Key UL Certifications for Battery Systems

UL 9540 – Standard for Energy Storage Systems and Equipment

UL 9540 is the primary certification for energy storage systems. It evaluates the safety, performance, and construction of complete systems, not just individual components.

Covers batteries, Power Conversion Systems (PCS), control systems, and enclosures.
Required for grid-scale, commercial, and residential BESS installations.
Ensures systems meet fire safety and electrical safety standards.

Why it matters: Without UL 9540, your BESS may not receive local authority approval.

👉 Learn more about Energy Storage PCS and how it integrates into certified systems.

UL 9540A – Test Method for Evaluating Thermal Runaway Fire Propagation

UL 9540A is not a certification itself but a test method. It assesses how thermal runaway in one cell can propagate through modules, units, and installations.

Provides data on fire propagation and suppression.
Often required by fire marshals and building authorities.
Supports UL 9540 certification by demonstrating safe design.

👉 Explore our article: UL 9540A Test Method Explained

UL 1973 – Batteries for Use in Stationary and Vehicle Auxiliary Power Applications

UL 1973 focuses on individual battery modules and packs used in stationary systems.

Tests electrical, mechanical, and environmental safety.
Covers BESS, telecom backup, and EV auxiliary batteries.
Often a prerequisite before seeking UL 9540 certification.

Example: A lithium-ion module must first pass UL 1973 before being integrated into a UL 9540-certified system.

UL 1741 – Inverters, Converters, Controllers

Since BESS includes PCS (Power Conversion Systems), UL 1741 applies to inverters and related power electronics.

Validates PCS for interconnection safety with the grid.
Ensures compatibility with renewable energy and microgrids.
Critical for hybrid solar + storage projects.

👉 Read our guide: PCS vs Inverter – Key Differences

UL 1974 – Evaluation for Repurposing Batteries

As second-life batteries become more common, UL 1974 helps ensure repurposed cells are safe for reuse.

Evaluates used EV or industrial batteries for BESS applications.
Supports sustainability by extending battery life.
Ensures recycled batteries meet minimum safety standards.

Benefits of UL-Certified Battery Systems

Regulatory Compliance – Smooth project approvals and grid interconnection.
Enhanced Safety – Reduced risk of fire, explosion, and system failure.
Market Acceptance – Easier financing and insurance.
Long-Term Reliability – Certified systems undergo rigorous life-cycle testing.
Future-Proofing – UL standards evolve with technology, ensuring systems stay relevant.

Challenges in Achieving UL Certification

Cost and Time: Certification requires extensive testing, which can delay projects.
Design Changes: If a component fails testing, redesign may be necessary.
Complex Standards: Navigating multiple UL standards can overwhelm new manufacturers.

This is where industry partners like Sunlith Energy provide support—helping companies design systems aligned with certification requirements from day one.

How Sunlith Energy Helps with UL-Compliant Solutions

At Sunlith Energy, we ensure that every battery system we design aligns with UL safety and certification standards. Our approach includes:

Design Consulting: Guiding OEMs and EPCs on compliance from the design phase.
Testing Support: Preparing systems for UL 9540, UL 9540A, and UL 1973 evaluations.
End-to-End Solutions: Delivering certified-ready BESS with integrated PCS, battery modules, and fire safety systems.

Whether you’re deploying grid-scale storage, C&I projects, or hybrid solar + storage, our certified solutions meet the highest safety benchmarks.

👉 Learn more about our Battery Energy Storage Systems

FAQs on UL Certifications for Battery Systems

1. What is UL certification for battery systems?

It is a safety and performance evaluation that ensures battery energy storage systems meet global standards for fire safety, electrical reliability, and environmental resilience.

2. Do all BESS need UL 9540 certification?

Yes. For commercial and residential deployment in most regions, UL 9540 is mandatory.

3. What’s the difference between UL 9540 and UL 9540A?

UL 9540 certifies the system, while UL 9540A is a test method used to analyze thermal runaway propagation.

4. How long does certification take?

Depending on system complexity, UL certification can take 6–12 months.

5. Can second-life batteries be certified?

Yes, through UL 1974, which evaluates repurposed batteries for safe use in stationary storage.

Conclusion

UL certifications for battery systems are the foundation of safe, compliant, and bankable energy storage projects. From UL 9540 system-level approvals to UL 9540A fire safety testing and UL 1973 battery-level compliance, these standards ensure that energy storage systems perform reliably under real-world conditions.

As energy storage adoption accelerates, ensuring compliance with UL standards will not just be a regulatory requirement—it will be a competitive advantage.

At Sunlith Energy, we’re committed to helping businesses deploy safe, certified, and future-ready energy storage systems.

UL 9540A Test Method: Complete Guide for Battery Energy Storage Safety

UL 9540A Test Method: The Ultimate Guide for Battery Energy Storage Safety

September 14, 2025/2 Comments/in Certification, Energy Storage Sysytem, Renewable Energy/by Rahul Jalthar

UL 9540A Test Method: Battery Energy Storage Systems (BESS) are growing rapidly as renewable energy, electric vehicles, and grid-scale projects expand worldwide. While storage technology brings efficiency and sustainability, it also raises safety challenges—especially related to thermal runaway and fire propagation.

This is where the UL 9540A Test Method plays a vital role. It is the most widely accepted safety test for energy storage systems, referenced by codes such as NFPA 855 and the International Fire Code.

In this guide, we’ll explain:

What UL 9540A is
The four levels of testing
How it relates to UL 9540 and UL 9540B
The major 2025 updates
Why manufacturers and project developers should care

What is the UL 9540A Test Method?

The UL 9540A Test Method for Evaluating Thermal Runaway Fire Propagation in BESS is the only national standard designed to measure how battery systems react under thermal runaway conditions.

It answers critical safety questions such as:

Will a single cell failure spread to neighboring cells?
How will a battery module or system behave in case of fire?
Can suppression systems prevent explosions, flames, or reignition?

Unlike general safety certifications, UL 9540A focuses only on fire propagation risks, making it the go-to test for engineers, installers, and regulators.

Why is UL 9540A Important for BESS?

Battery systems are often installed in homes, businesses, and utility-scale projects. If a fire starts and spreads, it can have devastating consequences. UL 9540A ensures that:

Manufacturers can prove their systems are safe.
Installers get clear installation requirements, such as spacing and suppression.
Authorities have a reliable, consensus-based safety test.

It is directly referenced in NFPA 855, which governs the installation of stationary energy storage systems, making it essential for compliance.

👉 Explore more: CE for BESS: Complete Guide

The Four Levels of UL 9540A Testing

UL 9540A follows a hierarchical four-level structure. Testing may stop early if performance criteria are met.

1. Cell-Level Testing

The test begins with individual cells. The goal is to induce thermal runaway and analyze gas emissions, flames, and heat release.

If cells show no propagation risk, testing can stop here.

2. Module-Level Testing

If cell risks exist, groups of cells (modules) are tested. This step checks whether failures propagate across the module, creating larger hazards.

3. Unit-Level Testing

The full battery system (ESS unit) is tested. Suppression systems are often disabled unless they are built-in. Engineers assess:

Flame spread
Explosion risk
Gas emissions

4. Installation-Level Testing

The final stage evaluates the system in real-world conditions with fire suppression included. It ensures:

No detonation or deflagration
Effective fire suppression
No reignition after the event

👉 Related: What is BESS?

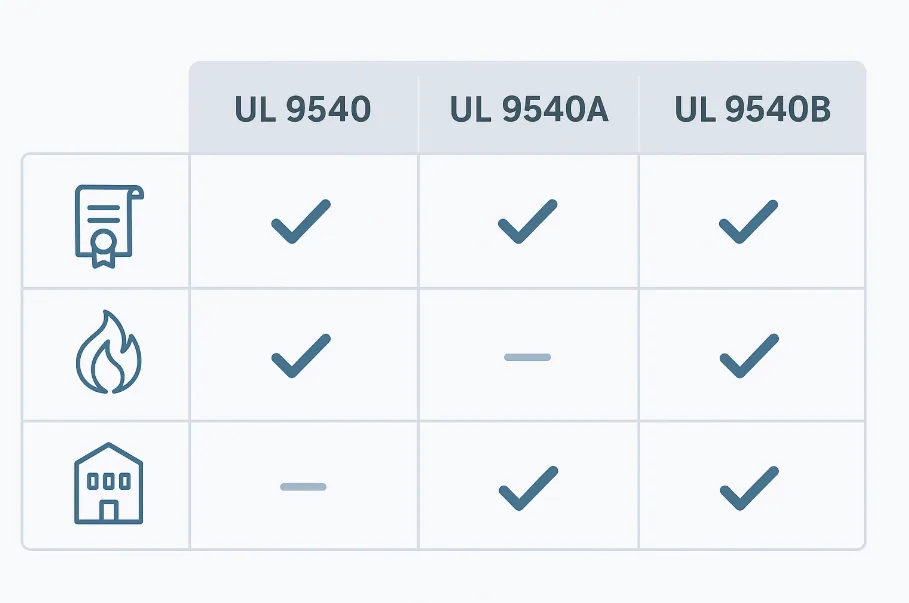

UL 9540A vs. UL 9540 and UL 9540B

It’s easy to confuse these standards, but they serve different purposes:

UL 9540: Certification standard for energy storage equipment. Covers overall safety, performance, and compliance.
UL 9540A: Test method for fire propagation in thermal runaway scenarios. Supports UL 9540 certification.
UL 9540B: Designed specifically for residential-scale BESS, focusing on large-scale fire tests and vent gas ignition.

Together, these standards provide a complete safety framework for energy storage systems.

2025 Updates: What Changed in UL 9540A Fifth Edition?

The fifth edition of UL 9540A, released on March 12, 2025, brings significant improvements to reflect evolving technology and chemistries.

Key Updates:

Optional hydrogen detection and heat flux measurements.
Clarified rest times after conditioning/charging.
Replacement of NFPA 286 fire room with an instrumented wall for residential testing.
More precise thermocouple placement and continuous ramping in cell tests.
Specific temperature limits for module casings.
Extended protocols for new chemistries like lead-acid, NiCd, and flow batteries.
Added requirements for rooftop and open garage installations.

These updates make UL 9540A more adaptable, helping manufacturers meet stricter fire codes and regulators enforce safer installations.

👉 Related: Green Hydrogen Storage

Who Needs UL 9540A Testing?

UL 9540A applies to:

Battery manufacturers – proving technology safety.
BESS integrators – ensuring compliance with NFPA 855 and local fire codes.
Developers and EPCs – gaining project approvals faster.
Home and commercial installers – understanding spacing and suppression requirements.

Without UL 9540A testing, it becomes nearly impossible to get approval for large BESS installations in the U.S.

Benefits of UL 9540A Testing

Compliance: Meets NFPA 855 and IFC requirements.
Design Optimization: Provides data for safe spacing and fire suppression.
Market Access: Required for many U.S. and Canadian projects.
Risk Reduction: Lowers fire and explosion risks in installations.

Conclusion

The UL 9540A Test Method is the backbone of energy storage safety in 2025. With its updated fifth edition, it provides a clear, science-based framework to evaluate thermal runaway risks at cell, module, unit, and installation levels.

For manufacturers, passing UL9540A testing means faster certifications, safer designs, and wider market acceptance. For regulators and installers, it provides confidence that battery energy storage systems meet the highest safety standards.

As BESS technology evolves, UL 9540A will continue to be the key standard shaping how we store renewable energy safely and effectively.

👉 Learn more: UL Certifications for Battery Systems

FAQs: UL 9540A Test Method

Q1. What is the UL 9540A Test Method?

The UL 9540A Test Method is a fire safety test designed to evaluate the thermal runaway characteristics of battery energy storage systems (BESS). It helps manufacturers and system designers understand how a battery reacts under stress, including fire, gas release, and propagation risks.

Q3. How does UL 9540A differ from UL 9540 certification?

UL 9540 is a system-level certification for battery energy storage systems, while UL 9540A is a fire test method. UL 9540A is often used to provide supporting safety data required to achieve UL 9540 certification or to meet local fire codes.

Q2. Why is UL 9540A testing important for energy storage systems?

UL 9540A testing provides critical data for fire safety, helping system integrators, regulators, and building authorities approve energy storage projects. It ensures that batteries are safe for use in residential, commercial, and grid-scale installations.

Q4. What are the levels of UL 9540A testing?

UL 9540A includes four test levels:

Cell level – Tests how a single cell behaves in thermal runaway.
Module level – Examines propagation within a battery module.
Unit level – Assesses fire and gas risks in the entire system.
Installation level – Evaluates safety in a real-world installed environment.

For more details on BESS safety, see our guide on energy storage PCS.

Q5. Who requires UL 9540A testing?

UL 9540A testing is often required by:

Battery manufacturers seeking UL 9540 certification.
System integrators installing BESS in commercial or residential sites.
Authorities Having Jurisdiction (AHJs) and fire marshals reviewing projects.

Learn more about BESS certifications required glo

Q6. What are the latest updates in UL 9540A (Fifth Edition, 2025)?

The March 2025 update to UL 9540A (5th Edition) added requirements for:

Hydrogen detection sensors.
Module casing integrity.
Testing for rooftop energy storage systems.

Check our post on battery regulations in the EU for related compliance u

Q7. Does passing UL 9540A mean a battery is certified?

No, UL 9540A is not a certification. It is a test method that provides data used to achieve UL 9540 certification or to comply with fire codes. Certification comes from successfully meeting UL 9540 requirements.

Q8. How long does UL 9540A testing take?

The duration depends on system size and complexity. A full series of tests (cell, module, unit, installation) can take several weeks to months, depending on scheduling and regulatory requirements.

Q9. Can UL 9540A testing be skipped if a battery is already safe?

No. Even if a system has proven safety records, AHJs and certification bodies often require UL 9540A data as part of the approval process, especially for large-scale installations.

Q10. How does UL 9540A testing impact project approval timelines?

Providing UL 9540A data often accelerates permitting and approval by demonstrating compliance with NFPA 855, IFC, and local fire codes. Without it, projects may face delays or additional scrutiny.

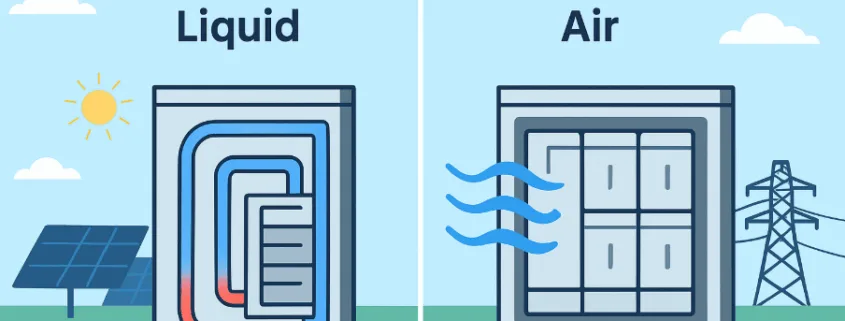

Liquid vs Air Cooling System Use in BESS: Choosing the Right Thermal Management

September 12, 2025/0 Comments/in Energy Storage Sysytem, Renewable Energy/by Rahul Jalthar

Liquid vs Air Cooling System in BESS – Complete Guide: Battery Energy Storage Systems (BESS) are transforming how we store and manage renewable energy. But one often overlooked factor that determines their safety, performance, and lifespan is the cooling system. Effective thermal management ensures batteries operate within safe temperature ranges, preventing overheating, fire risks, and performance drops.

Among the various methods available, liquid cooling and air cooling stand out as the two most common approaches. Each has unique advantages, costs, and applications. In this post, we’ll compare liquid vs air cooling in BESS, and help you understand which method fits best depending on scale, safety, and compliance needs.

Why Cooling Matters in BESS

Battery cells generate heat during charging and discharging. If not managed properly, this heat can cause:

Reduced battery efficiency
Shortened lifespan
Higher risk of thermal runaway

That’s why global standards such as UL certifications for battery systems and CE for BESS require strict compliance with safety and thermal management protocols.

Simply put: cooling = safety + performance.

Air Cooling Systems in BESS

Air cooling is the most widely used thermal management method in small to medium BESS setups. It works by blowing cool air across the battery racks with fans or forced ventilation.

Liquid vs Air Cooling System in BESS (AIR COOLING)

Advantages of Air Cooling

Lower upfront cost
Simpler system design
Easier maintenance

Limitations of Air Cooling

Less effective for high-density, utility-scale systems
Struggles in hot or humid climates
Uneven cooling across battery modules

Best Use Case: Residential or small commercial BESS paired with solar PV or EV charging.

Liquid Cooling Systems in BESS

Liquid cooling uses water-glycol mixtures or dielectric fluids circulated through cold plates or coolant channels around the battery cells. This method transfers heat more efficiently than air cooling.

Liquid vs Air Cooling System in BESS (Liquid Cooling)

Advantages of Liquid Cooling

High thermal efficiency
Better temperature uniformity
Ideal for grid-scale energy storage PCS and high-density BESS
Scalable and safer in demanding climates

Limitations of Liquid Cooling

Higher initial investment
More complex installation and monitoring
Requires leak-proof design and maintenance

Best Use Case: Utility-scale BESS, energy storage PCS integration, and applications requiring long-duration reliability.

👉 Learn more about Energy Storage PCS and how cooling supports PCS performance.

Liquid vs Air Cooling: Side-by-Side Comparison

Factor	Air Cooling	Liquid Cooling
Cost	Low	Higher
Efficiency	Moderate	High
Scalability	Limited	Excellent
Maintenance	Simple	Technical
Best for	Residential & small commercial	Utility-scale & grid applications

In large-scale deployments, liquid cooling dominates due to higher efficiency and better safety margins. For smaller systems, air cooling remains cost-effective.

Cooling and Compliance

Thermal management directly influences regulatory compliance. Global frameworks such as:

UL 9540 & UL 9540A for safety testing
UL 9540A Test Method for thermal runaway evaluation
CE certification for BESS in Europe

All emphasize the role of cooling in preventing fire hazards.

This makes cooling systems a critical design choice, not just an engineering afterthought.

Choosing the Right Cooling System

When selecting between liquid vs air cooling, consider:

System Size: Larger BESS requires liquid cooling.
Environment: Hot climates favor liquid systems.
Cost vs Performance: Air cooling suits budget-sensitive projects.
Compliance Needs: Regulatory approvals may depend on cooling efficiency.

For projects exploring advanced storage technologies such as green hydrogen storage, cooling strategies also play a role in integrated system safety.

Conclusion

The debate of liquid vs air cooling in BESS isn’t about which is better overall—it’s about which is better for your application.

Air cooling is cost-effective and simple for residential or small commercial setups.
Liquid cooling is the gold standard for utility-scale, high-capacity BESS where safety, scalability, and compliance are critical.

As energy storage adoption grows, smart cooling design will define the future of battery system safety and efficiency.

FAQs – Liquid vs Air Cooling in BESS

1. What is the difference between liquid and air cooling in BESS?

Air cooling uses fans to move air across battery modules, while liquid cooling uses fluids circulated through channels or plates to absorb heat more effectively.

2. Which cooling system is better for large-scale BESS?

Liquid cooling is preferred for utility-scale and high-density BESS because it provides superior thermal management, reduces hot spots, and improves safety.

3. Is air cooling still used in modern BESS?

Yes, air cooling is still used in residential and small commercial BESS where costs are lower and power density is moderate.

4. How does cooling affect battery safety?

Proper cooling reduces the risk of overheating and thermal runaway. Standards like UL 9540A Test Method specifically evaluate how BESS cooling impacts fire safety.

5. Does cooling impact regulatory compliance for BESS?

Yes. Certifications such as UL certifications for battery systems and CE for BESS require effective thermal management to meet safety standards.

6. Which cooling system is more cost-effective?

Air cooling is more affordable upfront. However, liquid cooling may deliver better long-term value by extending battery lifespan and ensuring compliance in large-scale systems.

✅ Next Step: Learn more about Energy Storage PCS and how Sunlith Energy helps integrate cooling with PCS design for optimal BESS performance.

C&I BESS Thermal Management: Optimizing Performance, Safety & Lifespan

September 10, 2025/2 Comments/in Energy Storage Sysytem, Renewable Energy/by Rahul Jalthar

C&I BESS thermal management is a foundational aspect of creating a robust, safe, and high-performing Battery Energy Storage System. As SunLith highlights in their Key Components of a C&I BESS article, maintaining the right operating temperature via thermal systems dramatically reduces risks of overheating and battery degradation.
Effective thermal control not only prevents thermal runaway and improves safety—but also extends battery lifespan and operational efficiency.

Why Thermal Management Matters

Temperature extremes significantly impact battery performance. High heat accelerates wear and increases fire risk; cold slows reaction rates and lowers efficiency.
With proper thermal control, a C&I BESS achieves:

Enhanced safety and fire mitigation
Consistent performance and capacity
Extended system lifespan and reliability

Key Components of Thermal Management

A robust thermal management system within a C&I BESS typically includes:

Cooling Systems: Air, liquid, or hybrid solutions tailored to system scale
Thermal Sensors: Providing real-time temperature data for EMS response
Control Logic: Integrated into EMS to automate cooling actions
Enclosure Design: Providing insulation with airflow control and heat dissipation
These align with SunLith’s component breakdown in their Key Components of a C&I BESS article.

Cooling Strategies for C&I BESS

Approach	Best For	Pros	Trade-Offs
Air Cooling	Small to medium-scale	Cost-effective and simple	Less efficient in dense setups
Liquid Cooling	High-density, heat-intensive systems	Exceptional heat control	Higher cost, maintenance needs
Hybrid Systems	Critical applications	Redundancy + efficiency	Complex system design

Markets are increasingly favoring liquid and hybrid cooling for enhanced safety in large C&I BESS projects.

Performance, Safety & Regulatory Compliance

Consistent thermal regulation contributes to enhanced charge/discharge efficiency and durability. Regulatory standards such as UL 9540A and IEC 62933 emphasize the importance of thermal protection in ensuring BESS safety certification—reinforced in SunLith’s insights into safety protocols.

Learn more about C&I BESS Safety Standards at SunLith Energy

Trends in Thermal Management

The future of C&I BESS thermal management incorporates:

AI-Enabled Cooling Control: Predicting heat patterns and adjusting cooling dynamically
Phase-Change Materials (PCM): Buffering peaks in heat passively
Liquid Immersion Cooling: Advanced, high-efficiency thermal control for dense systems
These advancements are key building blocks for safer and longer-lasting energy storage.

Conclusion

C&I BESS thermal management is not a luxury—it’s a critical pillar for safety, efficiency, and longevity. A SunLith-style system uses innovative cooling, real-time monitoring, and smart control to unlock full potential. By integrating these best practices, businesses ensure their BESS assets remain secure, efficient, and future-ready.

FAQs

Q1: What is C&I BESS thermal management?

A: C&I BESS thermal management refers to the systems and controls that keep battery modules within safe operating temperatures (cooling, sensing, and control). Proper thermal management ensures consistent performance, reduces degradation, and prevents overheating-related safety incidents.

Q2: Why is thermal management important for C&I BESS?

A: Temperature extremes shorten battery life and raise safety risks (including thermal runaway). Good thermal management improves efficiency, extends lifespan, and reduces maintenance and insurance costs.

Q3: What are the common thermal management methods?

A: Typical approaches are air cooling, liquid cooling, and hybrid systems. Advanced options include phase-change materials (PCM) and liquid immersion for very high-density systems.

Q4: How does thermal management extend battery lifespan?

A: By keeping cell temperatures in the optimal range, thermal systems slow chemical degradation, reduce capacity fade, and enable more charge/discharge cycles — all of which improve lifecycle economics.

Q5: Can thermal management prevent thermal runaway?

A: It significantly reduces the probability and severity of thermal runaway by removing excess heat early, enabling the BMS and EMS to act, and triggering suppression/venting when needed.

Q6: What’s the difference between air cooling and liquid cooling?

A: Air cooling is simpler and lower cost, best for small–medium systems. Liquid cooling offers much better heat transfer for high-density, continuous-duty C&I installations but has higher complexity and maintenance needs.

Q7: How does thermal management integrate with an EMS?

A: Thermal sensors feed real-time temperature data into the EMS, which then adjusts dispatch and cooling setpoints proactively. See our Key Components of a C&I BESS guide.

Q8: Which safety standards relate to thermal control in C&I BESS?

A: Important standards include UL 9540/9540A, IEC 62933, and local fire codes. For more details, see our C&I BESS Safety Standards.

Q9: How often should thermal systems be inspected and serviced?

A: Routine inspections are typically quarterly or semi-annual. Tasks include sensor calibration, coolant checks/pumps, filter replacement, and EMS updates. High-risk or 24/7 sites should use predictive maintenance.

Q10: How does thermal management affect the economics of C&I BESS?

A: Better thermal control reduces replacement and downtime costs, improves efficiency, and increases usable lifetime — all of which improve C&I BESS eco no mics

C&I BESS Future Trends | AI-Driven EMS, Smart Grids & Advanced Chemistries

Future Trends in C&I BESS — AI, Smart Grids & Next-Gen Chemistries

September 9, 2025/0 Comments/in Energy Storage Sysytem, Renewable Energy/by Rahul Jalthar

C&I BESS future trends are rapidly advancing, reshaping how businesses manage energy. As seen in the SunLith blog’s recent overview of renewable integration challenges and solutions, the next generation of C&I Battery Energy Storage Systems (BESS) goes well beyond solar, wind, and basic load shifting SunLith Energy. Forward-looking enterprises are now embracing smart energy flows through AI, grid interaction, advanced chemistries, enhanced safety, and sustainability to unlock new benefits.

Trend 1: AI-Powered Energy Management Systems

AI is transforming the Energy Management System (EMS) that lies at the heart of every C&I BESS:

Smart Forecasting anticipates renewable generation and load peaks.
Self-Optimizing Dispatch dynamically times charge/discharge for cost and efficiency.
Market Intelligence enables real-time participation in demand-response and energy arbitrage.

This trend directly links to the EMS component in our earlier “Key Components” post for seamless integration.

Trend 2: Greater Smart Grid Integration

As SunLith points out, powering microgrid autonomy is crucial for renewable alignment SunLith Energy. Future C&I BESS systems will:

Instantly counter grid fluctuations through two-way communication.
Enable microgrids to operate independently during outages.
Facilitate virtual power plant (VPP) networks, aggregating storage across sites.

These features bolster both reliability and system flexibility.

Trend 3: Next-Generation Battery Chemistries

Lithium-ion dominates today—but tomorrow’s storage will include:

Solid-State Batteries: higher density with enhanced safety.
Flow Batteries: ideal for extended-duration, modular storage.
Sodium-Ion & Hybrid Cells: cost-effective and resource-abundant options.

These chemistries will support long-duration applications and reduce resource constraints.

Trend 4: Enhanced Safety & Compliance

With rapid market growth (projected BESS reaching 500 GW by 2031) comes increased focus on safety standards SunLith Energy. Upcoming trends include:

AI-enabled early detection and fire suppression systems.
IP-rated enclosures for robust environmental protection.
New certification standards—addressing fire, enclosures, and operational resilience.

Safety now intersects deeply with innovation and performance.

Trend 5: Sustainability, Second-Life & Circularity

Sustainability is central to future C&I BESS design:

Second-Life Batteries (e.g., retired EV packs) are gaining traction for cost-effective reuse.
Circular design and recycling strategies will reduce lifecycle impacts.
Eco-friendly chemistries and lower resource footprints align with ESG goals.

These trends make energy storage not just smart, but also sustainable.

Business Implications of C&I BESS Future Trends

Adopting these trends provides tangible business advantages:

Improved ROIs through intelligent dispatch and grid revenue.
Operational independence, especially with smart grid and microgrid support.
Alignment with decarbonization mandates and sustainability strategies.

Integrating these advancements reinforces your energy infrastructure for years to come.

Conclusion

The evolving landscape of C&I BESS future trends—from AI-powered EMS and smart grid integration to advanced chemistries and circular strategies—is setting the stage for next-level energy storage. As energy complexity rises, businesses must keep pace. Staying at the forefront of these innovations ensures operations that are efficient, resilient, compliant, and sustainable.

Explore how these trends tie into our earlier deep dives on EMS components and renewable integration for a cohesive energy strategy.

Real-World Case Studies: Successful C&I BESS Installations

September 5, 2025/0 Comments/in Energy Storage Sysytem, Renewable Energy/by Rahul Jalthar

C&I BESS case studies provide powerful proof of how energy storage systems deliver measurable benefits in commercial and industrial settings. By examining successful deployments, businesses can see real-world evidence of cost savings, resilience improvements, and renewable energy integration. This article showcases real-life examples across industries, linking back to applications of BESS and the economic benefits of deployment.

Case Study 1: Retail Chain Cuts Energy Costs with Peak Shaving

A large retail chain in the U.S. adopted a C&I BESS to manage demand charges. By reducing peak load, the business cut electricity expenses by 18% annually. The system also provided backup power during outages, improving reliability.

Key Outcome: Cost savings + resilience.

Case Study 2: Manufacturing Plant Improves Power Quality

An industrial manufacturer in Germany faced frequent voltage fluctuations, disrupting operations. A 5 MWh BESS was deployed to stabilize the grid connection and smooth load profiles. The plant saw reduced downtime and higher operational efficiency.

Key Outcome: Enhanced power quality + productivity.

Case Study 3: Data Center Achieves 24/7 Uptime

Data centers require uninterrupted power. A Singapore-based data center installed a C&I BESS as part of its microgrid. The system ensured seamless switchover during grid disturbances, protecting sensitive equipment and avoiding costly downtime.

Key Outcome: Reliability + continuous operations.

Case Study 4: Winery Integrates Solar with Storage

C&I BESS case studies: Winery Integrates Solar with Storage

A California winery combined its solar array with a 2 MWh C&I BESS. The system shifted solar energy into evening hours, reducing grid dependency and supporting sustainability goals. Seasonal operations benefited from greater flexibility.

Key Outcome: Renewable integration + sustainability.

Case Study 5: Hospital Increases Energy Resilience

Hospitals must prioritize uninterrupted energy supply. A hospital in Australia deployed BESS alongside diesel generators. The hybrid system provided critical backup, reduced fuel costs, and aligned with green initiatives.

Key Outcome: Energy security + reduced emissions.

Lessons Learned from C&I BESS Case Studies

Across these case studies, common success factors emerge:

Peak shaving and demand charge reduction directly improve the bottom line.
Improved resilience and power quality safeguard operations.
Integration with renewables aligns with sustainability and ESG goals.
Scalability and flexibility make BESS suitable across diverse industries.

Conclusion

Real-world C&I BESS case studies demonstrate the versatility and value of energy storage. From retail and manufacturing to data centers and healthcare, businesses are achieving cost savings, operational resilience, and sustainable energy strategies. Companies evaluating storage can learn from these successes and explore how C&I BESS can strengthen their operations.

For deeper insights, revisit the applications of C&I BESS, the benefits, and the economics of deployment

How C&I BESS Reduces Demand Charges Through Peak Shaving

September 2, 2025/3 Comments/in Energy Storage Sysytem, Renewable Energy/by Rahul Jalthar

C&I BESS peak shaving is rapidly becoming one of the most effective strategies for commercial and industrial (C&I) facilities to lower electricity costs. By leveraging battery energy storage systems (BESS), businesses can reduce demand charges, optimize energy usage, and unlock significant long-term savings.

Understanding Demand Charges

Demand charges are fees utilities impose based on the highest level of electricity a facility consumes during a billing cycle. For businesses with large equipment or fluctuating energy needs, these charges often make up 30–70% of total electricity bills.

How Peak Shaving Works with C&I BESS

Monitoring Usage: Smart systems track real-time energy demand.
Battery Discharge: During peak load times, stored energy is released to reduce grid reliance.
Lower Peak Demand: Utilities see a reduced maximum load, leading to lower demand charges.

This process allows companies to maintain operations while avoiding costly spikes in utility bills.

Financial Benefits of Peak Shaving

Implementing C&I BESS peak shaving delivers measurable financial benefits:

Reduced Utility Costs: Lower peak demand translates to smaller monthly bills.
Faster Payback Period: Cost savings accelerate ROI for BESS investments.
Predictable Expenses: Businesses can forecast energy costs with greater accuracy.

👉 See our post on C&I BESS Economics to explore ROI in more detail.

Operational Benefits Beyond Cost Savings

While financial returns are the most visible, peak shaving also provides operational advantages:

Improved Energy Reliability during high-demand periods.
Optimized Equipment Usage by reducing grid strain.
Increased Flexibility for energy-intensive operations.

👉 Learn more about the broader Benefits of C&I BESS, including resilience and sustainability.

Case Example: Peak Shaving in Manufacturing

A large manufacturing facility with heavy machinery faced monthly demand charges of over $50,000. By installing a 5 MW / 10 MWh C&I BESS, the facility:

Cut demand charges by 35%.
Saved over $500,000 annually.
Recovered the investment within 4 years.

Future Outlook: Peak Shaving as a Business Imperative

As electricity rates rise and utilities implement more time-based pricing, C&I BESS peak shaving will shift from an optional strategy to a business necessity. Companies adopting this approach early will gain a competitive advantage in cost control and sustainability goals.

Conclusion

C&I BESS peak shaving is a proven solution to reduce demand charges, optimize energy use, and drive long-term savings. For businesses in manufacturing, retail, healthcare, or data centers, investing in battery storage is not just about energy—it’s about financial resilience and operational efficiency.
