UL 2580 Certification: A Guide to EV Battery Safety
Electric vehicles are driving the future of transportation. As adoption grows, battery safety has become a critical focus for manufacturers and regulators. To ensure reliability, UL 2580 certification was introduced as a dedicated safety standard for electric vehicle batteries.
This blog explains what UL 2580 covers, why it’s important, and how it differs from other UL certifications.
What is UL 2580?
UL 2580 is a safety standard for lithium-ion battery packs and modules used in electric vehicles. Developed by Underwriters Laboratories, it focuses on testing how batteries perform under electrical, mechanical, and environmental stresses.
Unlike standards aimed at small devices or stationary storage, UL 2580 addresses the unique demands of automotive applications, where batteries face high loads, vibrations, and varied climate conditions.
Scope of the UL 2580 Standard
The requirements apply to complete battery packs and modules used in passenger cars, buses, and commercial EVs. The goal is to minimize risks like fire, leakage, or explosion by verifying:
- Electrical protection (overcharge, short circuit, insulation resistance)
- Mechanical resilience (impact, crush, vibration)
- Environmental durability (temperature extremes, water exposure, corrosion)
These evaluations simulate real-world driving scenarios, from high-speed crashes to operation in extreme weather.
Benefits of Compliance
1. Safety Assurance
Certification confirms that EV batteries can withstand demanding conditions without compromising driver or passenger safety.
2. Market Access
Many global regions expect compliance with UL2580 or equivalent standards before EVs can be sold.
3. Consumer Confidence
When automakers highlight UL-certified batteries, it reassures buyers that the technology is tested and reliable.
4. Brand Advantage
Certification demonstrates a manufacturer’s commitment to high-quality and safe energy storage solutions.
UL 2580 vs. Other Certifications
Battery standards vary depending on application. Here’s how UL 2580 compares:
| Standard | Applies To | Main Focus |
|---|---|---|
| UL 1642 | Individual cells | Cell-level safety tests |
| UL 2054 | Household/portable devices | Consumer electronics batteries |
| UL 2271 | Light electric vehicles | E-bikes, scooters |
| UL 2580 | EV battery packs & modules | Vehicle-level battery safety |
| UL 1973 | Stationary & motive use | Energy storage & industrial vehicles |
This comparison highlights UL2580 as the benchmark for road-going electric vehicles.
Looking Ahead
As battery technologies evolve—such as solid-state and advanced chemistries—standards like UL2580 will also adapt. This ensures future EVs continue to meet stringent safety requirements while supporting global electrification goals.
Conclusion
UL 2580 plays a key role in making electric vehicles safer and more reliable. By verifying battery pack safety under extreme electrical, mechanical, and environmental stresses, it protects consumers and strengthens trust in EV technology.
For manufacturers, certification isn’t just about compliance—it’s about staying competitive in a fast-growing market.
FAQs
1. What is tested under UL 2580?
Electrical, mechanical, and environmental safety of EV battery packs.
2. Is it mandatory?
In many regions, yes, or an equivalent standard is required for market approval.
3. How does it differ from UL 1973?
UL 2580 applies to road vehicles, while UL 1973 is for stationary or motive applications.
4. Who needs it?
Automakers, EV battery pack suppliers, and system integrators.
5. Does it apply to solid-state batteries?
Yes—future updates ensure new technologies remain covered.
The Role of IP-Rated Enclosures in C&I BESS Performance
Why Enclosures Matter in C&I BESS
In the world of commercial and industrial battery energy storage systems (C&I BESS), performance and reliability depend on more than just advanced batteries and control systems. One often overlooked component is the BESS enclosure. Enclosures act as the first line of defense against dust, moisture, temperature extremes, and physical damage. The use of IP-rated C&I BESS enclosures ensures not only long-term performance but also compliance with global safety standards.
At Sunlith Energy, we design enclosures that balance safety, efficiency, and scalability for diverse applications in renewable energy, EV charging hubs, and grid support.
What Are IP Ratings in C&I BESS Enclosures?
An IP ratinghttps://www.iec.ch/ip-ratings (Ingress Protection) defines how well an enclosure resists dust and water penetration. For C&I BESS enclosures, this rating is crucial because systems are often deployed in harsh industrial or outdoor environments.
- IP54: Basic indoor protection against dust and splashing water.
- IP65: Outdoor-level dust-tight enclosure with water spray protection.
- IP67: Resistant to immersion, suitable for flood-prone areas.
- IP69K: Extreme protection against high-pressure water jets and severe environments.
➡️ Learn more about Key Components of C&I BESS (IP Enclosures Section).
Why C&I BESS Enclosures Need IP Protection
Unlike residential systems, C&I energy storage systems face more demanding operational conditions. Choosing the right C&I BESS enclosure enhances:
- Durability – Prevents dust buildup that can impair cooling systems and electronics.
- Safety – Reduces the risk of short circuits and fire hazards caused by moisture ingress.
- Performance – Maintains thermal stability and system efficiency under varying climates.
- Compliance – Supports certifications for safe operation in industrial and utility environments.
Indoor vs Outdoor Applications
Different C&I projects demand different enclosure strategies:
- Indoor C&I BESS enclosures (IP54–IP65): Suitable for factories, warehouses, and commercial spaces. They provide moderate dust and moisture protection while maintaining cost efficiency.
- Outdoor C&I BESS enclosures (IP65–IP67): Essential for solar farms, EV fast-charging stations, and microgrids where systems face rain, dust storms, and high humidity.
This careful selection ensures maximum uptime and reduced maintenance costs.
C&I BESS Enclosures and Safety Standards
IP ratings directly contribute to safety and compliance by ensuring protection from hazards such as:
- Electrical shocks due to water intrusion
- Overheating caused by blocked airflow
- Contamination from dust and industrial particles
At Sunlith Energy, we integrate IP-rated enclosures as part of a broader compliance strategy that aligns with UL, IEC, and fire safety standards.
➡️ Read more about our Safety & Compliance practices.
Choosing the Right IP-Rated C&I BESS Enclosure
When selecting an enclosure for your C&I battery storage project, consider:
- Environment: Dusty factories, coastal areas, or flood-prone zones need higher IP ratings.
- Application: Indoor projects may optimize for cost with IP54, while outdoor utility-scale projects require IP65–IP67.
- Scalability: Larger systems benefit from modular enclosures with high IP protection to ensure reliability as capacity grows.
Conclusion: Enclosures Define Reliability
C&I BESS enclosures are not just boxes that house batteries; they are a critical safeguard that ensures performance, reliability, and compliance. By choosing the right IP-rated enclosure, businesses protect their investments, enhance safety, and enable long-term sustainability in energy storage projects.
At Sunlith Energy, we provide advanced C&I BESS solutions with enclosures tailored to industrial and commercial needs, ensuring that your system is built to last.
Frequently Asked Questions (FAQ) about C&I BESS Enclosures
1. What is an IP-rated C&I BESS enclosure?
An IP-rated C&I BESS enclosure is a protective housing designed for commercial and industrial battery energy storage systems. The IP rating specifies how well the enclosure resists dust and water, ensuring safety and durability in challenging environments.
2. Why are IP ratings important for C&I BESS?
IP ratings define how resistant enclosures are to dust and water intrusion. For C&I BESS enclosures, higher IP ratings mean better protection, which translates into improved system reliability, longer lifespan, and compliance with industry safety standards.
3. Which IP rating is best for C&I BESS enclosures?
The choice depends on the application:
IP69K: Used in extreme industrial conditions where systems face high-pressure cleaning or severe weather.
IP54–IP65: Best for indoor commercial or industrial settings.
IP65–IP67: Ideal for outdoor environments exposed to rain, dust, and humidity.
4. How do C&I BESS enclosures improve safety?
By preventing water, dust, and debris from entering the system, C&I BESS enclosures reduce the risk of electrical faults, overheating, and fire hazards. They also help ensure compliance with UL and IEC safety standards.
5. Do all commercial and industrial BESS require high-IP enclosures?
Not always. Indoor C&I BESS may only need moderate protection (e.g., IP54), while outdoor and utility-scale BESS demand higher protection (e.g., IP67). The correct choice balances cost, environment, and safety needs.
6. How does Sunlith Energy ensure quality in its C&I BESS enclosures?
At Sunlith Energy, our enclosures are engineered with high-quality sealing, robust materials, and compliance with international standards. Each C&I BESS enclosure is tested for dust and water resistance to guarantee long-term reliability.
UL 1642 Certification Guide: Lithium-Ion Cell Safety
UL 1642 certification is the core U.S. safety standard for lithium-ion and lithium-metal cells. Underwriters Laboratories publishes this standard. Most cell manufacturers need UL 1642 certification before selling into the North American market. This certification tests the cell itself. It happens before the cell ever becomes part of a battery pack or energy storage system.
This guide explains what UL 1642 actually requires. First, you’ll see the scope and gram limits that define which cells qualify. Next, you’ll learn the four categories of abuse testing. Then, we’ll cover a realistic certification timeline. Finally, we’ll compare UL 1642 to UN 38.3 and IEC 62133. For system-level certifications that come after cell approval, see our UL 1973 certification guide and our full UL certifications overview.
UL 1642 Certification Scope: Which Cells Qualify?
UL 1642 certification applies to lithium-ion and lithium-metal cells. It does not cover complete battery packs, modules, or energy storage systems. This distinction matters, because it determines which certification you actually need.
For user-replaceable applications, the standard sets clear limits. A battery must contain no more than 4.0g of total lithium content. No single cell may exceed 1.0g of metallic lithium. Cells above these limits need additional evaluation. Once a cell earns UL 1642 certification, it becomes the foundation for pack-level certifications. Most manufacturers pursue UL 2054 next for household and commercial packs. Others pursue UL 1973 for stationary and BESS applications.
UL 1642 Certification: The Four Testing Categories
UL 1642 certification evaluates cells across four testing categories. Each one simulates a real-world failure mode.
- Electrical — the lab runs a short-circuit test, an overcharge test, and a forced discharge test.
- Mechanical — technicians perform a crush test, an impact test, a shock test, and a vibration test.
- Environmental — testers apply a heating test, temperature cycling, and a low-pressure altitude test.
- Projectile — this test confirms a failed cell can’t become a projectile that penetrates a surrounding mesh screen.
Together, these tests confirm the cell resists fire, explosion, and leakage. As a result, UL 1642 certification becomes a prerequisite for nearly every downstream battery certification.
How Long Does UL 1642 Certification Take?
The UL 1642 certification process starts with sample submission. Manufacturers typically submit both fresh and pre-aged cells. This approach evaluates performance across the cell’s expected life, not just out of the box. From there, the lab runs the full test suite: electrical, mechanical, environmental, and projectile tests.
Most manufacturers should plan for roughly 8–12 weeks from sample submission to certificate issuance, though lab capacity and sample variants affect the schedule. You can verify any UL certificate directly through UL’s Product iQ database.
UL 1642 vs UN 38.3: Two Different Kinds of Safety
People often confuse UL 1642 with UN 38.3. However, these standards test completely different risks. UL 1642 certification proves product-use safety — it confirms a cell resists short circuits, overcharge, and crush damage. UN 38.3 proves transport safety instead — it confirms a cell survives shipping conditions like altitude changes, vibration, and shock.
Every international lithium battery shipment legally requires UN 38.3 testing. Meanwhile, manufacturers need UL 1642 certification for U.S. market access. In short, most manufacturers need both. Neither certification replaces the other.
| UL 1642 Certification | UN 38.3 | |
|---|---|---|
| What it certifies | Product-use safety | Transport / shipping safety |
| Core tests | Short circuit, overcharge, crush, abnormal charging | Altitude simulation, thermal cycling, vibration, shock, external short circuit |
| Who requires it | OEMs, retailers, and North American market access | Legally required for every international lithium battery shipment |
| Can one replace the other? | No — both are typically required | No — both are typically required |
In practice, a cell manufacturer shipping internationally needs both certifications: UN 38.3 to legally move the product, and UL 1642 certification to sell it into the U.S. market.
UL 1642 vs IEC 62133
IEC 62133 is the closest international equivalent to UL 1642. Companies selling into the EU or Asia usually need IEC 62133 instead. Both standards test similar risks. However, they aren’t interchangeable. IEC 62133 generally covers portable sealed cells across a broader range of chemistries. UL 1642 certification, on the other hand, applies specifically to lithium-ion and lithium-metal cells. Additionally, OSHA-recognized labs in the U.S. reference UL 1642 certification directly. For this reason, manufacturers targeting multiple markets typically pursue both.
UL 1642 Certification in Context: UL 1973 and UL 9540
UL 1642, UL 1973, and UL 9540 often get confused in BESS compliance conversations. However, each standard certifies a different layer of the system.
| Standard | What It Covers |
|---|---|
| UL 1642 | Individual lithium-ion or lithium-metal cells |
| UL 1973 | Complete battery modules and packs for stationary storage, EVs, and light rail |
| UL 9540 | The full energy storage system — batteries, PCS, controls, and enclosure together |
A cell typically earns UL 1642 certification before a manufacturer can integrate it into a UL 1973-certified pack. That pack, in turn, supports UL 9540 certification for the complete system. For the pack-level standard specifically, see our UL 2054 certification guide.
Why UL 1642 Certification Matters
- Market access — most North American retailers require UL 1642 before they’ll sell a product.
- Foundation for downstream certification — UL 2054 and UL 1973 both require cells that already carry UL 1642 certification.
- Liability protection — manufacturers commonly use UL 1642 certification reports as evidence of due diligence.
At Sunlith Energy, we source UL 1642-certified cells as the baseline for every BESS product line. See our full guide to UL certifications for battery systems for how this fits into the complete compliance picture, or our BESS certifications overview for a buyer’s-side breakdown of what to check before purchasing.
Frequently Asked Questions
What does UL 1642 certification cover?
UL 1642 covers individual lithium-ion and lithium-metal cells. It does not cover complete battery packs. Pack-level safety falls under separate standards, like UL 2054 or UL 1973.
W
How long does UL 1642 certification take?
Most manufacturers should plan for 8–12 weeks, from sample submission to certificate issuance. Lab capacity and sample variants can affect the schedule.
How is UL 1642 certification different from UN 38.3?
UL 1642 certification tests product-use safety. UN 38.3 tests transport safety instead. Most manufacturers need both.
Is UL 1642 mandatory for all lithium-ion cells?
UL 1642 is not a legal requirement by itself, but is effectively mandatory for most North American OEMs, retailers, and import channels, and is treated as a baseline by NRTL labs and many corporate safety policies.
Can a pack be UL 2054 or UL 1973 certified if its cells are not UL 1642 certified?
No, a battery pack cannot be UL 2054 or UL 1973 certified unless its constituent cells are UL 1642 certified. Both of these pack-level standards mandate that the internal cells meet the basic cell-level safety standards of UL
What happens if we change cell chemistry after UL 1642 certification?
Changes to chemistry, materials, or manufacturing process must be reported to the lab, can trigger partial re‑testing, and that failing to report changes is a common cause of certification invalidation.
Does UL 1642 cover both lithium-ion and lithium-metal cells?
Yes, it covers both, but still only at the cell level. Battery packs and modules require additional certifications such as UL 1973 for stationary applications and UL 9540 for full energy storage systems.
Related UL Certifications
For the next steps in the certification chain, see our guides to UL 1973 certification, UL 2054 certification, and UL 9540A test methodology. For a full breakdown of testing scope and lab accreditation standards, UL’s own battery safety testing overview is a useful primary source.
UL 2271 Certification: Ensuring Safe Lithium Batteries for Light Electric Vehicles
UL 2271 Certification: A Safety Standard for Modern Mobility
The popularity of light electric vehicles (LEVs) such as e-bikes and scooters has surged in cities worldwide. With this growth comes an urgent need for reliable and safe batteries. UL 2271 certification provides a trusted benchmark, ensuring lithium-ion batteries used in LEVs are tested for safety, reliability, and durability.
At Sunlith Energy, we understand that safety is not optional—it is the foundation of innovation in clean mobility. That is why UL 2271 plays a vital role in our approach to powering the next generation of transport solutions.
What is UL 2271?
UL 2271 is a standard developed by UL Solutions, titled “Batteries for Use in Light Electric Vehicle Applications.” It applies to rechargeable lithium-ion batteries and battery packs designed for vehicles like:
- Electric bicycles (e-bikes)
- Electric scooters
- Utility carts and campus shuttles
- Personal mobility devices
This certification addresses risks such as fire, thermal runaway, and electrical failure, giving users peace of mind while adopting electric transport.
Why UL 2271 Matters for LEVs
Lithium-ion batteries can fail under stress or misuse, sometimes causing dangerous incidents. UL 2271 reduces these risks through rigorous testing and quality checks. The benefits extend across the ecosystem:
- For Consumers – Safer rides with fewer risks of overheating or fires.
- For Manufacturers – Compliance that strengthens brand trust and accelerates market approval.
- For Regulators – A standardized approach to evaluating battery safety. Agencies such as the U.S. Consumer Product Safety Commission (CPSC) reference UL certifications when assessing risks.
- For Fleet Operators – Fewer breakdowns, lower insurance risks, and higher uptime.
By aligning with UL 2271, manufacturers demonstrate a commitment to safety and long-term reliability.
Core Testing Areas in UL 2271
The certification process is extensive, covering every aspect of battery behavior:
Electrical Performance
- Overcharge and discharge protection
- Short-circuit resistance
- Abnormal charging safety
Mechanical Safety
- Crush resistance
- Drop impact testing
- Vibration endurance
Environmental Conditions
- Temperature cycling (hot and cold)
- Humidity and corrosion exposure
- Thermal stability
Abuse Scenarios
- Nail penetration
- Fire exposure
- Forced discharge tests
These simulations ensure that batteries are safe not only under normal use but also in extreme and unexpected conditions.
Where UL 2271 Certified Batteries Are Used
Certified batteries can be found across a variety of mobility applications:
- Micromobility fleets – Shared e-scooters and bikes in urban environments
- Logistics and delivery – Small electric utility vehicles for last-mile transport
- Campus and industrial transport – Electric carts in universities, resorts, and warehouses
- Personal recreation – Electric skateboards, hoverboards, and other small vehicles
As cities embrace greener mobility, UL 2271 ensures these devices meet the highest standards of safety.
How UL 2271 Compares to Other Standards
Different UL standards apply to batteries depending on their use case. Here’s how UL 2271 fits into the bigger picture:
| Standard | Application | Key Difference |
|---|---|---|
| UL 1642 certification | Individual lithium-ion cells | Evaluates cell safety, not packs |
| UL 2054 | Consumer battery packs | Broader scope for electronics |
| UL 2271 | LEV battery packs | Designed specifically for mobility |
| UL 2580 | EV battery packs | Applied to full-size electric vehicles |
This distinction makes UL 2271 the go-to certification for smaller mobility solutions, bridging the gap between consumer electronics and large electric vehicles.
Benefits for Manufacturers
For companies producing batteries and light mobility systems, UL 2271 certification unlocks significant advantages:
- Global Market Access – Many import and sales channels require UL approval.
- Consumer Trust – Certified products carry the UL mark, a symbol of safety.
- Fewer Recalls – Certified designs lower the risk of costly failures.
- Brand Differentiation – Compliance shows leadership in product responsibility.
At Sunlith Energy, we believe certification is not only about meeting regulations but also about earning customer confidence.
Global Adoption of UL 2271
Though it originates in the United States, UL2271 is recognized worldwide. European markets, as well as regions in Asia-Pacific, increasingly request UL-certified products. Organizations like the European Committee for Electrotechnical Standardization (CENELEC) often align their safety requirements with UL or IEC standards such as IEC 62133.
Challenges in Certification
Adopting UL 2271 isn’t without hurdles:
- Testing and approval costs can be high.
- Certification takes time, which may affect product launches.
- Standards evolve as technology advances, requiring ongoing compliance updates.
However, for manufacturers committed to long-term success, the benefits outweigh the costs.
The Future of UL 2271
As micromobility grows, the importance of UL2271 will only increase. We expect:
- Tighter adoption by regulators and fleet operators.
- Integration with international standards like IEC 62133.
- Adjustments for new technologies such as semi-solid and solid-state batteries.
UL2271 will remain a critical part of ensuring that e-mobility remains safe, sustainable, and trusted.
Conclusion
UL 2271 certification is more than a technical requirement—it is a safety guarantee. For consumers, it provides assurance that their rides are reliable. For manufacturers, it opens global markets and builds trust. For regulators, it creates consistency.
At Sunlith Energy, we see UL2271 as a cornerstone in shaping a secure, innovative, and eco-friendly mobility future. Learn more about our work in certification and compliance by exploring global battery certifications.
FAQs
Q1: Does UL 2271 apply to large EVs like cars?
No. Large EVs fall under UL 2580. UL2271 is specifically designed for smaller vehicles such as scooters and e-bikes.
Q2: Is certification mandatory?
While not always legally required, many retailers, regulators, and fleet programs demand UL compliance before accepting products.
Q3: How long does certification take?
Timelines vary, but manufacturers should prepare for several weeks to months depending on design complexity.
Q4: Does UL 2271 cover battery management systems (BMS)?
Yes. The standard includes evaluations of cells, packs, and electronic control systems.
Q5: Can UL 2271 certified batteries be used in storage systems?
No. Stationary energy storage solutions fall under UL 9540/9540A.
Types of Energy Storage Systems: A Complete Guide
Solar and wind only make power when the sun shines and the wind blows. Storage closes that gap. But there are several types of energy storage systems, not just batteries.
Battery storage gets most of the attention. However, mechanical, thermal, and hydrogen storage also play real roles today.
At Sunlith Energy, we focus on battery energy storage systems (BESS). So we get this question a lot: what are the other types of energy storage systems, and when does each one make sense?
| Quick Answer There are six main types of energy storage systems: battery (BESS), mechanical (pumped hydro, compressed air, flywheels), thermal, hydrogen, fuel cells, and supercapacitors. Each stores energy differently. Each also suits a different discharge time, from seconds of backup power to weeks of seasonal storage. |
What Is an Energy Storage System?
An energy storage system captures energy when it’s abundant. Then, it releases that energy when it’s needed. That simple job does a lot of work for the grid. For example, it:
- Balances supply and demand in real time
- Reduces instability from variable renewable output
- Improves renewable energy integration
- Lowers energy costs through peak shaving
- Provides backup power during outages
If you’re evaluating storage for a commercial site, our guide to C&I BESS applications shows how these benefits play out.

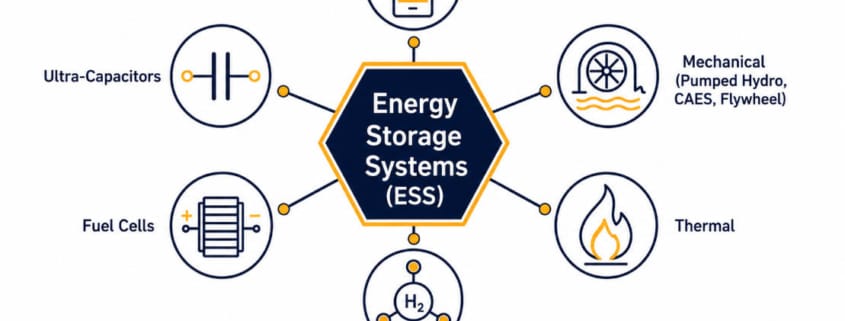

Types of Energy Storage Systems
Every storage technology makes trade-offs. Some hold more energy. Others respond faster. A few discharge for much longer. So here’s how the main types of energy storage systems compare, one by one.
1. Battery Energy Storage Systems (BESS)
Battery storage is the most widely deployed type of ESS today. Batteries scale from a few kilowatt-hours up to hundreds of megawatt-hours. They also respond in milliseconds. And costs have fallen sharply over the past decade.
- Lithium-ion, especially LFP, is the industry standard. It packs in a lot of energy, lasts many cycles, and runs safely at high heat.
- Lead-acid batteries stay affordable but wear out faster. So most are used in smaller backup systems.
- Flow batteries store energy in liquid electrolytes. They suit longer storage jobs, since power and energy capacity can scale on their own.
BESS is our core focus at Sunlith. For the full picture, see our complete guide to battery energy storage systems. To see how BESS fits within the wider ESS category, read the difference between BESS and ESS.

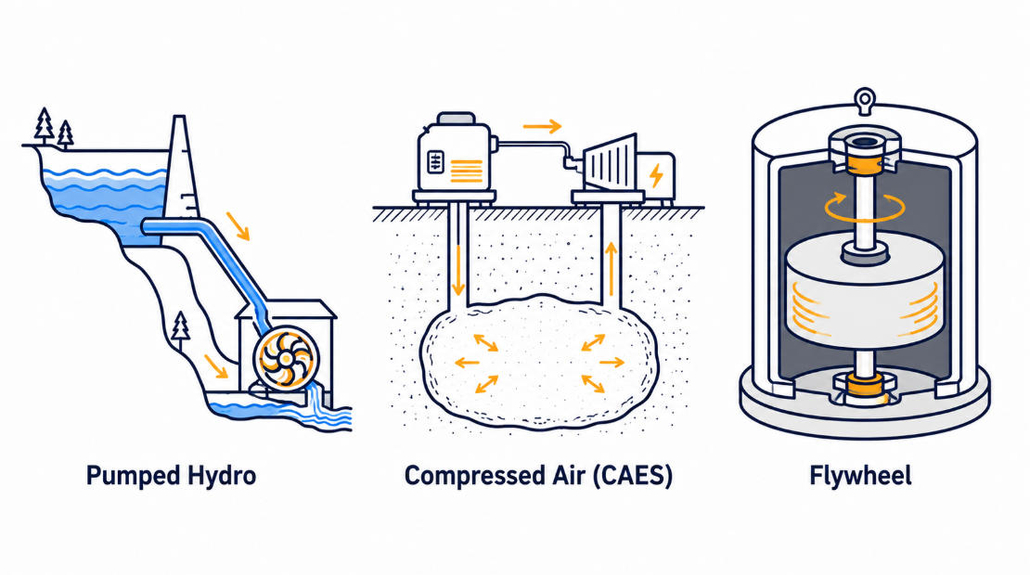

2. Mechanical Storage
Mechanical systems store energy as motion or height, not chemistry. Three technologies lead this category. Together, they hold most of the world’s grid-scale storage capacity.
Pumped hydro storage (PHS) is the oldest storage technology still in wide use. In fact, it’s been in commercial service for over a century. First, it pumps water uphill when demand is low. Then, it releases that water through turbines when demand rises.
According to the Sandia National Laboratories, pumped hydro plants run near 80% round-trip efficiency. PHS also makes up roughly 90% of global grid storage capacity — more than every other storage type combined.
Compressed air energy storage (CAES) works on a similar idea. Instead of water, it stores compressed air in underground caverns. When power is needed, the air is released, heated, and expanded through a turbine.
CAES suits long-duration storage at large scale. But it needs the right underground geology, which limits where it can be built.
Flywheels store energy as kinetic motion in a spinning rotor. The rotor sits in a sealed, low-friction enclosure to cut losses. Flywheels can’t hold much total energy. But they respond almost instantly, and they handle huge numbers of charge cycles without wearing down.
For example, the DOE/EPRI Electricity Storage Handbook, published through Sandia National Laboratories, describes a typical flywheel system delivering 100 kW for fifteen minutes in frequency-regulation service. That’s a job batteries handle poorly, but flywheels handle well.
3. Thermal Storage
Thermal ESS stores energy as heat or cold. Then, it converts that energy back when needed.
- Molten salt stores solar heat at high temperature. Because of this, concentrated solar plants can keep generating power after sunset.
- Ice storage makes and stores ice during off-peak hours. Buildings then use that ice to cool down during the day. That shifts demand away from peak hours.
- Phase change materials absorb and release heat as they change state. That gives buildings steady temperature control, without much added electricity.

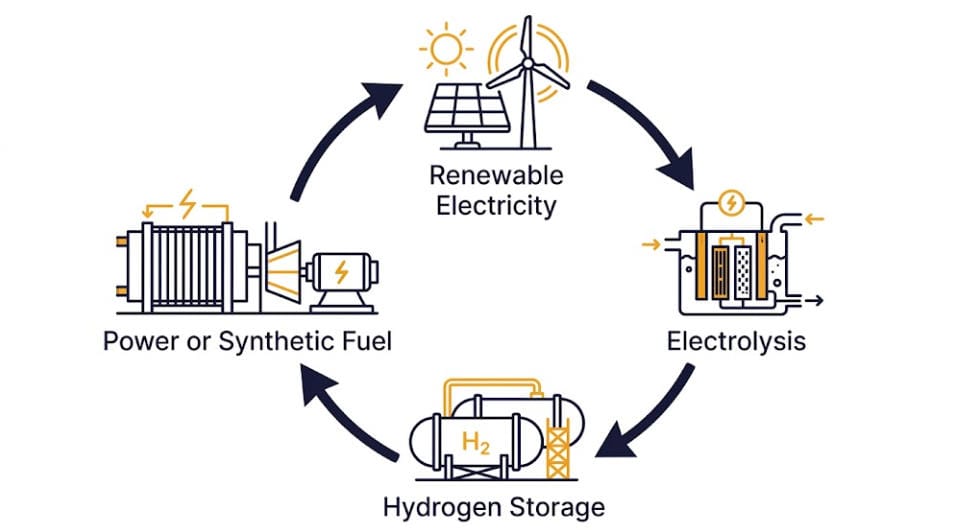

4. Hydrogen and Power-to-X Storage
Hydrogen is one of the few types of energy storage systems suited to long, seasonal storage. That’s because it’s the kind of job batteries struggle with.
Electrolysis uses renewable power to split water into hydrogen. That hydrogen can be stored for weeks or months. See our deeper look at green hydrogen storage for how this works in practice.
Later, it can make electricity again through a fuel cell or turbine. Or, it can turn into synthetic fuel instead.
This mix of uses is called sector coupling. Because of it, extra renewable power can support heating and transport, not just the grid.
5. Fuel Cells
Fuel cells aren’t storage devices in the strict sense. Instead, they’re conversion devices. A fuel cell turns stored hydrogen, or another fuel, back into electricity through a chemical reaction. No combustion is involved.
- Fuel cells run cleanly and efficiently
- They scale well for backup power, mobility, and grid support
- Paired with hydrogen storage, they form a complete storage-and-conversion loop
6. Ultra-Capacitors (Supercapacitors)
Ultra-capacitors store energy in an electric field, not through a chemical reaction. Because of this, they play a narrow but valuable role.
- They charge and discharge in seconds — far faster than any battery
- They excel at short, high-power bursts, like voltage stabilization or regenerative braking
- They handle hundreds of thousands of cycles with little wear, but hold far less total energy than a similarly sized battery
Most projects pair ultra-capacitors with batteries instead of choosing one or the other. That’s because the capacitor absorbs fast power spikes, while the battery handles sustained energy delivery.
7. Emerging and Hybrid Types of Energy Storage Systems
Modern projects increasingly combine two or more types of energy storage systems to cover each other’s weak spots. For example, a battery-plus-capacitor system gives you both long-duration storage and instant response.
Similarly, a thermal-plus-hydrogen system can handle daily cycling and seasonal storage from one renewable source.
At Sunlith Energy, we design systems that meet these varied needs. We also build them to UL certifications and other global safety standards.

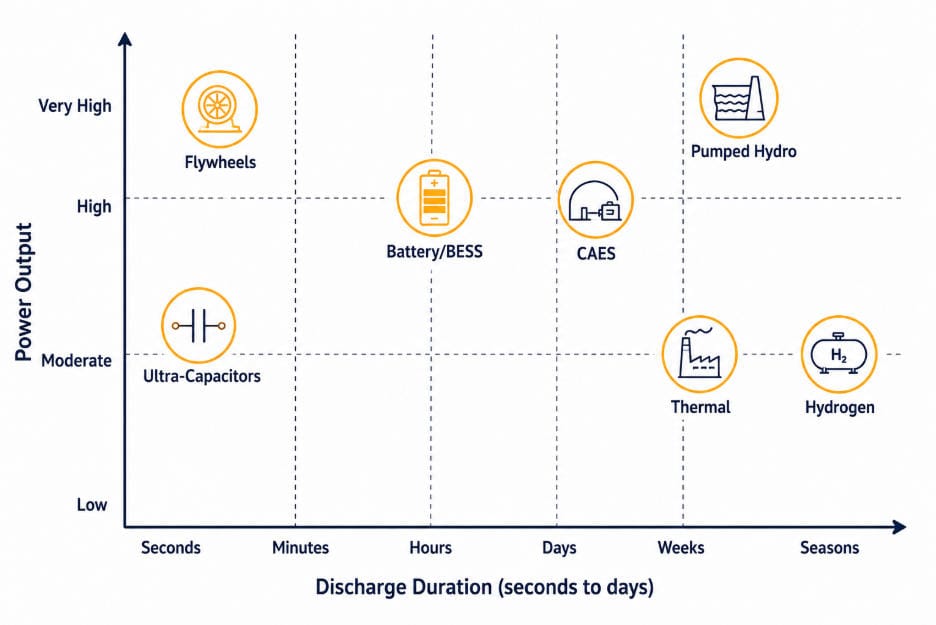

Types of Energy Storage Systems Compared at a Glance
Figures below are general industry ranges, meant to compare technologies at a glance — not project-specific guarantees.
| Type | Typical Discharge Duration | Round-Trip Efficiency | Technology Maturity | Best Use Case |
|---|---|---|---|---|
| Battery (BESS) | Minutes to ~8 hours | High (~85-95%) | Mature, fast-growing | Renewable integration, peak shaving, grid services |
| Pumped Hydro (PHS) | Hours to days | ~80% | Mature (100+ years) | Large-scale, long-duration grid storage |
| Compressed Air (CAES) | Hours | Moderate (design-dependent) | Established, niche | Large-scale storage where geology allows |
| Flywheels | Seconds to minutes | High | Mature, niche | Frequency regulation, power quality |
| Thermal | Hours to seasonal | Varies by type | Mature to emerging | Solar heat retention, building cooling |
| Hydrogen | Days to months (seasonal) | Lower (multi-step conversion) | Emerging, scaling | Long-duration, seasonal, sector coupling |
| Ultra-Capacitors | Seconds | Very high | Mature, niche | Short power bursts, voltage stabilization |

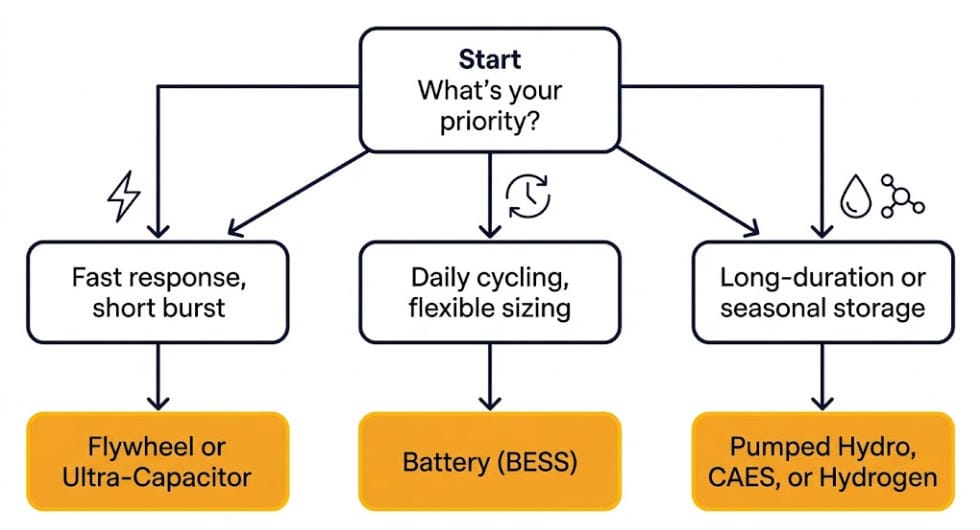

How to Choose Among the Types of Energy Storage Systems
Picking the right type of energy storage system comes down to a few practical factors:
- Application — backup power, renewable integration, and grid stability each favor different technologies
- Discharge duration — seconds of power-quality support versus hours or days of energy shifting
- Technology maturity and cost — some technologies are decades-proven; others are still coming down in cost
- Safety and compliance standards — critical for any commercial or industrial deployment
For commercial and industrial BESS specifically, safety compliance isn’t optional. Standards like UL 9540, CE, and IEC certifications are the benchmarks worth understanding before you specify a system.
Conclusion
Energy storage systems are the foundation of a reliable, renewable-powered grid. Across the different types of energy storage systems, each technology fills a role the others can’t. That’s true for batteries, mechanical, thermal, hydrogen, fuel cells, and supercapacitors alike.
At Sunlith Energy, batteries are where we focus, and it shows. Our complete guide to battery energy storage systems covers BESS architecture, applications, and selection criteria in depth.
We help industries, businesses, and utilities pick the right storage technology. That means lower costs and a faster path to clean energy.
Frequently Asked Questions
What is an energy storage system (ESS)?
An energy storage system stores energy produced at one time. It makes that energy available later. This balances supply and demand. It also improves renewable reliability and supports grid stability.
What are the main types of energy storage systems?
The main types of energy storage systems are battery storage (BESS — lithium-ion, lead-acid, and flow), mechanical storage (pumped hydro, compressed air, and flywheels), thermal storage (molten salt, ice, and phase change materials), hydrogen storage, fuel cells, and ultra-capacitors.
What is the difference between ESS and BESS?
ESS, or energy storage system, is the broad category. It covers every storage technology.
BESS, or battery energy storage system, is one specific type that uses batteries. So every BESS is an ESS. But not every ESS is a BESS. Read more in our full breakdown of BESS vs ESS.
Why are energy storage systems important for renewable energy?
Solar and wind generation is intermittent by nature. Energy storage systems capture power when generation is high. Then they release it when demand rises. That makes renewable electricity reliable enough to replace fossil generation at scale.
What’s the best energy storage system for commercial and industrial use?
For most C&I applications, battery energy storage systems are the practical choice. They offer fast response, flexible sizing, and proven reliability. Learn more in our guide to C&I BESS components.
Is ESS safe?
Yes. Modern ESS installations follow strict safety standards. Compliance with UL 9540, CE, and IEC certifications means a system meets global safety and performance rules before it goes live.
What’s Next for These Types of Energy Storage Systems?
Expect wider use of solid-state batteries, growing adoption of hydrogen storage for long-duration needs, and more hybrid systems. These hybrids combine batteries, fuel cells, and supercapacitors to cover both short bursts and long stretches.
Further Reading
UL 9540 Certification for Energy Storage Systems: Complete Guide
As the demand for clean energy grows, energy storage systems (ESS) are playing a crucial role in stabilizing the grid and enabling renewable integration. With safety and compliance at the forefront, UL 9540 certification has become the global benchmark for energy storage systems.
In this guide, we’ll explain what UL 9540 is, why it matters, and how it ensures the safety of battery energy storage systems (BESS).
What is UL 9540?
UL 9540 is the Standard for Safety of Energy Storage Systems and Equipment, developed by Underwriters Laboratories (UL). It sets the requirements for the safe design, construction, installation, and performance of energy storage systems.
This standard covers:
- Battery systems (lithium-ion, lead-acid, flow batteries, etc.)
- Power conversion systems (PCS)
- Control and protection systems
- Thermal management
- Fire safety measures
By meeting UL 9540 certification, an ESS demonstrates that it can operate safely under normal and fault conditions.
Why System Safety Matters
Energy storage systems involve high energy densities, complex electronics, and thermal risks. UL 9540 provides a structured safety framework that:
- Prevents fire hazards through strict testing protocols.
- Protects end-users by ensuring reliable and safe operation.
- Simplifies compliance with local building and fire codes.
- Supports market acceptance by meeting utility, AHJ (Authorities Having Jurisdiction), and global standards.
Without UL 9540, energy storage projects may face delays, higher insurance costs, or rejection from local authorities.
Key Components of UL 9540
UL 9540 certification is not just a single test. It integrates results from multiple safety standards, including:
- UL 1973 – for battery modules and packs.
- UL 1741 – for inverters and power conversion systems.
- UL 9540A – for thermal runaway fire propagation testing.
Together, these ensure the system-level safety of the ESS.
The UL 9540 Certification Process
The certification involves a step-by-step process:
- Application & Documentation
Manufacturers submit system specifications, schematics, and safety features. - Component Verification
Sub-systems like batteries, PCS, and BMS must comply with relevant UL standards. - System-Level Testing
The complete ESS is evaluated for electrical, mechanical, and thermal safety. - UL 9540A Fire Test (if required)
Evaluates thermal runaway risks and fire propagation between cells/modules. - Factory Audits & Quality Checks
Ensures consistent production safety.
Benefits of UL 9540 Certification
For manufacturers, developers, and customers, UL 9540 offers clear benefits:
- Market access – Approved by U.S. and international authorities.
- Insurance acceptance – Reduces risk premiums.
- Customer trust – Proof of safe and reliable operation.
- Regulatory compliance – Helps meet building codes like NFPA 855.
UL 9540 vs. UL 9540A
It’s common to confuse UL 9540 with UL 9540A.
- UL 9540 → System-level safety certification.
- UL 9540A → Fire safety test method to evaluate thermal runaway and propagation.
In practice, many jurisdictions require both UL 9540 certification and UL 9540A test reports before granting project approval.
👉 You can read our in-depth article on UL 9540A Test Method to understand how fire safety testing complements UL 9540 certification.
Applications of UL 9540 Certified Systems
UL 9540 certified systems are used across various industries:
- Commercial & Industrial facilities – backup power and peak shaving.
- Residential ESS – safe home battery storage.
- Utility-scale projects – grid balancing and renewable integration.
- Microgrids – reliable off-grid power supply.
Challenges in Achieving UL 9540 Certification
While critical, certification is not always easy. Common challenges include:
- Cost and testing timelines – Full certification can take months.
- System design complexity – Integrating batteries, PCS, and controls safely.
- Evolving standards – New revisions often add requirements.
Manufacturers must work with experienced certification partners to streamline the process.
Future of UL 9540
As energy storage technology evolves, UL continues to update its standards. Upcoming editions are expected to address:
- Hydrogen detection systems
- Enhanced rooftop installation guidelines
- New battery chemistries (like sodium-ion and solid-state)
Staying aligned with these updates will be key for manufacturers and developers.
Conclusion
UL 9540 certification is the cornerstone of safety for energy storage systems. It combines multiple safety evaluations, ensures compliance with fire codes, and builds confidence among regulators, insurers, and end-users.
For anyone developing or deploying ESS solutions, UL 9540 is not optional—it’s essential.
👉 Learn more about how we support certification-ready solutions at Sunlith Energy.
FAQ
Q1. What does UL 9540 cover?
UL 9540 covers the safety of energy storage systems, including batteries, power conversion systems, and fire safety measures.
Q2. Is UL 9540 mandatory?
While not always legally required, many local codes and utilities demand UL 9540 certification for permitting and grid connection.
Q4. How long does certification take?
Depending on system complexity, UL 9540 certification can take 3–12 months.
Q5. Can older ESS be retrofitted for UL 9540?
Yes, but it may require re-testing and upgrades to meet safety standards.
