Dielectric Fluid for Immersion Cooling in Battery Storage: Selection, Compatibility, and Safety
Choosing a dielectric fluid for immersion cooling in battery storage is a system decision, not a datasheet contest. That is because the fluid insulates live parts, contacts the system’s wetted components, and shapes fire behavior.
Therefore, this guide shows how to test that decision. First it covers properties, then compatibility, fire limits, maintenance, and supplier documentation.
What Does a Dielectric Fluid for Immersion Cooling Do?
A dielectric fluid for immersion cooling is a liquid that provides electrical insulation. It also carries heat away from the cells.
New to the cooling method? Our guide to immersion cooling battery storage explains how the system works and what evidence buyers should request.
Instead, this guide asks a narrower question: does one fluid suit one battery system?
Because the fluid moves heat, insulates, and touches every wetted part, one weak property can spoil the rest. As a result, no single number settles the choice.
For example, a 2025 review in Energies notes that the industry has no clear consensus on the ideal fluid. It covers electric vehicles, but storage buyers face the same problem.
Which Properties Matter in a Dielectric Fluid for Immersion Cooling?
First, six property groups matter most for a dielectric fluid for immersion cooling. Then the table below shows why each one matters and what proof to request.
| Property | Why it matters | Evidence to request |
|---|---|---|
| Electrical insulation and breakdown | Helps maintain electrical insulation between exposed conductive parts. Very low conductivity can also let static charge build in pumped fluid. | Breakdown voltage with test method and gap, plus resistivity and dissipation factor, new and aged. |
| Specific heat and thermal conductivity | Specific heat helps set temperature rise at a given mass flow and heat load. Thermal conductivity affects heat transfer through the fluid near the cell surface. | Both values across the operating temperature range, with the test method. |
| Viscosity across temperature | Drives pump power and cold-start flow. | Viscosity curve and pour point, from the coldest to the hottest site condition. |
| Material compatibility | Seals, adhesives, and coatings can swell, harden, or leach. | Exposure results for each wetted material, with temperature and duration. |
| Oxidation and thermal stability | Aging can raise acidity and viscosity and weaken insulation. | Aging tests with properties measured before and after, plus the method used. |
| Flammability and fire behavior | Flash point alone does not predict behavior in a cell failure. | Flash and fire points, plus system-level test data with the fluid present. |
Thermal Properties Versus Flow Resistance
Fluid selection involves trade-offs between thermal performance and pumping demand. For example, a published modeling study of one 18650 cell found that fluid thermal conductivity and heat capacity most strongly affected thermal and electrochemical response.
That study modeled one cell, not a storage rack. Even so, it shows why thermal data alone cannot pick a fluid.
Next, viscosity sets what that heat transfer costs in pump power. It also changes with temperature.
For instance, the 2025 Energies review notes that natural-ester formulations can be more viscous, with poorer cold flow, than mineral oils. However, formulation can change this, so request temperature-dependent viscosity data for the exact products compared.
How to Evaluate Material Compatibility
Material compatibility is a critical qualification step for any dielectric fluid for immersion cooling. In fact, a fluid can have attractive electrical and thermal properties yet damage the components it contacts.
In fact, a 2022 Journal of Power Sources review found few studies on lifetime, fluid stability, and compatibility. Therefore, supplier test data matters more here than published averages.
List Every Wetted Material
First, write down everything the fluid touches. Then ask for evidence on each item.
- Seals, gaskets, and hoses
- Adhesives, gap fillers, and thermal interface materials
- Cable insulation, connectors, and busbar plating
- Coatings, labels, and enclosure plastics
- Cell cases, vent seals, and terminals
- Sensors and any hygroscopic parts that can release water
Also, adhesives and gap fillers deserve extra attention. Because heat and swelling both matter, our guide to gluing cells in a battery pack explains the trade-offs.
What a Credible Compatibility Test Shows
First, look for samples soaked in the exact fluid at specified temperatures and exposure durations. Then check what changed.
- Mass and volume change, such as swelling or shrinkage
- Hardness, tensile strength, and elongation
- Compression set for seals
- Substances leached into the fluid, and any shift in its insulation
- Corrosion or staining on copper and other metals
For example, rubber seals are often screened with immersion methods such as ASTM D471. However, it gives comparative data, not a direct forecast of part life.
Also, metals need checking. For instance, the Energies review links some mineral oils to copper corrosion associated with corrosive sulfur species, and notes compatibility challenges with synthetic esters.
Test Both Directions and the Failure Case
Because compatibility runs both ways, the fluid can change a material, and a damp part can release water into the fluid.
Also ask what happens if a cell leaks or vents into the fluid. A battery-engineering publication advises testing the fluid against all cell materials in that case.
Red Flags in Compatibility Claims
Treat these claims as warning signs:
- A claim that a fluid family suits all battery materials
- Tests run only at room temperature
- Results with no exposure duration or material grade
- Data for a different cell format or seal supplier
Comparing Fluid Families
Although five fluid families appear most often in the research, this guide does not rank them.
Still, the best dielectric fluid for immersion cooling depends on the cell, system, and site. Fluid families offer different starting points, but properties vary with formulation, additives, condition, and test method.
Next, the table below identifies questions to investigate, not a ranking of suitability for battery storage.
| Family | Potential advantages | Qualification concerns | Evidence to request |
|---|---|---|---|
| Mineral oil | Low cost, low viscosity, long transformer history | Fire resistance, oxidation behavior, corrosive sulfur species with copper, biodegradability | Corrosion and oxidation test data for the exact formulation |
| Silicone oil | Thermal stability, high fire points reported | Cost, biodegradability, higher viscosity | Viscosity across temperature and system-level fire test data |
| Synthetic ester | Tunable formulation, wide range of grades | Cost, material compatibility challenges, formulation-dependent properties | Exposure results for each wetted material and aging data |
| Natural ester | Readily biodegradable, high fire points reported | Oxidation and gelling with oxygen exposure, viscosity and cold flow | Sealed-system aging data and low-temperature flow data |
| Fluorinated fluids | Some formulations are nonflammable; low-viscosity options exist | Cost, volatility, PFAS concerns, density, gas generation when boiling | Safety data sheet, boiling behavior, and regulatory status |
The table draws on the 2025 Energies review, which centers on transformer and EV fluids. Therefore, treat it as a source of questions, not qualification data.
A Family Label Is Not a Qualification
First, two fluids in one family can differ in base stock, purity, and additives. Therefore, a family label cannot replace data on the exact product.
For example, studies summarized in the review show that blending mineral oil with natural esters can change viscosity, flash point, and breakdown performance. Therefore, do not assume a top-up mixture keeps the original fluid’s qualification.
Transformer Standards Are a Baseline, Not a Qualification
Several standards cover new insulating fluids; for example, IEC 61099 covers synthetic esters, and IEC 62770 covers natural esters.
Because both target transformers and similar equipment, they give a useful base, but they do not qualify a fluid for a battery system.
Why a Dielectric Fluid for Immersion Cooling Is Not Automatically Fireproof
A dielectric fluid for immersion cooling can insulate well and still burn. Instead, the word describes electrical traits, not fire traits.
Three Questions Buyers Often Merge
Buyers often blend three separate questions, but each one needs its own evidence.
- Insulation: does the fluid block current when new and when aged?
- Flammability: how does the fluid ignite and burn?
- System behavior: what happens to the module when a cell fails?
A fluid can pass the first question and fail the others. In fact, system-level testing is needed to evaluate the third.
What One Abuse Test Showed
For example, a 2024 study in the World Electric Vehicle Journal overcharged 10 Ah cylindrical lithium titanate cells at 4C in four fluids. The study compared two fluorinated fluids, a synthetic ester, and a silicone oil.
First, no fluid fully prevented thermal runaway. Moreover, the tested ester and silicone-oil formulations burned, even though their flash points exceeded 250 °C.
The authors note that local heat rose above those flash and fire points, and then a cell short circuit triggered ignition.
In the reported three-cell test, the lower-boiling fluorinated fluid reduced neighboring-cell peak temperatures to 57 °C and 62.5 °C, against 92.3 °C and 160.7 °C in air. No flames were recorded.
However, the abused cell exploded, and adjacent cells showed no external visible damage in either test.
Also, the fluorinated fluids boiled off and added gas. Therefore, these results show mitigation under the tested conditions, not removal of explosion hazards or proof for large LFP systems.
What to Ask for Fire Evidence
First, request the UL 9540A reports relevant to the proposed system. Then ask which edition and test levels were used, and whether the fluid and circulation system were present or operating.
Next, ask whether components were modified to start the event, and how the tested setup relates to the supplied system. Also, our UL 9540A test method guide explains the four test levels.
Then ask where the fluid goes when a cell vents, and how gas leaves the module. LFP cells also fail differently from other chemistries, as our NMC vs LFP safety comparison shows.
What Should Buyers Ask About Fluid Maintenance?
Because fluid maintenance is part of the product, a supplier should explain how the dielectric fluid for immersion cooling stays in specification for the full project life.
Because no one service interval fits every system, ask for the supplier’s interval and the data behind it.
Condition Monitoring and Sampling
Aging changes a fluid, because oxidation and contamination can change conductivity, breakdown performance, acidity, and viscosity.
Next, ask which properties the supplier monitors and what limits trigger corrective action. Common tests include:
- Breakdown voltage
- Water content and acidity
- Dissipation factor or resistivity
- Viscosity
- Particles and other contamination
Transformer practice offers a starting point; for instance, IEC 61203:2025 guides the use and maintenance of synthetic esters in transformers and other electrical equipment.
It can inform fluid-care practices, but it does not by itself establish suitability for a battery system.
Accelerated-aging results need interpretation because test conditions and degradation mechanisms must suit the exact fluid and materials in the proposed system.
Contamination Control and Top-Ups
First, ask how the design keeps out moisture and air. For example, natural esters serve in sealed transformers because oxygen can cause gelling.
Also ask which fluids suit top-ups, since mixing can change flash point and breakdown voltage.
Pumped fluids with low conductivity can also build static charge. Therefore, ask how the design handles grounding.
Replacement, Handling, and Disposal
Next, ask what condition triggers replacement and who performs it. Then request the safety data sheet and the local waste classification.
For example, the review describes mineral oil as non-biodegradable and natural esters as readily biodegradable. It also flags PFAS concerns for some fluorinated fluids.
Supplier Documents for a Dielectric Fluid for Immersion Cooling
Because the list is good practice rather than a universal certification rule, use it as a due-diligence checklist for any dielectric fluid for immersion cooling.
- Fluid technical data sheet and safety data sheet for the exact grade
- Compatibility test results for each proposed wetted material, with temperature and duration
- Electrical and thermal property data across the intended operating range
- Aging test evidence, with properties measured before and after
- System test reports that name the fluid, cell format, and configuration, including UL 9540A where claimed
- Written maintenance, sampling, and replacement procedures
- Written confirmation that the cell supplier’s warranty allows immersion in that fluid
First, request each item in writing. Then check that every document names the same fluid, grade, and setup you will receive.
Warranty terms matter because immersion changes what touches the cell. Also, our guide to reading a C&I BESS warranty shows what else to check.
Frequently Asked Questions About Dielectric Fluid for Immersion Cooling
Because buyers ask similar questions, short answers about dielectric fluid for immersion cooling follow.
What is a dielectric fluid for immersion cooling?
It is an electrically insulating liquid that contacts battery cells directly and carries heat away. Therefore, its insulation, viscosity, compatibility, and fire behavior all affect the system.
Which dielectric fluid for immersion cooling is best?
No fluid is best for every system. Instead, the right choice depends on the cell format, operating range, materials, and test proof for that exact mix.
Is a dielectric fluid for immersion cooling fireproof?
No. Dielectric describes electrical insulation, not fire behavior, so ask for flash and fire points and system tests.
How do I check material compatibility with a dielectric fluid for immersion cooling?
First, ask for soak-test results on every wetted material at specified temperatures and exposure durations. Then check changes in size, hardness, strength, and fluid properties.
How often should a dielectric fluid for immersion cooling be replaced?
No one interval fits every system. Instead, ask the supplier for sampling limits and replacement triggers, backed by aging data.
Further Reading on Immersion Cooling Fluids
Also see these SunLith guides on the dielectric fluid for immersion cooling decision.
- Immersion Cooling Battery Storage: Benefits, Risks, and What to Ask
- Liquid vs Air Cooling System Use in BESS: Choosing the Right Thermal Management
- C&I BESS Thermal Management: Optimizing Performance, Safety & Lifespan
- UL 9540A Test Method: Complete Guide for BESS Manufacturers
- Gluing Cells in a Battery Pack: Heat, Swelling, and Long-Term Reliability
- How to Read a C&I BESS Warranty Before You Buy
Sources
Because every claim should be checkable, the research behind this guide to dielectric fluid for immersion cooling appears below.
- Shah et al. Potential of Natural Esters as Immersion Coolant in Electric Vehicles. Energies 2025, 18(15), 4145
- Menale et al. Analysis of the Thermal Runaway Mitigation Performances of Dielectric Fluids During Overcharge Abuse Tests of Lithium-Ion Cells with Lithium Titanate Oxide Anodes. World Electric Vehicle Journal 2024, 15(12), 554
- Roe et al. Immersion cooling for lithium-ion batteries: a review. Journal of Power Sources, 2022, 525, 231094
- Tripathi and Marconnet. Effect of immersion cooling parameters on thermal and electrochemical response of a Li-ion cell. Journal of Power Sources, 2025, 632, 236285 (arXiv:2404.14428)
- IEC 61099:2010. Insulating liquids, specifications for unused synthetic organic esters for electrical purposes
- IEC 62770:2024. Fluids for electrotechnical applications, unused natural esters for transformers and similar electrical equipment
- IEC 61203:2025. Synthetic organic esters, guidelines for maintenance and use in electrical equipment
- Battery Design. Key Parameters for Dielectric Fluids
Immersion Cooling Battery Storage: Benefits, Risks, and What to Ask
Immersion cooling battery storage places cells directly in an electrically insulating liquid, removing heat without a cold plate in between. The approach can improve thermal contact, so temperatures may be more even.
But its value depends on the complete system, not cooling alone.
An EV-oriented simulation study in Energies compared twenty dielectric fluids in a sixteen-cell 18650 module in 2026. It shows thermal and hydraulic trade-offs.
But it does not predict performance in a commercial stationary storage system.
What Is Immersion Cooling Battery Storage?
An immersion cooling battery storage system uses a dielectric fluid to control cell temperature. A dielectric fluid is an electrically insulating liquid.
Cells or small groups of cells sit inside the fluid. As a result, heat moves from the cell surface straight into the liquid.
This sets immersion apart from two other approaches, so the table below compares all three.
| Cooling approach | How heat is removed | Main design consideration |
| Air cooling | Air moves around cells or modules. | Airflow and heat-transfer surface set performance. |
| Cold-plate liquid cooling | Heat passes through a plate into a separate coolant loop. | Thermal contact between the cell and the plate matters. |
| Immersion liquid cooling | A dielectric liquid touches the cell surfaces directly. | Fluid properties, flow, insulation, and material compatibility become central. |
Here, the key difference is direct versus indirect cooling, because immersion exposes more of the cell surface to the coolant.
Cold plates, by contrast, rely on fixed contact areas and interface layers.
If you want more depth on air and cold-plate options, see our liquid vs air cooling guide for BESS.
How the Cooling Loop Works
Immersion cooling battery storage designs use one of two ways to remove heat, but the choice depends on operating conditions, fluid properties, and system design.
Single-Phase Immersion Cooling
In a single-phase system, the fluid stays liquid as it absorbs heat. Pumps then carry it to a heat exchanger.
There, the heat moves to another cooling loop. Once cooled, the fluid returns to the battery enclosure.
But performance depends on more than the fluid. The design must spread coolant evenly, otherwise low-flow regions or localized hot spots can form.
Fluid viscosity, flow rate, and circuit geometry influence pressure drop and pumping power, while heat capacity helps set the flow needed to carry the heat. An IEEE paper covers single-phase immersion for both stationary arrays and vehicle batteries.
Two-Phase Immersion Cooling
In a two-phase system, the fluid boils as it absorbs heat. The vapor then condenses and returns as liquid.
This uses latent heat, which is the energy absorbed when liquid turns to vapor. As a result, it can absorb a lot of heat.
Still, it needs careful vapor and pressure control. That adds fluid-selection and vapor-management requirements, so it is not the best fit for every project.
Performance depends on the fluid, heat load, flow conditions, and heat-rejection design. Therefore, neither approach guarantees a particular cell temperature.
Benefits of Immersion Cooling Battery Storage and Their Limits
The benefits of immersion cooling battery storage include heat transfer, even temperatures, and safety gains. However, each needs proof at system scale.
Lower Peak Temperatures and Potentially More Uniform Cooling
Immersion touches a large share of each cell surface. As a result, it can cut the uneven heating seen with small cooling contact areas.
In the Energies simulation, the air-cooled case reached a peak cell temperature of about 45.6 °C. With a 25 °C coolant inlet, however, the best immersion fluids held the simulated peak near 28.6 °C, about 17 °C lower.
These results apply to a modeled sixteen-cell 18650 module, not a full stationary storage rack. In fact, the example shows lower peak temperature, not a measured gain in cell-to-cell uniformity.
Even temperatures matter because big cell-to-cell gaps drive uneven aging. Our guide to cell temperature gradients in BESS explains safe ΔT limits.
Lifetime Claims Need Evidence

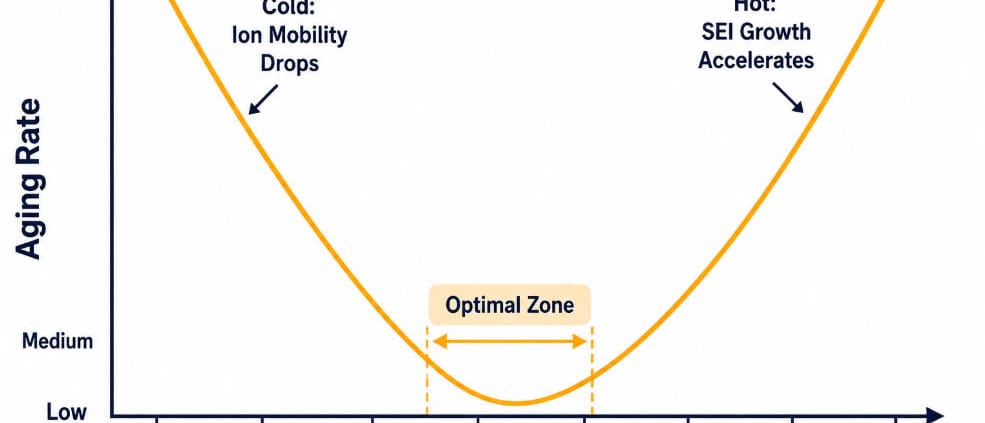

Since heat speeds up battery aging and unwanted side reactions, good temperature control supports longer life.
But immersion cooling does not prove longer life by itself. In fact, a peer-reviewed review found few studies on lifetime, fluid stability, and compatibility.
Because of this, any life claim should name the exact cell, fluid, and system tested.
Possible Limits on Failure Spread
When one cell fails, its heat can set off its neighbors. Fluid in direct contact can soak up heat around the failing cell, so it may slow that spread.
Still, tests and models offer some support. For example, a 2025 SAE study validated its propagation model using a seven-cell module, then applied it to a full-scale module.
The authors reported strong agreement with experimental data and delayed or mitigated propagation. However, those results apply only under the studied conditions.
This is a possible benefit, not a fireproof guarantee. Since a cell can fail internally, immersion cooling should not be relied on to prevent it.
Therefore, safety depends on the fluid, the flow rate, and the system design.
The Dielectric Fluid Is a Critical Engineering Component
In immersion cooling battery storage, the fluid is the heart of the design. Because it touches cells, seals, and hardware, its electrical, chemical, and thermal traits all matter.
Fluid Selection Criteria
- Electrical insulation: The fluid must block electrical current well, so cells stay isolated.
- Heat transfer: Thermal conductivity and heat capacity set how much heat the fluid can carry.
- Viscosity: Resistance to flow drives pumping needs.
- Material compatibility: The liquid must work with the enclosure, seals, hoses, and other wetted parts, because leaks or swelling can follow.
- Stability: Fluid behavior over time and at high heat must be known, since aging can change it.
- Flammability and fire behavior: Test the exact formulation. Do not assume it is safe because it is called dielectric.
Dielectric fluids often carry less heat than water-glycol coolants. Direct contact makes up some of the gap, but the design may still need more flow.
Cooling Performance Versus Pumping Demand
The Energies study compared twenty fluids. Mineral oil gave one of the lowest peak temperatures but also the highest flow resistance.
In the mid-height flow case, mineral oil showed about 12 Pa of pressure drop, while a synthetic hydrocarbon needed about 7.5 Pa. One fluorinated fluid needed only about 1.2 Pa.
The study called the synthetic hydrocarbon (PAO4) a good compromise in its qualitative comparison. Rankings changed when the authors used a combined thermal-hydraulic index.
Because these values come from a small simulated module, the trade-off matters more than the numbers. Therefore, no fluid should be chosen from this study alone.
Pumping Energy and System Efficiency
Better heat transfer does not guarantee lower total energy use in immersion cooling battery storage. Because pumps must overcome fluid resistance, viscous fluids raise that load.
Pump input power follows a simple relation:
Pinput = V̇ × Δp / η
Where V̇ is flow rate (m³/s), Δp is pressure drop (Pa), and η is pump and motor efficiency. P is electrical input power (W).
For illustration, consider a hypothetical loop, not measured data. If it moves 0.001 m³/s at 50 kPa with 50% efficiency, it draws 100 W.
At a fixed flow rate, pressure drop in laminar flow rises roughly in line with viscosity. Higher viscosity therefore increases pumping power unless the design cuts flow.
Compare the whole cooling system, including pumps, heat exchangers, and heat rejection, because cell temperature alone hides this cost.
Challenges of Immersion Cooling Battery Storage
The challenges of immersion cooling battery storage are mostly about proof, maintenance, and cost. None is a dead end, but each needs a clear answer.
Long-Term Material Compatibility
Initial thermal results are only the start, since the fluid must stay stable. Seals, hoses, glues, and coatings must also handle long exposure.
The 2022 review named fluid stability and compatibility as research gaps. Those gaps matter because projects must run for many years.
Cost and Complexity
Systems may need special fluids, sealed enclosures, and pumps. Two-phase designs also need vapor handling.
In addition, research lists cost, viscosity, pumping loss, and complexity as barriers to wider use.
The useful question is not which approach cools best, but which approach meets thermal needs at the lowest defensible lifetime cost.
The Large-Cell Evidence Gap
The Energies study modeled 18650 cells at 1C with single-phase cooling. It was also framed around electric vehicles.
The small-cell studies cited here do not establish performance for large prismatic LFP systems. Therefore, buyers should request evidence for the proposed cell format, chemistry, and system setup.
If you want a wider view of cooling choices at project scale, see our C&I BESS thermal management guide.
Safety Evidence for Immersion Cooling Battery Storage and UL 9540A
Safety claims for immersion cooling battery storage need test data, not sales language. UL 9540A evaluates thermal runaway characteristics, fire propagation, and associated heat and gas hazards, as UL Solutions describes.
UL 9540 sets product-safety rules and the basis for certifying the whole storage system. Meanwhile, our UL 9540A test method guide explains how the test works.
Ask which UL 9540A edition and test levels were used. Then ask whether the fluid and circulation system were present. Also ask whether any parts were disabled or modified to start the event.
Then ask how the tested setup relates to the product you will receive and the planned site.
Ask too what happens if pumps stop or heat rejection fails. Without flow, much of the cooling benefit may fade.
Finally, check how the design fits wider certification needs. If you need the main standards, see our BESS certifications guide.
Buyer Due-Diligence Checklist
These questions help buyers separate proven results from broad claims about immersion cooling battery storage. So ask each one in writing.
- Temperatures: What cell temperatures and cell-to-cell gaps did you measure under our operating conditions?
- Energy use: How much power does the full cooling system draw, including pumps and heat rejection?
- Materials: What long-term tests support the fluid and every wetted material?
- Interruptions: What happens when flow or heat rejection stops?
- Failure behavior: What test data shows behavior during a cell failure in the proposed setup? Include the UL 9540A edition, test levels, and any modified parts.
- Test scale: Which results came from lab cells, and which came from full modules or complete systems?
- Cell format: Were tests run on the same cell format and chemistry we are buying?
- Service: How is the fluid checked, filtered, topped up, and disposed of?
Together, these questions cover the thermal, pumping, material, lifetime, and safety gaps found in published research.
Outlook for Immersion Cooling Battery Storage
Immersion cooling battery storage has strong thermal appeal because direct contact can even out temperatures. It may also help limit failure spread.
But its commercial value depends on the whole system. Fluid choice, pumping load, material life, safety evidence, and cost all matter.
Treat it as one more design option, not an automatic swap for air or cold plates. So its benefits must be proven for your use case.
Frequently Asked Questions About Immersion Cooling Battery Storage
These short answers cover common questions about immersion cooling battery storage.
How does immersion cooling battery storage work?
Cells sit in a dielectric fluid that absorbs heat from their surfaces. Then a pump or a boiling cycle carries that heat to a heat exchanger or condenser.
Is immersion cooling battery storage better than cold plates?
Not automatically. Immersion offers direct fluid contact, but buyers should compare thermal performance, auxiliary energy, serviceability, safety evidence, and lifetime cost for the proposed designs.
Does immersion cooling prevent thermal runaway?
Immersion cooling should not be assumed to prevent thermal runaway. It may help limit heat transfer to neighboring cells, but that benefit requires validation for the specific system.
What is the difference between single-phase and two-phase immersion cooling?
Single-phase cooling keeps the fluid liquid, while two-phase cooling uses boiling and condensation to move heat. The two-phase design therefore adds fluid and vapor-control needs.
Does immersion cooling use more energy?
It can. Viscous fluids raise pumping load, so compare total cooling-system energy, not just cell temperature.
Is immersion cooling proven for large LFP storage systems?
The small-cell studies cited here do not settle that, so ask suppliers for proof on your cell type and full system.
Further Reading on Immersion Cooling Battery Storage
These SunLith guides add context to immersion cooling battery storage decisions.
- Liquid vs Air Cooling System Use in BESS: Choosing the Right Thermal Management
- C&I BESS Thermal Management: Optimizing Performance, Safety & Lifespan
- Cell Temperature Gradients in BESS: Safe ΔT Limits and What Causes Uneven Heating
- UL 9540A Test Method: Complete Guide for BESS Manufacturers
- BESS Certifications Explained: What You Need to Know Before You Buy or Sell
Sources
The research behind this guide to immersion cooling battery storage is listed below.
- Computational Fluid Dynamics Analysis of Battery Immersion Cooling: Impact of Dielectric Fluid Thermophysical Properties. Energies 2026, 19(12), 2770
- Roe et al. Immersion cooling for lithium-ion batteries: a review. Journal of Power Sources, 2022, 525, 231094
- Thermal Management of Li-Ion Batteries With Single-Phase Liquid Immersion Cooling. IEEE Open Journal of Vehicular Technology, 2020
- Multiscale Modeling and Validation of Thermal Runaway Propagation in Immersion-Cooled Battery Systems with Full-Scale Application. SAE Technical Paper 2025-01-8166
- UL 9540A Test Method for Battery Energy Storage Systems. UL Solutions
How to Choose a Safe Replacement E-Bike Battery
A safe replacement e-bike battery starts with one rule: use the pack your bike’s maker approves for your exact model. Voltage, current, BMS, and certification checks come next.
Many riders reach this point after a pack swells, fails, or stops holding a charge. If that sounds familiar, first read our guide to e-bike battery fire prevention to spot the warning signs.
What to Check Before Buying a Replacement E-Bike Battery
Choosing a replacement e-bike battery comes down to five checks. Each check helps address a different safety or compatibility risk.
- Approval: the bike’s maker approves the pack for your exact model.
- Voltage: the operating range and charging voltage match the bike’s specifications.
- Current: the complete pack’s continuous rating meets the bike’s requirement.
- Protection: the BMS has full safeguards, not just a cut-off switch.
- Certification: you can verify it for the exact battery model.
Regulators now target this exact product. The CPSC’s June 2026 proposed rule would cover user-replaceable battery packs sold on their own.
Since the rule is still a proposal, it is not an existing federal requirement. Even so, it shows where safety expectations are heading for any e-bike battery replacement.
Compatibility Includes More Than Voltage
A certified battery does not automatically fit every bike. For any replacement e-bike battery, confirm these points with the maker or an authorized dealer:
- Battery mounting, locking mechanism, and frame clearance
- Connector type, pin assignment, and polarity
- Approved charging equipment
- Any data link between the battery and the bike
- Fit with the bike’s tested electrical system
Voltage and UL labels matter. But they never replace the maker’s approval.
Match Voltage When Choosing a Replacement E-Bike Battery
A wrong-voltage replacement e-bike battery can damage the controller or leave the bike dead.
How E-Bike Battery Voltage Works
A lithium-ion pack links cells in series. Each NMC cell adds about 3.6 volts, so the series count sets the nominal voltage.
The label is only a rounded number. The table shows how it can hide different full-charge voltages.
| Label | NMC cells in series | Nominal voltage | Full-charge voltage | Often seen on |
| 36V | 10S | 36V | 42V | Light commuter bikes |
| 48V | 13S | 46.8V | 54.6V | Commuter and cargo bikes |
| 52V | 14S | 50.4V | 58.8V | Higher-power bikes |
| 72V | 20S | 72V | 84V | High-power bikes |
Table values are examples for lithium-ion cells at 3.6V nominal and 4.2V maximum charge.
LFP packs use different series counts. For example, a 48V-class LFP pack often uses 16 cells and reaches about 58.4V when full.
Compare the voltage range and the maximum charge voltage with the maker’s specs. The nominal label alone is not enough.
Why the Controller Sets the Voltage Limit
Your controller has a rated input voltage range. Also, its label or manual lists the rated and maximum values.
A pack that charges above the controller’s maximum can destroy it. Likewise, a pack that sags below the low-voltage cutoff makes the bike cut out.
Never use a higher-voltage replacement e-bike battery to gain speed. The motor, controller, and charger all suit one voltage, so e-bike battery voltage must match across the system.
Capacity: Choosing Amp-Hours and Watt-Hours
Your e-bike battery capacity is a major factor in range. It also sets the size, weight, and charge time of your replacement e-bike battery.
Amp-Hours vs. Watt-Hours
Amp-hours (Ah) measure charge. Watt-hours (Wh) measure energy, so Wh is the fair way to compare packs of different voltages.
For more detail, see our guide to Ah vs Wh battery capacity.
Energy (Wh) = Voltage (V) × Capacity (Ah)
Where Wh is watt-hours, V is pack voltage, and Ah is amp-hours.
For example, a 48V, 14Ah pack stores about 672Wh. But real range still varies with rider weight, terrain, and assist level.
Can You Choose a Higher-Capacity Replacement E-Bike Battery?
A higher-Wh battery may give more range. Choose it only if the bike maker approves that exact replacement.
Capacity can rise through higher-capacity cells, more cells in parallel, or both. Before upgrading, check these points:
- Mounting and frame clearance
- Weight
- Charger compatibility
- Electrical communication with the bike
- The scope of the certification
Also, more capacity does not add power. Power depends on voltage and current, which we cover next.
Match Discharge Current to the Bike’s Requirements
A replacement e-bike battery must supply the current the bike demands. If it cannot, the pack cuts out or runs hot.
Continuous Current vs. Peak Current
First, confirm that the complete pack’s continuous rating meets the maker’s stated battery current. Then check any peak rating with its permitted duration.
But a BMS rating alone does not show what the cells, wiring, and connectors can deliver.
Also, use battery current, not motor phase current. Controllers may list both, and they differ.
Power (W) = Voltage (V) × Current (A)
Where W is watts, V is pack voltage, and A is the controller’s maximum battery current.
| Nominal voltage | Battery current | Approximate electrical input at nominal voltage |
| 36V | 15A | 540W |
| 48V | 20A | 960W |
| 52V | 30A | 1,560W |
| 72V | 40A | 2,880W |
These are example battery-side inputs. They are not motor output ratings.
Cell Chemistry Options for a Replacement E-Bike Battery
Most replacement e-bike battery packs use NMC cells. Sodium-ion and LFP packs are less common, and each needs its own charging profile.
Should You Replace an NMC E-Bike Battery With LFP?
As our NMC vs. LFP safety guide explains, LFP is more thermally stable than NMC. But a swap is not plug and play.
Its cells have a lower nominal voltage and need a charger with the right profile. Also, a 16-cell pack reaches about 58.4V, which may exceed a 48V controller’s limit.
LFP packs are usually heavier and bulkier for the same watt-hours. Buy one only when the maker states it suits your bike and controller.
Are Sodium-Ion E-Bike Batteries a Good Replacement Option?
Sodium-ion cells use abundant materials, but they store less energy per kilogram, as our sodium-ion battery guide explains. Certified e-bike packs remain uncommon, so use one only if the maker approves it for your bike.
What a Replacement E-Bike Battery BMS Must Protect Against
The BMS is the brain of the pack. It guards the cells when something goes wrong, so a weak one undermines good cells.
For the basics, see what a battery management system does.
A proper e-bike battery BMS should provide these protections:
- Overcharge and over-discharge cutoffs
- Over-current and short-circuit protection
- High-temperature protection, and charging cutoffs in the cold

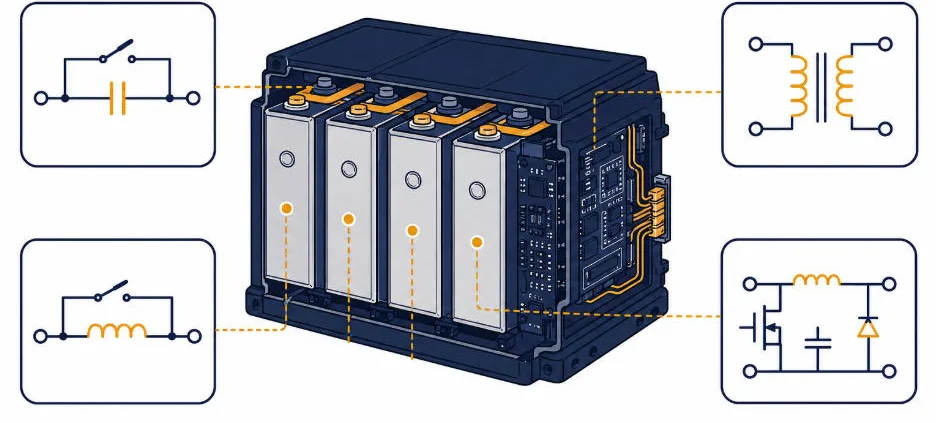

- Cell monitoring, balancing, and safety cutoffs
Also confirm how the complete battery-and-charger system protects against reverse polarity and connector faults. Do not assume the BMS provides these protections.
Why BMS Quality Matters
A poorly specified BMS may skip temperature sensing, trip too late, or use undersized switching parts. As a result, it may fail when you need it most.
It may also balance cells poorly, so one cell group drifts out of range. Then that weak group can overheat.
A BMS cannot stop a defect inside a cell. But a good one lowers the odds that abuse turns a defect into a fire.
The CPSC proposal treats the BMS as part of the regulated electrical system. That makes it far more than an afterthought.
Questions to Ask the Seller About the BMS
- What are the pack’s continuous and peak discharge ratings?
- How many temperature sensors does the pack use?
- How does it monitor and balance the cell groups?
- Does it block charging in the cold?
- Does the certification listing cover this exact battery model and its protection electronics?
UL 2271 and Other Certifications for a Replacement E-Bike Battery
UL 2271 is the main standard for light electric vehicle battery packs. A UL 2271 e-bike battery has passed tests that also cover its control electronics.
Our UL 2271 certification guide covers those tests in detail.
UL 2271 vs. UL 2849 vs. UL 2272
Each standard covers a different part of the system, so read the label with care.
| Standard | What it covers | Where you see it |
| UL 2271 | The battery pack for light electric vehicles | The replacement pack |
| UL 2849 | The full e-bike electrical system | Complete e-bikes |
| UL 2272 | Personal e-mobility devices | E-scooters and similar devices |
But UL 2271 tests the pack on its own. It does not test how that pack pairs with your bike.
How to Verify Certification
Ask which accredited certification body certified the battery to UL 2271. Then verify the exact model and its current status in that certifier’s official directory.
A test report or a logo in an online listing is not, by itself, proof of current certification.
Look for the certifier’s mark and details on the pack. Then confirm the listing covers the exact model and standard.
Local Rules That May Apply
Rules differ by region, so check yours before you order a replacement e-bike battery:
- United States, federal: the CPSC proposal would apply UL 2271, with changes, to user-replaceable packs. It is a proposal, not an existing requirement.
- New York City: storage batteries sold or leased in the city must carry UL 2271 certification.
- California: SB 1271 has required accredited-lab testing since January 1, 2026, for e-bikes and storage batteries sold there.
- Europe: look for EN 50604-1 on the battery and EN 15194 on the complete bike.
UN 38.3 is a transport test, not a use-safety certificate. It never replaces UL 2271 or EN 50604-1.
Removable or Integrated: Which Replacement E-Bike Battery Fits?
Pack design changes how you fit a replacement e-bike battery and how you charge it.
Removable packs are easier to swap, inspect, and charge away from anything that burns.
Frame batteries often fit only one model. For these, ask the bike maker for an approved pack.
Never open an integrated pack to swap cells. Home repairs are a known fire risk.
Red Flags in a Replacement E-Bike Battery Listing
These warning signs warrant further checking, but a polished listing does not establish safety. A replacement e-bike battery listing may show:
- No maker approval stated for your exact bike model
- Vague specs, such as no Wh or no continuous discharge rating
- No charger details, or a charger that does not match the pack
- Certification claims you cannot verify for the exact model
- Prices far below similar certified packs
- Used, rebuilt, or refurbished packs from unaccountable sources
- “Universal fit” claims across many brands
Low-grade cells are a common cause of failure. Our guide to the hidden dangers of low-grade cells shows how they get past buyers.
Spotting Unrealistic Capacity Claims
You can test a capacity claim with simple math. Since pack Ah equals the cells in parallel per series group times each cell’s Ah, the numbers must add up.
For example, a 13S5P pack of 4Ah cells has five cells in parallel per series group, so it reaches 20Ah. That is 65 cells, so the pack cannot be tiny or light.
Cell datasheets vary, but many 18650 cells hold roughly 2.5 to 3.5Ah, and many 21700 cells about 4 to 5Ah. Treat these as illustrative, and ask the seller for the cell datasheet if a claim looks too good.
Replacement E-Bike Battery Buying Checklist
Start with your bike’s model number and the maker’s approved replacement list. Then use this checklist before you order a replacement e-bike battery.
- Find the maker’s approved replacement for your exact model.
- Compare the voltage range and maximum charge voltage.
- Confirm mounting, connector, pin assignment, and the approved charger.
- Confirm any required battery-to-bike communication.
- Compare the full pack’s continuous rating with the bike’s battery current need.
- Check the exact model in the certifier’s online list.
- Buy from an authorized or accountable supplier, with the matched charger and a warranty.
- Charge only while you are awake and able to monitor the battery, including its first charge.
Handle a Damaged Battery Before Your Replacement E-Bike Battery Arrives
If the old battery is damaged or shows warning signs, stop using and charging it immediately. Arrange safe handling and disposal now, before the replacement e-bike battery arrives.
Never throw a damaged battery in household trash.
Before you move the pack, call the maker, a local hazardous-waste service, or a recycler that accepts damaged e-bike batteries. Follow their handling instructions.
If the battery is hot, hissing, smoking, or venting, do not handle or transport it. Move away and call emergency services.
For the warning signs of a failing pack, read our e-bike battery fire prevention guide.
Key Takeaway
A safe replacement e-bike battery is the pack your bike’s maker approves. It also has verified certification and the right voltage and current.
Then check the BMS, ask for documents, and walk away from vague listings.
Frequently Asked Questions About a Replacement E-Bike Battery
These answers cover the questions riders ask most about a replacement e-bike battery.
Can I use a higher-voltage replacement e-bike battery?
No. A higher voltage can damage the controller and motor, so match the maker’s specifications.
Can I use a higher-Ah pack?
Only if the bike maker approves that exact pack. Check fit, weight, charger, communication, and certification scope first.
Is UL 2271 certification required?
It depends on your region. New York City and California both set battery testing rules.
The CPSC has only proposed a federal rule. Even so, verified UL 2271 certification is a strong safety signal.
Is a third-party replacement e-bike battery safe?
A maker-approved pack is the safest choice. A third-party pack needs verified certification, proven fit for your bike, and a seller you can trust.
Can I swap in an LFP replacement e-bike battery?
Only if the maker designed the pack for your controller and charger. LFP changes the voltage range, so it needs a different charging profile.
When should I replace my e-bike battery?
Stop using and charging it immediately if it swells, leaks, overheats, or smells unusual. Then arrange safe disposal and get an approved replacement.
Further Reading
These guides support your replacement e-bike battery decision.
- E-Bike Battery Fires: Causes, Prevention, and Safer Packs
- UL 2271 Certification: Ensuring Safe Lithium Batteries for Light Electric Vehicles
- Battery Management System (BMS) Explained: How It Works, What It Monitors, and Why It Matters for BESS
- NMC Battery vs LFP Safety: The Complete BESS Risk Breakdown
- NFPA: E-Bike and E-Scooter Safety
E-Bike Battery Fires: Causes, Prevention, and Safer Packs
E-bike battery fires are usually preventable. Most start with a counterfeit or damaged pack, a mismatched charger, a home-built change, or unsafe charging.
What Causes E-Bike Battery Fires?
Why E-Bike Battery Fires Start
E-bike battery fires almost always begin inside one lithium-ion cell. That cell fails, heats up, and then sets off the cells around it.
How thermal runaway works
First, lithium-ion cells store energy next to a flammable liquid electrolyte. If one overheats, it can enter thermal runaway, a self-feeding reaction that vents hot gas and flame.
The U.S. Consumer Product Safety Commission (CPSC) explains that this heat can spread to neighboring cells. As a result, one failed cell can turn a whole pack into a fire.
Next, consider the battery management system (BMS). Once voltage, current, or temperature leaves the safe range, a good BMS cuts off charging or discharging.
But a BMS has limits. For example, it cannot stop a fire that starts from a manufacturing defect inside the cell.
Common causes of e-bike battery fires
These causes show up again and again in fire reports:
- Counterfeit, uncertified, or poorly built replacement packs
- Chargers with the wrong voltage, current, or polarity
- Crashes, drops, crushing, punctures, or water damage
- Swollen, leaking, corroded, or overheating cells
- DIY battery builds, cell swaps, or controller changes
- Charging on soft furnishings, near exits, overnight, or in extreme heat or cold
What the incident data shows
CPSC counted 227 incidents involving e-bikes, e-scooters, and similar devices from 2019 through 2023. They involved fires, explosions, gas releases, burns, overheating, and smoke inhalation.
Fires made up 195 of the 227 incidents. Together, the incidents caused 39 deaths and 181 injuries.
More than half of the incidents, 120 in all, happened while the device was charging. Also, 23 more started in devices that were stored or resting.
Homemade packs appeared in only four incidents. But those incidents caused three deaths, so DIY builds carry real risk.
How to Choose a Safer Pack and Avoid E-Bike Battery Fires
A safe pack is more than a box of cells. Because of that, choosing one well is your best defense against e-bike battery fires.
Check the certification label
Three UL standards matter most. Each covers a different part of the system, so read the label with care.
| Standard | What it covers | Typical product |
| UL 2271 | The battery pack for light electric vehicles | Replacement and removable e-bike packs |
| UL 2849 | The full e-bike electrical system: battery, charger, motor, controller, wiring, and display | Complete e-bikes |
| UL 2272 | Electrical systems for personal e-mobility devices | E-scooters and similar devices |
For more detail, see SunLith’s guide to UL certifications for battery systems. Also, look for a recognized testing lab mark on both the battery and the charger.
New York City has required certified devices and batteries for sale, rental, or lease since September 2023. Still, a label is a floor, not a guarantee.
CPSC found these standards do not cover every hazard. Its June 2026 proposed rule would also add tamper-resistant battery enclosures.
Since the rule is not final, check its status before you rely on it.
Buying checklist to avoid e-bike battery fires
Before you buy an e-bike or e-scooter battery, run through this list:
- Confirm the battery and charger carry recognized certification marks
- Buy the battery and charger as a matched system where possible
- Avoid no-name packs, unusually cheap replacements, and used cells
- Check that voltage, capacity, connector, and current rating match your bike or scooter
- Confirm the seller offers a warranty, support, and replacement guidance
- Avoid any pack that a stranger has opened, modified, or repaired
Inspect the battery management system
First, a pack with weak protection is a risk, even with good cells. The BMS should guard against:
- Overcharge and over-discharge
- Over-current and short circuit
- Over-temperature and under-temperature charging
- Cell imbalance
- Reverse polarity and connector faults
For a deeper look, read SunLith’s guide to how a battery management system works. Also, it explains what each protection does.
Look at the cells and construction
Next, good builders use new, traceable cells from reputable makers. They also match capacity, internal resistance, and age across each parallel group.
- Proper cell holders, insulation, compression, and vibration protection
- Nickel strips, busbars, fuses, wires, and connectors rated for the real current
- IP-rated sealing and drainage for outdoor use
- Heat-resistant separators, potting, or encapsulation where the design calls for it
Resin fill can also help block water and slow a local failure. But the benefit depends on the design, and it never replaces a good BMS or safe charging.
Match the battery, charger, and controller
Finally, the battery, charger, controller, wiring, and fuses must work as one system. Still, a connector that fits does not prove the charger is compatible.
CPSC notes that charger voltage, current, and polarity must match the pack. Otherwise, the mismatch can damage cells and start a fire.
Safe Charging and Storage to Prevent E-Bike Battery Fires
Good habits cut the risk of e-bike battery fires even further. Also, the National Fire Protection Association (NFPA) publishes clear charging and storage advice.
Charging rules that prevent e-bike battery fires
Follow these rules every time you charge:
- Charge only when you are awake and can watch the battery
- Use the supplied charger or a maker-approved equivalent
- Charge on a hard, non-flammable surface, never on a bed, sofa, or carpet
- Plug the charger straight into a wall outlet, not a power strip or extension cord
- Avoid charging below 0°C (32°F) or above 40°C (104°F)
- Let the pack cool after a ride before you recharge it
- Unplug the charger once the battery is full
Storage rules
Where you keep the bike matters too.
- Store e-bikes, e-scooters, and spare batteries away from exits and bedrooms
- Keep them away from heaters, direct sunlight, liquids, and anything that burns
- Store spare batteries at room temperature and out of reach of children
CPSC logged 23 incidents in devices that were stored or resting. So keep your escape routes clear, even when nothing is charging.
Inspect often and know the warning signs
Check the pack for cracks, dents, swelling, leaks, corrosion, burn marks, or loose connectors. Also notice unusual smells, heat, hissing, or popping.
Never open or repair a pack yourself. Instead, use a qualified professional, and recycle old packs at an approved battery-recycling site, not in household trash.
Safer Chemistries to Reduce E-Bike Battery Fires
Chemistry changes how e-bike battery fires behave. But no chemistry removes the risk.
Lithium iron phosphate (LFP)
Although LFP cells are more thermally stable than nickel-rich cells, they are not risk-free. In one peer-reviewed lab study, LFP cells at 0% and 30% charge did not enter thermal runaway before 350°C.
In severe failures, LFP can still vent toxic gases, including hydrogen fluoride. A 2026 safety review notes this, and other lithium-ion cells can do the same.
For a full comparison, see SunLith’s NMC vs LFP safety guide. Also note that LFP packs are usually heavier for the same range.

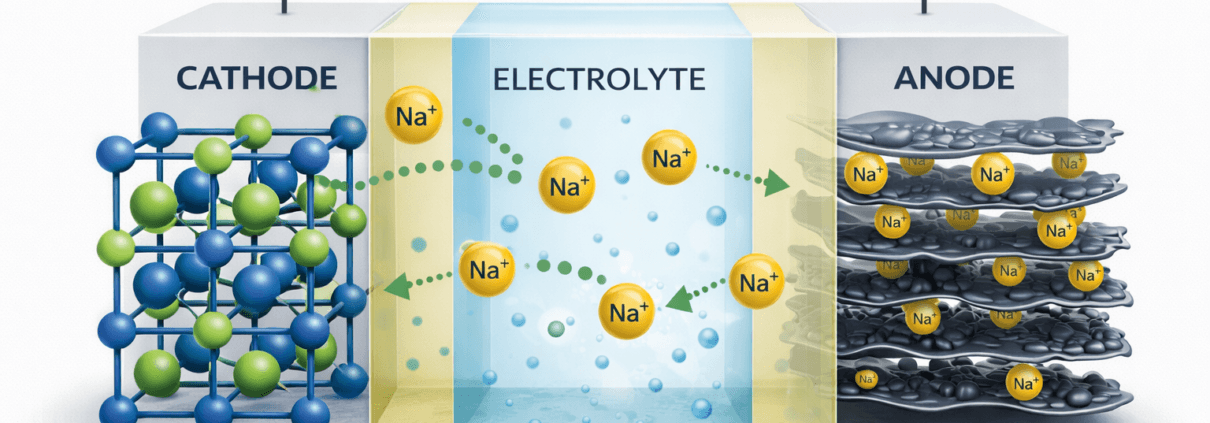

Sodium-ion
First, sodium-ion cells use abundant materials. Also, the same 2026 review reports higher thermal runaway start temperatures than for nickel-rich lithium cells.
But results vary by design. In a German federal lab study, a sodium-ion cell went into mild thermal runaway at 30% charge.
A similar LFP cell, by contrast, did not before 350°C. Also, sodium-ion cells have lower energy density.
This does not mean sodium-ion is unsafe. Safety depends on the cathode, electrolyte, cell format, build quality, and pack protection.
For the basics, read SunLith’s sodium-ion battery guide.
Solid-state
Next, solid-state cells replace the flammable liquid electrolyte with a solid one. Some oxide-based designs also show very high thermal stability and slow fire spread in lab tests.
But solid-state is not fireproof. A severe puncture can still cause an internal short, heat, and smoke.
Some sulfide designs can also release toxic hydrogen sulfide if they meet moisture. Still, these cells are costly and scarce for e-bikes today.
Next, this table sums up the trade-offs.
| Chemistry | Safety profile | Cost outlook | Best fit |
| NMC | High energy density, but higher runaway risk if abused or poorly made | Mature and low cost | Performance e-bikes and scooters |
| LFP | More thermally stable than NMC, but not risk-free | Moderate | Fleet, delivery, and durability-focused bikes |
| Sodium-ion | Often a higher runaway start temperature, but it varies by cell design | Expected to compete at scale | Budget commuter bikes and fleets |
| Solid-state | No flammable liquid electrolyte, but a damaged pack stays hazardous | Very high today | Premium future products |
What to Do If E-Bike Battery Fires Start
Quick action limits the damage when e-bike battery fires begin. Follow these steps:
- Stop using the battery, and disconnect it if that is safe.
- Move people and pets away from it.
- Do not charge, open, puncture, or repair it.
- If it smokes or burns, leave the area at once and call emergency services.
- Do not try to fight a large lithium-ion battery fire yourself.
Key Takeaway
Preventing e-bike battery fires starts with a certified, matched battery and charger. Then inspect the pack often, avoid modifications, and charge safely.
Still, new chemistries will help over time. But until then, good hardware and good habits matter most.
Frequently Asked Questions About E-Bike Battery Fires
So these answers cover the questions riders ask most about e-bike battery fires.
Do e-bike battery fires happen when the battery is not charging?
Yes, but it is less common. CPSC logged 23 such incidents in stored or resting devices, versus 120 during charging.
Is it safe to charge an e-bike battery overnight?
Avoid it. You cannot react to a problem while asleep, and NFPA also advises against charging after the battery is full.
Does UL certification stop e-bike battery fires?
No, certification only lowers the risk. CPSC found the standards do not cover every hazard, so safe use still matters.
Are LFP e-bike batteries fireproof?
No. LFP resists thermal runaway better than many nickel-rich cells, but it can still fail, vent gas, and burn.
How should I dispose of an old e-bike battery?
Take it to an approved battery-recycling site instead. Household trash is never safe.
Further Reading
These guides go deeper on the safety topics behind e-bike battery fires.
- Battery Management System (BMS) Explained: How It Works, What It Monitors, and Why It Matters for BESS
- NMC Battery vs LFP Safety: The Complete BESS Risk Breakdown
- Sodium Ion Battery: Complete Guide to Next-Generation Energy Storage (2026)
- UL Certifications for Battery Systems: A Complete Guide
- NFPA: E-Bike and E-Scooter Safety
BESS Inrush Current: Motor Starting and Transformer Energization
BESS inrush current is the brief surge that a motor start or transformer energization pulls from a battery system. A battery inverter has far less overcurrent margin than a generator, so designers manage the surge instead of supplying it.
Start a large induction motor and the supply sees a short demand far above normal running current. Energize an unloaded transformer and the same thing happens.
A synchronous generator can supply that surge. Its machine design and excitation system give it strong short-time current.
A battery power conversion system (PCS) is different. Its semiconductor converters have tight thermal and switching limits, so short-time overcurrent is small, as this NLR black-start study shows.
Managing BESS inrush current is therefore less about delivering the surge. It is more about not having to deliver it.
This guide explains why motor and transformer inrush differ. Then it covers the research, a real field test and the design methods that make it work.
BESS Inrush Current in Brief
Quick answer: A typical BESS cannot supply the 6–8× locked-rotor current of a direct-on-line motor start. It also cannot supply the 10×+ inrush of an unfavorably energized transformer. Its PCS has limited short-time current. Designers therefore manage BESS inrush current with voltage ramps, current limits, soft starters and sizing.
Why BESS Inrush Current Is Hard for a Battery Inverter
BESS inrush current is hard to handle because an inverter has very little spare current. Three points explain why.
Limited Overcurrent Capability
Research on grid-strengthening inverters notes that their overcurrent limit is far smaller than that of synchronous machines [4]. That weakens voltage support and protection.
It also makes motor starting and transformer energizing hard [4].
The reasons are semiconductor physics and cost. Power devices have heat limits.
Cost-driven sizing also leaves only 5% to 20% current headroom in grid-forming inverters [5].
In a typical medium-voltage design, the device current rating has little margin above maximum load current. If current passes the limit, the converter may cut output, enter a protection state or trip [2].
The black-start study notes that engineers commonly design inverters for no more than about 1.2 times rated current. It uses 1.2 pu as its main case [1].
Real PCS short-time ratings vary by maker, design, cooling and duration.
The Current Limiter Shapes the Outcome
The limiter matters as much as the number. A 2024 IEEE review notes that some events push an inverter into overcurrent.
Motor-start inrush, cold-load pickup and black start are examples [3].
When that happens, the limiter overrides normal control. It then decides how the inverter acts during and after the event.
That is why BESS inrush current depends on limiter design [3].
When BESS Inrush Current Becomes a Problem
One scoping point avoids confusion. When a BESS follows a stiff grid, the grid supplies most of the inrush.
BESS inrush current is then a minor issue.
The problem appears when the BESS forms the voltage. Examples include islanded microgrids, backup power and black start.
It also appears when the BESS itself energizes a transformer or starts a motor. Our guide to grid-forming vs. grid-following BESS explains the two control modes.
Induction Motor Starting: What BESS Inrush Current Looks Like
A direct-on-line motor start creates the largest BESS inrush current at most industrial sites. Current and torque behave very differently, and that gap drives the problem.
Locked-Rotor Current and Torque
An induction motor at standstill looks like a low-impedance, mostly reactive load. Connected directly at rated voltage, it draws locked-rotor current.
The black-start study puts this at six to eight times rated current, depending on design [1].
IEC 60034-12 sets locked-rotor current and apparent-power limits by motor design class [8]. The 1.5 MW motor in the study drew 6.1 times rated current [1].
At locked rotor, the motor acts roughly like a constant impedance. Current scales with applied voltage, but torque scales with its square.
That is the core problem. If a current-limited inverter lets voltage sag, torque falls much faster than current.
Halve the voltage and current halves, but torque drops to a quarter.
What the NLR Simulation Shows
The National Laboratory of the Rockies (formerly NREL) simulated a 1.5 MW motor. The motor started through transformers and a line from a current-limited grid-forming inverter [1].
| Case | Inverter current limit | Result |
|---|---|---|
| Unloaded start | 10× rated (effectively unrestricted) | Motor reaches 95% speed in about 1.9 s; about 4× rated rms current drawn |
| Unloaded start | 1.2× rated | Starts, but terminal voltage sags to about 0.3 pu and the start takes about 20 s |
| Load torque present at start | 1.2× rated | Motor does not start |
| Load applied after the motor reaches steady state | 1.2× rated | Motor stalls |
| Same case, limit raised | 1.5× rated | Motor sustains the load |
| Voltage-ramp soft start | Current held at or below rated (inverter rated to match the motor) | Inrush eliminated; motor sustains load applied afterward |
| Three inverters in parallel | Each 1.2× rated | Starts in about 3.4 s if load is applied after the start; if loaded at the start, it settles at very low speed in the motor’s unstable region |
Two lessons follow. First, a current-limited inverter can start a large motor only without load, or with the load added later.
The start also takes far longer.
Second, a controlled voltage ramp or more inverters sharing current helps far more than tolerating the sag [1].
A separate study saw a similar pattern. Its current-limited source started an unloaded motor only after more than 20 seconds, with terminal voltage near 0.3 pu [4].
Other work compares starting methods for grid-forming microgrids [6].
These are simulation results for one motor, with no friction torque modeled. The authors call for hardware validation [1].
Transformer Energization: A Different Kind of BESS Inrush Current
Transformer inrush is not a load demand. It is magnetic saturation, so BESS inrush current follows different rules than in a motor start.
Core flux is the time integral of applied voltage. Inrush therefore depends on the flux left in the core.
It also depends on the point in the voltage wave when the transformer connects [7].
In the worst case, peak flux approaches the residual flux plus twice the normal maximum flux. That is far beyond the saturation level [2].
The magnetizing impedance collapses and the current spikes.
The resulting current can exceed ten times nominal transformer current for four to six cycles [2].
Sympathetic inrush happens when one transformer energizes while others are live. Its peak is lower, but it can last for seconds [2].
A BESS that energizes a feeder with many distribution transformers sees the sum.
Two levers limit transformer inrush: choose the connection instant, or reduce the voltage amplitude [2]. The first is point-on-wave switching.
Point-on-wave switching is often impractical in a BESS-led restoration. It needs breaker control and transformer data.
It also needs flux knowledge and operator teamwork [2].
That leaves the second lever, and a voltage-source inverter can pull it in its control loops. Network studies, like those in our BESS grid connection studies guide, help confirm the sequence of BESS inrush current events.
Five Ways to Manage BESS Inrush Current
Designers combine control, load-side starting methods and sizing to manage BESS inrush current. These five layers work together.
Limit Current Inside the Control Loop
The first layer is protection by design. A voltage-loop reference modifier acts when current nears a high level.
That level sits above continuous rating but below the protection trips.
It cuts the current reference to a limit within the continuous rating. Then it releases once current falls back.
Because a limiter can saturate the controller, the voltage controller needs anti-windup [2].
Review literature stresses that limiter design shapes behavior during motor starts, cold-load pickup and black start [3]. See also our guide to PCS functions and features.
Ramp the Voltage for Soft Energization
Ramping output voltage lets transformer flux build gradually. It also keeps motor current near rated.
A rate limiter on the voltage reference in the droop loop does this.
In the NLR simulation, the ramp removed the inrush current [1]. Treat that as a simulated result.
A ramp limits volt-seconds and so core saturation, but a real transformer may still draw some magnetizing current.
The trade-off is grid code. Some network operators prefer voltage inside the normal band, for example 0.90–1.05 pu [2].
Our BESS grid codes and compliance guide covers this.
Clamp Instead of Ramp When the Grid Needs Nominal Voltage
Sometimes the grid needs nominal voltage at once. In that case, the reference modifier can hold current at the inverter’s maximum.
The transformer then saturates and recovers. Field results support this way to limit BESS inrush current, as the next section shows.
Reduce the Demand on the Load Side
Motors do not have to start across the line. A variable-frequency drive or soft starter lowers the line current at start.
Staggering transformer energizing also keeps their inrush currents from adding up.
A plain reduced-voltage start costs torque. Torque falls roughly with the square of applied voltage.
Under a constant-impedance model, it falls with the square of the current cut. Heavy loads therefore need a method that keeps torque up.
Size, Parallel or Augment the Source
More PCS rating supplies more current. In the NLR study, three parallel units, each limited to 1.2×, raised terminal voltage and cut start time sharply [1].
Higher-overcurrent hardware is another route. One proposal pairs the inverter with a nearby synchronous condenser that supplies the high current [4].
Condenser-style controls also aim to meet tough grid-code current rules [5].
This table compares the five approaches.
| Strategy | Best suited to | Main trade-off |
|---|---|---|
| Control-loop current limit | Transformer energization at nominal voltage | Needs correct anti-windup design; brief current clamp |
| Voltage ramp | Black start, motor start, feeder energization | May conflict with operator voltage-band rules |
| Load-side soft start or drive | Motors | Added equipment; torque trade-off for simple reduced-voltage starters |
| Sequenced energization | Multi-transformer feeders | Longer restoration time |
| Larger or paralleled PCS, or synchronous condenser | Large motors, weak islands | Capital cost |
Field Evidence: A 1 MVA BESS Energizing a 20 kV Network
Researchers at the University of Vaasa tested BESS inrush current controls on a real network in Ingå, Finland [2]. A 1 MVA BESS, built from four parallel inverter units, energized a 20 kV network.
It also supplied a 250 kW load.
The network served around 400 customers and about 30 distribution transformers, totaling roughly 2.5 MVA. The team tested two schemes.
First, the team used a voltage-reference rate limiter in the droop loop. The inverter ramped the network voltage, and the output current showed none of the typical inrush overcurrent.
Second, the team used a current-reference modifier in the voltage loop. The inverter applied nominal voltage at once.
An inrush peak began to form on closing, but current fell fast once the inverter reacted.
Then the event ended in under 20 ms, and no recurring, decaying inrush pattern appeared. Nominal voltage reached the medium-voltage bus in less than half a cycle [2].
The authors conclude that the approach avoids oversizing the inverter for inrush. It also works without knowing transformer data, breaker timing or network layout [2].
This result covers one medium-voltage network and one set of transformers. It is not a guarantee for every feeder layout, transformer size or residual-flux condition.
Still, it shows that control can manage sympathetic transformer inrush in at least that case.
Worked Example: Sizing a PCS for BESS Inrush Current
This example is simple arithmetic, not sourced data. It shows how BESS inrush current sets PCS size.
Setup and Results
Take a 160 kW, 400 V motor. Its full-load current (FLC) is about 276 A, assuming 0.95 efficiency and 0.88 power factor.
The PCS can supply 1.2 times rated current. How large must it be if it carries the whole starting current?
| Starting method | Peak line current | Approx. start kVA at 400 V | PCS rating needed at 1.2 pu | Relative starting torque (DOL = 100%) |
|---|---|---|---|---|
| Direct on line (6.5× FLC) | about 1,800 A | about 1,245 | about 1,040 kVA | 100% |
| Soft starter limited to 3× FLC | about 830 A | about 575 | about 480 kVA | about 21% (current ratio squared) |
| Drive limited to 1.5× FLC | about 415 A | about 287 | about 240 kVA | Depends on method and control (see note below) |
What the Ratio Tells You
The lesson is the ratio. The motor’s running load is about 191 kVA, and a direct start demands about 6.5 times that at the terminals.
That means a PCS roughly 5.4 times the running kVA once a 1.2 pu limit applies.
A drive limited to 1.5× FLC cuts the demand to about 1.5 times the running kVA. The PCS then needs only about 1.25 times the running kVA.
Starting current is largely reactive. The limit is therefore the PCS current rating, not battery energy, and adding battery modules does not raise it.
For a wider sizing method, try our C&I BESS sizing calculator.
Check the PCS datasheet for overload size and duration, because 1.2 pu may last only seconds. Figures are three-phase line values.
PCS sizing must also cover reactive current, not just real power.
Take overload ratings, reactive current and allowed voltage sag from the PCS datasheet and project study.
Torque percentages are relative to direct-on-line starting, not to rated torque. For a simple reduced-voltage starter, torque falls roughly with the square of applied voltage.
A drive’s torque depends on its control method, its low-frequency voltage boost and whether it uses closed-loop vector control.
Specification Checklist for BESS Inrush Current
Use this checklist to specify BESS inrush current performance before you buy. Each item ties to a source above.
- Overcurrent rating: Ask for PCS overcurrent in grid-forming mode as a per-unit value with duration. Also ask what the controller does at the limit [3].
- Soft-start function: Require a voltage ramp or equivalent for energizing transformers and starting motors. Then confirm the network operator’s voltage-band tolerance [2].
- Transformer data: List every transformer to energize, with rating, impedance and sequence. This lets you assess sympathetic inrush [2].
- Motor data: Get the locked-rotor current ratio or kVA, the load-torque curve and the inertia. Then choose a drive or soft starter [8].
- Protection: Study relays on the cranking path, since inverter fault current is small. Check motor heat protection too, because current-limited starts run long [1]. See our guide to BESS short circuit protection.
- Validation: Confirm with electromagnetic-transient simulation and a site or factory test [1].
Limits and Open Questions for BESS Inrush Current
Much of the evidence on BESS inrush current from motors comes from simulation. It assumes ideal current sharing between inverters and no friction torque [1].
Voltage ramping may not suit every network operator [2]. Grid codes also keep changing.
Current-limit design is now central to grid-forming BESS specs [3].
Treat any vendor claim of “unlimited motor starting” with skepticism. First ask for the overcurrent rating, the duration and the test conditions.
For generator comparisons, see our guide to diesel generator replacement with BESS.
Frequently Asked Questions About BESS Inrush Current
These answers cover the most common BESS inrush current questions from project engineers.
Can a BESS start a large motor directly on line?
Only if its PCS short-time current rating, voltage support and protection settings allow it. With a 1.2× limit, the simulated motor could not start under load [1].
Does a bigger battery reduce BESS inrush current?
Not by itself. BESS inrush current is a current (kVA) problem, not an energy (kWh) problem.
More PCS rating, paralleled inverters or a soft-start method raise the limit [1].
Why not use controlled switching for transformers?
It needs breaker control plus knowledge of transformer parameters and residual flux. A BESS usually lacks both on a network it does not own [2].
Does this matter for grid-connected systems?
Mostly when the BESS forms the voltage. When it follows a stiff grid, the grid supplies most of the BESS inrush current.
Further Reading from SunLith
These SunLith guides add context on BESS inrush current, controls and system design.
- Grid-forming vs. grid-following BESS
- BESS PCS functions and features
- Microgrid BESS
- BESS grid connection studies
- BESS short circuit protection
- BESS grid codes and compliance
- C&I BESS sizing calculator
References
These sources support the BESS inrush current figures in this article.
1. H. Jain, G.-S. Seo, E. Lockhart, V. Gevorgian, B. Kroposki, “Blackstart of Power Grids with Inverter-Based Resources,” 2020 IEEE PES General Meeting, pp. 1–5, DOI 10.1109/PESGM41954.2020.9281851. Figures are from the NLR preprint NREL/CP-5D00-75327 (National Laboratory of the Rockies, formerly NREL). https://www.nlr.gov/docs/fy20osti/75327.pdf
2. M. Shahparasti, H. Laaksonen, K. Kauhaniemi, P. Lauttamus, S. Strandberg, J. Strandberg, “Inrush Current Management During Medium Voltage Microgrid Black Start with Battery Energy Storage System,” IEEE Access, 2022, DOI 10.1109/ACCESS.2022.3167701. https://doi.org/10.1109/ACCESS.2022.3167701
3. N. Baeckeland, D. Chatterjee, M. Lu, B. Johnson, G.-S. Seo, “Overcurrent Limiting in Grid-Forming Inverters: A Comprehensive Review and Discussion,” IEEE Transactions on Power Electronics, vol. 39, no. 11, pp. 14493–14517, Nov. 2024, DOI 10.1109/TPEL.2024.3430316. https://doi.org/10.1109/TPEL.2024.3430316
4. H. Li, C. Nie, F. Wang, “Grid Strengthening IBR: An Inverter-Based Resource Enhanced by a Co-Located Synchronous Condenser for High Overcurrent Capability,” IEEE Open Journal of Power Electronics, vol. 3, pp. 535–548, 2022, DOI 10.1109/OJPEL.2022.3194849. https://doi.org/10.1109/OJPEL.2022.3194849
5. J. Freytes, A. Rossé, V. Costan, G. Prime, “Grid-Forming Control Based on Emulated Synchronous Condenser Strategy Compliant with Challenging Grid Code Requirements,” arXiv preprint arXiv:2303.00391, v2, last revised 7 May 2024. https://arxiv.org/abs/2303.00391
6. V. Patil, S. Mishra, A. Singhal, “Investigating the Impact of Induction Motor Starting on Grid-Forming Inverter-Based Microgrid,” 2024 IEEE PES ISGT Asia, Bengaluru, India, pp. 1–6, DOI 10.1109/ISGTAsia61245.2024.10876368. https://doi.org/10.1109/ISGTAsia61245.2024.10876368
7. B. C. Sung, S. Kim, “Accurate Transformer Inrush Current Analysis by Controlling Closing Instant and Residual Flux,” IPST 2023, paper 23IPST014.
8. IEC 60034-12:2016, Rotating electrical machines, Part 12: Starting performance of single-speed three-phase cage induction motors.
How to Prepare for a C&I BESS Quote
A C&I BESS quote is only as useful as the information behind it. In fact, a one-line request rarely supports reliable sizing or a comparable installed-price estimate.
Send your load data, tariff details, site facts, and main goal up front. Then every bidder answers the same question.
This guide covers the data, documents, and questions to prepare. Finally, it offers a request email you can copy and send.
Quick Answer: To request a C&I BESS quote, state your application, site location, target operating date, and available electrical and space details. Next, add interval load data and the tariff for savings-based projects, or critical loads and backup duration for resilience. Finally, share a single-line diagram if you have one.
Why a Generic C&I BESS Quote Is Not Enough
Asking what a 1 MWh system costs does not produce a project-ready C&I BESS quote. That is because installed cost depends on far more than battery size.
- Energy duration and power rating
- The application the battery must serve
- Interconnection and controls
- Site civil work and safety systems
- Commissioning and warranty requirements
Each item changes the price. So a bare price request tells a supplier very little.
Similarly, the U.S. Department of Energy’s BESS procurement checklist shows the same idea. It gives federal agencies early-stage tasks, questions, and reference points, not just a price request.
To see how these cost drivers add up, read SunLith’s BESS CAPEX vs LCOS guide. Meanwhile, the BESS OPEX and operating cost model and Cost of Storing Energy: BESS guides cover the rest.
Quote preparation brings together the application, preliminary sizing, specifications, warranty requirements, and economic assumptions. However, you can refine these inputs with the supplier as the project develops.
Start Your C&I BESS Quote With the Application
Every C&I BESS quote starts with the job the battery must do. Because each job needs different data, the table below separates them.
| Primary application | Essential information |
| Peak shaving | Interval load data, tariff, target grid-import limit, demand-charge structure |
| Backup / resilience | Critical-load list, required backup duration, transfer scheme, outage history, generator interface |
| Solar self-consumption | PV system size, production data, export rules, load profile, curtailment information |
| EV charging | Charger count, charger power, utilization, transformer capacity, future expansion plan |
| Microgrid / generator replacement | Generator ratings, fuel use, load steps, operating schedule, islanding requirements |
First, pick the row that fits your main goal. Then gather everything listed beside it.
For peak shaving, follow the steps in SunLith’s peak shaving battery sizing guide. For backup, try the backup-power battery sizing calculator instead.
If you have more than one goal, rank them. Otherwise, a system tuned for one job may perform poorly at another.
Prepare the Data Behind Your C&I BESS Quote
Three groups of information shape every C&I BESS quote request. Since each group answers a different supplier question, gather all three.
Energy and Tariff Information
For peak shaving and tariff-based savings analysis, aim for at least 12 consecutive months of interval data where available.
Use the utility’s demand-measurement interval, or finer data that can be aggregated to it. Also state the timestamps, time zone, units, and whether each reading is average kW or interval kWh.
- Current utility bills
- The full tariff or rate schedule
- Demand charges, time-of-use windows, ratchets, and export compensation rules
- Existing and planned solar generation data
Electrical and Site Information
- Facility location and utility
- Main-service voltage, transformer rating, and available capacity
- Single-line diagram, where available
- Existing switchgear, protection equipment, generator, and solar-inverter details
- Proposed point of interconnection
- Site plan, access route, usable footprint, setbacks, and fire-access constraints
Operational and Commercial Information
- Main BESS use case and priority order
- Target kW reduction, backup duration, or EV-charging demand
- Typical operating schedule and seasonal changes
- Expansion plans
- Desired commercial-operation date
- Budget range, procurement route, and financing preference, if you are willing to share them
Missing a document? Send what you have. Then the supplier can list the gaps and request the rest later.
What Suppliers Should Include in Their Reply
A budgetary estimate may give an indicative configuration, price range, scope, and assumptions without detailed engineering. In contrast, a developed proposal should add a more defined layout, electrical interface, commissioning scope, and itemized exclusions.
State which stage you are requesting. Also ask suppliers to flag anything that still depends on site investigation or engineering.
A strong C&I BESS quote does more than state a price. Next, ask each bidder to cover these items.
- Proposed AC power rating, usable energy, and nominal energy
- Stated duration at rated power
- Assumed measurement boundary for capacity and efficiency
- Scope of PCS, battery, BMS, EMS, HVAC, fire-safety, enclosure, and balance-of-system equipment
- Interconnection and site-work assumptions
- Conceptual layout and electrical-interface information, where available; more detailed drawings at the developed-proposal stage
- Performance assumptions and dispatch limitations
- Warranty scope, capacity retention, throughput limit, exclusions, and remedies
- CAPEX breakdown, exclusions, O&M scope, and optional services
- Schedule, commissioning plan, and commercial assumptions
- Quote validity, currency, delivery basis, taxes or duties, payment milestones, and major price-adjustment conditions
Once bids arrive, use SunLith’s C&I BESS warranty checklist to review each warranty offer.
Because unclear terms make bids hard to compare, read SunLith’s guide to understanding BESS specifications. It explains how vendors define capacity, power, and efficiency.
Also ask how the supplier plans for capacity loss over time. Our guide to BESS augmentation planning covers that topic.
Questions to Compare Across Every C&I BESS Quote
Use these questions to put every C&I BESS quote on the same footing. Ask for written answers as well, and have important assumptions, inclusions, and exclusions written into the proposal.
Capacity and Performance Questions
- Is the energy rating nominal, usable DC, AC delivered, or measured at the point of interconnection?
- What duration does the system provide at rated power?
- Does the proposal assume one application or stacked value streams?
- How are HVAC and auxiliary loads counted in efficiency and available-energy assumptions?
Scope and Ownership Questions
- Which site upgrades, civil works, interconnection studies, permits, or fire-protection measures are excluded?
- Who owns the EMS controls, performance monitoring, and data access?
- What do commissioning, acceptance testing, training, remote monitoring, and maintenance include?
Warranty and Lifecycle Questions
- Which warranty limits apply to DoD, throughput, C-rate, SOC, temperature, and dispatch?
- What annual O&M and replacement costs are assumed?
- What must happen for capacity augmentation, and who pays for it?
Because C-rate limits often sit inside warranty terms, see BESS C-rate explained for how those limits work.
Common Mistakes When Requesting a Quote
These errors often weaken a C&I BESS quote request. If you avoid them, your bids will be easier to compare.
- Requesting price without an application: As a result, the supplier must make assumptions about the required kW, kWh, and controls.
- Sharing one monthly utility bill: Because it hides peak shape, duration, and seasonal change, sizing stays uncertain.
- Comparing nominal kWh with usable AC energy: Since the two numbers measure different things, the bids will not match.
- Ignoring tariff and demand-charge rules: When you miss them, the value of every kW you cut is unclear.
- Assuming extras are included: Unless stated, PCS, HVAC, fire protection, controls, and civil work may sit outside the price.
- Comparing warranty years alone: Instead, check throughput and operating limits as well as the term.
- Asking for a system sized for savings: Without sufficient load, tariff, and site information, savings-based sizing remains speculative.
Copy-and-Paste RFQ Email Template
Use this template to start your C&I BESS quote request. Replace each bracketed item with your own details before sending.
Subject: Request for preliminary C&I BESS assessment and budgetary quote
We are evaluating a battery energy storage system for [facility type] at [location]. Our primary objective is [peak shaving / backup / solar self-consumption / EV charging / other].
Attached are [interval load data / utility bills / tariff / single-line diagram / site plan].
Please provide a preliminary recommendation. Include proposed AC power, usable energy, expected duration, and key assumptions.
Also include required site or interconnection work, budgetary CAPEX, warranty summary, delivery schedule, and information needed for a detailed proposal.
Our target decision date is [date], and our target commercial-operation date is [date].
Send it to more than one supplier. Also use the same attachments each time.
Frequently Asked Questions About a C&I BESS Quote
When buyers prepare a C&I BESS quote request, the same questions come up often.
What data do I need for a C&I BESS quote?
Start with your application, site location, available electrical information, and target operating date. For peak shaving or tariff-based savings, include interval load data and the utility tariff.
For backup, provide critical-load requirements and the required backup duration. In addition, a single-line diagram and site plan help refine the proposal where available.
Can I get a C&I BESS quote with only one utility bill?
You may receive a budgetary estimate, but its sizing and savings assumptions will be limited. That is because one bill hides peak shape and seasonal change. Instead, interval data gives a far better basis.
Why do C&I BESS quotes differ so much?
Bids often use different definitions and scope. For example, one may quote nominal energy and another usable AC energy. Therefore, ask every bidder to state its assumptions.
Do I need a single-line diagram before I ask?
It helps, but it is not always required. If you lack one, send equipment nameplate details and photos of the main switchgear. As a result, the supplier can request more later.
Is a preliminary assessment the same as a final proposal?
No. A preliminary assessment gives budgetary figures and stated assumptions. However, a detailed proposal needs site-specific electrical, tariff, interconnection, and safety review.
Ready to Request a Preliminary Assessment?
Contact SunLith for a C&I BESS quote with your project objective, site location, and available load, tariff, and electrical information. If documents are missing, explain what you have so we can identify the next steps.
Request a Preliminary C&I BESS Assessment
SunLith can provide a preliminary assessment; final system design requires site-specific electrical, tariff, interconnection, and safety review.
Related BESS Procurement Guides
While you prepare a C&I BESS quote request, these SunLith guides support each step.
- Peak Shaving Battery Sizing — the kW and kWh method behind a peak-shaving request
- C&I BESS Sizing Calculator — preliminary outage-backup sizing, not peak shaving
- Understanding BESS Specifications — how vendors define capacity, power, and efficiency
- BESS CAPEX vs LCOS — why upfront cost and lifetime cost differ
- BESS OPEX and Operating Cost Model — the recurring costs behind every proposal
- Cost of Storing Energy: BESS LCOS Calculator Guide — how lifetime cost per kWh is calculated
- C&I BESS Warranty Guide — how to read warranty terms before you sign
- BESS Augmentation — planning for capacity loss over time
