BESS Augmentation: AC Block Addition vs. DC Shuffling — How Mid-Life Capacity Upgrades Actually Work
AC block addition is one of two ways to carry out BESS augmentation. BESS augmentation, in short, restores capacity a battery loses over time. Every charge and discharge cycle wears the cells down. So, after a few years, the system can no longer deliver its full contracted energy or power. AC block addition fixes this by adding new inverters and battery racks on the AC side. DC shuffling, the other path, instead reallocates existing modules behind the inverters already on site. Each approach, however, solves the same problem differently.
| Quick Answer AC block addition installs a new, independent power block behind its own connection point. It costs more and needs more space. However, it works with any battery chemistry, and it skips synchronization headaches with old cells. DC shuffling, by contrast, reorganizes and adds battery modules behind the existing inverters. It costs less, and it often avoids new interconnection permits. But busbar ratings, breaker capacity, and voltage matching all limit how much capacity it can add. |
Why BESS Augmentation Needs a Capacity-Adding Strategy
This guide focuses on the technical mechanics of the two paths. For the full picture on BESS augmentation as a strategy, including how it compares to oversizing capacity upfront, see our complete guide to BESS augmentation.
Lithium-ion cells degrade with use. So does calendar time alone. Each cycle stresses the electrode material. Specifically, the protective SEI layer on the anode cracks and reforms. This, in turn, consumes active lithium every time. High charge rates and cold temperatures make it worse.
Fade rates vary by chemistry and duty cycle. Many grid-scale LFP systems, for instance, lose roughly 2 to 3 percent of usable capacity per year. As a result, after five to seven years, a project can fall short of its contracted energy or power. That, in turn, threatens revenue under tolling agreements and capacity contracts.
BESS augmentation exists to close that gap. It adds capacity back, either instead of, or alongside, overbuilding extra capacity at day one. Modo Energy’s research on the topic frames it simply: augmentation restores or increases capacity, and both outcomes improve a project’s revenue potential.
Cycle Aging and the Restore Buffer
BESS augmentation is not a one-time fix. Instead, most projects restore capacity to a buffer above nameplate, not just back to nameplate. That buffer, in turn, gives headroom before the next augmentation cycle is needed.
Here is the catch. That buffer is defined in AC terms, at the point of interconnection. See our guide to understanding BESS specifications for how nameplate, usable, and contracted energy differ. But the actual work is a DC decision, since operators install battery cells, not AC megawatts. So, converting between the two requires accounting for round-trip losses across the inverter and transformer.
AC Block Addition Explained
How the AC Path Works

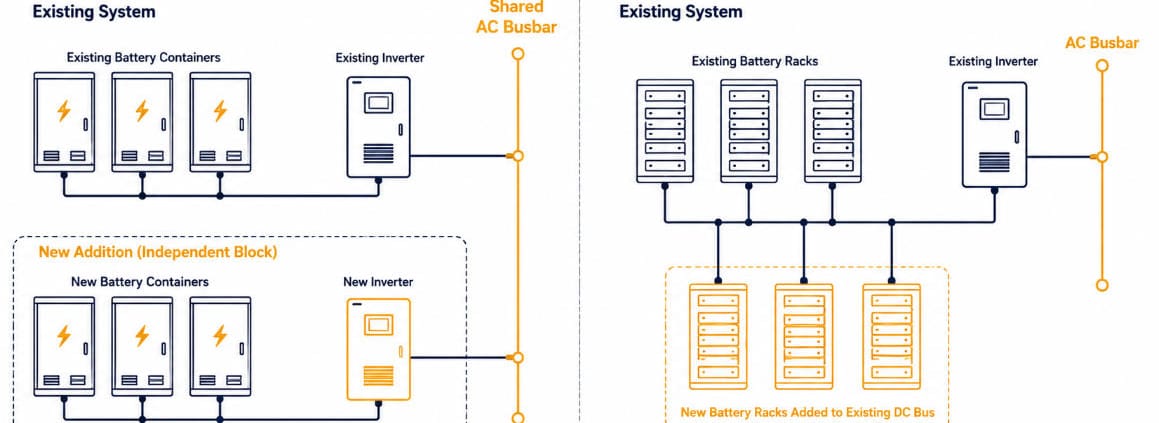

AC block addition adds a self-contained power block next to the existing system. New battery racks, a new PCS, and often a new transformer, arrive as one unit. The block then synchronizes independently at the AC bus, or at a new point of interconnection. Because the new block does not share a DC bus with old batteries, voltage and state-of-charge mismatches between aged and fresh cells never become a problem.
Pros and Cons of the AC Path
Advantages:
- Works with any battery chemistry — operators can add a sodium-ion or next-generation LFP block next to an aging system.
- Needs no voltage or state-of-charge synchronization with degraded cells.
Offers a chance to upgrade PCS technology, such as adding grid-forming capability, alongside the capacity add.
- Creates a clean equipment and warranty boundary between old and new hardware.
Drawbacks:
- Costs more, since a new PCS, transformer, and switchgear all add expense.
- Needs more physical footprint.
- Often triggers a new interconnection study or re-permitting, since new grid-connected hardware is involved.
Adds a new fault-current source, so protection settings must be re-coordinated.
DC Shuffling Explained
DC shuffling reorganizes existing battery modules behind the inverters already installed. Modules with similar degradation profiles get grouped together. This, in turn, spreads energy more evenly across the stack. On its own, however, shuffling does not add any capacity. It just rebalances what is already there.
Real capacity gets added only when new racks are added behind the same PCS, after the existing fleet has been shuffled and rebalanced. Because the new capacity shares the same inverter and bus, it can share the same permitting boundary too. A DC-to-DC converter can help reconcile the voltage gap between old and new modules. The converter itself, though, adds no capacity on its own.
Technical Limits of DC Shuffling
DC shuffling looks cheap on paper. However, it runs into hard technical ceilings. As Energy-Storage.News has reported, auxiliary load breakers and busbars were sized for the original system. So, adding capacity behind them can exceed that rating.
Adding capacity also raises the available fault current the busbar must survive, measured against its short-time withstand rating. As a result, retrofitting an undersized bus is expensive and disruptive.
Old and new modules, moreover, rarely match on voltage or state of health. Without careful matching, the newer modules can get pulled offline to protect them. That, in turn, erases some of the capacity gain.
Sizing the Restore Buffer: AC Target to DC Install
Sizing starts at the point of interconnection, not at the battery rack. Consider a 100 MW, 400 MWh project. After five years, it has faded to 340 MWh of usable energy at the AC side. The operator, in this case, wants to restore headroom to 110 percent of nameplate, or 440 MWh.
That means the project needs 100 MWh of additional AC-side energy. Because DC-to-AC conversion is not lossless, the DC installation must be larger than the AC target. At a typical round-trip factor near 96.5 percent, for example, the operator installs about 104 MWh of new DC capacity to deliver 100 MWh at the AC side.
This buffer-based approach, in short, avoids a common trap. Sizing an augmentation exactly to today’s shortfall just guarantees another shortfall, and another expensive site visit, a year or two later.
AC Block Addition vs. DC Shuffling: At a Glance
| Dimension | AC Block Addition | DC Shuffling |
| New grid connection required | Usually, yes | Usually, no |
| Typical capital cost | Higher | Lower |
| Footprint | Larger — new PCS, transformer, switchgear | Smaller — reuses existing enclosures |
| Chemistry flexibility | Any chemistry | Must match voltage/SOC with existing cells |
| PCS / protection impact | New PCS; new fault-current source to coordinate | Existing PCS; busbar and breaker ratings cap headroom |
| Typical permitting timeline | Months — new interconnection study | Weeks to months — often no new grid approval |
| Best fit | Later-life projects, chemistry upgrades, PCS refresh | Earlier-life projects with headroom in the existing bus |
Choosing Between AC Block Addition and DC Shuffling
When AC Block Addition Makes Sense
AC block addition tends to make sense later in a project’s life, once the original PCS is also due for a technology refresh. It is also the better fit when an operator wants to introduce a different battery chemistry, such as pairing a sodium-ion block with an existing LFP fleet.
When DC Shuffling Makes Sense
DC shuffling, on the other hand, fits best earlier in a project’s life, while the existing busbar and breakers still have headroom. It also suits sites where a new interconnection study would be slow or costly. As cell sizes grow past 500 Ah and system voltages rise, some integrators expect DC block designs, and DC shuffling along with them, to look different in the next generation of projects.
Key Takeaways: AC Block Addition vs. DC Shuffling
1. Degradation is inevitable — plan for it before contracted capacity is at risk.
2. Restore buffers are set in AC terms at the point of interconnection, but installed as DC energy.
3. AC block addition costs more but sidesteps chemistry-matching and synchronization limits.
4. DC shuffling costs less but is capped by busbar, breaker, and voltage-matching limits.
5. The right path depends on project age, available headroom, and permitting timeline.
FAQ About AC Block Addition and DC Shuffling
What Is AC Block Addition?
AC block addition is one way to carry out BESS augmentation. It installs a new, independent power block, complete with its own inverters, next to an existing system, to restore or increase capacity lost to degradation.
Does DC Shuffling Alone Add Capacity?
No. Shuffling alone just reorganizes existing modules for better balance. Capacity, however, is only added when new racks get installed behind the shuffled system.
How Much Does This Augmentation Path Cost?
Cost varies by project size, chemistry, and the path chosen. DC shuffling generally costs less per MWh added, since it reuses the existing PCS and transformer. AC block addition, by contrast, costs more, but it includes new power conversion equipment.
Does DC Shuffling Require New Interconnection Permits?
Usually not. Since no new physical connection is made to the grid, DC shuffling can often bypass a fresh interconnection study. AC block addition, on the other hand, usually cannot.
Can AC Block Addition Mix Battery Chemistries?
Yes. Because the new block has its own PCS and DC bus, it does not need to match the voltage or chemistry of the existing system.
Further Reading
- BESS Augmentation: The Complete Guide
- BESS PCS Functions and Features
- Grid-Forming vs. Grid-Following BESS
- BESS Short Circuit Protection
- PCS Overvoltage Protection
- Understanding BESS Specifications
- AC and DC Augmentation in BESS — Energy-Storage.News
- Augmentation: What Is It and Why Is It Important to BESS? — Modo Energy
BESS Augmentation: The Complete Guide to Restoring Capacity Lost to Degradation
BESS augmentation is the process of adding new battery capacity to an existing energy storage system. It restores or increases capacity lost to degradation. Every BESS loses usable capacity over time. Cycling wears down the cells. Calendar aging adds to it too, even when the system sits idle. So, eventually, the project can no longer deliver the energy or power it promised. BESS augmentation exists to close that gap. It does this by restoring nameplate capacity, or by pushing past it.
| Quick Answer BESS augmentation adds new battery capacity to an existing system, later in its life, to restore or increase capacity lost to degradation. It differs from oversizing, which installs extra capacity upfront. Owners execute augmentation one of two ways: AC block addition, which adds a new self-contained power block, or DC shuffling, which reallocates and adds capacity behind the existing inverters. |
What Is BESS Augmentation?
BESS augmentation and BESS oversizing solve the same problem. However, they act at different points in a project’s life. Oversizing installs extra capacity on day one. This happens before any degradation occurs. BESS augmentation, on the other hand, adds capacity later. It happens once real-world fade has been measured. Our BESS oversizing guide covers that upfront strategy in full. It also covers the trade-off between the two paths. This guide, instead, focuses on the mid-life path. It covers what triggers augmentation, how it works, and how to plan for it.
BESS Augmentation vs. Oversizing: The Short Version
Neither strategy is strictly better. Oversizing locks in capital and tax credits early. But it carries idle capacity for years. BESS augmentation, in contrast, defers that capital. It depends on good execution years later. By then, battery prices, chemistry options, and site conditions may all have changed.
| Factor | BESS Augmentation (Mid-Life) | BESS Oversizing (Upfront) |
| Capex timing | Deferred to year 5-10 | Higher Day-1 cost |
| Section 48E ITC eligibility | Can face reduced eligibility on added capacity | Full credit on entire capacity at commissioning |
| Execution risk | Depends on future prices, chemistry, site conditions | Locked in at commissioning |
| Physical planning | Needs reserved space and headroom | Full footprint installed upfront |
| Best fit | Falling-price markets, budget-constrained projects | ITC-sensitive, stable-forecast projects |
Why Projects Need BESS Augmentation
Lithium-ion cells fade with every charge and discharge cycle. Specifically, the protective layer on the anode cracks and reforms with each cycle. This consumes active lithium. High charge rates and cold temperatures also speed up the damage. Meanwhile, calendar time adds a slower fade on top of cycling.
Grid-scale LFP systems commonly lose about 2 to 3 percent of usable capacity per year. As a result, after five to seven years, many projects fall short of their contracted energy or power. That, in turn, threatens revenue directly.
Capacity Guarantees and Tolling Agreements
Most utility-scale BESS projects operate under a tolling agreement or a capacity sale agreement. These contracts are priced against a guaranteed deliverable capacity. This is not simply nameplate capacity at commissioning. So, if degradation erodes that capacity below the contracted floor, trouble follows. The owner then faces liquidated damages or lost revenue. BESS augmentation, therefore, is how owners keep that promise as the asset ages.
These agreements often run 10 to 20 years. So, the augmentation plan is not an afterthought. Instead, it gets built into the financial model at financial close. It sits alongside the degradation curve and the warranty terms.
The Two Paths to BESS Augmentation: AC and DC
There are two ways to physically carry out BESS augmentation. One works on the AC side. The other works on the DC side.
AC Block Addition
First, AC block addition installs a new, self-contained power block next to the existing system. It comes with its own inverters, and often its own transformer too. Because it does not share a DC bus with the old batteries, it avoids voltage and state-of-charge mismatches. It also works with any battery chemistry. As a result, it opens the door to pairing a newer chemistry with an aging LFP fleet.
DC Shuffling
Second, DC shuffling reallocates and adds battery modules behind the inverters already on site. It reuses the existing power conversion equipment. This, in turn, keeps costs down. However, busbar ratings, breaker capacity, and voltage matching all place a ceiling on how much it can add.
For more detail, our AC block addition vs. DC shuffling guide walks through the full technical comparison. It includes a worked example for sizing the restore buffer. It also covers the busbar and short-circuit limits that cap DC shuffling.
What Triggers a BESS Augmentation Decision?
BESS augmentation planning typically starts at a trigger point. That point is when a site’s measured state of health nears the level needed for its contracted output. Operators track this through periodic capacity tests. In addition, battery management system state-of-health estimates support the tracking. So, neither relies on guesswork.
Typical Timing: Year Five to Year Ten
For most grid-scale LFP projects, that point arrives between year five and year ten. Cycling intensity and climate both affect the timing. For instance, hot climates and aggressive cycling schedules push the timeline sooner. On the other hand, shallow cycling, or oversizing at commissioning, pushes it further out.
Planning early matters a great deal. A reactive BESS augmentation project, ordered only after a shortfall occurs, has far less room to negotiate. Because of that, procurement timelines, chemistry options, and price all suffer.
Battery Chemistry and BESS Augmentation Planning
Battery chemistry affects how easily new capacity can be added. LFP has a flat voltage curve. So, it makes voltage matching between old and new modules more forgiving than steeper chemistries like NMC. This is one reason DC shuffling is more common on LFP systems.
AC block addition, however, removes chemistry matching from the equation entirely. The new block runs its own inverters. So, an operator can add a different chemistry, such as sodium-ion, next to an existing LFP fleet. No voltage curves need to line up.
Tax Credits, Costs, and Procurement for BESS Augmentation
The tax picture for BESS augmentation is less favorable than for oversizing. Under Section 48E, the tax credit applies most cleanly to capacity installed at commissioning. Capacity added later, however, can face reduced credit eligibility. It can also add compliance work. This is a core trade-off against upfront oversizing. So, model it carefully before committing to a mid-life augmentation strategy.
Procurement timelines also differ sharply between the two paths. DC shuffling makes no new grid connection. So, it can often skip a fresh interconnection study. AC block addition, in contrast, usually cannot skip that step, since it adds new grid-connected hardware. That difference alone can add months to the schedule.
Cost varies too. DC shuffling generally costs less per megawatt-hour added. This is because it reuses the existing PCS, transformer, and switchgear. AC block addition costs more. However, it buys a clean equipment boundary. It also adds the option to upgrade power conversion technology at the same time.
A Practical BESS Augmentation Planning Checklist
1. Confirm the site’s actual state-of-health trend against the contracted capacity floor.
2. Model the restore buffer in AC terms, then convert it to a DC installation size, accounting for round-trip losses.
3. Choose between AC block addition and DC shuffling based on busbar/breaker headroom, chemistry needs, and permitting timeline.
4. Reserve physical space for future modules if a DC shuffling path is likely.
5. Model the Section 48E tax credit and financing impact of adding capacity mid-life.
6. Build procurement and, if needed, interconnection lead time into the schedule early.
Key Takeaways on BESS Augmentation
1. BESS augmentation restores or increases capacity lost to degradation, later in a project’s life.
2. Most grid-scale LFP projects need to plan for it between year five and year ten.
3. Tolling agreements and capacity sale agreements make augmentation a contractual necessity, not an option.
4. AC block addition and DC shuffling are the two execution paths, with different cost, timeline, and chemistry trade-offs.
5. Augmented capacity can face reduced Section 48E tax credit eligibility compared to capacity installed at commissioning.
Frequently Asked Questions About BESS Augmentation
When Should a Project Plan for BESS Augmentation?
In short, BESS augmentation planning should begin early. It should start as soon as a site’s degradation curve first threatens a future contract obligation. It should not wait until after a shortfall occurs.
What’s the Difference Between BESS Augmentation and BESS Oversizing?
Oversizing installs extra capacity upfront, before degradation happens. BESS augmentation, by contrast, adds capacity later, once real-world fade has been measured. Oversizing generally captures a fuller tax credit. It also carries lower operational complexity. Augmentation, however, defers capital and can benefit from falling battery prices.
Does Augmented Capacity Qualify for the Section 48E Tax Credit?
Capacity installed at commissioning generally qualifies most cleanly for the Section 48E credit. Capacity added later through augmentation, however, can face reduced eligibility or added compliance work. So, this should be modeled carefully before choosing a mid-life strategy.
How Long Does a BESS Augmentation Project Take?
Timelines vary by path. DC shuffling projects typically avoid a new interconnection study. So, they can often move in weeks to a few months. AC block addition projects, on the other hand, usually require new grid-connected hardware. As a result, they more commonly take several months, due to interconnection and permitting steps.
What’s the Difference Between AC Block Addition and DC Shuffling?
AC block addition installs a new, independent power block with its own inverters. It works with any battery chemistry. DC shuffling, in contrast, reallocates and adds capacity behind the existing inverters. It costs less, but it is limited by busbar, breaker, and voltage-matching constraints.
Further Reading
PCS Overvoltage Protection: Coordinating Transformer and Inverter Defense Against High-Voltage Grid Faults
Key Takeaway
PCS overvoltage protection is the layered set of defenses that keeps power conversion systems and transformers online, and undamaged, when grid voltage swells past normal limits. It combines fast surge arresters, DC-bus crowbar circuits, software ride-through control, and coordinated relay settings into one system. So it does not treat the transformer and the inverter as separate problems.
In short, it lines up transformer insulation limits with inverter chip limits. When a high-voltage grid fault hits, ride-through control briefly adjusts reactive current. At the same time, surge arresters and firmware limits shield the delicate IGBT or SiC switches from damaging voltage spikes.
Modern grid codes such as IEEE 1547-2018 require both to stay connected through many of these events. As a result, protection has to work in layers. It also has to be planned jointly. Get the coordination wrong, and the surge arrester clamps too late. Or, just as often, the PCS rides through longer than the transformer’s insulation can bear.
| Quick Answer PCS overvoltage protection combines transformer-side relays (ANSI 59, ANSI 24), surge arresters, and differential protection (ANSI 87T) with PCS-side defenses (DC-bus crowbar circuits, ride-through control, gate-driver clamps). The two systems must be coordinated. Specifically, the arrester should clamp below the PCS trip threshold. Also, the ride-through duration should stay inside the transformer’s short-time withstand rating, per IEEE C57.12. |
Why PCS Overvoltage Protection Differs From Overcurrent Protection
Most protection engineers think in terms of overcurrent first. So fuses, breakers, and relays are usually sized to clear a fault before wires or windings overheat. Voltage swells flip that logic around. Here, the equipment is not drawing too much current. Instead, it is facing too much voltage. So the failure paths are different:
- Load rejection — a large downstream load trips offline, and voltage spikes upstream before regulation catches up
- Single-line-to-ground faults on ungrounded or high-impedance grounded systems, which can push healthy phases toward line-to-line voltage
- Switching transients from capacitor bank energization, transformer tap changes, or line reclosing
- Ferroresonance, more common on lightly loaded systems with long cable runs
Overall, the transformer and the PCS each feel this stress in their own way. That is why PCS overvoltage protection needs two coordinated strategies, not one shared setting. For reference, full ride-through requirements sit inside IEEE 1547-2018, the standard most U.S. interconnection agreements now reference.
Transformer-Side Defenses That Support PCS Overvoltage Protection
Insulation and Core Stress From Sustained Overvoltage
Sustained overvoltage raises the transformer’s flux density. This pushes the core toward saturation. As a result, a saturating core draws jagged, inrush-like current. It also creates hot spots in the windings. Over time, the added vibration and noise speed up insulation aging.
In short, the standard protection layers are:
- ANSI 59 (overvoltage relay) — inverse-time or definite-time curves set to match the interconnection standard’s HVRT voltage-duration envelope
- ANSI 24 (volts/hertz protection) — catches overexcitation specifically. A plain overvoltage relay does not track the frequency side of core saturation. So this is a separate layer, not a substitute
- Surge arresters (gapped silicon-carbide or MOV-based) on both HV and LV terminals, sized to the transformer’s Basic Insulation Level (BIL)
Dielectric Stress From Fast Transients
Switching surges hit inter-turn winding insulation on a fast timescale. Relays cannot catch it. Specifically, that timescale runs sub-millisecond. Protective relaying, by contrast, works over cycles to seconds. So surge arresters and terminal snubber circuits carry the real burden here. By the time an ANSI 59 or 24 element reacts, the fast transient is already gone.
Differential and Overcurrent Protection (ANSI 87T, 50/51)
Alongside overvoltage-specific relaying, transformer protection schemes standardly add two more layers.
Differential protection (ANSI 87T) compares current entering the HV side against current leaving the LV side. It uses Kirchhoff’s Current Law to do this. A mismatch past a set threshold signals an internal winding fault. It trips the breaker within roughly 30 ms. However, inrush and magnetizing current during energization or overvoltage can also create a differential current. So modern relays use harmonic restraint. This tells real faults apart from these normal transients.
Overcurrent and earth fault protection (ANSI 50/51) clears sustained high fault current from grid-side short circuits. It uses instantaneous (50) and inverse-time (51) elements. These typically sit behind the differential scheme. Instead, they act as backup protection, not the first line of defense. Engineers also selectively coordinate the trip settings, so the device closest to a fault clears it first and leaves the rest of the system energized.
Voltage Regulation via On-Load Tap Changers (OLTC)
A BESS often connects to a weak or highly variable grid. There, an on-load tap changer adjusts the transformer’s turns ratio while it stays in service. This holds secondary-side voltage within range without shutting the unit down. So OLTCs offer a slower, mechanical form of voltage regulation. They help absorb sustained voltage drift from renewable generation. But they cannot replace surge arresters or relay protection against fault-driven transients.
Grounding and Shielding
- Low-impedance grounding grid — the transformer enclosure, surge arresters, and PCS frame should bond to the same grounding network. This limits ground potential rise during a fault. It also keeps protective devices on a common reference.
- Electrostatic shielding — an interwinding shield between primary and secondary cuts high-frequency noise and voltage-spike coupling from the grid side into the PCS side. It works alongside surge arrester protection, not in place of it.
PCS Overvoltage Protection: Inverter-Side Defenses
The inverter’s semiconductor switches, whether IGBT or SiC, face DC-bus overvoltage that flows back from an AC-side voltage swell. That exposure gets worse during unbalanced faults. There, the control loop’s own feedback signal becomes thrown off.
DC-Bus Overvoltage Protection
Braking choppers or crowbar circuits dump excess energy into resistors once bus voltage crosses a threshold. This protects the DC-link capacitors and the switches from overvoltage. Usually, it is the first active layer of PCS overvoltage protection to engage during a swell. DC contactors, meanwhile, serve as a hardware failsafe. They isolate the battery racks if the chopper alone cannot keep bus voltage inside a safe window.
AC Overvoltage Ride-Through Control
Older firmware tripped the PCS offline at the first sign of a swell. Modern firmware, built to current interconnection standards, keeps the PCS connected instead. Under IEEE 1547-2018’s default Category III envelope, for example, the PCS must ride through up to 1.10 per-unit for 2 seconds. Between 1.10 and 1.20 per-unit, it can briefly cease energizing instead of disconnecting outright. Above 1.20 per-unit, a full trip is required.
Also, the PCS actively absorbs reactive power, or VARs, to help pull grid voltage back down. As a result, the PCS becomes part of the fix, not just a bystander that disconnects. The LVRT and HVRT ride-through curves that govern this behavior work the same way in both directions. They are just mirrored for sags versus swells.
Volt-VAR and Volt-Watt Curve Control
Ride-through handles transient swells. But IEEE 1547-2018 also standardizes a separate, ongoing grid-support function for milder, sustained overvoltage. When a utility activates it, the PCS runs a volt-VAR curve. Below 1.02 per-unit voltage, the curve sits in a dead zone, and the PCS adds no reactive power. Above that, it starts absorbing reactive power, reaching its full absorption limit at 1.08 per-unit. These are the default curve settings described in a recent IEEE-affiliated study.
Some interconnection agreements also activate volt-watt control. This trims active power output if voltage stays high despite the reactive response alone. It works alongside volt-VAR, not in place of it.
Negative-Sequence Current Limiting
Unbalanced high-voltage faults produce negative-sequence currents. These heat phase legs unevenly. So control loops need an explicit limit here, separate from the general overcurrent limit. Otherwise, a single-phase-biased fault could overheat one leg while the others stay fine.
Fast Semiconductor-Level PCS Overvoltage Protection
Gate-driver desaturation detection and hardware-level overvoltage clamps work in microseconds. They act independently of the software control loop, and faster than it. As a result, they serve as the last line of defense when everything upstream fails to act in time.
Anti-Islanding and Ride-Through Coordination
A high-voltage fault can sometimes cascade into a full outage. When that happens, the PCS must detect that it is energizing a dead section of grid, then disconnect. IEEE 1547-2018 requires this within 2 seconds of island formation. Detection methods split into two types. Passive methods watch for abnormal voltage, frequency, or phase jumps. Active methods, instead, inject a small perturbation, such as a frequency drift, to force a detectable response if the grid is truly gone.
There is a real design tension here. Specifically, a 2019 NREL laboratory study found that ride-through behavior can noticeably slow islanding detection. Even so, run-on times stayed inside the 2-second IEEE 1547-2018 window in every case tested. That happens because a PCS holding voltage and frequency steady during a disturbance can look like a healthy grid connection. For this reason, ride-through and anti-islanding logic need coordinated tuning. They should not run as independent settings. For the full technical report behind this finding, see the Sandia National Laboratories study on OSTI.
Active Voltage Conditioning
Some sites see voltage that never settles, beyond what ride-through settings alone can absorb. For these sites, dedicated power-electronic conditioners sit in-line ahead of the main PCS. One example is ABB’s PCS100 AVC-40, rated from 225 kVA to 3,600 kVA with efficiency above 98 percent.
These units fix sags and swells within milliseconds. Even so, this is an extra device for grids that are weak or noisy all the time. It cannot replace the PCS’s own ride-through and protection functions.
Comparison: Transformer vs. PCS Overvoltage Protection
Overall, the table below lines up each side’s defenses by timescale. This makes the gaps between them easy to spot at a glance.
| Protection layer | Transformer | PCS |
|---|---|---|
| Primary threat | Core saturation, insulation aging | DC-bus overvoltage, switch stress |
| Slow protection (cycles–seconds) | ANSI 59 / ANSI 24 relays, ANSI 50/51 overcurrent | Software-based AC overvoltage ride-through control |
| Internal fault detection | ANSI 87T differential protection | Negative-sequence current limiting |
| Fast protection (µs–ms) | Surge arresters, terminal snubbers | Gate-driver desaturation, hardware clamps |
| Energy dissipation | Arrester let-through to ground | Braking chopper / crowbar resistors |
| Sustained voltage drift | On-load tap changer (OLTC) | Active voltage conditioning (external, supplementary) |
| Outage/dead-grid response | Coordinated with PCS anti-islanding | Anti-islanding, disconnect within 2s (IEEE 1547-2018) |
| Fault type most sensitive to | Single-line-to-ground on ungrounded systems | Unbalanced faults (negative-sequence) |
| Governing standard | IEEE C57.12 series | IEEE 1547-2018, UL 1741 SB |
Coordinating Transformer and PCS Overvoltage Protection
Treating these as two independent systems is a common design gap. So three coordination checks matter most for site-wide PCS overvoltage protection.
- Let-through voltage vs. PCS trip threshold. The transformer’s surge arrester should clamp transients below the PCS’s hardware overvoltage trip point. This way, the arrester absorbs the transient, not the PCS’s own protection.
- HVRT duration vs. transformer withstand. The voltage-time ride-through curve set in the PCS needs to sit inside the transformer’s short-time overvoltage withstand rating, per IEEE C57.12. Otherwise, the PCS could ride through an event longer than the transformer can structurally take.
- Grounding configuration vs. overvoltage settings. How the system is grounded — solidly grounded, resistance-grounded, or ungrounded — directly sets how much overvoltage a single-line-to-ground fault produces on the healthy phases. This needs joint modeling with the PCS overvoltage settings during system design. It should not be a decision each discipline makes on its own.
- Selective tripping. Transformer relay settings and the PCS’s own protection should be time-graded, so a fault on the PCS side clears at the device closest to it first. Otherwise, a local fault trips more of the system than it needs to.
- Fault current contribution vs. inverter control mode. The differential (87T) and overcurrent (50/51) settings assume a certain fault current magnitude to detect against. A grid-following PCS contributes only limited fault current during a fault, while a grid-forming PCS contributes significantly more. So these relay settings should be checked against which control mode the PCS actually runs — see our grid-forming vs. grid-following BESS guide for the underlying comparison.
Governing Standards for PCS Overvoltage Protection
- IEEE 1547-2018 — interconnection requirements for distributed energy resources, including HVRT voltage-duration curves
- UL 1741 SB — certification testing that verifies HVRT compliance for grid-support equipment
- IEC 61000-4-11 / IEC 61000-4-34 — voltage dip and swell immunity testing for equipment rated below and above 16 A per phase
- IEEE C57.12 series — transformer design and short-time overvoltage withstand standards
For system designers weighing broader grid-support tradeoffs, this same coordination logic also shows up in Fast Frequency Response design. There, too, BESS control settings must stay inside both a grid-code window and the hardware’s own physical limits.
Key Takeaways for PCS Overvoltage Protection Design
| Point | Why It Matters |
|---|---|
| Voltage swells stress equipment differently than overcurrent faults | Insulation and semiconductor limits, not wire heating, drive the failure modes |
| Transformer and PCS need separate, coordinated protection layers | A single shared setting misses the different timescales each device needs |
| Surge arresters and relays cover different timescales | Arresters catch microsecond transients; relays catch cycles-to-seconds events |
| Ride-through duration must stay inside transformer withstand ratings | Otherwise the PCS can hold an overvoltage longer than the transformer can survive |
| Anti-islanding and ride-through logic must be tuned together | Ride-through behavior can otherwise slow dead-grid detection |
FAQ
What’s the Difference Between LVRT and HVRT?
LVRT, or Low Voltage Ride-Through, keeps equipment connected during voltage sags. These are typically caused by faults or heavy load switching. HVRT, or High Voltage Ride-Through, does the same for voltage swells instead. So the control challenges largely mirror each other. But the hardware failure modes differ. Sags stress current limits. Swells stress insulation and semiconductor overvoltage limits instead. For the underlying voltage-duration curves, see our full LVRT and HVRT guide.
Why Does the PCS Absorb Reactive Power During a High-Voltage Fault Instead of Just Disconnecting?
Modern grid codes require ride-through for a clear reason. Mass disconnection of distributed generation during a voltage event can worsen grid instability. So absorbing VARs actively helps pull the voltage back toward normal. As a result, the PCS becomes part of the grid’s self-correction, not a source of added disturbance. For more on how this reactive-power capability is sized and rated, see our BESS power factor guide.
Can a Surge Arrester Alone Provide PCS Overvoltage Protection?
No. Arresters handle fast transients, such as switching surges and lightning-induced events. They work on a timescale of microseconds to milliseconds. Sustained overvoltage from load rejection or a ground fault lasts cycles to seconds instead. That needs the PCS’s own ride-through control. Where ride-through limits run out, it also needs overvoltage relay protection. In short, the two protection types are not interchangeable.
Does Ride-Through Conflict With Anti-Islanding Requirements?
They can pull against each other. Anti-islanding must detect a dead grid and disconnect within 2 seconds under IEEE 1547-2018. Ride-through, meanwhile, is built to keep the PCS connected through a disturbance rather than tripping. A 2019 NREL study found ride-through can slow islanding detection. That happens because a PCS holding voltage and frequency steady during the event looks like a stable grid connection. For this reason, both functions need tuning together at commissioning. Neither should be set on its own.
Why Must PCS Overvoltage Protection Settings Match the Transformer’s Withstand Rating?
Say the PCS’s HVRT setting runs longer than the transformer can withstand. The PCS still stays connected and rides through the event as designed. But the transformer can suffer accelerated insulation aging. In a severe enough event, it can suffer immediate insulation failure instead. That happens because it sits at an overvoltage level longer than its short-time withstand rating allows. This is the core reason the two systems’ settings need coordination at the design stage. They should not be configured apart from each other.
Further Reading
LVRT and HVRT: Voltage Ride-Through for BESS and Solar
Fast Frequency Response (FFR): How BESS Stabilizes Grid Frequency in Milliseconds
BESS Short Circuit Protection: A Layered Approach to Preventing Fires in Grid-Scale Battery Storage
Grid-scale batteries rarely fail from one single problem. A small fault grows step by step until it becomes a fire — that is the real story behind BESS short circuit protection.
It is not one part. It is not one sensor.

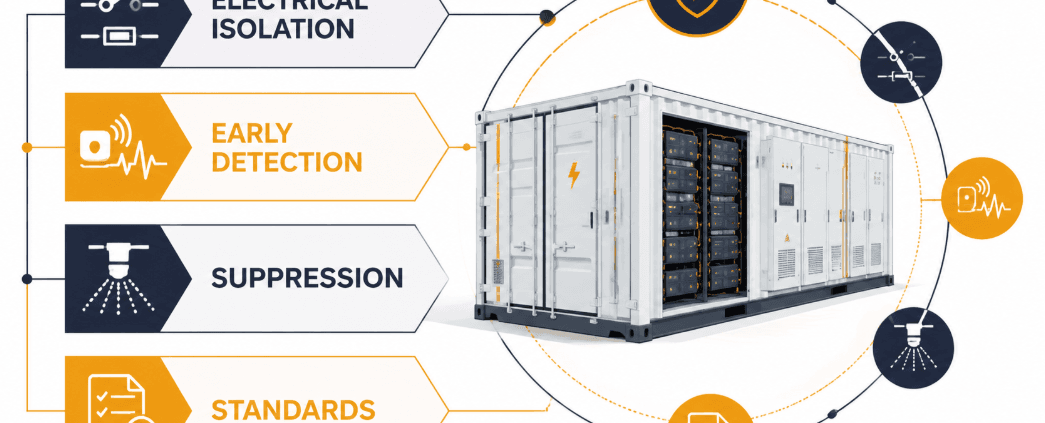

Good BESS short circuit protection is four layers working together: electrical isolation, early detection, suppression, and design standards. Miss one layer, and the rest have to work much harder to catch the fault in time.
For more on how the power conversion system contributes to fault behavior, see our guide on BESS PCS functions and features.
Quick Answer: What Is BESS Short Circuit Protection?
| Quick Answer BESS short circuit protection combines four layers. First, fast electrical isolation (fuses, contactors, gate drivers) stops a fault at the source.Second, early detection (off-gas sensors, thermal imaging, cell-level BMS) catches trouble minutes before flames appear.Third, suppression systems (venting, clean-agent, water-mist) contain what detection could not prevent.Fourth, design standards (NFPA 855, UL 9540/9540A) govern how the first three layers get specified, tested, and installed. |
Key Takeaways
| Layer | What It Does | Example Components |
|---|---|---|
| Electrical isolation | Stops the fault before it makes enough heat to ignite anything | Fuses, rack disconnects, IGBT gate drivers, propagation barriers |
| Early detection | Flags a developing problem minutes before ignition | Off-gas sensors, thermal cameras, cell-level BMS |
| Suppression | Contains what detection could not prevent | Deflagration vents, clean-agent systems, water-mist |
| Standards | Governs how every other layer is tested and installed | NFPA 855, UL 9540, UL 9540A |
Why “Short Circuit” Isn’t the Whole Story in BESS Short Circuit Protection
Most large battery fires get called short-circuit fires. But that label is a bit misleading.
What actually happens is thermal runaway that spreads from cell to cell, like dominoes falling.
A short circuit is often the trigger, whether it comes from an internal cell defect, an external fault, or a loose connection.
Still, the real danger comes later, once heat from that one cell starts moving outward. Good BESS short circuit protection has to account for both stages, not just the initial fault.
This distinction shapes how each protective layer gets designed. For example, off-gas detection is not really a short-circuit sensor.
It is a thermal-runaway precursor sensor instead. It picks up gases vented during early cell decomposition.
Often, this happens before a short circuit or flame shows up on any other instrument.
Once you see the full chain — fault, then localized heating, then thermal runaway, then propagation, then fire — it becomes clear where each layer of BESS short circuit protection actually steps in.
Layer 1: Electrical Isolation for BESS Short Circuit Protection
The first job of electrical isolation is simple: keep a fault from ever reaching the point of ignition.
Fast-Acting Fuses and Rack-Level Disconnects
High-speed fuses at the string and pack level interrupt overcurrent fast. They act before it builds up enough localized heat to start thermal runaway.
Also, many newer systems add rack-level contactors and disconnects. As a result, a single faulted rack can be isolated without shutting down the whole container.
This cuts both fire risk and downtime at the same time.
IGBT Protection and Physical Separation
Active gate drivers watch the IGBTs (insulated-gate bipolar transistors) in the power conversion system. If overcurrent shows up, they shut the IGBTs down fast and safely.
This protects both the PCS and the battery side of the connection.
Keeping power conversion gear apart from the battery blocks matters too. A PCS-side fault tends to carry more energy, so keeping it separate makes it less likely to ignite the battery enclosure.
Cell-to-Cell Propagation Barriers
Thermally insulating materials sit between cells and modules. Mica sheets, aerogel layers, and phase-change barriers are common choices.
Even so, if one cell enters thermal runaway, these barriers slow the heat transfer. That extra time often lets detection and suppression systems do their job.
Layer 2: Early Detection Catches the Fault Before It Spreads
A detection layer only matters if it catches trouble minutes, not seconds, before ignition. This is where BESS short circuit protection depends most on speed.
Off-Gas Detection
Specialized sensors pick up gases released during early battery decomposition. Carbon monoxide, hydrogen, and various volatile organic compounds are the usual signs.
Often, this happens minutes before any smoke or measurable temperature rise. So most safety engineers treat off-gas detection as the earliest reliable warning inside a BESS enclosure.
Thermal Imaging and Smart BMS
Continuous infrared monitoring flags hot spots on busbars, connections, and power electronics. These are common origin points for electrical faults.
At the same time, a smart Battery Management System watches voltage and temperature at the individual cell level. It does not stop at the module or rack level.
That granularity lets a developing imbalance get caught and isolated before it touches neighboring cells.
Layer 3: Fire Suppression Contains What Detection Could Not Prevent
Even strong prevention and detection will not stop every event. Suppression systems act as the last line of defense.
Also, code increasingly treats them as mandatory rather than optional.
Deflagration Venting
Explosion venting panels direct overpressure from vented battery gases safely upward. This keeps pressure away from people and nearby equipment.
As a result, pressure cannot build up inside the enclosure in the first place.
Clean-Agent Suppression Within BESS Short Circuit Protection
Clean-agent systems flood the compartment and interrupt the fire’s chemical reaction. Unlike sprinklers, they avoid water damage and electrical risk.
But not all agents work the same way. Novec 1230 is a clean gaseous agent that displaces oxygen and absorbs heat.
Stat-X, on the other hand, is a condensed aerosol that suppresses fire through a different chemical mechanism.
So the right choice depends on compartment size, ventilation design, and re-entry time requirements.
Water-Mist and Deluge Cooling
External water-mist or deluge systems usually do not stop the fire that started the event. Instead, their job is cooling adjacent containers.
This keeps the fire from jumping to the next unit. Since container-to-container spread is where the largest-scale incidents tend to originate, cooling matters as much as suppression.
| Suppression Type | Primary Function | Best Suited For |
|---|---|---|
| Deflagration venting panels | Relieve gas overpressure safely | Preventing explosion or enclosure rupture |
| Clean-agent (Novec 1230, Stat-X) | Interrupt fire chemistry, no residue | In-compartment suppression, electronics-safe |
| Water-mist / deluge | External cooling | Preventing container-to-container propagation |
Layer 4: NFPA 855 and UL 9540A Set the Rules for BESS Short Circuit Protection
Each safety part only works as a system if it follows a recognized standard. That is where NFPA 855 and UL 9540/UL 9540A come in for BESS short circuit protection.
What NFPA 855 Covers
NFPA 855 covers siting, spacing, detection, and suppression. It also covers ventilation and emergency response planning.
One common example is the minimum 3-foot (914 mm) gap required between ESS units. This can shrink if large-scale fire testing shows a closer gap is safe.
Also, the 2023 edition made fire suppression mandatory for nearly all ESS installations.
The 2026 edition goes further still. It expands formal Hazard Mitigation Analysis to most BESS sites, not just large ones.
For the full breakdown of scope, thresholds, and the 2026 changes, see our NFPA 855 guide.
UL 9540 vs. UL 9540A in BESS Short Circuit Protection
These two standards sound alike but do different jobs. UL 9540 is a system-level product certification.
A large-scale fire test method, UL 9540A generates the propagation data regulators use to set spacing, suppression, and ventilation rules under NFPA 855. It is not a certification by itself.
For the full breakdown of how these two standards interact, and why the distinction affects permitting timelines, see our dedicated guide: UL 9540 vs UL 9540A: Understanding the Key Differences.
Emergency Response Plans
NFPA 855 also requires written emergency plans. These cover safe shutdown steps and coordination with local fire crews.
It is easy to treat this requirement as an afterthought. But it gets flagged often during AHJ review and insurance underwriting.
FAQ: BESS Short Circuit Protection
What is BESS short circuit protection?
BESS short circuit protection combines electrical isolation, early detection, and suppression. Together, they stop a short circuit fault from turning into thermal runaway and fire.
Is a short circuit the same thing as thermal runaway?
No, they are different things. A short circuit is one possible trigger for thermal runaway.
But thermal runaway itself is the underlying cascading failure. So the real fire risk in BESS short circuit protection comes from propagation between cells, not the short circuit event alone.
Is UL 9540A certification required for every BESS project?
Not exactly. UL 9540A is a test method, not a certification. So there is no such thing as being “UL 9540A listed.”
Even so, most commercial and utility-scale projects in the U.S. need UL 9540A test data. Then this data satisfies NFPA 855 and local fire code requirements for permitting.
What is the minimum spacing required between BESS units under NFPA 855?
The commonly cited baseline is 3 feet (914 mm) between individual units.
Even so, this can shrink if large-scale fire testing under UL 9540A documents that a smaller separation is safe for that specific system. Spacing is one of the simplest parts of BESS short circuit protection to verify during a site walk.
Does off-gas detection replace the need for a BMS?
No, the two serve different roles. Off-gas detection is an early warning system inside the enclosure.
It watches for thermal-runaway gases before flames show up.
A cell-level BMS, by contrast, watches voltage and temperature. So it catches a developing fault before it produces measurable off-gas at all. Together, they cover both ends of BESS short circuit protection.
Further Reading
UL 9540 vs UL 9540A: Understanding the Key Differences
UL 9540A Test Method: Complete Guide for BESS Manufacturers
Battery Management System (BMS) Explained
BESS PCS Functions and Features
Fast Frequency Response (FFR): How BESS Stabilizes Grid Frequency
How to Replace a Diesel Generator with BESS: Sizing, Costs, and Case Studies
How to Replace a Diesel Generator with BESS: Sizing, Costs, and Case Studies
| Quick answer Diesel generator replacement with BESS works in three steps. First, convert your generator’s kVA rating to real kW using the power factor. Second, size the battery in kWh to your load and backup hours. Third, size the PCS in kW to your peak power, with a margin for inrush. A well-sized system cuts daily fuel cost. It switches in under 20 milliseconds, not 10-30 seconds. Most projects pay back in 4 to 7 years. |
For most commercial and industrial (C&I) sites, diesel generator replacement is not a fringe idea anymore. So it is now a normal line item in capital planning.
Diesel gensets are reliable. But they cost money every hour they run, and they need constant upkeep.
A BESS closes that gap in three ways. First, it starts delivering power in milliseconds. Second, it has no moving parts to wear out. Third, when paired with solar, it can cut fuel use close to zero.
This guide covers the real costs, the sizing math, and the kVA-to-kW conversion your generator needs. Also, it covers PCS choice, four case studies, and a free sizing calculator you can add to this post.
Why Facilities Are Pursuing Diesel Generator Replacement in 2026
Three main pressures are pushing facilities away from diesel power. First, fuel prices remain high and unpredictable. Second, engines with hundreds of moving mechanical parts require constant upkeep. Third, ESG regulations are becoming increasingly strict.
While none of these factors are entirely new, LFP battery costs have dropped significantly in recent years. Consequently, the financial math for generator replacement now works for far more commercial and industrial sites than ever before.
The True Cost of Diesel Generator Replacement
Fuel is the biggest cost of running a generator. Also, it scales with load. For example, a diesel generator burns about 0.07 to 0.08 gallons per kWh at 70-80% load.
A 100 kW generator at 75% load burns about $402 a day in fuel alone. That is about $0.22 per kWh. Also, this does not include oil, filters, or testing costs.
Once labor and parts are added, costs climb further. All-in costs often land between $0.35 and $0.65 per kWh, per 2026 generator operating-cost benchmarking.
Costs climb even more at partial load. In fact, generators run least efficiently below 40% load. That is where most backup units sit most of the time.
Maintenance and Wet-Stacking Problems
Because generators are complex mechanical systems, internal parts like pistons and valves naturally wear down over time. Therefore, they demand regular, costly service intervals.
Additionally, running generators at light loads leads to wet-stacking, which occurs when unburned fuel accumulates inside the exhaust system. As a result, the engine suffers accelerated wear and requires even more maintenance.
In contrast, a BESS has no moving mechanical components; consequently, it requires almost no scheduled maintenance beyond routine inspection checks.
Emissions and ESG Pressure
Because diesel exhaust releases high amounts of NOx, particulate soot, and $\text{CO}_2$, these emissions increasingly trigger warnings on environmental audits and insurance reviews.
However, a BESS creates zero on-site emissions during operation. Furthermore, when paired with a local solar array, overall facility emissions fall close to zero.
Generator kVA, BESS kWh, and PCS kW: Why the Units Are Different
Here is a detail that trips up many buyers. Generators are rated in kVA, not kW. That is apparent power, not real power.
BESS energy is rated in kWh. Also, PCS power is rated in kW. So these three units are not the same.
Mixing them up can badly oversize, or worse, undersize your system. So convert your generator’s rating to real kW first.
Converting Generator kVA to kW
| kVA to kW Conversion Formula kW = kVA × Power Factor (PF) Industrial loads typically use a default PF of 0.8 unless your generator nameplate or a recent load study states otherwise. |
For example, a 125 kVA generator running at a 0.8 power factor delivers 100 kW of real output (125 x 0.8 = 100 kW). Similarly, a 500 kVA generator at 0.85 power factor yields 425 kW of real power.
Therefore, you must always verify the actual power factor on your generator’s data sheet before sizing your battery system. Otherwise, a single inaccurate assumption will skew all subsequent calculations
Why BESS Uses kWh and PCS Uses kW
A BESS is sized in two distinct steps. First, energy capacity is measured in kWh to determine duration. Second, inverter capacity is measured in kW to handle the load.
Because energy sets runtime while power determines peak instantaneous capacity, confusing these two units often leads to costly site undersizing.
The table below keeps the three units straight.
| Component | Unit | What It Measures |
|---|---|---|
| Diesel generator | kVA (apparent power) | Nameplate rating before power factor is applied |
| Real generator output | kW (real power) | kVA x power factor, the number you actually size around |
| BESS battery | kWh (energy) | How much energy is stored, and how long it can run the load |
| PCS / inverter | kW (power) | How much power it can deliver at any single instant |
Cost Comparison: Diesel Generator Replacement vs. Keeping Your Genset
The table below compares the two options side by side.
| Factor | Diesel Generator | BESS |
|---|---|---|
| Switching time | 10-30 seconds (ATS transfer delay) | Under 20 milliseconds |
| Running cost | $0.22-0.28/kWh fuel at optimal load; $0.35-0.65/kWh all-in | No fuel cost; O&M is largely software-managed |
| Maintenance | Oil, filters, load-bank testing, overhauls | Minimal, no moving parts |
| Emissions | NOx, particulates, CO2 on every run | Zero on-site emissions |
| Fuel logistics | Needs on-site storage and refueling | None |
| Noise | 65-85 dBA typical | Near-silent |
| Typical payback | Not applicable, an ongoing operating cost | 4-7 years via avoided fuel and demand charges |
Most sites do not remove the generator on day one. Instead, they install the BESS first, right alongside the running genset.
The PWRNXT diesel generator replacement program in India uses this same model. So do similar C&I projects elsewhere.
Next, the team tests switching performance on-site. Only then does the generator get downgraded to backup, or retired.
How to Size a BESS for Diesel Generator Replacement
Sizing a BESS depends on two primary metrics: energy (kWh) and power (kW). If you balance this ratio correctly, the system operates seamlessly.
However, if you miscalculate, the battery will either trip under heavy loads or unnecessarily inflate project costs.
Step 1 — Determine Your Critical Load in kW
Pull 12 months of interval data. Or, run a load study during a real outage.
If you only have kVA, convert it to kW first, using the formula above. Then use the load you actually want to keep on.
Full production and critical-circuits-only are very different numbers. So pick the right one upfront.
Step 2 — Determine Required Backup Hours
Base this on real outage history, not a guess. Instead, pull it from utility data or your own outage log.
Weak grids with short, frequent outages need a shorter, high-cycling BESS. Grids with rare but long outages, by contrast, need more stored energy per kW.
Step 3 — Calculate Nameplate Capacity for Diesel Generator Replacement
The baseline formula is shown below.
| BESS sizing formula Usable Energy Required (kWh) = Critical Load (kW) x Backup Duration (hours) Nameplate Capacity (kWh) = Usable Energy Required x 1.2 safety margin / (Depth of Discharge x Round-Trip Efficiency) For LFP at 90% DoD and about 93% round-trip efficiency, this simplifies to: Nameplate Capacity (kWh) = Critical Load (kW) x Backup Duration (hours) x 1.43 |
The 1.2x margin covers load growth and inrush. The DoD and efficiency terms cover two more losses.
First, the energy a lithium battery cannot safely use. Second, conversion losses across the inverter and BMS.
Step 4 — Worked Examples
Here are three quick examples. Each one starts from a real kW figure, already converted from kVA.
- 50 kW load, 4-hour backup target: 50 x 4 x 1.43 ≈ 286 kWh nameplate capacity
- 100 kW load, 8-hour backup target: 100 x 8 x 1.43 ≈ 1,147 kWh, about 1.15 MWh
- 250 kW load, 2-hour bridge-power target: 250 x 2 x 1.43 ≈ 717 kWh
BESS Sizing Reference Table for Diesel Generator Replacement
Use this table for early budget sizing. Always confirm with a real load study first.
| Critical Load | 2-Hour Backup | 4-Hour Backup | 8-Hour Backup |
|---|---|---|---|
| 25 kW | 72 kWh | 143 kWh | 287 kWh |
| 50 kW | 143 kWh | 287 kWh | 574 kWh |
| 100 kW | 287 kWh | 574 kWh | 1,147 kWh |
| 250 kW | 717 kWh | 1,434 kWh | 2,868 kWh |
| 500 kW | 1,434 kWh | 2,868 kWh | 5,736 kWh |
PCS and Inverter Sizing for Diesel Generator Replacement
Battery kWh and PCS kW get sized separately. Mixing them up is a costly mistake in BESS procurement.
As Sunlith’s BESS C-rate guide explains, size the PCS first, to the peak power you need. Then size the battery for the required duration.
Otherwise, a big battery behind a small PCS still cannot deliver full power. So the PCS becomes the real bottleneck, no matter how much energy sits in the racks.
PCS Power Rating: Add an Inrush Margin
Motors, compressors, and heavy HVAC units draw large surge currents during startup. Therefore, a standard sizing protocol adds a 1.25x margin over steady-state peak load.
However, for facilities operating heavy direct-on-line (DOL) motors, initial surge spikes can briefly reach 3x to 6x running current. As a result, you should round your final power rating up to the next standard PCS capacity tier.
Then round this up to the next standard PCS size. Most PCS units come in 50-500 kW steps.
| Critical Load | PCS Rating (1.25x margin) | Approx. C-Rate at Rated kWh |
|---|---|---|
| 50 kW | 75 kW | 0.26C, matches 4-hr duration |
| 100 kW | 125 kW | 0.11C, matches 8-hr duration |
| 250 kW | 350 kW | 0.49C, matches 2-hr duration |
C-Rate and Discharge Duration
C-rate compares PCS power to battery energy. A 0.5C system runs at full power for 2 hours.
A 1C system, by contrast, runs for 1 hour instead. It also costs 20-40% more, since it needs bigger power electronics.
Past about 1.5C, systems often need liquid cooling too. Most 2-8 hour backup projects land in the 0.1C-0.5C range, which keeps cost down and favors longer cycle life.
Grid-Forming vs. Grid-Following PCS
A grid-following PCS needs a live voltage signal to sync to. It works for peak shaving, but not for a dead, powered-down site.
So true backup duty needs a grid-forming PCS, or a hybrid inverter with black-start. It must set voltage and frequency itself, the instant power drops.
Diesel Generator Replacement Sizing Calculator
Use the free calculator below to size your site. Enter your generator’s kVA, power factor, and backup hours.
It converts kVA to real kW, then applies the formulas from this guide.
Diesel generator replacement calculator
Enter your generator’s rating and backup needs to get a starting BESS and PCS/inverter size. This is a budgetary estimate — confirm with a load study before procurement.
Advanced settings (DoD, efficiency, margins)
How the Calculator Works
To operate the calculator, simply enter your generator kVA, power factor, optional kW override, and required backup duration.
Additionally, advanced settings allow you to fine-tune depth of discharge, system efficiency, and safety margins.
First, your real load in kW. Second, a suggested BESS size in kWh. Third, a PCS size in kW, rounded to a standard size. Finally, the resulting C-rate.
| Input | Default | Purpose |
|---|---|---|
| Generator kVA | None, required unless using peak load override | Nameplate rating from the generator’s data plate |
| Power factor | 0.8 | Converts kVA to real kW |
| Peak load override (kW) | Blank | Use if you already have a measured kW figure |
| Backup hours needed | None, required | Sets the energy duration target |
| Depth of discharge | 90% | Usable portion of the battery’s rated capacity |
| Round-trip efficiency | 93% | Accounts for conversion losses |
| Energy safety margin | 20% | Buffer for load growth and inrush |
| PCS inrush margin | 25% | Buffer for motor and HVAC startup surge |
Case Studies: Diesel Generator Replacement with BESS in Practice
The examples below come from real 2026 deployments.
For more C&I projects, see Sunlith’s C&I BESS case studies roundup.
Case 1 — Diesel Generator Replacement at an Industrial Plant
An Indian market study covered a plant that kept its diesel generator. Instead, it added a behind-the-meter BESS rather than removing the genset.
So the battery handled daily outages with frequent cycling. The generator, meanwhile, stayed on standby for deeper outages.
A 1-hour BESS, sized to the average outage, paid back faster than a bigger system built for worst-case events. That is a lesson against over-sizing.
Case 2 — Solar + BESS Replacing Diesel at High Altitude (Leh, India)
Leh is a remote, high-altitude region of India. But it has long relied on diesel for backup power.
There, solar-plus-storage was rolled out to replace diesel at scale. The same study found this works even off-grid, once local power prices rise even a little.
This matches the pattern in Sunlith’s Island Grid BESS engineering guide. There, solar takes over as the main power source, and the BESS covers stability and overnight load.
Case 3 — Diesel Generator Replacement for a Telecom Tower Network
A telecom operator ran diesel gensets across remote towers. As a result, this meant high fuel bills and constant upkeep.
So the company switched to solar-plus-battery as the main power source at each site. Generators stayed on as backup only.
Fuel use dropped a lot. As a result, generator runtime fell, service intervals stretched out, and uptime improved.
Case 4 — Hospital Hybrid Backup (Australia)
A hospital in Australia added a BESS next to its diesel generators. Instead, it did not remove them.
This fits any site where power loss is a safety risk. The hybrid setup cut daily fuel use and backed up short outages without starting the genset.
How to Transition from Generator to BESS: A Phased Approach
- Audit the load: capture 12 months of interval data, or a representative outage load profile. Also, confirm whether backup covers full production or critical circuits only.
- Size the BESS and PCS independently: use the kWh formula for energy. Then size the PCS to peak kW, with an inrush margin.
- Install alongside the existing generator: commission the BESS in parallel, and do not decommission the genset until performance is proven.
- Run site acceptance testing: verify switching time, SLA compliance, and grid-forming black-start behavior under real load.
- Reclassify or retire the generator: once the BESS reliably carries day-to-day backup, shift it to a rarely-used secondary role. Or remove it from service entirely.
Key Takeaways on Diesel Generator Replacement
| Point | Why It Matters |
|---|---|
| Convert kVA to kW before sizing anything | Generators are rated in kVA; BESS kWh and PCS kW both depend on the real kW figure |
| Size energy (kWh) and power (kW) separately | An undersized PCS behind a large battery still fails to carry the load |
| Use Load x Hours x 1.43 as a starting formula | Bakes in a 1.2x safety margin, 90% DoD, and about 93% round-trip efficiency for LFP |
| Diesel costs $0.22-0.65/kWh all-in | Fuel alone runs $0.22-0.28/kWh at optimal load; maintenance pushes it higher |
| Grid-forming PCS is required for true backup duty | Grid-following inverters cannot black-start a de-energized site |
| Install BESS alongside the generator first | Every documented case study kept the genset as backup during commissioning |
| Typical payback is 4-7 years | Driven by avoided fuel spend, plus demand charge and peak-shaving revenue |
Frequently Asked Questions
Can a BESS completely replace a diesel generator?
Yes, for many sites. If outages run from minutes to a few hours, a well-sized BESS can fully replace the generator. It just needs a grid-forming PCS.
This also works if solar recharges the battery each day. But sites with life-safety loads, or rare, multi-day outages, often keep a generator as backup.
What is a realistic payback period for diesel generator replacement with BESS?
Most C&I projects pay back in 4 to 7 years. So this comes mainly from avoided fuel and upkeep cost.
It also comes from peak-shaving and demand-charge savings, on normal days with no outage.
Why does PCS sizing matter separately from battery kWh?
Battery kWh sets how long the system runs. PCS kW, by contrast, sets how much power it can push at once.
So an undersized PCS caps output, no matter how much energy sits in the battery.
How do I convert my generator’s kVA rating for BESS sizing?
Multiply the kVA rating by the power factor to get real kW. Most industrial sites run near 0.8 PF.
But check your generator’s data sheet to confirm. For example, 125 kVA at 0.8 PF equals 100 kW.
What battery chemistry works best for diesel generator replacement?
LFP is the standard choice for C&I diesel generator replacement. Also, it offers strong thermal stability and long cycle life.
It also carries no thermal runaway risk, unlike some other lithium types. This is the same reasoning behind Sunlith’s chemistry choice across its C&I line.
Further Reading
Mobile BESS: The Complete Guide to Trailer-Mounted Battery Storage
| ⚡ Quick Answer A Mobile BESS is a battery energy storage system built onto a trailer, truck bed, or skid. It stores electricity and discharges it on demand, so it can power a site with no fuel, no exhaust, and almost no noise. |
What Is a Mobile BESS?
A Mobile BESS packs the same core parts as a fixed installation into a towable unit. Battery modules sit inside a weatherproof enclosure. Meanwhile, a power conversion system (PCS) turns stored DC energy into usable AC power, and a battery management system (BMS) tracks voltage, temperature, and charge level in real time.
In some designs, manufacturers split the battery pack and the PCS into separate trailers. As a result, an operator can pair several battery trailers with one shared PCS unit and add capacity without buying a new inverter each time.
Mobile BESS vs. Diesel Generators
Diesel generators have powered temporary sites for decades. Today, though, a Mobile BESS competes for many of the same jobs. Since it works in a very different way, the table below compares the two side by side.
| Factor | Mobile BESS | Diesel Generator |
| Emissions | Zero exhaust during discharge | Combustion exhaust, particulates, NOx |
| Noise | Near-silent operation | 60-90+ dB at typical load |
| Fuel logistics | None during discharge; recharges from grid or solar | Ongoing diesel delivery and storage |
| Response time | Instant power, no warm-up | Seconds to minutes to reach stable output |
| Runtime | Fixed by battery capacity, then needs recharge | Runs as long as fuel supply lasts |
| Best fit | Short-duration, indoor, or noise-restricted sites | Long, continuous loads with no grid access |
In practice, many sites pair the two instead of choosing one. First, a generator recharges the battery at its most efficient load point. Then it steps back while the Mobile BESS carries the load alone.
Because of this, the hybrid pattern can cut diesel use by roughly half. A generator that idles at partial load burns fuel poorly, so shifting the everyday load onto the battery saves real money over a multi-week job.
Mobile BESS Use Cases
Mobile BESS units solve an old problem in a new way. They provide temporary power where the grid hasn’t arrived yet, isn’t reliable, or isn’t allowed. Overall, six use cases account for most deployments today.
Construction Sites
Construction is the largest single market for mobile storage. Grid interconnection applications often take three to nine months, so a Mobile BESS closes that gap right away.
It can power tower cranes, welding gear, site offices, and electric machinery from day one. Because it makes no exhaust, crews can also run it in tunnels and basements, where diesel fumes would be unsafe.
Events and Film Production
Concerts, festivals, and film sets need power that stays out of the way. A Mobile BESS delivers clean sine-wave output and stays under roughly 55 dB, so it won’t hum in a live recording or flicker a sensitive light rig.
Simply put, a generator can’t match that at the power levels these shoots need.
Mobile BESS for Disaster Relief
When storms or wildfires knock out power lines, crews can truck in units within hours. They power emergency radios, medical gear, and temporary shelters, often arriving before utility crews finish permanent repairs.
Data Center Maintenance Windows
Data centers sometimes need to take a UPS or switchgear segment offline for maintenance without losing backup coverage. A Mobile BESS can stand in during that window, then leave once the permanent system is back online.
Mobile BESS for Grid Support
Utilities and developers increasingly use these units for temporary grid services: voltage support, short-term capacity, or bridging power for a solar or wind project still waiting on its permanent interconnection agreement. As a result, a finished generation asset keeps earning instead of sitting idle.
EV Charging Support
Pop-up EV charging is one of the fastest-growing uses. Because a Mobile BESS can buffer a weak grid connection, it can still deliver fast-charging bursts at events or in areas the grid hasn’t fully reached.
Mobile BESS Sizing and Chassis Configurations
Capacity varies widely, and the right size depends entirely on the job. Understanding a few typical bands makes it much easier to spec the right unit.
Chassis Types and Capacity
Compact truck-mounted units typically sit around 90 kWh. Power Up Connect’s Green Grid trailer is a good example: it carries UL 9540 and UL 9540A certification, and operators can daisy-chain up to 10 units for bigger jobs.
Meanwhile, mid-size trailer units generally run from about 250 kWh to 650 kWh. This band covers most construction and event work.
Utility-scale trailers sit at the top end. They often exceed 800 kWh and sometimes reach 2 MWh per unit. These usually ride on a 20-foot container platform or a dedicated semi-trailer, so teams can string several together for multi-megawatt-hour jobs.
| Chassis Type | Typical Range | Best Fit |
| Compact flatbed / skid | ~90 kW – 300 kWh | Small job sites, single-piece equipment, light-load events |
| Drawbar trailer | ~250 kW – 650 kWh | Mid-size construction sites, festivals, multi-generator replacement |
| Container semi-trailer | 800 kWh+ up to ~2 MWh | Utility-scale temporary power, large events, grid-support deployments |
Road weight limits usually cap a single trailer’s size, not the battery technology itself. So past roughly 1-2 MWh, it’s typically easier to deploy multiple units side by side than to push one chassis larger.
Battery Chemistry and Cooling
LFP (lithium iron phosphate) leads this segment for good reason. It handles the shaking and heat swings of repeated transport well. Plus, its long cycle life (commonly rated 6,000-8,000+ cycles) suits frequent redeployment far better than higher-energy but less forgiving chemistries.
Smaller units, roughly under 300 kWh, typically use air cooling. It keeps the system light and easy to fix in the field.
Larger, higher-power trailers, however, generally switch to liquid cooling instead, since it manages heat better. This is the same crossover point used in stationary BESS design.
Chassis engineering: Dual-axle running gear, mechanical braking, and vibration-dampening brackets protect the battery pack through highway travel and rough job-site terrain. The chassis itself needs proper axle load ratings, DOT-compliant lighting and braking, and secure tie-down points.
Mobile BESS Safety and Compliance
A Mobile BESS still has to meet the same fire-safety and transport rules as any lithium battery system. However, it does earn a few specific carve-outs because it moves.
NFPA 855 Rules
NFPA 855, the Standard for the Installation of Stationary Energy Storage Systems, defines mobile ESS in Section 3.3.9.5. It then sets installation rules in Section 4.5. The most important carve-out is this: wheeled or trailer-mounted units don’t need to meet the seismic and structural load rules that apply to permanent installations.
Even so, standard separation distances still apply. Deployments need at least 10 ft (3 m) from public ways, stored combustibles, and hazardous materials. They also need 50 ft (15 m) from tents or seating areas holding 30 or more people.
That said, an Authority Having Jurisdiction (AHJ) can reduce these distances if large-scale UL 9540A fire test data backs it up. Regardless, deployed mobile ESS still can’t go indoors, in covered parking garages, on rooftops, below grade, or under building overhangs.
UL 9540 Listing for Mobile BESS
Mobile units still need UL 9540 listing, the core safety standard for energy storage systems. They typically undergo UL 9540A large-scale fire testing too, just like a stationary installation.
In short, mobility doesn’t exempt the battery system from certification — it only changes the foundation and seismic rules. For the full installation breakdown, see our NFPA 855 guide.
Transport Testing Under UN 38.3
Before a Mobile BESS can ship, its cells and battery packs must pass UN 38.3. This set of eight tests simulates real transport conditions: altitude, thermal cycling, vibration, mechanical shock, short circuit, impact, overcharge, and forced discharge.
The vibration test alone runs a sweep from 7 Hz to 200 Hz for three hours. Next, a shock test simulates a 150g/6ms or 50g/11ms impact. That’s a tough bar, since this system gets driven over real roads again and again, not installed once and left in place.
Road Transport Rules
In the US, moving an assembled lithium battery system by highway falls under 49 CFR 173.185, part of the DOT’s Hazardous Materials Regulations. Since it classifies lithium batteries as Class 9 dangerous goods, compliance means UN-spec packaging, correct labels, and proper shipping papers.
A good provider keeps UL 9540 listing documents and UN 38.3 test summaries ready on request. You shouldn’t have to wait while a provider scrambles for paperwork after a jurisdiction asks for it.
Certification Varies by Export Market
It’s also worth noting that certificates differ by market, not just by product. US and Canadian buyers look for UL 1973, UL 9540, and UL 9540A. EU buyers need CE marking plus IEC 62619 or IEC 62933. China requires CCC, Korea requires KC, India requires BIS, and Japan requires PSE. UN 38.3 applies everywhere, since it covers transport rather than installation. For the full regional breakdown, see our BESS certifications guide.
Mobile BESS vs. Stationary BESS
| Factor | Mobile BESS | Stationary BESS |
| Installation | Deployed in hours; no permanent foundation | Weeks to months; foundation and permitting |
| Relocation | Built to move between sites | Fixed for the life of the asset |
| Typical use case | Temporary power, events, emergency response | Long-term grid support, solar firming |
| Seismic requirements | Exempt when on a wheeled chassis | Full seismic design required |
| Capacity ceiling | Practical limit near 1-2 MWh per trailer | Scales to tens or hundreds of MWh |
| Cost structure | Often rented per deployment | Capital asset with long depreciation |
Choosing a Mobile BESS Provider
Providers increasingly sell Mobile BESS as a service rather than as a capital purchase. Because of that, the ownership model matters just as much as the hardware spec sheet.
- Rental / deployment-based pricing — pay per project or per month, and the provider handles maintenance and recharge logistics
- Battery-swap service — the provider delivers a fully charged replacement unit and takes the depleted one away, so on-site recharging is never your problem
- Hybrid generator pairing — for sites where full battery replacement isn’t practical yet, running the BESS alongside a generator can still cut fuel use by roughly half
- Outright purchase — makes sense when your organization deploys often enough that utilization beats rental economics
Before committing, it’s worth asking any provider a few direct questions:
- Is the unit UL 9540 listed and UN 38.3 tested, with documentation available on request?
- What is the actual site commissioning time, door-to-power-on, not just “rapid deployment” marketing language?
- What is the noise rating at rated load, and is it independently measured or a vendor estimate?
- Is the enclosure rated for indoor or enclosed-space use, or is it outdoor-only?
- What happens if the unit needs service mid-deployment? Is there a swap or backup unit guarantee?
- What’s included in the rental rate: transport, commissioning, decommissioning, and recharge, or are these billed separately?
- Does the chassis carry standard DOT lighting, braking, and axle certifications for your transport route?
Mobile BESS Market Outlook
Fortune Business Insights values the mobile energy storage system market at $58.28 billion in 2025, and projects it will reach $207.03 billion by 2034. That’s a compound annual growth rate above 15%.
Several trends are driving this growth. For one, utilities and developers are swapping out diesel generators to cut emissions and noise complaints. At the same time, falling LFP battery costs make the switch more affordable each year.
Longer grid interconnection queues are pushing more projects toward temporary bridging power, too. And a growing rental and battery-swap model is lowering the barrier for construction and events firms that don’t want to own the asset outright.
So for project developers, the takeaway is simple. Mobile BESS has moved from a niche disaster-relief tool to a mainstream option, one worth considering any time a site needs power before, instead of, or alongside a permanent grid connection.
Mobile BESS Key Takeaways
| Aspect | Key Point |
| Definition | A Mobile BESS is a trailer-, truck-, or skid-mounted battery storage system built for temporary deployment. |
| Chemistry | LFP dominates for thermal stability and 6,000-8,000+ cycle life. |
| Cooling | Air cooling under ~300 kWh; liquid cooling for larger, high-power units. |
| Sizing | Ranges from ~90 kWh truck units to 2 MWh utility-scale trailers. |
| Safety code | NFPA 855 Section 4.5 governs mobile ESS; seismic rules are waived on wheeled chassis. |
| Listing | UL 9540 listing and UL 9540A fire testing still apply. |
| Transport | Cells must pass UN 38.3 testing; US highway moves follow 49 CFR 173.185. |
| Market | Projected to grow from $58.28B (2025) to $207.03B (2034), a 15%+ CAGR. |
Frequently Asked Questions
What Is a Mobile BESS Used For?
A Mobile BESS gives temporary, emission-free power for construction sites, live events, film sets, disaster relief, data center maintenance, EV charging, and short-term grid support. In short, it fits anywhere a diesel generator would normally go, but noise, exhaust, or setup speed favor a battery instead.
How Long Does a Mobile BESS Run Before Recharging?
Runtime depends on the battery’s energy capacity relative to the connected load, not a fixed number. Typically, a mid-size unit in the 250-650 kWh range can run critical loads for several hours to a full day before it needs recharging.
Providers usually size the system to match the job’s load profile. Many also offer battery-swap or hybrid generator support for jobs that need power longer than a single charge allows.
Is It Safe to Transport on Public Roads?
Yes, as long as the system carries the right certification. Cells and battery packs must pass UN 38.3 testing before they ship. In the US, road transport then falls under 49 CFR 173.185, which classifies lithium batteries as Class 9 hazardous material.
The chassis itself also needs standard DOT lighting, braking, and axle certifications. A reputable provider keeps this paperwork ready on request.
Does NFPA 855 Apply to a Mobile BESS?
Yes. NFPA 855 defines and regulates mobile energy storage systems directly in Section 4.5. It exempts wheeled, trailer-mounted units from seismic and structural load rules, but UL 9540 listing, minimum separation distances, and site-specific electrical rules still apply.
What Battery Chemistry Do Most Units Use?
Lithium iron phosphate (LFP) leads this segment. It handles the shaking and heat swings of repeated transport well, and its long cycle life suits frequent redeployment better than most alternatives.
Further Reading
C&I vs. Utility-Scale Solar and BESS — how deployment scale shapes technology and economics.
Fast Frequency Response (FFR) — how BESS delivers grid ancillary services.
NFPA 855 Guide — full breakdown of the stationary and mobile ESS installation standard.
Understanding BESS Specifications — how to read capacity, power, and cycle-life ratings.
BESS PCS Functions and Features — what the power conversion system does inside any BESS, mobile or fixed.
BESS Certifications Guide — how UL, IEC, CE, and other regional certifications compare across export markets.
