Posts

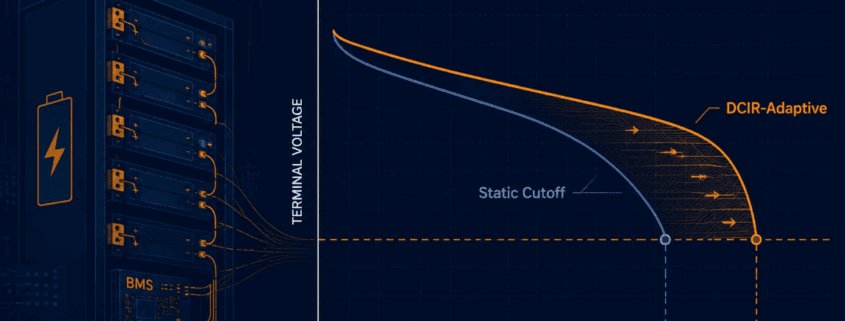

Diagram of battery racks on the left with a graph showing terminal voltage vs SOC, comparing DCIR-Adaptive and Static Cutoff curves (orange and blue).
Rahul Jalthar

Dynamic, DCIR-Adaptive Voltage Cutoff Design for LFP BESS

/0 Comments/in , /by

A static low-voltage cutoff pulls one fixed value from a cell datasheet. That single number is one of the most common reasons a BESS underdelivers its rated usable capacity. As direct current internal resistance (DCIR) rises with cell age, it also rises as temperature drops. The voltage sag under load grows along with it. A fixed cutoff trips earlier and earlier in the discharge curve, even though the cell still has real, recoverable capacity left. This article walks through how to design a DCIR-adaptive cutoff instead. It covers the test data it requires, the lookup-table structure a BMS actually implements, and the throughput recovered as a result.

⚡ Quick Answer
A DCIR-adaptive cutoff replaces one fixed trip voltage with a value calculated in real time. It pulls current and a resistance value from an HPPC-derived lookup table, indexed by SOC, temperature, and cell age. This raises the effective cutoff trigger to match present-moment resistance, instead of a fresh-cell assumption — recovering up to 10% of effective throughput in mid-to-late project life that a static cutoff would otherwise strand.

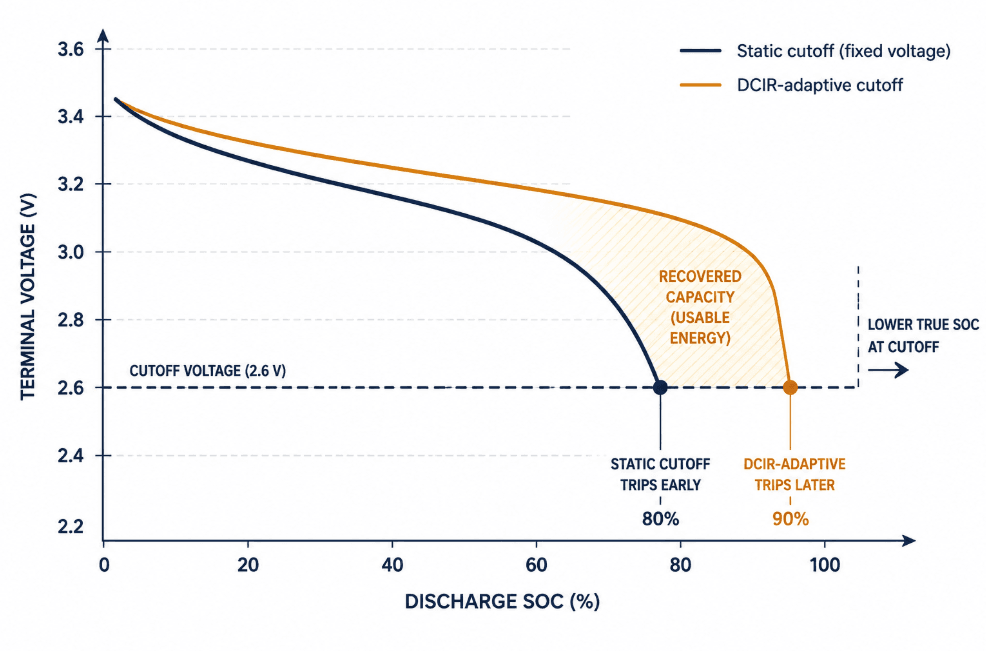

Chart showing how a DCIR-adaptive cutoff trips later than a static cutoff as cell resistance rises with age and cold temperature

Why a Fixed Cutoff Voltage Is the Wrong Design Choice

A discharge cutoff exists to stop the pack before any cell drops below its safe minimum voltage — commonly 2.5V per cell for LFP. The problem is where that voltage gets measured. Terminal voltage under load equals open-circuit voltage minus the resistive sag: V(terminal) = V(OCV) − I × DCIR. A fresh cell with 0.15 mΩ DCIR sags very little even at high current. The same cell after several thousand cycles sags far more. Its DCIR has risen to 0.3–0.5 mΩ, and it sags two to three times as much at identical current. So the BMS reaches the 2.5V trip point at a meaningfully higher residual state of charge, even though the cell’s actual OCV-based SOC has not changed.

Temperature compounds this effect further. Internal resistance rises sharply as cell temperature falls. Ion mobility slows down in the cold, both in the electrolyte and at the electrode interface. A cutoff threshold validated only at 25°C on a fresh cell will trip early on both counts, in a cold, aged pack. Sometimes this strands 10–15% of nameplate capacity that the cell was never actually short of.

Building the DCIR-SOC-Temperature Map for a DCIR-Adaptive Cutoff

The data foundation for a DCIR-adaptive cutoff is Hybrid Pulse Power Characterization (HPPC) testing. This methodology was developed under the US Department of Energy’s USABC/PNGV programs. It is now standard practice across automotive and stationary storage cell qualification. HPPC applies paired discharge and charge current pulses at fixed SOC steps, typically every 10% of capacity. It runs this across a matrix of test temperatures, and measures the resulting voltage response to extract resistance at each point. This is the same underlying test data an EKF SOC estimation design uses to build its own equivalent circuit model. A project running one HPPC campaign can feed both efforts from a single test matrix.

  • Discharge the cell to each target SOC step and allow it to rest until voltage stabilizes.
  • Apply a short current pulse (commonly 10 seconds) at the rated or peak discharge current and record the instantaneous voltage drop.
  • Calculate DCIR at that SOC and temperature as ΔV divided by the pulse current.
  • Repeat across the full SOC range and across a temperature matrix spanning the system’s expected operating envelope, from cold-climate minimums to peak ambient.
  • Repeat the full test periodically through a cycle-aging program to capture how the resistance surface shifts with cell age, not just with SOC and temperature.

The output is a three-dimensional resistance surface — DCIR as a function of SOC, temperature, and cycle count or SOH — rather than a single number. This surface is what the BMS firmware references at runtime instead of a fixed cutoff voltage.

From Resistance Surface to a DCIR-Adaptive Cutoff Lookup Table

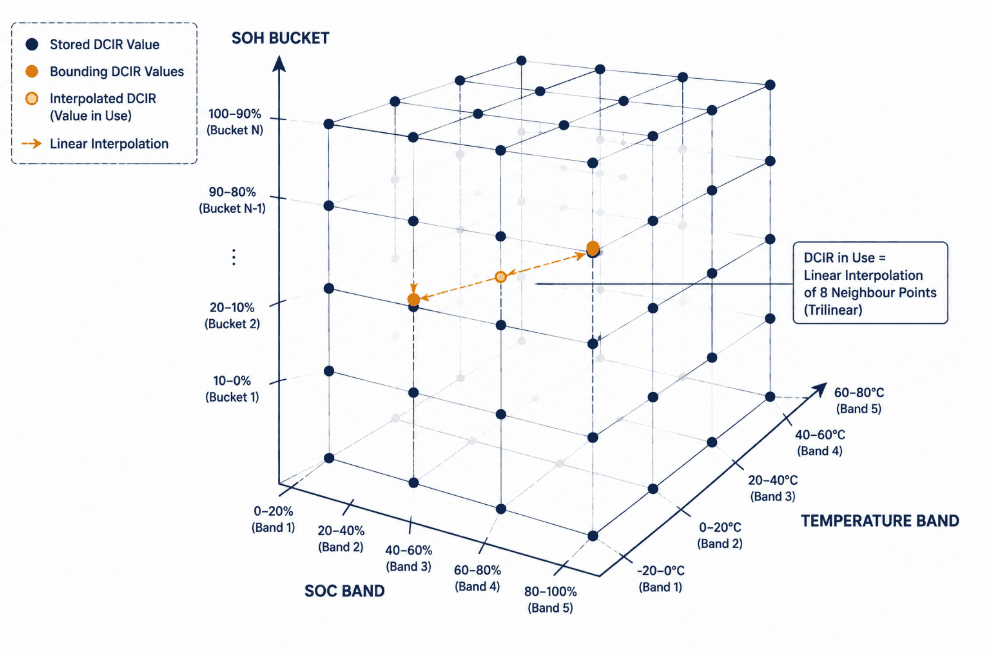

3D lattice diagram showing DCIR in use via trilinear interpolation of eight neighbour points; axes are SOC band, temperature band, and SOH bucket, with an orange dashed line tracing the interpolation path between points on the cube surface.

Translating HPPC data into a working DCIR-adaptive cutoff requires converting the continuous resistance surface into a discrete lookup table. This table has to be one the firmware can query in real time, without heavy onboard computation.

Structuring the Lookup Table

A practical implementation follows this structure:

  • Index the table by SOC band (e.g., 10% steps), temperature band (e.g., 5°C steps), and a coarse SOH bucket (e.g., every 500–1,000 cycles or a measured capacity-fade threshold).
  • Store a DCIR value at each grid point, interpolating linearly between points at runtime rather than storing every possible combination.
  • Calculate the adjusted cutoff voltage in real time as V(cutoff, adjusted) = V(cutoff, minimum) + I(measured) × DCIR(SOC, T, SOH) — raising the effective cutoff trigger point to reflect present-moment resistance rather than a static assumption.
  • Apply hysteresis around the cutoff transition to prevent the BMS from oscillating between discharge-enabled and discharge-disabled states as current and resistance fluctuate near the boundary.
  • Re-anchor the SOH bucket periodically using either a full capacity test or a DCIR-trend proxy, since resistance growth is one of the standard leading indicators for SOH estimation without requiring a full discharge test.

Using resistance trend as an SOH proxy rather than running a full capacity test lines up with current battery-health research: a recent review of experimental health-assessment methods for lithium-ion cells names pulse-based resistance testing among the practical indicators for tracking degradation without the time and equipment cost of a full discharge cycle.

How Static and DCIR-Adaptive Cutoffs Compare

Reference pointSingle fixed voltage from cell datasheetReal-time calculated voltage adjusted for measured current × DCIR
Temperature handlingAssumes room-temperature test conditionsIndexed by temperature band from HPPC matrix
Aging handlingFixed for asset lifeIndexed by SOH bucket; re-anchored periodically
Typical result at 1C, mid-to-late project life10–15% of nameplate capacity strandedRecovers up to 10% of effective throughput
Data sourceCell datasheet single-point specHPPC test matrix across SOC × temperature × cycle count

Where the Recovered Throughput Comes From

The revenue case for this design change is straightforward. DCIR-driven voltage sag can shrink the usable SOC window by roughly 10–15% in mid-to-late project life, at high C-rates. Our 0.5C vs 1C cycle life analysis puts a number on the recoverable share of that: a DCIR-adaptive cutoff recovers up to 10% of effective throughput in mid-to-late project life. It does this by letting discharge continue closer to the cell’s true low-SOC limit, rather than tripping on resistance alone. Over a multi-year asset life, this compounds. Every cycle that discharges 10% deeper than a static cutoff would have allowed is 10% more throughput on that cycle. Multiply that across thousands of cycles. For dispatch-contracted or market-facing assets, this also improves bid accuracy. The state-of-charge and state-of-power figures reported to the EMS more closely match what the pack can actually deliver under load.

Implementation Notes and Common Pitfalls

Don’t confuse SOC estimation with cutoff calibration

A DCIR-adaptive cutoff corrects for resistance-driven voltage sag; it does not replace the underlying SOC estimation algorithm. An accurate EKF-based SOC estimate can still trip early under load if the cutoff voltage itself is static. Both layers need attention. For the estimation side of this problem, including how a biased SOC output can itself shift where a DCIR-adaptive cutoff trips, see our EKF SOC estimation design guide. SOC estimation accuracy and cutoff voltage adaptivity solve different problems that happen to share the same root cause in LFP’s flat OCV curve.

Validate That the DCIR-Adaptive Cutoff Doesn’t Mask Genuine Cell Faults

A DCIR-adaptive cutoff must still tell apart two different things. One is normal, predictable resistance growth. The other is an abnormal resistance spike from a developing fault — a loose busbar connection, a failing weld, or accelerated local aging tied to in-service cell imbalance. Cross-check measured DCIR against the expected value from the lookup table, rather than blindly applying the adjustment. This lets the BMS flag anomalies instead of quietly adapting around them.

Size cooling and current limits around end-of-life DCIR, not fresh-cell DCIR

The same resistance surface that feeds the cutoff table should also inform thermal design margin and current-limiting logic. Heat generation scales with resistance and the square of current. Designing cooling capacity around fresh-cell impedance under-sizes the system for the DCIR it will actually see in year eight or ten. None of these three systems — cutoff logic, SOC estimation, and imbalance control — should run as fully isolated modules. Our integrated BMS control architecture guide covers how to share DCIR, current, and temperature state across all three.

Key Takeaways

A fixed low-voltage cutoff ignores the fact that DCIR rises with both cell age and cold temperature, which strands usable capacity that the pack technically still has. HPPC testing across a SOC × temperature × cycle-count matrix is the standard method for building the resistance data a DCIR-adaptive cutoff needs. The firmware implementation is a lookup table with linear interpolation, not a continuous real-time model — this keeps the calculation lightweight enough for BMS hardware. A DCIR-adaptive cutoff recovers up to 10% of effective throughput in mid-to-late project life, most of the capacity that would otherwise sit stranded behind a static, resistance-blind trip point. Cutoff adaptivity and SOC estimation accuracy are separate problems. Both trace back to LFP’s flat voltage curve. Fixing one does not fix the other.

Frequently Asked Questions

Is a DCIR-adaptive cutoff a firmware-only change, or does it require new hardware?

In most cases it is a firmware and calibration-data change rather than a hardware change, provided the BMS already measures cell voltage and pack current with sufficient resolution and sampling rate. The work is in generating the HPPC-derived lookup table and implementing the interpolation and hysteresis logic, not in adding sensors.

How often does the resistance lookup table need to be re-validated?

A practical cadence ties re-validation to SOH milestones rather than a fixed calendar interval — for example, every 500–1,000 cycles or whenever a capacity or DCIR trend crosses a defined threshold. Systems with continuous DCIR trending can trigger table updates automatically rather than requiring a manual test campaign.

Does a DCIR-adaptive cutoff increase the risk of over-discharging a cell?

No, when implemented correctly. The adjustment raises the effective cutoff trigger voltage to compensate for load-induced sag. It does not lower the cell’s true minimum safe voltage. That real, OCV-based SOC is still where the cell trips. The BMS is simply better at recognizing where that point is under load, instead of confusing resistive sag for depleted charge.

References

•  HPPC Test Procedure — Hybrid Pulse Power Characterisation methodology originating from the USABC/PNGV development program.

•  Experimental Methods, Health Indicators, and Diagnostic Strategies for Retired Lithium-ion Batteries: A Comprehensive Review, arXiv preprint.

•  Systematic Characterization of Lithium-Ion Cells for Electric Mobility and Grid Storage, MDPI Batteries.

Further Reading

0.5C vs 1C Cycle Life for Liquid-Cooled BESS

EKF SOC Estimation Design for LFP BESS

Designing Against In-Service Cell Imbalance in LFP BESS

Integrated BMS Control Architecture

Diagram of an EKF SOC estimation pipeline showing HPPC pulse data feeding an equivalent circuit model and Kalman filter correction loop for LFP cells
Rahul Jalthar

EKF SOC Estimation Design for LFP BESS: Model Parameterization and Covariance Tuning

/4 Comments/in , /by

Every BESS reports a state of charge number to its EMS. That number drives dispatch. It drives revenue. It drives warranty math too. Good EKF SOC estimation design keeps that number honest. It stays honest even as cells age. It stays honest as temperatures shift and load patterns change. This guide covers steps most SOC articles skip. First, build the model. Then fit it from test data. Then tune the filter so it corrects errors fast, without chasing sensor noise.

⚡ Quick Answer
EKF SOC estimation design means building a circuit model of the cell from HPPC test data, then tuning the Kalman filter so it trusts the model at rest and trusts the sensors under load. Get the model wrong, or the tuning wrong, and the filter either drifts like open-loop counting or jumps around on every current spike.
Diagram of EKF SOC estimation design showing HPPC data feeding an equivalent circuit model Title: EKF SOC Estimation Design Process Diagram

From HPPC Data to an Equivalent Circuit Model

An EKF cannot estimate what it cannot model. So the first step in EKF SOC estimation design is building an equivalent circuit model, or ECM. This model describes how terminal voltage responds to current. A simple, first-order ECM uses three parts: an open-circuit voltage source, a series resistance, and one resistor-capacitor pair for voltage relaxation. Many BESS projects use a second-order ECM instead. That adds a second RC pair. It separates fast charge-transfer effects from slower diffusion effects.

Extracting Parameters from Pulse Data for EKF SOC Estimation Design

HPPC testing supplies the raw data for this step. It is the same pulse-and-rest method used to build a DCIR lookup table for a dynamic cutoff. Each pulse reveals resistance from the instant voltage step. It reveals RC time constants from the relaxation curve after. Good EKF SOC estimation design fits these parameters at every SOC and temperature step in the test matrix. Do not fit just once at a nominal point. LFP’s resistance shifts across the full range, and so does its relaxation behavior.

Why the Flat OCV Curve Still Matters

LFP’s OCV-SOC curve is flat between 20% and 80%. This is why Coulomb counting and OCV lookup drift on their own. It is also why EKF SOC estimation design must treat the OCV-SOC table as a core model input, not an afterthought. A weak OCV curve in the flat zone gives the filter almost nothing to correct against, right where correction matters most.

Tuning the Filter: The Core of EKF SOC Estimation Design

Chart comparing SOC estimation behavior when process covariance Q is too high versus measurement covariance R is too high

This filtering approach builds on the adaptive extended Kalman filter method for battery state estimation, adapted here specifically for LFP’s flat OCV-SOC curve. For the three underlying SOC methods this design builds on, our BMS SOC estimation methods guide covers OCV lookup, Coulomb counting, and Kalman filtering at a conceptual level. Once the ECM exists, the filter itself needs tuning. Two settings control its behavior. Process noise covariance, called Q, sets how much the filter trusts its own model between updates. Measurement noise covariance, called R, sets how much it trusts each voltage reading. Together, these two numbers set the correction strength. This step is the heart of real EKF SOC estimation design work.

What Happens When Q Is Too High

A high Q value tells the filter its model cannot be trusted. So it leans hard on every voltage sample instead. But on LFP’s flat curve, that sample carries almost no SOC signal across most of the range. The estimate turns noisy and jumpy during normal cycling. This is a common failure. The filter looks fine on a bench test. Then it behaves badly once deployed against real load profiles.

What Happens When R Is Too High

The opposite mistake sets R too high. That tells the filter to distrust the voltage reading. The estimate then acts like open-loop Coulomb counting. It drifts slowly over days, since it never truly corrects against sensor data. Both mistakes produce the same bad outcome: a confident but wrong SOC number. That is worse for dispatch accuracy than a system that visibly struggles.

A Practical Starting Point for Tuning

Start Q and R from real numbers. Use your measured sensor noise floor. Use your HPPC fit residuals. Then adjust by testing against a validation cycle the model has not seen before. An adaptive approach helps too. Let R scale up automatically during high-current transients, when voltage sag dominates the signal. This improves robustness without manual retuning for every duty cycle.

Where Estimation Error Spreads to the Other Two Problems

EKF SOC estimation design does not stand alone. A biased estimate feeds two other systems directly. First, it distorts the balancer’s target. If the estimator reports a false high SOC on one cell, the balancer under-corrects a real gap, and that gap grows — see our in-service cell imbalance guide for how that plays out at the pack level. Second, it distorts cutoff logic. For the full LFP-specific voltage and temperature parameters this estimator design has to respect, see our BMS for LiFePO4 batteries guide. A DCIR-adaptive cutoff uses the same current and temperature inputs the estimator uses. A wrong SOC estimate near empty can trigger a cutoff too early, or too late, relative to the cell’s true state.

This is why SOC estimation belongs beside cell balancing and cutoff design, not as a separate topic on its own. The three systems share inputs. In a well-built BMS, they should share state too, not run as separate, disconnected modules— our integrated BMS control architecture guide covers how to build that shared state layer.

Validating EKF SOC Estimation Design Before Deployment

EKF SOC estimation design is not finished once tuning looks good on paper. Before field deployment, test the tuned filter against a real dispatch profile. Do not just replay the HPPC pulse sequence. A filter can track a clean pulse test well, then still fail on a real profile full of irregular current swings. At the end of validation, compare the filter’s estimate against a full charge-discharge cycle. That full cycle gives a true anchor point. The filter’s own reported error cannot hide from it.

Re-Validating EKF SOC Estimation Design as Cells Age

ECM parameters from beginning of life will not hold for the system’s full service life. Resistance grows. Capacity fades. So the same periodic HPPC re-test that refreshes a DCIR-adaptive cutoff table should also refresh the EKF’s model. Tie both refresh cycles to one shared SOH milestone. That keeps the estimator and the cutoff logic working from the same, current view of the pack.

Key Takeaways

EKF SOC estimation design starts with a circuit model fitted from HPPC pulse data, across the full SOC and temperature matrix. Process and measurement covariance tuning decides whether the filter trusts its model or its sensors, and getting either one wrong produces a noisy or a slow-drifting estimate. SOC estimation error never stays contained. It spreads into balancing decisions and cutoff timing too. Re-validate the model often, on the same schedule as other resistance-based BMS recalibrations.

Frequently Asked Questions

Does EKF SOC estimation design need a first-order or second-order model for LFP?

A second-order model captures LFP’s diffusion behavior more accurately. It is standard for utility-scale and precision work. A first-order model is lighter on BMS processing budget. It can be enough for smaller residential systems with lighter accuracy needs.

How often should the EKF model be re-tuned?

Tie re-tuning to the same SOH milestone used for other resistance-based recalibrations. That is commonly every 500 to 1,000 cycles, or whenever a capacity or resistance trend crosses a set threshold, rather than a fixed calendar date.

Can a poorly tuned EKF cause a false cutoff trip?

Yes. A dynamic cutoff calculates its trip voltage from the same current and modeled resistance the estimator uses. So a biased SOC estimate near empty can shift the effective cutoff point away from the cell’s true safe limit.
